What are the key features of the BMX-P820 barebone system?

The BMX-P820 features 14th Gen Intel® Raptor Lake-S Refresh (35W) processors, supports up to 64GB DDR5 4800MHz memory, includes dual Intel® Ethernet (i219LM, I226V), offers RealTek ALC897 Audio, provides triple display outputs (HDMI 1.4b 4K@30Hz, 2 x DP 1.4a 4K@60Hz), includes 3 x SATA III connectors, 8 USB ports, PCIe x16 expansion, M.2 slots, and built-in TPM 2.0 security.

What processor options are available for the BMX-P820?

The BMX-P820 supports Intel® Core™ i7-14700T and i5-14500T processors (35W), featuring the latest 14th Generation Intel® Raptor Lake-S Refresh architecture.

What expansion capabilities does the BMX-P820 offer?

The BMX-P820 provides robust expansion options including 1 x PCIe x16 slot (Gen4) supporting optional NVIDIA RTX 2000 Ada Generation graphics cards, 1 x M.2 E-Key 2230 (PCIe x1 + USB 2.0), 1 x M.2 M-Key 2242/2280 NVMe (PCIe x4 + SATA III), and 2 x internal 2.5" drive bays.

What are the dimensions and operating specifications of the BMX-P820?

The BMX-P820 measures 309 x 185 x 354mm (12.16"x 7.28"x 13.93"), operates in temperatures from 0°C to 40°C with 0.5m/s airflow, stores at -30°C to 70°C, and supports 95% relative humidity (non-condensing) at 40°C.

What is a barebone system and how does it differ from a complete computer?

A barebone system is a partially assembled computer that typically includes the chassis, motherboard, power supply, and cooling system, but lacks components like CPU, RAM, and storage drives. This allows customers to customize these critical components based on their specific requirements while still benefiting from the industrial design and thermal management of the overall system.

What are the advantages of barebone systems in industrial applications?

Barebone systems offer several advantages for industrial applications, including flexibility to configure CPU, memory, and storage according to specific requirements; cost-effectiveness by allowing customers to use existing components or choose based on budget; easier upgrades as technology evolves; and standardized industrial-grade chassis with thermal design optimized for harsh environments.

What operating systems are supported by these barebone systems?

These barebone systems typically support Windows 10, Windows 11, and various Linux distributions, providing flexibility to choose the operating system that best suits the industrial application requirements.

How long is the warranty period for barebone systems?

TSL Automation provides a standard 2-year warranty on all barebone systems, with options for extended warranty coverage. The warranty covers manufacturing defects and hardware failures under normal operating conditions as specified in the product documentation.

What is the difference between PCIe Gen 3 and Gen 4 in these systems?

PCIe Gen 4 doubles the bandwidth of PCIe Gen 3, from 8 GT/s (gigatransfers per second) to 16 GT/s per lane. This means a PCIe Gen 4 x16 slot provides approximately 32 GB/s of bandwidth compared to 16 GB/s for Gen 3. In industrial computing, this higher bandwidth improves performance for data-intensive applications like machine vision, AI processing, or high-speed data acquisition.

What is the purpose of watchdog timers in these industrial systems?

Watchdog timers are hardware circuits that monitor system operation and trigger a reset if the system hangs or becomes unresponsive. In industrial environments where reliability is critical, watchdog timers help ensure continuous operation by automatically recovering from software failures without human intervention, minimizing downtime in automated processes.

What are the advantages of fanless design in industrial computing?

Fanless design offers several advantages in industrial environments: increased reliability by eliminating moving parts that can fail; improved dust and particulate resistance; silent operation for noise-sensitive environments; reduced maintenance requirements; better protection against vibration and shock; and enhanced longevity in harsh conditions.

What components do I need to purchase separately to complete a barebone system?

To complete a barebone system, you typically need to purchase: a compatible CPU according to the system specifications, memory modules (DDR5 for these systems), storage devices (M.2 SSDs and/or 2.5" drives), and an operating system license. Depending on your application, you might also need wireless modules for the M.2 E-Key slot or expansion cards for the PCIe slot.

How do I install memory in these barebone systems?

To install memory: ensure the system is powered off and unplugged, remove the appropriate access panel, align the notch on the SODIMM module with the socket key, insert at a 45-degree angle, and press down until it clicks into place. For best performance, use matched pairs of memory modules in dual-channel configuration and refer to the specific system manual for supported memory specifications.

What is the proper way to install an M.2 SSD in these systems?

To install an M.2 SSD: power off and unplug the system, access the M.2 slot location, insert the SSD at a 30-degree angle aligning the notch with the socket key, gently press down, and secure with the mounting screw. Be sure to verify the correct length support (2242/2280) and interface type (PCIe/SATA) for your specific M.2 slot before installation.

What power considerations should I be aware of when installing these systems?

When installing these industrial barebone systems, ensure your power source matches the required specifications (either AC input or DC input depending on model), provide adequate surge protection, consider uninterruptible power supply (UPS) for critical applications, ensure proper grounding, and leave sufficient clearance around the system for power connector access and heat dissipation.

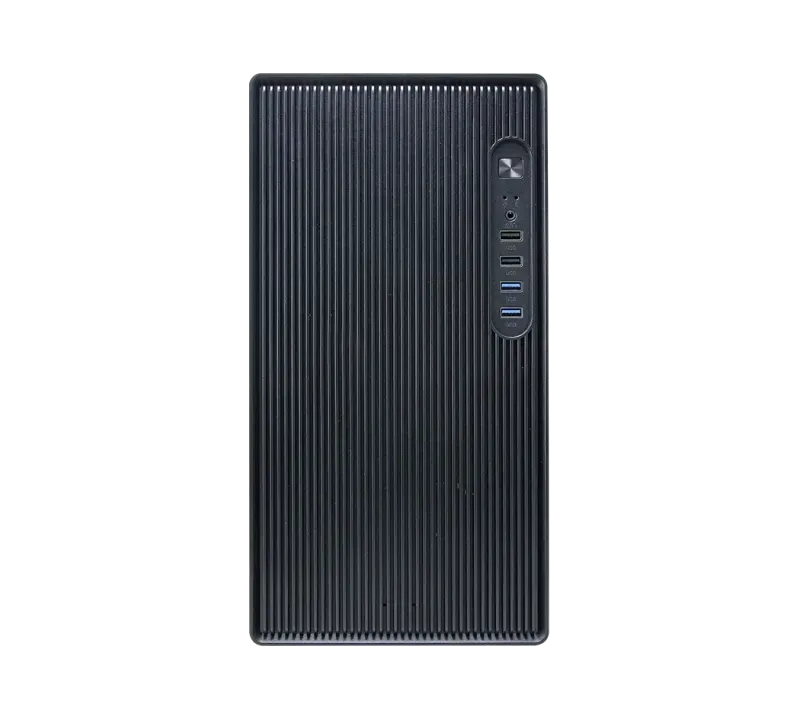

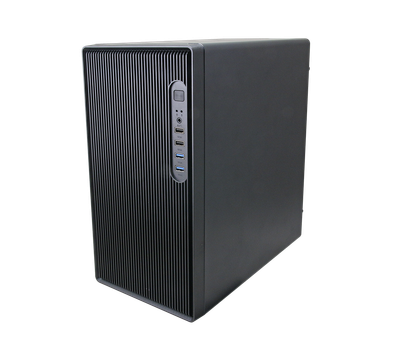

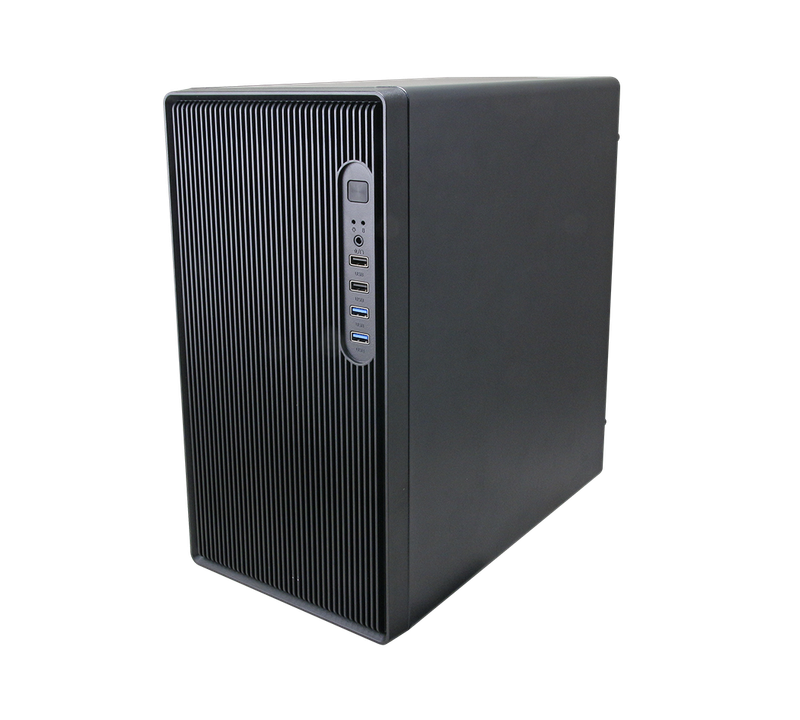

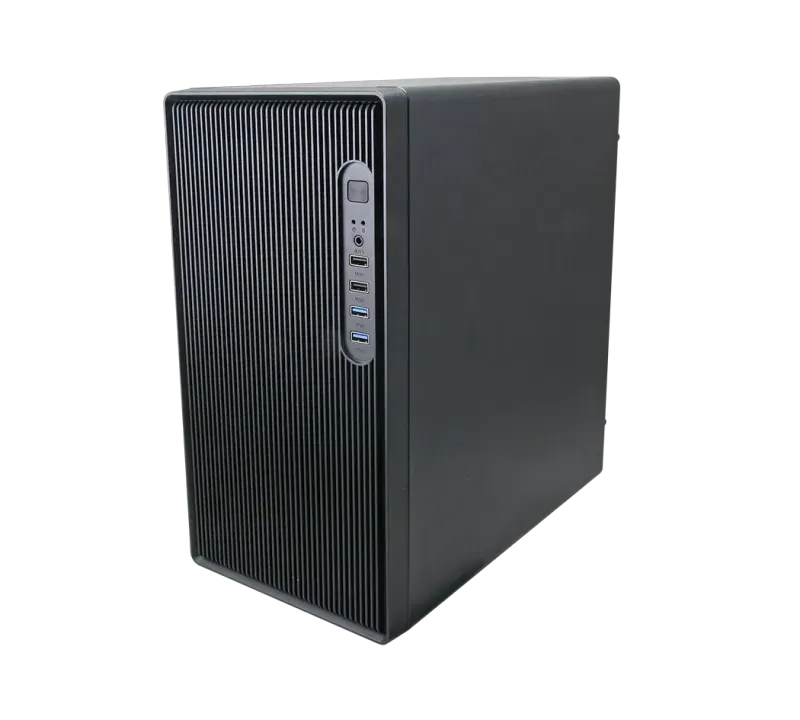

BMX-P820

*Price on request. Contact us for a quote.

Manufacturer: Avalue

14th Generation Intel® Raptor Lake-S Refresh (35 W ) Processors
Two 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 64GB Max. (non ECC only)
2 x Intel® i219LM, I226V Ethernet
RealTek ALC897 Audio Codec
1 x HDMI 1.4b 4K@30Hz, 2 x DP++ 1.4a 4K@60Hz
3 x SATA III
4 x USB 3.2 Gen1 x 1, 4 x USB 2.0 Type-A
1 x PCIe x16 (Gen4), 1 x M.2 M-Key 2242/2280 NVMe (PCIe x4 + SATA III), 1 x M.2 E-Key 2230 with CNVi Support (PCIe x 1 + USB 2.0)
Onboard infineon SLB 9670VQ2.0 support TPM2.0
3 x Audio (Mic in and Line out for Rear IO, Mic in/Line out for Front IO)
ATX power

Product Description

The Avalue BMX-P820 is a high-performance fanless barebone system powered by Intel® 14th Gen Core™ processors. Featuring robust I/O, dual LAN, TPM 2.0 security, and wide expansion capabilities, it is designed for industrial applications requiring reliable and scalable computing.

Technical Specifications

System Information

Processor

Intel® Core™ i7-14700T / i5-14500T Processor (35W)

Platform Controller Hub

Intel® H610E Chipset

System Memory

2 x 262-pin SO-DIMM DDR5 4800MHz up to 64GB

I/O Chipset

nuvoton NCT6126D

SBC

Mini-ITX (170mm x 170mm) MX160H

TPM

Onboard Infineon SLB 9670VQ2.0 TPM 2.0

BIOS Information

AMI 256Mb UEFI BIOS

Watchdog Timer

H/W Reset, 1 sec ~ 65535 sec

H/W Status Monitor

CPU Temperature and Voltage Monitoring with Auto Throttling

Expansion

M.2

1 x M.2 E-Key 2230 (PCIe x1 + USB 2.0)

PCIe

PCIex 16 (NVIDIA RTX 2000 Ada Generation graphic card, by optional)

Storage

M.2 Storage

1 x M.2 M-Key 2242/2280 NVMe (PCIe x4 + SATA III)

2.5 Drive Bay

2 x Internal 2.5” Drive Bay

Display

Graphic Chipset

Intel® UHD Graphics 770 (Depends on CPU)

Resolution

HDMI 1.4b 4K@60Hz

Dual Mode DisplayPort (DP++) 1.4a 4K@60Hz

Ethernet

LAN Chipset

1 x Intel® I219LM Gigabit Ethernet PHY

1 x Intel® i226V 2.5 Gigabit Ethernet

Audio

Audio Codec

Realtek ALC897

Power Requirement

Power Supply Unit

AC to ATX PSU

Voltage Input Spec.

+12V/+5V/5VSB/+3.3V/-12V (ATX power)

ACPI

Single power ATX support S0, S3, S4, S5

Power Mode

AT/ATX Mode (Default: ATX mode)

Voltage Input Connector

4P ATX connector

Power Mode

ATX power

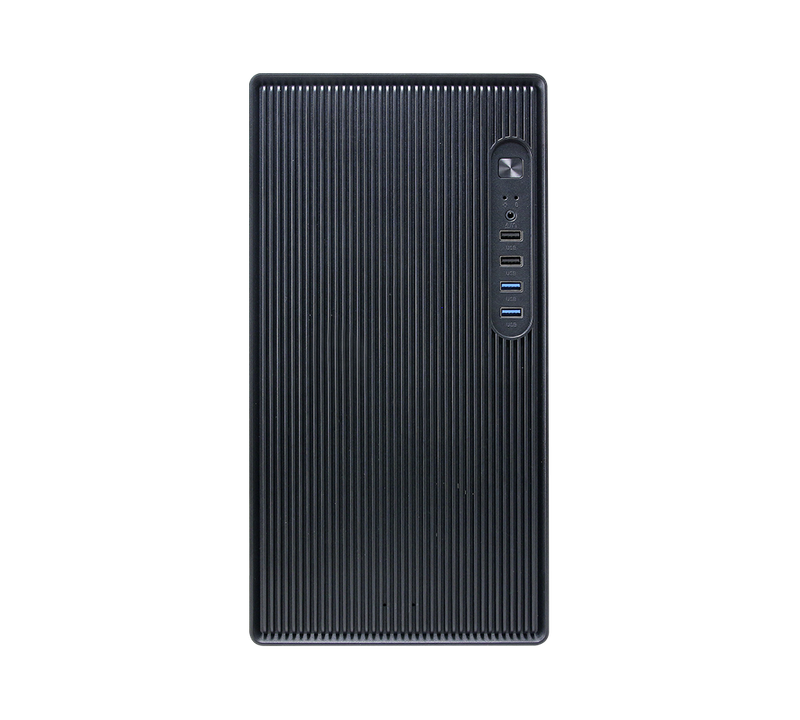

Front I/O

USB

2 x USB 2.0

2 x USB 3.2 (Gen 1 x 1)

Audio

x Audio jack(Mic in/Line out))

Power Button

1 x PWR

LED Indicator

1 x PWR LED

1 x Data Access LED

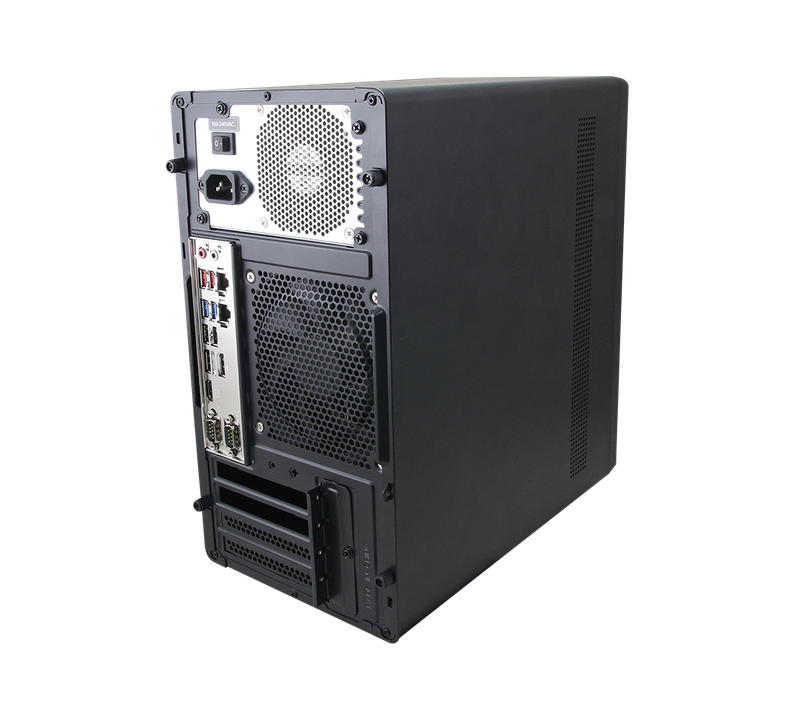

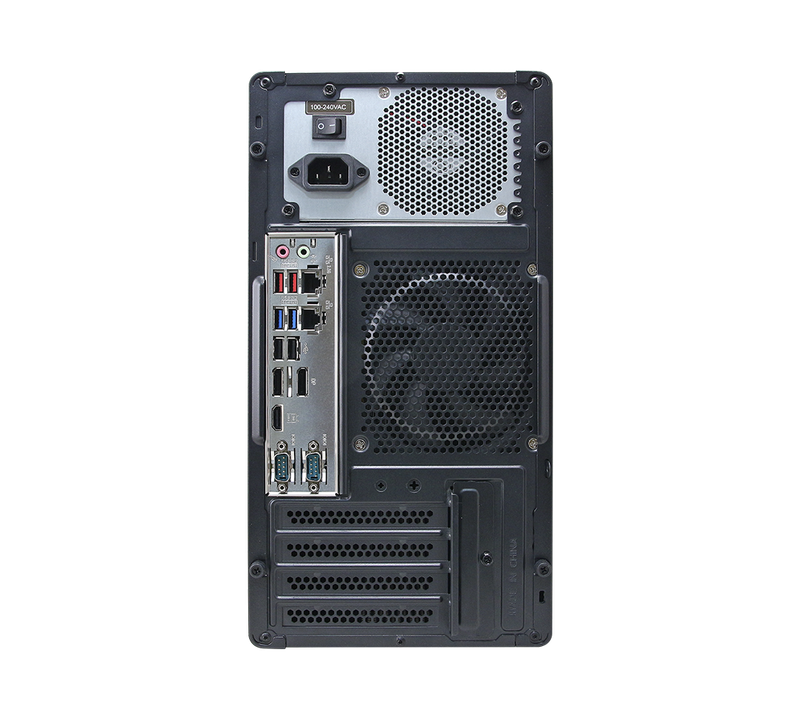

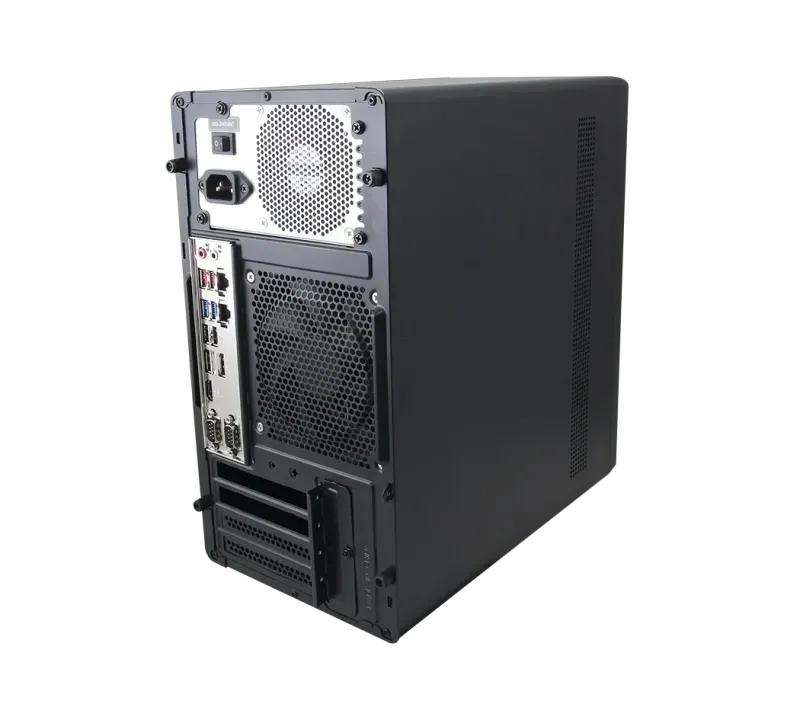

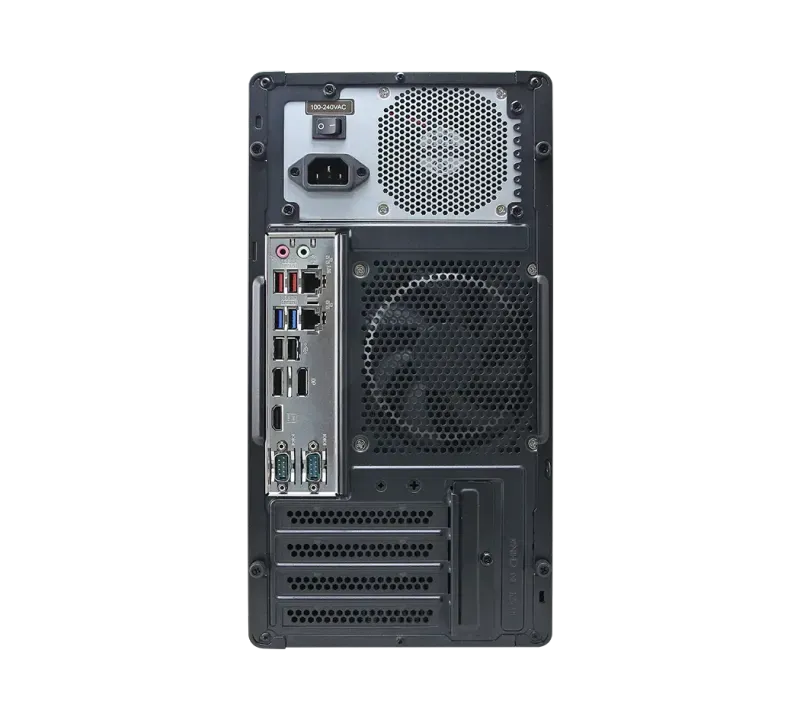

Rear I/O

USB

4 x USB 3.2 Gen1x1

2 x USB 2.0

COM Port

2 x RS-232/422/485

LAN Port

1 x Intel® I219LM Gigabit Ethernet PHY

1 x Intel® i226V 2.5 Gigabit Ethernet

DP

2 x Dual Mode DisplayPort (DP++) 1.4a 4K@60Hz

HDMI

1 x HDMI 1.4b 4K@30Hz

Audio

Mic-in, Line-out

Software Support

Operating System

Win10, Win11, Linux

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F) with 0.5m/s air flow

Storage Temp.

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension

309 x 185 x 354mm (12.16”x 7.28”x 13.93”)

Onboard I/O

CPU/System FAN

CPU FAN: Fanless

System FAN: 2 x SYS FAN

Packing List

1-BMX-P820

1 x AC 350W / 500W PSU (by opt.)

1 x Screws kit (For M.2, SATA 2.5” cables)

What is BMX-P820?

The BMX-P820 is a computing system manufactured by Avalue, designed specifically for barebone-system applications. The Avalue BMX-P820 is a high-performance fanless barebone system powered by Intel® 14th Gen Core™ processors. Featuring robust I/O, dual LAN, TPM 2.0 security, and wide expansion capabilities, it is designed for industrial applications requiring reliable and scalable computing.

Key Features & Benefits

14th Generation Intel® Raptor Lake-S Refresh (35 W ) Processors
Two 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 64GB Max. (non ECC only)
2 x Intel® i219LM, I226V Ethernet
RealTek ALC897 Audio Codec
1 x HDMI 1.4b 4K@30Hz, 2 x DP++ 1.4a 4K@60Hz
3 x SATA III
4 x USB 3.2 Gen1 x 1, 4 x USB 2.0 Type-A
1 x PCIe x16 (Gen4), 1 x M.2 M-Key 2242/2280 NVMe (PCIe x4 + SATA III), 1 x M.2 E-Key 2230 with CNVi Support (PCIe x 1 + USB 2.0)
Onboard infineon SLB 9670VQ2.0 support TPM2.0
3 x Audio (Mic in and Line out for Rear IO, Mic in/Line out for Front IO)
ATX power

Applications & Use Cases

The BMX-P820 is ideal for various industrial automation applications:

Industrial applications requiring reliable and scalable computing
DC-powered industrial installations and mobile applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Industrial computing and data processing
Edge computing and IoT applications

Frequently Asked Questions

Trusted Platform Module (TPM) 2.0 is a security chip that provides hardware-based cryptographic functions. In industrial computing, it enhances security by enabling secure boot, protecting encryption keys, ensuring platform integrity, and preventing unauthorized access to sensitive data. This is particularly important for industrial systems that may handle confidential manufacturing data or control critical infrastructure.

If the system doesn't power on: check power connections and ensure the power source is functioning, verify the power button connection, confirm the power supply is working (if applicable), check for any visible damage, ensure components like CPU and memory are properly seated, reset CMOS if possible, and if available, check status LEDs for diagnostic information. If these steps don't resolve the issue, contact technical support.

To diagnose memory issues: check if memory modules are properly seated, try using just one memory module at a time to identify a potentially faulty module, verify you're using compatible memory specifications (speed, type), check for POST codes or beep patterns indicating memory failures, and run memory diagnostic tests through the BIOS or a bootable diagnostic tool. Many memory issues can be resolved by reseating or replacing modules.

If display output isn't working: verify cable connections, check that the monitor is powered on and set to the correct input source, try alternative display outputs if available, ensure the system is fully booting (check power LEDs and listen for fan operation), confirm the CPU and graphics hardware is properly functioning, update graphics drivers if possible, and reset BIOS settings to default if necessary.

To resolve Ethernet connectivity issues: check physical cable connections, verify network configuration settings (IP address, subnet mask, gateway), ensure Ethernet ports are enabled in BIOS, test with different network cables, check for link LEDs indicating physical connection status, update network adapter drivers, reset network hardware (switches, routers), and disable/enable network interfaces in the operating system to reset connections.
