What processor options are available for the BMX-T550-B?

The BMX-T550-B supports Intel® 13th Gen Core™ i9/i7/i5/i3 Processors with both 35W TDP options (i9-13900TE, i7-13700TE, i5-13500TE, i3-13100TE) and 65W TDP options (i9-13900E, i7-13700E, i5-13500E, i3-13100E).

What storage options does the BMX-T550-B provide?

The BMX-T550-B offers 1 x M.2 Key-M 2242/2280 NVMe slot (PCIe x4, SATA3) and 2 x internal 2.5" drive bays (12.5mm), providing flexible storage configuration options.

What are the mechanical and environmental specifications of the BMX-T550-B?

The BMX-T550-B operates in temperatures from 0°C to 40°C with 0.5m/s airflow, stores at -30°C to 70°C, supports 95% relative humidity (non-condensing) at 40°C, measures 284 x 269 x 77 mm (WxLxH), weighs 4.7 kg, and passes vibration testing at 1.5 Grms and shock testing at 10G.

What is a barebone system and how does it differ from a complete computer?

A barebone system is a partially assembled computer that typically includes the chassis, motherboard, power supply, and cooling system, but lacks components like CPU, RAM, and storage drives. This allows customers to customize these critical components based on their specific requirements while still benefiting from the industrial design and thermal management of the overall system.

What are the advantages of barebone systems in industrial applications?

Barebone systems offer several advantages for industrial applications, including flexibility to configure CPU, memory, and storage according to specific requirements; cost-effectiveness by allowing customers to use existing components or choose based on budget; easier upgrades as technology evolves; and standardized industrial-grade chassis with thermal design optimized for harsh environments.

What operating systems are supported by these barebone systems?

These barebone systems typically support Windows 10, Windows 11, and various Linux distributions, providing flexibility to choose the operating system that best suits the industrial application requirements.

How long is the warranty period for barebone systems?

TSL Automation provides a standard 2-year warranty on all barebone systems, with options for extended warranty coverage. The warranty covers manufacturing defects and hardware failures under normal operating conditions as specified in the product documentation.

What is the difference between PCIe Gen 3 and Gen 4 in these systems?

PCIe Gen 4 doubles the bandwidth of PCIe Gen 3, from 8 GT/s (gigatransfers per second) to 16 GT/s per lane. This means a PCIe Gen 4 x16 slot provides approximately 32 GB/s of bandwidth compared to 16 GB/s for Gen 3. In industrial computing, this higher bandwidth improves performance for data-intensive applications like machine vision, AI processing, or high-speed data acquisition.

What is the purpose of watchdog timers in these industrial systems?

Watchdog timers are hardware circuits that monitor system operation and trigger a reset if the system hangs or becomes unresponsive. In industrial environments where reliability is critical, watchdog timers help ensure continuous operation by automatically recovering from software failures without human intervention, minimizing downtime in automated processes.

What are the advantages of fanless design in industrial computing?

Fanless design offers several advantages in industrial environments: increased reliability by eliminating moving parts that can fail; improved dust and particulate resistance; silent operation for noise-sensitive environments; reduced maintenance requirements; better protection against vibration and shock; and enhanced longevity in harsh conditions.

What components do I need to purchase separately to complete a barebone system?

To complete a barebone system, you typically need to purchase: a compatible CPU according to the system specifications, memory modules (DDR5 for these systems), storage devices (M.2 SSDs and/or 2.5" drives), and an operating system license. Depending on your application, you might also need wireless modules for the M.2 E-Key slot or expansion cards for the PCIe slot.

How do I install memory in these barebone systems?

To install memory: ensure the system is powered off and unplugged, remove the appropriate access panel, align the notch on the SODIMM module with the socket key, insert at a 45-degree angle, and press down until it clicks into place. For best performance, use matched pairs of memory modules in dual-channel configuration and refer to the specific system manual for supported memory specifications.

What is the proper way to install an M.2 SSD in these systems?

To install an M.2 SSD: power off and unplug the system, access the M.2 slot location, insert the SSD at a 30-degree angle aligning the notch with the socket key, gently press down, and secure with the mounting screw. Be sure to verify the correct length support (2242/2280) and interface type (PCIe/SATA) for your specific M.2 slot before installation.

What power considerations should I be aware of when installing these systems?

When installing these industrial barebone systems, ensure your power source matches the required specifications (either AC input or DC input depending on model), provide adequate surge protection, consider uninterruptible power supply (UPS) for critical applications, ensure proper grounding, and leave sufficient clearance around the system for power connector access and heat dissipation.

BMX-T550-B

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Intel® 13th Gen Core™ i9/i7/i5/i3 Processor (35W/65W)
Intel® H610E PCH
Intel® Iris® Xe/ UHD Graphics (CPU Dependent)
2 x Memory Socket (Capacity Max. Up to 64GB DDR5 4800)
3 x Display (HDMI 1.4b, 2 x DP 1.4a)
2 x Intel® Ethernet Controller (1GbE, 2.5GbE)
2 x Audio Jack (Mic-In, Line-Out)
2 x COM Port (2 x RSx232/422/485)
3 x Expansion Slot (M.2 Key-E, Key-M, PCIe x16)
8 x USB Port (4 x USB 3.2, 4 x USB 2.0)
Onboard dTPM 2.0 IC

Product Description

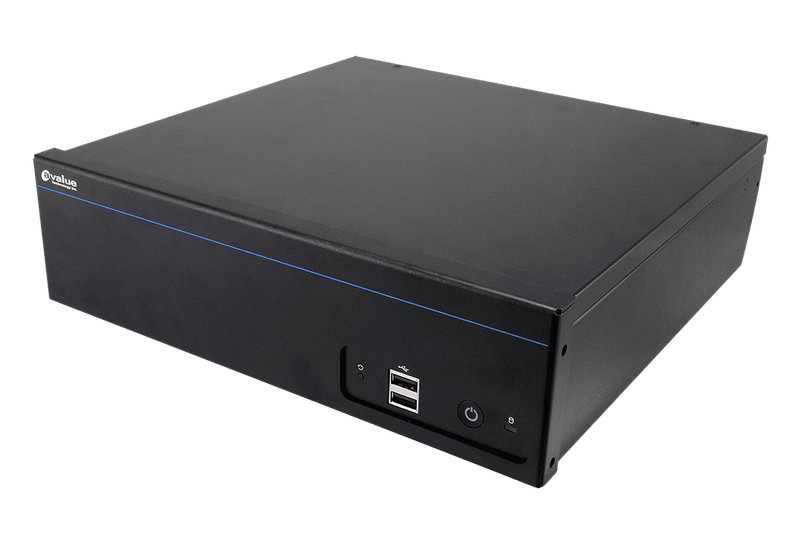

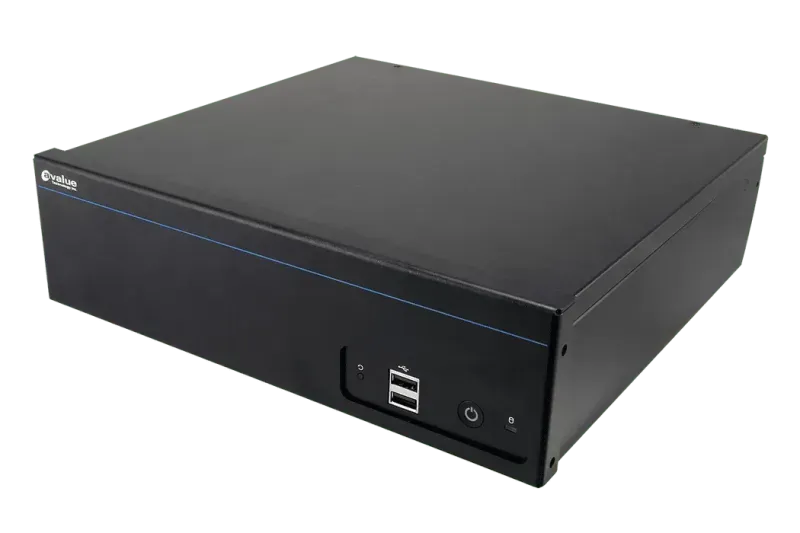

The Avalue BMX-T550-B is a high-performance barebone industrial computing system designed for demanding applications in harsh environments. It features a fanless design, wide temperature support, and multiple I/O options, making it ideal for industrial automation, transportation, and control systems.

Technical Specifications

System Information

Processor

Intel® 13th Gen Core™ i9/i7/i5/i3 Processor

35W TDP Processor

Intel® Core™ i9-13900TE Processor

Intel® Core™ i7-13700TE Processor

Intel® Core™ i5-13500TE Processor

Intel® Core™ i3-13100TE Processor

65W TDP Processor

Intel® Core™ i9-13900E Processor

Intel® Core™ i7-13700E Processor

Intel® Core™ i5-13500E Processor

Intel® Core™ i3-13100E Processor

Platform Controller Hub

Intel® H610E Chipset

System Memory

2 x SODIMM sockets support Dual Channel DDR5 4800MHz up to 64GB

BIOS Information

AMI uEFI BIOS, 256Mb SPI Flash ROM

Watchdog Timer

1 Sec ~ 255 Sec Timer

SBC

MX610H

TPM

dTPM 2.0

Mechanical & Environmental

Operating Temperature

0°C~40°C (32°F~104°F) with 0.5m/s air flow

Storage Temperature

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

284 mm x 269 mm x 77 mm

Weight

4.7 kg

Vibration Test

With SSD : 1.5 Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 0.5hr/axis

Shock Test

With SSD : 10 G, IEC 60068-2-27, Half Sine, 11ms

Mounting Kit

Robber foots for horizontal

Expansion

M.2

1 x M.2 Key-E 2230 CNVi (PCIe x 1, USB 2.0)

1 x M.2 Key-M 2242/2280 (PCIe x 4)

PCIe

1 x PCIe x 16(Gen 4)

Storage

M.2

1 x M.2 Key-M 2242/2280 NVMe (PCIe x 4, SATA3)

2.5 Drive Bay

2 x Internal 2.5" Drive Bay (12.5mm)

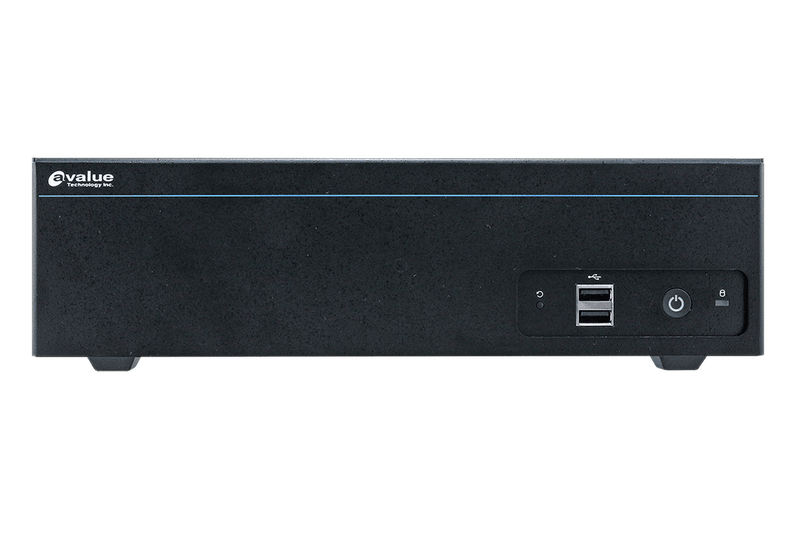

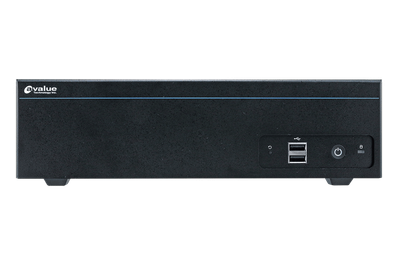

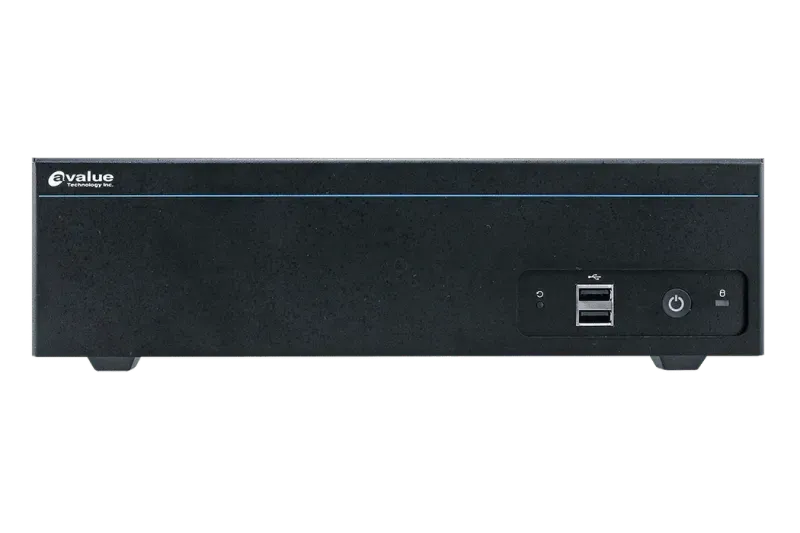

Front I/O

USB

2 x USB 2.0

Power Button

1 x PWR BTN w/LED

Reset Button

1 x RST Hidden BTN

LED Indicator

1 x Data Access LED

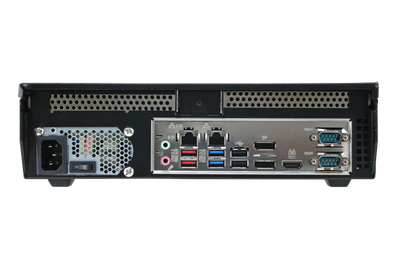

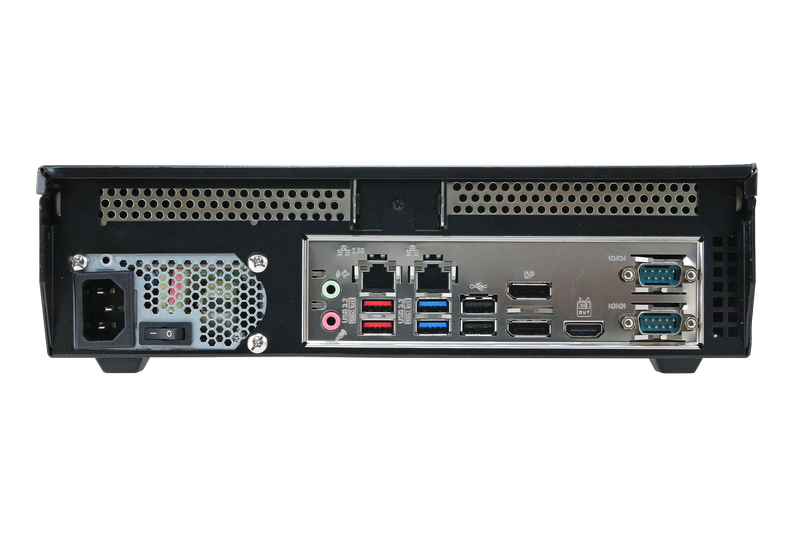

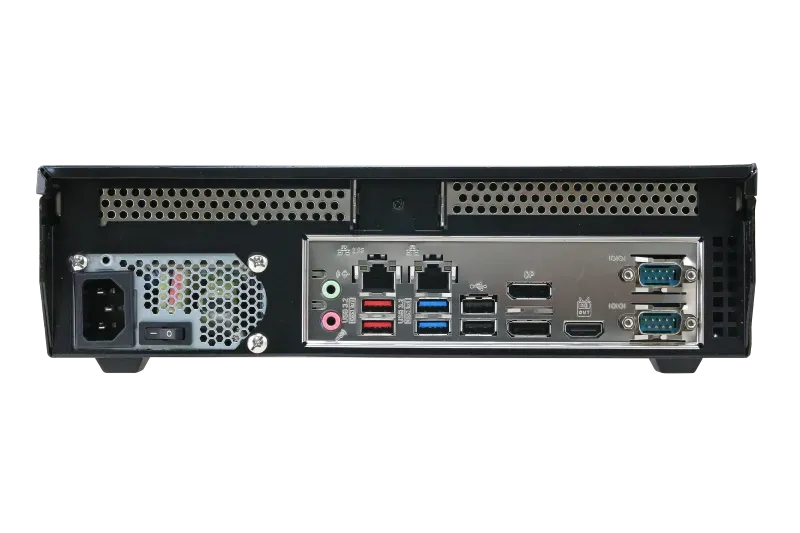

Rear I/O

USB

2 x USB 2.0

4 x USB 3.2 Gen1

COM Port

2xRS-232/422/485

LAN Port

2 x RJ45

Audio

1 x Line-Out

1 x Mic-In

DP

2 x DP

HDMI

1 x HDMI

AC/DC Input

1 x Vac Input

Left I/O

System Fan

1 x Smart Fan

Audio

Audio Codec

Realtek HD Audio

Display

Graphic Chipset

Intel® Integrated UHD Graphic with Xe Architecture (CPU Dependent)

Intel® UHD Graphics 770 (i9/i7/i5)

Intel® UHD Graphics 730 (i3)

Resolution

HDMI 1.4b: 3840x2160@30Hz

DP++ 1.4a: 4096x2304@60Hz

Certifications

Certification Information

CE, FCC Class B, UKCA

Ethernet

LAN Chipset

Intel® I219-LM GbE LAN PHY

Intel® i225-V 2.5GbE LAN

Power Requirement

Power Supply Unit

220W Flex ATX Power Supply

Voltage Input Spec.

100 Vac~240 Vac

ACPI

Single power ATX Support S0,S3, S4, S5

Power Mode

AT/ATX Mode (Default: ATX mode)

Voltage Input Connector

IEC 320 (C14)

Packing List

Items

1 x BMX-T550 STD IMB Desktop System

1 x Screw Kits (For M.2, Storage)

Software Support

OS

Win10, 11

Linux

Ordering Information

Mini-ITX Desktop System With Intel® Raptor Lake-S Platform

BMX-T550-B1-1R (Barebone System w/o CPU, SSD, RAM)

*CPU/Memory/Storage and Operating System bundled on request. Please contact your, sales representative for more information.

What is BMX-T550-B?

The BMX-T550-B is a computing system manufactured by Avalue, designed specifically for barebone-system applications. The Avalue BMX-T550-B is a high-performance barebone industrial computing system designed for demanding applications in harsh environments. It features a fanless design, wide temperature support, and multiple I/O options, making it ideal for industrial automation, transportation, and control systems.

Key Features & Benefits

Intel® 13th Gen Core™ i9/i7/i5/i3 Processor (35W/65W)
Intel® H610E PCH
Intel® Iris® Xe/ UHD Graphics (CPU Dependent)
2 x Memory Socket (Capacity Max. Up to 64GB DDR5 4800)
3 x Display (HDMI 1.4b, 2 x DP 1.4a)
2 x Intel® Ethernet Controller (1GbE, 2.5GbE)
2 x Audio Jack (Mic-In, Line-Out)
2 x COM Port (2 x RSx232/422/485)
3 x Expansion Slot (M.2 Key-E, Key-M, PCIe x16)
8 x USB Port (4 x USB 3.2, 4 x USB 2.0)
Onboard dTPM 2.0 IC

Applications & Use Cases

The BMX-T550-B is ideal for various industrial automation applications:

Legacy equipment integration and serial communication
High-performance computing and data processing tasks
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Demanding applications in harsh environments
Visual monitoring and data display systems
Industrial computing and data processing

Frequently Asked Questions

The BMX-T550-B features Intel® 13th Gen Core™ i9/i7/i5/i3 Processors (35W/65W), Intel® H610E PCH, Intel® Iris® Xe/ UHD Graphics, up to 64GB DDR5 4800 memory, triple display capabilities (HDMI 1.4b, 2 x DP 1.4a), dual Intel® Ethernet Controllers (1GbE, 2.5GbE), multiple audio jacks, 2 x COM ports (RS-232/422/485), 3 expansion slots (M.2 Key-E, Key-M, PCIe x16), 8 x USB ports, and onboard dTPM 2.0 security.

Trusted Platform Module (TPM) 2.0 is a security chip that provides hardware-based cryptographic functions. In industrial computing, it enhances security by enabling secure boot, protecting encryption keys, ensuring platform integrity, and preventing unauthorized access to sensitive data. This is particularly important for industrial systems that may handle confidential manufacturing data or control critical infrastructure.

If the system doesn't power on: check power connections and ensure the power source is functioning, verify the power button connection, confirm the power supply is working (if applicable), check for any visible damage, ensure components like CPU and memory are properly seated, reset CMOS if possible, and if available, check status LEDs for diagnostic information. If these steps don't resolve the issue, contact technical support.

To diagnose memory issues: check if memory modules are properly seated, try using just one memory module at a time to identify a potentially faulty module, verify you're using compatible memory specifications (speed, type), check for POST codes or beep patterns indicating memory failures, and run memory diagnostic tests through the BIOS or a bootable diagnostic tool. Many memory issues can be resolved by reseating or replacing modules.

If display output isn't working: verify cable connections, check that the monitor is powered on and set to the correct input source, try alternative display outputs if available, ensure the system is fully booting (check power LEDs and listen for fan operation), confirm the CPU and graphics hardware is properly functioning, update graphics drivers if possible, and reset BIOS settings to default if necessary.

To resolve Ethernet connectivity issues: check physical cable connections, verify network configuration settings (IP address, subnet mask, gateway), ensure Ethernet ports are enabled in BIOS, test with different network cables, check for link LEDs indicating physical connection status, update network adapter drivers, reset network hardware (switches, routers), and disable/enable network interfaces in the operating system to reset connections.
