ACS10-TGU
_800x800.png?alt=media)
_800x800.png?alt=media)
1_800x800.png?alt=media)
1_800x800.png?alt=media)
_400x400.png?alt=media)
_400x400.png?alt=media)
1_400x400.png?alt=media)
1_400x400.png?alt=media)
*Price on request. Contact us for a quote.
Manufacturer: Avalue
Product Features
- 11th Gen Intel® Core™ i5/i3 Tiger Lake-UP3 Processor
- Intel® Iris® Xe/ UHD Graphics Engine
- 1-260-pin DDR4 3200MHz SO-DIMM, Supports Up to 32GB
- 2-Gigabit Ethernet, 1 x 2.5GbE, 1 x 1GbE
- 2-COM Port (RS-232/422/485 & RS-232)
- 2-Audio Jack (Line-Out & Mic-In)
- 2-Storage (M.2 Key-M NVMe & M.2 Key-B SATA)
- 2-Expansion Slot (M.2 Key-E, Key-B)
- 6-USB Port (3-USB 3.2 & 3-USB 2.0)
- CE, FCC Class A, UKCA
Product Description
The Avalue ACS10-TGU is a compact computing system powered by Intel® Tiger Lake processors, designed for industrial applications. It features a fanless design, multiple I/O interfaces including USB, HDMI, and LAN, and supports wide temperature ranges.
This system is ideal for applications requiring high performance in a small, rugged form factor, offering reliability and flexibility for various industrial tasks.
Technical Specifications
System Information
Processor
Intel® Core™ i5-1135G7 Processor (TDP 15W) (Default)
Intel® Core™ i3-1115G4 Processor (TDP 15W) (Default)
Intel® Core™ i7-1165G7 Processor (TDP 15W) (Project Based)
Intel® Core™ i7-1185G7E Processor (TDP 15W) (Project Based)
Intel® Core™ i5-1145G7 Processor (TDP 15W) (Project Based)
Intel® Celeron 6305E Processor (TDP 15W) (Project Based)
System Memory
Single 260-Pin SO-DIMM Socket, Max. Up to 32GB DDR4 3200MHz
Watchdog Timer
H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step.
BIOS Information
AMI uEFI BIOS, 256Mbit SPI Flash ROM
H/W Status Monitor
CPU temperature monitoring and voltage monitoring
SBC
ECM-TGUC
TPM
TPM 2.0
Mechanical & Environmental
Operating Temperature
With wide-temp storage: 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air flow
With general storage: 0°C ~ 40°C (32°F ~ 122°F) with 0.5m/s air flow
Storage Temperature
-40°C ~ 75°C (-40°F ~ 167°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
188mm x 120mm x 48mm
Weight
835g
Vibration Test
With SSD: 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/Axis
Shock Test
IEC 60068-2-27, Half Sine, 11ms
Drop Test
ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces
Mounting Kit
Wall Mount Kit
Expansion
M.2
1 x M.2 Key-E 2230 (PCIe, USB 2.0)
1 x M.2 Key-M 2280 NVMe (PCIe Gen4 x 4)
Storage
M.2
1 x M.2 Key-B 2242 (SATA3)
1 x M.2 Key-M 2280 NVMe (PCIe Gen4 x 4)

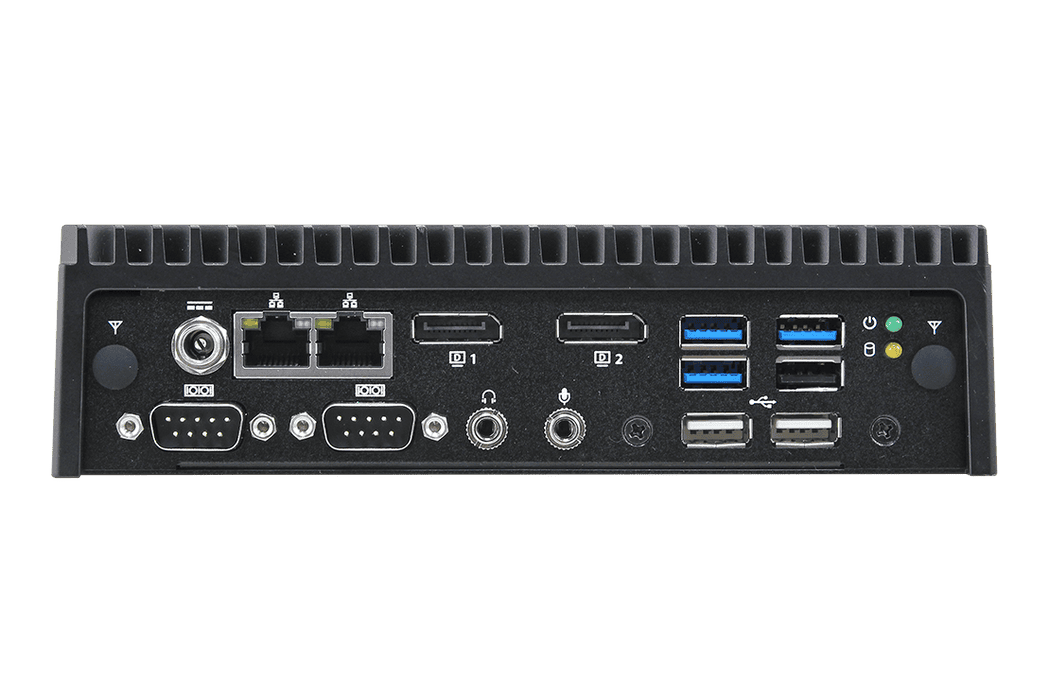

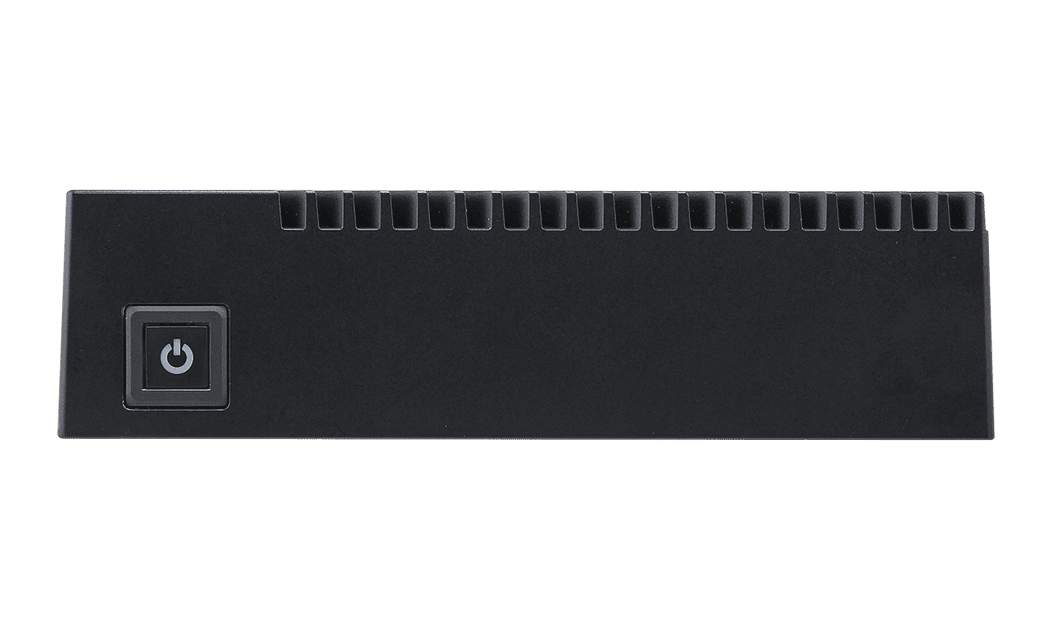

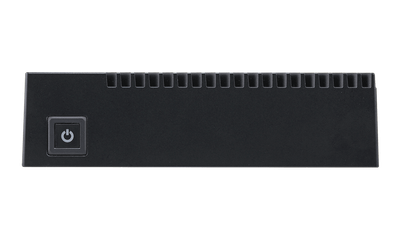

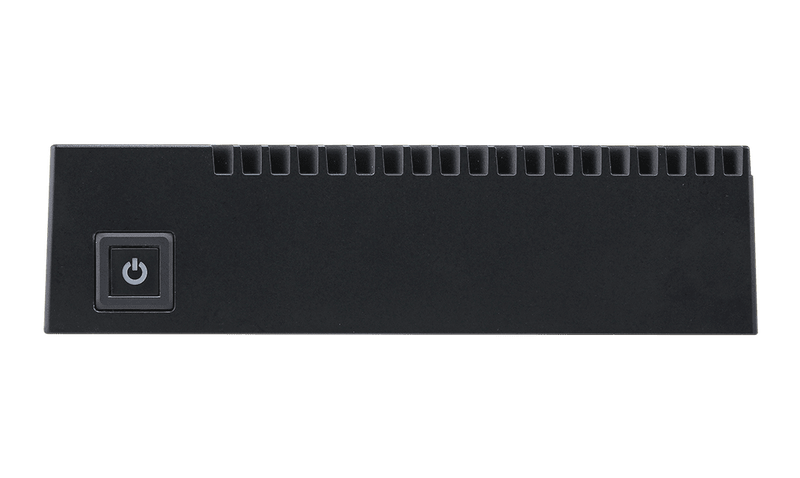

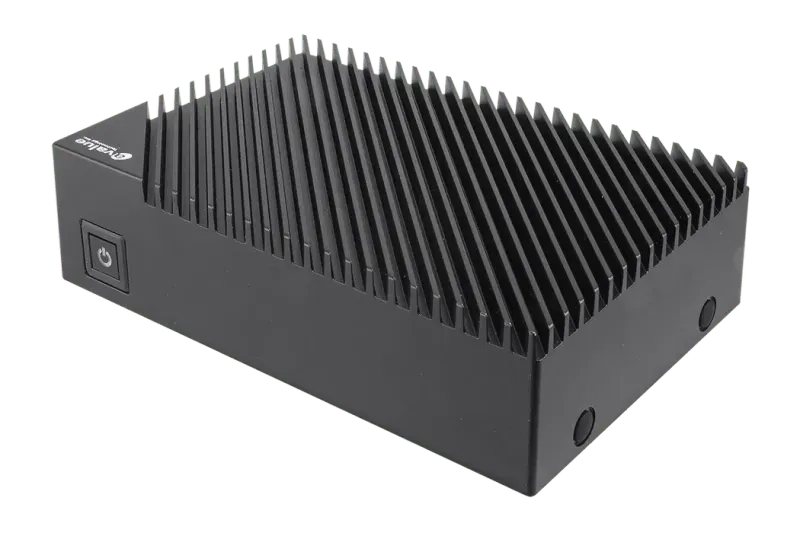

Front I/O
Power Button
1 x Power Buttonw/LED
COM Port
1 x RS-232/422/485 (Default RS-232)
1 x RS-232
Audio
1 x Line-Out
1 x Mic-In

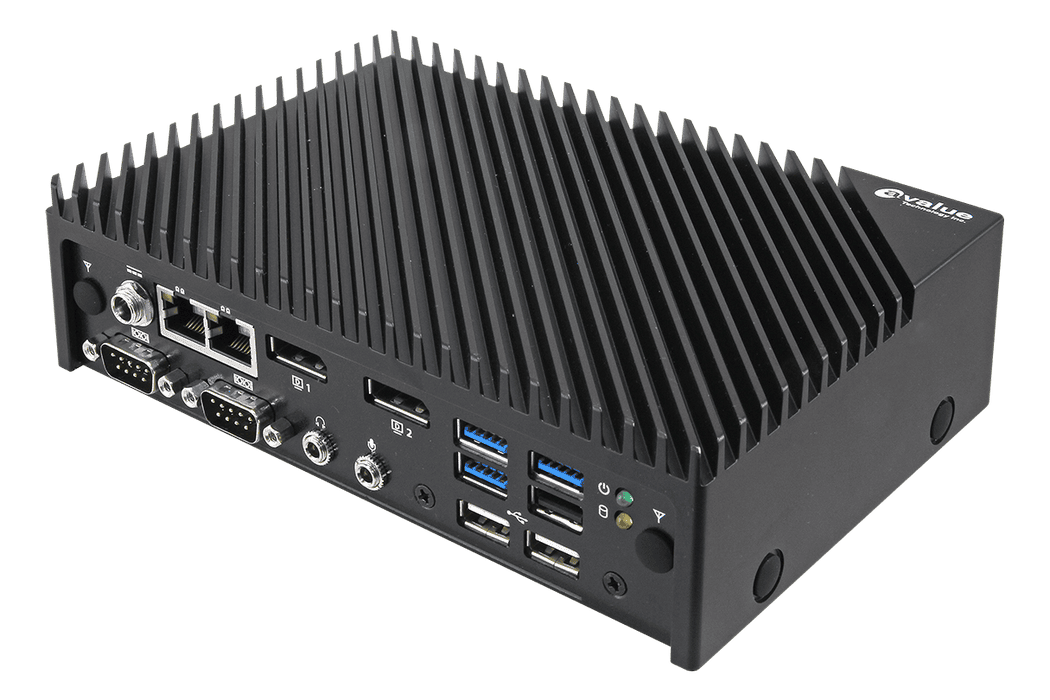

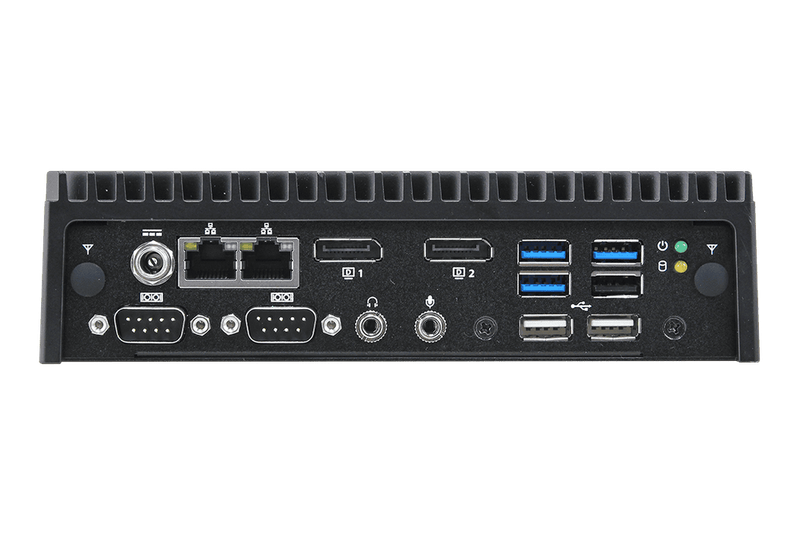

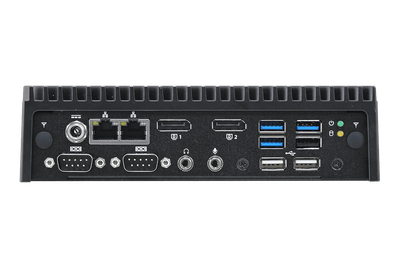

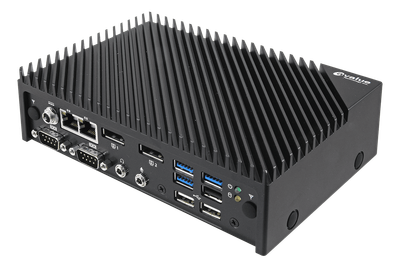

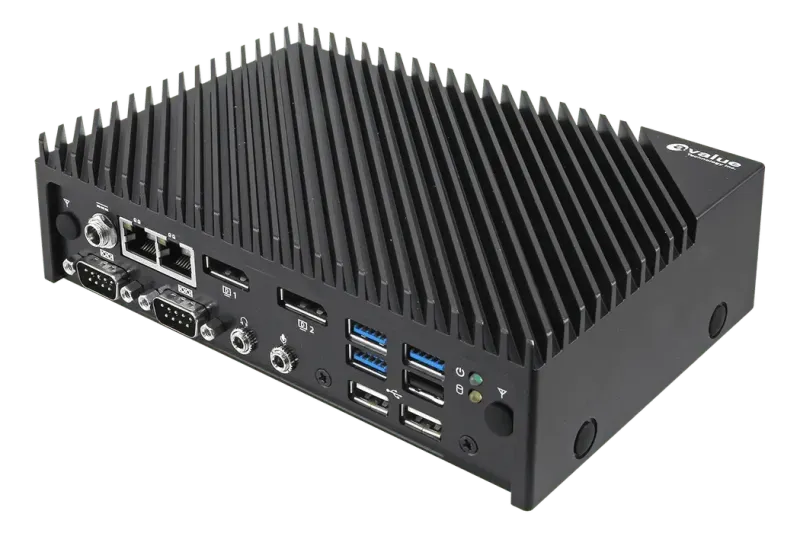

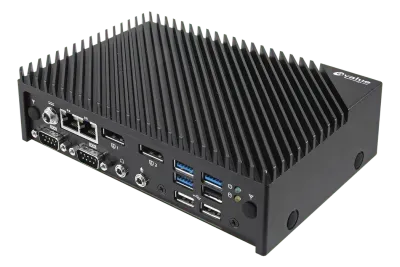

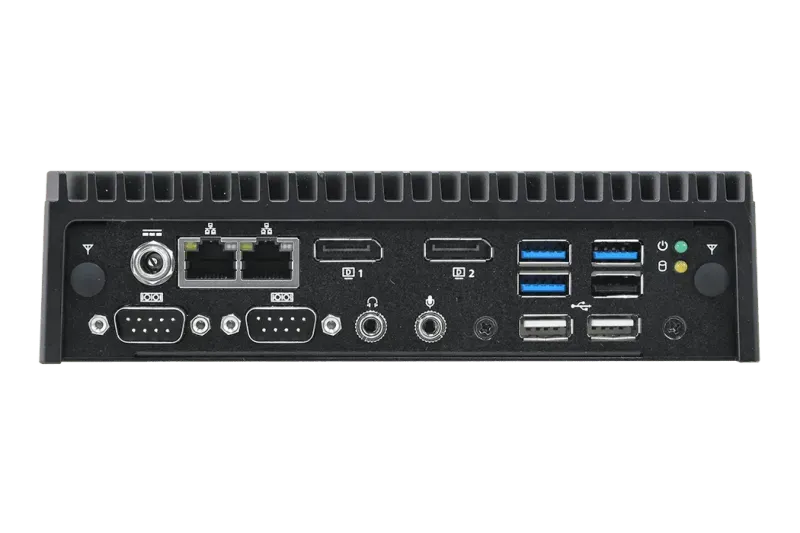

Rear I/O
USB
3 x USB 3.2 Gen.2
3 x USB 2.0
COM Port
1 x RS-232/422/485 (Default RS-232)
1 x RS-232
LED Indicator
1 x Power on/off LED
1 x Storage Access
LAN Port
2 x RJ45
Audio
1 x Mic-in
1 x Line-out
DP
2 x DP++
HDMI
1 x HDMI 2.0b
Antenna
2 x Antenna Mounting with Dust Protection Cover
AC/DC Input
Lockable DC Jack
Right I/O
Antenna
2 x Antenna Mounting with Dust Protection Cover
Left I/O
Antenna
2 x Antenna Mounting with Dust Protection Cover
Audio
Audio Codec
RealTek ALC888S-VD2-GR
Display
Graphic Chipset
Intel® Iris® Xe Graphics (i7-1165G7/ i5-1135G7)
Intel® UHD Graphics for 11th Gen Intel® Processors (i3-1115G4)
Resolution
DP++ 1.4: 4096x2304@60Hz
Certifications
Certification Information
CE, FCC Class A, UKCA
Ethernet
LAN Chipset
Intel® Ethernet Connection I219-LM (1G)
Intel® Ethernet Controller I225-V (2.5G)
Specification
10/100/1000 Gigabit (I219-LM)
10/100/1000/2500 Gigabit (I225-V)
Power Requirement
ACPI
Single power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant
Power Mode
AT/ATX (ATX is default setting)
Adapter
AC to DC Adapter 60W
Software Support
OS
Win11 64bits, Win10, Linux
Ordering Information
Ordering Information
11th Gen Intel® Core™ i5/i3 Tiger Lake-UP3 Processor
ACS10-TGU-A1-1R (i3-1115G4)
ACS10-TGU-A1-2R (i5-1135G7)
What is ACS10-TGU?
The ACS10-TGU is a computing system manufactured by Avalue, designed specifically for compact-computing-system applications. The Avalue ACS10-TGU is a compact computing system powered by Intel® Tiger Lake processors, designed for industrial applications. It features a fanless design, multiple I/O interfaces including USB, HDMI, and LAN, and supports wide temperature ranges. This system is ideal for applications requiring high performance in a small, rugged form factor, offering reliability and flexibility for various industrial tasks.
Key Features & Benefits
- 11th Gen Intel® Core™ i5/i3 Tiger Lake-UP3 Processor
- Intel® Iris® Xe/ UHD Graphics Engine
- 1-260-pin DDR4 3200MHz SO-DIMM, Supports Up to 32GB
- 2-Gigabit Ethernet, 1 x 2.5GbE, 1 x 1GbE
- 2-COM Port (RS-232/422/485 & RS-232)
- 2-Audio Jack (Line-Out & Mic-In)
- 2-Storage (M.2 Key-M NVMe & M.2 Key-B SATA)
- 2-Expansion Slot (M.2 Key-E, Key-B)
- 6-USB Port (3-USB 3.2 & 3-USB 2.0)
- CE, FCC Class A, UKCA
Applications & Use Cases
The ACS10-TGU is ideal for various industrial automation applications:
- Legacy equipment integration and serial communication
- High-performance computing and data processing tasks
- Networked industrial systems and data communication
- Applications requiring high performance in a small
- Peripheral device connectivity and data transfer
- Memory-intensive applications and multitasking
- Data logging and storage-intensive operations
- Industrial computing and data processing
