Manufacturer: Avalue
Product Features
- 11th Gen Intel® Core™ i7/i5/i3/Celeron® Processor
- Intel® Iris® Xe/UHD Graphics
- Single Memory Socket, Max. Up to 32GB DDR4 3200MT/s
- Dual Display, DP++ 1.4
- Dual Intel® Gigabit Ethernet, Dual 2.5GbE
- Triple Storage, 2.5” Drive Bay, 2-M.2 SSD
- Triple M.2 Slot, Key-E/B/M for Wi-Fi, LTE, SSD and I/O module
- Support iAMT, SATA RAID 0/1
- Default dTPM 2.0, Wall Mount Kit
Product Description

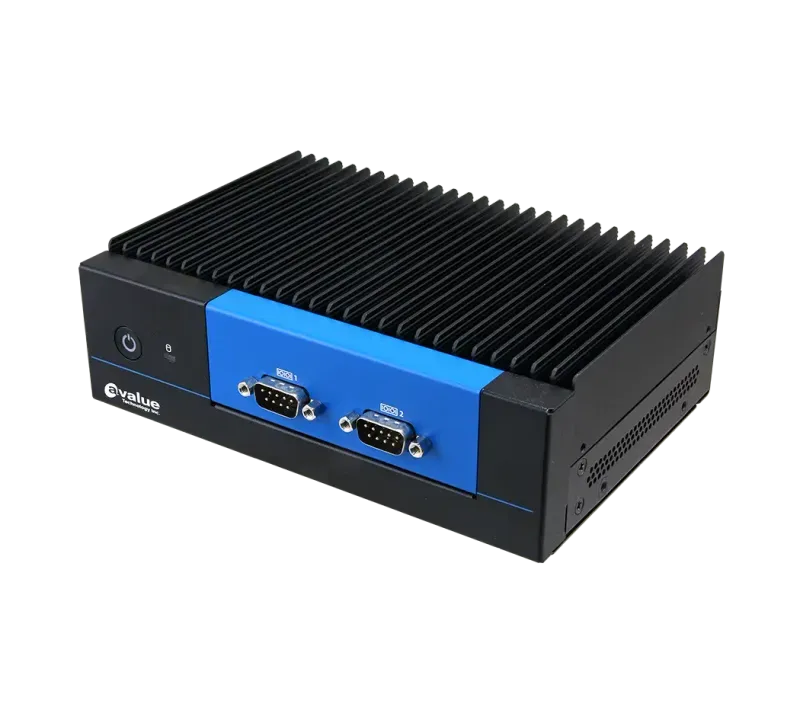

The Avalue EPC-TGU is a compact industrial computing system powered by Intel® Tiger Lake processors. It features a fanless design, multiple I/O interfaces, and supports a wide operating temperature range.
This system is ideal for industrial applications requiring high performance in a compact, rugged form factor, offering reliable and versatile computing capabilities.
Technical Specifications
System Information
Processor
Intel® Core™ i7-1185G7E Processor (15W)
Intel® Core™ i5-1145G7E Processor (15W)
Intel® Core™ i3-1115G4E Processor (15W)
Intel® Celeron® 6305E Processor (15W)
System Memory
1 x 260-Pin SO-DIMM Socket, Max. Up to 32GB DDR4 3200MTs
I/O Chipset
EC ITE IT8882
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec.
BIOS Information
AMI uEFI BIOS, 256 Mbit SPI Flash ROM
H/W Status Monitor
System temperature monitoring and Voltages monitoring
RAID
RAID 0/1 (SATA)
iAMT
Above Core i5 (selected SKUs)
SBC
ECM-TGU
TPM
TPM 2.0
Mechanical & Environmental
Operating Temperature
With extended temperature peripherals: 0°C ~ 50°C (32°F ~ 122°F) with 0.5m/s air flow
Storage Temperature
-30~70C° (-22°F ~ 158°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
177mm x 123mm x 55mm (7” x 4.8” x 2.2")
Vibration Test
With SSD : 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis
Shock Test
With SSD : 55Grms, IEC 60068-2-27, Half Sine, 11ms
Drop Test
ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces
Mounting Kit
Stand
Wall Mount kit
Expansion
M.2
1 x M.2 Key-M 2242 NVMe (PCIe Gen4 x 4)
1 x M.2 Key-B 2242/3042 (SATA3)
Storage
M.2
1 x M.2 Key-M 2242 NVMe (PCIe Gen4 x 4)
1 x M.2 Key-B 2242/3042 (SATA3)
2.5 Drive Bay
1 x Internal 2.5 Drive Bay (7mm)

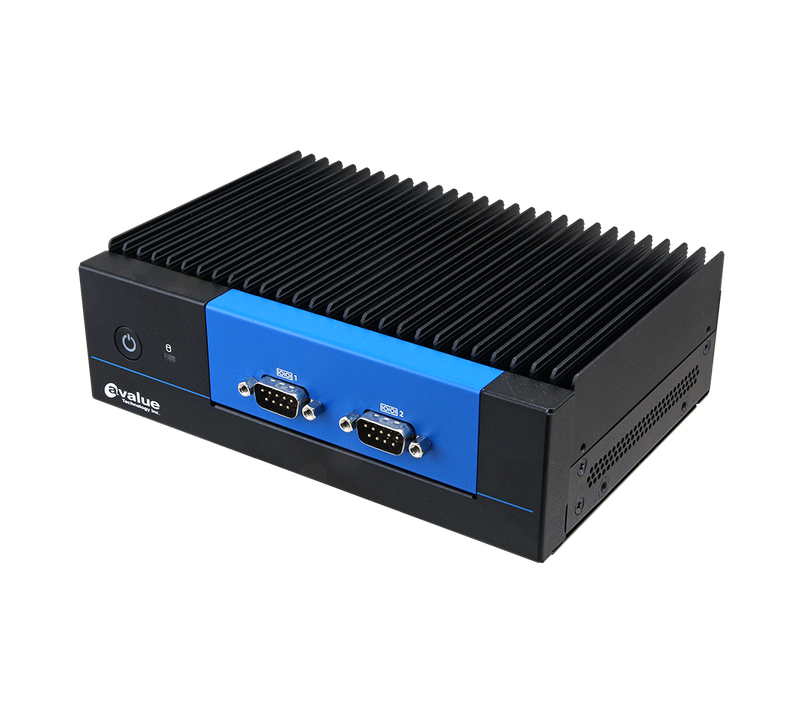

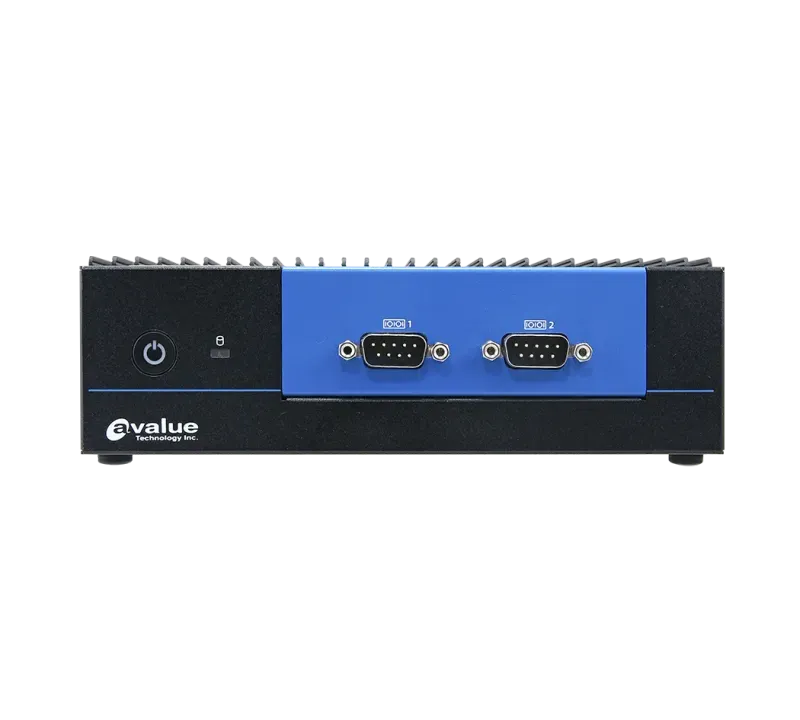

Front I/O
Power Button
1 x Power Button

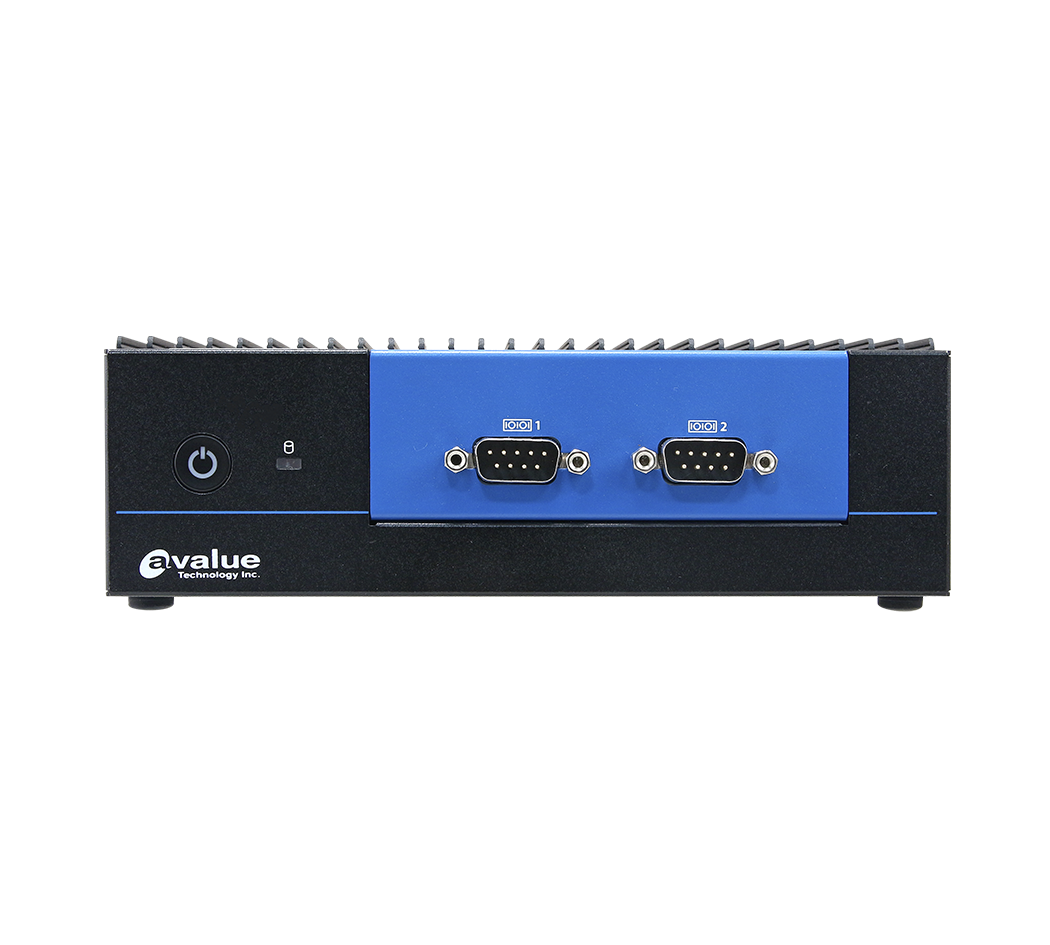

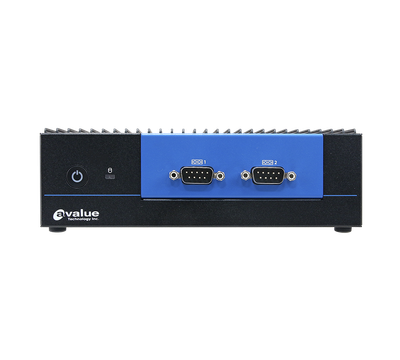

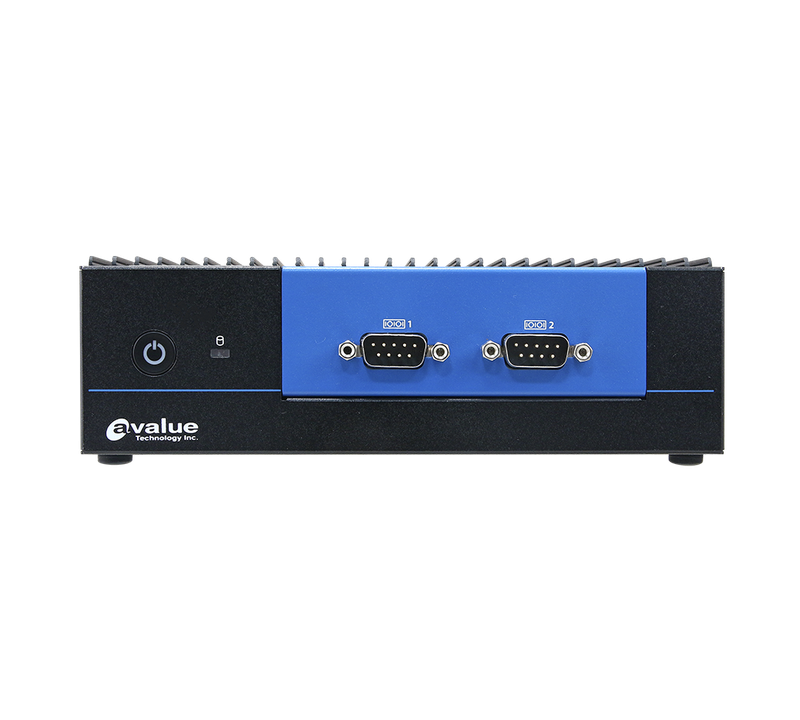

COM Port
2 x RS232/422/485 (BIOS)

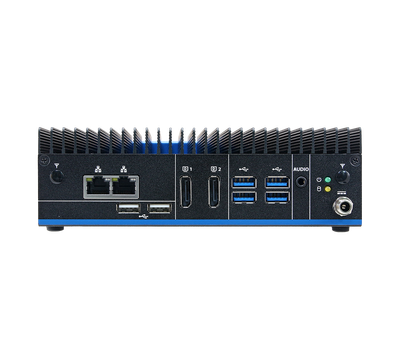

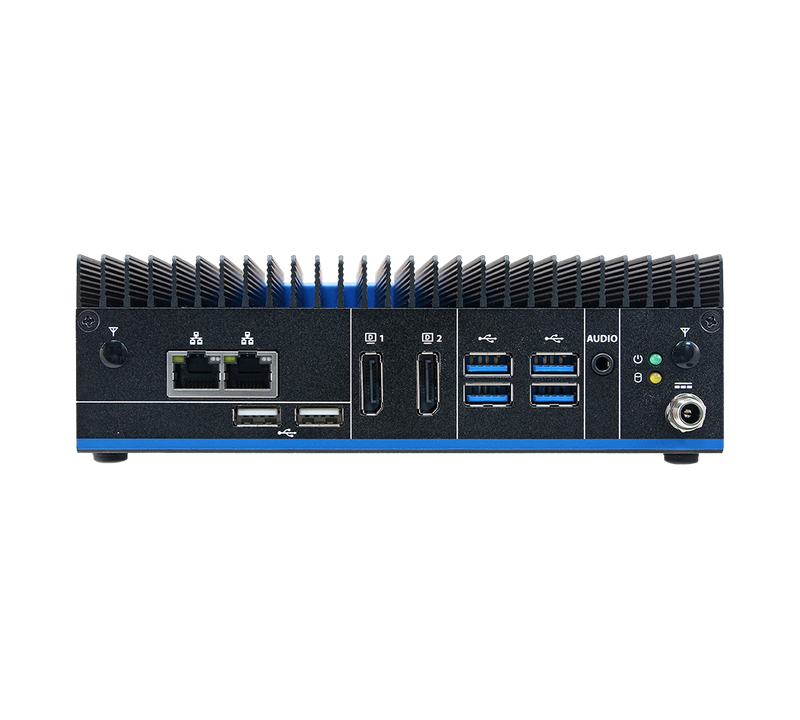

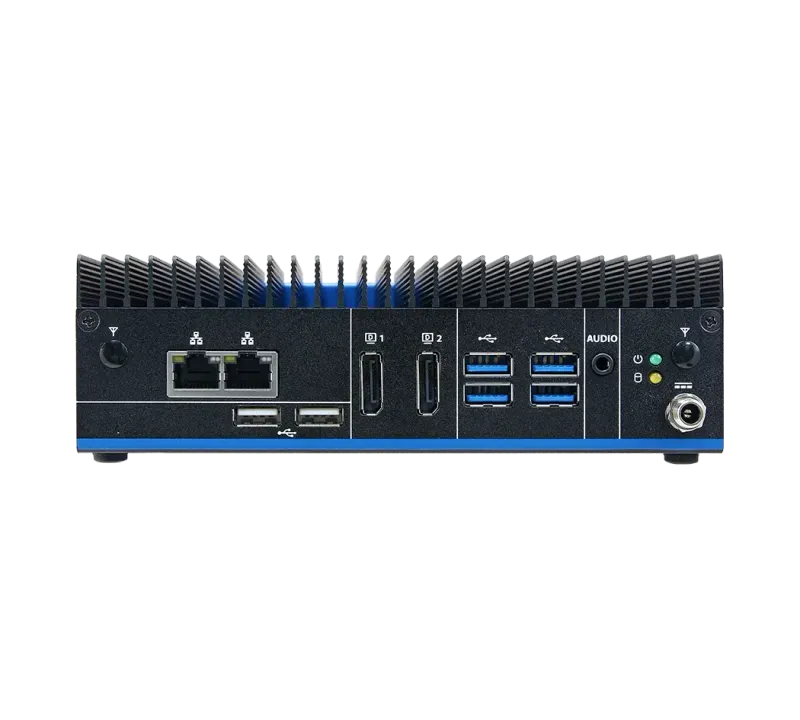

Rear I/O
USB
4 x USB 3.2 Gen.2 (10Gbp/s)
2 x USB 2.0
LAN Port
2 x RJ45 (Max. Up to 3-RJ45 in project base)
LED Indicator
1 x Power on/off
1 x Storage Access
Audio
1 x Combo Jack (Mic-In, Line-Out)
DP
2 x DP++
HDMI
1 x HDMI 2.0b
Antenna
2 x Antenna Mounting with Dust Protection Cover
AC/DC Input
Lockable DC Jack
Audio
Audio Codec
Realtek ALC888S
Display
Graphic Chipset
Intel® Iris® Xe Graphics (i7-1185G7E/i5-1145G7E)
Intel® Iris® UHD Graphics (i3-1115G4E/6305E)
Resolution
DP++ 1.4: 4096x2304@60Hz
DP1+DP2 (DP1.4): Max: 7680 x 4320@60 Hz
Certifications
Certification Information
CE, FCC Class B, UKCA
Ethernet
LAN Chipset
2 x Intel® I226LM
Specification
2 x 10/100/1000/2.5 Gigabit (I225-LM)
Power Requirement
ACPI
Single power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant
Power Mode
AT/ATX (ATX is default setting)
Adapter
60W AC to DC Adapter (Default)/ 120W AC to DC Adapter (Option)
Note1: 60W for general mode (storage, communication, display, USB port, room temp.)
Nore2: 120W for full load mode (general mode pluses max. workload and operating temp.)
Software Support
OS
Win10, Linux
Ordering Information
Ordering Information
Intel® 11th Gen Core™ i7/i5/i3/Celeron Processor
EPC-TGU-85-B1-1R (i7-1185G7E)
EPC-TGU-45-B1-1R (i5-1145G7E)
EPC-TGU-15-B1-1R (i3-1115G4E)
EPC-TGU-05-B1-1R (6305E)
