EPS-CFS2
_800x800.png?alt=media)
_800x800.png?alt=media)
_400x400.png?alt=media)
_400x400.png?alt=media)
*Price on request. Contact us for a quote.
Manufacturer: Avalue
Product Features
- 8th/9th Gen Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors
- Intel® Q370/H310 Express Chipset
- Intel® UHD Graphics 630/610
- Memory Max. Up to 32GB DDR4 2666
- -10~45C Operating Temperature
- Compact Size Design (170mm x 195mm x 65mm)
- Smart Fan Design
- Support RAID 0/1 (Q370 only)
- Support Firmware TPM 2.0
Product Description
The Avalue EPS-CFS2 is a compact, fanless industrial computing system optimized for mobile and vehicular applications. It offers robust connectivity with multiple I/O ports, including USB, LAN, and COM.
Designed to operate in harsh environments, the EPS-CFS2 supports a wide temperature range, ensuring reliable performance in demanding conditions.
This system is ideal for applications like transportation, fleet management, and other industrial uses where durability and continuous operation are essential.
Technical Specifications
System Information
Processor
Intel® Core™ i7-8700T Processor (12M Cache, up to 4.00 GHz)
Intel® Core™ i5-8500T Processor (9M Cache, up to 3.50 GHz)
Intel® Core™ i3-8100T Processor (6M Cache, 3.10 GHz)
Intel® Pentium® Gold G5400T Processor (4M Cache, 3.10 GHz)
Intel® Celeron® G4900T Processor (2M Cache, 2.90 GHz)
Intel® Core™ i7-9700TE Processor (12M Cache, up to 3.80 GHz)
Intel® Core™ i5-9500TE Processor (9M Cache, up to 3.60 GHz)
Intel® Core™ i3-9100TE Processor (6M Cache, up to 3.20 GHz)
Platform Controller Hub
Intel® Q370 Express Chipset
Intel® H310 Express Chipset
System Memory
1 x 260-pin DDR4 SODIMM 2400/2666MHz up to 32 GB
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec. and 1sec./step
H/W Status Monitor
Monitoring System Temperature, Voltage and FAN Status with Auto Throttling Control
SBC
ECM-CFS
TPM
TPM 2.0 (Firmware)
Mechanical & Environmental
Operating Temperature
With extended temperature peripherals:-10°C ~ 45°C (14°F ~ 113°F) with 0.5m/s air flow(i5/i7 CPU)
With extended temperature peripherals:-10°C ~ 40°C (14°F ~ 104°F) with 0.2m/s air flow(i5/i7 CPU)
With extended temperature peripherals:-10°C ~ 30°C (14°F ~ 86°F) with 0.5m/s air flow(i3-8100T)
Storage Temperature
-30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
170mm x 195mm x 65mm
Weight
2.3kg (w/ package)
1.8kg (system)
Vibration Test
With SSD: 1.5 Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test
With SSD: 10g, IEC 60068-2-27, 11ms
Drop Test
ISTA 2A, IEC-60068-2-32 Test : Ed
Mounting Kit
Wall Mount kit (Standard)
Expansion
mPCIe
1 x mPCIe Socket
(Q370 w/PCIe/SATA/USB 2.0)
(H310 w/SATA/USB2.0)
Storage
mSATA
1 x mSATA
2.5 Drive Bay
2 x 2.5" Drive Bay (Internal)

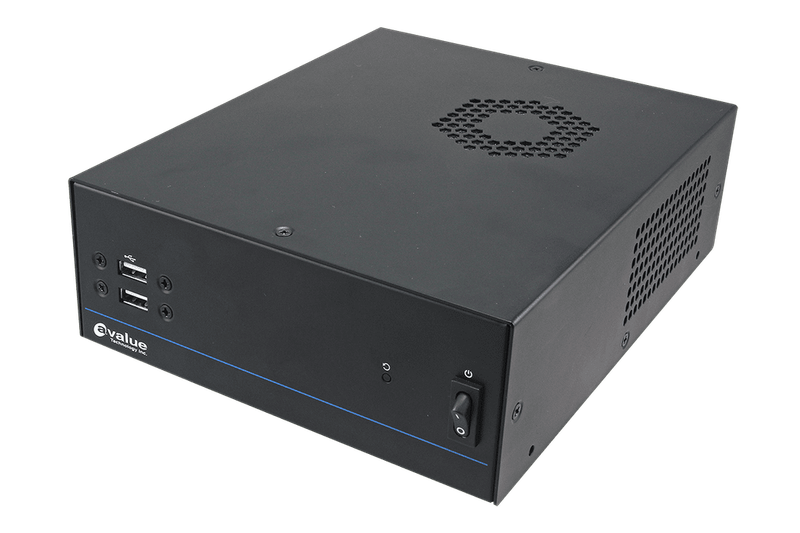

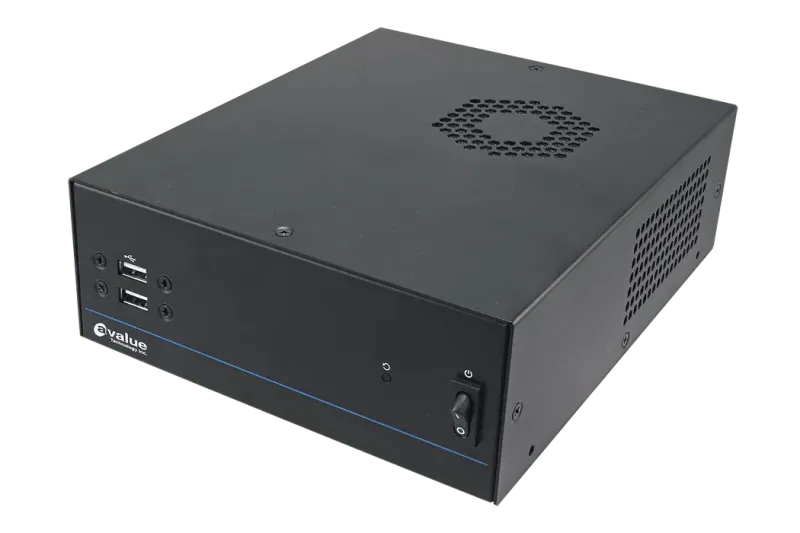

Front I/O
USB
2 x USB 2.0

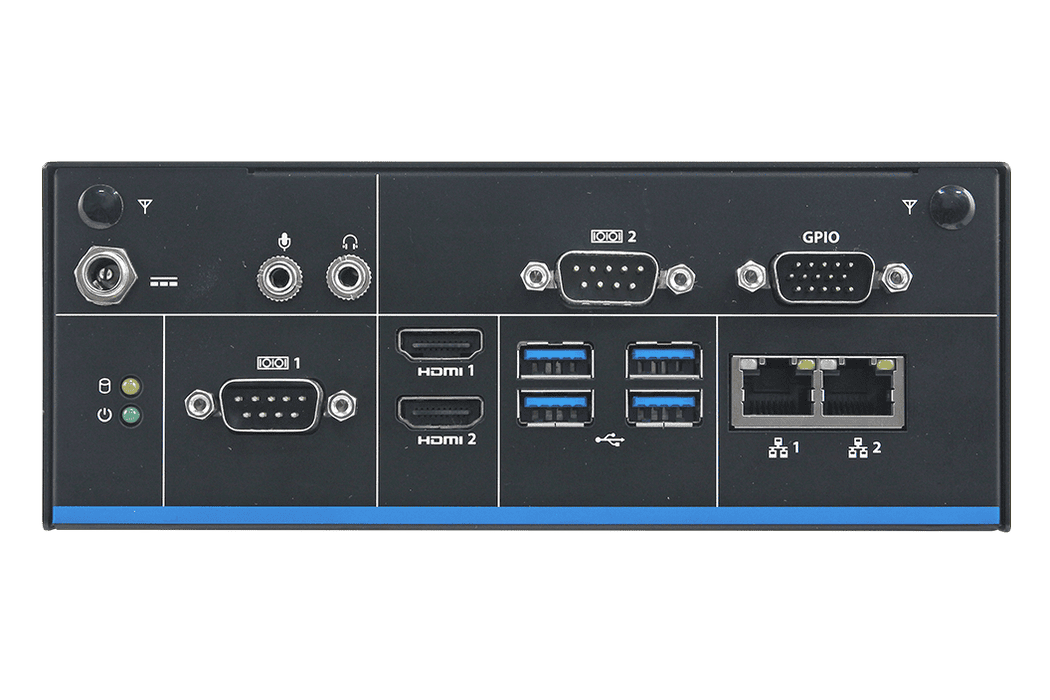

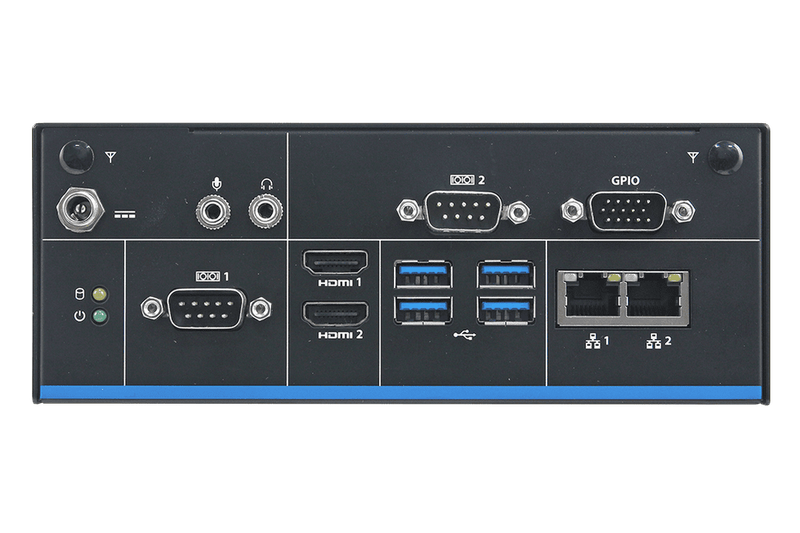

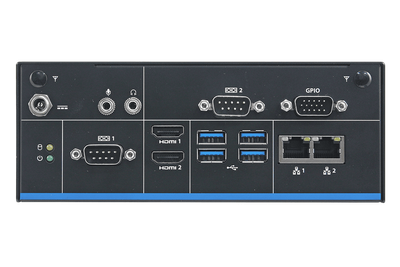

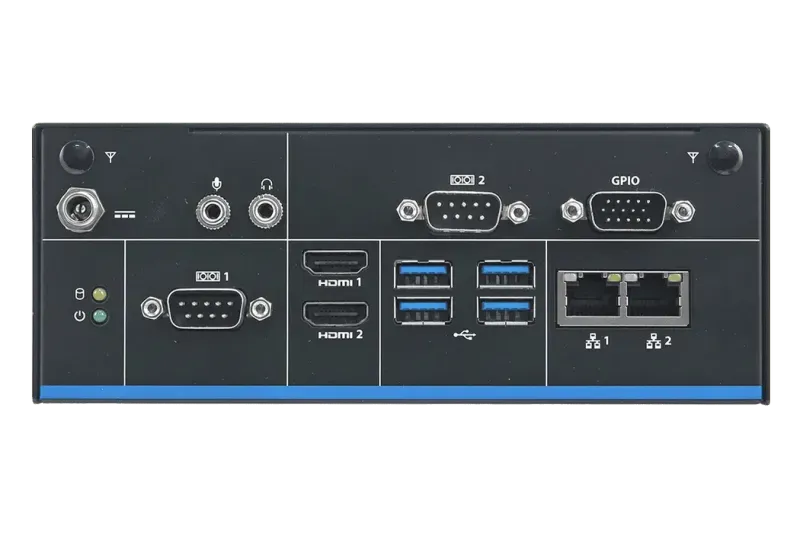

Rear I/O
USB
4 x USB 3.2 (w/Q370 Gen. 2, w/H310 Gen. 1)
COM Port
2 x RS-232
LED Indicator
1 x Power on/off LED on Rear side
1 x Storage Access LED on Rear side
LAN Port
2 x RJ45
Audio
1 x Mic-in
1 x Line-out
Digital I/O
1 x 8-Bit GPIO
Antenna
2 x Antenna Mounting Hole
AC/DC Input
Lockable DC Jack
Audio
Audio Codec
Realtek ALC888S
Display
Graphic Chipset
Intel® UHD Graphics 630 (i7-8700T, i5-8500T, i3-8100T)
Intel® UHD Graphics 610 (Pentium G5400T, Celeron G4900T)
Resolution
2 x HDMI: Max. Resolution 4096x2304 @ 24Hz
Certifications
Certification Information
CE, FCC Class B
Ethernet
LAN Chipset
1 x Intel® I211AT
1 x Intel® I219LM
Specification
10/100/1000 Base-Tx GbE compatible
Power Requirement
ACPI
Single Power ATX Support S0,S3, S4, S5
ACPI 5.0 Compliant
Power Mode
AT/ATX (ATX is default setting)
Adapter
Input: 100 ~ 240Vdc/ 50 ~ 60Hz
Output: AC-DC 120W Adapter
Software Support
OS
Win10, Linux
Ordering Information
Ordering Information
Intel® 8th/9th Coffee Lake Rugged Embedded System (w/Fan)
With Intel® Q370 Chipset
EPS-CFS2-Q37-B1-1R (i7-8700T)
EPS-CFS2-Q37-B1-2R (i5-8500T)
EPS-CFS2-Q37-B1-3R (i3-8100T)
EPS-CFS2-Q37-B1-4R (Pentium Gold G5400T)
EPS-CFS2-Q37-B1-5R (Celeron G4900T)
EPS-CFS2-Q37-B1-6R (i7-9700TE)
EPS-CFS2-Q37-B1-7R (i5-9500TE)
EPS-CFS2-Q37-B1-8R (i3-9100TE)
With Intel® H310 Chipset
EPS-CFS2-H31-B1-1R (i7-8700T)
EPS-CFS2-H31-B1-2R (i5-8500T)
EPS-CFS2-H31-B1-3R (i3-8100T)
EPS-CFS2-H31-B1-4R (Pentium Gold G5400T)
EPS-CFS2-H31-B1-5R (Celeron G4900T)
EPS-CFS2-H31-B1-6R (i7-9700TE)
EPS-CFS2-H31-B1-7R (i5-9500TE)
EPS-CFS2-H31-B1-8R (i3-9100TE)
