Manufacturer: Avalue
Product Features
- Intel® Celeron® Processor J3455/N3350
- Single DRAM Socket, Max. Up to 8GB DDR3 1866MHz
- Rich I/O, 2 x COM, 2 x LAN, 4 x USB3.0, 1 x Audio, 2 x Antennal Mounting
- Triple Display, 2 x HDMI, 1 x DP (DVI-I/VGA Factory Option)
- Expansion Slot, M.2 Key-B, M.2 Key-E
- Fanless Operating from 0°C ~ 60°C
- DC Power Input +12V
- Compact Size, 115mm x 111mm x 58mm
- Supports VESA/Din-Rail Kit
- TPM 2.0 (Factory Option)
Product Description
The Avalue NUC-APL is a compact computing system equipped with Intel® Apollo Lake processors. It features a fanless design and offers multiple connectivity options, including USB, HDMI, and LAN ports.
This system is designed for industrial applications, providing reliable performance in a compact form factor, making it suitable for various industrial environments that require efficient and durable computing solutions.
Technical Specifications
System Information
Processor
Intel® Celeron® Processor J3455 (2M Cache, up to 2.3 GHz)
Intel® Celeron® Processor N3350 (2M Cache, up to 2.4 GHz)
System Memory
1 x 204-pin SO-DIMM Socket, Max, Up to 8GB DDR3L 1866MHz
Watchdog Timer
H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step.
BIOS Information
AMI BIOS, 128Mbit SPI Flash ROM
H/W Status Monitor
Monitoring CPU Temperature, Voltage with Auto Throttling Control
SBC
NCM-APL
Mechanical & Environmental
Operating Temperature
With extended temperature peripherals -10°C ~ 50°C (14°F ~ 122°F) with 0.2m/s air flow
With extended temperature peripherals -10°C ~ 60°C (14°F ~ 140°F) with 0.5m/s air flow
Storage Temperature
-30~70C° (-22°F ~ 158°F))
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
115mm x 111mm x 58mm (4.53” x 4,37” x 2.28”)
Weight
0.85KG (1.87lbs)
Vibration Test
With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis
Shock Test
With SDD : 55G, IEC 60068-2-27, Half Sine, 11ms, Z Axis
Drop Test
ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces
Mounting Kit
VESA/Din Rail Kit
Expansion
M.2
1 x M.2 (Key-B, 2242/3042, PCIe, SATA, USB 3.0, USB 2.0, SIM Slot)
1 x M.2 (Key-E, 2230, PCIe, USB2.0)
Storage
M.2
1 x M.2 (Key-B,2242, SATA)
2.5 Drive Bay
1 x 2.5” Drive Bay (7 or 9.5mm)

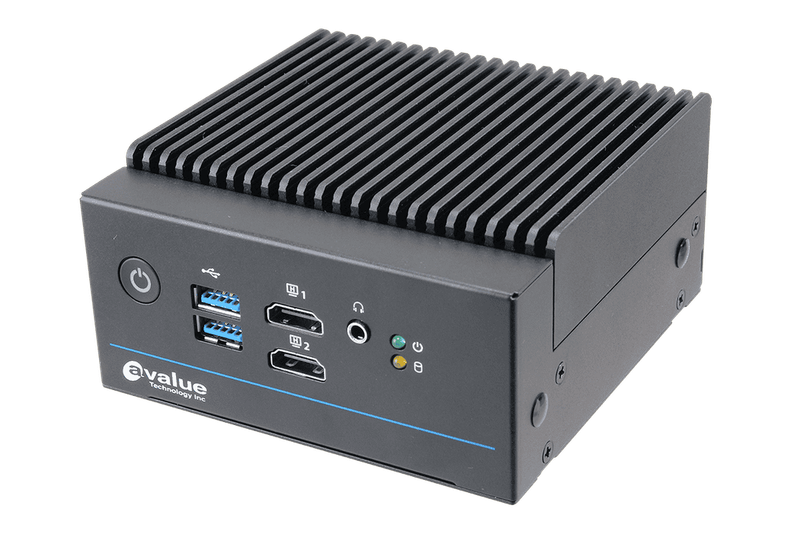

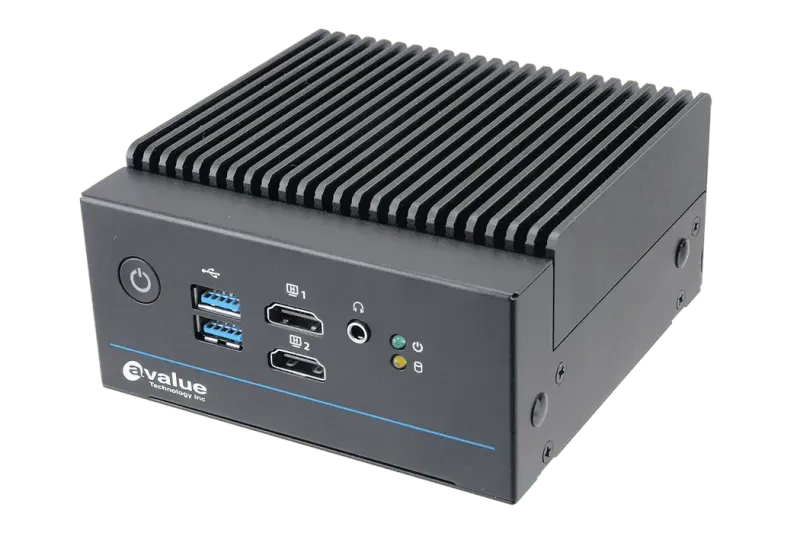

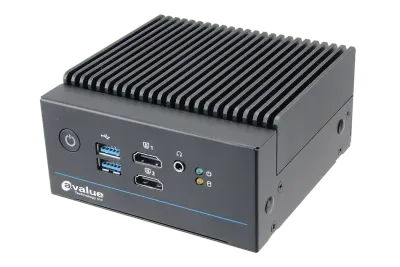

Front I/O
USB
2 x USB 3.0 (5Gbps)
LED Indicator
1 x Power on/off LED & Storage Access LED on front side
Audio
1 x Audio Jack (Mic-in + Line-Out Combo)
HDMI
2 x HDMI 1.4b
Power Button
1 x Power Button

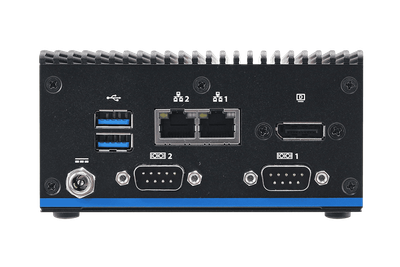

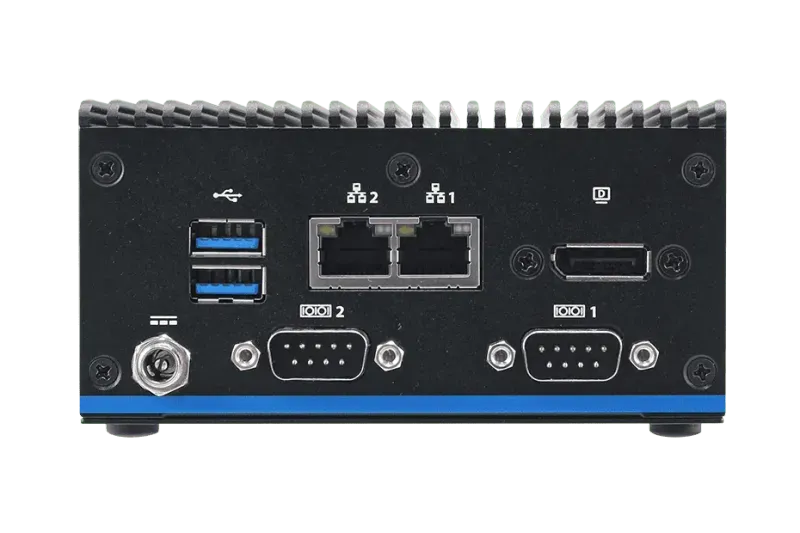

Rear I/O
USB
2 x USB 3.0 (5Gbps)

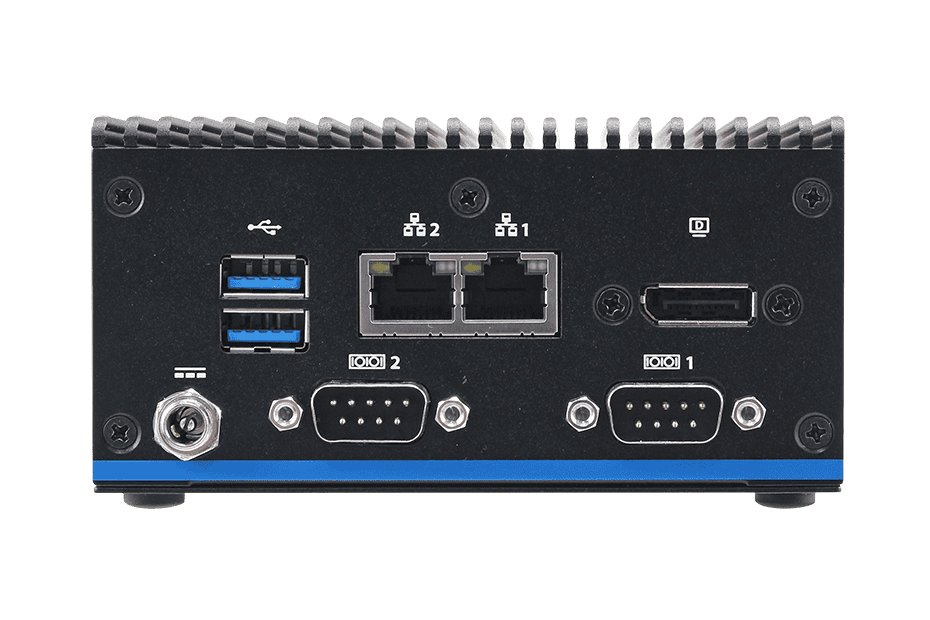

COM Port
1 x RS-232/422/485 (BIOS&Cable)
1 x RS-232
DP
1 x DP
LAN Port
2 x RJ45
AC/DC Input
1 x Lockable DC Jack
Right I/O
Antenna
2 x Antenna Mounting with Dust Cover
Audio
Audio Codec
Realtek ALC888S
Display
Graphic Chipset
Intel® HD Graphics 500
Resolution
2 x HDMI 1.4b: Max. Resolution 3840x2160@30Hz
1 x DP (DVI-I/VGA Factory Option): Max. Resolution 1920 x 1080@60Hz
Certifications
Certification Information
CE, FCC Class A, UKCA
Ethernet
LAN Chipset
Realtek RTL8119I
Specification
10/100/1000 Base-Tx Gigabit Ethernet Compatible
Power Requirement
ACPI
Single Power ATX Support S0, S3, S4, S5
ACPI 5.0 Compliant
Power Mode
AT/ATX (ATX is default setting)
Adapter
Input: 100 ~ 240Vdc/ 50 ~ 60Hz
Output: 12V/5A AC-DC 60W Adapter
Software Support
OS
Win 10, Linux
Ordering Information
Ordering Information
Intel® Celeron® Processor J3455/N3350 Fanless NUC System
NUC-APL-34-B1-1R (J3455)
NUC-APL-33-B1-1R (N3350)
