EMS-EHL-DVI

EMS-EHL-DVI FrontEMS-EHL-DVI Front
EMS-EHL-DVI FrontEMS-EHL-DVI Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • ntel® Celeron®/Atom™ J6413/x6425E SoC BGA Processor
  • 1 x 260-pin SODIMM socket Max. up to 32GB DDR4 3200MT/s
  • Rich I/O, 4-USB3.2, 2-USB2.0, 1-DP, 1-HDMI, 1-DVI-D, 2-COM, 2-LAN, 1-8bit GPIO
  • Support 5G (Sub-6G) module, HDMI 2.0b (4K @ 60Hz), LAN 2.5G Base-Tx GbE
  • Fanless operation temperature from -40°C ~ 70°C (WT) / 0°C ~ 65°C (ST)
  • CE, FCC Class B, LVD 62368-1, IP50
  • Wide range DC power input from +9~36V
  • Support HW TPM 2.0
  • Support IET modules

Product Description

The Avalue EMS-EHL-DVI is a modular industrial computing system featuring Intel® Elkhart Lake processors, designed with multiple DVI outputs. It is ideal for applications that require high-quality digital video output, such as industrial displays or control systems.

The system supports fanless operation and is built for reliability in harsh industrial environments.

Technical Specifications

System Information

Processor

Intel® Celeron® Processor J6413 (1.5M Cache, up to 3.00Ghz), ST, Tj=105°C

Intel® Atom® Processor x6425E(1.5M Cache, up to 3.00Ghz), WT, Tj=-40°C ~105°C

System Memory

1 x 260-pin SODIMM socket Max. Up to 32GB DDR4 3200 MT/s

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec.

H/W Status Monitor

CPU & system temperature monitoring and Voltages monitoring

SBC

EBM-EHLS

TPM

TPM 2.0

Mechanical & Environmental

Operating Temperature

-40°C ~ 70°C (w/SSD) ambient w/ 0.5 air flow, WT sku, x6425E

-40°C ~ 60°C (w/SSD) ambient w/ 0.2 air flow, WT sku, x6425E

0°C ~ 65°C (w/SSD) ambient w/ 0.5 air flow, ST sku, J6413

0°C ~ 55°C (w/SSD) ambient w/ 0.2 air flow, ST sku, J6413

Storage Temperature

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

240mm x 150mm x 64 mm (w/ IET module)

Weight

1.9 kg (System)

2.7 kg (w_Package)

Vibration Test

With SSD : 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis

Shock Test

With SSD : 55Grms, IEC 60068-2-27, Half Sine, 11ms

IP Rating

IP 50

Mounting Kit

Wall mount kit (standard)

DIN RAIL (optional)

Expansion

M.2

1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIe III/ USB3.2 Gen.1 and SIM slot1 (internal), default support 3.3V, jumper setting to adjust 3.3V/ 3.8V)

1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0/ PCIe III)

Storage

M.2

1 x M.2 Key-B 2242/2280, support SATA

1 x M.2 Key-B 2242, support SATA (share with expansion slot)

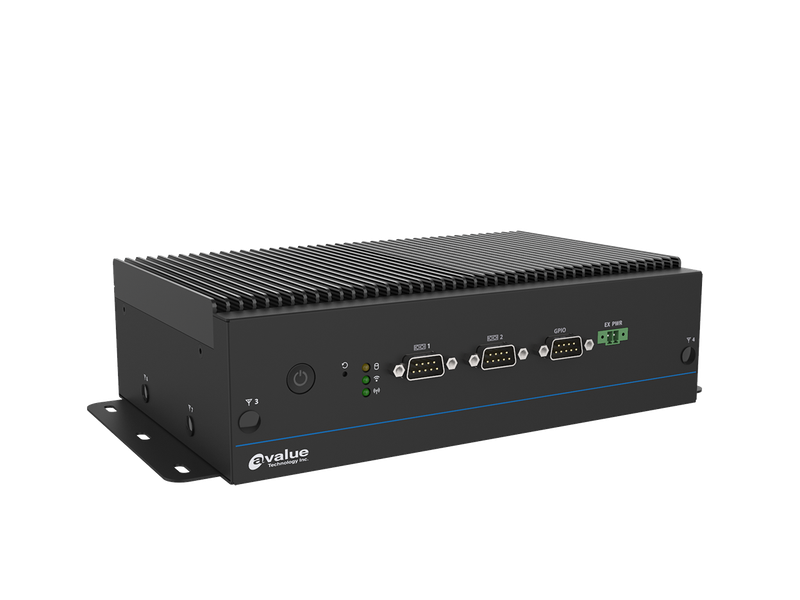

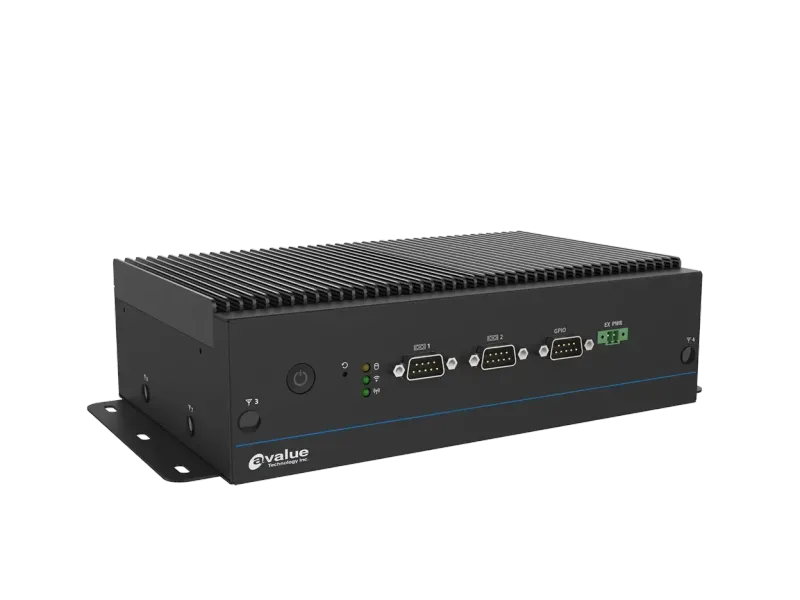

Front I/O

Power Button

1 x Push Button for Power on/off

Reset Button

1 x Push Button for Reset

LED Indicator

1 x Power LED (Blue)

1 x Storage LED (Yellow)- M.2 B-key SATA

1 x LTE LED (Green)- M.2 B-key PCIe

1 x Wifi LED (Green)- M.2 E key

COM Port

2 x COM RS232/422/485 (select via BIOS, auto flow control via HW)

Digital I/O

1 x 8-bit GPIO (DB9)

Audio

1 x Mic-In, 1 x Line-Out

Wire-Control Power On/Off

1 x 2-Pin Terminal Block for wire-control power on/off

Antenna

2 x Antenna with dust cover

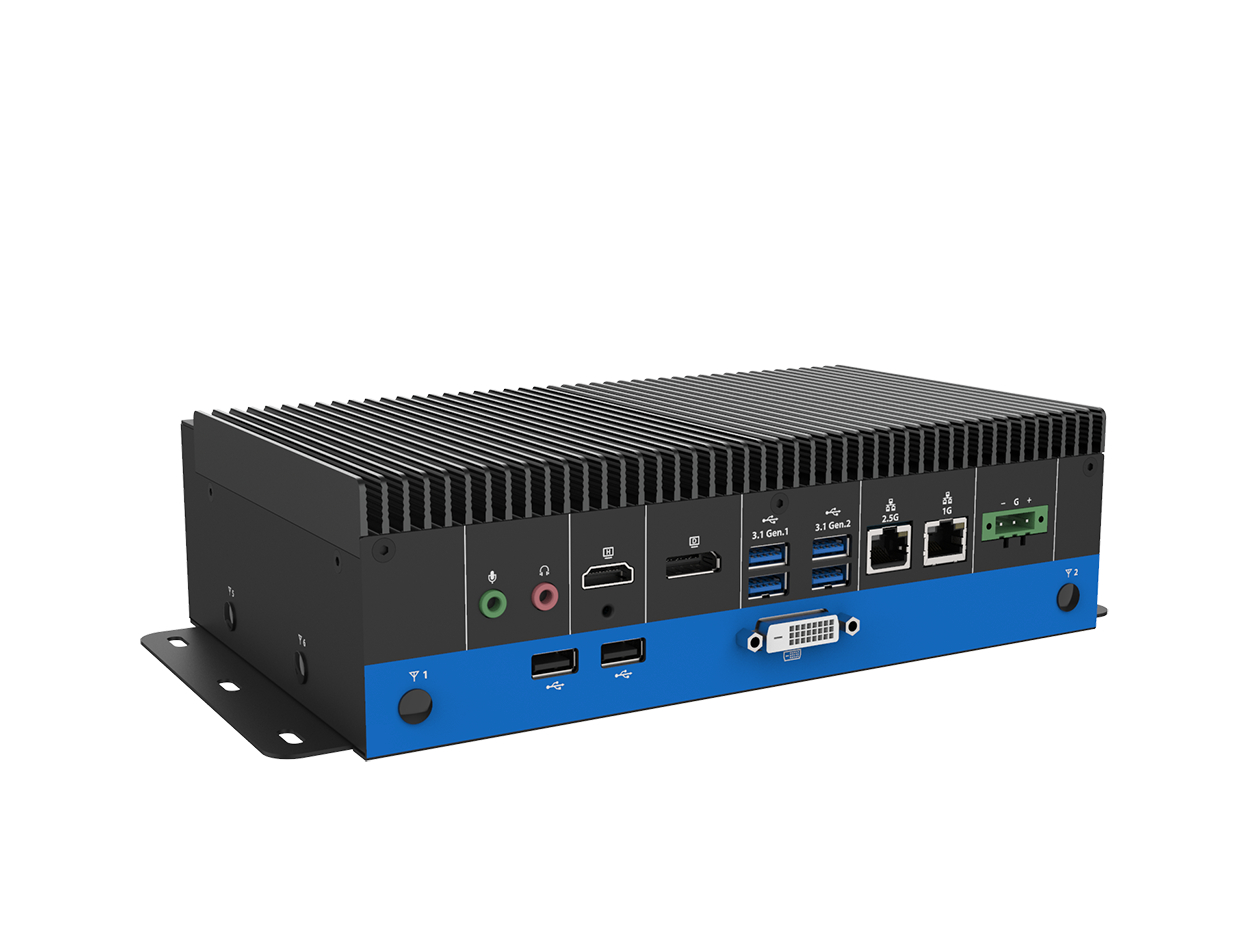

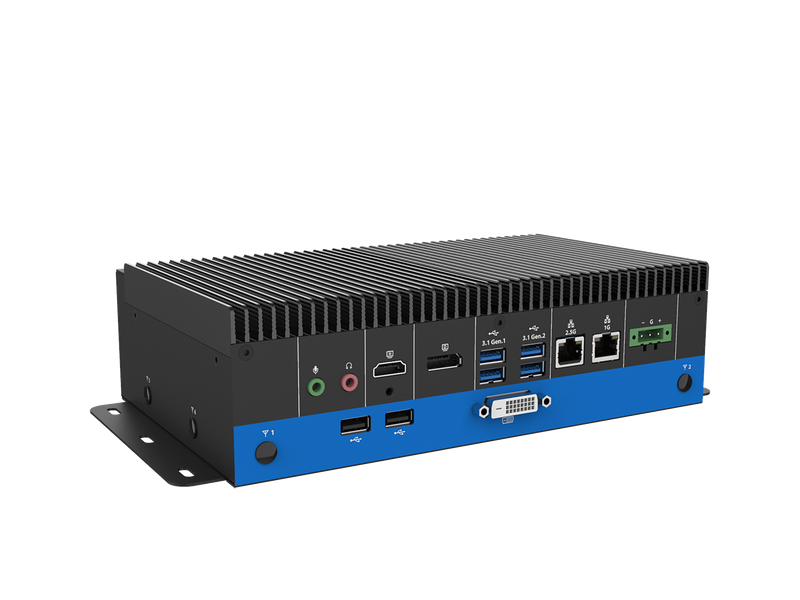

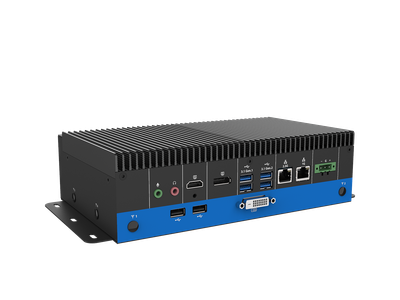

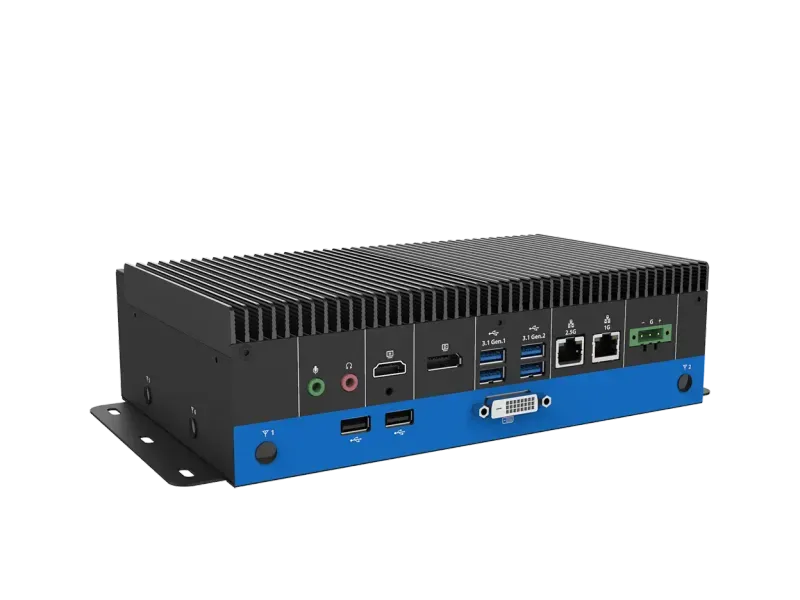

Rear I/O

USB

2 x USB 3.1 Gen.2 (10Gbp/s)

2 x USB 3.1 Gen.1 (5Gbp/s), via USB Hub

2 x USB 2.0

LAN Port

2 x RJ45

Audio

1 x Mic-in,1 x Line-Out

DP

1 x DP 1.4

HDMI

1 x HDMI 2.0b

DVI

1x DVI-D

Antenna

2 x Antenna with dust cover

AC/DC Input

3-Pin Terminal Block (V+. V-, GND)

Right I/O

Antenna

2 x Antenna with dust cover

Left I/O

Antenna

2 x Antenna with dust cover

Audio

Audio Codec

Realtek ALC888S (co-lay with ALC897) HD codec

Display

Graphic Chipset

Intel® UHD Graphics for 10th Gen Intel® Processors

Resolution

DP++ 1.4: 4096x2304 @ 60Hz

HDMI 2.0b : Max. resolution 4096x2304 @ 60Hz

Certifications

Certification Information

CE, FCC Class B, LVD 62368-1

Ethernet

LAN Chipset

2 x Intel I226-IT

Specification

2 x 10/100/1000/2.5G Base-Tx GbE compatible

Power Requirement

ACPI

Single power ATX Support S0,S3, S4, S5

ACPI 5.0 Compliant

Power Mode

AT/ATX (ATX is default setting)

Software Support

OS

Win 10 64bit / Win 11 64 bit/ Linux

Ordering Information

Ordering Information

Intel® Elkhart Lake Atom®/Celeron® Processor Fanless Rugged Embedded System, w_DVI IET Module

EMS-EHL-X64-A1-7R (x6425E)

EMS-EHL-J64-A1-7R (J6413)

What is EMS-EHL-DVI?

The EMS-EHL-DVI is a computing system manufactured by Avalue, designed specifically for modular-computing-system applications. The Avalue EMS-EHL-DVI is a modular industrial computing system featuring Intel® Elkhart Lake processors, designed with multiple DVI outputs. It is ideal for applications that require high-quality digital video output, such as industrial displays or control systems. The system supports fanless operation and is built for reliability in harsh industrial environments.

Key Features & Benefits

  • ntel® Celeron®/Atom™ J6413/x6425E SoC BGA Processor
  • 1 x 260-pin SODIMM socket Max. up to 32GB DDR4 3200MT/s
  • Rich I/O, 4-USB3.2, 2-USB2.0, 1-DP, 1-HDMI, 1-DVI-D, 2-COM, 2-LAN, 1-8bit GPIO
  • Support 5G (Sub-6G) module, HDMI 2.0b (4K @ 60Hz), LAN 2.5G Base-Tx GbE
  • Fanless operation temperature from -40°C ~ 70°C (WT) / 0°C ~ 65°C (ST)
  • CE, FCC Class B, LVD 62368-1, IP50
  • Wide range DC power input from +9~36V
  • Support HW TPM 2.0
  • Support IET modules

Applications & Use Cases

The EMS-EHL-DVI is ideal for various industrial automation applications:

  • Dust-sensitive environments and silent operation requirements
  • Applications that require high-quality digital video output
  • DC-powered industrial installations and mobile applications
  • Extreme temperature environments and outdoor installations
  • High-performance computing and data processing tasks
  • Networked industrial systems and data communication
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
