EMS-EHL-USB

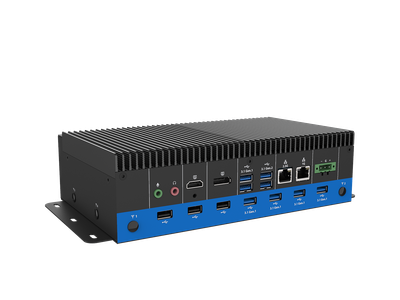

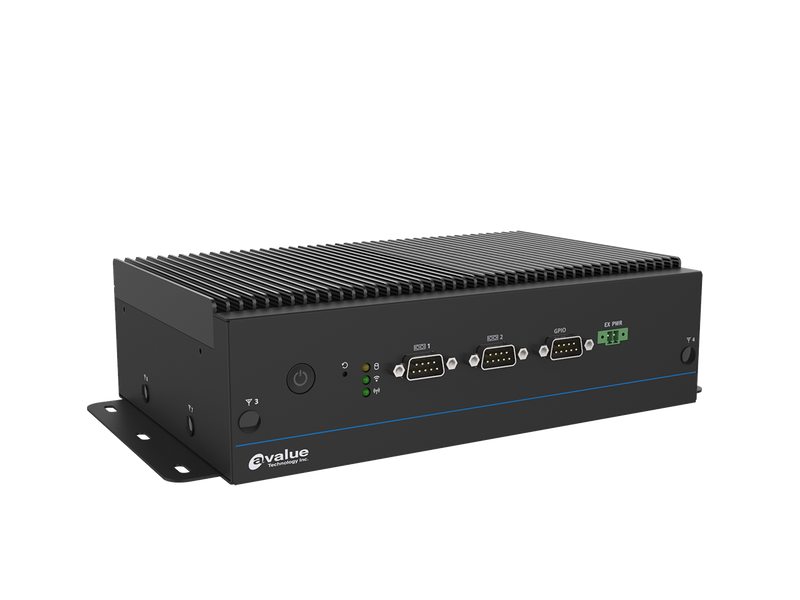

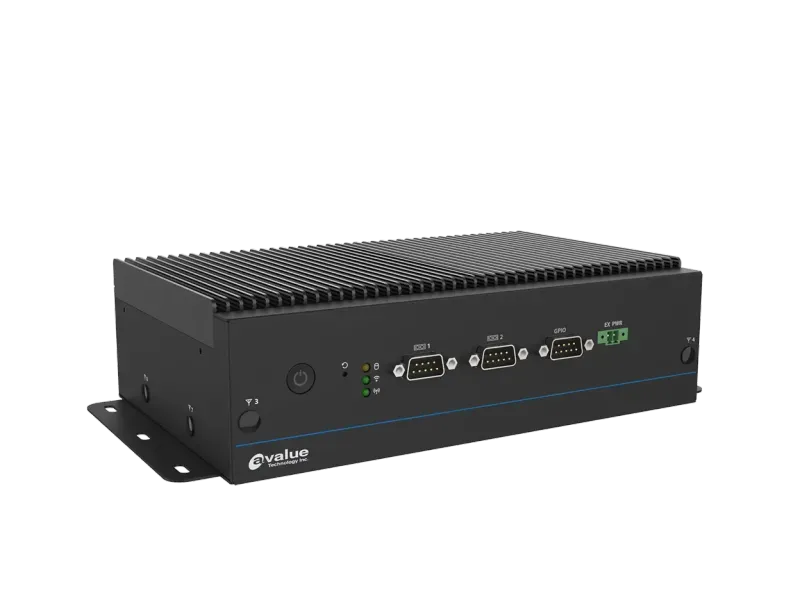

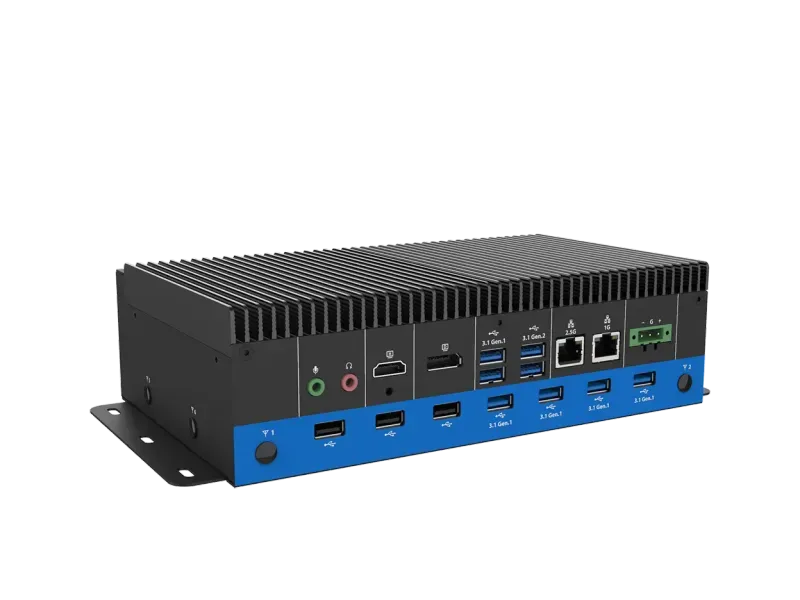

EMS-EHL-USB FrontEMS-EHL-USB Front
EMS-EHL-USB FrontEMS-EHL-USB Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • Intel® Celeron®/Atom™ J6413/x6425E SoC BGA Processor
  • 1 x 260-pin SODIMM socket Max. up to 32GB DDR4 3200MT/s
  • Rich I/O, 8-USB3.2, 3-USB2.0, 1-DP, 1-HDMI, 2-COM, 2-LAN, 1-8bit GPIO
  • Support 5G (Sub-6G) module, HDMI 2.0b (4K @ 60Hz), LAN 2.5G Base-Tx GbE
  • Fanless operation temperature from -40°C ~ 70°C (WT) / 0°C ~ 65°C (ST)
  • CE, FCC Class B, LVD 62368-1, IP50
  • Wide range DC power input from +9~36V
  • Support HW TPM 2.0
  • Support IET modules

Product Description

The Avalue EMS-EHL-USB is a modular industrial computing system powered by Intel® Elkhart Lake processors. It features multiple USB ports, making it ideal for applications requiring extensive USB connectivity.

The system is fanless, supports a wide temperature range, and is designed for industrial environments where reliable performance and flexibility are crucial.

Technical Specifications

System Information

Processor

Intel® Celeron® Processor J6413 (1.5M Cache, up to 3.00Ghz), ST, Tj=105°C

Intel® Atom® Processor x6425E(1.5M Cache, up to 3.00Ghz), WT, Tj=-40°C ~105°C

System Memory

1 x 260-pin SODIMM socket Max. Up to 32GB DDR4 3200 MT/s

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec.

H/W Status Monitor

CPU & system temperature monitoring and Voltages monitoring

SBC

EBM-EHLS

TPM

TPM 2.0

Mechanical & Environmental

Operating Temperature

-40°C ~ 70°C (w/SSD) ambient w/ 0.5 air flow, WT sku, x6425E

-40°C ~ 60°C (w/SSD) ambient w/ 0.2 air flow, WT sku, x6425E

0°C ~ 65°C (w/SSD) ambient w/ 0.5 air flow, ST sku, J6413

0°C ~ 55°C (w/SSD) ambient w/ 0.2 air flow, ST sku, J6413

Storage Temperature

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

240mm x 150mm x 64 mm (w/ IET module)

Weight

1.9 kg (System)

2.7 kg (w_Package)

Vibration Test

With SSD : 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis

Shock Test

With SSD : 55Grms, IEC 60068-2-27, Half Sine, 11ms

IP Rating

IP 50

Mounting Kit

Wall mount kit (standard)

DIN RAIL (optional)

Expansion

M.2

1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIe III/ USB3.2 Gen.1 and SIM slot1 (internal), default support 3.3V, jumper setting to adjust 3.3V/ 3.8V)

1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0/ PCIe III)

Storage

M.2

1 x M.2 Key-B 2242/2280, support SATA

1 x M.2 Key-B 2242, support SATA (share with expansion slot)

Rear I/O

USB

3 x USB 2.0

6 x USB 3.1 Gen.1 (5Gbp/s), via USB Hub

2 x USB 3.1 Gen.2 (10Gbp/s)

LAN Port

2 x RJ45

Audio

1 x Mic-in,1 x Line-Out

DP

1 x DP 1.4

HDMI

1 x HDMI 2.0b

Antenna

2 x Antenna with dust cover

Right I/O

Antenna

2 x Antenna with dust cover

Left I/O

Antenna

2 x Antenna with dust cover

Audio

Audio Codec

Realtek ALC888S (co-lay with ALC897) HD codec

Display

Graphic Chipset

Intel® UHD Graphics for 10th Gen Intel® Processors

Resolution

DP++ 1.4: 4096x2304 @ 60Hz

HDMI 2.0b : Max. resolution 4096x2304 @ 60Hz

Certifications

Certification Information

CE, FCC Class B, LVD 62368-1

Ethernet

LAN Chipset

2 x Intel I226-IT

Specification

2 x 10/100/1000/2.5G Base-Tx GbE compatible

Power Requirement

ACPI

Single power ATX Support S0,S3, S4, S5

ACPI 5.0 Compliant

Power Mode

AT/ATX (ATX is default setting)

Software Support

OS

Win 10 64bit / Win 11 64 bit/ Linux

Ordering Information

Ordering Information

Intel® Elkhart Lake Atom®/Celeron® Processor Fanless Rugged Embedded System, w_USB IET Module

EMS-EHL-X64-A1-8R (x6425E)

EMS-EHL-J64-A1-8R (J6413)

What is EMS-EHL-USB?

The EMS-EHL-USB is a computing system manufactured by Avalue, designed specifically for modular-computing-system applications. The Avalue EMS-EHL-USB is a modular industrial computing system powered by Intel® Elkhart Lake processors. It features multiple USB ports, making it ideal for applications requiring extensive USB connectivity. The system is fanless, supports a wide temperature range, and is designed for industrial environments where reliable performance and flexibility are crucial.

Key Features & Benefits

  • Intel® Celeron®/Atom™ J6413/x6425E SoC BGA Processor
  • 1 x 260-pin SODIMM socket Max. up to 32GB DDR4 3200MT/s
  • Rich I/O, 8-USB3.2, 3-USB2.0, 1-DP, 1-HDMI, 2-COM, 2-LAN, 1-8bit GPIO
  • Support 5G (Sub-6G) module, HDMI 2.0b (4K @ 60Hz), LAN 2.5G Base-Tx GbE
  • Fanless operation temperature from -40°C ~ 70°C (WT) / 0°C ~ 65°C (ST)
  • CE, FCC Class B, LVD 62368-1, IP50
  • Wide range DC power input from +9~36V
  • Support HW TPM 2.0
  • Support IET modules

Applications & Use Cases

The EMS-EHL-USB is ideal for various industrial automation applications:

  • Industrial environments where reliable performance and flexibility are crucial
  • Dust-sensitive environments and silent operation requirements
  • DC-powered industrial installations and mobile applications
  • Extreme temperature environments and outdoor installations
  • High-performance computing and data processing tasks
  • Networked industrial systems and data communication
  • Applications requiring extensive usb connectivity
  • Peripheral device connectivity and data transfer
