Avalue · Computing System

EMS-TGL-HDMI

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

11th Gen Intel® Core™ i7/i5/i3 BGA Processor
2x 260-pin SODIMM socket Max. up to 64GB DDR4 3200MT/s
Rich I/O, 4-USB3.1, 2-USB2.0, 1-DP, 2-HDMI, 4-COM, 4-LAN, 1-8bit GPIO.
Support 5G (Sub-6G) module, M.2 NVMe SSD Gen. III x 4, HDMI 2.0b (4K @ 60Hz), LAN 2.5G Base-Tx GbE
Fanless operation temperature from -40°C ~ 70°C (WT) / 0°C ~ 70°C (ST)
CE, FCC Class B, IP50
Wide range DC power input from +9~36V
Support HW TPM 2.0

Product Description

The Avalue EMS-TGL-HDMI is a modular industrial computing system featuring Intel® Tiger Lake processors and multiple HDMI outputs, designed for high-definition video applications. It offers a fanless design and wide temperature support, making it suitable for use in harsh industrial environments.

This system is ideal for applications requiring reliable video output and robust performance.

Technical Specifications

Processor

Intel® Core™ i7-1185GRE Processor (15W, 12M Cache, up to 2.80 GHz), WT

Intel® Core™ i5-1145GRE Processor (15W, 8M Cache, up to 2.60 GHz), WT

Intel® Core™ i3-1115GRE Processor (15W, 6M Cache, up to 3.00 GHz), WT

Intel® Core™ i7-1185G7E Processor (15W, 12M Cache, up to 2.80 GHz), ST

Intel® Core™ i5-1145G7E Processor (15W, 8M Cache, up to 2.60 GHz), ST

Intel® Core™ i3-1115G4E Processor (15W, 6M Cache, up to 3.00 GHz), ST

System Memory

2 x 260-pin SODIMM socket Max. up to 64GB DDR4 3200 MT/s

I/O Chipset

EC ITE IT8528E

BIOS Information

AMI uEFI BIOS 256 Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec.

H/W Status Monitor

CPU & system temperature monitoring and Voltages monitoring

SBC

EBM-TGLS + EBM-BYTS DB-A

Operating Temperature

-40°C ~ 60°C (w/SSD) ambient w/ air flow, WT sku

0°C ~ 70°C (w/SSD) ambient w/ air flow, ST sku

Storage Temperature

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

240mm x 150mm x 69 mm (w/ IET module)

Weight

TBD

Vibration Test

With SSD : 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis

Shock Test

With SSD : 55Grms, IEC 60068-2-27, Half Sine, 11ms

IP Rating

IP 50

Mounting Kit

Wall mount kit (standard)

DIN RAIL (optional)

M.2

1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIeIII x1/ USB3.1 and SIM slot1

1 x M.2 Key-E 2230 for Wi-Fi & BT Module(CNVi)

M.2

1 x M.2 Key-M 2242/2280, support PCIe Gen. III x 4 (NVMe SSD)

1 x M.2 Key-B 2242, support SATA (share with expansion slot)

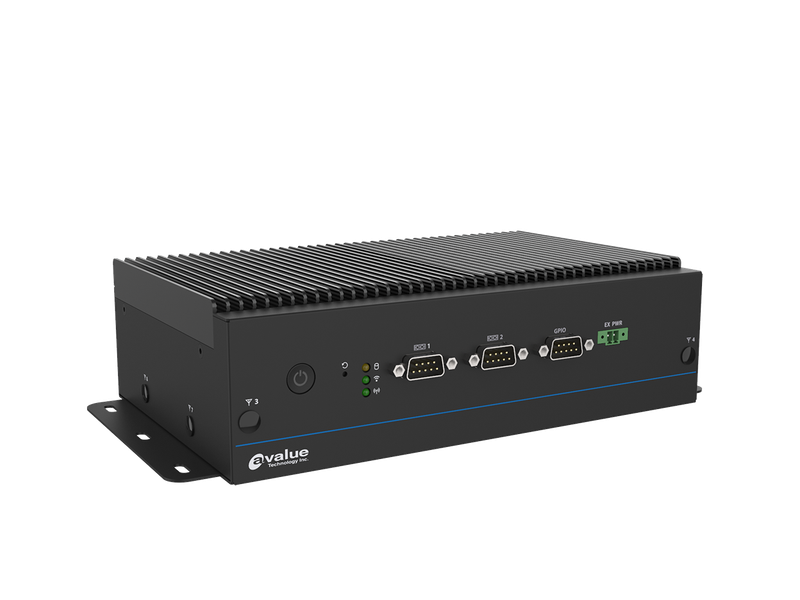

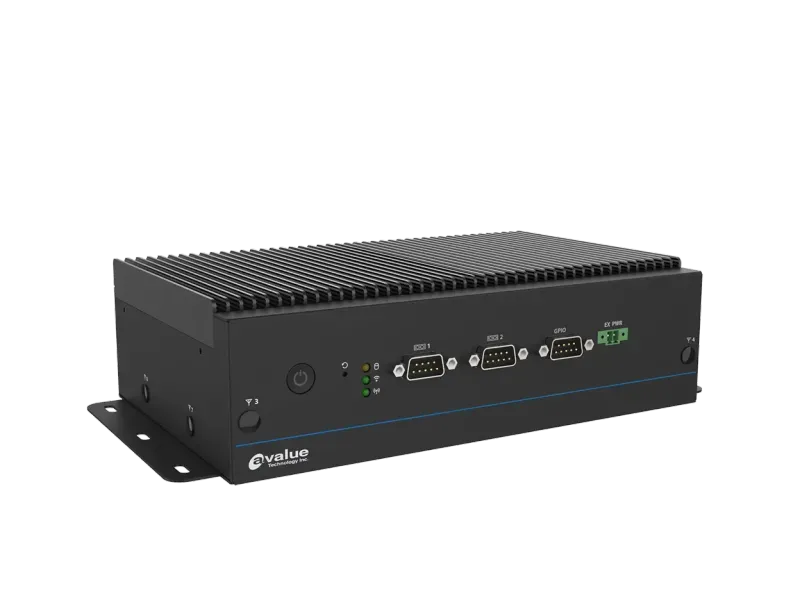

Power Button

1 x Push Button for Power on/off

Reset Button

1 x Push Button for Reset

LED Indicator

1 x Power LED (Blue)

1 x Storage LED (Yellow)-M.2 B-key SATA

1 x LTE LED (Green)- M.2 B-key PCIe

1 x Wifi LED (Green)- M.2 E key

COM Port

2 x COM RS232/422/485 (select via BIOS, auto flow control via HW)

Digital I/O

1 x 8-bit GPIO (DB9)

Wire-Control Power On/Off

2-Pin Terminal Block

Antenna

2 x Antenna with dust cover

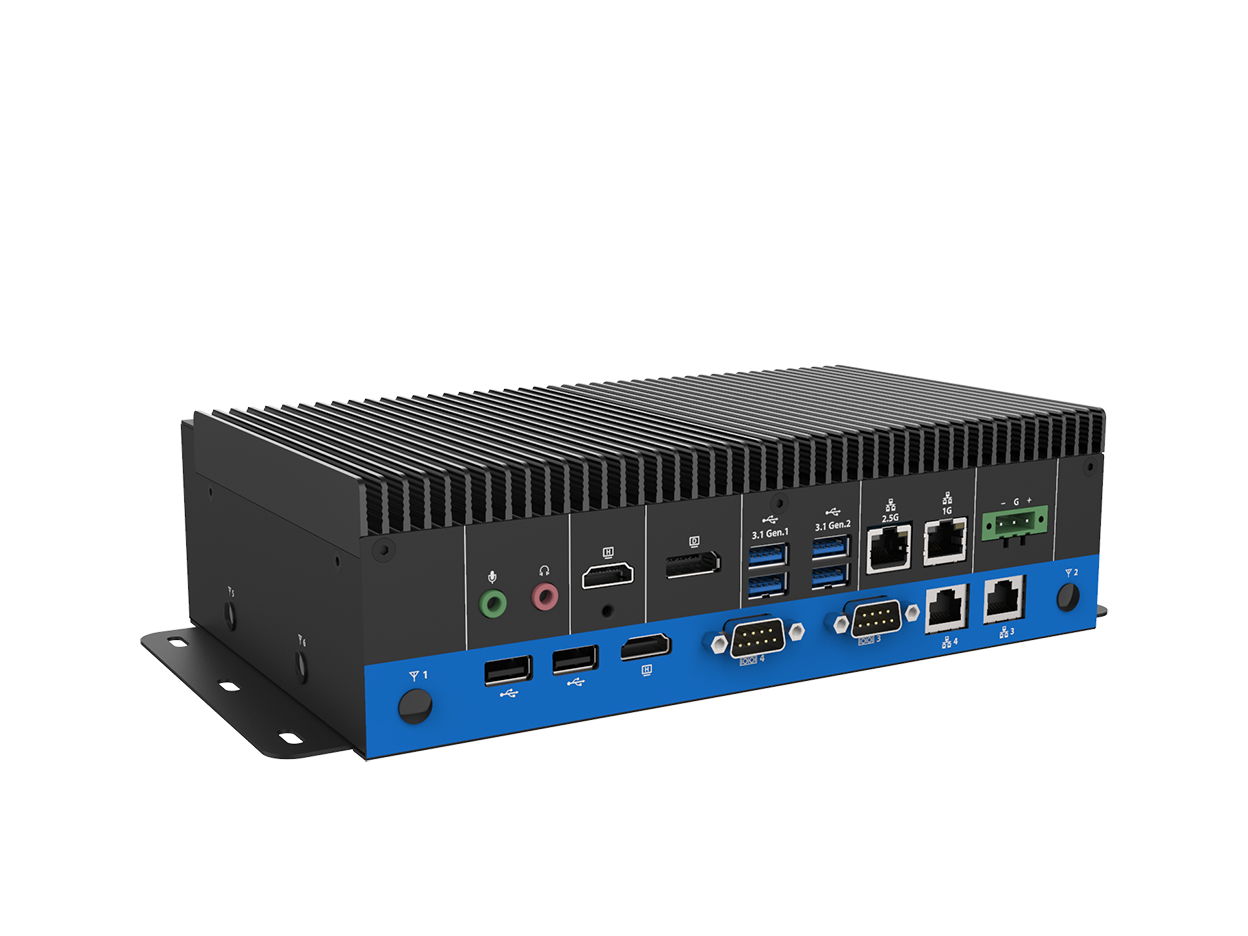

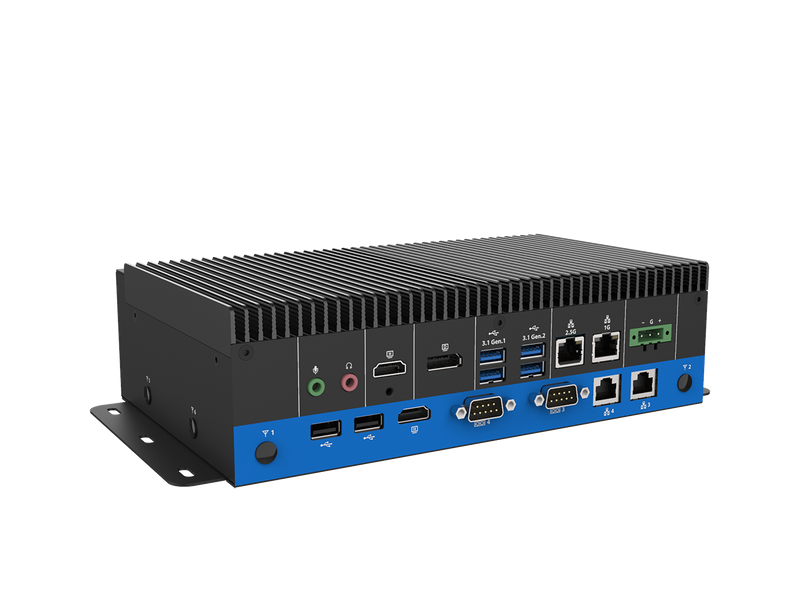

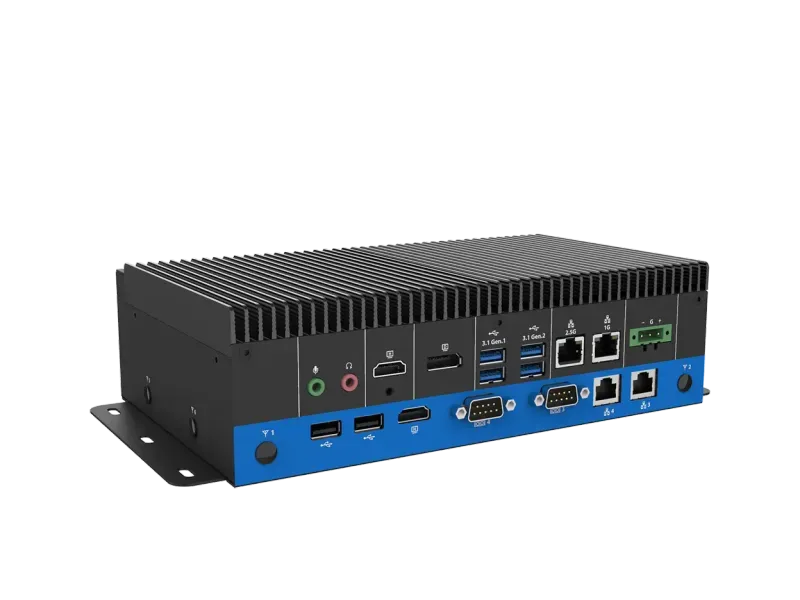

USB

2 x USB 3.1 Gen.2 (10Gbp/s)

2 x USB 3.1 Gen.1 (5Gbp/s)

2 x USB 2.0

COM Port

4 x COM RS232/422/485 (select via BIOS, auto flow control via HW)

LAN Port

4 x RJ-45

Audio

Mic-In, Line-Out

DP

1 x DP 1.4

HDMI

1 x HDMI 2.0b

SIM Slot

1 x internal SIM slot

Antenna

2 x Antenna with dust cover

AC/DC Input

3-Pin Terminal Block (V+. V-, GND)

Antenna

2 x Antenna with dust cover

Antenna

2 x Antenna with dust cover

Audio Codec

Realtek ALC888S HD codec

Graphic Chipset

Intel® Iris® Xe Graphics (i7-1185GRE/i5-1145GRE/i7-1185G7E/i5-1145G7E)

Intel® UHD Graphics for 11th Gen Intel® Processors (i3-1115GRE/i3-1115G4E)

Resolution

DP++ 1.4: 4096x2304 @ 60Hz

HDMI 2.0b : Max. resolution 4096x2304 @ 60Hz

Certification Information

CE, FCC Class B

LAN Chipset

1 x Intel® I225-LM

1 x Intel® I219-LM

2 x Intel® I211-AT (via IET module)

Specification

1 x 10/100/1000/2.5G Base-Tx GbE compatible

3 x 10/100/1000Base-Tx GbE compatible

Voltage Input Spec.

DC in 12/24V (+9V ~ +36V), wide voltage single power input

TVS component for surge protection

Reverse current/voltage protection(Max. Currency: 13A)

Voltage Input Connector

3-Pin Terminal Block (V+. V-, GND)

ACPI

Single power ATX Support S0,S3, S4, S5

ACPI 5.0 Compliant

Power Mode

AT/ATX (ATX is default setting)

OS

Win 10 64bit, Linux

Ordering Information

Intel® 11th Tiger Lake Core™ Processor i7/i5/i3 Fanless Rugged Embedded System, w_HDMI IET Module

EMS-TGL-W85-A1-6R (i7-1185GRE)

EMS-TGL-W45-A1-6R (i5-1145GRE)

EMS-TGL-W15-A1-6R (i3-1115GRE)

EMS-TGL-S85-A1-6R (i7-1185G7E)

EMS-TGL-S45-A1-6R (i5-1145G7E)

EMS-TGL-S15-A1-6R (i3-1115G4E)

What is EMS-TGL-HDMI?

The EMS-TGL-HDMI is a computing system manufactured by Avalue, designed specifically for modular-computing-system applications. It features processor of Intel® Core™ i7-1185GRE Processor (15W, 12M Cache, up to 2.80 GHz), WT, Intel® Core™ i5-1145GRE Processor (…, memory of 2 x 260-pin SODIMM socket Max. up to 64GB DDR4 3200 MT/s and storage of -30°C ~ 70°C (-22°F ~ 158°F). The Avalue EMS-TGL-HDMI is a modular industrial computing system featuring Intel® Tiger Lake processors and multiple HDMI outputs, designed for high-definition video applications. It offers a fanless design and wide temperature support, making it suitable for use in harsh industrial environments. This system is ideal for applications requiring reliable video output and robust performance.

Key Features & Benefits

11th Gen Intel® Core™ i7/i5/i3 BGA Processor
2x 260-pin SODIMM socket Max. up to 64GB DDR4 3200MT/s
Rich I/O, 4-USB3.1, 2-USB2.0, 1-DP, 2-HDMI, 4-COM, 4-LAN, 1-8bit GPIO.
Support 5G (Sub-6G) module, M.2 NVMe SSD Gen. III x 4, HDMI 2.0b (4K @ 60Hz), LAN 2.5G Base-Tx GbE
Fanless operation temperature from -40°C ~ 70°C (WT) / 0°C ~ 70°C (ST)
CE, FCC Class B, IP50
Wide range DC power input from +9~36V
Support HW TPM 2.0

Applications & Use Cases

The EMS-TGL-HDMI is ideal for various industrial automation applications:

Applications requiring reliable video output and robust performance
Dust-sensitive environments and silent operation requirements
DC-powered industrial installations and mobile applications
Extreme temperature environments and outdoor installations
High-performance computing and data processing tasks
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking

Frequently Asked Questions

The EMS-TGL-HDMI features 11th Gen Intel® Tiger Lake processors (Core™ i7/i5/i3), up to 64GB DDR4 memory, and notably multiple HDMI ports for extensive display connectivity. It leverages Intel Iris Xe graphics for powerful visual processing, offers rich I/O including USB 3.1, COM ports, and dual LAN ports, supports 5G connectivity, operates fanless in wide temperature ranges (-40°C to 70°C for WT model), has IP50 protection, accepts wide voltage input (9-36V), and includes TPM 2.0 security. This system is ideal for industrial applications requiring multiple high-resolution displays and powerful graphics processing capabilities.

The EMS-TGL-HDMI offers exceptional display capabilities leveraging the Tiger Lake platform's Intel Iris Xe graphics. It features multiple HDMI 2.0b ports supporting 4K resolution at 60Hz, with enhanced color depth and HDR support. The system can drive multiple independent displays simultaneously, with the graphics architecture supporting DirectX 12, OpenGL 4.5, and OpenCL for accelerated rendering. This makes it suitable for applications requiring high-resolution visualization, detailed imaging, multi-display setups, and graphics-intensive industrial interfaces, all while maintaining industrial-grade reliability and environmental specifications.

The Tiger Lake platform significantly enhances visual computing through its Intel Iris Xe graphics architecture, which provides up to 96 execution units (compared to 64 in previous generations) and dedicated hardware for media encoding/decoding and AI acceleration. This enables the EMS-TGL-HDMI to handle multiple 4K video streams with hardware decoding, perform real-time video analytics with AI assistance, deliver smoother rendering for complex visualizations, and support advanced features like HDR and 10-bit color processing. These capabilities are complemented by the high-performance CPU cores and improved memory bandwidth, creating a balanced system for graphics-intensive industrial applications.

The EMS-TGL-HDMI is ideal for applications requiring advanced visual processing such as multi-display control rooms, digital signage management systems, medical imaging workstations, machine vision systems with AI-enhanced analysis, industrial HMI systems with sophisticated visualizations, surveillance monitoring centers, simulation and training systems, video wall controllers, transportation management displays, and any application where handling multiple high-resolution displays while performing advanced visual computing tasks in a rugged industrial form factor is critical to operational success.

A Modular Computing System is an industrial-grade computer designed with modular components that can be interchanged or expanded to customize the system for specific applications. These systems typically feature a base unit with core processing capabilities and standardized interfaces for connecting specialized modules that add functionality such as additional I/O, communication protocols, or industry-specific features. This modularity provides flexibility, scalability, and future-proofing while maintaining the reliability and ruggedness required for industrial environments.

Modular Computing Systems offer several advantages over fixed-configuration computers: customization for specific application requirements, ability to adapt to changing needs without replacing the entire system, simpler upgrades by replacing only specific modules, reduced spare parts inventory, greater longevity as new technologies can be integrated via module updates, streamlined maintenance, and better return on investment through scalability. These benefits make modular systems particularly valuable in industrial environments where requirements evolve and system longevity is important.

An IET (Interface Extension Technology) module is a specialized expansion module used in systems like the EMS series to add specific functionality to the base computing platform. These modules connect to a standardized interface on the main system and provide additional capabilities such as extra COM ports, LAN ports, PoE functionality, or specialized interfaces like CAN bus. IET modules are important because they allow a single base system to be customized for diverse applications by simply changing the module, providing flexibility while maintaining a standardized core platform.

Industries benefiting from modular computing systems include manufacturing (automation control, data collection), transportation (fleet management, railway systems), utilities (substation monitoring, grid control), healthcare (medical equipment integration), retail (point-of-sale, inventory management), building automation (HVAC, access control), defense, aerospace, and smart city infrastructure. Applications requiring customization, future expansion, diverse I/O needs, or adaptation to legacy systems particularly benefit from the flexibility and scalability these systems provide while maintaining industrial-grade reliability.

Wide temperature operation (typically -40°C to 70°C for industrial systems) ensures reliable functioning in non-climate-controlled industrial environments like factory floors, outdoor installations, vehicles, and remote locations. This capability is achieved through careful component selection, thermal design, and elimination of moving parts like fans. Systems with wide temperature ranges can be deployed in harsh conditions without requiring expensive climate control systems, reducing installation and operating costs while improving reliability.

Fanless design means the computer uses passive cooling techniques with heat sinks and thermal engineering instead of active cooling fans. This design is crucial for industrial computers because it eliminates a common point of failure (the fan motor), prevents dust and contaminant ingress that could clog filters and cause overheating, enables sealed enclosures for harsh environments, reduces maintenance requirements, eliminates fan noise, and improves overall system reliability and longevity in challenging industrial conditions with dust, vibration, and temperature fluctuations.

TPM (Trusted Platform Module) 2.0 is a specialized security chip that provides hardware-based encryption capabilities, secure storage for authentication credentials, and system integrity verification. In industrial systems, TPM helps protect sensitive data, secure communication channels, prevent unauthorized access or tampering, and ensure the integrity of control systems. As industrial systems become more connected, TPM provides essential security features to protect against cyber threats targeting critical infrastructure and manufacturing systems.

Vibration and shock resistance are critical for industrial computing systems operating in environments with mechanical disturbances from machinery, vehicles, or handling. Systems are tested to standards like IEC 60068-2-64 (vibration) and IEC 60068-2-27 (shock) to ensure they can withstand these forces without component failure or connection issues. This resilience is achieved through solid-state storage, elimination of moving parts, reinforced component mounting, specialized chassis design, and industrial-grade components, ensuring reliable operation in mechanically challenging environments.

When installing modular computing systems, consider proper thermal management (ensuring adequate airflow around the unit), environmental protection (enclosures appropriate for dust/moisture levels), power quality (stable power source with appropriate voltage and backup options), EMI/RFI isolation (distance from high-interference sources), physical security, accessibility for module swapping and maintenance, proper grounding, cable management (strain relief and protection), and compliance with local regulations and industry standards. Proper planning ensures reliable operation and maximizes the benefits of the system's modular nature.

For fanless modular systems, proper thermal management is crucial: ensure adequate clearance around all sides (typically 5-10cm minimum), avoid enclosing in sealed cabinets without ventilation, mount vertically if possible to enhance natural convection cooling, install away from other heat-generating equipment, consider ambient temperature fluctuations in the installation location, follow manufacturer's mounting recommendations (which often include heat-dissipating brackets), and periodically check for dust accumulation on cooling surfaces. For high-temperature environments, consider additional passive cooling solutions or environmental controls.

For modular computing systems, select a power supply with sufficient wattage for the base system plus all modules (with 20-30% headroom for future expansion), ensure voltage matching the system's input range (typically 9-36V DC for industrial systems), implement surge protection for industrial environments with electrical noise, consider redundant power options for critical applications, use proper wire gauge for current requirements, and potentially include an uninterruptible power supply (UPS) for protection against power outages. The power system should account for the maximum possible configuration with all modules installed.

Best practices for cable management with modular systems include using appropriate cable types for the industrial environment (shielded where necessary), implementing strain relief to prevent connector damage, securing cables to prevent accidental disconnection due to vibration, labeling cables clearly for easier maintenance and troubleshooting, maintaining minimum bend radii to prevent internal damage, using cable trays or conduits for protection, separating power and data cables to minimize interference, allowing sufficient service loops for module replacement without disconnecting cables, and ensuring accessibility for future changes while maintaining a neat installation.

If the system fails to power on, check that the power supply provides the correct voltage within the system's input range (typically 9-36V DC), ensure connections are secure at both the power supply and system, verify any power switches or ignition control settings are correctly configured, check for tripped circuit breakers or blown fuses, inspect for visible damage to power connectors, test with an alternative known-good power supply if available, verify the power LED indicators, and check if the system is in AT mode requiring a specific power signal. For vehicle-mounted systems, ensure the ignition control is properly connected.

For issues with modules or expansion capabilities, verify the module is properly seated and secured, check power cycling the system after confirming connections, ensure any module-specific drivers are installed, check BIOS/UEFI settings for module-related options, inspect for physical damage to connectors, try an alternative slot if available, test with a known-working module to verify slot functionality, check system logs for error messages, and consult module-specific documentation for jumper settings or configuration requirements. After replacing modules, validate that the system recognizes the change through device manager or system information utilities.

For overheating issues, ensure adequate clearance around the system (minimum 5-10cm on all sides), check that the installation position allows for proper convection cooling (typically vertical mounting), clean dust from the chassis and heat sink fins using compressed air (when powered off), verify ambient temperature is within specifications, check system temperature through monitoring utilities or BIOS, ensure any thermal interface materials are properly applied if the system has been serviced, examine CPU usage for processes causing excessive load, and consider adding auxiliary passive cooling or relocating the system to a cooler environment if persistent.

To diagnose communication issues, first identify the specific interface (COM, LAN, USB, etc.) experiencing problems. Check physical connections and cables for damage, verify device driver installation and updates, confirm port configuration settings (baud rate, parity, etc. for serial connections; IP settings for network), try alternative cables or ports to isolate the issue, check for resource conflicts in Device Manager, test with a known-working device, verify any required protocol converters or adapters are functioning, and use diagnostic tools appropriate to the interface type (terminal emulator for serial, ping/traceroute for network) to identify where communication fails.
