Question 1

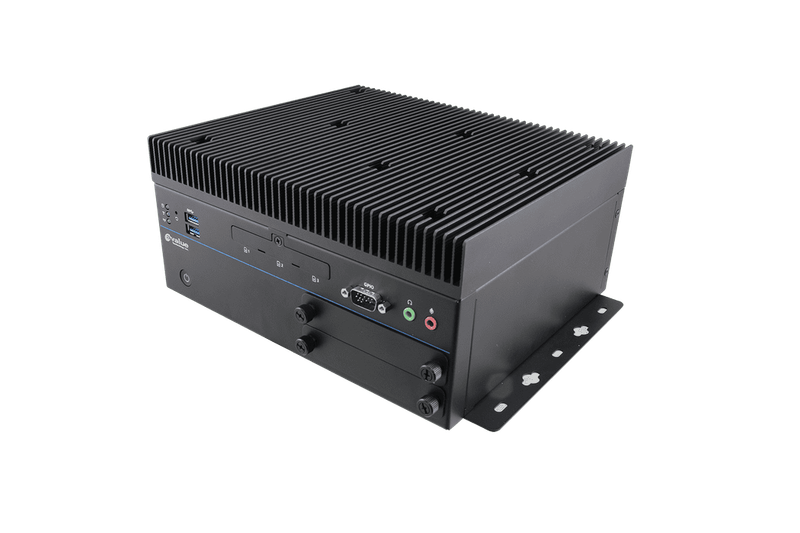

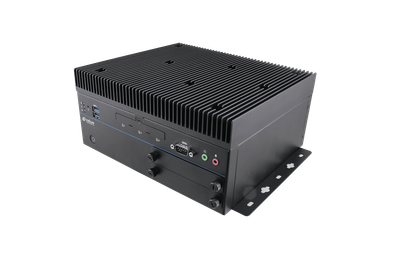

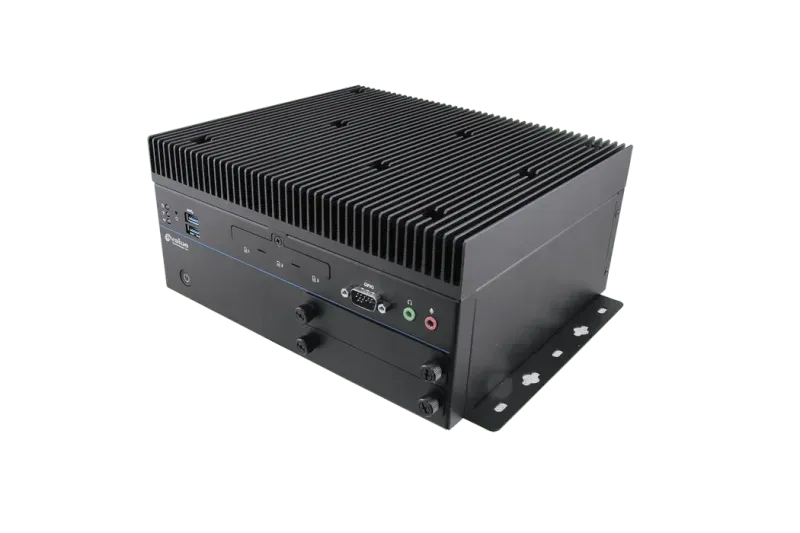

What are the key features of the VMS-CFS-M12 vehicle-mounted computing system?

Accepted Answer

The VMS-CFS-M12 is a specialized vehicle-mounted computing system featuring Intel® 8th/9th Gen Coffee Lake processors, up to 64GB DDR4 memory, and notably M12 connectors with PoE capabilities for superior vibration resistance and environmental sealing. It offers comprehensive I/O including multiple USB ports, COM ports, display outputs (DP, HDMI, LVDS), and GPS functionality. The system provides robust vehicular integration with extreme wide temperature operation (-40°C to 70°C), shock/vibration resistance to military standards, vehicle power management (9-36V DC input), and E-Mark certification. This configuration is ideal for applications in severe environments where connector reliability and sealing are critical, such as construction equipment, railways, outdoor vehicles, and applications subject to wash-down or extreme vibration.

Question 2

What advantages do M12 connectors provide for vehicle-mounted applications?

Accepted Answer

M12 connectors provide significant advantages for vehicle-mounted applications through their screw-lock mating mechanism that prevents vibration-induced disconnections, IP67/IP68-rated sealing protecting against dust, water, and pressure washing, robust metal construction resisting mechanical damage, standardized industrial interface ensuring long-term availability and compatibility, enhanced EMI/RFI shielding for electrical noise immunity, extended temperature range operation, and resistance to chemicals, oils, and cleaning agents. These features make M12 connectors ideal for vehicle applications operating in harsh environments where standard connectors would fail due to vibration, moisture, dust, or chemical exposure, ensuring reliable connectivity in demanding conditions like construction sites, agricultural environments, exposed transportation systems, and industrial vehicles.

Question 3

How does the VMS-CFS-M12 address the environmental challenges found in extreme vehicular applications?

Accepted Answer

The VMS-CFS-M12 addresses extreme vehicular environmental challenges through a comprehensive design approach combining M12 sealed connectors protecting against water and dust ingress, reinforced chassis construction withstanding severe shock and vibration (tested to MIL-STD-810 standards), wide temperature operation (-40°C to 70°C) accommodating freezing and desert conditions, sealed thermal design preventing contamination while maintaining cooling efficiency, conformal coating protecting circuit boards from humidity and condensation, integrated power filtering managing vehicle electrical transients, and compliance with international standards for vehicular electronics (E-Mark, ISO 7637-2). This design ensures reliable operation in environments like construction sites, utility vehicles, railway applications, agriculture equipment, and other applications where exposure to extreme elements and mechanical stress is routine.

Question 4

What types of vehicle-mounted applications particularly benefit from the M12 connectivity of the VMS-CFS-M12?

Accepted Answer

Applications particularly benefiting from the VMS-CFS-M12 include railway and train control systems requiring vibration-resistant connections, construction equipment operating in dusty and wet environments, agricultural machinery exposed to field conditions and chemical sprays, mining vehicles operating in extreme dust and moisture, outdoor surveillance systems on vehicles, municipal service vehicles subject to all-weather operation, emergency response vehicles requiring reliable connections in all conditions, marine and port vehicle applications exposed to salt spray, specialized military and defense vehicle computing, utility maintenance vehicles operating in all weather conditions, and any vehicle application where environmental exposure, vibration resistance, and connection reliability are critical factors that would compromise standard connector systems.

Question 5

What is a Modular Computing System?

Accepted Answer

A Modular Computing System is an industrial-grade computer designed with modular components that can be interchanged or expanded to customize the system for specific applications. These systems typically feature a base unit with core processing capabilities and standardized interfaces for connecting specialized modules that add functionality such as additional I/O, communication protocols, or industry-specific features. This modularity provides flexibility, scalability, and future-proofing while maintaining the reliability and ruggedness required for industrial environments.

Question 6

What advantages do Modular Computing Systems offer over fixed-configuration industrial computers?

Accepted Answer

Modular Computing Systems offer several advantages over fixed-configuration computers: customization for specific application requirements, ability to adapt to changing needs without replacing the entire system, simpler upgrades by replacing only specific modules, reduced spare parts inventory, greater longevity as new technologies can be integrated via module updates, streamlined maintenance, and better return on investment through scalability. These benefits make modular systems particularly valuable in industrial environments where requirements evolve and system longevity is important.

Question 7

What is an IET module and why is it important in modular computing systems?

Accepted Answer

An IET (Interface Extension Technology) module is a specialized expansion module used in systems like the EMS series to add specific functionality to the base computing platform. These modules connect to a standardized interface on the main system and provide additional capabilities such as extra COM ports, LAN ports, PoE functionality, or specialized interfaces like CAN bus. IET modules are important because they allow a single base system to be customized for diverse applications by simply changing the module, providing flexibility while maintaining a standardized core platform.

Question 8

What industries and applications typically benefit from modular computing systems?

Accepted Answer

Industries benefiting from modular computing systems include manufacturing (automation control, data collection), transportation (fleet management, railway systems), utilities (substation monitoring, grid control), healthcare (medical equipment integration), retail (point-of-sale, inventory management), building automation (HVAC, access control), defense, aerospace, and smart city infrastructure. Applications requiring customization, future expansion, diverse I/O needs, or adaptation to legacy systems particularly benefit from the flexibility and scalability these systems provide while maintaining industrial-grade reliability.

Question 9

What is the significance of wide temperature operation in industrial computing?

Accepted Answer

Wide temperature operation (typically -40Â°C to 70Â°C for industrial systems) ensures reliable functioning in non-climate-controlled industrial environments like factory floors, outdoor installations, vehicles, and remote locations. This capability is achieved through careful component selection, thermal design, and elimination of moving parts like fans. Systems with wide temperature ranges can be deployed in harsh conditions without requiring expensive climate control systems, reducing installation and operating costs while improving reliability.

Question 10

What does fanless design mean and why is it important for industrial computers?

Accepted Answer

Fanless design means the computer uses passive cooling techniques with heat sinks and thermal engineering instead of active cooling fans. This design is crucial for industrial computers because it eliminates a common point of failure (the fan motor), prevents dust and contaminant ingress that could clog filters and cause overheating, enables sealed enclosures for harsh environments, reduces maintenance requirements, eliminates fan noise, and improves overall system reliability and longevity in challenging industrial conditions with dust, vibration, and temperature fluctuations.

Question 11

What is TPM 2.0 and why is it included in industrial computing systems?

Accepted Answer

TPM (Trusted Platform Module) 2.0 is a specialized security chip that provides hardware-based encryption capabilities, secure storage for authentication credentials, and system integrity verification. In industrial systems, TPM helps protect sensitive data, secure communication channels, prevent unauthorized access or tampering, and ensure the integrity of control systems. As industrial systems become more connected, TPM provides essential security features to protect against cyber threats targeting critical infrastructure and manufacturing systems.

Question 12

How important is vibration and shock resistance for industrial computing systems?

Accepted Answer

Vibration and shock resistance are critical for industrial computing systems operating in environments with mechanical disturbances from machinery, vehicles, or handling. Systems are tested to standards like IEC 60068-2-64 (vibration) and IEC 60068-2-27 (shock) to ensure they can withstand these forces without component failure or connection issues. This resilience is achieved through solid-state storage, elimination of moving parts, reinforced component mounting, specialized chassis design, and industrial-grade components, ensuring reliable operation in mechanically challenging environments.

Question 13

What considerations are important when installing modular computing systems in industrial environments?

Accepted Answer

When installing modular computing systems, consider proper thermal management (ensuring adequate airflow around the unit), environmental protection (enclosures appropriate for dust/moisture levels), power quality (stable power source with appropriate voltage and backup options), EMI/RFI isolation (distance from high-interference sources), physical security, accessibility for module swapping and maintenance, proper grounding, cable management (strain relief and protection), and compliance with local regulations and industry standards. Proper planning ensures reliable operation and maximizes the benefits of the system's modular nature.

Question 14

How should cooling be managed for fanless modular computing systems?

Accepted Answer

For fanless modular systems, proper thermal management is crucial: ensure adequate clearance around all sides (typically 5-10cm minimum), avoid enclosing in sealed cabinets without ventilation, mount vertically if possible to enhance natural convection cooling, install away from other heat-generating equipment, consider ambient temperature fluctuations in the installation location, follow manufacturer's mounting recommendations (which often include heat-dissipating brackets), and periodically check for dust accumulation on cooling surfaces. For high-temperature environments, consider additional passive cooling solutions or environmental controls.

Question 15

What power supply considerations are important for modular computing systems?

Accepted Answer

For modular computing systems, select a power supply with sufficient wattage for the base system plus all modules (with 20-30% headroom for future expansion), ensure voltage matching the system's input range (typically 9-36V DC for industrial systems), implement surge protection for industrial environments with electrical noise, consider redundant power options for critical applications, use proper wire gauge for current requirements, and potentially include an uninterruptible power supply (UPS) for protection against power outages. The power system should account for the maximum possible configuration with all modules installed.

Question 16

What are the best practices for cable management with modular computing systems?

Accepted Answer

Best practices for cable management with modular systems include using appropriate cable types for the industrial environment (shielded where necessary), implementing strain relief to prevent connector damage, securing cables to prevent accidental disconnection due to vibration, labeling cables clearly for easier maintenance and troubleshooting, maintaining minimum bend radii to prevent internal damage, using cable trays or conduits for protection, separating power and data cables to minimize interference, allowing sufficient service loops for module replacement without disconnecting cables, and ensuring accessibility for future changes while maintaining a neat installation.

Question 17

What should I do if a modular computing system fails to power on?

Accepted Answer

If the system fails to power on, check that the power supply provides the correct voltage within the system's input range (typically 9-36V DC), ensure connections are secure at both the power supply and system, verify any power switches or ignition control settings are correctly configured, check for tripped circuit breakers or blown fuses, inspect for visible damage to power connectors, test with an alternative known-good power supply if available, verify the power LED indicators, and check if the system is in AT mode requiring a specific power signal. For vehicle-mounted systems, ensure the ignition control is properly connected.

Question 18

How can I troubleshoot issues with modules or expansion capabilities?

Accepted Answer

For issues with modules or expansion capabilities, verify the module is properly seated and secured, check power cycling the system after confirming connections, ensure any module-specific drivers are installed, check BIOS/UEFI settings for module-related options, inspect for physical damage to connectors, try an alternative slot if available, test with a known-working module to verify slot functionality, check system logs for error messages, and consult module-specific documentation for jumper settings or configuration requirements. After replacing modules, validate that the system recognizes the change through device manager or system information utilities.

Question 19

What steps should I take if a modular computing system is overheating?

Accepted Answer

For overheating issues, ensure adequate clearance around the system (minimum 5-10cm on all sides), check that the installation position allows for proper convection cooling (typically vertical mounting), clean dust from the chassis and heat sink fins using compressed air (when powered off), verify ambient temperature is within specifications, check system temperature through monitoring utilities or BIOS, ensure any thermal interface materials are properly applied if the system has been serviced, examine CPU usage for processes causing excessive load, and consider adding auxiliary passive cooling or relocating the system to a cooler environment if persistent.

Question 20

How can I diagnose communication issues between the modular computing system and connected devices?

Accepted Answer

To diagnose communication issues, first identify the specific interface (COM, LAN, USB, etc.) experiencing problems. Check physical connections and cables for damage, verify device driver installation and updates, confirm port configuration settings (baud rate, parity, etc. for serial connections; IP settings for network), try alternative cables or ports to isolate the issue, check for resource conflicts in Device Manager, test with a known-working device, verify any required protocol converters or adapters are functioning, and use diagnostic tools appropriate to the interface type (terminal emulator for serial, ping/traceroute for network) to identify where communication fails.
