EMS-SKLU-Marine

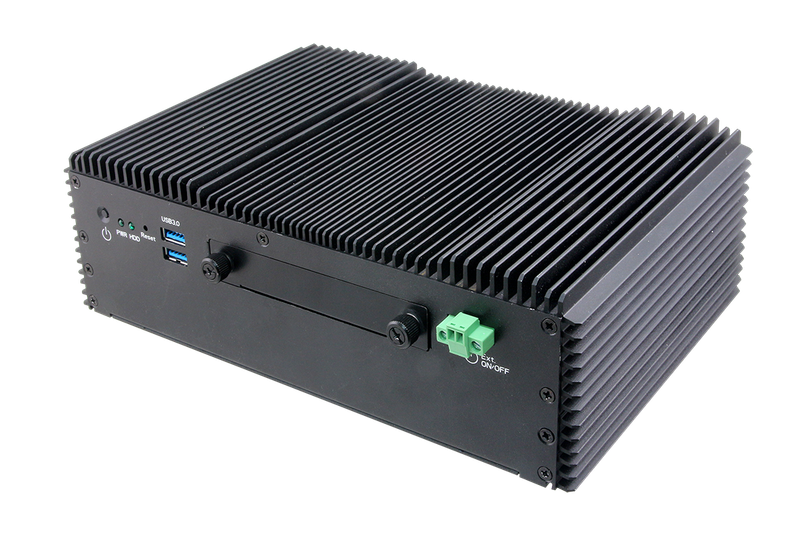

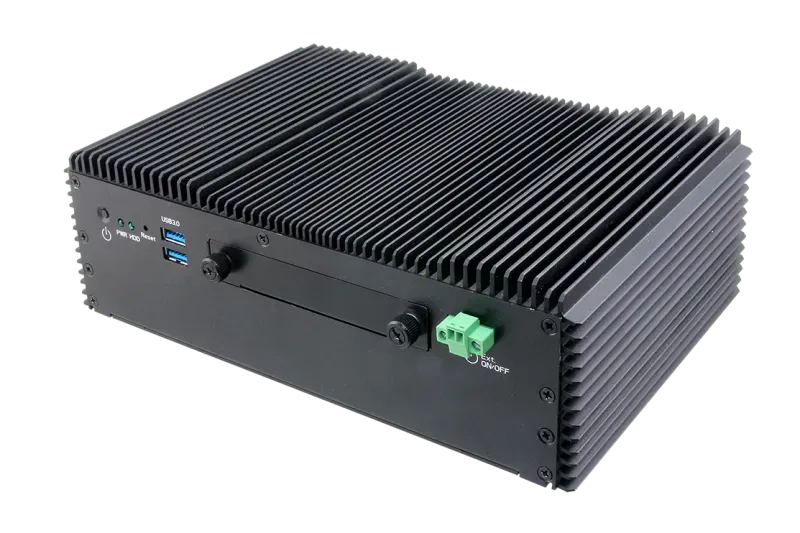

EMS-SKLU-Marine FrontEMS-SKLU-Marine Front
EMS-SKLU-Marine FrontEMS-SKLU-Marine Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • 6th Gen Intel® Core™ SoC i7/i5/i3/Celeron BGA Processor
  • One 260-pin SODIMM Socket Up to 16GB DDR4 2133MHz SDRAM
  • 4 COM port support 2.5KV Isolation Protection
  • Expansion Slot Supports 1 Mini PCIe Slot, 1 M.2, 1 IET Interface
  • Fanless Operating from -20 ~ 60°C, Support IP50
  • Power Input :Typical 12/24Vdc ( +9 ~ +36V )
  • Supports Intel® iAMT 11.0, TPM2.0, Turbo Boost Technology, vPro, Wake on LAN, RAID 0/1
  • Service Window, Easy to Install M.2, Memory and Mini PCIe Module
  • IEC EN60945 Certified

Product Description

The Avalue EMS-SKLU-Marine is a rugged marine and transportation embedded PC designed for continuous operation in harsh environments.

Powered by 6th Gen Intel® Core™ i7/i5/i3/Celeron processors with up to 16 GB DDR4 memory support, it features 2.5 kV isolated COM ports, multiple expansion slots (Mini PCIe, M.2, IET), dual SIM support, and robust I/O for industrial connectivity.

Fanless operation from -20 °C to 60 °C and wide DC power input make it ideal for marine vessels, rail systems, and smart transportation platforms requiring dependable performance and certification-grade reliability.

Technical Specifications

System Information

Processor

Intel® Core™ i7-6600U, 2-Core, 2.6GHz processor

Intel® Core™ i5-6300U, 2-Core, 2.4GHz processor

Intel® Core™ i3-6100U, 2-Core, 2.3GHz processor

Intel® Celeron® 3955U, 2-Core, 2.0GHz processor

System Memory

1 x 260-Pin DDR4 2133MHz SO-DIMM up to 16 GB

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec.

H/W Status Monitor

Monitoring CPU & System Temperature and Voltage

SBC

EBM-SKLUS + AUX-M07 + EBM-CDVS DB-B

Expansion

M.2

1 x M.2 (2242/3042) B-Key

PCIe

1 x Mini PCIe

IET

1 x Avalue 80-Pin IET Interface

Storage

M.2

1 x M.2 (SATA)

2.5 Drive Bay

1 x 2.5\" Drive Bay

Front I/O

USB

2 x USB 3.0

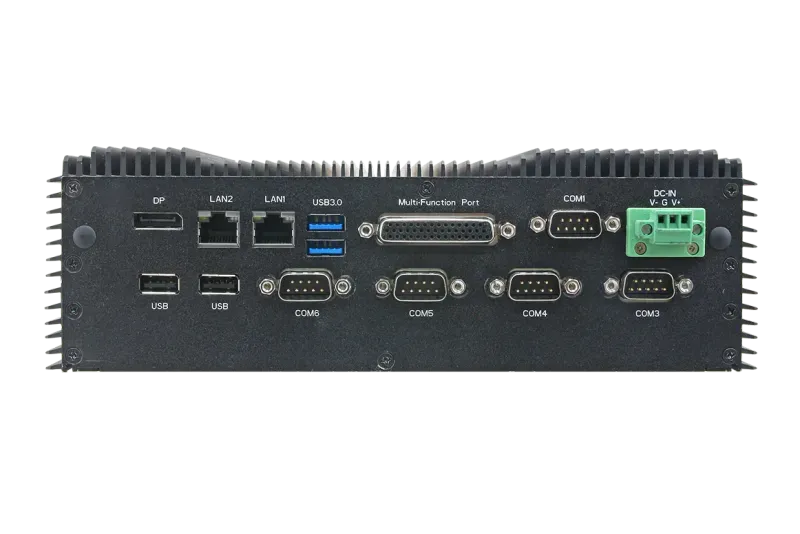

Rear I/O

USB

2 x USB 3.0

2 x USB 2.0

COM Port

2 x RS-232/422/485 (Jumper)

4 x RS232/422/485 (BIOS) supports 2.5KV Isolation Protection

LAN Port

2 x RJ-45

SMBus

1 x SMBus

SIM Slot

2 x SIM Card Slot

Audio

Mic-In, Line-In and Line-Out

Digital I/O

1 x 12bit GPIO

Antenna

2 x Knockouts for Antenna Mounting

AC/DC Input

3-Pin Terminal Block

Display

Graphic Chipset

Intel® Skylake SoC integrated Graphics

Resolution

DP: Max. resolution 4096x2304 @ 60Hz

Audio

Audio Codec

Realtek ALC888S

supports 2.1-CH

Ethernet

LAN Chipset

1 x Intel® I211AT

1 x Intel® I219LM

Specification

10/100/1000 Base-Tx GbE compatible

Power Requirement

ACPI

Single Power ATX Support S0, S3, S4, S5

ACPI 5.0 Compliant

Power Mode

AT/ATX (ATX is default setting)

Adapter

Optional AC-DC Adapter

Software Support

OS

Win 10 / Win 8.1 / Win 7 / Linux

Certification

Certification Information

CE , FCC Class A, IEC EN60945 Certified

Mechanical & Environmental

Operating Temp

(w/SSD), ambient w/ air flow

-20°C ~ 60°C (-4°F ~ 140°F)

(w/HDD), ambient w/ air flow

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

9.45\" x 5.96\" x 2.95\" (240mm x 151.5mm x 75mm)

Vibration Test

IEC60945,Clause 8.7

IEC60068-2-6

Shock Test

With SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms

Mounting Kit

Wall Mount kit (Standard)

Ordering Information

Ordering Information

Intel® 6th Skylake Core™ Processor i7/i5/i3/Celeron, Marine Fanless Rugged Embedded System with 4 COM Isolations


EMS-SKLU-66-B1-9R (i7-6600U)

EMS-SKLU-63-B1-9R (i5-6300U)

EMS-SKLU-61-B1-9R (i3-6100U)

EMS-SKLU-39-B1-9R (3955U)

What is EMS-SKLU-Marine?

The EMS-SKLU-Marine is a computing system manufactured by Avalue, designed specifically for transportation-system applications. The Avalue EMS-SKLU-Marine is a rugged marine and transportation embedded PC designed for continuous operation in harsh environments. Powered by 6th Gen Intel® Core™ i7/i5/i3/Celeron processors with up to 16 GB DDR4 memory support, it features 2.5 kV isolated COM ports, multiple expansion slots (Mini PCIe, M.2, IET), dual SIM support, and robust I/O for industrial connectivity. Fanless operation from -20 °C to 60 °C and wide DC power input make it ideal for marine vessels, rail systems, and smart transportation platforms requiring dependable performance and certification-grade reliability.

Key Features & Benefits

  • 6th Gen Intel® Core™ SoC i7/i5/i3/Celeron BGA Processor
  • One 260-pin SODIMM Socket Up to 16GB DDR4 2133MHz SDRAM
  • 4 COM port support 2.5KV Isolation Protection
  • Expansion Slot Supports 1 Mini PCIe Slot, 1 M.2, 1 IET Interface
  • Fanless Operating from -20 ~ 60°C, Support IP50
  • Power Input :Typical 12/24Vdc ( +9 ~ +36V )
  • Supports Intel® iAMT 11.0, TPM2.0, Turbo Boost Technology, vPro, Wake on LAN, RAID 0/1
  • Service Window, Easy to Install M.2, Memory and Mini PCIe Module
  • IEC EN60945 Certified

Applications & Use Cases

The EMS-SKLU-Marine is ideal for various industrial automation applications:

  • Dust-sensitive environments and silent operation requirements
  • DC-powered industrial installations and mobile applications
  • Extreme temperature environments and outdoor installations
  • Legacy equipment integration and serial communication
  • High-performance computing and data processing tasks
  • Networked industrial systems and data communication
  • Memory-intensive applications and multitasking
  • Continuous operation in harsh environments
