EMS-TGL-Marine

EMS-TGL-Marine FrontEMS-TGL-Marine Front
EMS-TGL-Marine FrontEMS-TGL-Marine Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • 11th Gen Intel® Core™ i7/i5/i3 BGA Processor
  • 2 x 260-pin SODIMM socket Max. up to 64GB DDR4 3200MT/s
  • Rich I/O, 4-USB3.2, 2-USB2.0, 1-DP, 1-HDMI, 6-COM (4COM w/2.5KV isolation), 2-LAN, 1-8bit GPIO
  • Wide Operating Temp. -40°C ~ 60°C
  • Wide range DC power input from +9~36V
  • dTPM 2.0, vPro, iAMT 15.0
  • CE, FCC Class A, IEC 60945 Certified

Product Description

The Avalue EMS-TGL-Marine is a rugged, transportation-grade embedded computer engineered specifically for marine, offshore, and mobile transportation applications.

Built to operate reliably under vibration, humidity, and wide temperature ranges, it delivers stable performance for navigation systems, monitoring, data acquisition, and onboard control.

Its industrial-grade design and long-term availability make the EMS-TGL-Marine ideal for mission-critical marine and transportation deployments

Technical Specifications

System Information

Processor

Intel® Core™ i7-1185GRE Processor (15W, 12M Cache, up to 2.80 GHz)

Intel® Core™ i5-1145GRE Processor (15W, 8M Cache, up to 2.60 GHz)

Intel® Core™ i3-1115GRE Processor (15W, 6M Cache, up to 3.00 GHz)

System Memory

2 x 260-pin SODIMM socket Max. up to 64GB DDR4 3200 MT/s

I/O Chipset

EC ITE IT8528E

BIOS Information

AMI uEFI BIOS 256 Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec.

H/W Status Monitor

CPU & system temperature monitoring and Voltages monitoring

TPM

TPM 2.0

iAMT

iAMT 15.0 (Above i5 CPU)

SBC

EBM-TGLS, EPM-1722, AUX-M07

Expansion

M.2

1 x M.2 Key-B 2242/3042/3052 support SATA3/ PCIeIII x1/ USB3.1 and SIM slot1

1 x M.2 Key-E 2230 for Wi-Fi & BT Module(CNVi)

Storage

M.2

1 x M.2 Key-M 2242/2280, support PCIe Gen. III x 4 (NVMe SSD)

1 x M.2 Key-B 2242, support SATA (share with expansion slot)

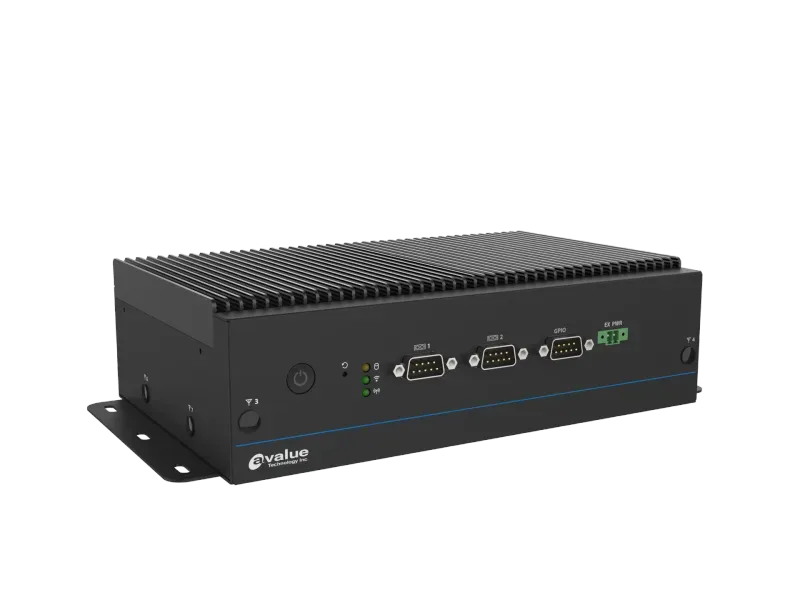

Front I/O

Power Button

1 x Push Button for Power on/off

Reset Button

1 x Push Button for Reset

COM Port

2 x COM RS232/422/485 (select via BIOS, auto flow control via HW)

LED Indicator

1 x Power LED (Blue)

1 x Storage LED (Yellow)- M.2 B-key SATA

1 x LTE LED (Green)- M.2 B-key PCIe

1 x Wifi LED (Green)- M.2 E key

Wire-Control Power On/Off

1 x 2-Pin Terminal Block for wire-control power on/off

Digital I/O

1 x 8-bit GPIO (DB9)

Antenna

2 x Antenna with dust cover

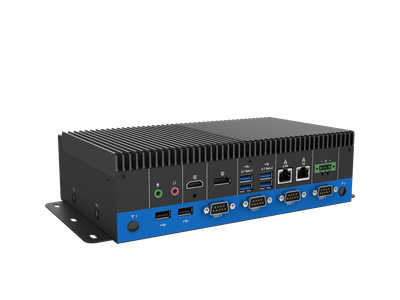

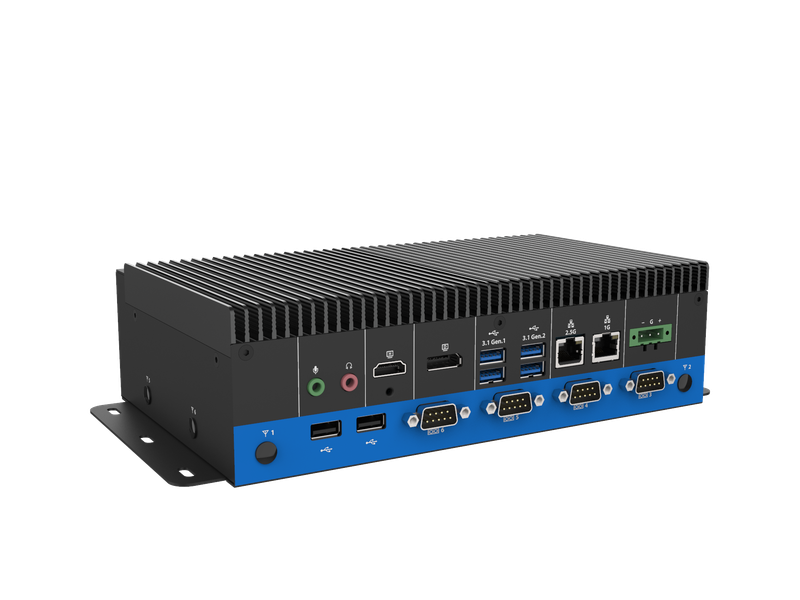

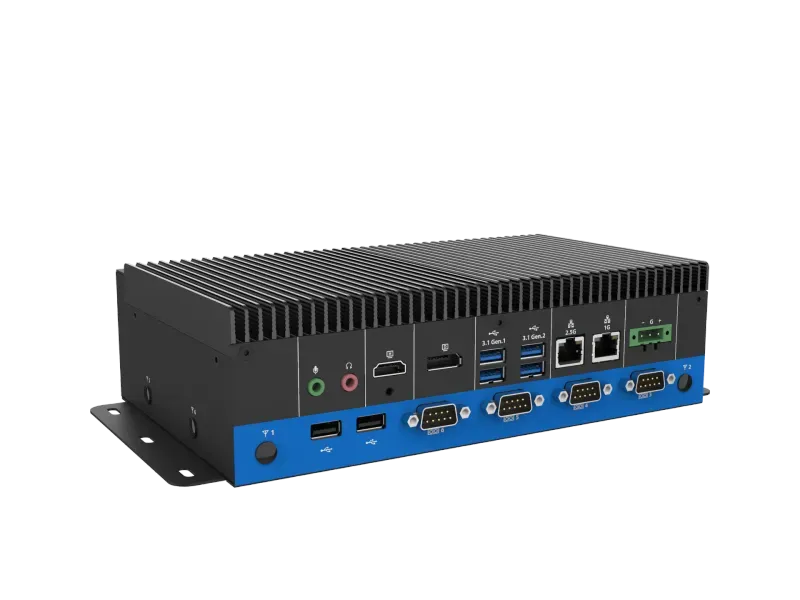

Rear I/O

USB

2 x USB 3.1 Gen.2 (10Gbp/s)

2 x USB 3.1 Gen.1 (5Gbp/s)

2 x USB 2.0

COM Port

4 x COM RS232/422/485 w/ 2.5KV Isolation

LAN Port

2 x RJ-45

Audio

1 x Line-Out

1 x Mic-In

DP

1 x DP++

HDMI

1 x HDMI

Antenna

2 x Antenna with dust cover

AC/DC Input

1 x 3-Pin Terminal Block (V+. V-, GND)

Right I/O

Antenna

2 x Antenna with dust cover

Left I/O

Antenna

2 x Antenna with dust cover

Display

Graphic Chipset

Intel® Iris® Xe Graphics (i7-1185GRE/i5-1145GRE)

Intel® UHD Graphics for 11th Gen Intel® Processors (i3-1115GRE)

Resolution

DP++ : Max. resolution 4096x2304 @ 60Hz

HDMI : Max. resolution 4096x2304 @ 60Hz

Audio

Audio Codec

Realtek ALC888S HD codec

Ethernet

LAN Chipset

1 x Intel® I225-LM

1 x Intel® I219-LM

Specification

1 x 10/100/1000/2.5G Base-Tx GbE compatible

1 x 10/100/1000Base-Tx GbE compatible

Power Requirement

Voltage Input Spec.

9Vdc~36Vdc w/1.5KV Isolation

TVS component for surge protection

Reverse current/voltage protection

Voltage Input Connector

3-Pin Terminal Block (V+. V-, GND)

ACPI

Single Power ATX Support S0, S3, S4, S5

ACPI 5.0 Compliant

Power Mode

AT/ATX (ATX is default setting)

Software Support

OS

Win 10/Win 11/Linux

Certification

Certification Information

CE, FCC Class A, IEC 60945 Certified

Mechanical & Environmental

Operating Temp

-40°C ~ 60°C (w/SSD) ambient w/ air flow,

Storage Temp.

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

240mm x 150mm x 69 mm

Weight

2.4 kg (System)

3.4 kg (w_Package)

Vibration Test

With SSD : 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 0.5hr/axis

Shock Test

With SSD : 10G, IEC 60068-2-27, Half Sine, 11ms

IP Rating

IP50

Mounting Kit

Wall mount kit (Standard)

DIN RAIL (optional)

Ordering Information

Ordering Information

11th Gen Intel® Core™ Processor i7/i5/i3 Marine Fanless Rugged Embedded System


EMS-TGL-W85-A1-9R (i7-1185GRE)

EMS-TGL-W45-A1-9R (i5-1145GRE)

EMS-TGL-W15-A1-9R (i3-1115GRE)

What is EMS-TGL-Marine?

The EMS-TGL-Marine is a computing system manufactured by Avalue, designed specifically for transportation-system applications. The Avalue EMS-TGL-Marine is a rugged, transportation-grade embedded computer engineered specifically for marine, offshore, and mobile transportation applications. Built to operate reliably under vibration, humidity, and wide temperature ranges, it delivers stable performance for navigation systems, monitoring, data acquisition, and onboard control. Its industrial-grade design and long-term availability make the EMS-TGL-Marine ideal for mission-critical marine and transportation deployments

Key Features & Benefits

  • 11th Gen Intel® Core™ i7/i5/i3 BGA Processor
  • 2 x 260-pin SODIMM socket Max. up to 64GB DDR4 3200MT/s
  • Rich I/O, 4-USB3.2, 2-USB2.0, 1-DP, 1-HDMI, 6-COM (4COM w/2.5KV isolation), 2-LAN, 1-8bit GPIO
  • Wide Operating Temp. -40°C ~ 60°C
  • Wide range DC power input from +9~36V
  • dTPM 2.0, vPro, iAMT 15.0
  • CE, FCC Class A, IEC 60945 Certified

Applications & Use Cases

The EMS-TGL-Marine is ideal for various industrial automation applications:

  • DC-powered industrial installations and mobile applications
  • Extreme temperature environments and outdoor installations
  • Mission-critical marine and transportation deployments
  • High-performance computing and data processing tasks
  • Networked industrial systems and data communication
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Industrial computing and data processing
