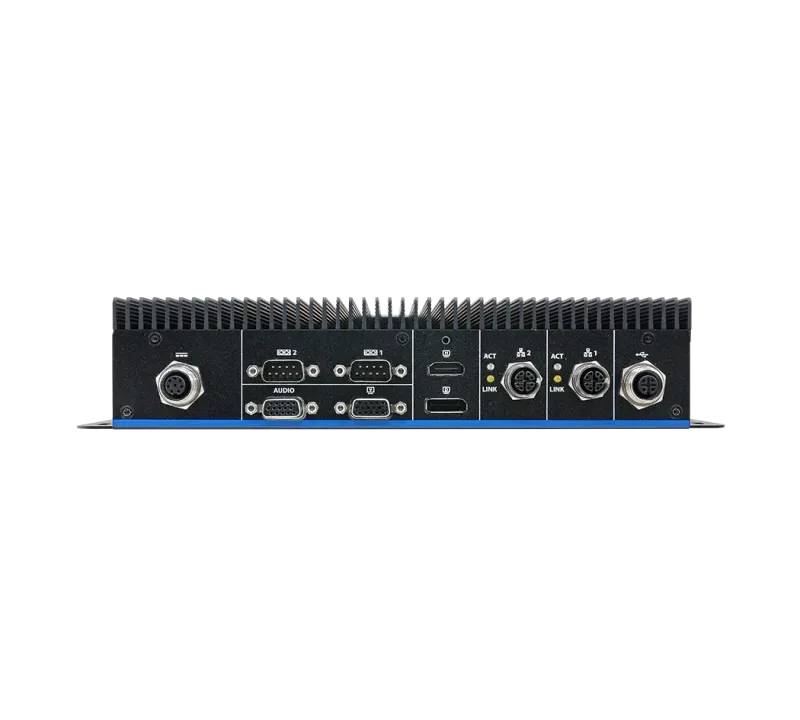

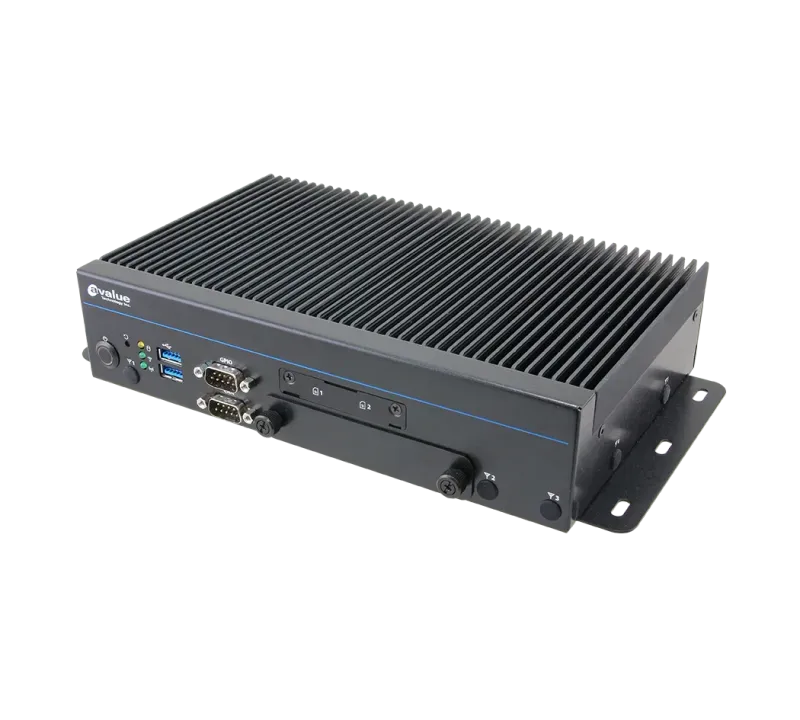

VMS-EHLR FrontVMS-EHLR FrontVMS-EHLR FrontVMS-EHLR Front

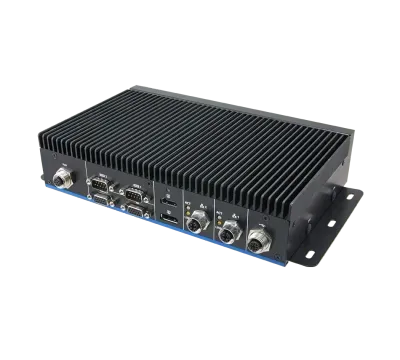

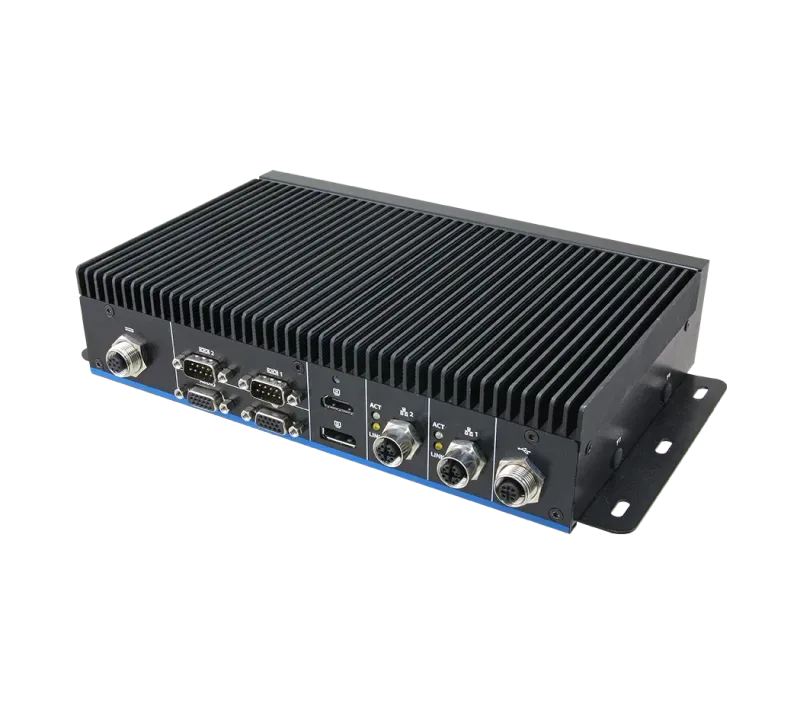

VMS-EHLR FrontVMS-EHLR FrontVMS-EHLR FrontVMS-EHLR Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • Intel Atom® x6425E Processor
  • Intel® UHD Graphic for 10th Gen Intel® Processor
  • 1-Memory Socket, Max. Up to 32GB DDR4 3200
  • 2-COM Port (RS-232/422/485 by BIOS & Jumper)
  • 2-Storage (Front Access 2.5” & M.2 Key-B SSD)
  • 3-Display (DP 1.4 & HDMI 2.0 & VGA)
  • 3-Expansion (mPCIe & M.2 Key-E/B)
  • 4-M12 (DC-Input, USB 2.0, 2-LAN Port)
  • 8-Bit Programable GPIO with 2.5KV Isolated
  • Default Wall Mount Kit, dTPM 2.0 onboard

Product Description

The Avalue VMS-EHLR is a rugged vehicle-mounted computing system engineered for intelligent transportation and mobile industrial applications.

Designed to operate reliably under vibration, shock, and wide temperature conditions, it provides stable performance for onboard monitoring, fleet management, data acquisition, and control systems.

Its industrial-grade construction and long-term availability make the VMS-EHLR suitable for railways, public transport, logistics vehicles, and smart mobility infrastructures.

Technical Specifications

System Information

Processor

Intel Atom® x6425E Processor

1.5M Cache, up to 3.00 GHz

System Memory

1 x 260-Pin SODIMM DDR4 3200MHz up to 32GB

I/O Chipset

AMI uEFI lBIOS 256 Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec.

H/W Status Monitor

Horizontal battery socket


Supports wide operating temperature


Supports no RTC battery mode

TPM

TPM 2.0 (Default)

SBC

EBM-EHLR + EBM-EHLR DB-A

Expansion

M.2

1 x M.2 Key-B 2242/3042/3052 support PCIeIII x1/ USB3.1 Gen.2 and SIM slot1 (external)

1 x M.2 Key-E 2230 for Wi-Fi & BT Module (PCIeIII x 1/ USB2.0 )

mPCIe

1 x mPCIe support PCIeIII x1/ USB2.0 and SIM slot2 (external)

Storage

M.2

1 x M.2 key-B 2242 support SATA III (share with expansion slot)

2.5 Drive Bay

1 x 2.5” drive Bay (SATA III)

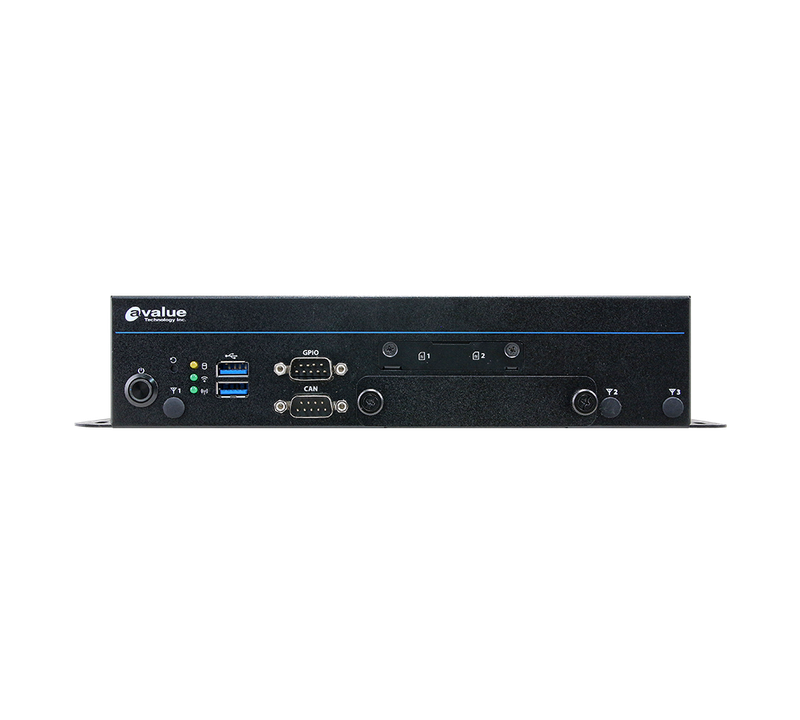

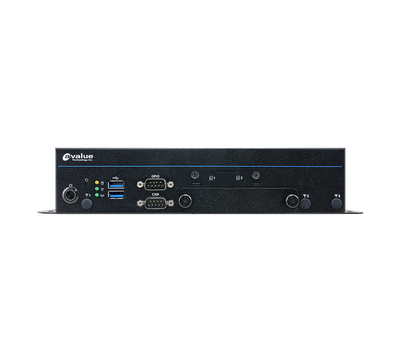

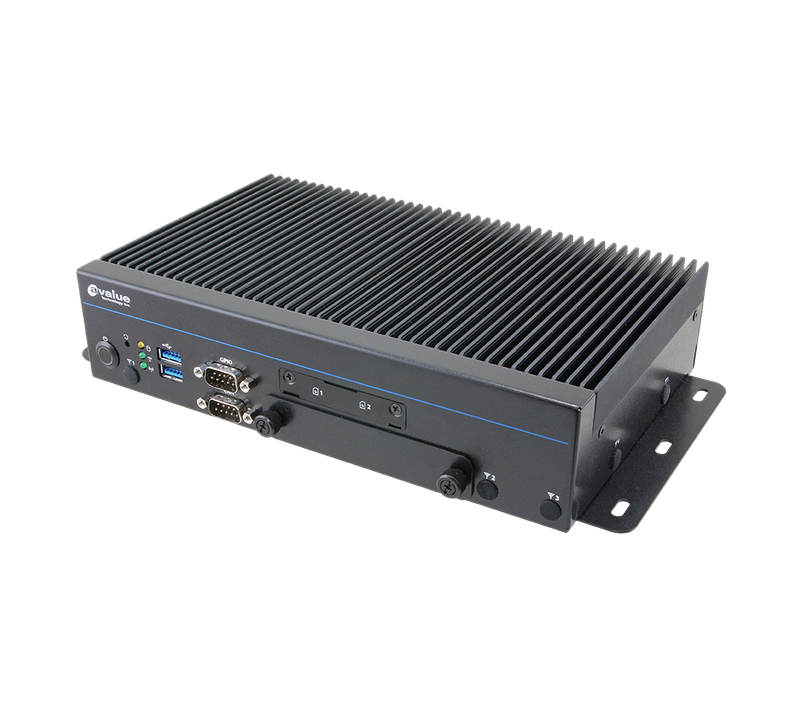

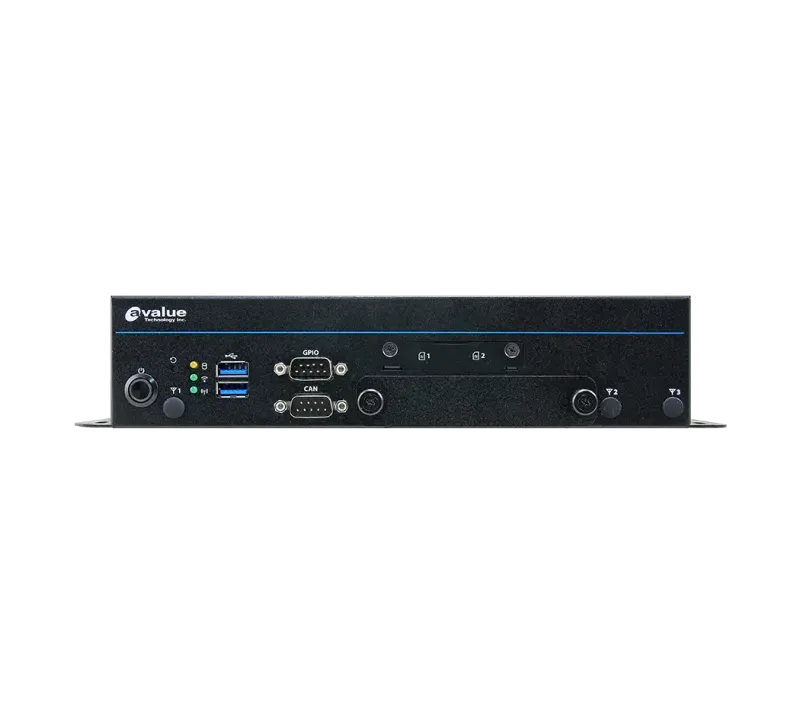

Front I/O

USB

2 x USB 3.2 Gen.2 (10Gbp/s)

Power Button

Push Button for Power on/off (w/LED)

Reset Button

Push Button for Reset (Hidden)

LED Indicator

1 x Power LED (Blue)

1 x Storage LED (Yellow)- M.2 B-key SATA/2.5’’SSD Storage

1 x LTE LED (Green)- M.2 B-key PCIe/USB3

1 x Wifi LED (Green)- M.2 E key

CAN Bus

1 x 4-Pin CAN Bus H/L in DB-9

SIM Slot

2 x Front Access SIM Slot

Digital I/O

1 x 8-Bit 2.5KV Isolated GPIO in DB-9

Antenna

3 x Antenna Mount

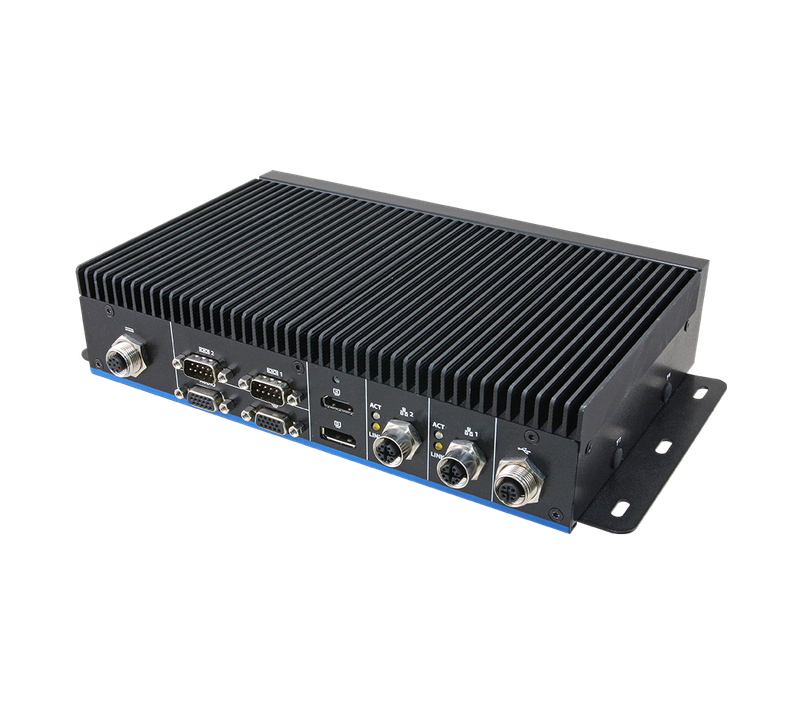

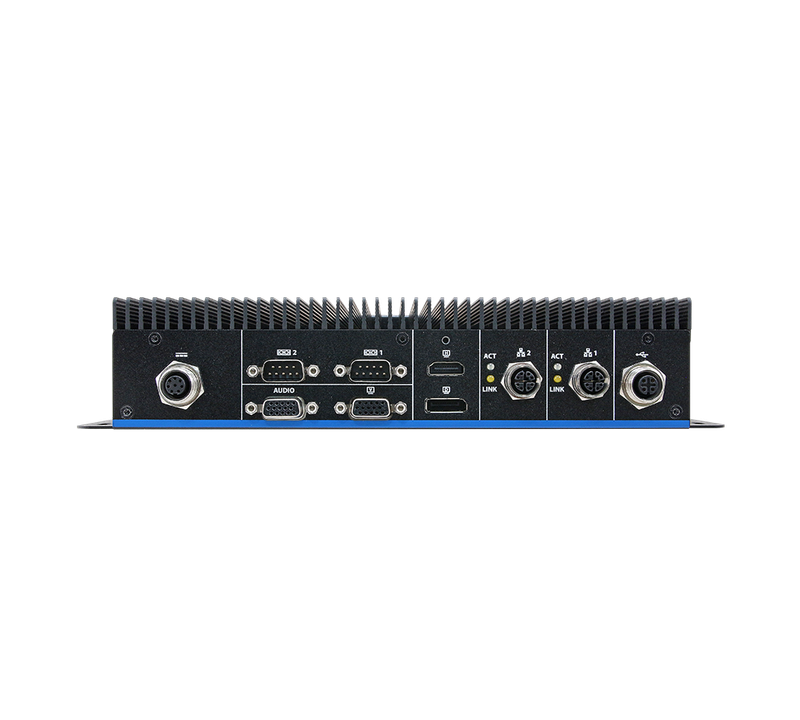

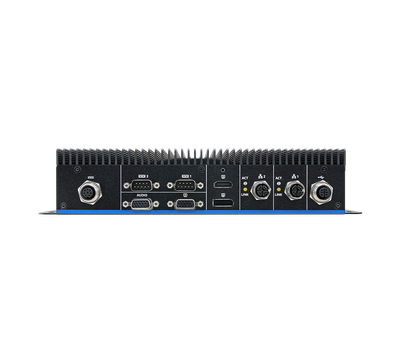

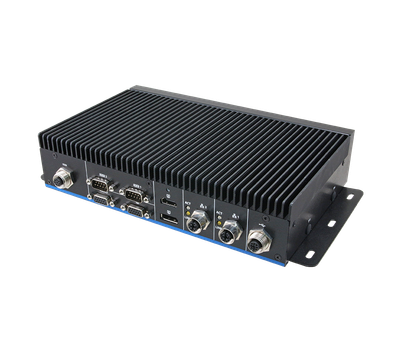

Rear I/O

USB

1 x USB 2.0 in M12-A code connector

COM Port

2 x COM RS232/422/485 (select via BIOS, auto flow control via HW)

LAN Port

2 x LAN Port in M12-X code connector

Audio

1 x Line-In, Line-Out and Mic-In in DB-15

DP

1 x DP 1.4

HDMI

1 x HDMI 2.0

VGA

1 x VGA

AC/DC Input

M12-A code (4 Poles: V+. V-, GND, IGN)

Right I/O

Antenna

2 x Antenna Mount

Left I/O

Antenna

2 x Antenna Mount

GPS

Chipset

u-blox NEO-M9N GNSS LCC module with Untethered Dead Reckoning and onboard sensors

Protocol

BeiDou, Galileo, GLONASS, GPS / QZSS

Display

Graphic Chipset

Intel® UHD Graphics

Resolution

DP++ 1.4 : Max. resolution 4096x2304 @ 60Hz

HDMI 2.0 : Max. resolution 4096 x 2304 @ 60Hz

VGA : Max. resolution 1920 x 1080 @ 60Hz

Audio

Audio Codec

Realtek ALC888S

Ethernet

LAN Chipset

2 x Intel® I210-IT

Specification

10/100/1000Base-T

LED Indicator

4 x LED indicator (LAN for active, speed)

Power Requirement

Voltage Input Spec.

Typical 24Vdc ( +9~ 36Vdc ) w/ Isolation

TVS component for surge protection

Reverse current/voltage protection

ACPI

Single power ATX Support S0,S3, S4, S5

ACPI 5.0 Complian

Power Mode

AT/ATX (AT default), w/ignition control and power management

Software Support

OS

Win 10 64bit / Linux

Certification

Certification Information

CE, FCC Class A, UKCA, EN50155, EN50121, EN45545

Mechanical & Environmental

Operating Temp

-40°C ~ 70°C (w/SSD) ambient w/ air flow. Follow EN50155, Class OT4

Storage Temp.

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

240*150*55 mm

Weight

2.2kg

Vibration Test

Operating with SSD : MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure

Shock Test

Operating with SSD: MIL-STD-810H, Method 516.8, Procedure I, functional shock=20G

IP Rating

IP50

Mounting Kit

Wall Mount Kit (standard)

Ordering Information

Ordering Information

VMS-EHLR-A1-1R

Intel® Elkhart Lake Atom® x6425E Processor Rugged Fanless Railway System

What is VMS-EHLR?

The VMS-EHLR is a computing system manufactured by Avalue, designed specifically for transportation-system applications. The Avalue VMS-EHLR is a rugged vehicle-mounted computing system engineered for intelligent transportation and mobile industrial applications. Designed to operate reliably under vibration, shock, and wide temperature conditions, it provides stable performance for onboard monitoring, fleet management, data acquisition, and control systems. Its industrial-grade construction and long-term availability make the VMS-EHLR suitable for railways, public transport, logistics vehicles, and smart mobility infrastructures.

Key Features & Benefits

  • Intel Atom® x6425E Processor
  • Intel® UHD Graphic for 10th Gen Intel® Processor
  • 1-Memory Socket, Max. Up to 32GB DDR4 3200
  • 2-COM Port (RS-232/422/485 by BIOS & Jumper)
  • 2-Storage (Front Access 2.5” & M.2 Key-B SSD)
  • 3-Display (DP 1.4 & HDMI 2.0 & VGA)
  • 3-Expansion (mPCIe & M.2 Key-E/B)
  • 4-M12 (DC-Input, USB 2.0, 2-LAN Port)
  • 8-Bit Programable GPIO with 2.5KV Isolated
  • Default Wall Mount Kit, dTPM 2.0 onboard

Applications & Use Cases

The VMS-EHLR is ideal for various industrial automation applications:

  • DC-powered industrial installations and mobile applications
  • Legacy equipment integration and serial communication
  • High-performance computing and data processing tasks
  • Networked industrial systems and data communication
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Data logging and storage-intensive operations
  • Visual monitoring and data display systems
