VMS-RPPS

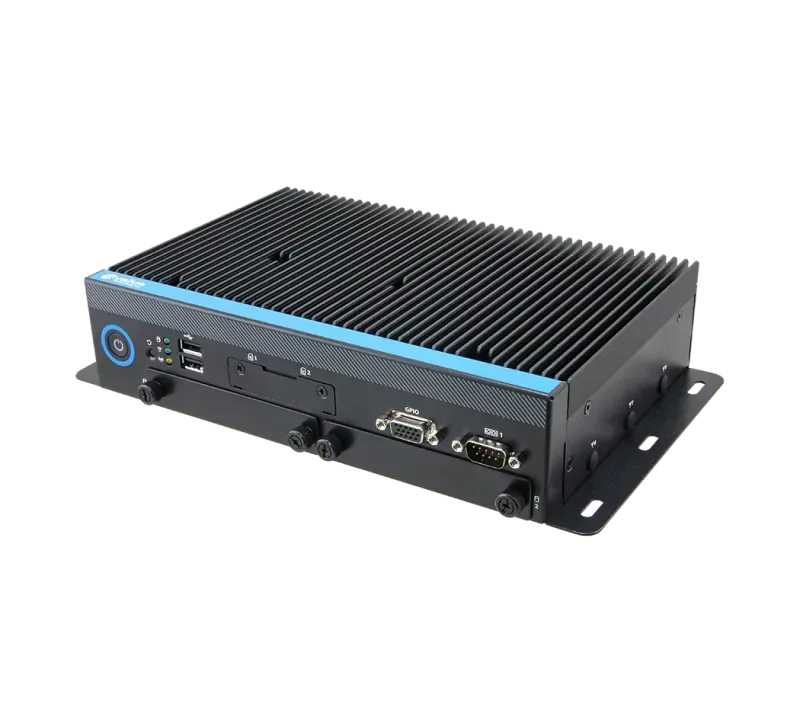

VMS-RPPS FrontVMS-RPPS FrontVMS-RPPS FrontVMS-RPPS Front
VMS-RPPS FrontVMS-RPPS FrontVMS-RPPS FrontVMS-RPPS Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • Intel® 13th Gen PS-series Core 7/5/3/Celeron® Processor
  • Intel® Iris® Xe/UHD Graphics
  • 2-262 Pin SODIMM Socket Max. Up to 64GB DDR5 5200MHz
  • 3-Expansion, 1-Full Size Mini PCIe, 1-M.2 Key-E, 1-M.2 Key-B
  • 3-Storage, 1-M.2 Key-M, 2-2.5” External Drive Bay
  • Onboard GPS module, Support RAID 0/1, TPM 2.0, iAMT
  • 9~60Vdc Input, with Ignition Control & Vehicle Power Management
  • -40~65°C Operating Temperature
  • CE, FCC A, E-Mark, ISO7637-2 Certified

Product Description

The Avalue VMS-RPPS is a rugged transportation-grade computing system engineered for railway, transit, and intelligent transportation applications.

Designed to withstand vibration, temperature variation, and continuous operation, the VMS-RPPS delivers stable performance for onboard control, monitoring, and data processing.

Its industrial-grade design makes it ideal for rolling stock systems, vehicle monitoring solutions, and smart transportation infrastructures requiring long-term reliability.

Technical Specifications

System Information

Processor

Intel® 13th Rapter Lake PS-series Core 7/5/3/Celeron® Processor

System Memory

2 x 262-Pin SODIMM Socket Max. Up to 64GB DDR5 4800MHz (non ECC only)

BIOS Information

AMI UEFI BIOS, 256Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec.

H/W Status Monitor

CPU & System Temperature monitoring

Voltage monitoring

RAID

Support RAID 0/1

TPM

TPM 2.0

iAMT

Depends on sku

Expansion

M.2

1 x M.2 Key-E 2230 (1 x PCIex1 + USB2.0) supports Wi-Fi & BT Module

1 x M.2 Key-B 3042/3052 (1 x PCIex1 + USB3.2) w/ SIM slot2(external)

mPCIe

1 x Full Size Mini PCIe (1 x PCIex1 + USB2.0) w/ SIM slot1(external)

Storage

M.2

1 x M.2 Key-M 2280 (1 x PCIex4) NVMe

2.5 Drive Bay

2 x 2.5” Drive Bay (SATA III, Max. up to 15mm Height Storage), RAID 0/1 supported

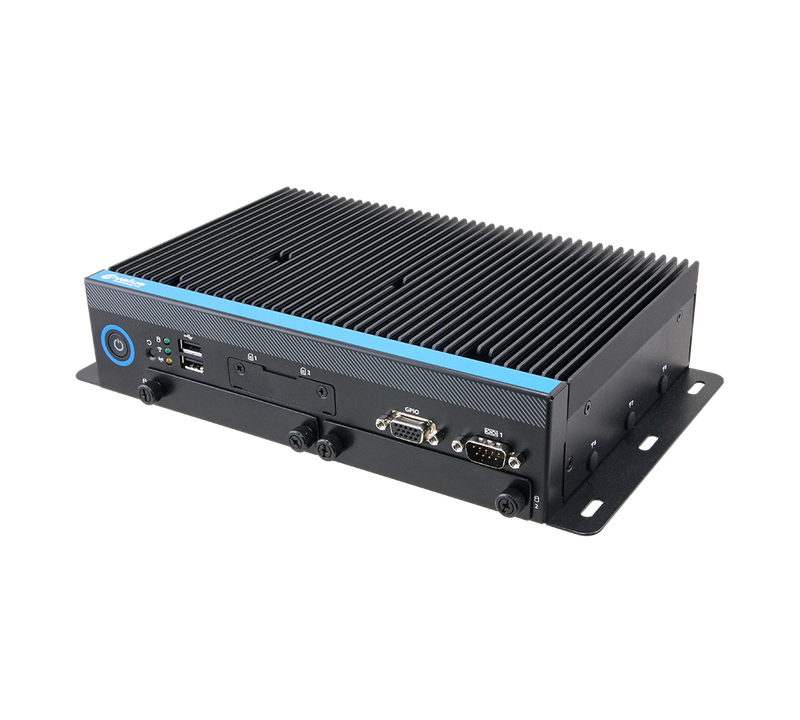

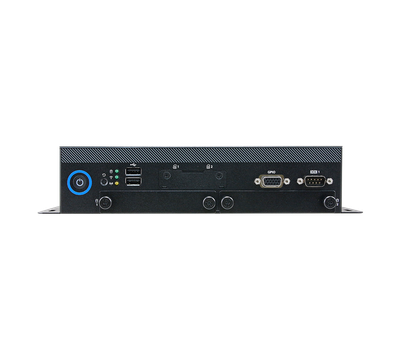

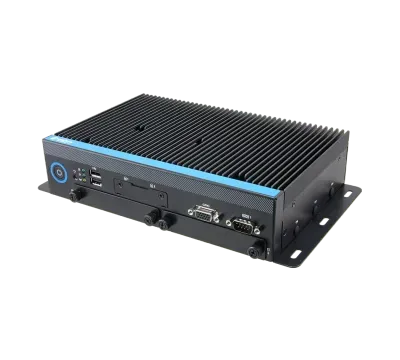

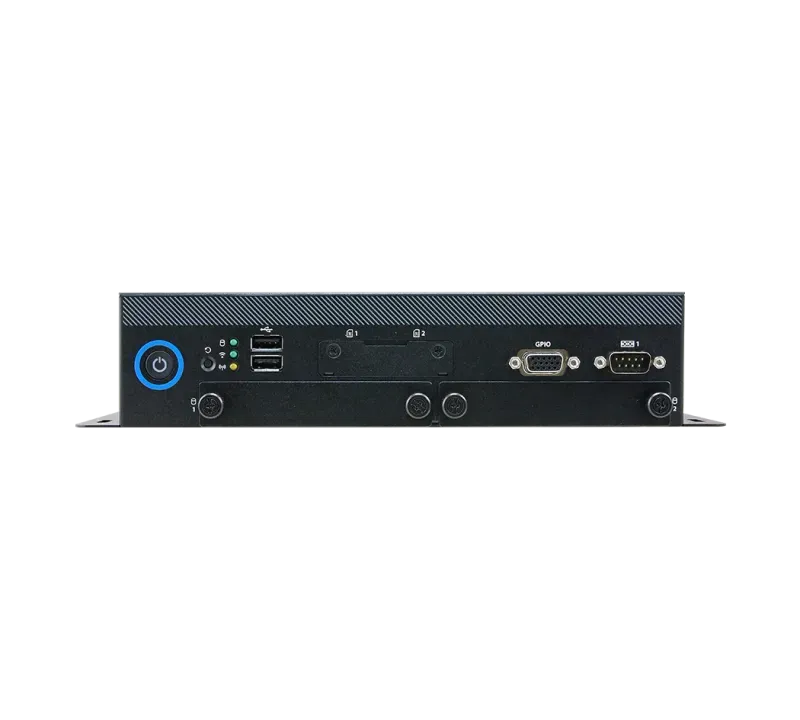

Front I/O

USB

2 x USB 2.0

Power Button

1 x Push Button for Power on/off w/ LED(Blue)

Reset Button

1 x Push Button for Reset in hiding

COM Port

1 x RS232/422/485(Jumper + DIP switch), support auto-flow

LED Indicator

1 x LED indicators for Storage (Yellow) - M.2 M-key PCIe Storage

1 x LED indicators for LTE (Green) - M.2 B-key

1 x LED indicators for Wi-Fi (Green) - M.2 E-key

SIM Slot

2 x SIM Card Slot (External Accessible w/Dust Protection Cover)

Digital I/O

1 x 10-bits GPIO

(5 x DI (9~60V) and 5 x DO (30V/200mA)), SW control

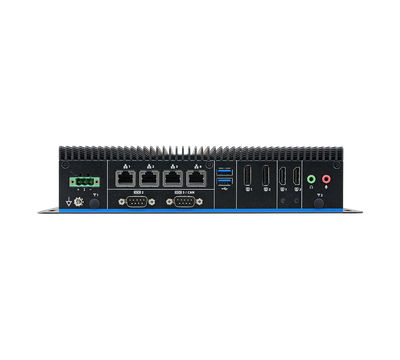

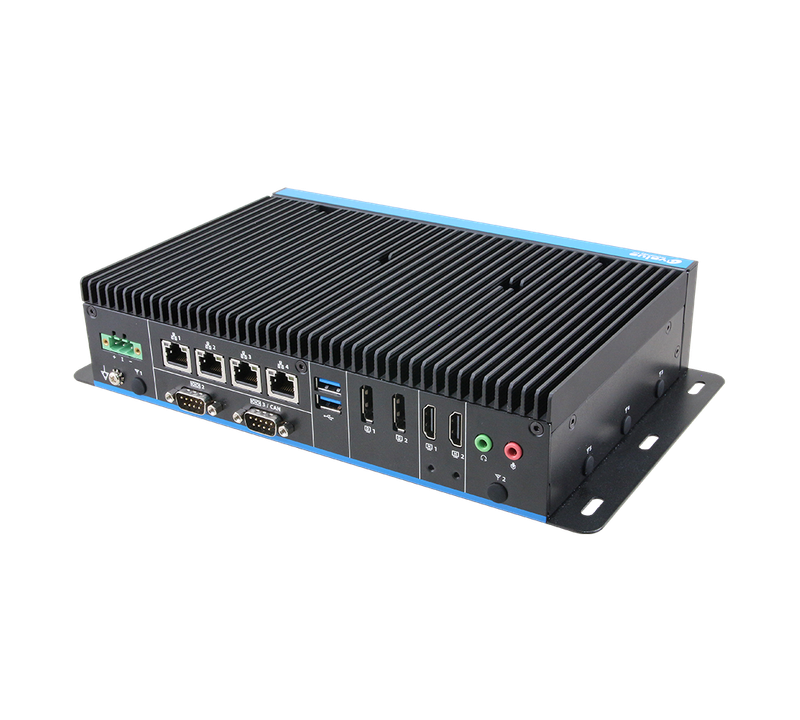

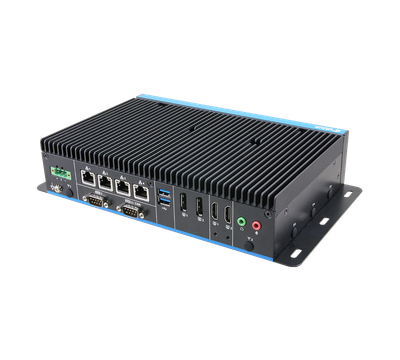

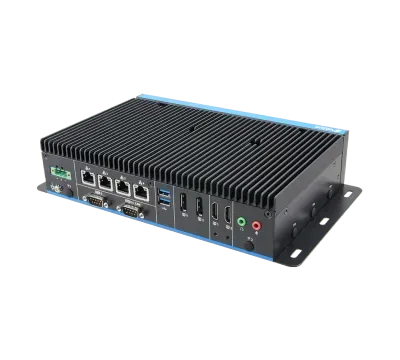

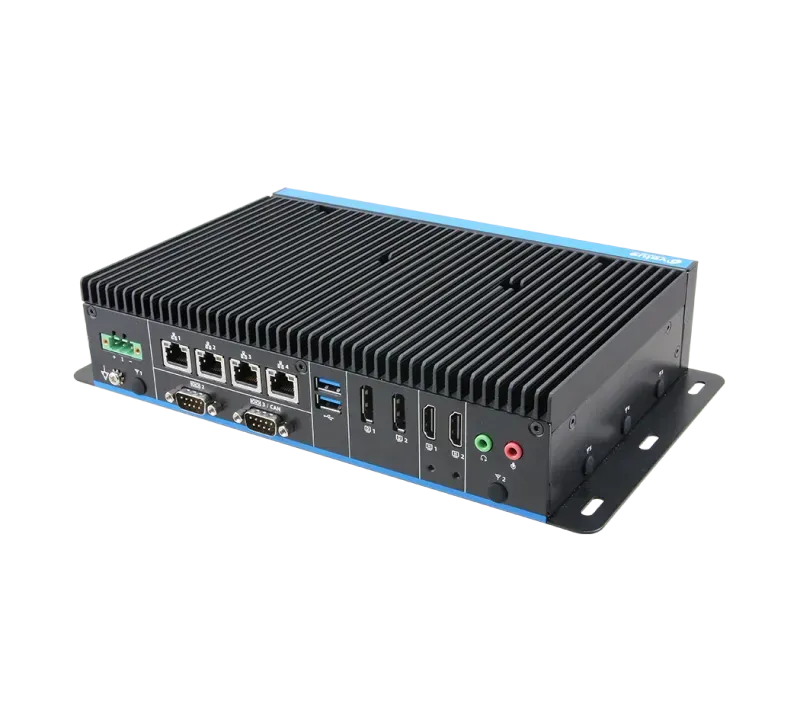

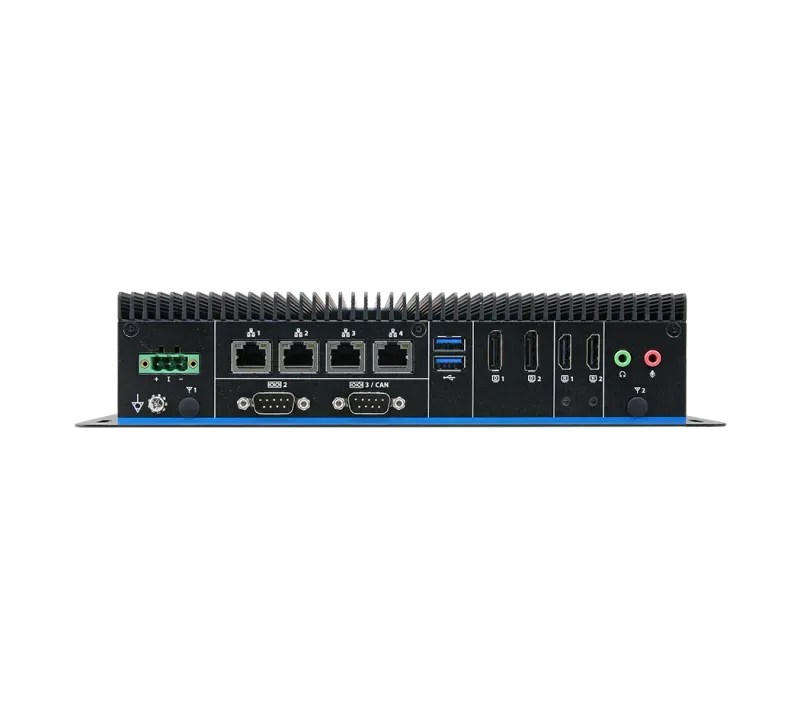

Rear I/O

USB

2 x USB 3.2 Gen.2

COM Port

2 x RS232/422/485(Jumper + DIP switch), support auto-flow (COM2/3 via Cable)

Audio

1 x Line-Out

1 x Mic-In

DP

2 x DP++ 1.4

HDMI

2 x HDMI 2.0

Antenna

2 x Antenna Mounting w/Dust Protection Cover

Right I/O

Antenna

3 x Antenna Mounting w/Dust Protection Cover

Left I/O

Antenna

3 x Antenna Mounting w/Dust Protection Cover

GPS

Chipset

u-blox NEO-M9N GNSS module

Protocol

BeiDou, Galileo, GLONASS, GPS / QZSS

Display

Graphic Chipset

Intel® Iris® Xe Graphics (i7-1265UL/ i5-1245UL)

Intel® UHD Graphics (i3-1215UL/Celeron® 7305L)

Resolution

HDMI 2.0: Max. resolution 4096 x 2304 @ 60Hz

DP++ 1.4a: Max. resolution 4096x2304 @ 60Hz (DP to HDMI cable can’t support 4K @ 60Hz, Max. up to 1920x1080 (60Hz)

Audio

Audio Codec

Realtek ALC888S co-lay ALC897 (Default: ALC888S)

Ethernet

LAN Chipset

4 x Intel® I226IT 2.5 Gigabit Ethernet

Specification

4 x 10/100/1000/2.5G Base-Tx GbE compatible

Power Requirement

Voltage Input Spec.

Typical 12/24/48 Vdc ( +9 ~ 60Vdc )

Voltage Input Connector

1 x 3-Pin Terminal Block for DC Power Input

ACPI

Single Power ATX Support S0, S3, S4, S5

ACPI 5.0 Compliant

Power Mode

Vehicle Power Mode (Default Setting)/Industrial PC Power Mode

AT / ATX mode Switchable Through Jumper

Software Support

OS

Win 10/Win 11/Linux

Certification

Certification Information

CE, FCC Class A, E24 Mark, ISO 7637-2, IP50

Mechanical & Environmental

Operating Temp

Standard System: -40°C ~ 65°C (-40°F ~ 158°F) with 0.5m/S air flow, extended temperature peripherals (Factory option)

System with PoE: -40°C ~ 60°C (-40°F ~ 140°F) with 0.5m/S air flow, extended temperature peripherals (Factory option)

Storage Temp.

-30°C ~ 70°C (-22°F ~ 185°F)

Operating Humidity

5% ~ 90% Relative Humidity, Non-condensing

Dimension (W x L x H)

239 x 160 x 56 mm

Weight

2.6 kg

Vibration Test

Operating with SSD : MIL-STD-810H, Method 514.8, Category 4, common carrier US highway truck vibration exposure

Shock Test

Operating with SSD : MIL-STD-810H, Method 516.8, Procedure I, functional shock=20G

IP Rating

IP50

Mounting Kit

Wall mount kit (Standard)

What is VMS-RPPS?

The VMS-RPPS is a computing system manufactured by Avalue, designed specifically for transportation-system applications. The Avalue VMS-RPPS is a rugged transportation-grade computing system engineered for railway, transit, and intelligent transportation applications. Designed to withstand vibration, temperature variation, and continuous operation, the VMS-RPPS delivers stable performance for onboard control, monitoring, and data processing. Its industrial-grade design makes it ideal for rolling stock systems, vehicle monitoring solutions, and smart transportation infrastructures requiring long-term reliability.

Key Features & Benefits

  • Intel® 13th Gen PS-series Core 7/5/3/Celeron® Processor
  • Intel® Iris® Xe/UHD Graphics
  • 2-262 Pin SODIMM Socket Max. Up to 64GB DDR5 5200MHz
  • 3-Expansion, 1-Full Size Mini PCIe, 1-M.2 Key-E, 1-M.2 Key-B
  • 3-Storage, 1-M.2 Key-M, 2-2.5” External Drive Bay
  • Onboard GPS module, Support RAID 0/1, TPM 2.0, iAMT
  • 9~60Vdc Input, with Ignition Control & Vehicle Power Management
  • -40~65°C Operating Temperature
  • CE, FCC A, E-Mark, ISO7637-2 Certified

Applications & Use Cases

The VMS-RPPS is ideal for various industrial automation applications:

  • DC-powered industrial installations and mobile applications
  • Extreme temperature environments and outdoor installations
  • High-performance computing and data processing tasks
  • Memory-intensive applications and multitasking
  • Data logging and storage-intensive operations
  • Industrial computing and data processing
  • Transportation and logistics systems
  • Edge computing and IoT applications
