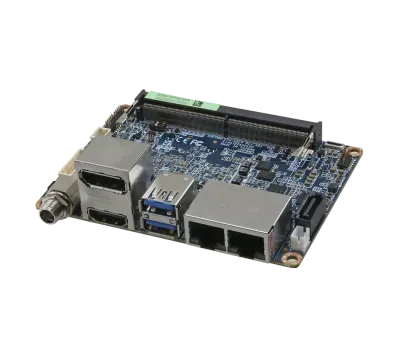

EPX-TWLP
*Price on request. Contact us for a quote.
Manufacturer: Avalue
Product Features
- Intel® Processor N-series

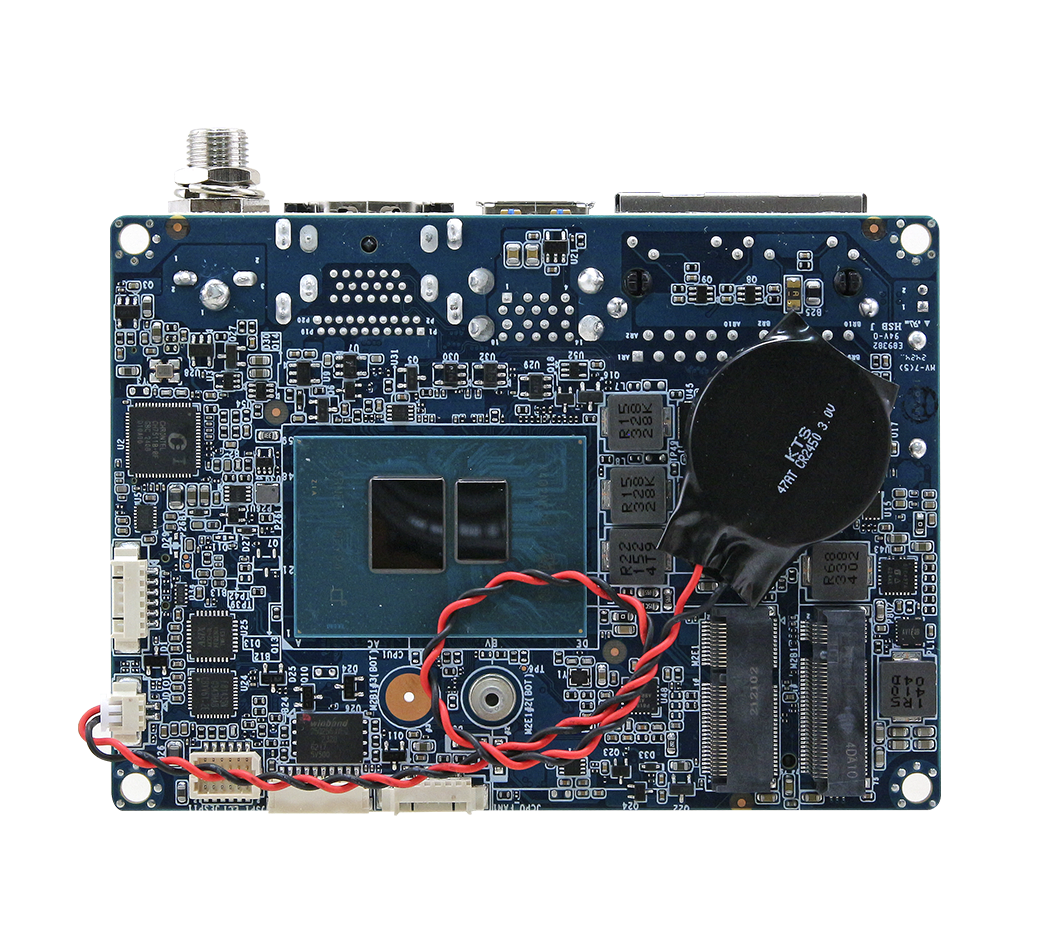

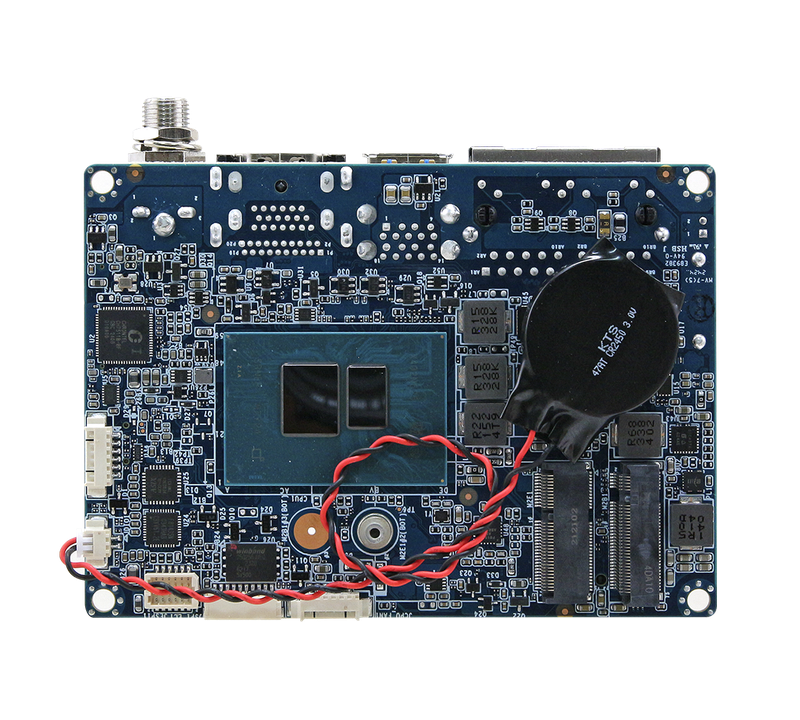

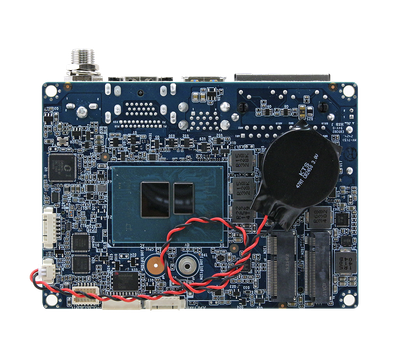

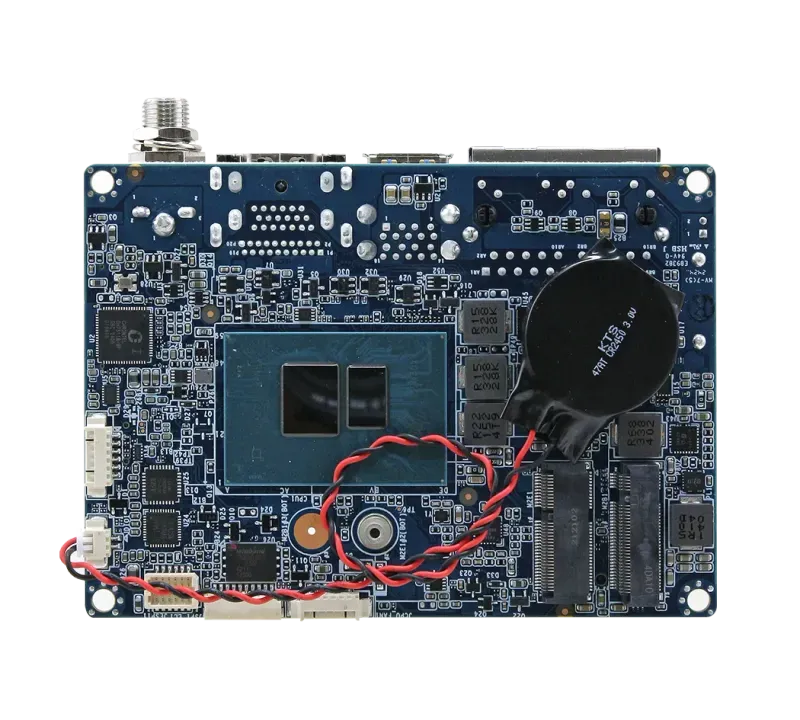

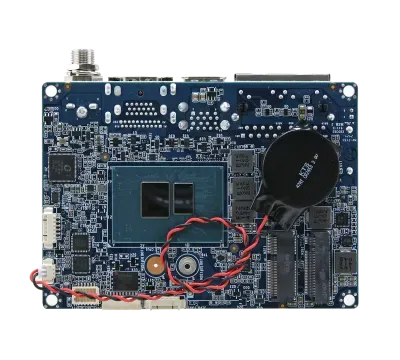

- Bottom Layer Soldered Processor

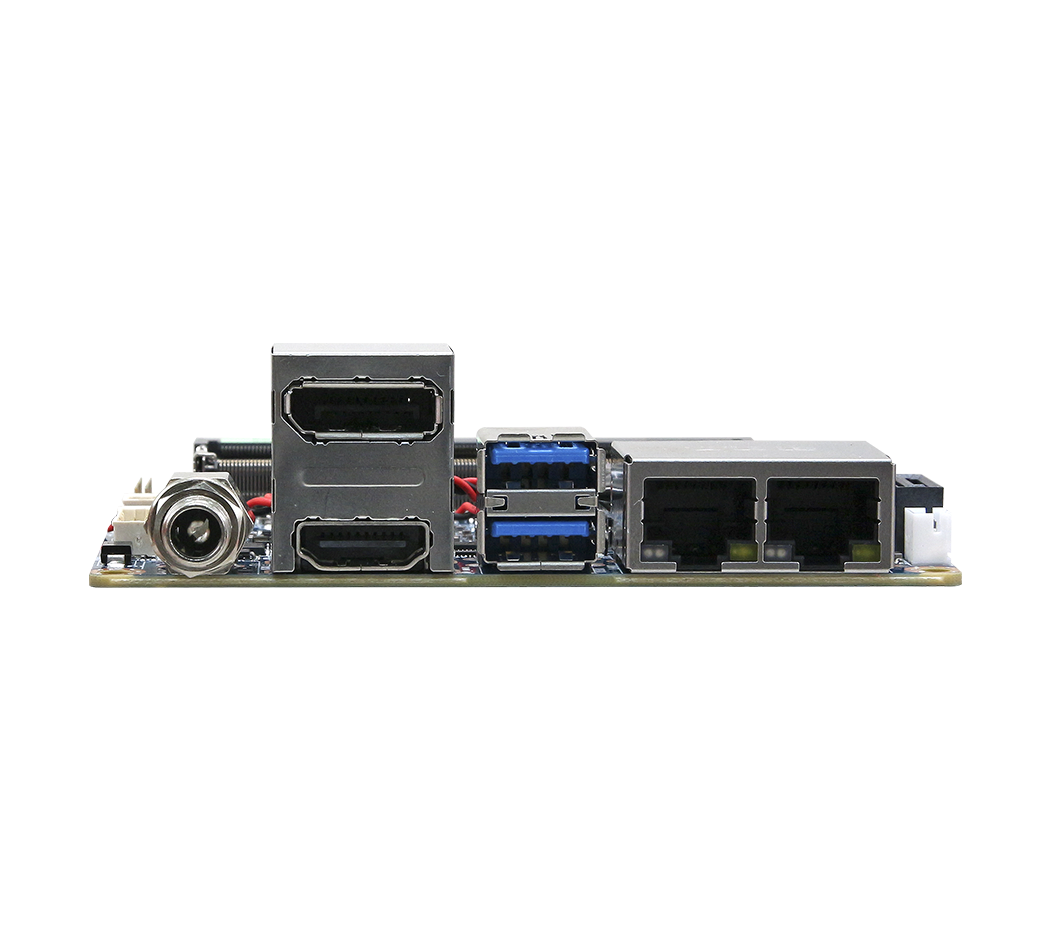

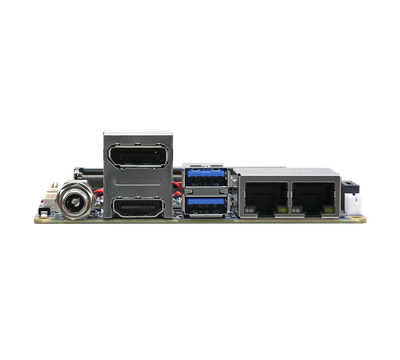

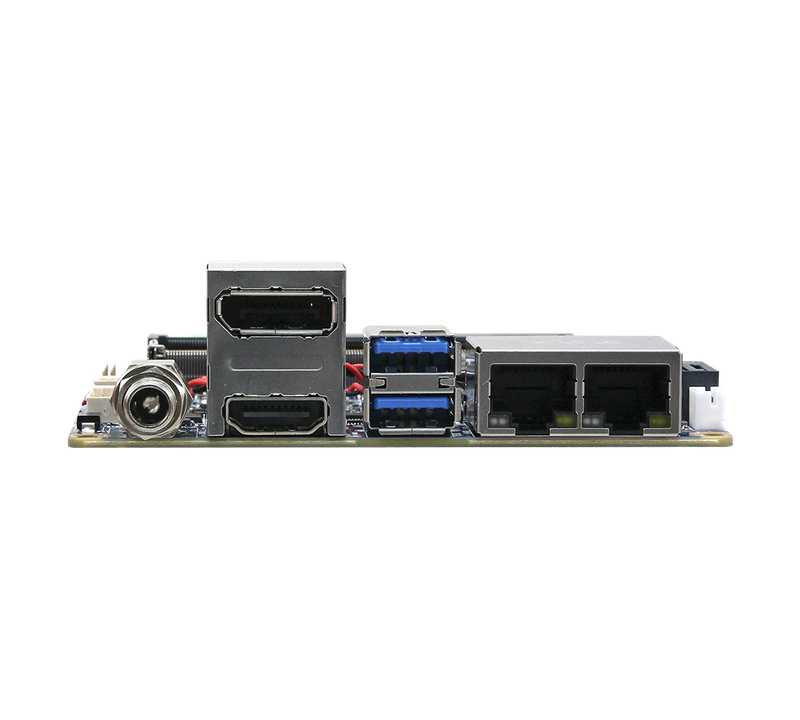

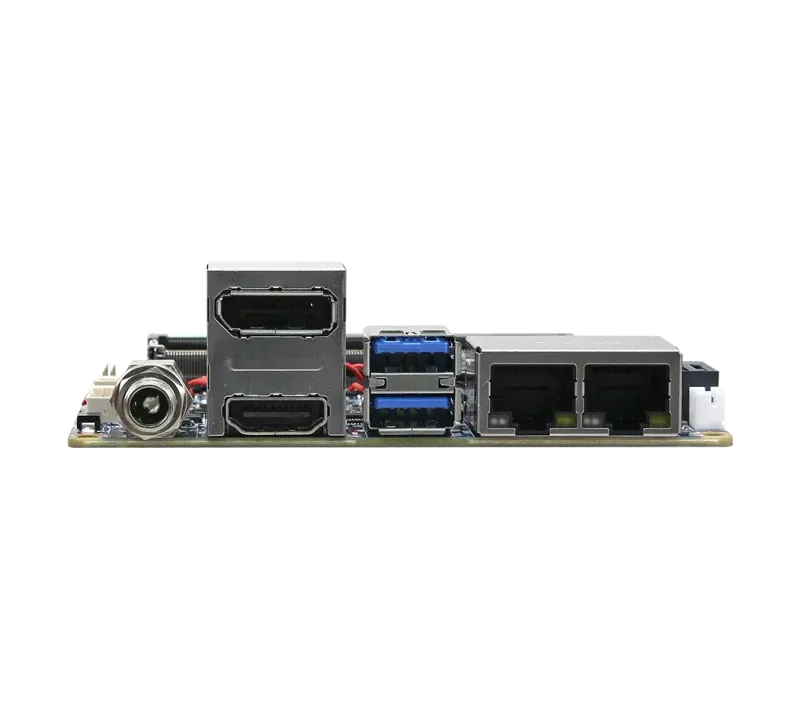

- Triple Display, DP 1.4a, HDMI 2.0b, 1 x 1CH LVDS
- Dual Intel® Gigabit Ethernet, 2.5GbE
- Dual Expansion Slot, M.2 Key-B, M.2 Key-E
- DC in +12V
Product Description

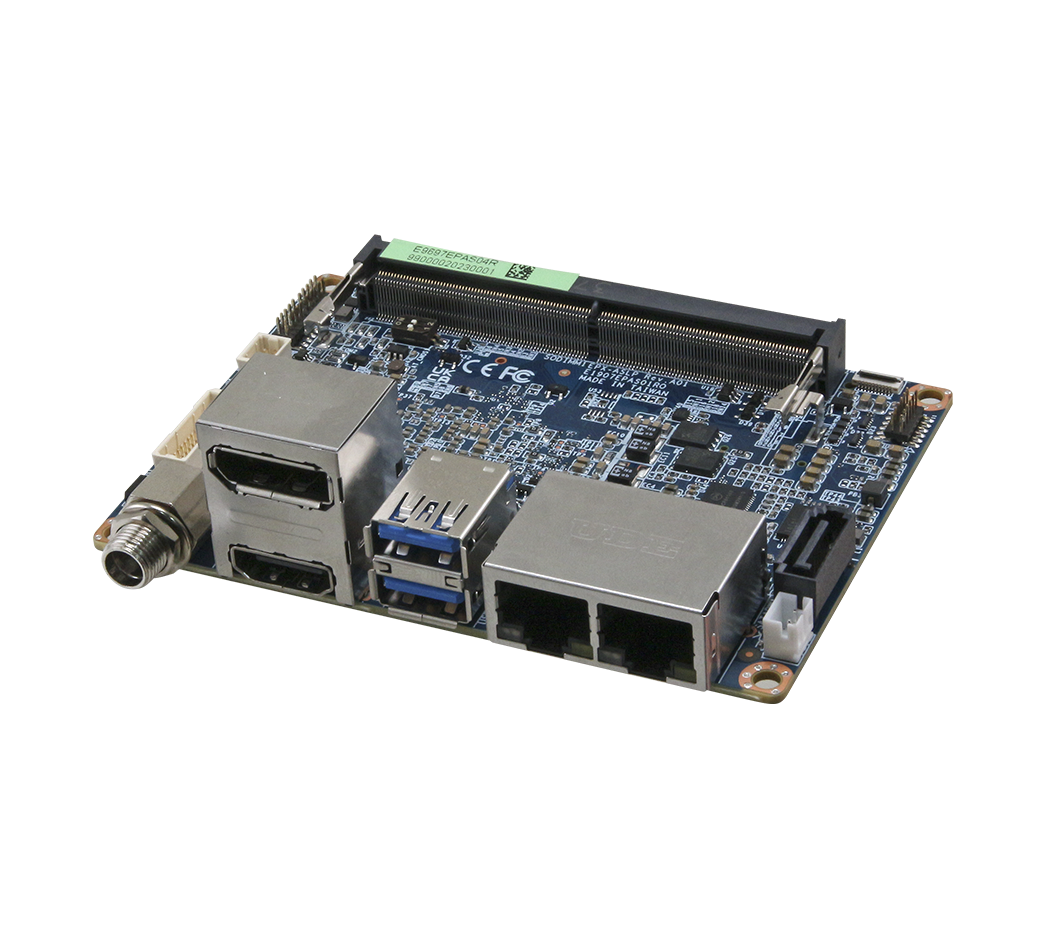

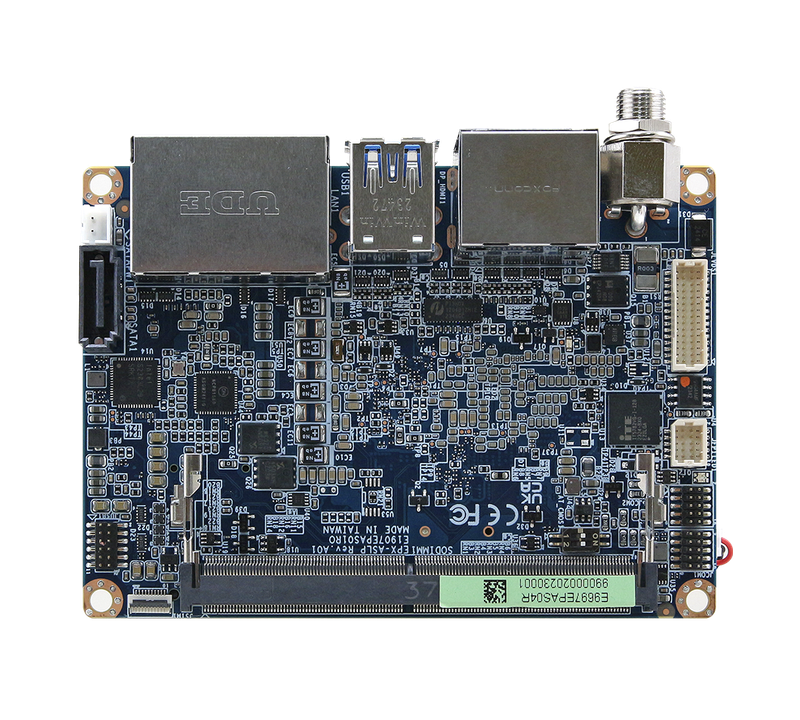

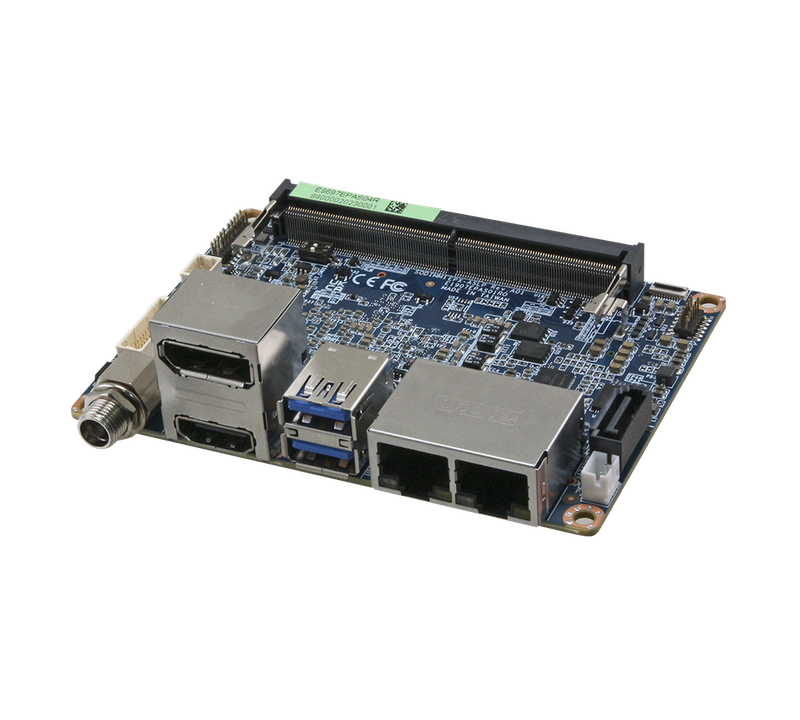

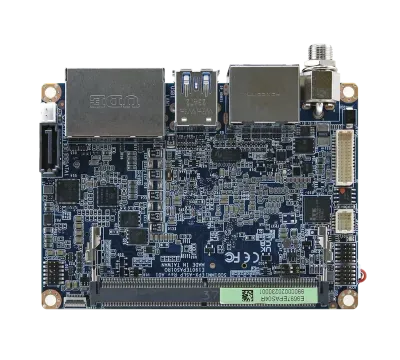

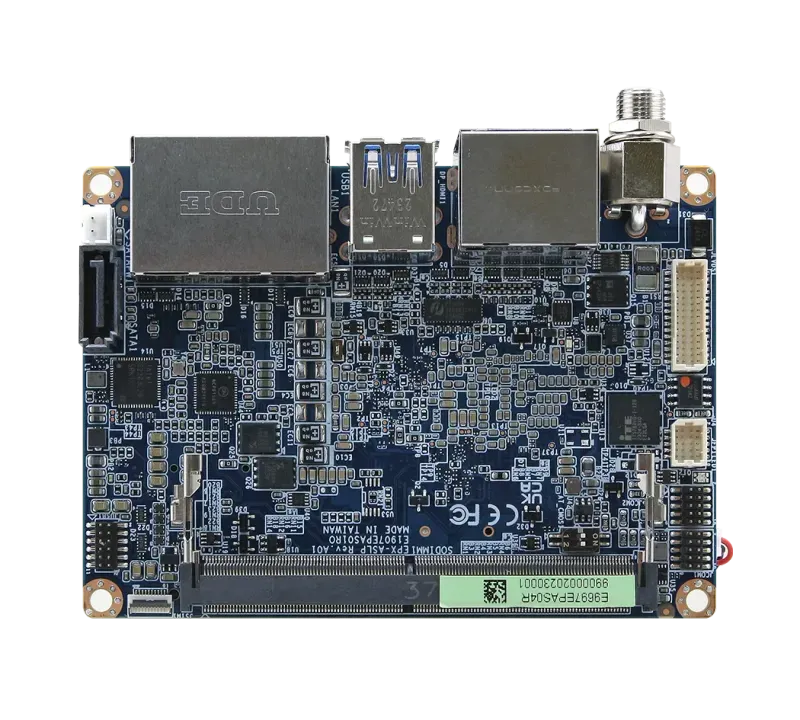

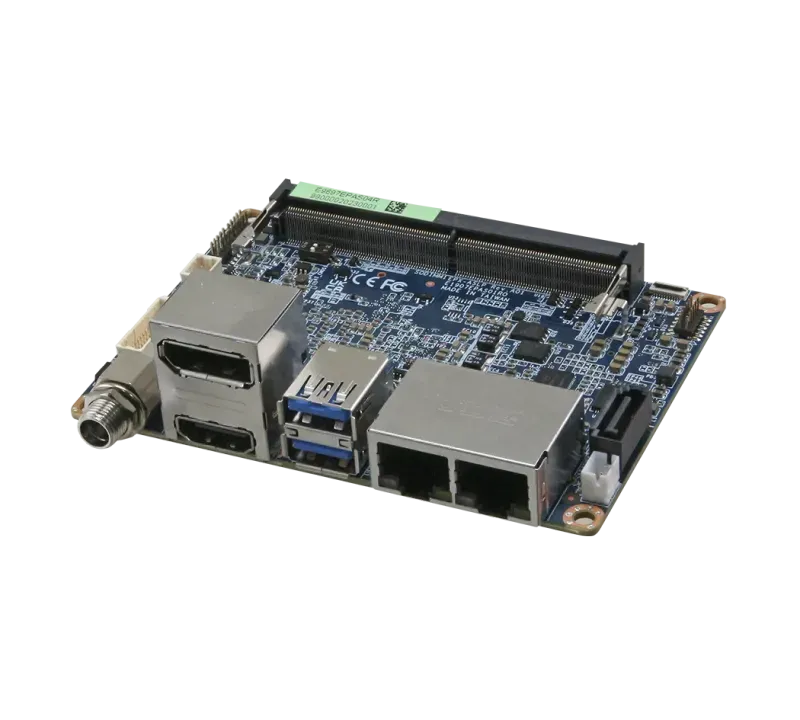

The Avalue EPX-TWLP is a 2.5-inch Pico-ITX Single Board Computer designed for industrial and embedded applications. It integrates Intel® N-Series processors and supports DDR5 SO-DIMM memory.
Key features include triple display outputs (DP 1.4a, HDMI 2.0b, LVDS), dual 2.5GbE LAN ports, and multiple expansion slots (M.2 Key-B, M.2 Key-E, Mini PCIe).
With support for Linux and Windows 11, and a compact form factor of 100mm x 72mm, the EPX-TWLP offers a robust solution for space-constrained environments
Technical Specifications
System Information
Processor
Intel® Processor N-series
System Memory
1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB Max.
Board
PICO ITX
I/O Chipset
EC IC: IT5782 or Equivalent
Fintek_F81435N or Equivalent for COM port
Watchdog Timer
H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step
BIOS
AMI BIOS, 256Mbit SPI Flash ROM
H/W Status Monitor
CPU temperature monitoring
Voltages monitoring
CPU fan speed control
TPM
Support fTPM
Storage
Storage
1 x M.2 (Type B)
1 x SATA III
Display
Multiple Display
Triple Display
Graphic Chipset
Intel® Graphics
Spec. & Resolution
HDMI 2.0b Max resolution 4096 x 2160@60Hz
DP 1.4a Max resolution 4096 x 2160@60Hz
LVDS 1366 x 768 Single channel 18/24-bits
LVDS
1CH 18/24bits LVDS 1366x768
Chrontel. CH7511B eDP to LVDS Converter
Expansion
Expansion
1 x M.2 Type B 2242/3042 with (1 x PCIe x1 or USB3.2 GEN1) or (1 x SATA III + USB3.2 GEN1), USB2.0, SIM Slot for SSD/LTE/IO Cards)
*Default is Default: SATA)
*1 x 10Pin FPC connector for Micro SIM card adapter
*Micro SIM card to SIM card adapter by optional
1 x M.2 Type E 2230 support WiFi module, USB 2.0 Signal, PCIe x1 Signal.
Ethernet
LAN Chipset
2 x Intel® i226V (i226IT for wide temp version) 2.5 Gigabit Ethernet
Ethernet Interface
2.5 Gigabit Ethernet
LAN Port
2 x RJ45
Software Support
OS
Windows 11, Linux
Certification
Certification Information
CE, FCC, RoHS Compliant
I/O
USB
2 x USB 3.2 Gen2 at IO
4 x USB 2.0 by pin header
COM Port
1 x RS-232
1 x RS-232/422/485
DIO
1 x 4-bit GPIO
SATA
1 x SATA III
Mechanical & Environmental
Operating Temp.
0°C ~ 60°C (-4°F ~ 140°F) with 0.5m/s Air Flow
Storage Temp.
-40°C ~ 75°C (-40°F ~ 167°F)
Dimension (L x W)
3.94" x 2.83" (100mm x 72mm)
Weight
0.66lbs (0.3Kgs)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Power Requirement
DC in +12V
Power Mode
AT/ATX (Default Setting: ATX)
Ordering Information
Ordering Information
Intel® Processor N-series 2.5 Pico ITX SBC Motherboard
EPX-TWLP-N150-A1R
EPX-TWLP/N150/2COM/6USB/2LAN/A1
EPX-TWLP-N250-A1R
EPX-TWLP/N250/2COM/6USB/2LAN/A1
What is EPX-TWLP?
The EPX-TWLP is a industrial & embedded motherboard manufactured by Avalue, designed specifically for 2.5inch-sbc-pico-itx applications. The Avalue EPX-TWLP is a 2.5-inch Pico-ITX Single Board Computer designed for industrial and embedded applications. It integrates Intel® N-Series processors and supports DDR5 SO-DIMM memory. Key features include triple display outputs (DP 1.4a, HDMI 2.0b, LVDS), dual 2.5GbE LAN ports, and multiple expansion slots (M.2 Key-B, M.2 Key-E, Mini PCIe). With support for Linux and Windows 11, and a compact form factor of 100mm x 72mm, the EPX-TWLP offers a robust solution for space-constrained environments
Key Features & Benefits
- Intel® Processor N-series
- Bottom Layer Soldered Processor
- Triple Display, DP 1.4a, HDMI 2.0b, 1 x 1CH LVDS
- Dual Intel® Gigabit Ethernet, 2.5GbE
- Dual Expansion Slot, M.2 Key-B, M.2 Key-E
- DC in +12V
Applications & Use Cases
The EPX-TWLP is ideal for various industrial automation applications:
- DC-powered industrial installations and mobile applications
- High-performance computing and data processing tasks
- Networked industrial systems and data communication
- Visual monitoring and data display systems
- Custom industrial computing solutions
- Industrial and embedded applications
- Industrial automation platforms
- Embedded system development
