What are the key features of the ACP-3566-PI ARM-based SBC?

The ACP-3566-PI features a Rockchip RK3566 Quad-core Cortex-A55 processor, 4GB RAM, 32GB onboard eMMC storage, HDMI 4K output display, MIPI-DSI and MIPI-CSI video interfaces, 40P GPIO expandable to various interfaces (RS232, GPIO, SPI, I2C), Gigabit Ethernet, WiFi support, all in a compact 85mm x 55mm form factor with long lifecycle guarantee.

What connectivity options does the ACP-3566-PI offer?

The ACP-3566-PI offers comprehensive connectivity including 1 x 10/100/1000 RJ45 Powered LAN, 1 x HDMI 2.0 Out, 2 x USB Host 2.0, 1 x USB OTG 2.0, 1 x USB Host 3.0, 1 x microSD card slot (max 64GB), 40 x GPIO pin header supporting GPIO/UART/I2C/SPI functions, built-in WiFi 802.11 a/b/g/n/ac, and MIPI CSI/DSI interfaces for camera and display connections.

What operating system does the ACP-3566-PI support?

The ACP-3566-PI officially supports Linux Debian 10, making it an ideal platform for embedded Linux applications. This open-source operating system provides a stable foundation for developing various industrial and embedded applications.

What are the environmental specifications of the ACP-3566-PI?

The ACP-3566-PI operates in temperatures from 0°C to 60°C (32°F to 140°F), with storage temperature ranging from -40°C to 75°C (-40°F to 167°F). It measures 85mm x 55mm and weighs just 0.16kg, allowing it to fit in space-constrained installations while maintaining reliable operation in various environmental conditions.

ACP-3566-PI

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Rockchip RK3566 with Quad-core Cortex-A55 up to 1.8GHz, 4GB RAM and onboard 32 GB eMMC
Support HDMI 4K output display, MIPI-DSI and MIPI-CSI video input and output
Support 40P GPIO and can be configured as rich expansion interfaces such as RS232, GPIO, SPI and I2C. It also built-in Gigabit Ethernet port, supports Wi-Fi
Small Size 85 mm * 55 mm
Long life cycle guarantee and sufficient supply

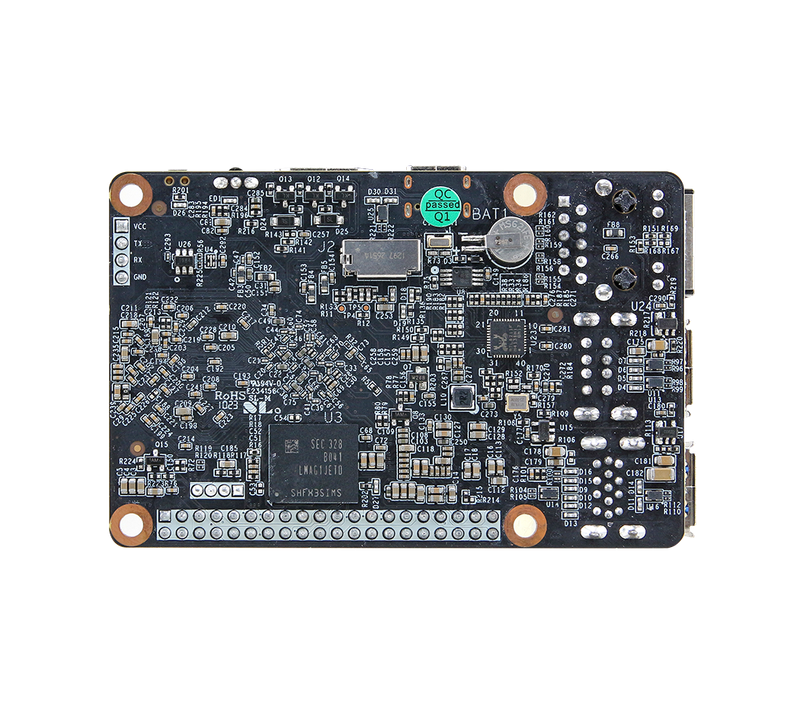

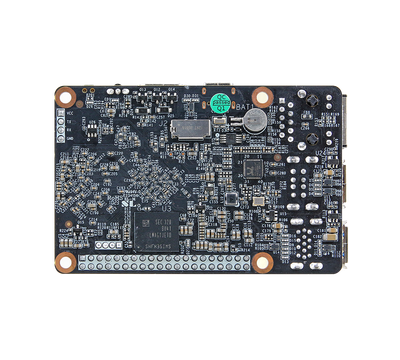

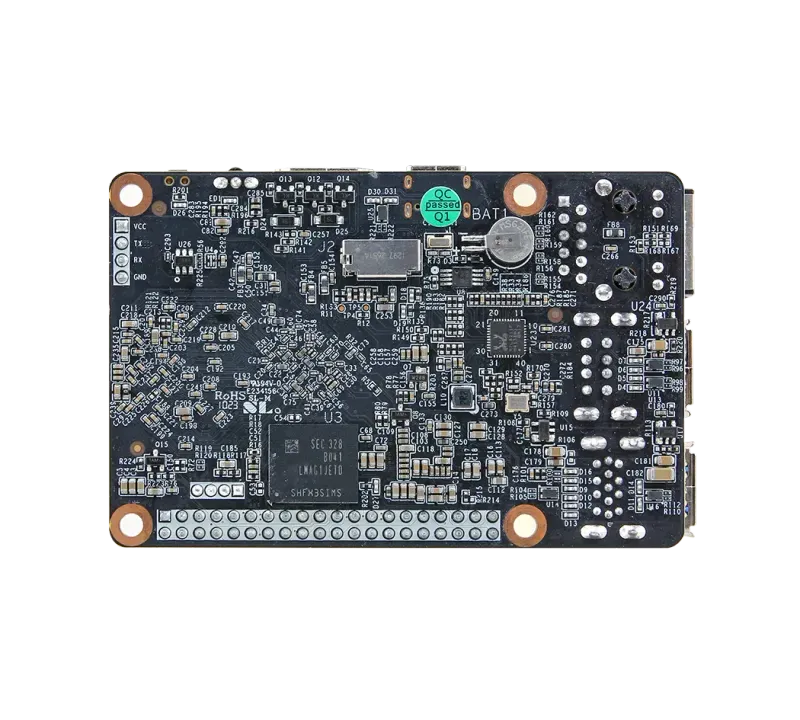

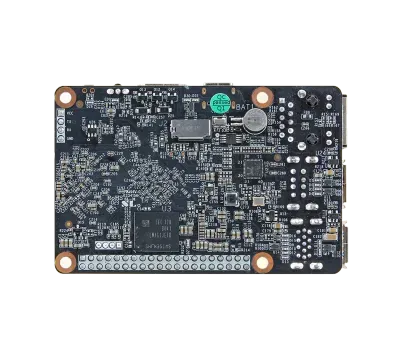

Product Description

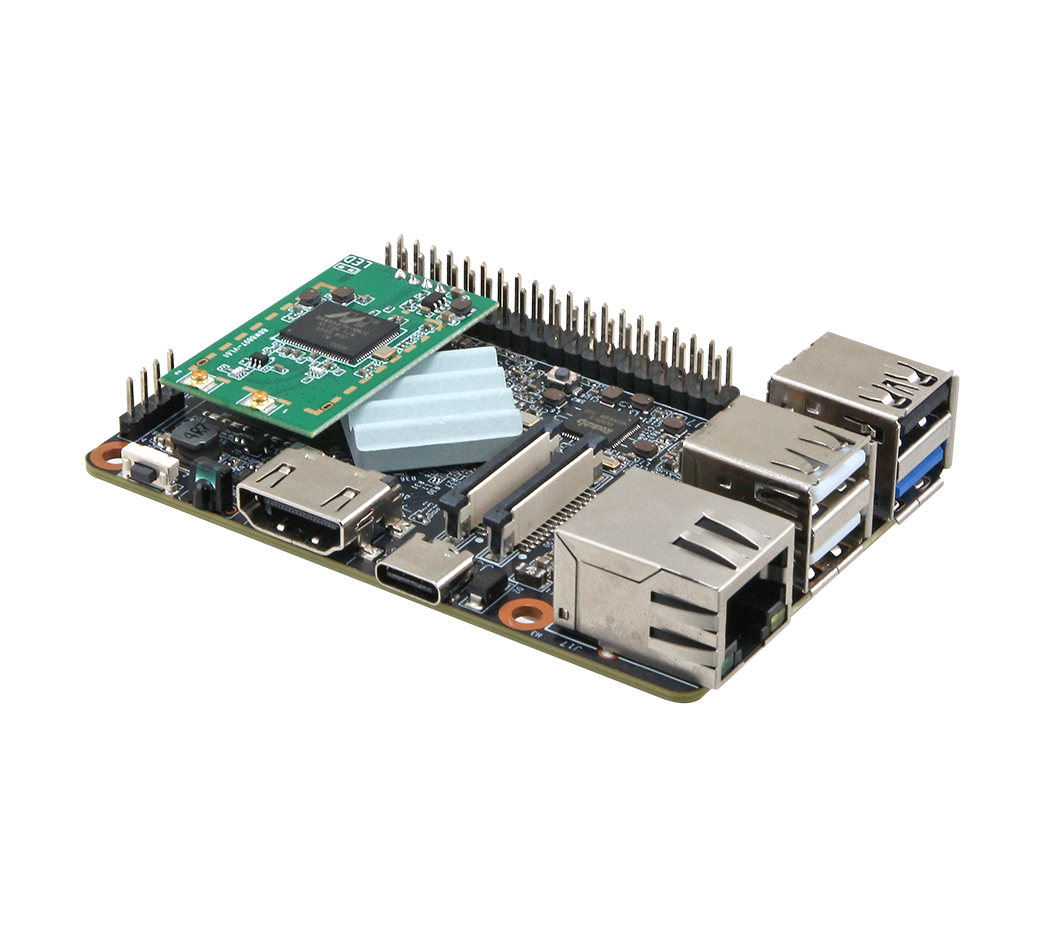

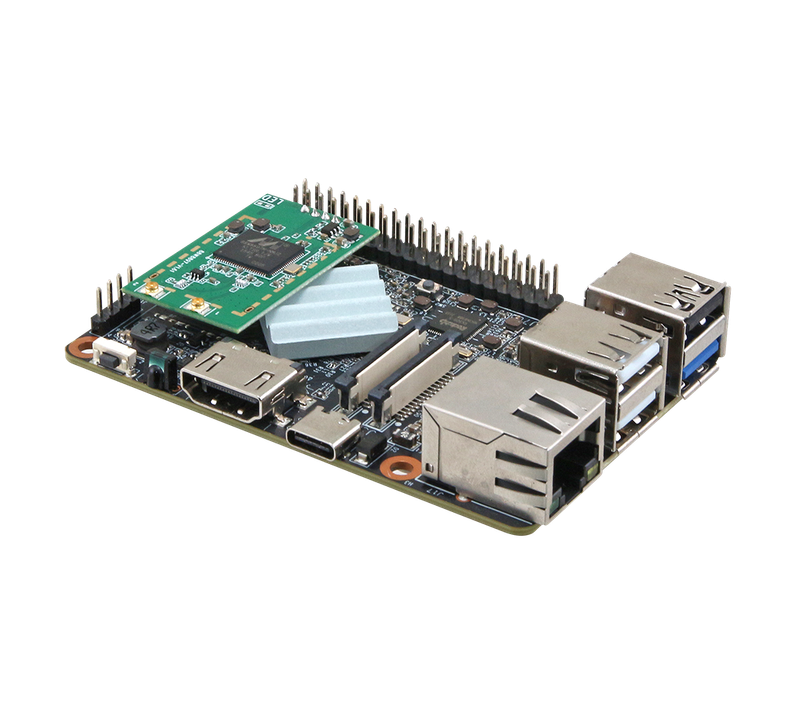

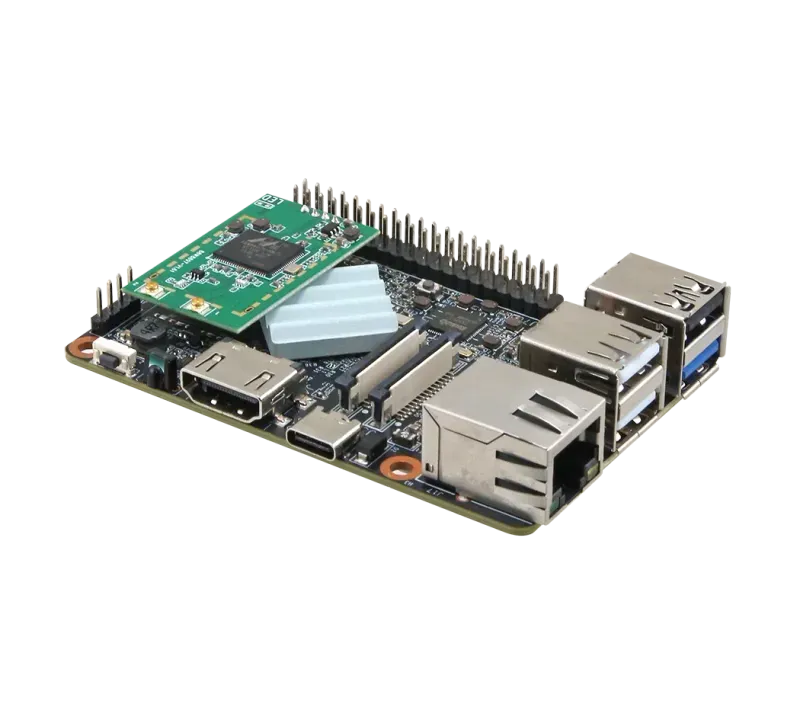

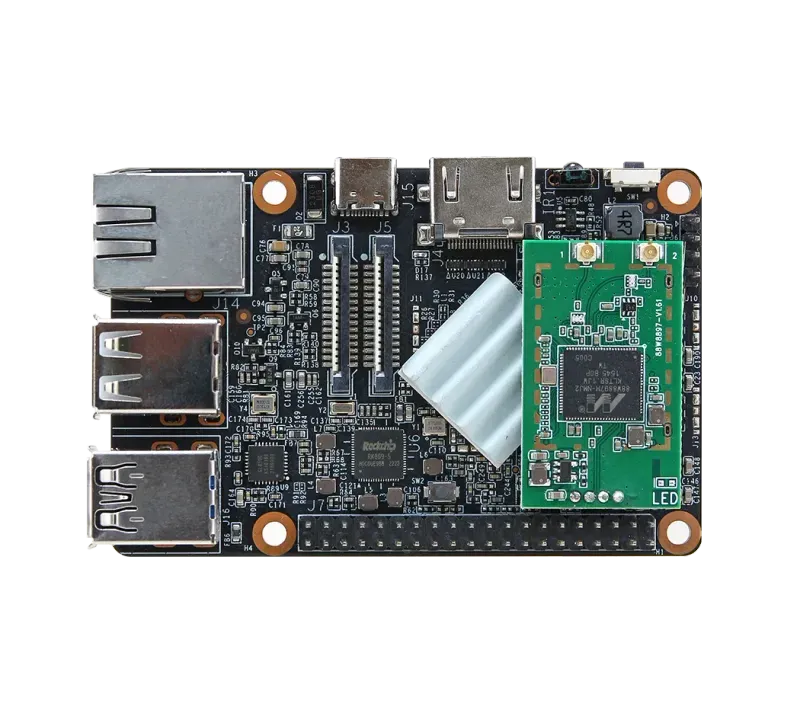

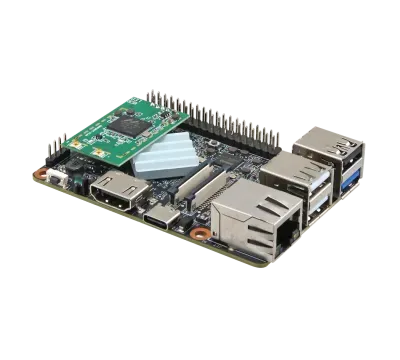

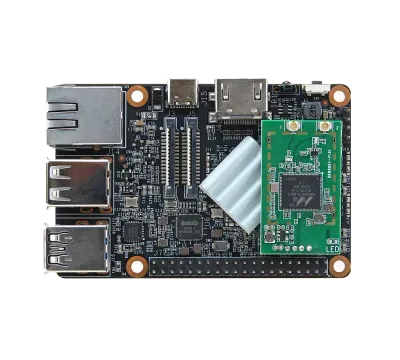

The Avalue ACP-3566-PI is a 1.8" ARM-based Single Board Computer featuring the Rockchip RK3566 Quad-core Cortex-A55 processor, onboard 4GB RAM, 32GB eMMC storage, rich I/O interfaces, HDMI 4K output, and a compact footprint, making it ideal for embedded, industrial, and IoT applications.

Technical Specifications

System Information

Processor

RockChip RK3566 Quad-core Cortex-A55

System Memory

4 GB

Storage

onboard 32 GB eMMC

Power Requirement

DC Input

DC 5V / 3A via USB-C

Software Support

OS

Linux Debian 10

Certification

Certification Information

CE, FCC Class B

I/O

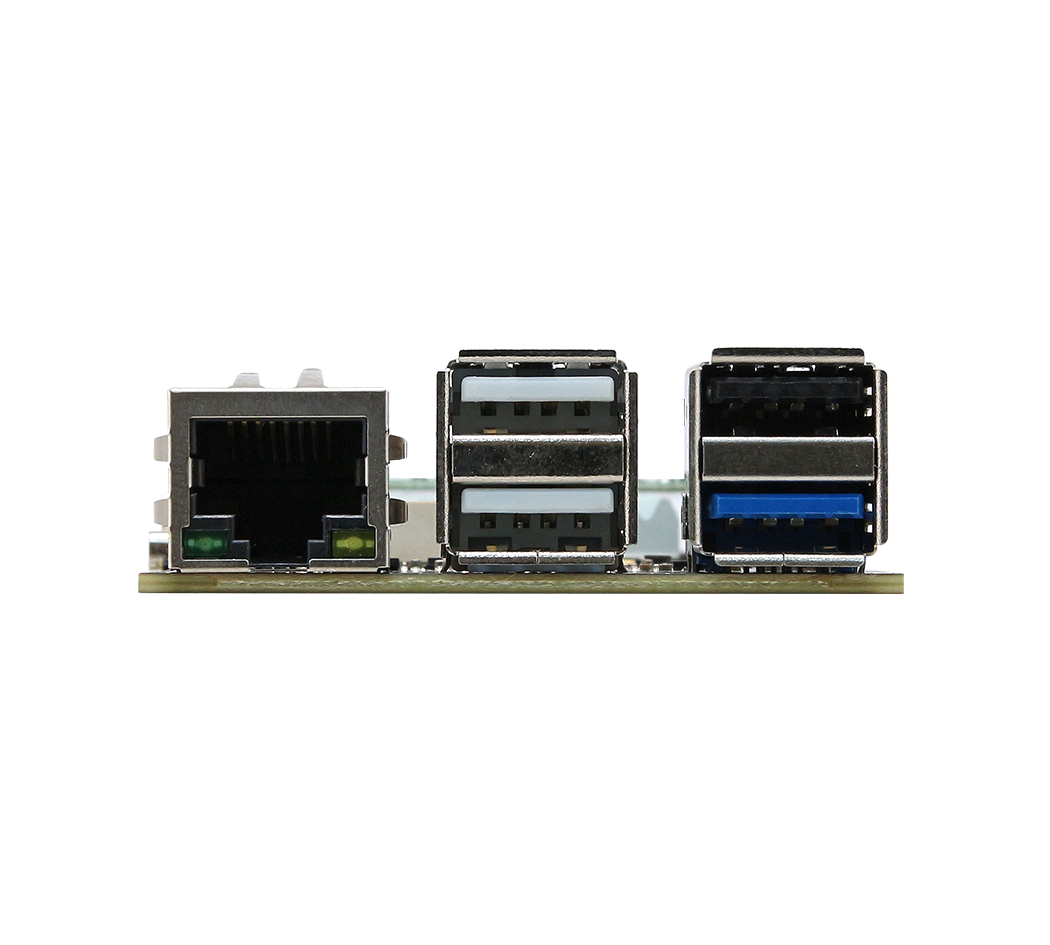

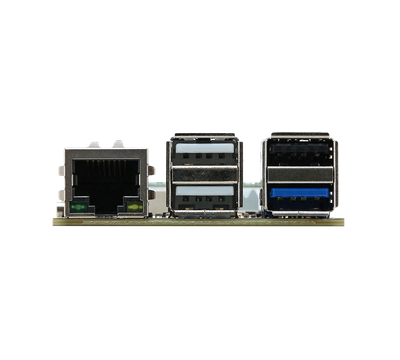

External I/O Connector

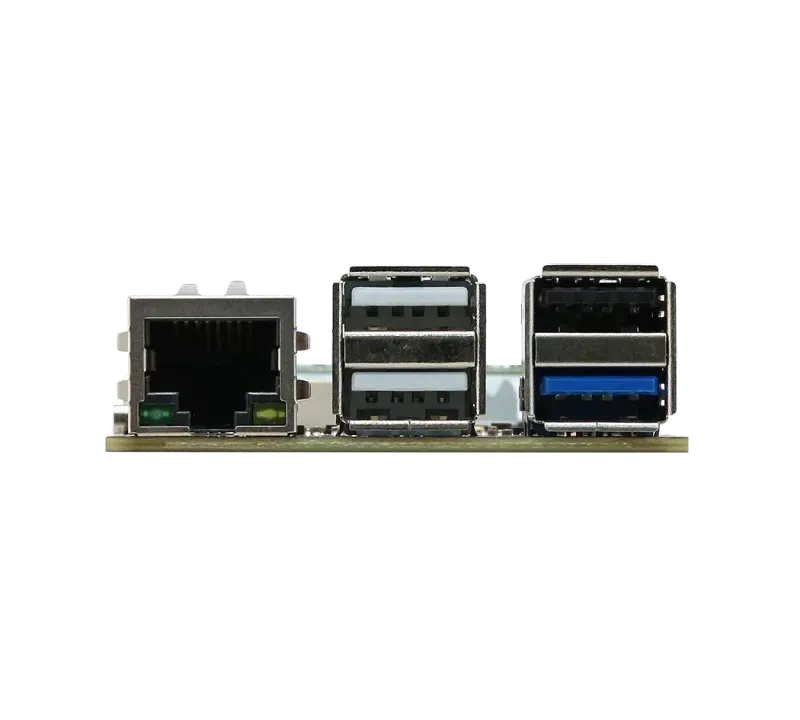

1 x 10/100/1000 RJ45 Powered LAN

1 x HDMI 2.0 Out

2 x USB Host 2.0

1 x USB OTG 2.0

1 x USB Host 3.0

1 x micro SD memory card slot (max 64 GB)

Internal I/O Connector

40 x GPIO pin header, GPIO, UART, I2C, SPI

1 x WIFI 802.11 a/b/g/n/ac

1 x MIPI CSI

1 x MIPI DSI

Mechanical & Environmental

Operating Temperature

0°C ~ 60°C (32°F ~ 140°F)

Storage Temperature

-40°C ~ 75°C (-40°F ~ 167°F)

Dimension

85mm x 55mm

Weight

0.16 kg

Ordering Information

ACP-3566-PI-A1-1R

What is ACP-3566-PI?

The ACP-3566-PI is a industrial & embedded motherboard manufactured by Avalue, designed specifically for arm-based-sbc applications. The Avalue ACP-3566-PI is a 1.8" ARM-based Single Board Computer featuring the Rockchip RK3566 Quad-core Cortex-A55 processor, onboard 4GB RAM, 32GB eMMC storage, rich I/O interfaces, HDMI 4K output, and a compact footprint, making it ideal for embedded, industrial, and IoT applications.

Key Features & Benefits

Rockchip RK3566 with Quad-core Cortex-A55 up to 1.8GHz, 4GB RAM and onboard 32 GB eMMC
Support HDMI 4K output display, MIPI-DSI and MIPI-CSI video input and output
Support 40P GPIO and can be configured as rich expansion interfaces such as RS232, GPIO, SPI and I2C. It also built-in Gigabit Ethernet port, supports Wi-Fi
Small Size 85 mm * 55 mm
Long life cycle guarantee and sufficient supply

Applications & Use Cases

The ACP-3566-PI is ideal for various industrial automation applications:

Wireless connectivity and remote monitoring applications
Networked industrial systems and data communication
Memory-intensive applications and multitasking
Internet of Things (IoT) and edge computing
Visual monitoring and data display systems
Custom industrial computing solutions
Industrial automation platforms
Embedded system development

Frequently Asked Questions

ARM-based Single Board Computers (SBCs) use processors based on ARM architecture, known for excellent power efficiency and performance-per-watt ratio compared to x86 SBCs. ARM SBCs typically consume less power, generate less heat (often enabling fanless designs), and are more cost-effective for many applications. While traditionally providing lower raw processing power than x86 counterparts, modern ARM SoCs (especially those with multi-core designs) now offer competitive performance for many industrial and embedded applications while maintaining their efficiency advantages.

ARM-based SBCs excel in industrial applications including HMI (Human-Machine Interface) systems, IoT gateways, edge computing devices, industrial control panels, digital signage, point-of-sale systems, industrial automation, machine vision systems, robotics, medical devices, and transportation systems. Their low power consumption, wide temperature operation, compact form factors, and long lifecycle support make them ideal for environments where reliability, efficiency, and space constraints are critical factors.

ARM-based SBCs typically support a variety of operating systems including various Linux distributions (Debian, Ubuntu, Yocto Project), Android, and some specialized real-time operating systems (RTOS). Windows 10 IoT Core or Windows 11 for ARM is available on select platforms. For industrial applications, Linux-based systems (particularly Yocto) are popular due to their customizability, stability, and long-term support options, while Android is common for touch-based interactive applications.

ARM-based SBCs offer several advantages for industrial applications including lower power consumption (reducing cooling requirements and operating costs), fanless operation (enhancing reliability in dusty environments), wide temperature operation ranges, compact form factors, extended lifecycle support, diverse I/O options optimized for industrial use (like CAN, RS-485, and industrial Ethernet), competitive pricing, and increasingly powerful processing capabilities for edge computing and AI workloads.

When selecting an ARM-based SBC, consider: processing requirements (CPU/GPU capabilities for your workload); memory and storage needs; I/O requirements (specific interfaces like CAN, RS-485, industrial Ethernet); display requirements (resolution, number of displays, interface types); environmental specifications (temperature range, humidity, vibration resistance); power constraints; form factor and mechanical integration; long-term availability and support; operating system compatibility; and total cost of ownership. Prioritize industrial-grade components and wide temperature operation for demanding environments.

ARM Cortex-A53 is an older 64-bit core offering good power efficiency and reliability for basic tasks. Cortex-A55 is its successor, providing approximately 18% better performance at the same power level, with improved memory system. Cortex-A76 is a high-performance core with significantly higher processing power (2-3x over A55) but at higher power consumption, often used in big.LITTLE configurations where A76 cores handle intensive tasks while A55 cores manage background processes to balance performance and power efficiency in modern SoCs.

Common display interfaces on ARM-based SBCs include: HDMI (digital interface supporting high resolutions and audio); LVDS (differential signaling interface common in industrial panels); MIPI DSI (low-power interface for mobile/embedded displays); eDP (DisplayPort variant for embedded applications); and legacy interfaces like VGA (analog) or DVI. They differ in resolution support, cable length limitations, EMI characteristics, power consumption, and compatibility with industrial displays. Modern SBCs often include multiple interfaces to accommodate various display options.

To ensure reliability in harsh environments: select boards with appropriate temperature ratings; implement proper thermal management (heat sinks, enclosures with thermal design); protect against dust and moisture using appropriate IP-rated enclosures; use industrial-grade components and conformal coating where available; implement surge protection and proper grounding; select boards with vibration/shock resistance certifications for mobile applications; use locking connectors to prevent disconnection; implement watchdog timers and reliable power supplies with appropriate filtering; perform thorough environmental testing; and establish monitoring systems for predictive maintenance.

When installing ARM-based SBCs, consider: proper voltage range (typically 9-36V DC for industrial boards); sufficient power supply rating with headroom above maximum consumption; power supply quality (filtering, stability); surge and brownout protection; proper grounding and isolation in electrically noisy environments; cable gauge selection for power delivery; backup power options (UPS or battery) for critical applications; power sequencing requirements for attached peripherals; thermal implications of power consumption; and power management settings in the operating system to optimize efficiency while meeting performance requirements.

For effective thermal management of ARM-based SBCs: ensure adequate airflow around the board; use appropriate heat sinks or thermal pads on processors and other heat-generating components; maintain recommended clearance from other heat sources; consider ambient temperature in the installation environment; for higher-temperature environments, select boards with wider temperature ratings; implement temperature monitoring; in sealed enclosures, use thermal transfer techniques to conduct heat to the enclosure walls; and for outdoor installations, consider solar loading effects and use reflective or insulated enclosures.

For optimal connectivity with ARM-based SBCs: use high-quality, shielded cables for signal integrity; implement proper strain relief to prevent connector damage; use locking connectors where possible; separate signal cables from power cables to minimize interference; follow proper grounding practices; add surge protection for external connections; implement network security measures for connected systems; maintain proper cable lengths within specifications; label all connections clearly; document the complete connectivity scheme; and test all connections thoroughly before final deployment.

For first-time boot and configuration: verify proper power supply and connectivity before powering on; prepare the bootable media (microSD/eMMC) with the appropriate operating system image; connect essential peripherals (display, keyboard); power on and observe boot indicators; follow specific first-boot procedures for your OS (setting root password, network configuration); update the system to latest patches; configure system services as needed; implement required security measures; set up remote access if needed; configure automatic startup applications; establish monitoring and logging; create system backups; and document the complete configuration for future reference.

If an ARM-based SBC fails to boot: verify power supply voltage and polarity; check for power indicators on the board; inspect for physical damage or loose connections; try an alternative power supply; verify boot media (microSD/eMMC) is properly inserted and functional; connect a display to check for boot messages; check boot mode jumpers/switches if present; try a known-good operating system image; look for error codes or LED blink patterns indicating specific issues; disconnect all peripherals except essential ones; and check manufacturer-specific recovery mechanisms or boot options. Document what you've tried for more effective technical support if needed.

To diagnose network issues: check physical connections and link indicators; verify IP configuration (static/DHCP settings); use diagnostic commands (ping, ifconfig/ip addr, traceroute, nslookup); examine network services status; check firewall settings; verify DNS configuration; examine logs for network errors; test alternative network cables; confirm network switch port functionality; verify MAC address conflicts; check for overheating causing intermittent connectivity; test multiple network applications to isolate the issue; and capture network traffic with tools like tcpdump or Wireshark for deeper analysis if necessary.

Common causes of instability include: inadequate power supply (voltage drops under load); thermal issues (overheating due to inadequate cooling or ambient conditions); memory leaks in applications; storage device failures; incompatible drivers or kernel modules; hardware clock issues; excessive I/O operations overwhelming the system; corrupted operating system files; electromagnetic interference in industrial environments; insufficient RAM for workload; improper shutdown causing filesystem corruption; incompatible peripherals; and outdated firmware or operating system. Systematic testing and log analysis can help identify the specific cause.

To resolve display issues: verify physical connections and cable integrity; confirm monitor power and input selection; check supported resolutions and refresh rates; verify display interface configuration in the operating system; examine logs for graphics driver errors; test alternative cables or adapters; try different resolution/refresh settings; update graphics drivers if available; check for conflicting display settings when using multiple outputs; verify sufficient power for the display subsystem; review boot logs for early graphics initialization errors; and try alternative display devices to isolate whether the issue is with the SBC or the display device.
