What processors are supported by the BC680R?

It supports 12th/13th/14th Gen Intel® Core™ processors (LGA 1700) with up to 128GB DDR5 memory.

How many displays can the BC680R drive?

It supports up to four displays via 2 x HDMI 2.0b and 2 x DisplayPort 1.4a, all supporting 4K@60Hz.

What networking features are available?

Dual Intel® I225-LM 2.5GbE LAN ports provide high-speed and reliable networking.

What are ATX motherboards and what are their typical applications?

ATX motherboards are full-sized boards (305mm x 244mm) designed for industrial, workstation, and server applications, offering maximum expandability, performance, and I/O for demanding environments.

What are the advantages of using ATX over other form factors?

ATX provides the most expansion slots, memory capacity, and I/O options, making it ideal for high-performance computing, automation, and control systems.

What is the typical power input for ATX boards?

ATX boards use standard ATX power supplies, supporting a wide range of industrial and commercial deployments.

What memory types and capacities are supported?

ATX boards support DDR4 or DDR5 DIMM memory, with capacities up to 128GB depending on the model and CPU.

What display resolutions and outputs are available?

Depending on the model, ATX boards support HDMI, DisplayPort, DP++, DVI-D, and VGA, with resolutions up to 8K and support for multiple independent displays.

What expansion options are available?

Expansion options include multiple PCIe slots (Gen3/Gen4/Gen5), M.2 slots for storage and wireless, and SATA ports for additional drives.

How do I install memory modules on an ATX board?

Insert DIMM memory modules into the designated slots and press down until they click into place. Refer to the board manual for supported capacities and configurations.

What precautions should I take during installation?

Always power off and unplug the system before installation. Use ESD protection and handle the board by its edges to avoid static damage.

How do I mount an ATX board in a chassis?

Align the board with the mounting holes in the chassis and secure it using the appropriate screws. Ensure all connectors and expansion slots are accessible.

The board does not power on. What should I check?

Verify the power supply connection, ensure the correct voltage is supplied, and check for any visible damage or loose components. Refer to the board's LED indicators for diagnostic codes if available.

No display output is detected. What should I do?

Check that the display cables are securely connected, the correct input source is selected, and the memory and CPU are properly installed. Try a different display port if available.

How can I reset the BIOS/UEFI settings?

Locate the CMOS battery or reset jumper on the board. Remove the battery or use the jumper as per the manual to reset BIOS/UEFI to default settings.

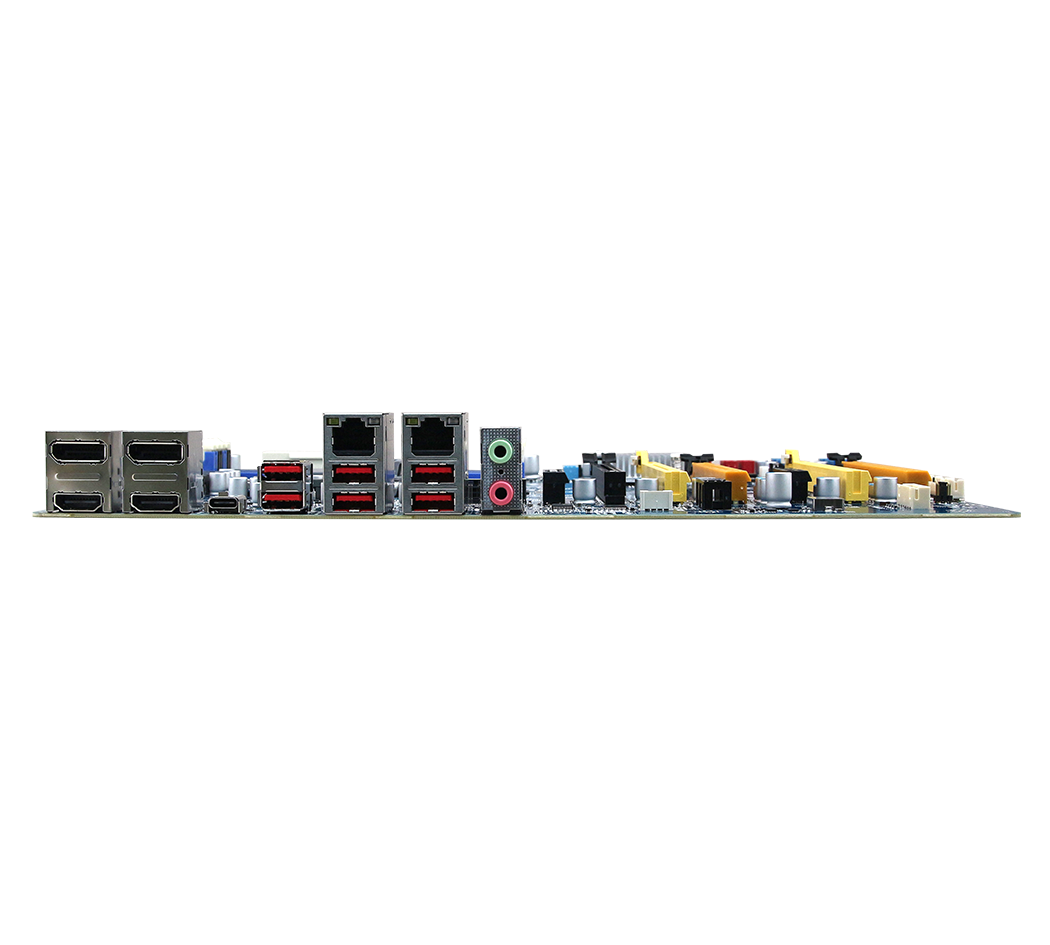

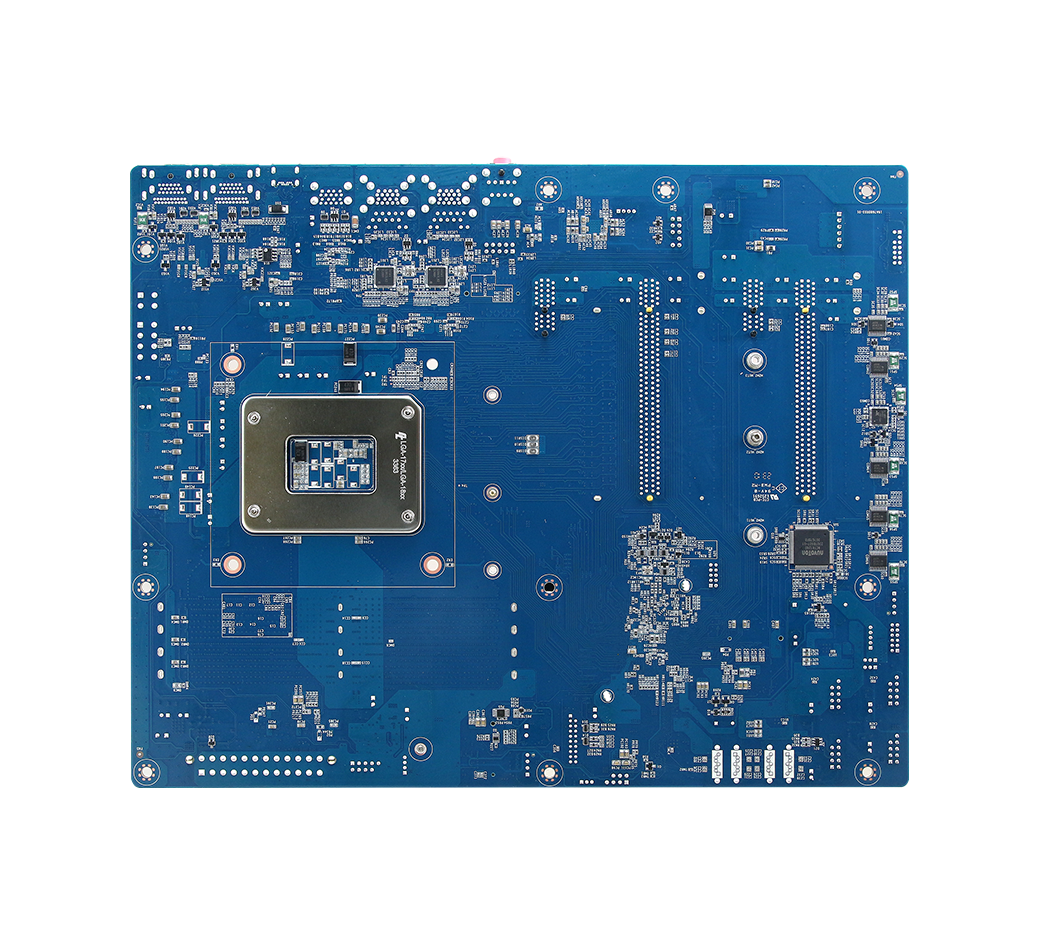

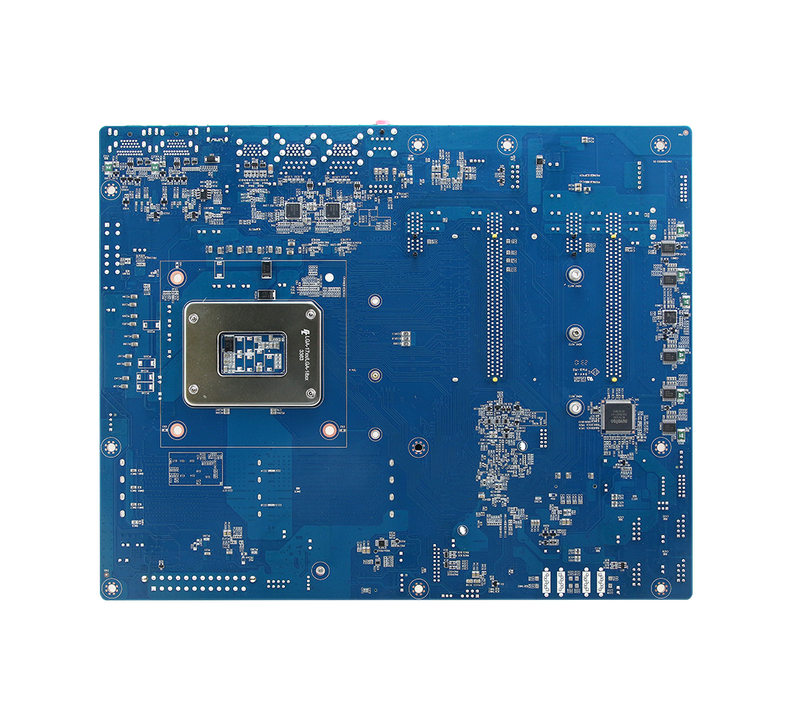

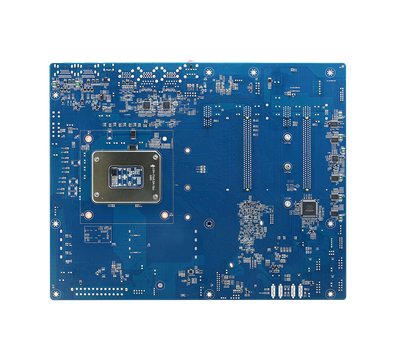

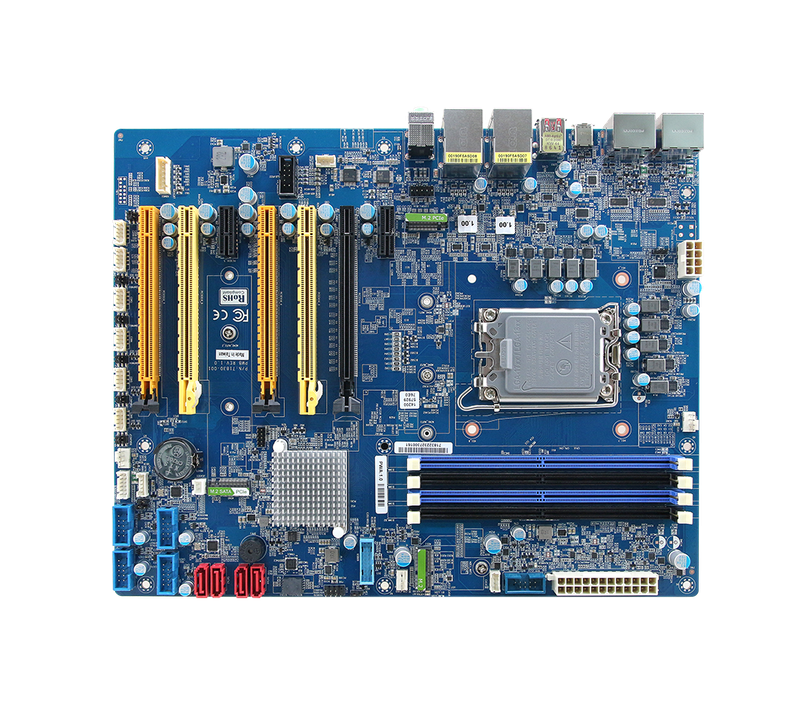

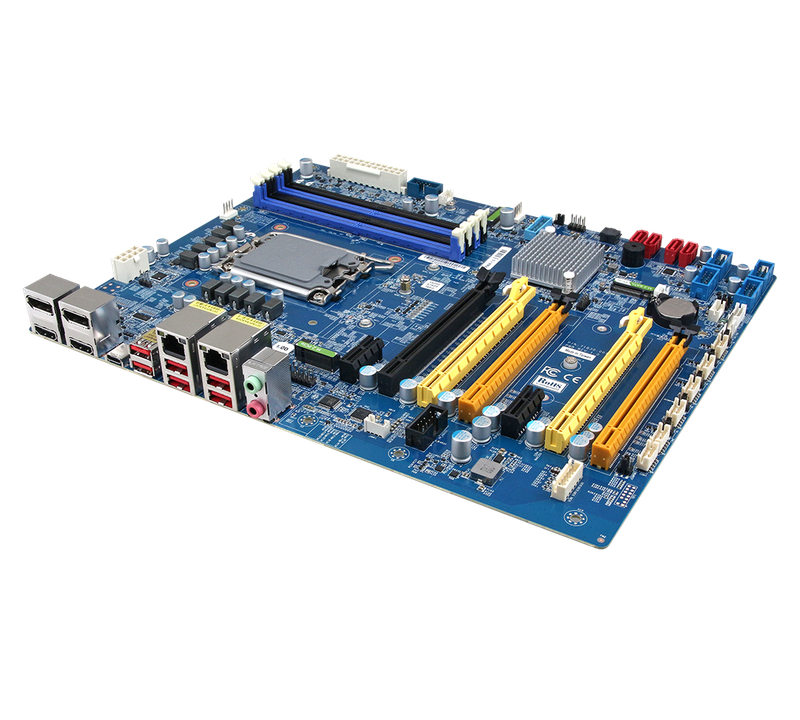

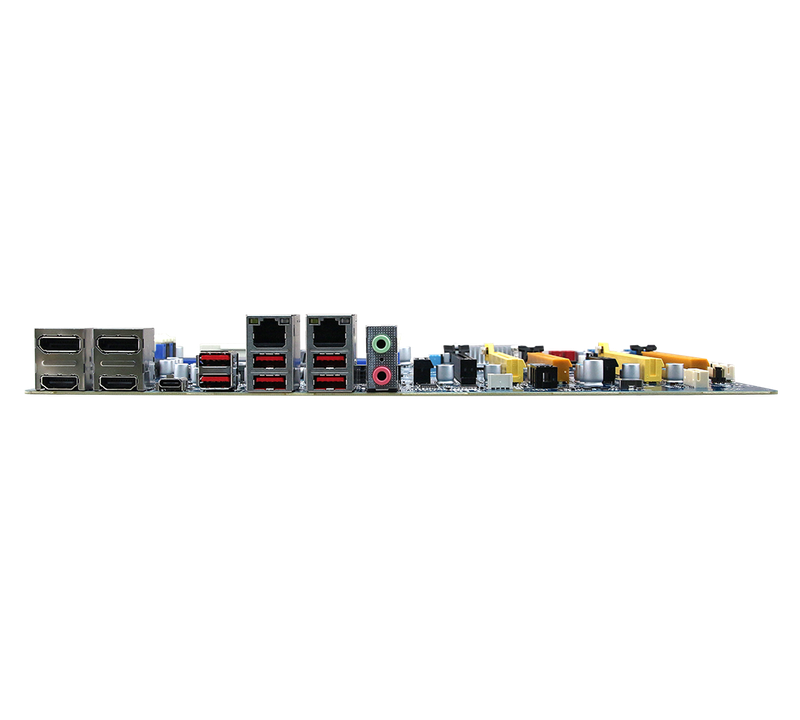

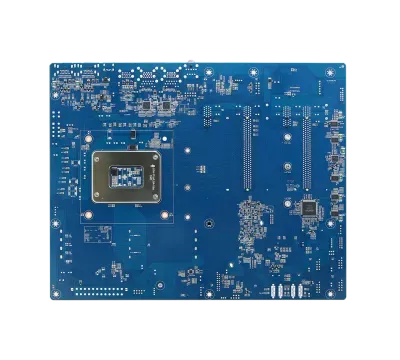

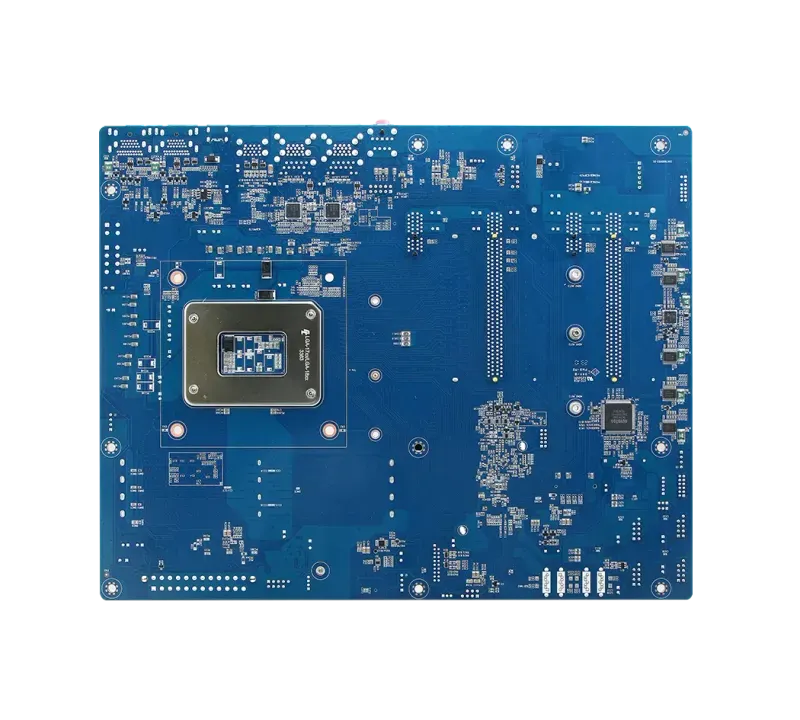

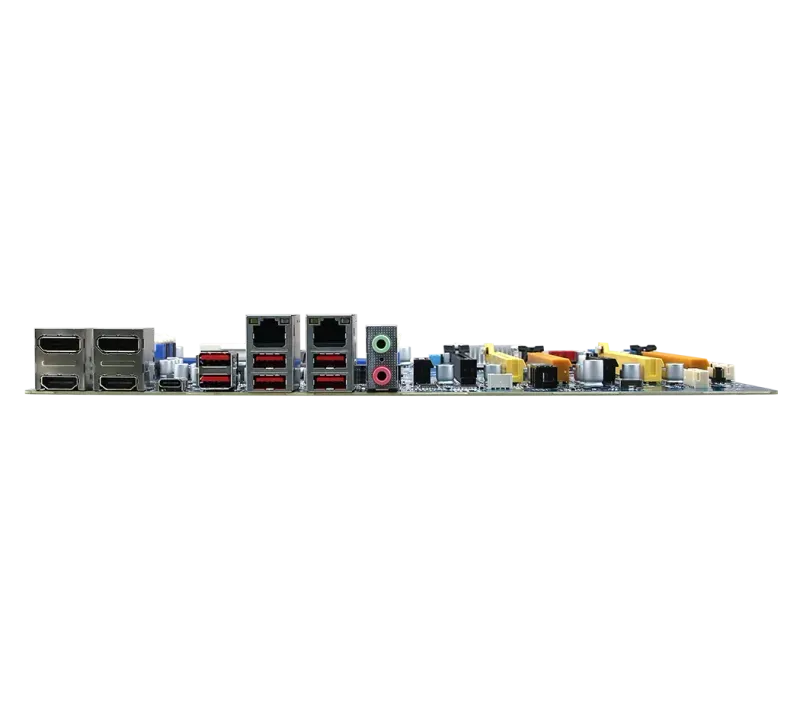

BC680R

*Price on request. Contact us for a quote.

Manufacturer: Avalue

LGA 1700 Socket supports 12/13th Generation Intel® Core™ processors, Intel® R680E Chipset
4 x 288-Pin DDR5 4400MHz Dual Channel U-DIMM Socket, up to 128GB.
2 x HDMI 2.0b and 2 x DP 1.4a, supporting 4K@60Hz.
1 x Gen 5 PCIe x16, 2 x Gen 4 PCIe x4, 1 x Gen 3 PCIe x4, 1 x Gen3 PCIe x1, 2 x Gen 3 PCIe x1 Open End.
2 x Intel® I225-LM 2.5G Gigabit Controller
1 x USB 3.2 Gen 2x2 Type-C, 6 x USB 3.2 Gen 2x, 8x USB 2.0 (Headers), 2 x USB 3.2 Gen 2 (Headers)
1 x M.2 M-Key 2242/2280/22110 NVMe, 1 x M.2 M-Key 2242/2280/22110 NVMe, 1 x M.2 E-Key 2230
with CNVi Support
6 x COM
ATX Power

Product Description

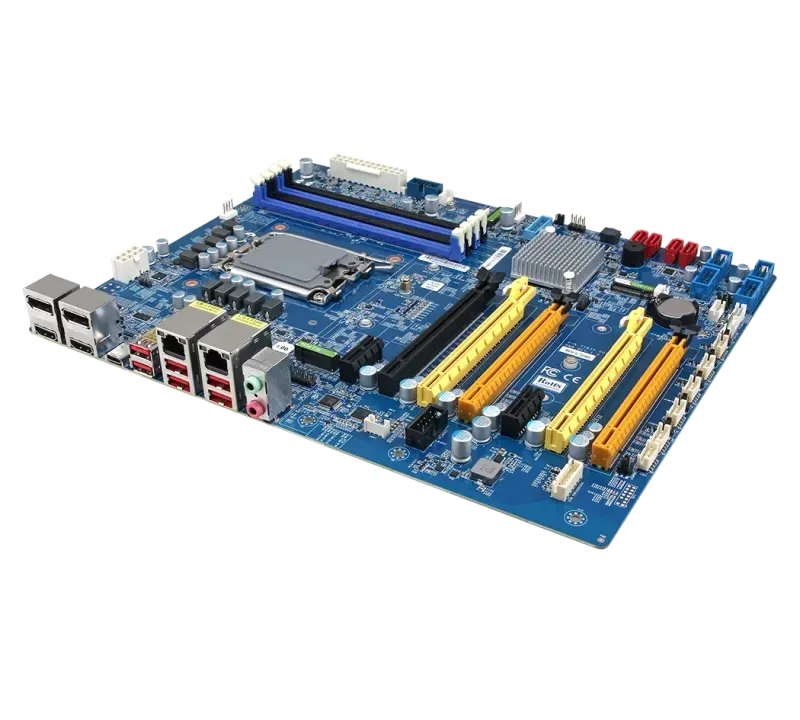

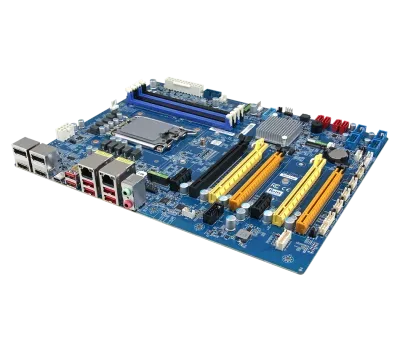

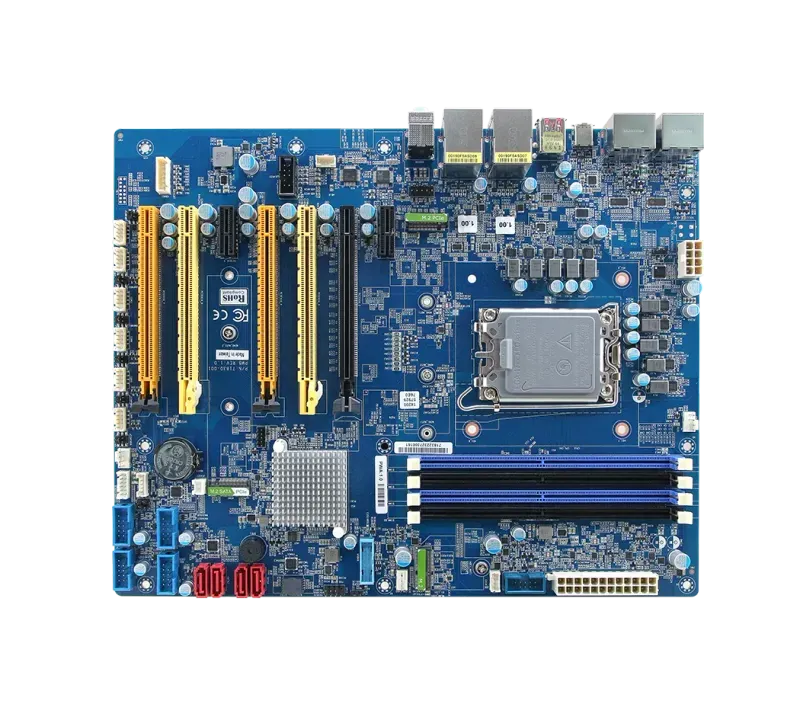

The Avalue BC680R is an ATX motherboard designed for industrial and embedded applications. It supports 12th, 13th, and 14th Gen Intel® Core™ i9/i7/i5/i3 processors with a TDP of up to 65W, utilizing the Intel® R680E chipset.

The board accommodates up to 128GB DDR5 4400MHz U-DIMM memory with ECC support (depending on CPU).

Key features include quad display outputs (2 x HDMI 2.0b, 2 x DisplayPort 1.4a) supporting 4K@60Hz, dual Intel® I225-LM 2.5GbE Ethernet ports, multiple USB ports (1 x USB 3.2 Gen 2x2 Type-C, 6 x USB 3.2 Gen 2, 8 x USB 2.0 via headers, 2 x USB 3.2 Gen 2 via headers), serial interfaces (5 x RS-232, 1 x RS-232/422/485), GPIOs, and expansion options through 1 x PCIe Gen5 x16 slot, 2 x PCIe Gen4 x4 slots, 1 x PCIe Gen3 x4 slot, 1 x PCIe Gen3 x1 slot, and 2 x PCIe Gen3 x1 open-ended slots.

Additionally, it offers 2 x M.2 M-Key (2242/2280/22110) NVMe slots and 1 x M.2 E-Key (2230) slot with CNVi support.

With a standard ATX form factor of 305mm x 244mm, ATX power support, and operating temperature range of 0°C to 60°C, the BC680R offers a robust solution for space-constrained environments.

Technical Specifications

System Information

Processor

LGA 1700 Socket Supports 12/13th Generation Intel® Core™ i9/i7/i5/i3 Processors (Max. TDP at 65W)

Platform Controller Hub

Intel® R680E Chipset

System Memory

4 x 288-Pin DDR5 4400MHz Dual Channel U-DIMM Socket Supports Up to 128GB (ECC Memory Support by CPU)

I/O Chipset

nuvoton NCT6126D

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

Onboard infineon TPM 2.0 SLB9670VQ2.0

Board

ATX

Display

Multiple Display

Four Diaplay

Graphic Chipset

Intel® 12/13th Generation CPU Integrated

Spec. & Resolution

2 x HDMI (2.0b): 4K@60Hz

2 x Dual Mode DisplayPort (1.4a): 4K@60Hz

Storage

1 x M.2 Key M 2242/2280/22110 NVMe (PCIe x4 + SATA III)

1 x M.2 Key M 2242/2280/22110 NVMe (PCIe x4 Only)

4 x SATA III

Expansion

1 x Gen5 PCIe x16,

2 x Gen4 PCIe x4,

1 x Gen3 PCIe x4,

1 x Gen3 PCIe x1,

2 x Gen3 PCIe x1, Open End

1 x M.2 Key M 2242/2280/22110 NVMe (PCIe x4 + SATA III)

1 x M.2 Key M 2242/2280/22110 NVMe (PCIe x4 Only)

1 x M.2 Key E 2230 with CNVi Support (PCIe x 1 + USB 2.0)

Audio

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Mic-in, Line-out

Audio Amplifier

2 x 6W 8Ω Amplifier

Ethernet

LAN Chipset

2 x Intel® I225LM 2.5G Gigabit Ethernet

LAN Port

2 x RJ-45

Power Requirement

Power Mode

AT/ATX (Default Setting: ATX)

Software Support

OS

Windows 10, Windows 11, Linux

Certification

Certification Information

CE, FCC, RoHS Compliant

I/O

USB

6 x USB 3.2 Gen2x1

1 x USB 3.2 Gen2x2 Type-C

8 x USB 2.0 by pin header

2 x USB 3.2 Gen2 by pin header

COM Port

5 x RS-232

1 x RS-232/422/485

SATA

4 x SATA III

RAID

Support RAID 0, 1, 5, 10

DIO

1 x 8-bit GPIO

MIO

1 x PS/2 Header

Mechanical & Environmental

Operating Temp.

0~60°C (32~140°F)

Storage Temp.

-20 ~ 80°C (-4~176°F)

Dimension (L x W)

12" x 9.6" (304.8mm x 243.84mm)

Weight

1.85lbs (0.85kg)

Operating Humidity

5% to 90% non-condensing

Power Mode

AT/ATX (Default Setting: ATX)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

Ordering Information

71832-IA

LGA 1700 Socket Supports 12/13th Gen Intel® Core™ i9/i7/i5/i3 Processor, ATX Motherboard with Intel® R680E PCH

What is BC680R?

The BC680R is a industrial & embedded motherboard manufactured by Avalue, designed specifically for atx applications. The Avalue BC680R is an ATX motherboard designed for industrial and embedded applications. It supports 12th, 13th, and 14th Gen Intel® Core™ i9/i7/i5/i3 processors with a TDP of up to 65W, utilizing the Intel® R680E chipset. The board accommodates up to 128GB DDR5 4400MHz U-DIMM memory with ECC support (depending on CPU). Key features include quad display outputs (2 x HDMI 2.0b, 2 x DisplayPort 1.4a) supporting 4K@60Hz, dual Intel® I225-LM 2.5GbE Ethernet ports, multiple USB ports (1 x USB 3.2 Gen 2x2 Type-C, 6 x USB 3.2 Gen 2, 8 x USB 2.0 via headers, 2 x USB 3.2 Gen 2 via headers), serial interfaces (5 x RS-232, 1 x RS-232/422/485), GPIOs, and expansion options through 1 x PCIe Gen5 x16 slot, 2 x PCIe Gen4 x4 slots, 1 x PCIe Gen3 x4 slot, 1 x PCIe Gen3 x1 slot, and 2 x PCIe Gen3 x1 open-ended slots. Additionally, it offers 2 x M.2 M-Key (2242/2280/22110) NVMe slots and 1 x M.2 E-Key (2230) slot with CNVi support. With a standard ATX form factor of 305mm x 244mm, ATX power support, and operating temperature range of 0°C to 60°C, the BC680R offers a robust solution for space-constrained environments.

Key Features & Benefits

LGA 1700 Socket supports 12/13th Generation Intel® Core™ processors, Intel® R680E Chipset
4 x 288-Pin DDR5 4400MHz Dual Channel U-DIMM Socket, up to 128GB.
2 x HDMI 2.0b and 2 x DP 1.4a, supporting 4K@60Hz.
1 x Gen 5 PCIe x16, 2 x Gen 4 PCIe x4, 1 x Gen 3 PCIe x4, 1 x Gen3 PCIe x1, 2 x Gen 3 PCIe x1 Open End.
2 x Intel® I225-LM 2.5G Gigabit Controller
1 x USB 3.2 Gen 2x2 Type-C, 6 x USB 3.2 Gen 2x, 8x USB 2.0 (Headers), 2 x USB 3.2 Gen 2 (Headers)
1 x M.2 M-Key 2242/2280/22110 NVMe, 1 x M.2 M-Key 2242/2280/22110 NVMe, 1 x M.2 E-Key 2230
with CNVi Support
6 x COM
ATX Power

Applications & Use Cases

The BC680R is ideal for various industrial automation applications:

DC-powered industrial installations and mobile applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Custom industrial computing solutions
Industrial and embedded applications
Industrial automation platforms
