EAX-C246P

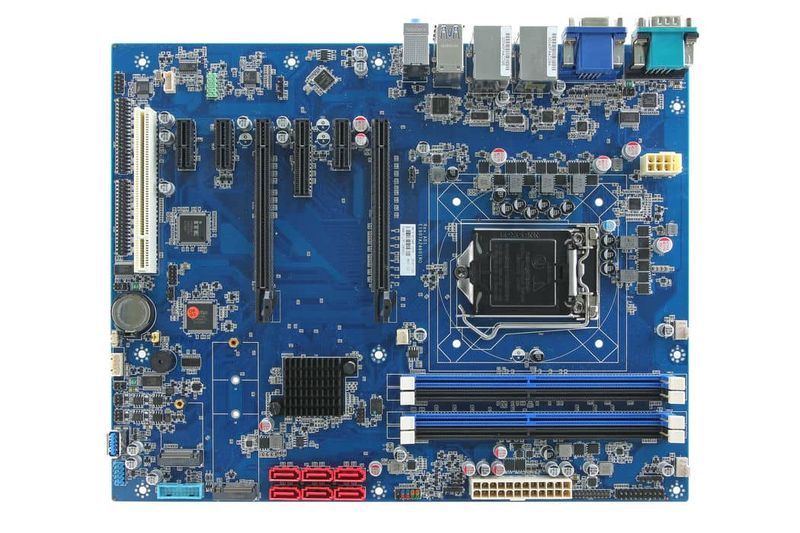

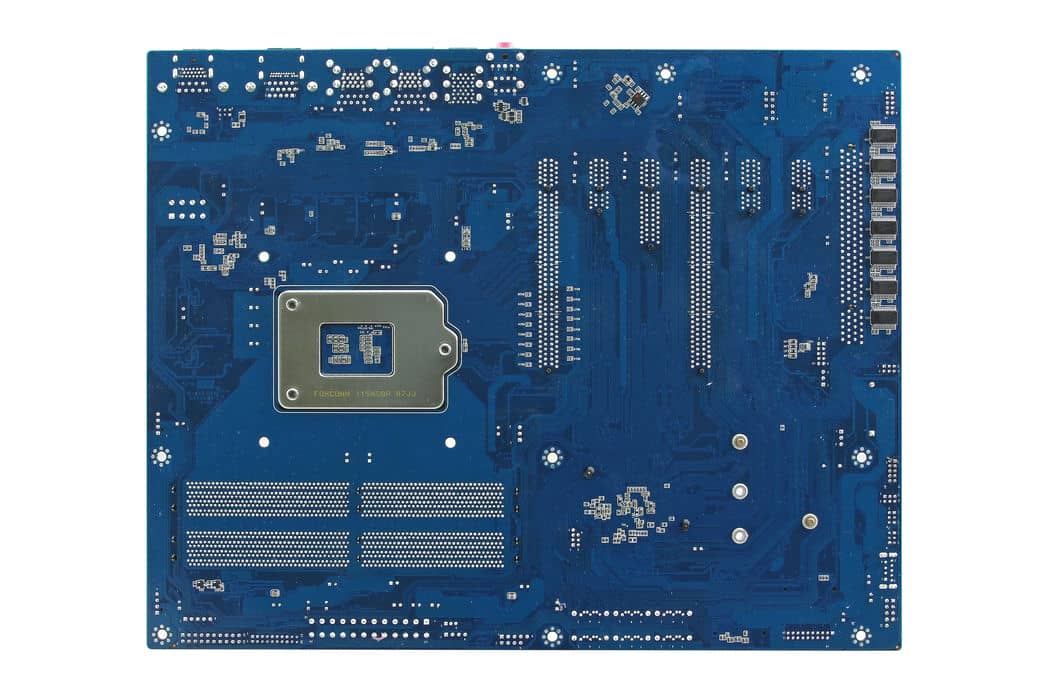

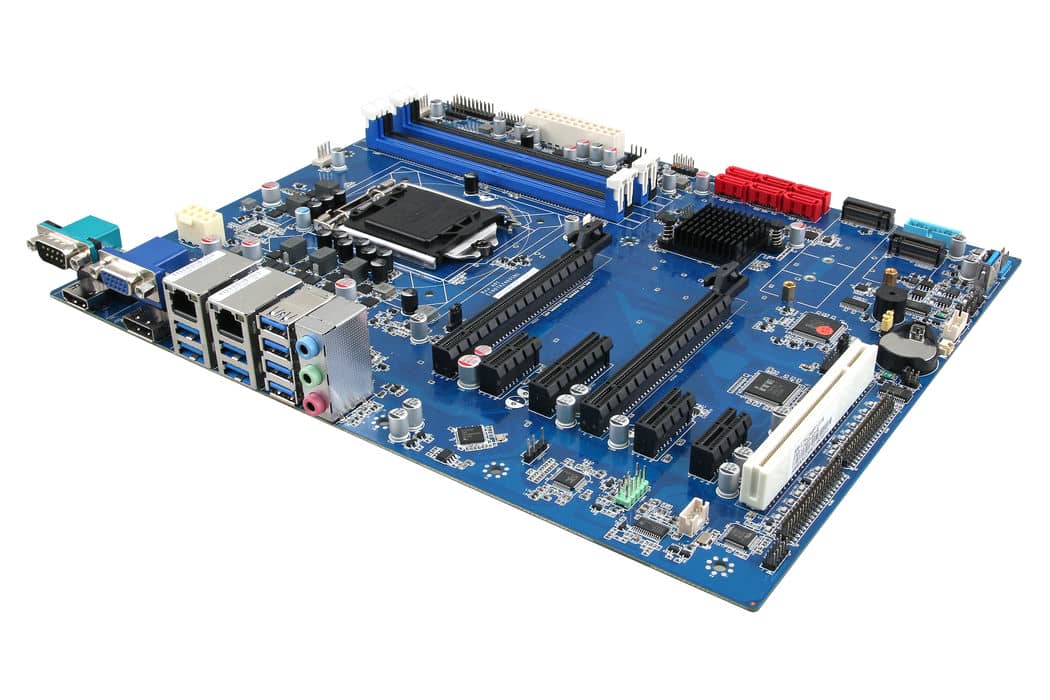

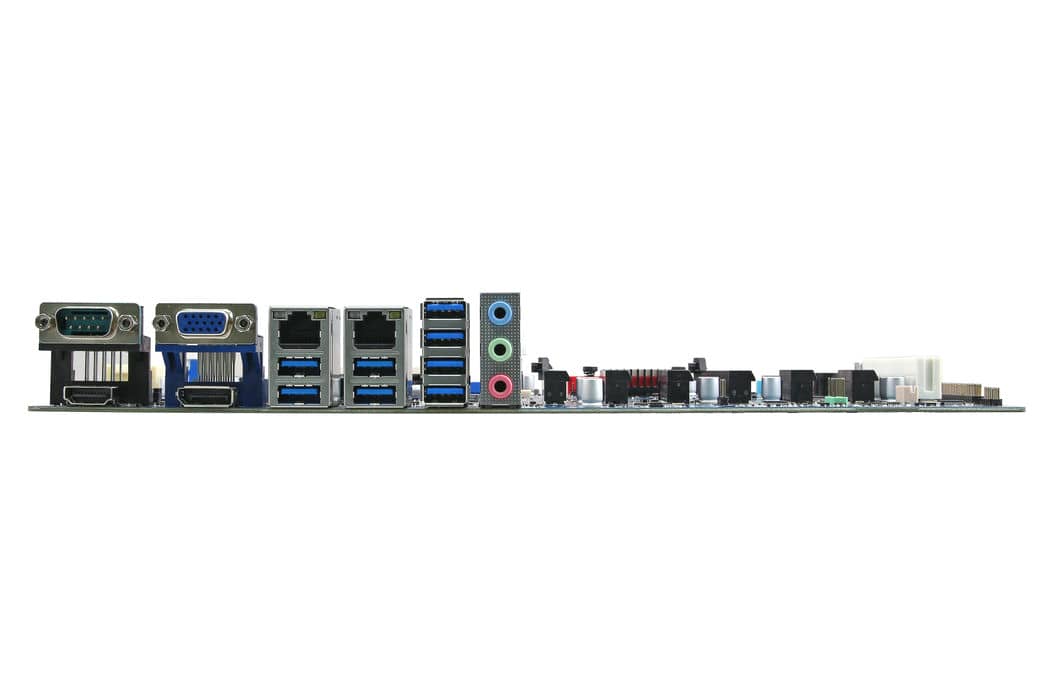

EAX-C246P FrontEAX-C246P FrontEAX-C246P FrontEAX-C246P Front
EAX-C246P FrontEAX-C246P FrontEAX-C246P FrontEAX-C246P Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • Intel® 8/9th Generation Core™ i7/i5/i3/Pentium®/Celeron®/Xeon® E-2200/2100 Processor with Intel® C246 Chipset
  • 4 x 288-pin DDR4 2400/2666MHz DIMM Socket, Supports Up to 128GB (ECC Memory Supporte by CPU)
  • 1 x VGA, 1 x HDMI, 1 x DP++
  • 2 x PCIe x16 slot for 1 x PCIe x16 or 2 x PCIe x8 (By BOM Option), 1 x PCIe x4, 3 x PCIe x1, 1 x PCI
  • 1 x Intel® I219LM Gigabit Ethernet PHY, 1 x Intel® I211AT PCIe Gigabit Ethernet
  • 7 x USB3.0, 4 x USB3.1 Gen2, 2 x USB2.0, 8 x RS232, 2 x RS232/422/485 (COM 2 & 3 by BIOS Selection)
  • 1 x M.2 (2242/2260/2280) M-Key, Support Intel RST, PCIe x4 Mode SSD, 1 x M.2 (2230) A-Key, Support WiFi Module
  • 8 x RS232 2 x RS232/422/485
  • ATX Power

Product Description

The Avalue EAX-C246P is an industrial-grade ATX motherboard designed for embedded and automation applications. It supports 8th and 9th Gen Intel® Core™ i7/i5/i3, Pentium®, Celeron®, and Xeon® E-2200/2100 processors with a TDP of up to 95W (note: for 9th Gen 8-core CPUs, TDP support is up to 35W).

The board accommodates up to 128GB DDR4 2400/2666MHz DIMM memory with ECC support (depending on CPU).

Key features include triple display outputs (1 x VGA, 1 x HDMI, 1 x DP++), dual Intel® Ethernet ports (1 x i211AT, 1 x i219LM Gigabit Ethernet), multiple USB ports (4 x USB 3.1 Gen2, 4 x USB 3.0, 2 x USB 2.0), serial interfaces (8 x RS-232, 2 x RS-232/422/485), GPIOs, and expansion options through 2 x PCIe x16 slots (supporting 1 x PCIe x16 or 2 x PCIe x8 by BOM option), 1 x PCIe x4 slot, 3 x PCIe x1 slots, 1 x PCI slot, 1 x M.2 (2242/2260/2280) M-Key slot supporting Intel® RST and PCIe x4 mode SSDs, and 1 x M.2 (2230) A-Key slot for Wi-Fi modules.

With a standard ATX form factor of 304.8mm x 243.84mm, ATX power support, and operating temperature range of 0°C to 60°C, the EAX-C246P offers a robust solution for space-constrained environments.

Technical Specifications

System Information

Processor

LGA1151 Socket Supports 8/9th Generation Intel® Core™ i7/ i5/ i3 / Pentium® / Celeron® / Xeon® (Workstation) Processors

Platform Controller Hub

Intel® C246 Chipset

System Memory

4 x 288-Pin DDR4 2400/2666MHz DIMM Supports Up to 128GB (ECC Memory Support by CPU)

I/O Chipset

nuvoton NCT6106D

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

Onboard infineon SLB9665 Supports TPM 2.0

Board

ATX

Display

Multiple Display

Triple Display

Graphic Chipset

Intel® 8/9th Generation CPU Integrated

Spec. & Resolution

VGA: 2048 x 1536@60Hz

HDMI: 3840 x 2160@30Hz, 2560 x 1600@30Hz

DP: 4096 x 2304@60Hz

Storage

Storage

1 x M.2 2242/2260/2280 M-Key, Support Intel RST, PCIe x4 Mode SSD

Expansion

Expansion

2 x PCIe x16 slot for 1 x PCIe x16 or 2 x PCIe x8 (By BOM option)

1 x PCIe x4

3 x PCIe x1

1 x PCI

1 x M.2 2230 A-Key, Support WiFi Module

Audio

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-in, Mic-in, Line-out

Audio Amplifier

2 x 2W 4Ω Amplifier

Ethernet

LAN Chipset

1 x Intel® I219LM Gigabit Ethernet PHY

1 x Intel® I211AT PCIe Gigabit Ethernet

LAN Port

2 x RJ-45

Power Requirement

Power Mode

AT/ATX (Default Setting: ATX)

Software Support

OS

Windows 10, Linux

Certification

Certification Information

CE, FCC, RoHS Compliant

I/O

USB

4 x USB 3.1 Gen2

6 x USB 3.1 Gen1

1 x USB 3.1 Gen1 Vertical Type A

2 x USB 2.0

COM Port

8 x RS232

2 x RS232/422/485 (COM2 & 3 by BIOS Selection)

SATA

6 x SATA III

RAID

Support RAID 0, 1, 5, 10

DIO

1 x 16-bit GPIO

MIO

1 x PS/2 Keyboard or 1 x PS/2 Mouse

Mechanical & Environmental

Operating Temp.

0~60°C (32~140°F)

Storage Temp.

-40~ +75°C (-40~167°F)

Dimension (L x W)

12" x 9.6" (304.8mm x 243.84mm)

Weight

1.32lbs (0.6kg)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Power Mode

AT/ATX (Default Setting: ATX)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

What is EAX-C246P?

The EAX-C246P is a industrial & embedded motherboard manufactured by Avalue, designed specifically for atx applications. The Avalue EAX-C246P is an industrial-grade ATX motherboard designed for embedded and automation applications. It supports 8th and 9th Gen Intel® Core™ i7/i5/i3, Pentium®, Celeron®, and Xeon® E-2200/2100 processors with a TDP of up to 95W (note: for 9th Gen 8-core CPUs, TDP support is up to 35W). The board accommodates up to 128GB DDR4 2400/2666MHz DIMM memory with ECC support (depending on CPU). Key features include triple display outputs (1 x VGA, 1 x HDMI, 1 x DP++), dual Intel® Ethernet ports (1 x i211AT, 1 x i219LM Gigabit Ethernet), multiple USB ports (4 x USB 3.1 Gen2, 4 x USB 3.0, 2 x USB 2.0), serial interfaces (8 x RS-232, 2 x RS-232/422/485), GPIOs, and expansion options through 2 x PCIe x16 slots (supporting 1 x PCIe x16 or 2 x PCIe x8 by BOM option), 1 x PCIe x4 slot, 3 x PCIe x1 slots, 1 x PCI slot, 1 x M.2 (2242/2260/2280) M-Key slot supporting Intel® RST and PCIe x4 mode SSDs, and 1 x M.2 (2230) A-Key slot for Wi-Fi modules. With a standard ATX form factor of 304.8mm x 243.84mm, ATX power support, and operating temperature range of 0°C to 60°C, the EAX-C246P offers a robust solution for space-constrained environments.

Key Features & Benefits

  • Intel® 8/9th Generation Core™ i7/i5/i3/Pentium®/Celeron®/Xeon® E-2200/2100 Processor with Intel® C246 Chipset
  • 4 x 288-pin DDR4 2400/2666MHz DIMM Socket, Supports Up to 128GB (ECC Memory Supporte by CPU)
  • 1 x VGA, 1 x HDMI, 1 x DP++
  • 2 x PCIe x16 slot for 1 x PCIe x16 or 2 x PCIe x8 (By BOM Option), 1 x PCIe x4, 3 x PCIe x1, 1 x PCI
  • 1 x Intel® I219LM Gigabit Ethernet PHY, 1 x Intel® I211AT PCIe Gigabit Ethernet
  • 7 x USB3.0, 4 x USB3.1 Gen2, 2 x USB2.0, 8 x RS232, 2 x RS232/422/485 (COM 2 & 3 by BIOS Selection)
  • 1 x M.2 (2242/2260/2280) M-Key, Support Intel RST, PCIe x4 Mode SSD, 1 x M.2 (2230) A-Key, Support WiFi Module
  • 8 x RS232 2 x RS232/422/485
  • ATX Power

Applications & Use Cases

The EAX-C246P is ideal for various industrial automation applications:

  • DC-powered industrial installations and mobile applications
  • Wireless connectivity and remote monitoring applications
  • High-performance computing and data processing tasks
  • Networked industrial systems and data communication
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Data logging and storage-intensive operations
  • Custom industrial computing solutions
