What is unique about the EAX-H610C ATX board?

It supports 12th/13th/14th Gen Intel® Core™ processors, up to 64GB DDR4 memory, triple display outputs (HDMI, DVI-D, VGA), and multiple PCIe/PCI slots for expansion.

What storage options are available?

The board offers 1 x M.2 Key M slot for SATA/PCIe SSDs and 3 x SATA III ports.

What is the power input and form factor?

Standard ATX power input and ATX (304.8mm x 243.84mm) form factor.

What are ATX motherboards and what are their typical applications?

ATX motherboards are full-sized boards (305mm x 244mm) designed for industrial, workstation, and server applications, offering maximum expandability, performance, and I/O for demanding environments.

What are the advantages of using ATX over other form factors?

ATX provides the most expansion slots, memory capacity, and I/O options, making it ideal for high-performance computing, automation, and control systems.

What is the typical power input for ATX boards?

ATX boards use standard ATX power supplies, supporting a wide range of industrial and commercial deployments.

What memory types and capacities are supported?

ATX boards support DDR4 or DDR5 DIMM memory, with capacities up to 128GB depending on the model and CPU.

What display resolutions and outputs are available?

Depending on the model, ATX boards support HDMI, DisplayPort, DP++, DVI-D, and VGA, with resolutions up to 8K and support for multiple independent displays.

What expansion options are available?

Expansion options include multiple PCIe slots (Gen3/Gen4/Gen5), M.2 slots for storage and wireless, and SATA ports for additional drives.

How do I install memory modules on an ATX board?

Insert DIMM memory modules into the designated slots and press down until they click into place. Refer to the board manual for supported capacities and configurations.

What precautions should I take during installation?

Always power off and unplug the system before installation. Use ESD protection and handle the board by its edges to avoid static damage.

How do I mount an ATX board in a chassis?

Align the board with the mounting holes in the chassis and secure it using the appropriate screws. Ensure all connectors and expansion slots are accessible.

The board does not power on. What should I check?

Verify the power supply connection, ensure the correct voltage is supplied, and check for any visible damage or loose components. Refer to the board's LED indicators for diagnostic codes if available.

No display output is detected. What should I do?

Check that the display cables are securely connected, the correct input source is selected, and the memory and CPU are properly installed. Try a different display port if available.

How can I reset the BIOS/UEFI settings?

Locate the CMOS battery or reset jumper on the board. Remove the battery or use the jumper as per the manual to reset BIOS/UEFI to default settings.

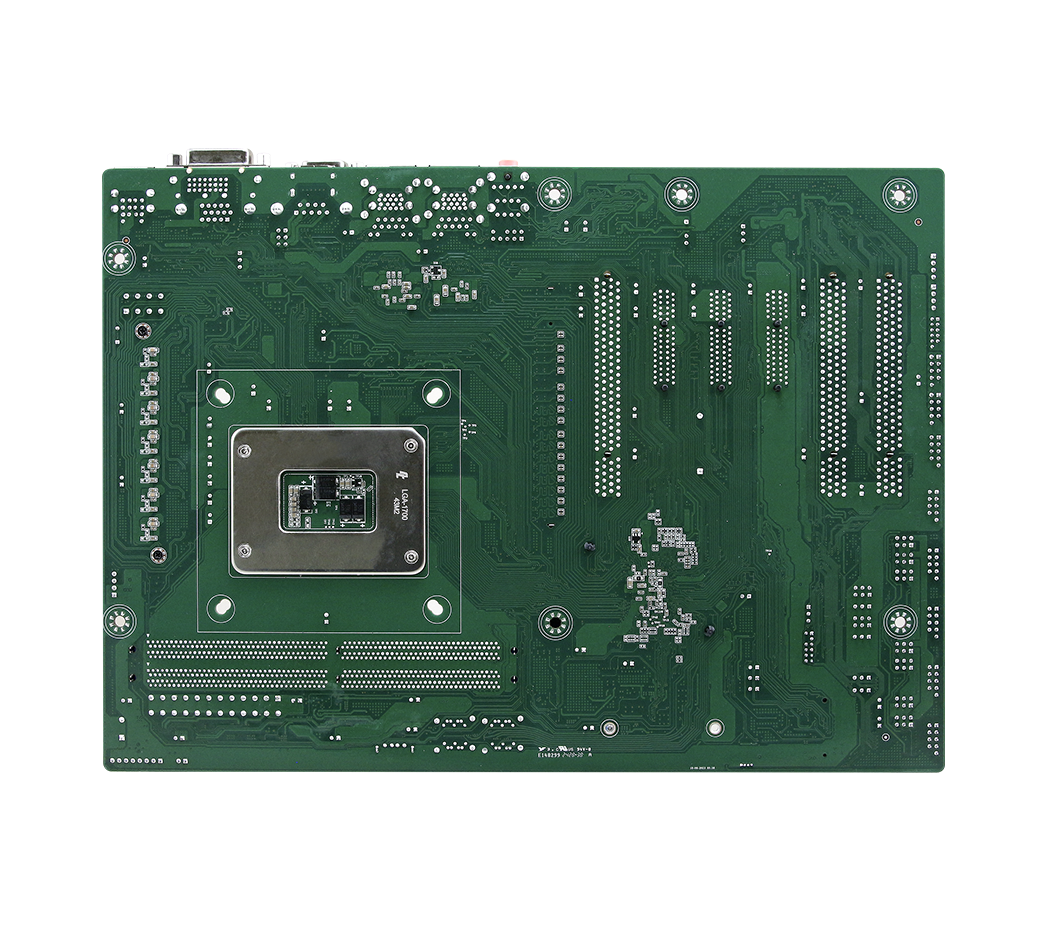

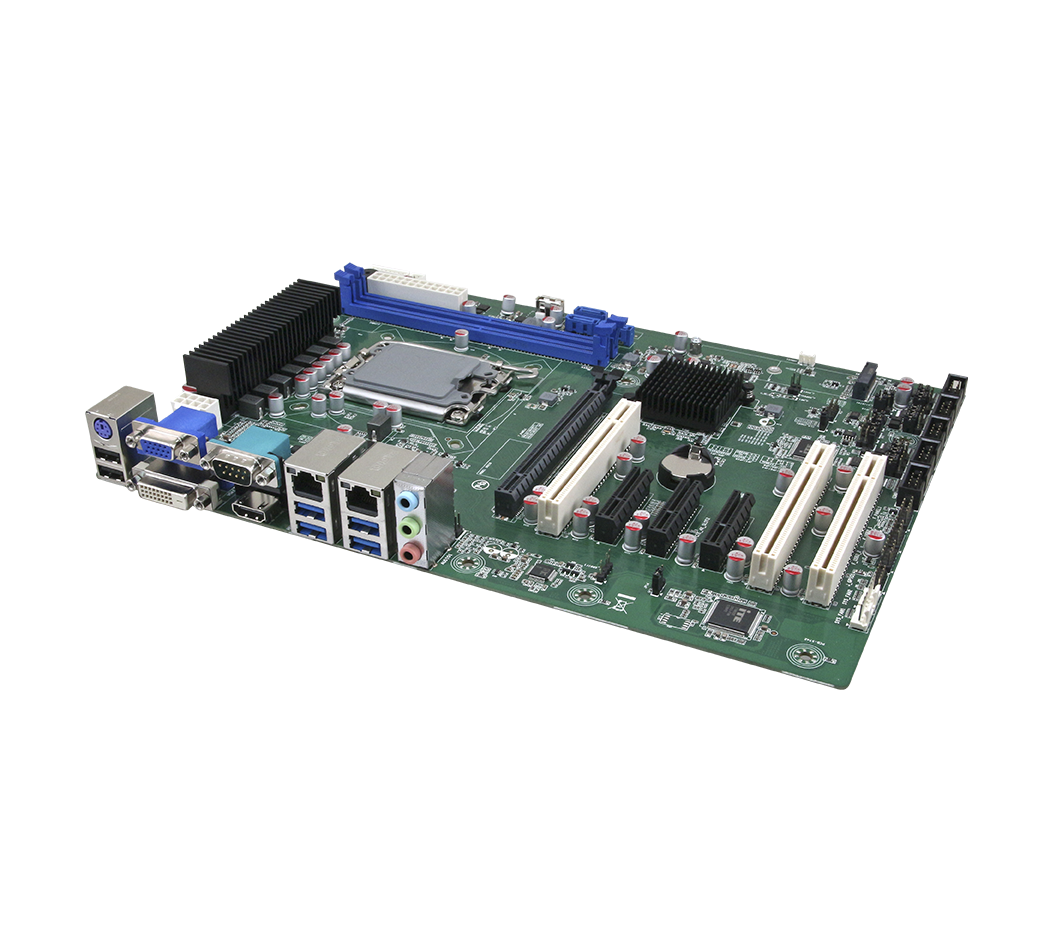

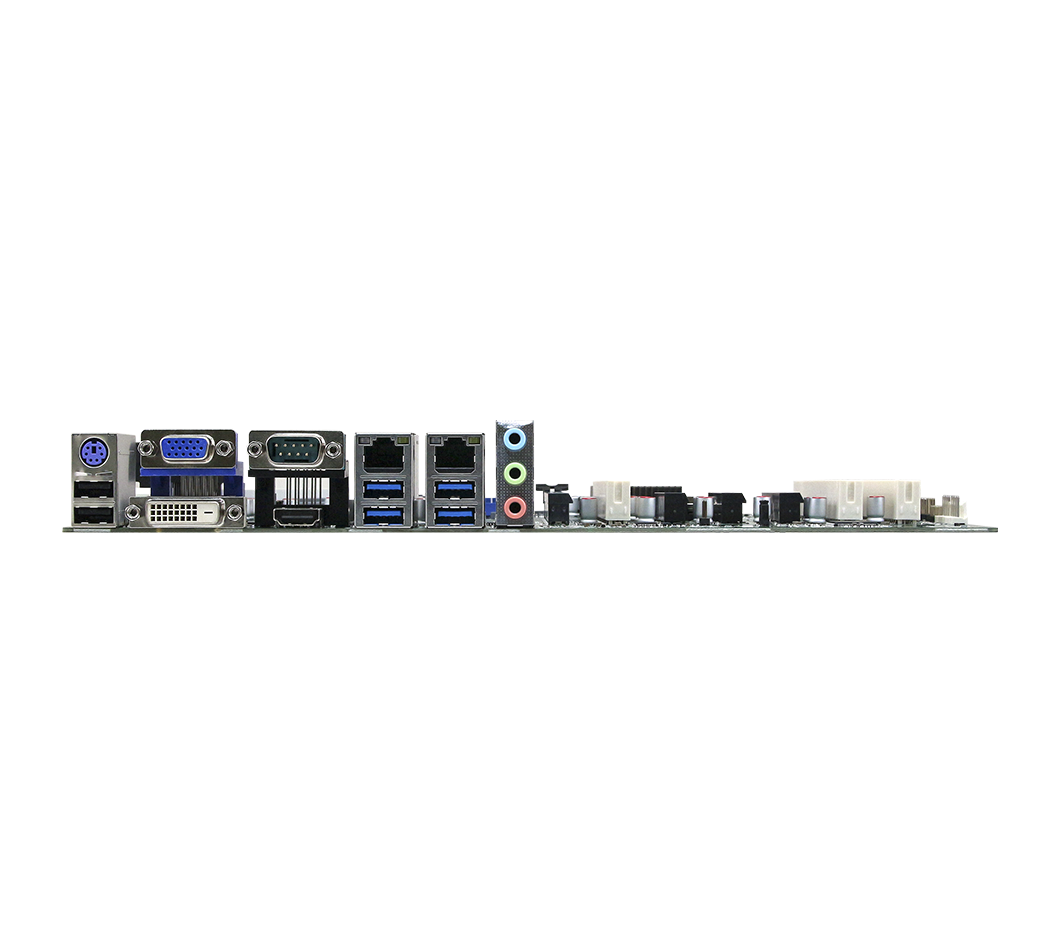

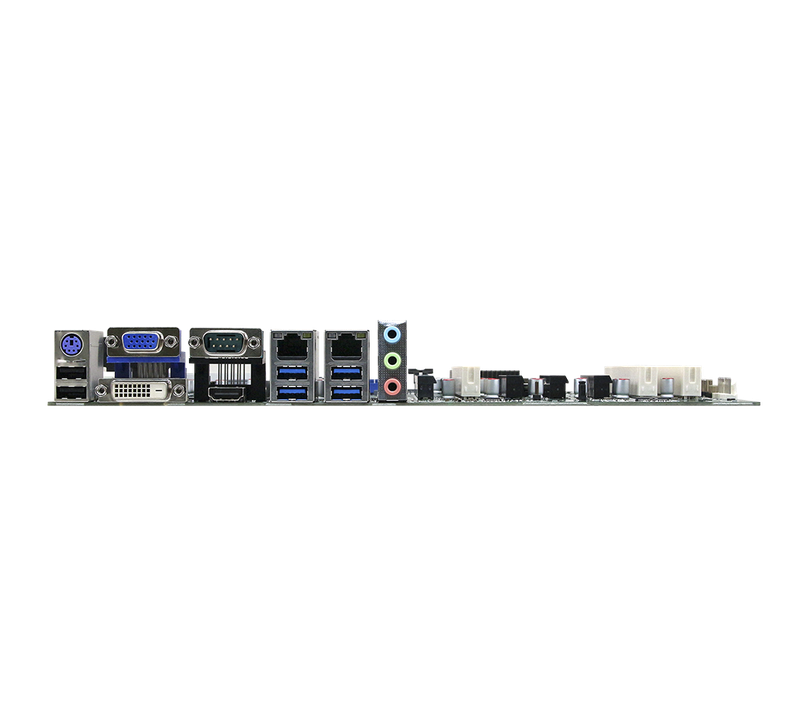

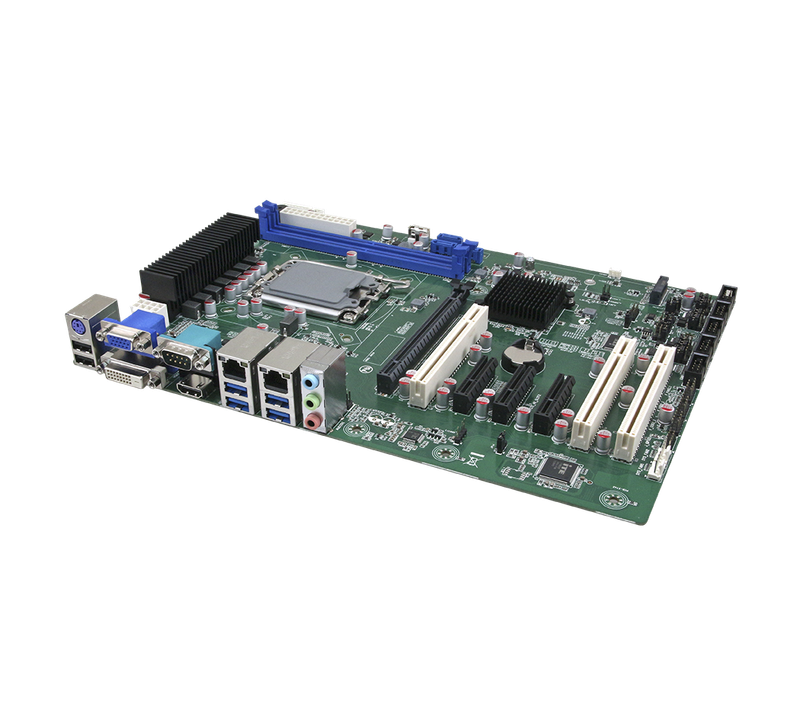

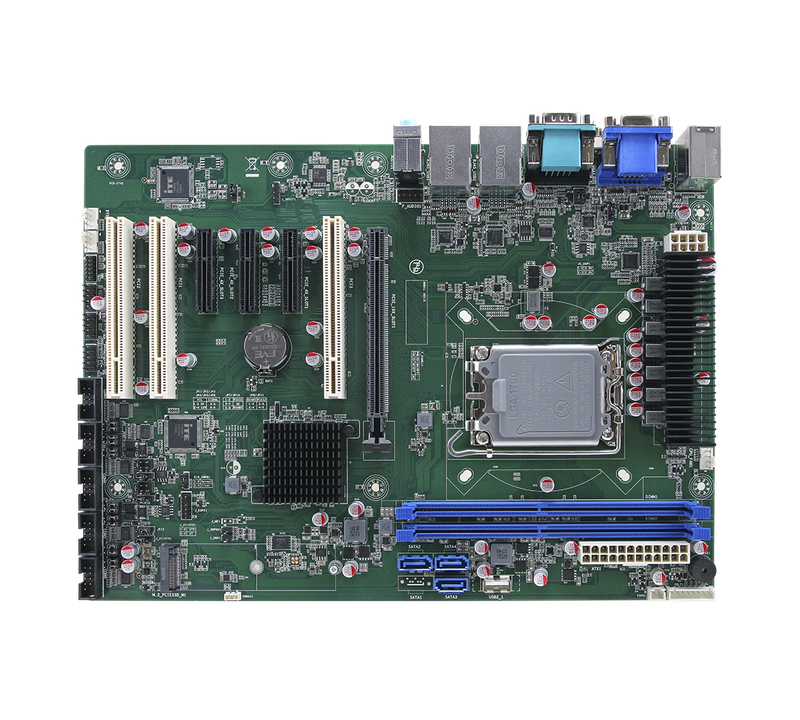

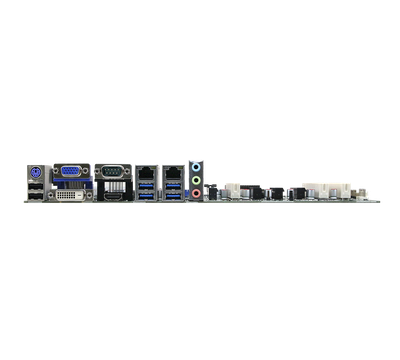

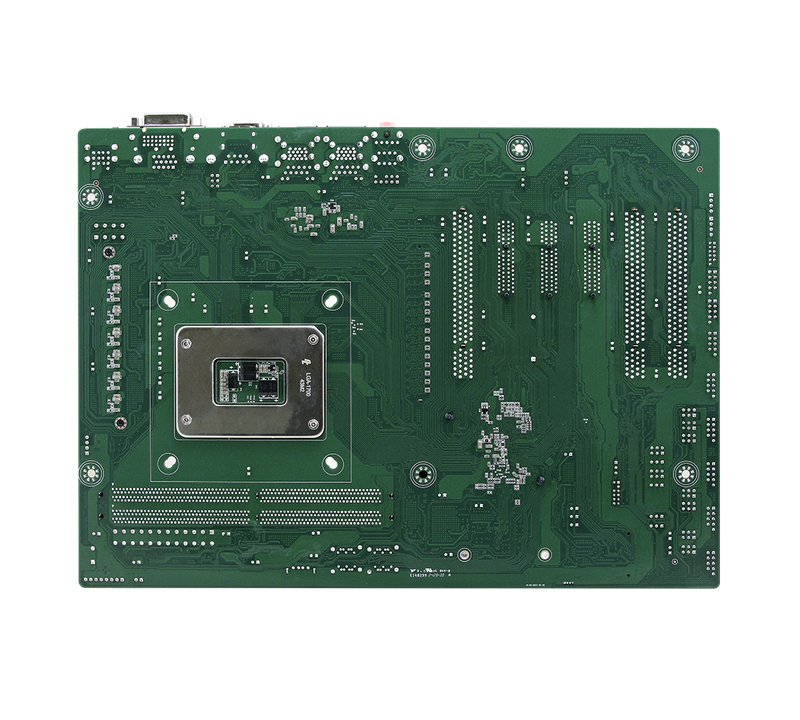

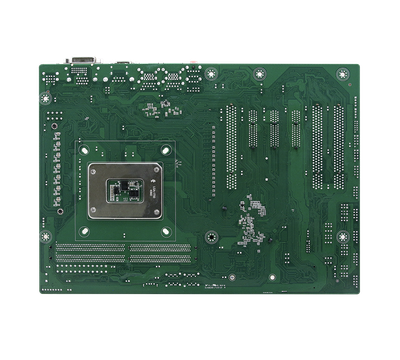

EAX-H610C

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Intel® 12/13/14th Gen Core™ i9/i7/i5/i3 Processor, supports LGA 1700 CPU Up to 8+4 Core 65W Max, Intel® H610 chipsets
2 x DDR4 3200MHz U-DIMM, up to 2 x 32G (none ECC)
1 x DVI-D, 1 x HDMI 1.4b, 1 x VGA
1 x PCI-e Gen4 x16 Slot, 2 x PCI-e Gen3 x2 signal by PCI-ex4 Slot, 1 x PCI-e Gen3 x4 Slot
3 x PCI Slot
1 x Intel® i226V Gigabit Ethernet Controller, 1 x Intel® WGI219V Gigabit Ethernet Controller
4 x USB3.2 Gen1x1, 2 x USB2.0, 1 x USB2.0 Vertical Type A, 3 x USB2.0 by pin header
1 x M.2 Key M, Support PCI-e Gen3 x2 or SATA SSD, 2242/2280

Product Description

The Avalue EAX-H610C is an ATX motherboard designed for industrial and embedded applications. It supports 12th, 13th, and 14th Gen Intel® Core™ i9/i7/i5/i3 processors with a TDP of up to 65W, utilizing the Intel® H610 chipset. The board accommodates up to 64GB DDR4 3200MHz U-DIMM memory.

Key features include triple display outputs (1 x HDMI 1.4b, 1 x DVI-D, 1 x VGA), dual Intel® Ethernet ports (1 x i226V 2.5GbE, 1 x WGI219V GbE), multiple USB ports (4 x USB 3.2 Gen1, 2 x USB 2.0, 1 x USB 2.0 Vertical Type A, 3 x USB 2.0 via pin header), serial interfaces (1 x RS-232 at I/O, 2 x RS-232/485 by box header, 3 x RS-232 by box header), GPIOs, and expansion options through 1 x PCIe Gen4 x16 slot, 2 x PCIe Gen3 x2 signal by PCIe x4 slot, 1 x PCIe Gen3 x4 slot (only supports PCIe Gen3 x2), 3 x PCI slots, and 1 x M.2 Key M slot supporting PCIe Gen3 x2 or SATA SSDs (2242/2280).

With a standard ATX form factor of 304.8mm x 243.84mm, AT/ATX power support, and operating temperature range of 0°C to 60°C, the EAX-H610C offers a robust solution for space-constrained environments.

Technical Specifications

System Information

Processor

LGA 1700 Socket Supports 12/13th Generation Intel® Core™ i9/i7/i5/i3 Processors (Max. TDP at 65W)

Platform Controller Hub

Intel® H610 chipsets

System Memory

2 x 288-Pin DDR4 3200MHz U-DIMM Socket Supports Up to 64GB

I/O Chipset

ITE IT8786E-I

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

Onboard SLB9670 VQ20 supports TPM 2.0 (By BOM Optional)

Board

ATX

Display

Multiple Display

Triple Display

Graphic Chipset

Intel® 12th/13/14th Generation CPU Integrated

Spec. & Resolution

1 x HDMI 1.4b, max resolution up to 4096x2160@30Hz

1 x DVI-D, max resolution up to 1920x1200@60Hz

1 x VGA, max resolution up to 1920x1200@60Hz

Storage

1 x M.2 Key M Support 2280 SATA SSD

3 x SATA III

Expansion

1 x PCIe Gen4 x16 Slot

2 x PCIe Gen3 x2 signal by PCIex4 Slot

1 x PCIe Gen3 x4 Slot(Only support PCIe Gen3 x2)

3 x PCI Slot

Audio

Audio Codec

Realtek ALC897 Audio codec

Audio Interface

Line-in, Line-out, Mic-in

Ethernet

LAN Chipset

1 x Intel® i226V Gigabit Ethernet Controller, 1 x Intel® WGI219V Gigabit Ethernet Controller

LAN Port

2 x RJ-45

Power Requirement

Power Mode

AT/ATX (Default Setting: ATX)

Software Support

OS

Windows 11

Certification

Certification Information

CE, FCC, RoHS Compliant

I/O

USB

4 x USB3.2 Gen1x1, 2 x USB2.0, 1 x USB2.0 Vertical Type A, 3 x USB2.0 by pin header

COM Port

1 x RS-232 at I/O

2 x RS-232/485 by Box header

3 x RS-232 by Box header

SATA

3 x SATA III

DIO

1 x 8-bit GPIO

MIO

1 x PS/2 Keyboard and Mouse

Mechanical & Environmental

Operating Temp.

0~60°C (32~140°F)

Storage Temp.

-40~ +75°C (-40~167°F)

Dimension (L x W)

12" x 9.6" (304.8mm x 243.84mm)

Weight

1.54lbs (0.7kg)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Power Mode

AT/ATX (Default Setting: ATX)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

What is EAX-H610C?

The EAX-H610C is a industrial & embedded motherboard manufactured by Avalue, designed specifically for atx applications. The Avalue EAX-H610C is an ATX motherboard designed for industrial and embedded applications. It supports 12th, 13th, and 14th Gen Intel® Core™ i9/i7/i5/i3 processors with a TDP of up to 65W, utilizing the Intel® H610 chipset. The board accommodates up to 64GB DDR4 3200MHz U-DIMM memory. Key features include triple display outputs (1 x HDMI 1.4b, 1 x DVI-D, 1 x VGA), dual Intel® Ethernet ports (1 x i226V 2.5GbE, 1 x WGI219V GbE), multiple USB ports (4 x USB 3.2 Gen1, 2 x USB 2.0, 1 x USB 2.0 Vertical Type A, 3 x USB 2.0 via pin header), serial interfaces (1 x RS-232 at I/O, 2 x RS-232/485 by box header, 3 x RS-232 by box header), GPIOs, and expansion options through 1 x PCIe Gen4 x16 slot, 2 x PCIe Gen3 x2 signal by PCIe x4 slot, 1 x PCIe Gen3 x4 slot (only supports PCIe Gen3 x2), 3 x PCI slots, and 1 x M.2 Key M slot supporting PCIe Gen3 x2 or SATA SSDs (2242/2280). With a standard ATX form factor of 304.8mm x 243.84mm, AT/ATX power support, and operating temperature range of 0°C to 60°C, the EAX-H610C offers a robust solution for space-constrained environments.

Key Features & Benefits

Intel® 12/13/14th Gen Core™ i9/i7/i5/i3 Processor, supports LGA 1700 CPU Up to 8+4 Core 65W Max, Intel® H610 chipsets
2 x DDR4 3200MHz U-DIMM, up to 2 x 32G (none ECC)
1 x DVI-D, 1 x HDMI 1.4b, 1 x VGA
1 x PCI-e Gen4 x16 Slot, 2 x PCI-e Gen3 x2 signal by PCI-ex4 Slot, 1 x PCI-e Gen3 x4 Slot
3 x PCI Slot
1 x Intel® i226V Gigabit Ethernet Controller, 1 x Intel® WGI219V Gigabit Ethernet Controller
4 x USB3.2 Gen1x1, 2 x USB2.0, 1 x USB2.0 Vertical Type A, 3 x USB2.0 by pin header
1 x M.2 Key M, Support PCI-e Gen3 x2 or SATA SSD, 2242/2280

Applications & Use Cases

The EAX-H610C is ideal for various industrial automation applications:

High-performance computing and data processing tasks
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Data logging and storage-intensive operations
Custom industrial computing solutions
Industrial and embedded applications
Industrial automation platforms
