What are the key features of the EAX-R680FP ATX motherboard?

The EAX-R680FP supports 12th/13th/14th Gen Intel® Core™ processors, up to 128GB DDR4 memory, quad display outputs, dual 2.5GbE LAN, multiple PCIe Gen5/Gen4/Gen3 slots, and dual M.2 NVMe slots.

What display options does the EAX-R680FP support?

It supports up to triple display via 2 x DP++ and 1 x HDMI 2.0b, with resolutions up to 8K.

What expansion capabilities are available on the EAX-R680FP?

The board offers 2 x PCIe x16 (Gen5/Gen4), 2 x PCIe x4 Gen4, 1 x PCIe x4 Gen3, and 2 x M.2 NVMe slots for storage and add-on cards.

What are ATX motherboards and what are their typical applications?

ATX motherboards are full-sized boards (305mm x 244mm) designed for industrial, workstation, and server applications, offering maximum expandability, performance, and I/O for demanding environments.

What are the advantages of using ATX over other form factors?

ATX provides the most expansion slots, memory capacity, and I/O options, making it ideal for high-performance computing, automation, and control systems.

What is the typical power input for ATX boards?

ATX boards use standard ATX power supplies, supporting a wide range of industrial and commercial deployments.

What memory types and capacities are supported?

ATX boards support DDR4 or DDR5 DIMM memory, with capacities up to 128GB depending on the model and CPU.

What display resolutions and outputs are available?

Depending on the model, ATX boards support HDMI, DisplayPort, DP++, DVI-D, and VGA, with resolutions up to 8K and support for multiple independent displays.

What expansion options are available?

Expansion options include multiple PCIe slots (Gen3/Gen4/Gen5), M.2 slots for storage and wireless, and SATA ports for additional drives.

How do I install memory modules on an ATX board?

Insert DIMM memory modules into the designated slots and press down until they click into place. Refer to the board manual for supported capacities and configurations.

What precautions should I take during installation?

Always power off and unplug the system before installation. Use ESD protection and handle the board by its edges to avoid static damage.

How do I mount an ATX board in a chassis?

Align the board with the mounting holes in the chassis and secure it using the appropriate screws. Ensure all connectors and expansion slots are accessible.

The board does not power on. What should I check?

Verify the power supply connection, ensure the correct voltage is supplied, and check for any visible damage or loose components. Refer to the board's LED indicators for diagnostic codes if available.

No display output is detected. What should I do?

Check that the display cables are securely connected, the correct input source is selected, and the memory and CPU are properly installed. Try a different display port if available.

How can I reset the BIOS/UEFI settings?

Locate the CMOS battery or reset jumper on the board. Remove the battery or use the jumper as per the manual to reset BIOS/UEFI to default settings.

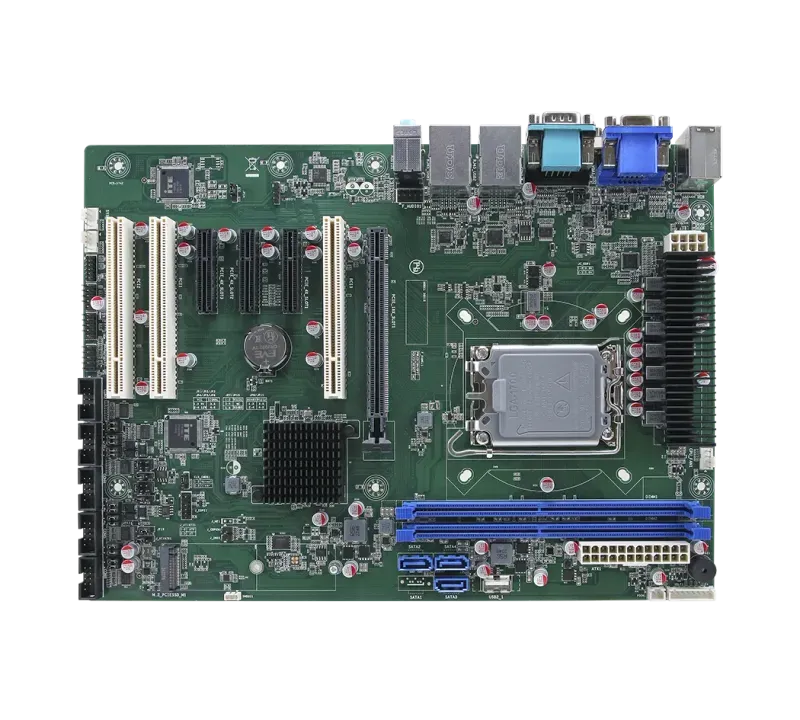

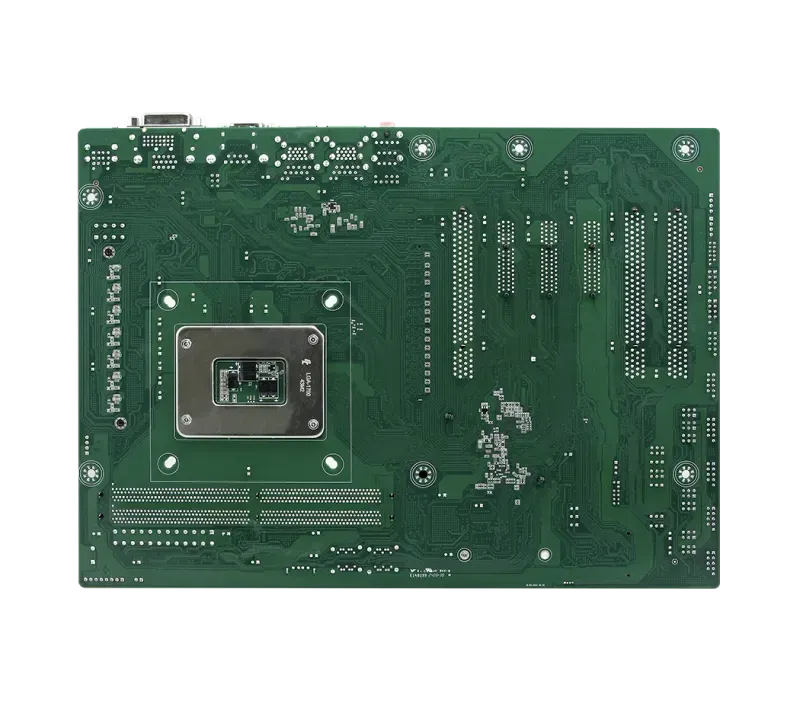

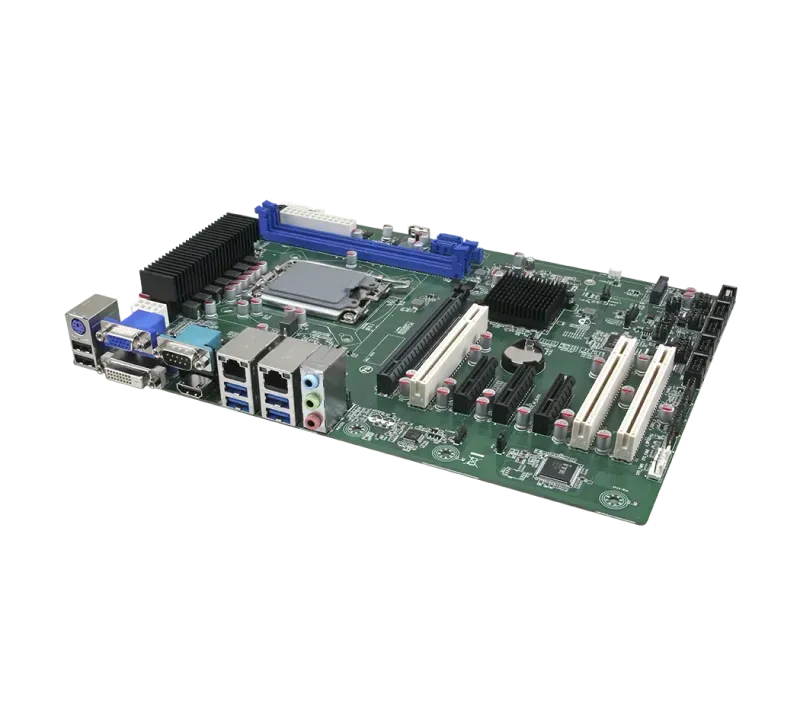

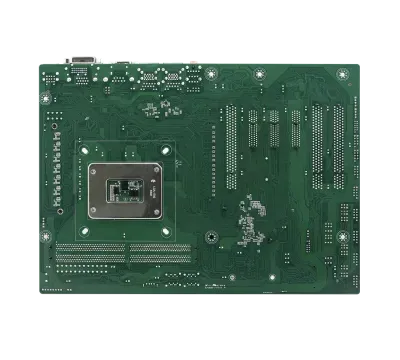

EAX-R680FP

*Price on request. Contact us for a quote.

Manufacturer: Avalue

12/13/14th Generation Intel® Core™ i9/i7/i5/i3 Processors, supports LGA 1700 CPU Up to 125W Max, Intel® R680E Chipset
4 x 288-Pin DDR4 3200MHz U-DIMM Socket Supports Up to 128GB (ECC Memory Support by CPU)
2 x DP++, 1 x HDMI2.0b
2 x PCIe x16 Slots for 1 x PCIe x16 (Gen5) Default or 2 x PCIe x8 (Gen5), 2 x PCIe x4 Gen4, 1 x PCIe x4 Gen3, 1 x PCIe x4 slot for 1 x PCIe x2 (Gen3)
2 x Intel® i225LM 2.5G Gigabit Controller
8 x USB 3.2 Gen2, 1 x USB 3.2 Gen1 Vertical Type A, 5 x USB by Pin-header
2 x M.2 Key M NVMe (Gen4x4) 2242/2280/22110
6 x RS232, 2 x RS232/422/485 (COM2 & 3 By BIOS Selection)
ATX Power

Product Description

The Avalue EAX-R680FP is an ATX motherboard designed for industrial and embedded applications. It supports 12th, 13th, and 14th Gen Intel® Core™ i9/i7/i5/i3 processors with a TDP of up to 125W, utilizing the Intel® R680E chipset. The board accommodates up to 128GB DDR4 3200MHz U-DIMM memory.

Key features include quad display outputs (2 x DP++, 1 x HDMI, 1 x LVDS), dual Intel® Ethernet ports (2 x I225-LM 2.5GbE, 2 x X550-AT2 10GbE), multiple USB ports (8 x USB 3.2 Gen2, 6 x USB 2.0), serial interfaces (6 x RS-232, 2 x RS-232/422/485), GPIOs, and expansion options through 2 x PCIe x16 slots (supporting 1 x PCIe x16 Gen5 or 2 x PCIe x8 Gen4), 2 x PCIe x4 Gen4 slots, 1 x PCIe x4 Gen3 slot, and 2 x M.2 (2242/2280/22110) M-Key slots for NVMe SSDs.

With a standard ATX form factor of 304.8mm x 243.84mm, ATX power support, and operating temperature range of 0°C to 55°C, the EAX-R680FP offers a robust solution for space-constrained environments.

Technical Specifications

System Information

Processor

LGA 1700 Socket Supports 12/13/14th Generation Intel® Core™ i9/i7/i5/i3 Processors (Max. TDP at 125W)

Platform Controller Hub

Intel® R680E Chipset

System Memory

4 x 288-Pin DDR4 3200MHz U-DIMM Socket Supports Up to 128GB (ECC Memory Support by CPU)

I/O Chipset

nuvoton NCT6126D

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

Onboard nuvoTon NPCT750AADYX Supports TPM 2.0

Board

ATX

Display

Multiple Display

Triple Diaplay

Graphic Chipset

Intel® 12th/13/14th Generation CPU Integrated

Spec. & Resolution

2 x DP (DP1.4a): Max (Combined): 7680 x 4320@60Hz

(DP++ Via dongle: 1920 x 1080@60 Hz)

1 x HDMI (HDMI 2.0b): Max Resolution 4K x 2K@60Hz (With HDR)

Storage

2 x M.2 Key M NVMe (Gen4x4) 2242/2280/22110

4 x SATAIII

Expansion

2 x PCIe x16 slots for 1 x PCIe x16 Gen5 default or 2 x PCIe x8 Gen5

2 x PCIe x4 Gen4

1 x PCIe x4 Gen3

1 x PCIe x4 slot for 1 x PCIe x2 Gen3

Audio

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Mic-in, Line-out, 5.1-CH Audio

Audio Amplifier

2 x 6W 8Ω Amplifier

Ethernet

LAN Chipset

2 x Intel® i225LM 2.5G Gigabit Controller

LAN Port

2 x 2.5G LAN

Power Requirement

Power Mode

AT/ATX (Default Setting: ATX)

Software Support

OS

Windows 10, Windows 11, Linux

Certification

Certification Information

CE, FCC, RoHS Compliant

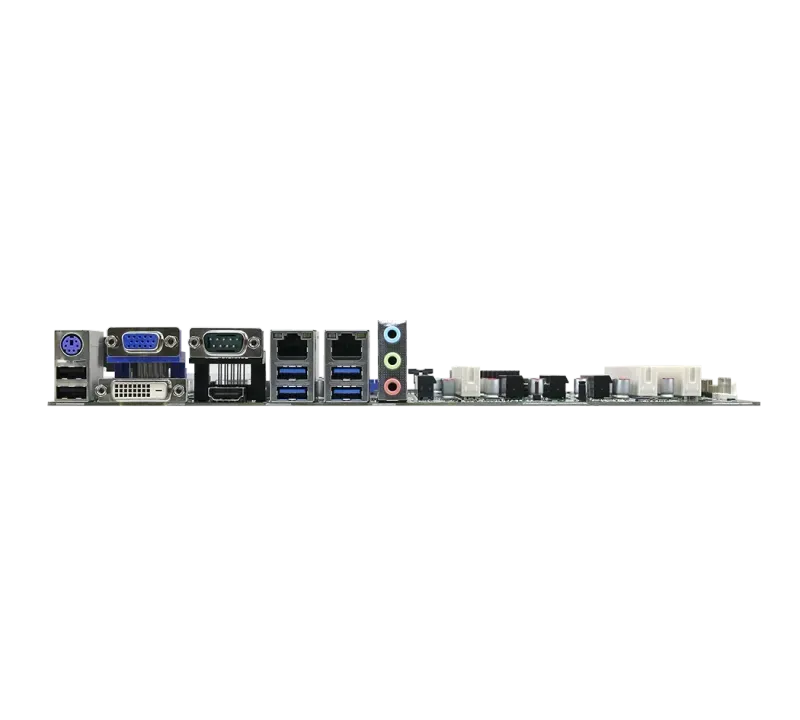

I/O

USB

8 x USB 3.2 Gen2

1 x USB 3.2 Gen1 Vertical Type A

5 x USB 2.0

COM Port

1 x RS232 on rear I/O, 2 x RS232/422/485 by pin-header, 3 x RS232 by pin header

SATA

4 x SATA III

RAID

Support RAID 0, 1, 5, 10

DIO

1 x 16-bit GPIO

Mechanical & Environmental

Operating Temp.

0~55°C (32~131°F), 0.5m/s Air Flow

Storage Temp.

-40~ +75°C (-40~167°F)

Dimension (L x W)

12" x 9.6" (304.8mm x 243.84mm)

Weight

1.54lbs (0.7kg)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Power Mode

AT/ATX (Default Setting: ATX)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

Ordering Information

EAX-R680FP-A1-1R: Intel R680E, 1 x PCIex16, without 10G

EAX-R680FP-A1-2R: Intel R680E, 2 x PCIex8, without 10G

What is EAX-R680FP?

The EAX-R680FP is a industrial & embedded motherboard manufactured by Avalue, designed specifically for atx applications. The Avalue EAX-R680FP is an ATX motherboard designed for industrial and embedded applications. It supports 12th, 13th, and 14th Gen Intel® Core™ i9/i7/i5/i3 processors with a TDP of up to 125W, utilizing the Intel® R680E chipset. The board accommodates up to 128GB DDR4 3200MHz U-DIMM memory. Key features include quad display outputs (2 x DP++, 1 x HDMI, 1 x LVDS), dual Intel® Ethernet ports (2 x I225-LM 2.5GbE, 2 x X550-AT2 10GbE), multiple USB ports (8 x USB 3.2 Gen2, 6 x USB 2.0), serial interfaces (6 x RS-232, 2 x RS-232/422/485), GPIOs, and expansion options through 2 x PCIe x16 slots (supporting 1 x PCIe x16 Gen5 or 2 x PCIe x8 Gen4), 2 x PCIe x4 Gen4 slots, 1 x PCIe x4 Gen3 slot, and 2 x M.2 (2242/2280/22110) M-Key slots for NVMe SSDs. With a standard ATX form factor of 304.8mm x 243.84mm, ATX power support, and operating temperature range of 0°C to 55°C, the EAX-R680FP offers a robust solution for space-constrained environments.

Key Features & Benefits

12/13/14th Generation Intel® Core™ i9/i7/i5/i3 Processors, supports LGA 1700 CPU Up to 125W Max, Intel® R680E Chipset
4 x 288-Pin DDR4 3200MHz U-DIMM Socket Supports Up to 128GB (ECC Memory Support by CPU)
2 x DP++, 1 x HDMI2.0b
2 x PCIe x16 Slots for 1 x PCIe x16 (Gen5) Default or 2 x PCIe x8 (Gen5), 2 x PCIe x4 Gen4, 1 x PCIe x4 Gen3, 1 x PCIe x4 slot for 1 x PCIe x2 (Gen3)
2 x Intel® i225LM 2.5G Gigabit Controller
8 x USB 3.2 Gen2, 1 x USB 3.2 Gen1 Vertical Type A, 5 x USB by Pin-header
2 x M.2 Key M NVMe (Gen4x4) 2242/2280/22110
6 x RS232, 2 x RS232/422/485 (COM2 & 3 By BIOS Selection)
ATX Power

Applications & Use Cases

The EAX-R680FP is ideal for various industrial automation applications:

DC-powered industrial installations and mobile applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Custom industrial computing solutions
Industrial and embedded applications
Industrial automation platforms
