What processors are supported by the ERX-W480P?

It supports Intel® Xeon® W-1200 series and 10th Gen Intel® Core™ processors.

How much memory can the ERX-W480P support?

Up to 128GB DDR4 ECC/non-ECC UDIMM memory is supported.

What are the networking features?

Dual Intel® Gigabit LAN ports provide high-speed and reliable networking.

What are Micro-ATX motherboards and what are their typical applications?

Micro-ATX motherboards are compact yet expandable boards (244mm x 244mm) designed for industrial, workstation, and commercial applications, offering a balance of performance, I/O, and expansion slots.

What are the advantages of using Micro-ATX over other form factors?

Micro-ATX provides more expansion slots and I/O than Mini-ITX, while being smaller and more space-efficient than standard ATX, making it ideal for systems requiring moderate expandability in a compact footprint.

What is the typical power input for Micro-ATX boards?

Micro-ATX boards typically use standard ATX power supplies, suitable for both industrial and office environments.

What memory types and capacities are supported?

Micro-ATX boards support DDR4 or DDR5 DIMM memory, with capacities up to 128GB depending on the model.

What display resolutions and outputs are available?

Depending on the model, Micro-ATX boards support HDMI, DisplayPort, and VGA, with resolutions up to 4K or 8K and support for multiple independent displays.

What expansion options are available?

Expansion options include multiple PCIe slots (Gen4/Gen5), M.2 slots for storage and wireless, and SATA ports for additional drives.

How do I install memory modules on a Micro-ATX board?

Insert DIMM memory modules into the designated slots and press down until they click into place. Refer to the board manual for supported capacities and configurations.

What precautions should I take during installation?

Always power off and unplug the system before installation. Use ESD protection and handle the board by its edges to avoid static damage.

How do I mount a Micro-ATX board in a chassis?

Align the board with the mounting holes in the chassis and secure it using the appropriate screws. Ensure all connectors and expansion slots are accessible.

The board does not power on. What should I check?

Verify the power supply connection, ensure the correct voltage is supplied, and check for any visible damage or loose components. Refer to the board's LED indicators for diagnostic codes if available.

No display output is detected. What should I do?

Check that the display cables are securely connected, the correct input source is selected, and the memory and CPU are properly installed. Try a different display port if available.

How can I reset the BIOS/UEFI settings?

Locate the CMOS battery or reset jumper on the board. Remove the battery or use the jumper as per the manual to reset BIOS/UEFI to default settings.

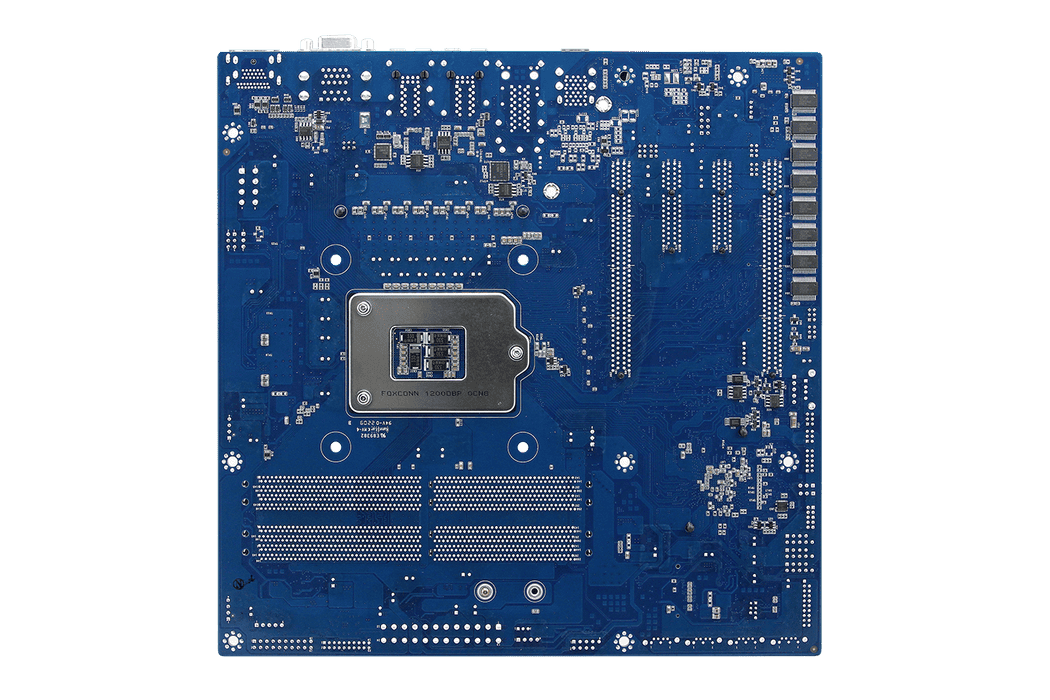

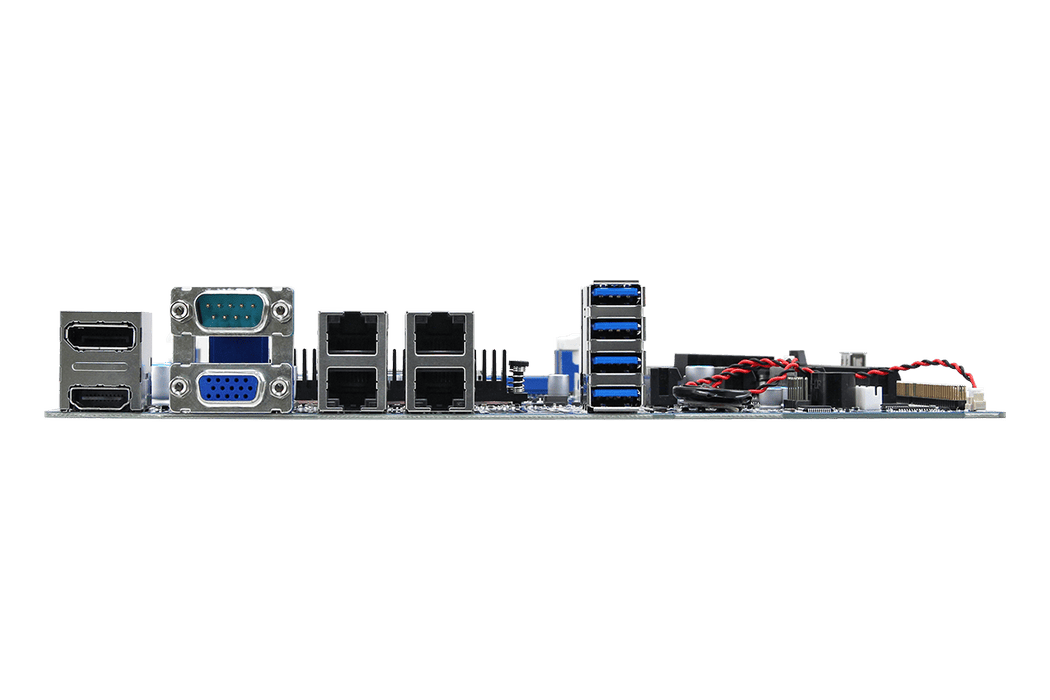

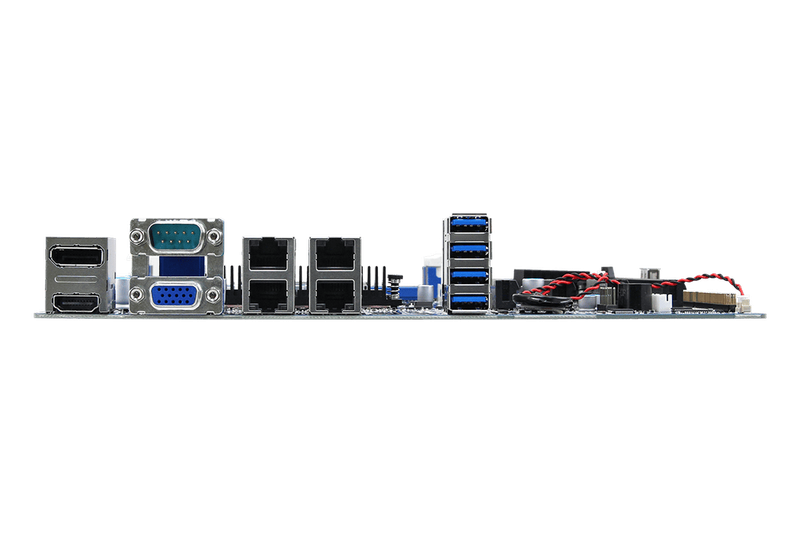

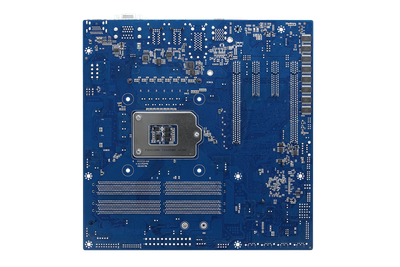

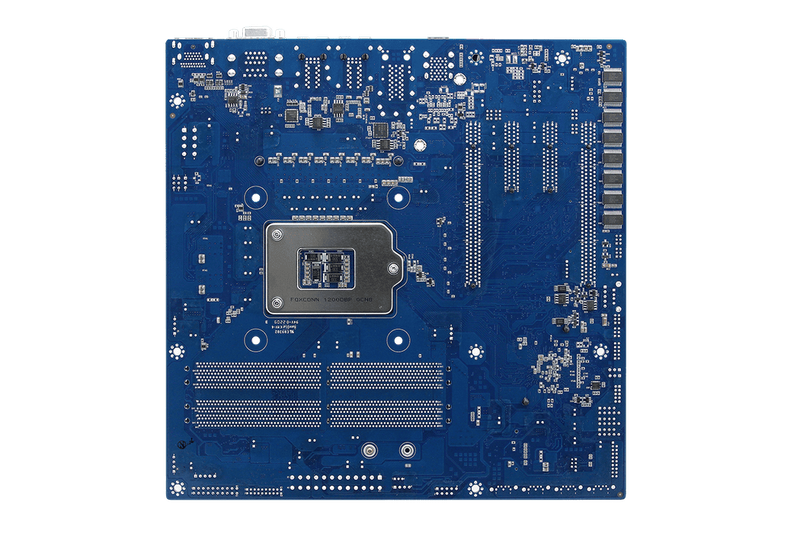

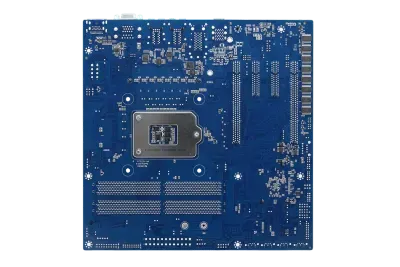

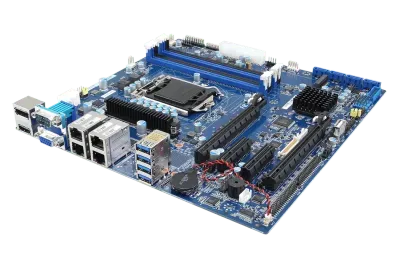

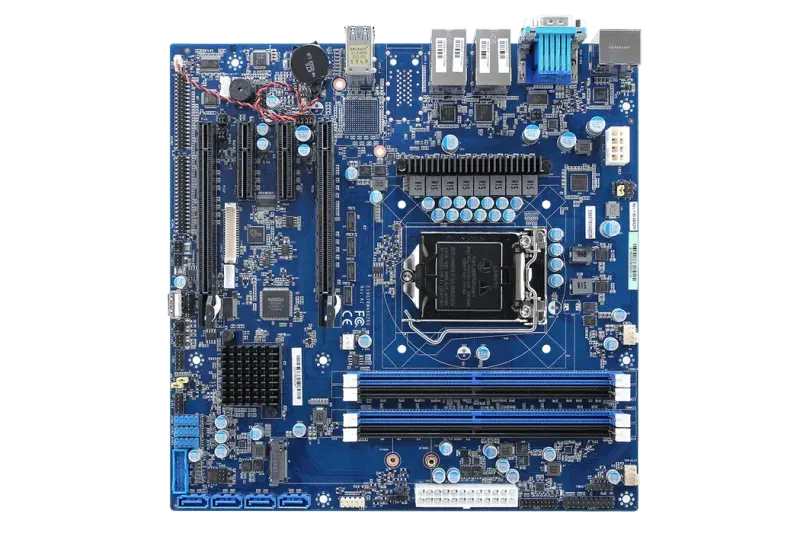

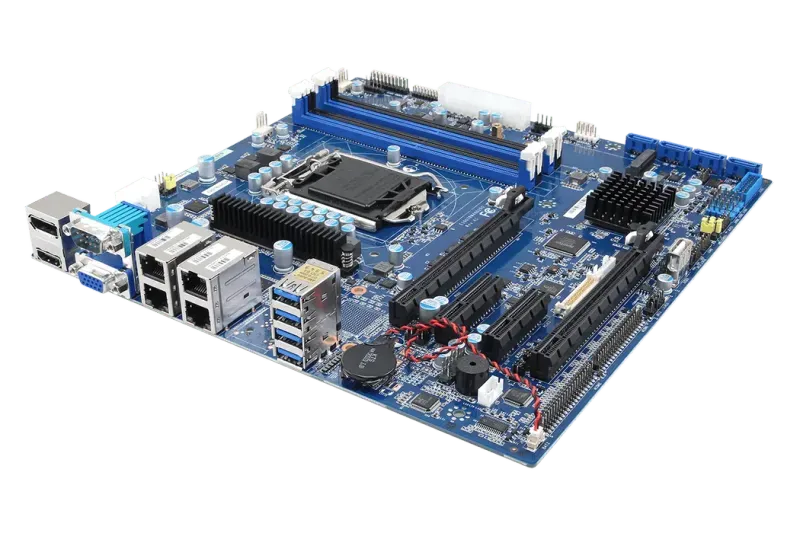

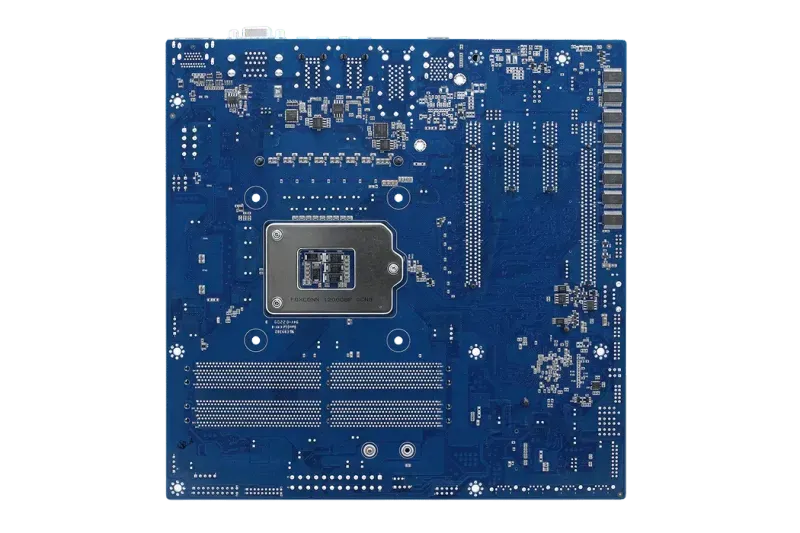

ERX-W480P

*Price on request. Contact us for a quote.

Manufacturer: Avalue

10th Gen. Intel® Core™ i9/i7/i5/i3 / Xeon® W-1200 Series Processor (Max. TDP at 125W) with Intel® W480E Chipset
4 x 288-pin DDR4 DDR4 2933MHz/ DDR4 2666MHz U-DIMM Socket, Supports Up to 128GB (ECC Memory Supporte by CPU)
VGA, HDMI, DP++/2CH LVDS, 4 x SATA III
2 x PCIe x16 Slot for 1 x PCIe x16 or 2 x PCIe x8 (By Auto Switch IC), 2 x PCIe x4
1 x Intel® I219LM, 1 x Intel® I210AT Gigabit Ethernet, 2 x Intel® I225LM 2.5 Gigabit Ethernet Controller
1 x 4 USB 3.1 GEN1 Connector at I/O, 7 x USB 2.0, 1 x USB 2.0 Vertical Type A, 2 x USB 3.2 Gen1 by Pin Header
1 x M.2 (2260/2280) M-Key, Support SSD
1 x COM at I/O, 4 x RS232, 2 x RS232/422/485 (COM2 & 3 by BIOS Selection), 4 x RS232 (BOM Option)
ATX Power

Product Description

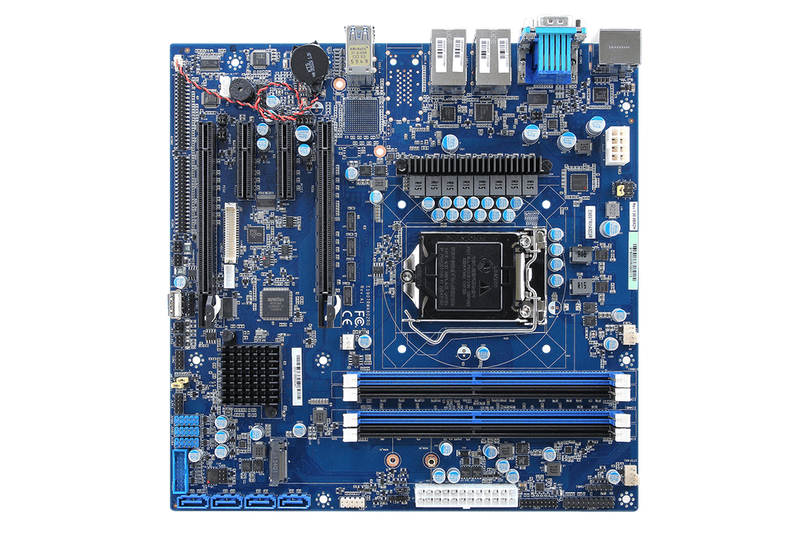

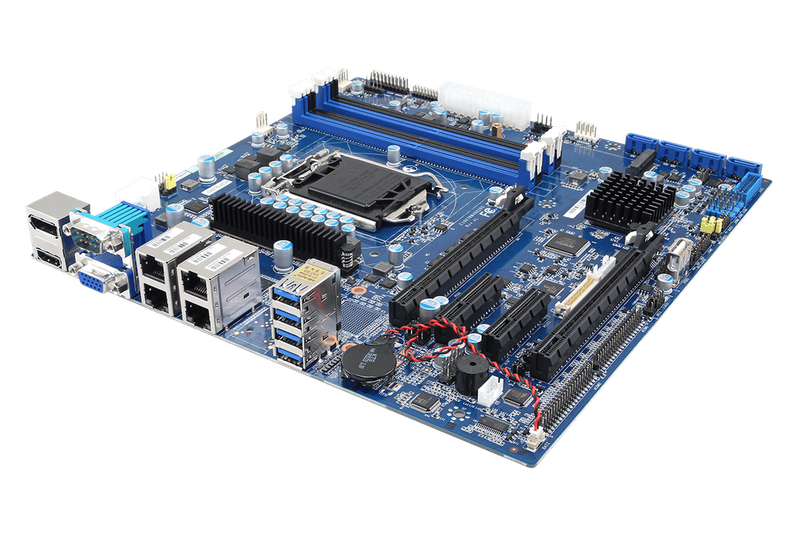

The Avalue ERX-W480P is a Micro-ATX motherboard designed for industrial and embedded applications. It supports 10th Gen Intel® Core™ i9/i7/i5/i3 and Xeon® W-1200 series processors with a TDP of up to 125W, utilizing the Intel® W480E chipset.

The board accommodates up to 128GB DDR4 2933/2666MHz U-DIMM memory with ECC support (depending on CPU).

Key features include triple display outputs (1 x VGA, 1 x HDMI 1.4, 1 x DP++), quad Intel® Ethernet ports (1 x I219LM GbE, 1 x I210AT GbE, 2 x I225LM 2.5GbE), multiple USB ports (4 x USB 3.2 Gen1, 1 x USB 2.0 vertical Type A, additional headers), serial interfaces (1 x RS-232 at I/O, 4 x RS-232, 2 x RS-232/422/485 by BIOS selection, 4 x RS-232 by BOM option), GPIOs, and expansion options through 2 x PCIe x16 slots (supporting 1 x PCIe x16 or 2 x PCIe x8 by auto switch IC), 2 x PCIe x4 slots, and 1 x M.2 (2260/2280) M-Key slot for SSDs.

With a compact form factor of 243.84mm x 243.84mm, ATX power support, and operating temperature range of 0°C to 50°C, the ERX-W480P offers a robust solution for space-constrained environments.

Technical Specifications

System Information

Processor

LGA 1200 Socket Supports 10th Generation Intel® Core™ i9/i7/i5/i3 / Xeon® (Workstation) Processors

Platform Controller Hub

Intel® W480E Chipset

System Memory

4 x 288-Pin DDR4 U-DIMM Socket Supports Up to 128GB (ECC Memory Support by CPU)

I/O Chipset

nuvoton NCT6106D

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

infineon TPM 2.0

Board

Micro ATX

Display

Multiple Display

Triple Display

Graphic Chipset

Intel® 10th Generation CPU Integrated

Spec. & Resolution

1 x VGA: 2048 x 1536@60Hz

1 x HDMI (1.4): 4096 x 2160@30Hz

1 x DP++: 4096 x 2304@60Hz

LVDS

LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7511B-BFI eDP to LVDS)

Expansion

2 x PCI-e x16 Slot for 1 x PCIe x16 or 2 x PCIe x 8(By Auto swith IC)

2 x PCIe x4

1 x M.2 (2260/2280) M-Key, Support SSD

Audio

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-out, Mic-in

Audio Amplifier

2 x 6W 8Ω Amplifier

Ethernet

LAN Chipset

1 x Intel® I219LM Gigabit Ethernet PHY

1 x Intel® I210AT Gigabit Ethernet

2 x Intel® I225LM 2.5 Gigabit Ethernet Controller

LAN Port

4 x RJ45

Power Requirement

Power Mode

AT/ATX (Default Setting: ATX)

Software Support

OS

Windows 10, Linux

Certification

Certification Information

CE, FCC Class B, RoHS Compliant

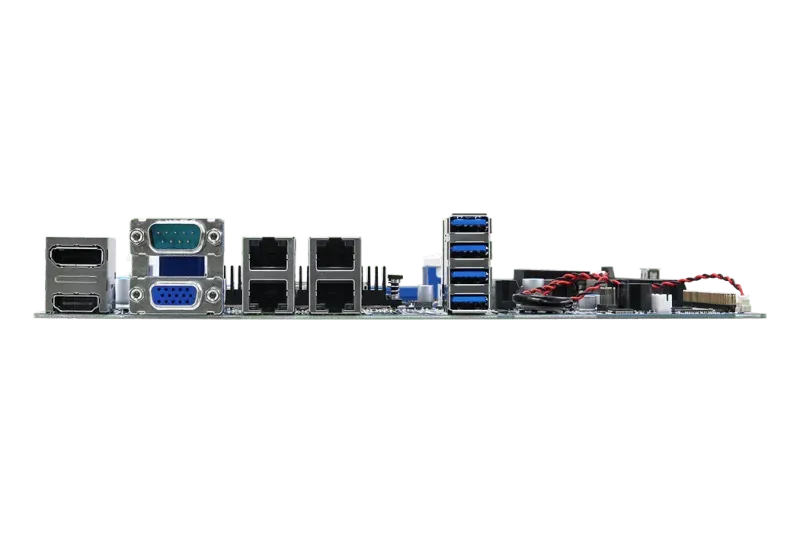

I/O

USB

4 x USB 3.2 Gen1

1 x USB 2.0 Vertical type A

7 x USB 2.0 by pin header

2 x USB 3.2 Gen1 by pin header

COM Port

1 x RS-232 at IO

4 x RS232, 2 x RS232/422/485 (COM2 & 3 by BIOS selection)

4 x RS232 (By BOM option)

SATA

4 x SATA III

RAID

Support RAID 0, 1, 5, 10

DIO

1 x 16-bit GPIO

Mechanical & Environmental

Operating Temp.

0~50°C, w/HDD/SSD, ambient with 0.5 m/s Air flow

Storage Temp.

-40~ +75°C (-40~167°F)

Dimension (L x W)

9.6" x 9.6" (243.84mm x 243.84mm)

Weight

1.32lbs (0.6kg)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Power Mode

AT/ATX (Default Setting: ATX)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

Ordering Information

ERX-W480P-A1-01R

10th Generation Core™ & / Intel® Xeon®Process(Workstation) Processors Micro ATX Motherboard With Intel W480E Chipset (4 LAN version)

What is ERX-W480P?

The ERX-W480P is a industrial & embedded motherboard manufactured by Avalue, designed specifically for micro-atx applications. The Avalue ERX-W480P is a Micro-ATX motherboard designed for industrial and embedded applications. It supports 10th Gen Intel® Core™ i9/i7/i5/i3 and Xeon® W-1200 series processors with a TDP of up to 125W, utilizing the Intel® W480E chipset. The board accommodates up to 128GB DDR4 2933/2666MHz U-DIMM memory with ECC support (depending on CPU). Key features include triple display outputs (1 x VGA, 1 x HDMI 1.4, 1 x DP++), quad Intel® Ethernet ports (1 x I219LM GbE, 1 x I210AT GbE, 2 x I225LM 2.5GbE), multiple USB ports (4 x USB 3.2 Gen1, 1 x USB 2.0 vertical Type A, additional headers), serial interfaces (1 x RS-232 at I/O, 4 x RS-232, 2 x RS-232/422/485 by BIOS selection, 4 x RS-232 by BOM option), GPIOs, and expansion options through 2 x PCIe x16 slots (supporting 1 x PCIe x16 or 2 x PCIe x8 by auto switch IC), 2 x PCIe x4 slots, and 1 x M.2 (2260/2280) M-Key slot for SSDs. With a compact form factor of 243.84mm x 243.84mm, ATX power support, and operating temperature range of 0°C to 50°C, the ERX-W480P offers a robust solution for space-constrained environments.

Key Features & Benefits

10th Gen. Intel® Core™ i9/i7/i5/i3 / Xeon® W-1200 Series Processor (Max. TDP at 125W) with Intel® W480E Chipset
4 x 288-pin DDR4 DDR4 2933MHz/ DDR4 2666MHz U-DIMM Socket, Supports Up to 128GB (ECC Memory Supporte by CPU)
VGA, HDMI, DP++/2CH LVDS, 4 x SATA III
2 x PCIe x16 Slot for 1 x PCIe x16 or 2 x PCIe x8 (By Auto Switch IC), 2 x PCIe x4
1 x Intel® I219LM, 1 x Intel® I210AT Gigabit Ethernet, 2 x Intel® I225LM 2.5 Gigabit Ethernet Controller
1 x 4 USB 3.1 GEN1 Connector at I/O, 7 x USB 2.0, 1 x USB 2.0 Vertical Type A, 2 x USB 3.2 Gen1 by Pin Header
1 x M.2 (2260/2280) M-Key, Support SSD
1 x COM at I/O, 4 x RS232, 2 x RS232/422/485 (COM2 & 3 by BIOS Selection), 4 x RS232 (BOM Option)
ATX Power

Applications & Use Cases

The ERX-W480P is ideal for various industrial automation applications:

DC-powered industrial installations and mobile applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Data logging and storage-intensive operations
Custom industrial computing solutions
Industrial and embedded applications
