What are the key features of the RX610H Micro-ATX motherboard?

The RX610H features support for Intel® 12th/13th/14th Gen Core™ processors, up to 128GB DDR5 memory, multiple display outputs, dual Intel® Ethernet, rich I/O, PCIe Gen4 expansion, and a robust Micro-ATX form factor.

What display options does the RX610H support?

It supports HDMI, DisplayPort, and VGA outputs for flexible multi-display configurations.

What expansion capabilities are available on the RX610H?

The board offers multiple PCIe slots, M.2 expansion for storage and wireless, and SATA ports for additional drives.

What are Micro-ATX motherboards and what are their typical applications?

Micro-ATX motherboards are compact yet expandable boards (244mm x 244mm) designed for industrial, workstation, and commercial applications, offering a balance of performance, I/O, and expansion slots.

What are the advantages of using Micro-ATX over other form factors?

Micro-ATX provides more expansion slots and I/O than Mini-ITX, while being smaller and more space-efficient than standard ATX, making it ideal for systems requiring moderate expandability in a compact footprint.

What is the typical power input for Micro-ATX boards?

Micro-ATX boards typically use standard ATX power supplies, suitable for both industrial and office environments.

What memory types and capacities are supported?

Micro-ATX boards support DDR4 or DDR5 DIMM memory, with capacities up to 128GB depending on the model.

What display resolutions and outputs are available?

Depending on the model, Micro-ATX boards support HDMI, DisplayPort, and VGA, with resolutions up to 4K or 8K and support for multiple independent displays.

What expansion options are available?

Expansion options include multiple PCIe slots (Gen4/Gen5), M.2 slots for storage and wireless, and SATA ports for additional drives.

How do I install memory modules on a Micro-ATX board?

Insert DIMM memory modules into the designated slots and press down until they click into place. Refer to the board manual for supported capacities and configurations.

What precautions should I take during installation?

Always power off and unplug the system before installation. Use ESD protection and handle the board by its edges to avoid static damage.

How do I mount a Micro-ATX board in a chassis?

Align the board with the mounting holes in the chassis and secure it using the appropriate screws. Ensure all connectors and expansion slots are accessible.

The board does not power on. What should I check?

Verify the power supply connection, ensure the correct voltage is supplied, and check for any visible damage or loose components. Refer to the board's LED indicators for diagnostic codes if available.

No display output is detected. What should I do?

Check that the display cables are securely connected, the correct input source is selected, and the memory and CPU are properly installed. Try a different display port if available.

How can I reset the BIOS/UEFI settings?

Locate the CMOS battery or reset jumper on the board. Remove the battery or use the jumper as per the manual to reset BIOS/UEFI to default settings.

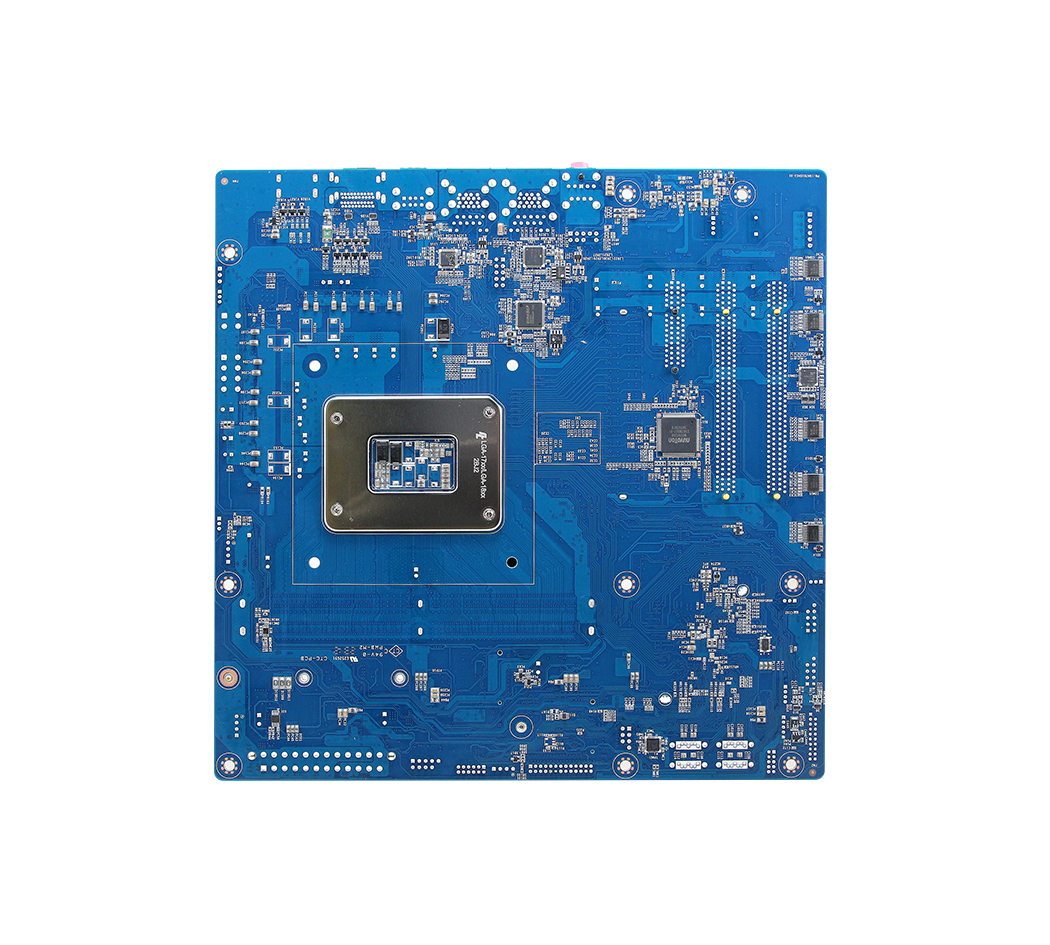

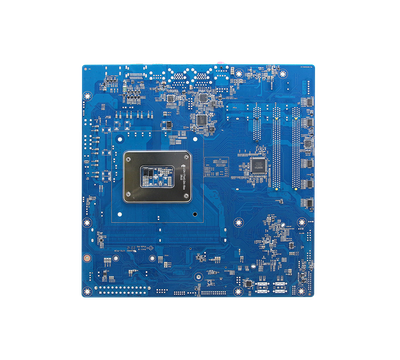

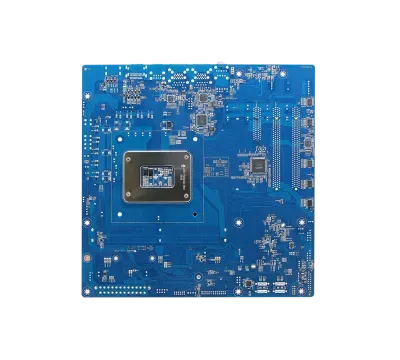

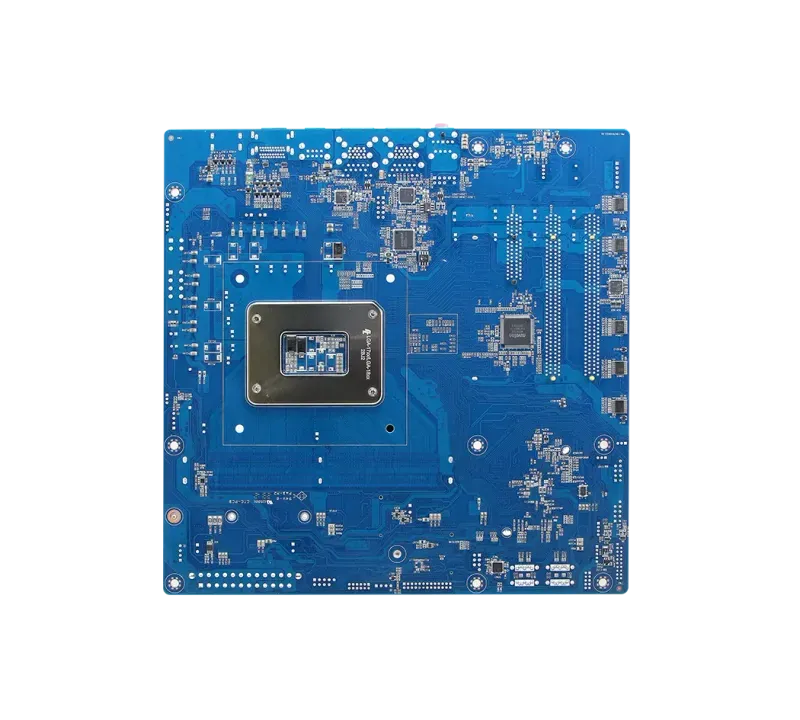

RX610H

*Price on request. Contact us for a quote.

Manufacturer: Avalue

LGA 1700 Socket Supports 12th/13/14th Gen. Intel® Core™ i9/i7/i5/i3, Pentium, Celeron Processors with Intel® H610E Chipset
2 x DIMM Slots, Dual Channel DDR5 Up to 4800MHz with UDIMM, Up to 64GB
4 x SATA III
1 x PCIe x16 (Gen 5), 3 x PCIe x1 (Gen 3)
1 x Intel® I219-V and 1 x Intel® I225-LM 2.5 Gigabit Ethernet Controller
2 x USB 2.0, 4 x USB 3.2 and 4 x USB 2.0, 2 x USB 3.2 Gen 1 Header
1 x M.2 NVMe M-Key, 1 x M.2 E-Key Supports CNVi
1 x RS-232/422/485, 5 x RS-232
ATX Power

Product Description

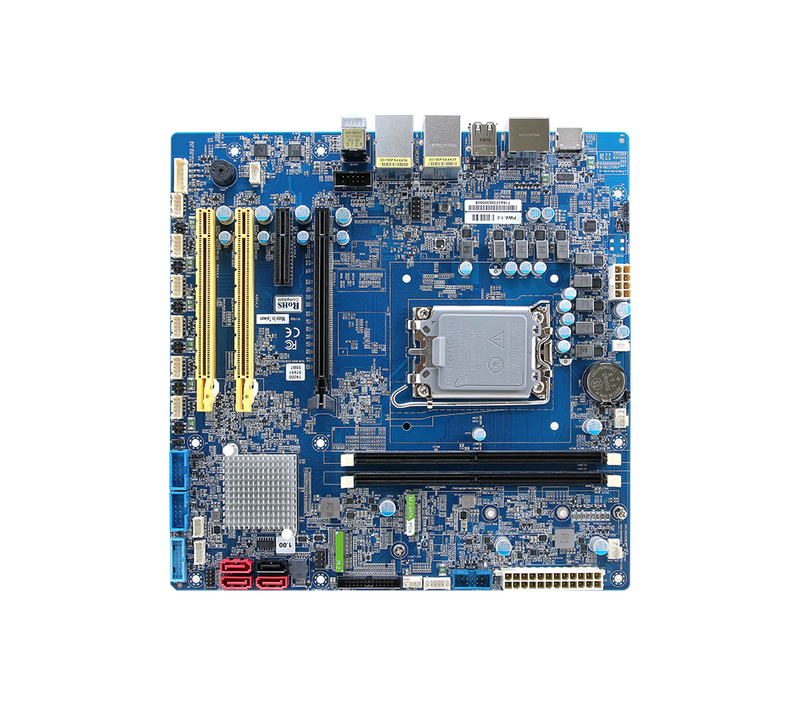

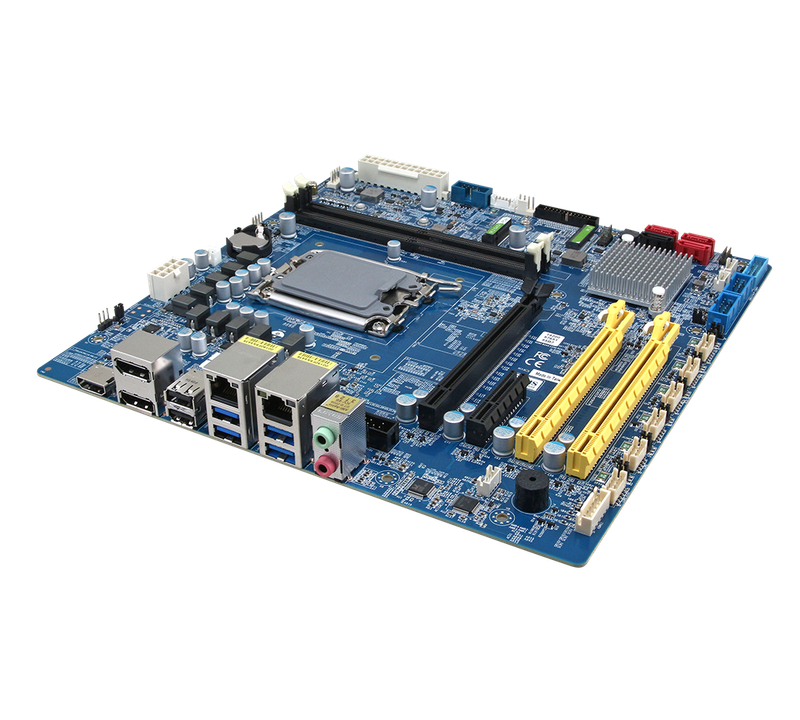

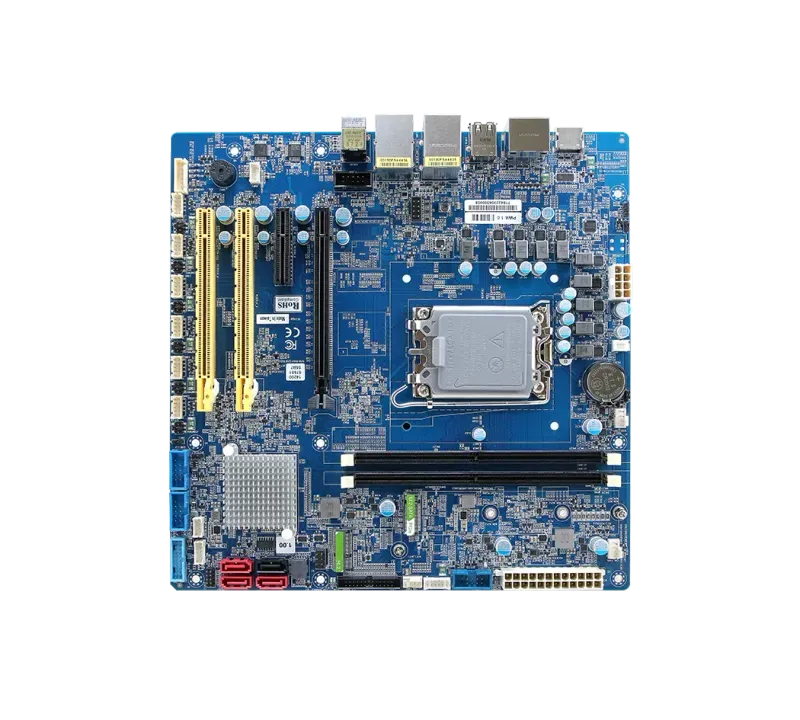

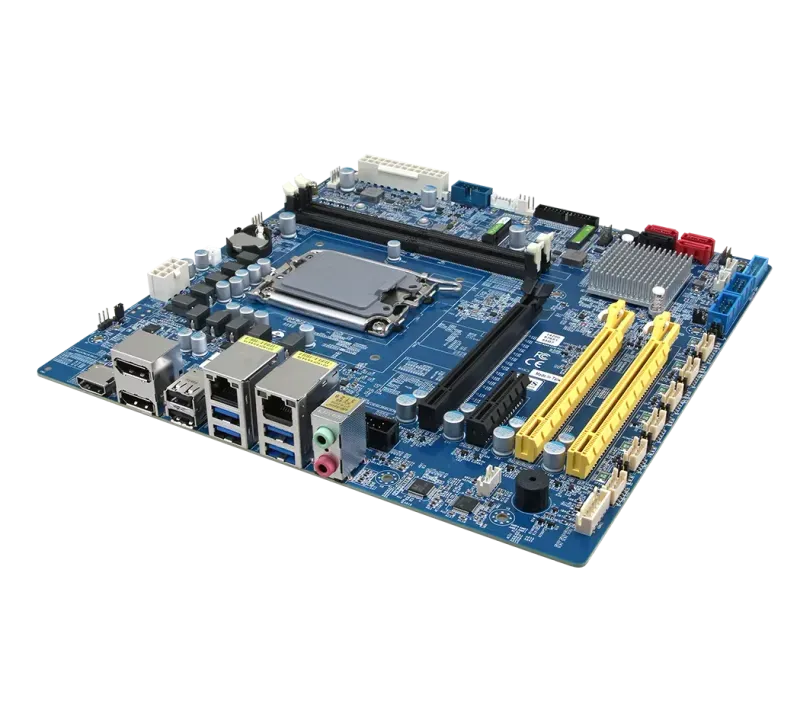

The Avalue RX610H is a Micro-ATX motherboard designed for industrial and embedded applications. It supports 12th, 13th, and 14th Gen Intel® Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors with a TDP of up to 65W, utilizing the Intel® H610E chipset.

The board accommodates up to 64GB DDR5 4800/5600MHz UDIMM memory.

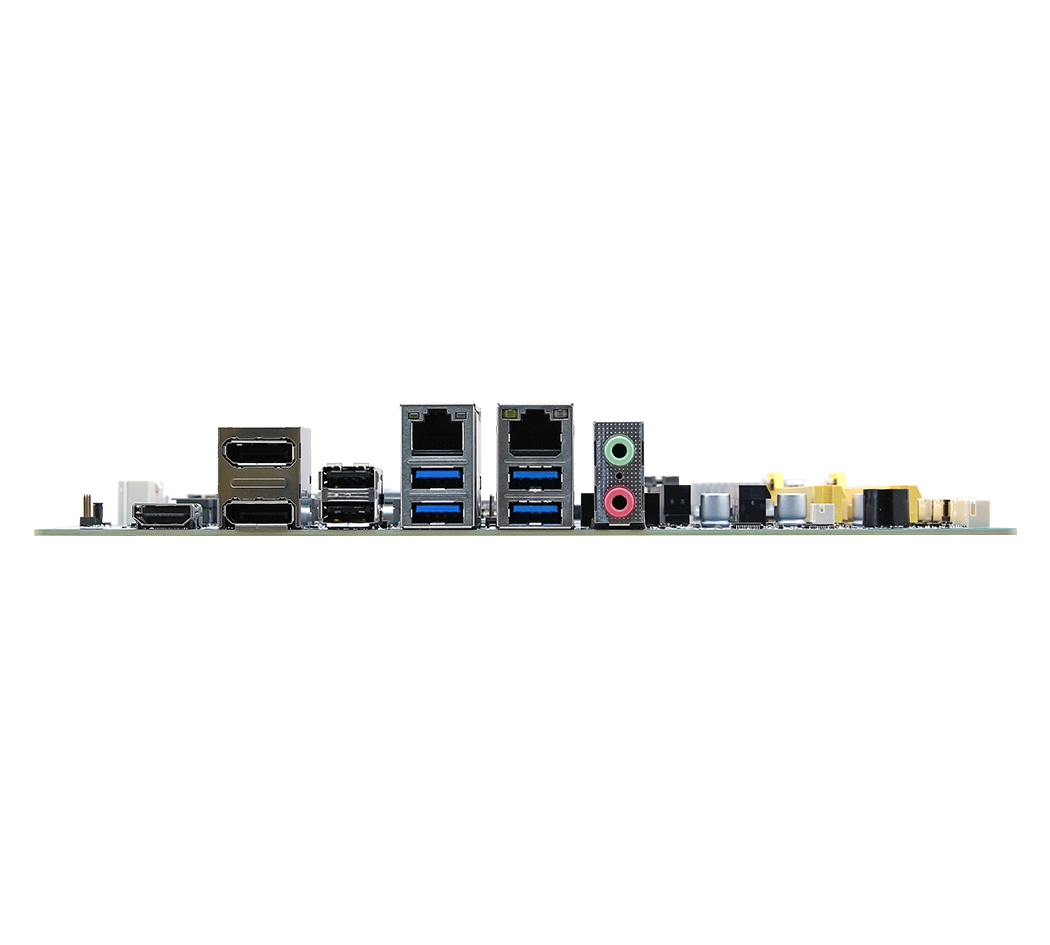

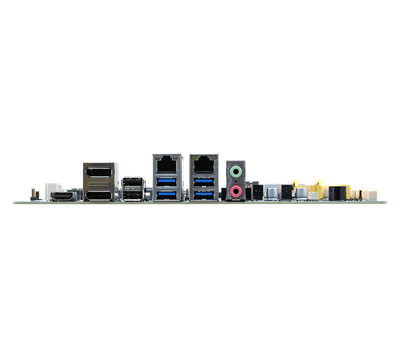

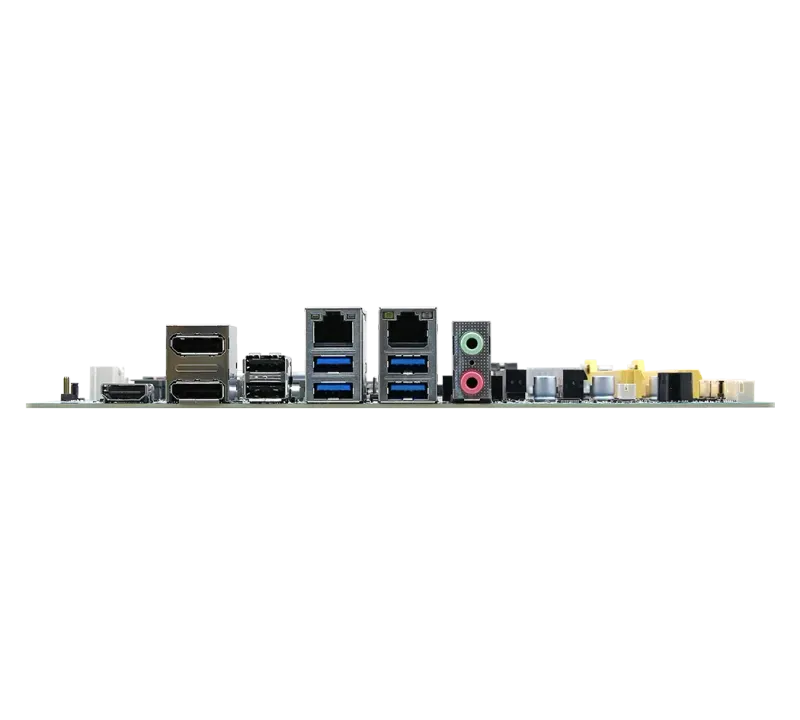

Key features include triple display outputs (1 x HDMI, 2 x DisplayPort++), dual Intel® Ethernet ports (1 x I219-V GbE, 1 x I225-LM 2.5GbE), multiple USB ports (6 x USB 3.2 Gen1, 6 x USB 2.0), serial interfaces (5 x RS-232, 1 x RS-232/422/485), GPIOs, and expansion options through 1 x PCIe Gen5 x16 slot, 3 x PCIe Gen3 x1 slots, 1 x M.2 M-Key (2242/2280/22110) NVMe (PCIe x4 + SATA III), and 1 x M.2 E-Key (2230) with CNVi support.

With a compact form factor of 244mm x 244mm, ATX power support, and support for Windows 10, Windows 11, and Linux operating systems, the RX610H offers a robust solution for space-constrained environments.

Technical Specifications

System Information

Processor

LGA 1700 Socket Supports 12/13/14th Generation Intel® Core™ i9/i7/i5/i3 Processors (Max. TDP at 65W)

Platform Controller Hub

Intel® H610E Chipset

System Memory

2 x 288-Pin DDR5 4800MHz Dual Channel U-DIMM Socket Supports Up to 64GB

I/O Chipset

nuvoton NCT6126D

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

infineon TPM 2.0

Board

Micro ATX

Display

Multiple Display

Triple Display

Graphic Chipset

Intel® 12/13th Generation CPU Integrated

Spec. & Resolution

1 x HDMI (2.0b) 4K x 2K@60Hz (with HDR)

2 x DP (DP1.4a): Max: 7680 x 4320@60Hz

(2 x DP++: 1920 x 1080@60Hz)

Expansion

1 x Gen 5 PCIe x16 (x16 Physical Black) (Slot 1)

1 x Gen 3 PCIe x1 (x4 Physical Open Ended) (Slot 2)

2 x Gen 3 PCIe x1 (x16 Physical Yellow) (Slot 3 & 4)

1 x M.2 M-Key 2242/2280/22110 NVMe (PCIe x4 + SATA III)

1 x M.2 E-Key 2230 with CNVi Support (PCIe x 1 Share with Slot4 + USB 2.0)

3 x SATA III

1 x SATA III Shared with M.2

Audio

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-out, Mic-in

Audio Amplifier

2 x 6W 8Ω Amplifier

Ethernet

LAN Chipset

1 x Intel® I219V Gigabit Ethernet

1 x Intel® I225LM 2.5 Gigabit Ethernet

LAN Port

2 x RJ45

Power Requirement

Power Mode

AT/ATX (Default Setting: ATX)

Software Support

OS

Windows 10, Windows 11, Linux

Certification

Certification Information

CE, FCC Class B, RoHS Compliant

I/O

USB

2 x USB 2.0 Type A

4 x USB 3.2 Type A

4 x USB 2.0 by pin header

2 x USB 3.2 Gen1 by pin header

COM Port

5 x RS-232 by pin header

1 x RS-232/422/485 by pin header

SATA

3 x SATA III

1 x SATA III Shared with M.2

DIO

1 x 8-bit GPIO

MIO

1 x PS/2 Header

1 x LPT Header

Mechanical & Environmental

Operating Temp.

0~60°C (32~140°F)

Storage Temp.

-20°C ~ 80°C (-4°F ~ 176°F)

Dimension (L x W)

9.6" x 9.6" (243.84mm x 243.84mm)

Weight

1.45lbs (0.65kg)

Operating Humidity

5% ~ 90% Relative Humidity, Non-condensing

Power Mode

AT/ATX (Default Setting: ATX)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

Ordering Information

71842-IA

LGA 1700 socket supports 12th/13th Gen Intel® Core™ i9/i7/i5/i3 Processors Micro ATX Motherboard With Intel®

H610E PCH

What is RX610H?

The RX610H is a industrial & embedded motherboard manufactured by Avalue, designed specifically for micro-atx applications. The Avalue RX610H is a Micro-ATX motherboard designed for industrial and embedded applications. It supports 12th, 13th, and 14th Gen Intel® Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors with a TDP of up to 65W, utilizing the Intel® H610E chipset. The board accommodates up to 64GB DDR5 4800/5600MHz UDIMM memory. Key features include triple display outputs (1 x HDMI, 2 x DisplayPort++), dual Intel® Ethernet ports (1 x I219-V GbE, 1 x I225-LM 2.5GbE), multiple USB ports (6 x USB 3.2 Gen1, 6 x USB 2.0), serial interfaces (5 x RS-232, 1 x RS-232/422/485), GPIOs, and expansion options through 1 x PCIe Gen5 x16 slot, 3 x PCIe Gen3 x1 slots, 1 x M.2 M-Key (2242/2280/22110) NVMe (PCIe x4 + SATA III), and 1 x M.2 E-Key (2230) with CNVi support. With a compact form factor of 244mm x 244mm, ATX power support, and support for Windows 10, Windows 11, and Linux operating systems, the RX610H offers a robust solution for space-constrained environments.

Key Features & Benefits

LGA 1700 Socket Supports 12th/13/14th Gen. Intel® Core™ i9/i7/i5/i3, Pentium, Celeron Processors with Intel® H610E Chipset
2 x DIMM Slots, Dual Channel DDR5 Up to 4800MHz with UDIMM, Up to 64GB
4 x SATA III
1 x PCIe x16 (Gen 5), 3 x PCIe x1 (Gen 3)
1 x Intel® I219-V and 1 x Intel® I225-LM 2.5 Gigabit Ethernet Controller
2 x USB 2.0, 4 x USB 3.2 and 4 x USB 2.0, 2 x USB 3.2 Gen 1 Header
1 x M.2 NVMe M-Key, 1 x M.2 E-Key Supports CNVi
1 x RS-232/422/485, 5 x RS-232
ATX Power

Applications & Use Cases

The RX610H is ideal for various industrial automation applications:

DC-powered industrial installations and mobile applications
Legacy equipment integration and serial communication
High-performance computing and data processing tasks
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Custom industrial computing solutions
Industrial and embedded applications
