EMX-H310C

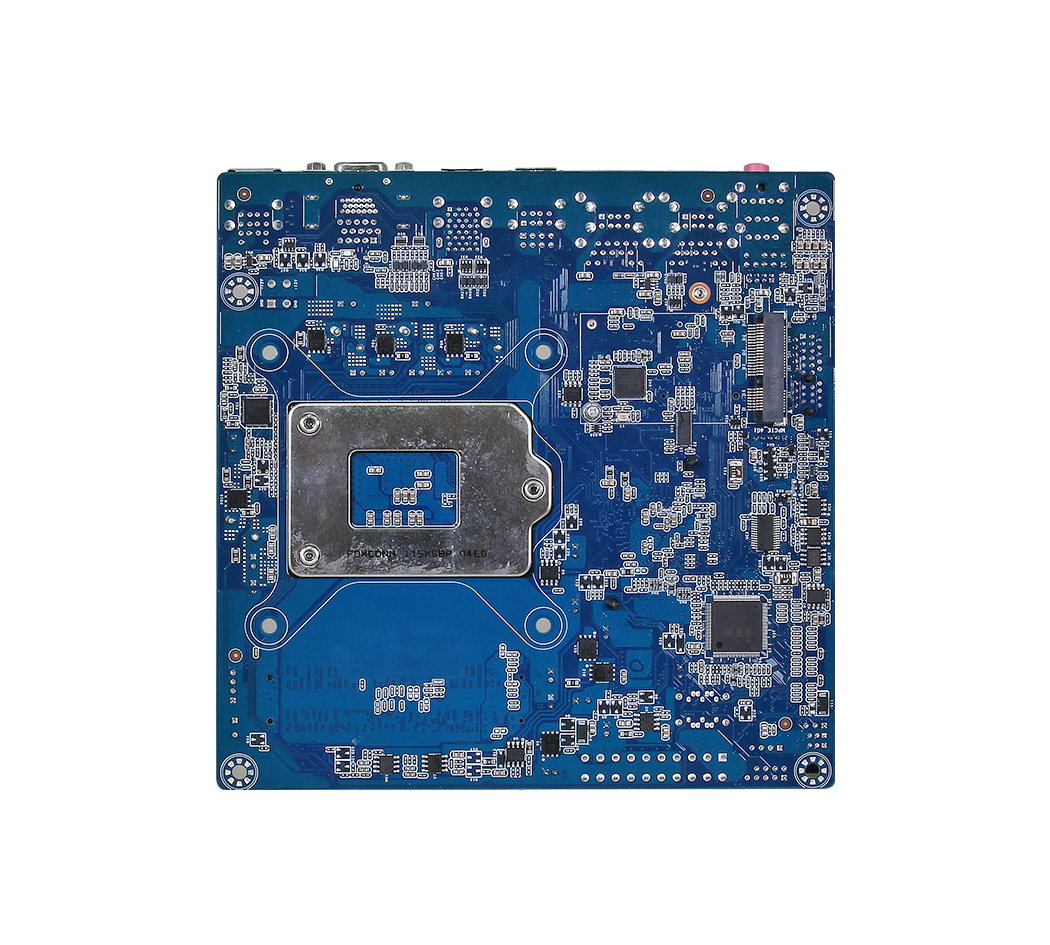

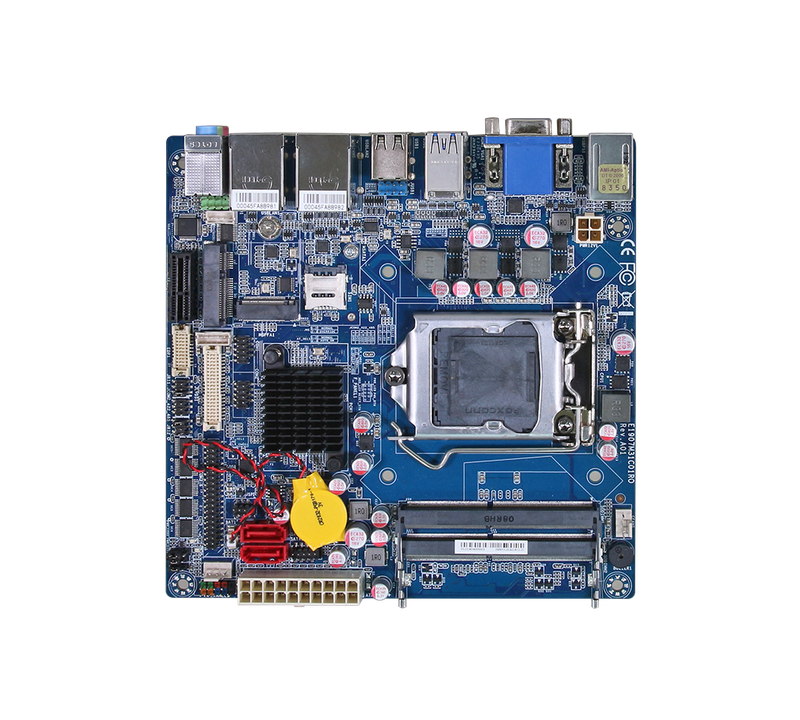

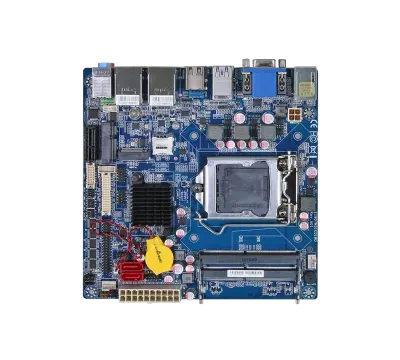

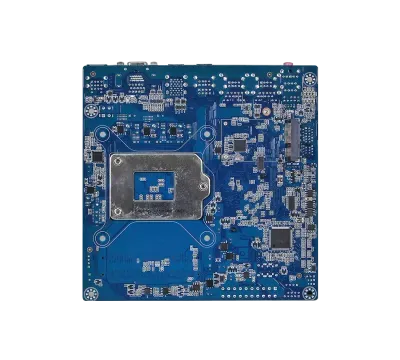

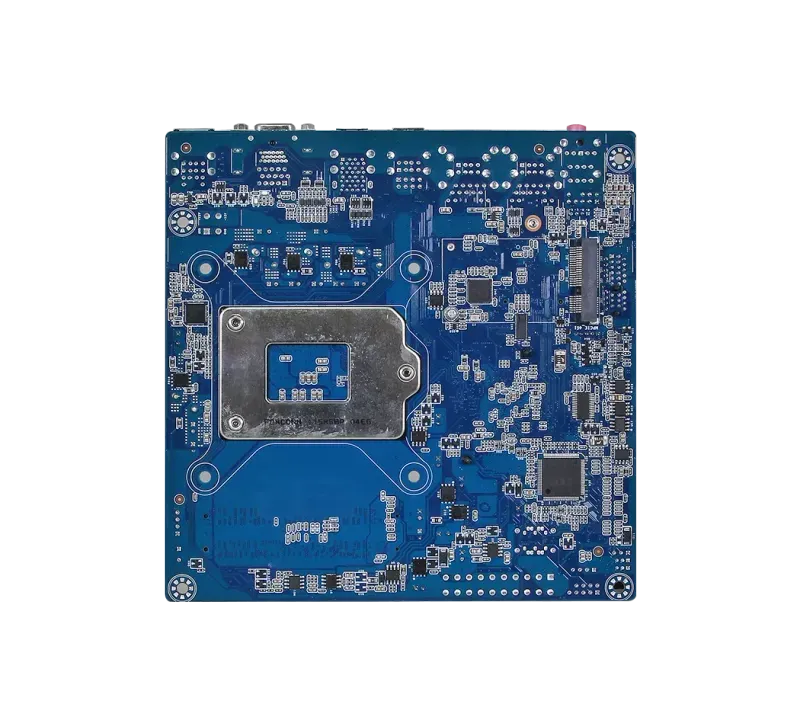

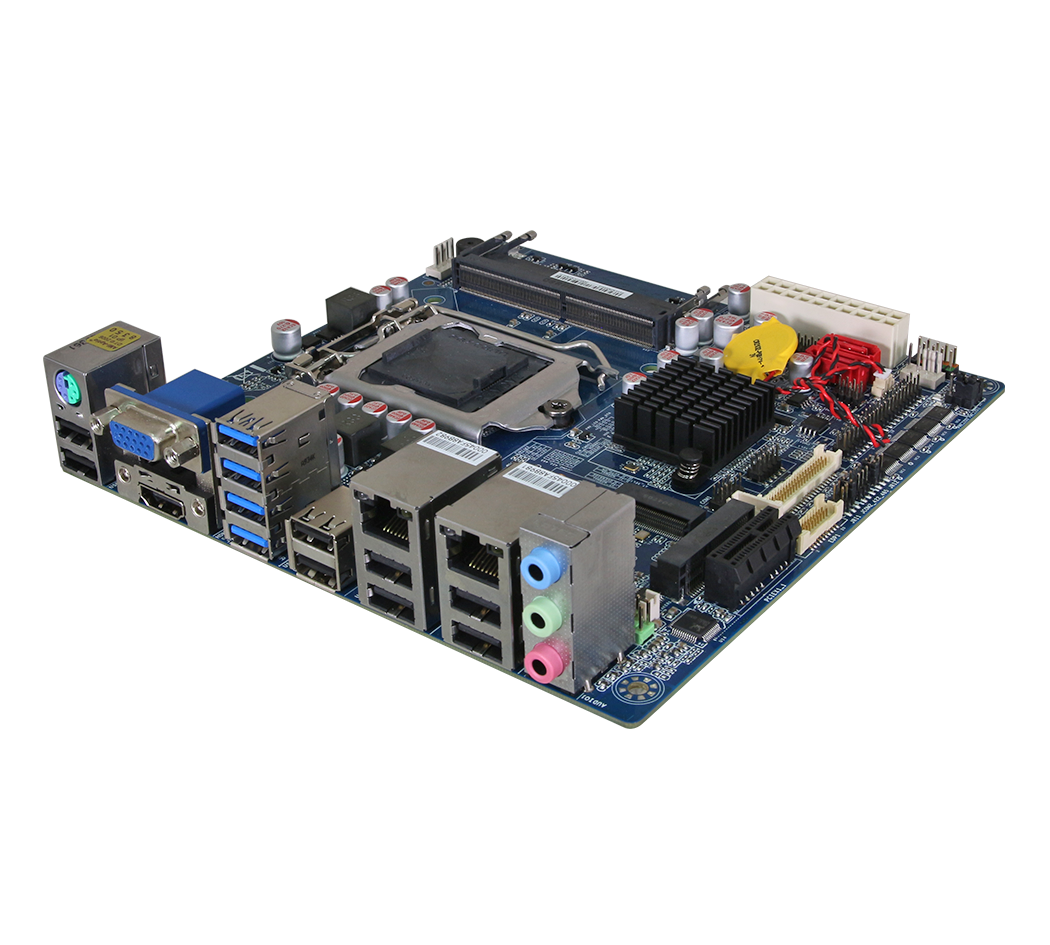

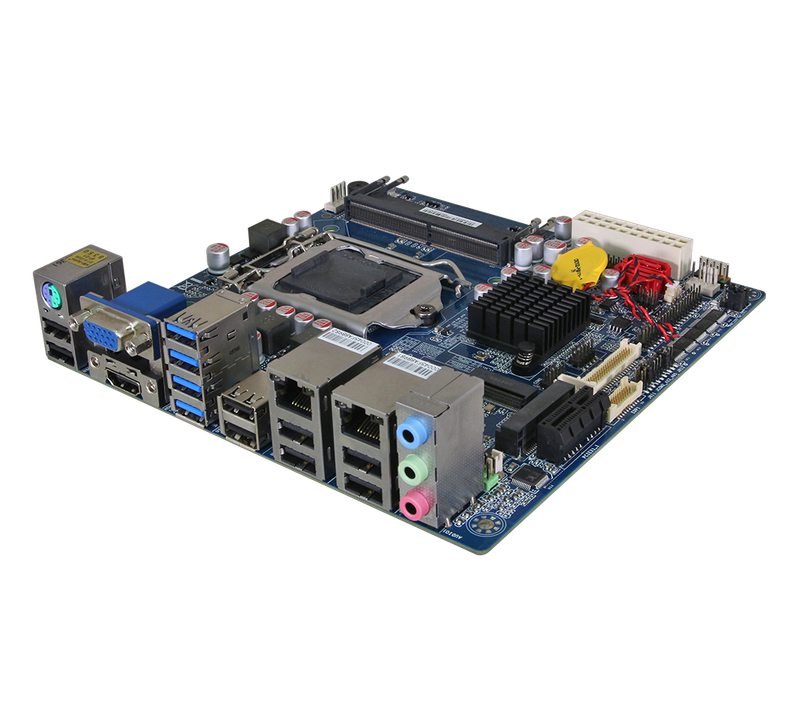

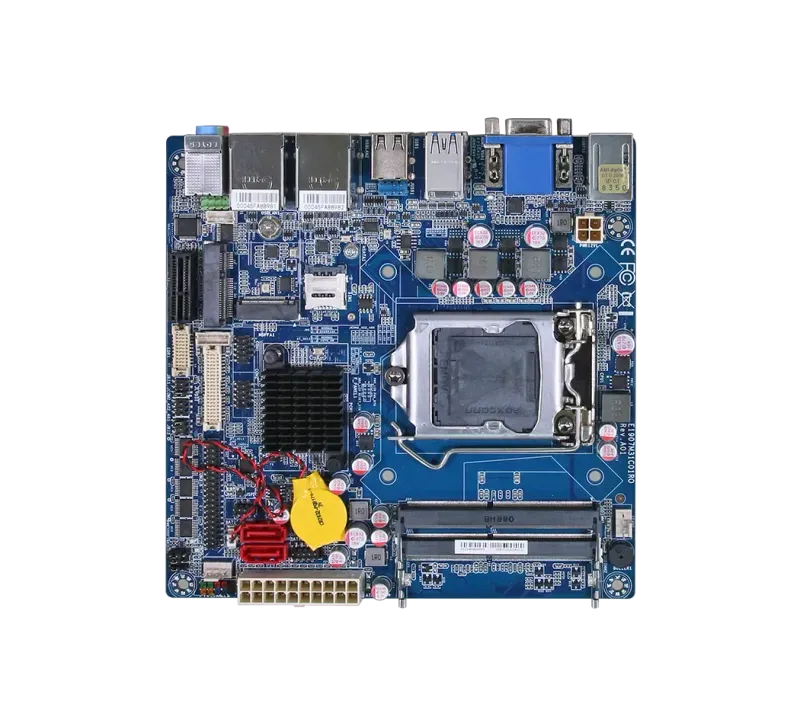

EMX-H310C FrontEMX-H310C FrontEMX-H310C FrontEMX-H310C Front

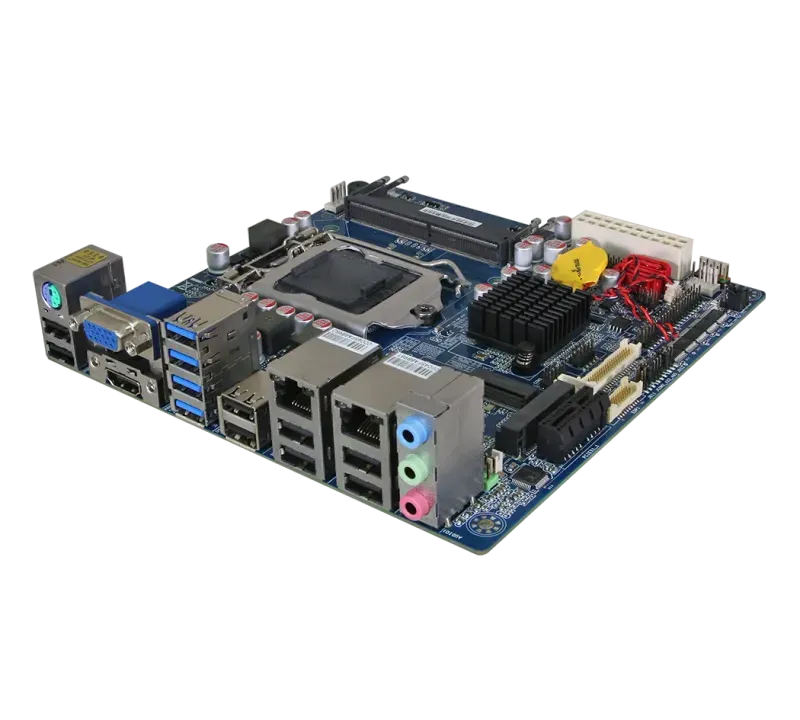

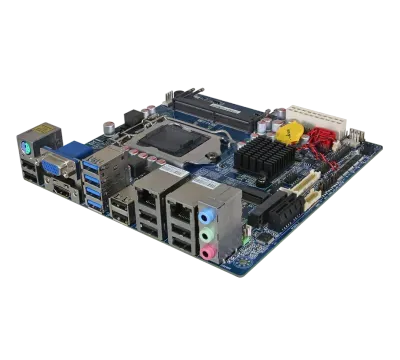

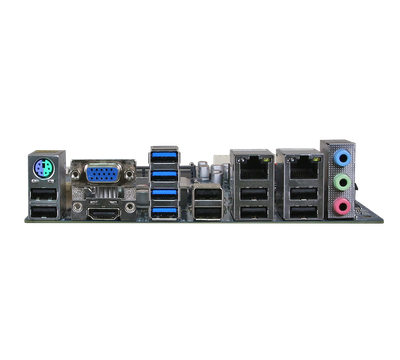

EMX-H310C FrontEMX-H310C FrontEMX-H310C FrontEMX-H310C Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • Intel® 8/9th Gen. Core™/Pentium®/Celeron®/Processor (Max. TDP at 65W)
  • Intel® H310 Chipset
  • 2 x 260-pin DDR4 2400/2666 MHz SO-DIMM Socket, Supports Up to 64GB
  • VGA, HDMI, Dual-CH LVDS co-lay eDP(By BOM Option, Default No LVDS & No eDP)
  • 2 x SATA III
  • 1 x Mini PCIe Supports USB 2.0 with SIM Card Slot
  • 1 x mSATA Slot
  • 1 x M.2 (2230) E-Key, Support WiFi Module
  • 1 x PCIe x1
  • 4 x USB3.1 Gen1, 6 x USB 2.0, PS2 KB/MS + 2 x USB 2.0 at I/O, 2 x USB2.0 by Pin Header
  • 5 x RS232, 1 x RS232/422/485
  • ATX Power

Product Description

The Avalue EMX-H310C is a Mini-ITX motherboard designed for industrial and embedded applications. It supports 8th and 9th Gen Intel® Core™ i7/i5/i3, Pentium®, and Celeron® processors with a TDP of up to 65W, utilizing the Intel® H310 chipset.

The board accommodates up to 64GB DDR4 2400/2666MHz SO-DIMM memory.

Key features include multiple display outputs (1 x VGA, 1 x HDMI, dual-channel LVDS co-lay eDP by BOM option), dual Realtek® RTL8111H Gigabit Ethernet ports, multiple USB ports (4 x USB 3.1 Gen1, 6 x USB 2.0), serial interfaces (4 x RS-232, 2 x RS-232/422/485), GPIOs, and expansion options through 1 x PCIe x1 slot, 1 x Mini PCIe slot with USB 2.0 and SIM card slot, 1 x mSATA slot, and 1 x M.2 (2230) E-Key slot for Wi-Fi modules.

With a compact form factor of 170mm x 170mm, ATX power support, and operating temperature range of 0°C to 60°C, the EMX-H310C offers a robust solution for space-constrained environments.

Technical Specifications

System Information

Processor

LGA1151 Socket Supports 8/9th Generation Intel® Core™ / Pentium® / Celeron® Processors (Max. TDP at 65W)

Platform Controller Hub

Intel® H310 Chipset

System Memory

2 x 260-Pin DDR4 2400/2666MHz SO-DIMM Socket Supports Up to 64GB

I/O Chipset

EC ITE8786E

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

BIOS

AMI uEFI BIOS, 128Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

Board

Mini ITX

Display

Multiple Display

Dual Display

Graphic Chipset

Intel® 8/9th Generation CPU Integrated

Spec. & Resolution

VGA: 2048 x 1536@60Hz

HDMI: 1.4b: 4096x2160@30Hz

LVDS: 1024x768@60Hz Default, colay eDP 2 lanes 1920 x 1080@60Hz by BOM Optional

*Default no LVDS, no eDP

LVDS

Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)

eDP By BOM Optional

Expansion

Expansion

1 x PCIe x1

1 x Full Size Mini PCIe Supports USB 2.0 with SIM Card Slot

1 x M.2 (2230) E-Key, Supports WiFi Module (1 x PCIe x1 and USB 2.0 Signal)

Audio

Audio Codec

Realtek ALC897 co-lay ALC662 HD Audio Decoding Controller (Default ALC897)

Audio Interface

Mic-in, Line-out, Line-in

Audio Amplifier

2 x 2W 4Ω Amplifier

Ethernet

LAN Chipset

1 x Realtek RTL8111H Gigabit Ethernet

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

LAN Port

2 x RJ-45

Software Support

OS

Windows 10, Linux

Certification

Certification Information

CE, FCC, RoHS Compliant

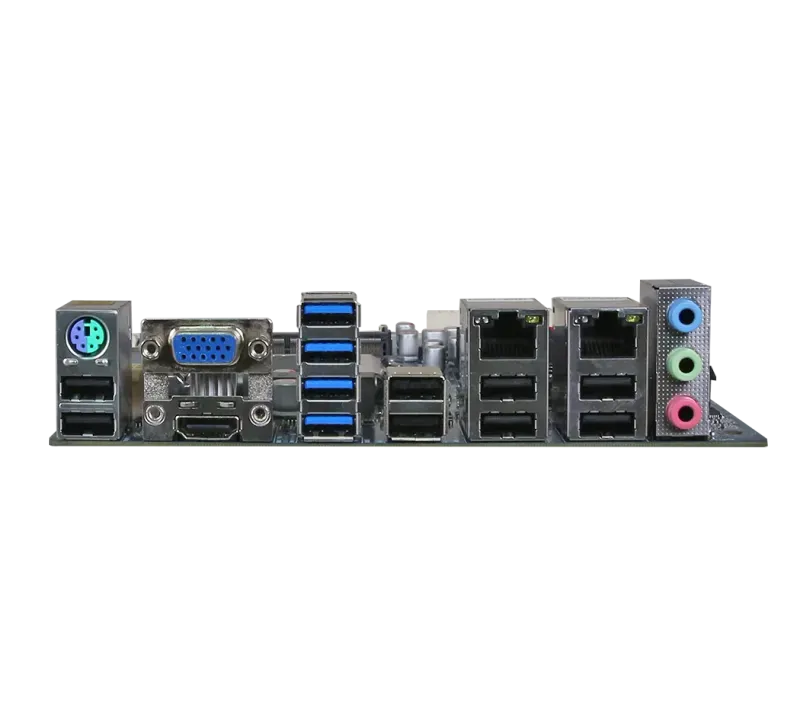

I/O

USB

6 x USB 3.1 Gen1

4 x USB 2.0

COM Port

5 x RS232

1 x RS-232/422/485

SATA

2 x SATA III

1 x mSATA slot

DIO

1 x 8-bit GPIO

MIO

1 x PS/2 Keyboard or 1 x PS/2 Mouse

Mechanical & Environmental

Operating Temp.

0~60°C (32~140°F)

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Weight

0.88lbs (0.4Kgs)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Power Mode

AT/ATX (Default Setting: ATX)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

Ordering Information

Ordering Information

EMX-H310C-A1R

Intel® 8/9th Gen. Core™/Pentium®/Celeron® Processor Mini ITX Motherboard With Intel® H310 Chipset (no LVDS, no eDP)

What is EMX-H310C?

The EMX-H310C is a industrial & embedded motherboard manufactured by Avalue, designed specifically for mini-itx applications. The Avalue EMX-H310C is a Mini-ITX motherboard designed for industrial and embedded applications. It supports 8th and 9th Gen Intel® Core™ i7/i5/i3, Pentium®, and Celeron® processors with a TDP of up to 65W, utilizing the Intel® H310 chipset. The board accommodates up to 64GB DDR4 2400/2666MHz SO-DIMM memory. Key features include multiple display outputs (1 x VGA, 1 x HDMI, dual-channel LVDS co-lay eDP by BOM option), dual Realtek® RTL8111H Gigabit Ethernet ports, multiple USB ports (4 x USB 3.1 Gen1, 6 x USB 2.0), serial interfaces (4 x RS-232, 2 x RS-232/422/485), GPIOs, and expansion options through 1 x PCIe x1 slot, 1 x Mini PCIe slot with USB 2.0 and SIM card slot, 1 x mSATA slot, and 1 x M.2 (2230) E-Key slot for Wi-Fi modules. With a compact form factor of 170mm x 170mm, ATX power support, and operating temperature range of 0°C to 60°C, the EMX-H310C offers a robust solution for space-constrained environments.
