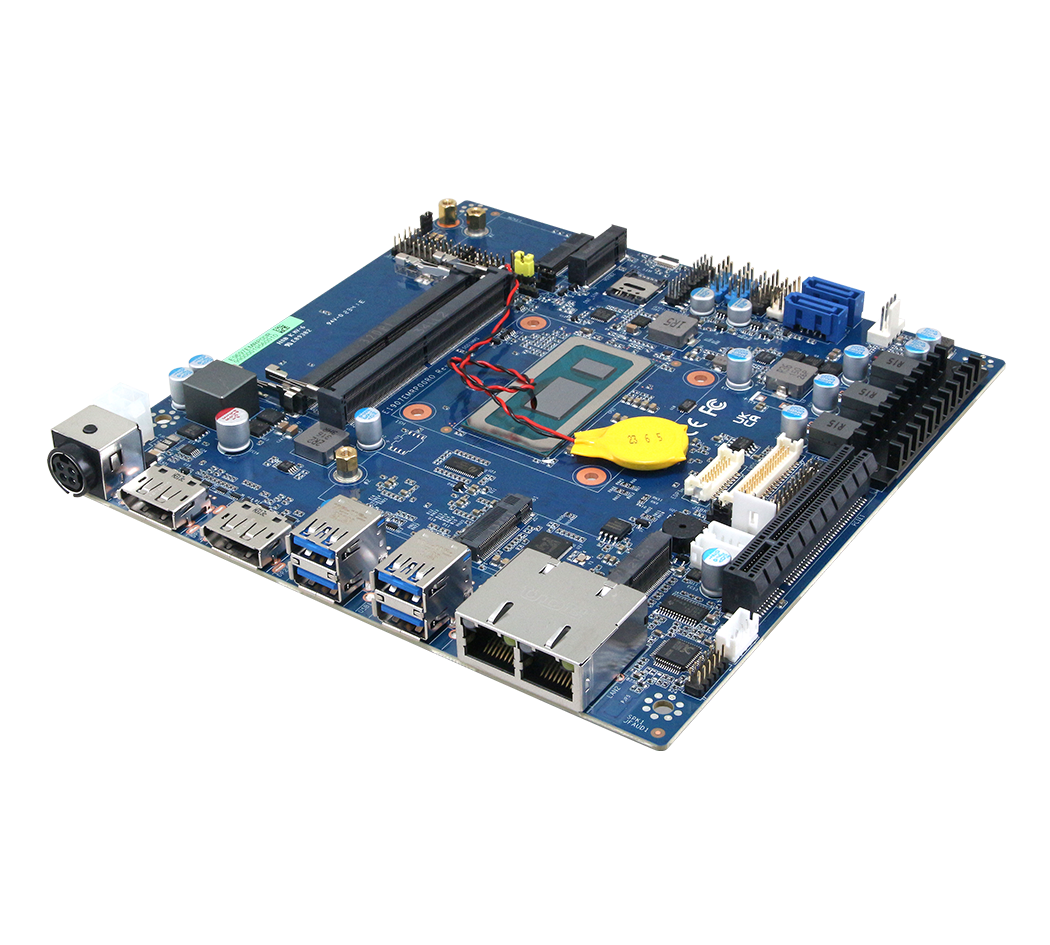

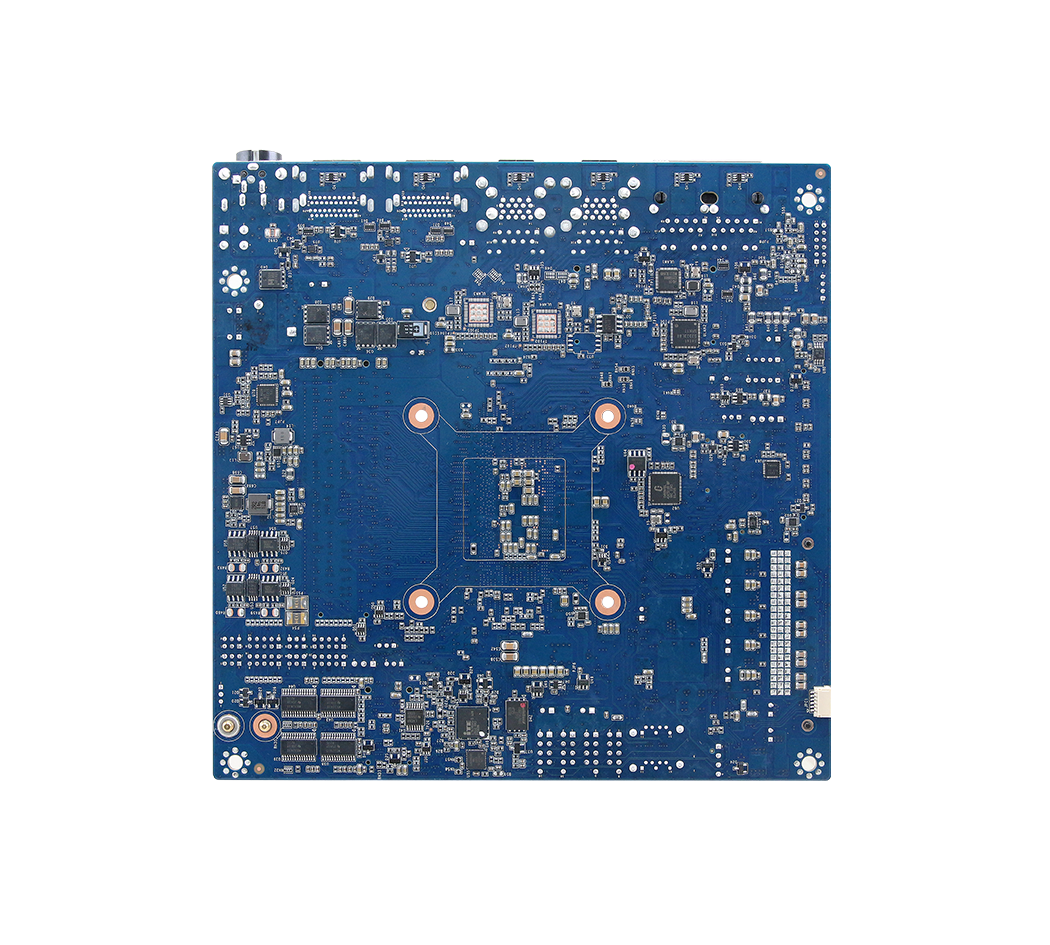

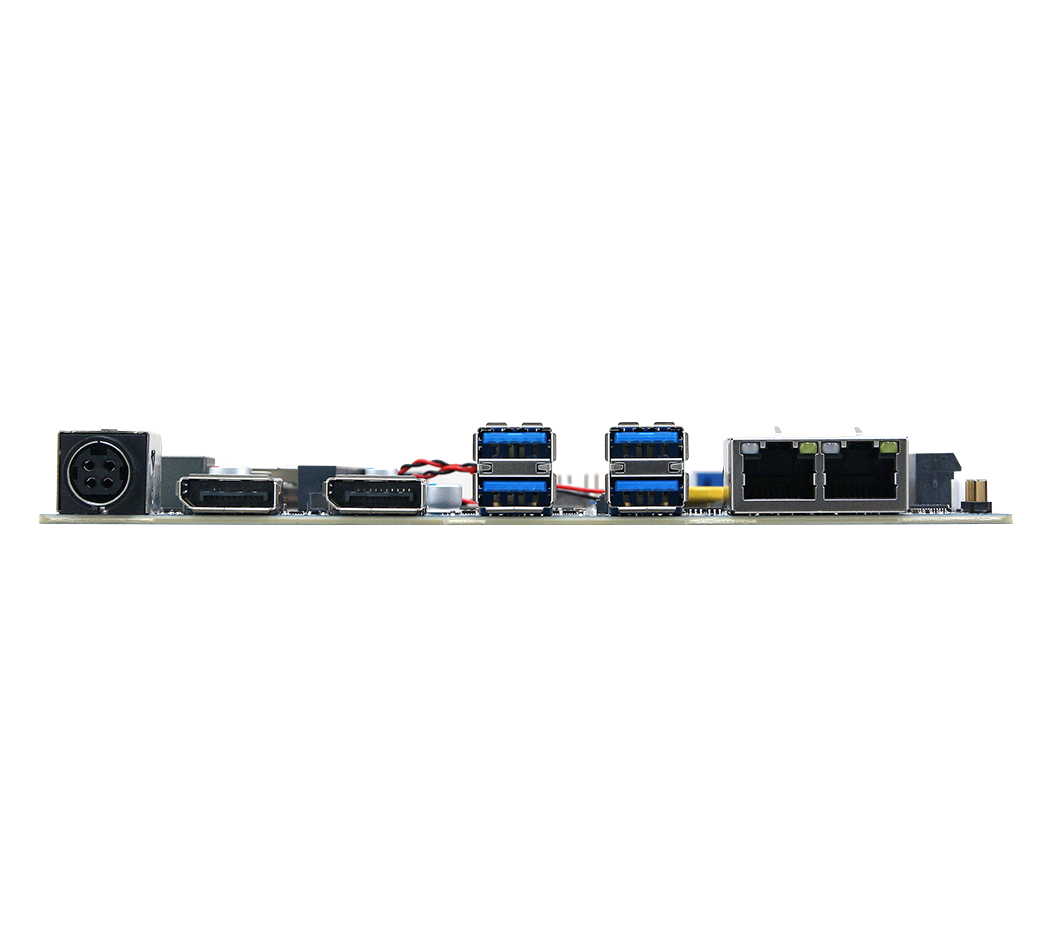

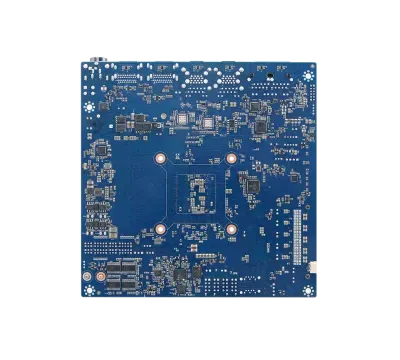

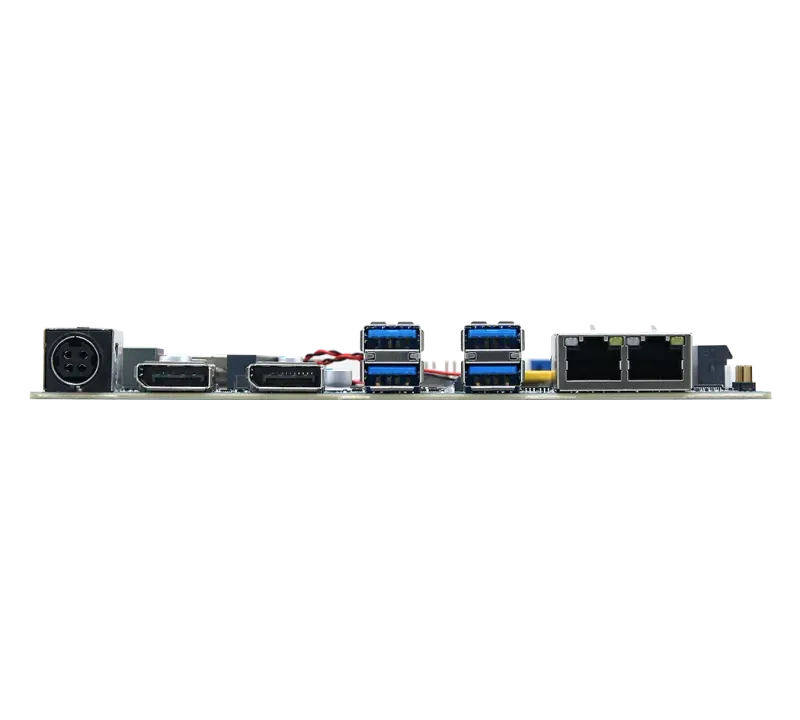

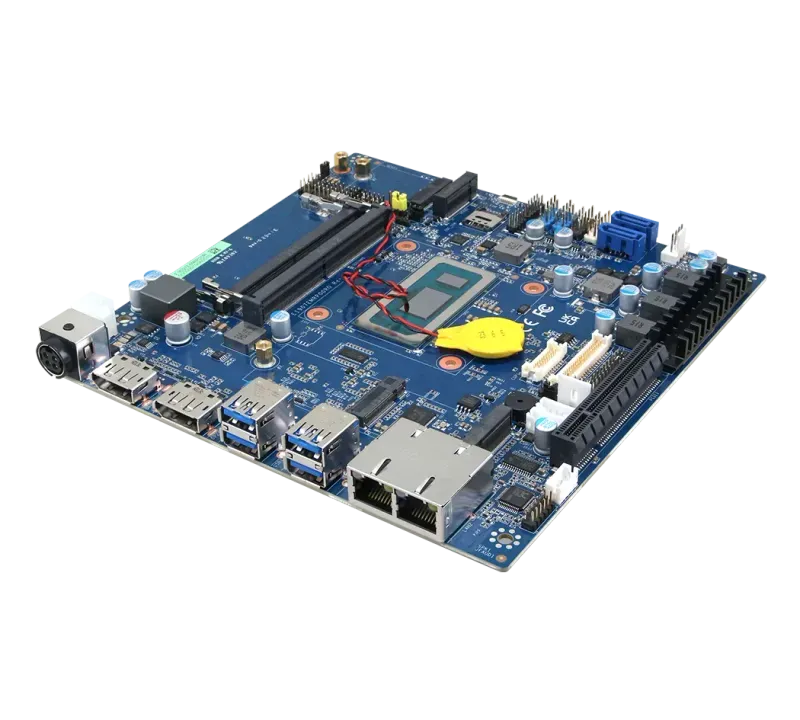

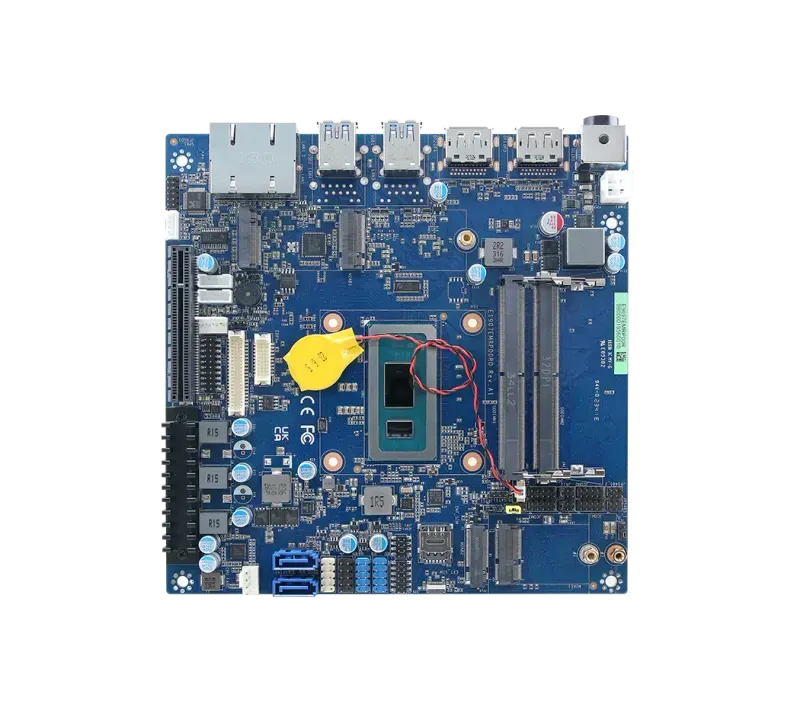

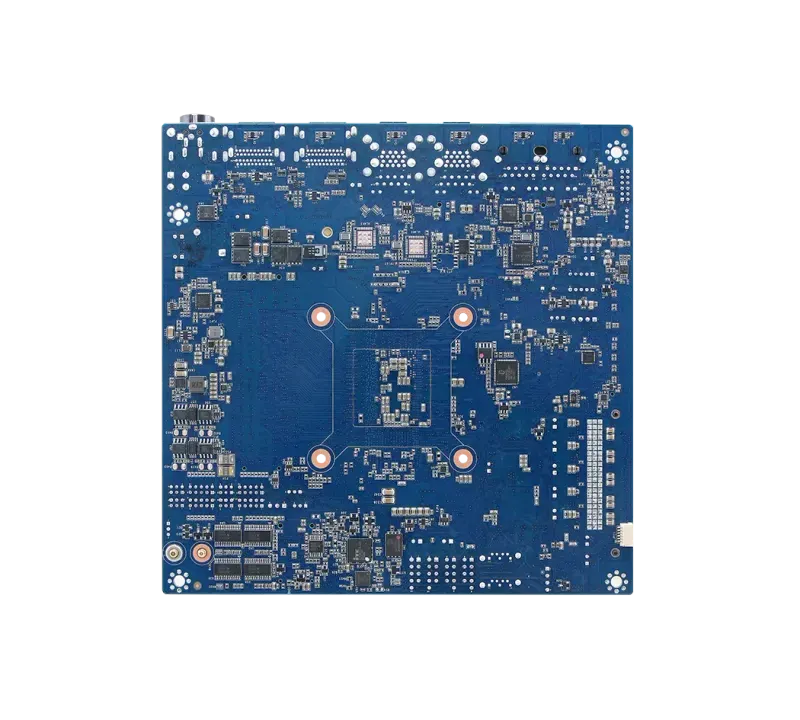

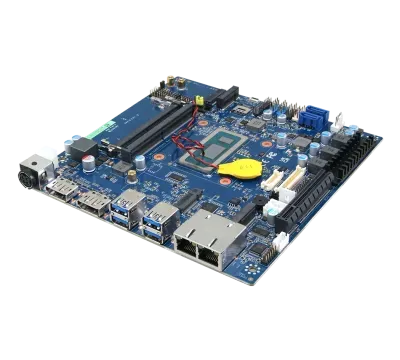

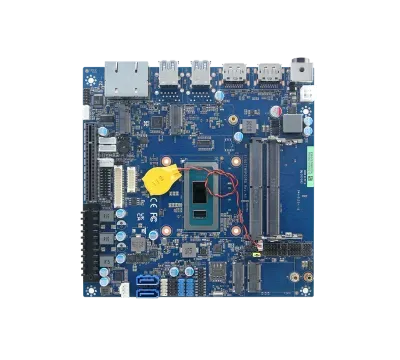

EMX-RPLP

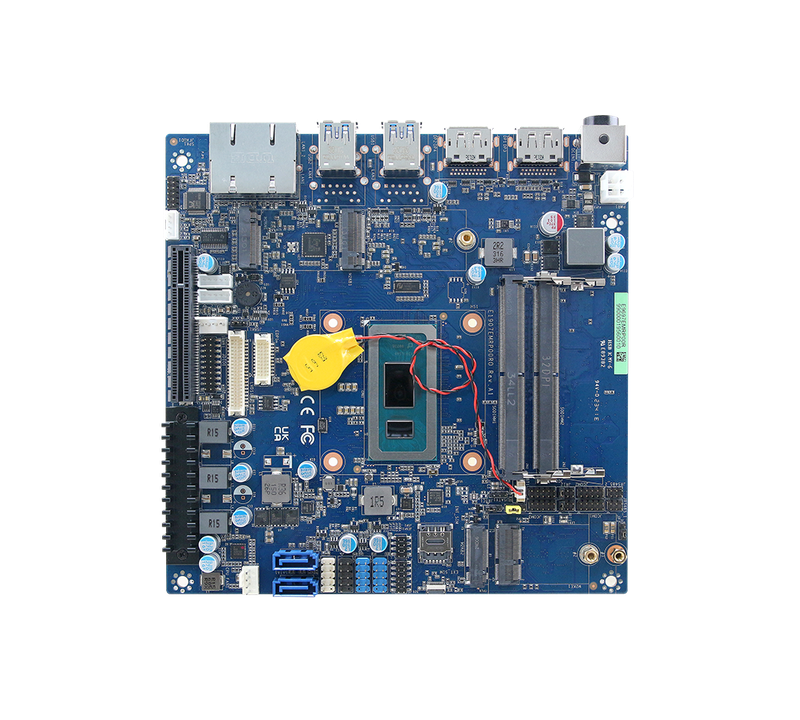

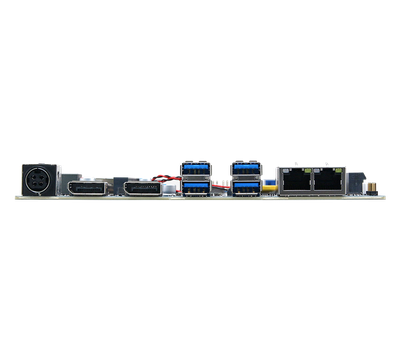

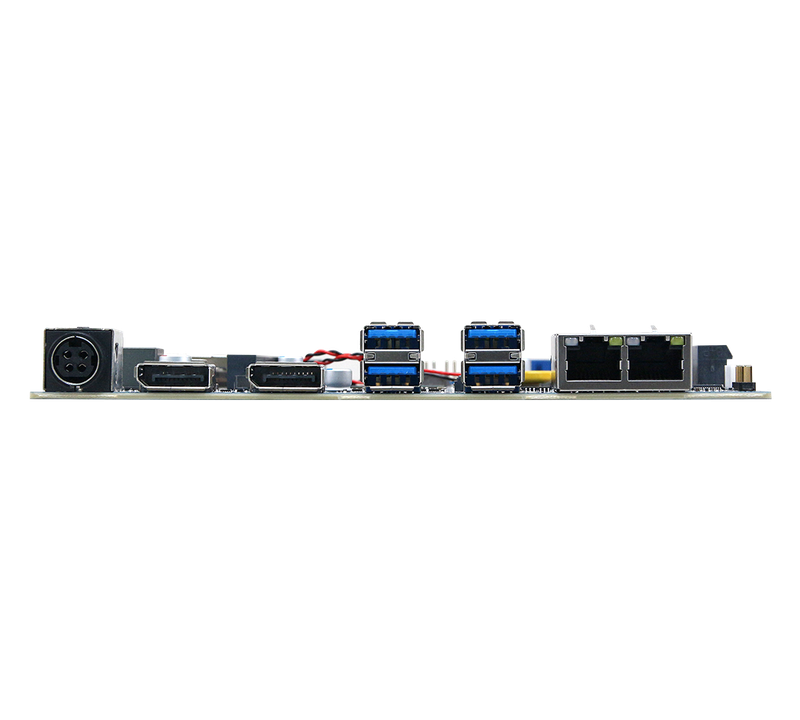

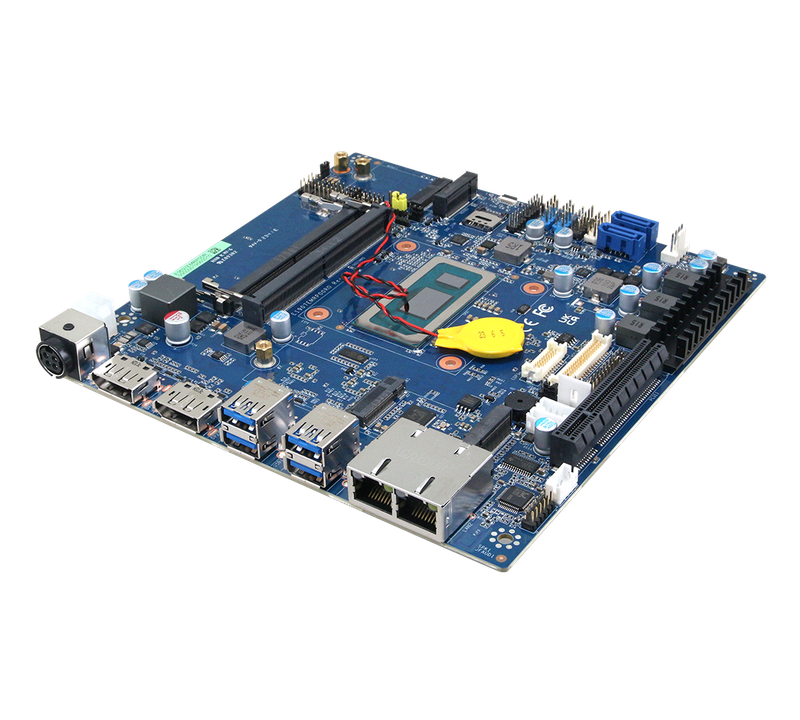

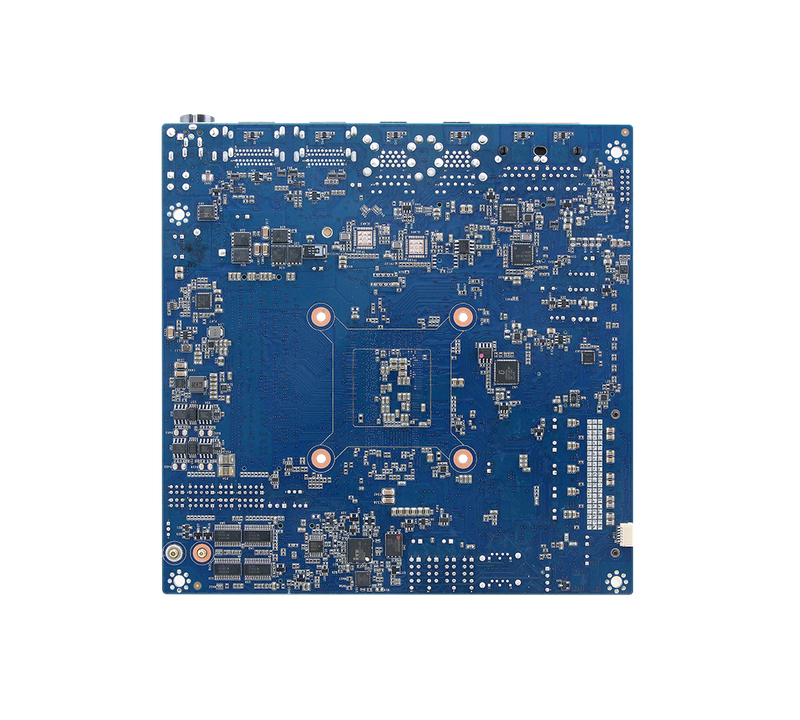

EMX-RPLP FrontEMX-RPLP FrontEMX-RPLP FrontEMX-RPLP Front
EMX-RPLP FrontEMX-RPLP FrontEMX-RPLP FrontEMX-RPLP Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • Onboard 13th Gen. Intel® Core™ SoC i7/i5/i3 & Celeron® BGA Processor
  • 2 x 262-Pin DDR5 4800MHz SO-DIMM Socket Supports Up to 64GB (non ECC only)
  • 2 x DP++, 2 x DP, 1 x LVDS, 1 x eDP (Maximum: 6 for Quadruple Independent Displays)
  • 3 x Intel® I226LM 2.5 Gigabit Ethernet, 1 x Intel® I219LM Gigabit Ethernet PHY
  • 1 x M.2 Type M, 2 x M.2 Type B, 1 x M.2 Type E
  • 2 x USB 3.0 Gen2, 2 x USB 3.0 Gen1, 4 x USB 2.0
  • 6 x COM
  • DC in +12V~24V

Product Description

The Avalue EMX-RPLP is a Mini-ITX motherboard designed for industrial and embedded applications. It supports onboard 13th Gen Intel® Core™ i7/i5/i3 and Celeron® SoC processors, accommodating up to 64GB DDR5 4800MHz SO-DIMM memory.

Key features include quad display outputs (2 x DP++, 2 x DP, 1 x LVDS, 1 x eDP), four Intel® Ethernet ports (3 x i226LM 2.5GbE, 1 x i219LM GbE), multiple USB ports (2 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0), serial interfaces (4 x RS-232, 2 x RS-422/485), GPIOs, and expansion options through PCIe Gen4 slots and various M.2 slots.

With a compact form factor of 170mm x 170mm, wide voltage input range of 12V to 24V DC, and support for Windows and Linux operating systems, the EMX-RPLP offers a robust solution for space-constrained environments.

Technical Specifications

System Information

Processor

Onboard Raptor Lake-P 13th Intel® Core™ SoC i7/i5/i3/Celeron Processor (TDP: 15~45W)

H-Series: 25~45W, P-Series: 20~28W, U-Series: 12~15W

System Memory

2 x 262-Pin DDR5 4800MHz SO-DIMM Socket Supports Up to 64GB (non ECC only)

I/O Chipset

EC iTE IT5782VG

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

Onboard nuvoTon NPCT754AABYX support TPM 2.0

Board

Mini ITX

Display

Multiple Display

2 x DP++/2 x DP/1 x LVDS/1 x eDP

(Maximum: 6 for Quadruple Independent Displays)

Graphic Chipset

Intel® Iris® Xe Graphics (For Core i5 & i7)

Intel® UHD Graphics for 12th Gen Intel® Processors (For Core i3 & Celeron)

Spec. & Resolution

DP1~4 (DP1.4): Max: 7680 x 4329@60Hz

2 x DP++ : 1920 x 1080@60Hz

2 x DP: 4096 x 2304@60Hz

LVDS: 1920 x 1080 Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)

eDP 4096 x 2304@60Hz

*2 x DP++, LVDS, eDP Default (Thin Mini ITX), Optional: DP3 and DP4 for Full Height

(Maximum: 6 for Quadruple Independent Displays)

LVDS

Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)

1 x eDP

Expansion

Expansion

1 x M.2 Type B 3042/3052 (with 1 x PCIe x1 (Default), USB2.0, USB 3.2 Gen2 with 1 x SIM Card Slot Support WWAN+GNSS

1 x M.2 Key E 2230 Support Wi-Fi Module and CNVi (1 x PCIe x1 & USB 2.0 Signal)

1 x M.2 Key B 2242 (SATA Signal, Shared with SATA2) Slot Support SSD Storage

1 x M.2 Key M 2280 (PCIe x4) Slot for Storage NVMe SSD

H-series: 1 x PCIe x8 (Gen4) Slot (with Redriver mux (DS160PR421 3.2US x1 & DS160PR412 3.2US x1)

P/U-series: 1 x PCIe x4 Gen 4 Slot (with Redriver mux (DS160PR421 3.2US x1 & DS160PR412 3.2US x1)

Audio

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Support Line-out & Mic-in & Front Audio Pin-header

Audio Amplifier

2 x 6W 8Ω Amplifier

Ethernet

LAN Chipset

3 x Intel® i226LM 2.5 Gigabit Ethernet (LAN2~4)

1 x Intel® i219LM Gigabit Ethernet PHY

*LAN3~4 for Full height

Ethernet Interface

10/100/1000 Base-Tx GbE compatible & 2.5 Gigabit Ethernet

LAN Port

4 x RJ-45

Software Support

OS

Windows 11, Linux

Certification

Certification Information

CE, FCC, RoHS Compliant

I/O

USB

2 x USB 3.0 Gen2

2 x USB 3.0 Gen1

4 x USB 2.0

COM Port

4 x RS232 (JCOM1 ~ JCOM4)

2 x RS22/485 (JCOM1 and JCOM2, need to modify BIOS Setup settings and change pin header & cable)

SATA

2 x SATA III

1 x SATA Powe

DIO

1 x 16-bit GPIO

Mechanical & Environmental

Operating Temp.

Intel@ standard CPU SKU with fanless support: 0~60°C.

Intel@ wide temperature CPU SKU with CPU cooler support: 15W: -40~80°C / 28W: -40~60°C / 45W: -40~50°C.

With HDD/SSD, ambient with 0.5 m/s Air flow.

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Weight

0.88lbs (0.4Kgs)

Operating Humidity

40°C at 95% relative humidity, non-condensing

Power Mode

AT/ATX (Default Setting: ATX)

Power Requirement

DC in +12V~24V

Ordering Information

Ordering Information

EMX-RPLP-300-A1R (U300E, 15W, Thin, 2LAN2DP, Standard Temp.)

EMX-RPLP-S15-A1R (i3-1315UE, 15W, Thin, 2LAN2DP, Standard Temp.)

EMX-RPLP-S35-A1R (i5-1335UE, 15W, Thin, 2LAN2DP, Standard Temp.)

EMX-RPLP-S65-A1R (i7-1365UE, 15W, Thin, 2LAN2DP, Standard Temp.)

EMX-RPLP-S20-A1R (i3-1320PE, 28W, Thin, 2LAN2DP, Standard Temp.)

EMX-RPLP-S40-A1R (i5-1340PE, 28W, Thin, 2LAN2DP, Standard Temp.)

EMX-RPLP-S30-A1R (i3-13300HE, 45W, Thin, 2LAN2DP, Standard Temp.)

EMX-RPLP-S60-A1R (i5-13600HE, 45W, Thin, 2LAN2DP, Standard Temp.)

EMX-RPLP-W15-A1R (i3-1315URE, 15W, Thin, 2LAN2DP, Wide Temp.)

EMX-RPLP-W45-A1R (i5-1345URE, 15W, Thin, 2LAN2DP, Wide Temp.)

EMX-RPLP-W65-A1R (i7-1365URE, 15W, Thin, 2LAN2DP, Wide Temp.)

EMX-RPLP-W20-A1R (i3-1320PRE, 28W, Full, 4LAN4DP, Wide Temp.)

EMX-RPLP-W50-A1R (i5-1350PRE, 28W, Full, 4LAN4DP, Wide Temp.)

Intel® 13rd Gen. Core™ SoC i7/i5/i3 & Celeron®BGA Processor Mini ITX Motherboard

What is EMX-RPLP?

The EMX-RPLP is a industrial & embedded motherboard manufactured by Avalue, designed specifically for mini-itx applications. The Avalue EMX-RPLP is a Mini-ITX motherboard designed for industrial and embedded applications. It supports onboard 13th Gen Intel® Core™ i7/i5/i3 and Celeron® SoC processors, accommodating up to 64GB DDR5 4800MHz SO-DIMM memory. Key features include quad display outputs (2 x DP++, 2 x DP, 1 x LVDS, 1 x eDP), four Intel® Ethernet ports (3 x i226LM 2.5GbE, 1 x i219LM GbE), multiple USB ports (2 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0), serial interfaces (4 x RS-232, 2 x RS-422/485), GPIOs, and expansion options through PCIe Gen4 slots and various M.2 slots. With a compact form factor of 170mm x 170mm, wide voltage input range of 12V to 24V DC, and support for Windows and Linux operating systems, the EMX-RPLP offers a robust solution for space-constrained environments.

Key Features & Benefits

  • Onboard 13th Gen. Intel® Core™ SoC i7/i5/i3 & Celeron® BGA Processor
  • 2 x 262-Pin DDR5 4800MHz SO-DIMM Socket Supports Up to 64GB (non ECC only)
  • 2 x DP++, 2 x DP, 1 x LVDS, 1 x eDP (Maximum: 6 for Quadruple Independent Displays)
  • 3 x Intel® I226LM 2.5 Gigabit Ethernet, 1 x Intel® I219LM Gigabit Ethernet PHY
  • 1 x M.2 Type M, 2 x M.2 Type B, 1 x M.2 Type E
  • 2 x USB 3.0 Gen2, 2 x USB 3.0 Gen1, 4 x USB 2.0
  • 6 x COM
  • DC in +12V~24V

Applications & Use Cases

The EMX-RPLP is ideal for various industrial automation applications:

  • DC-powered industrial installations and mobile applications
  • High-performance computing and data processing tasks
  • Networked industrial systems and data communication
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Visual monitoring and data display systems
  • Custom industrial computing solutions
  • Industrial and embedded applications
