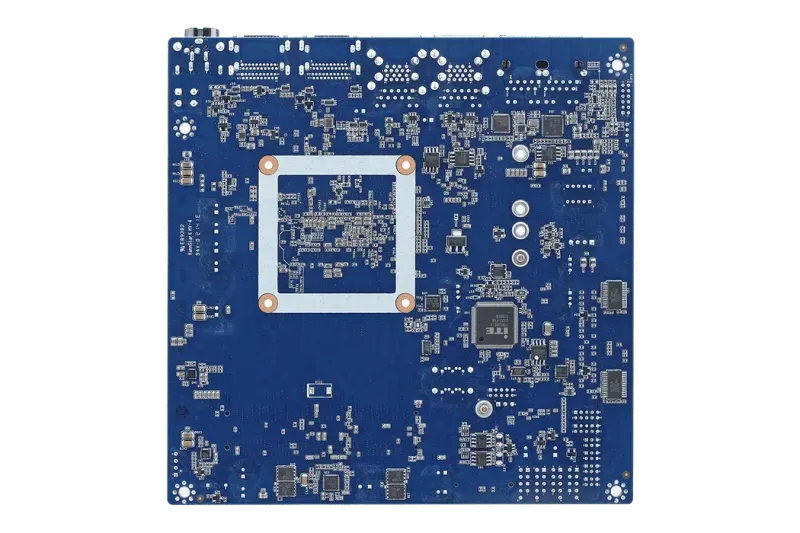

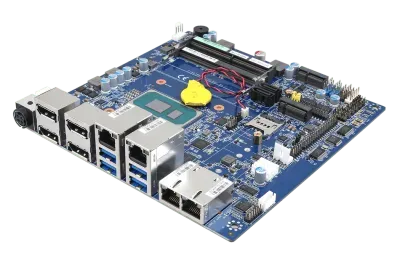

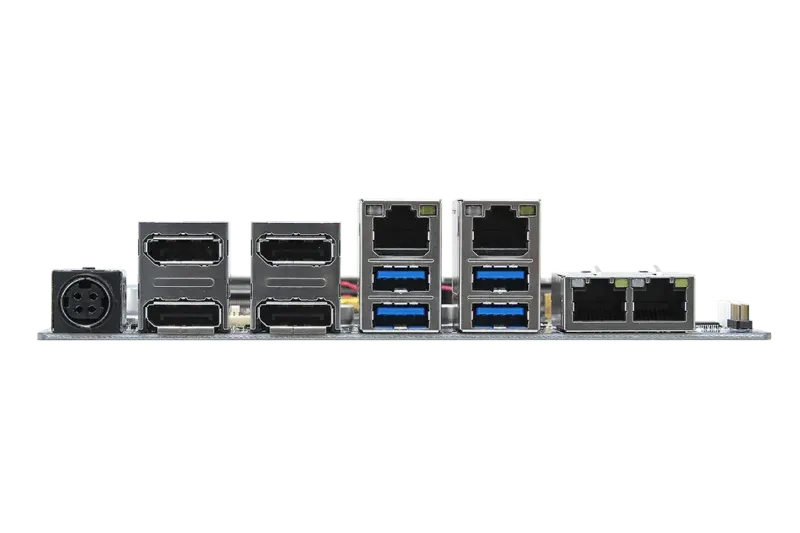

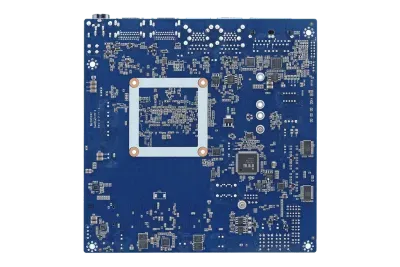

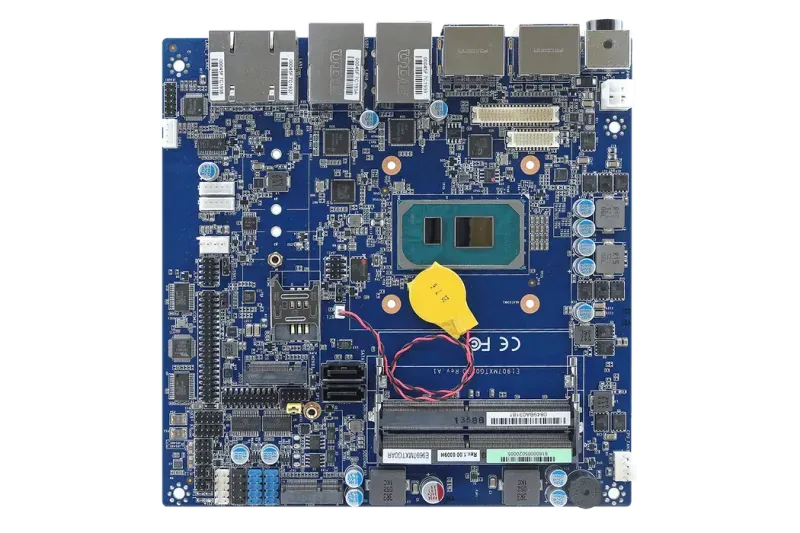

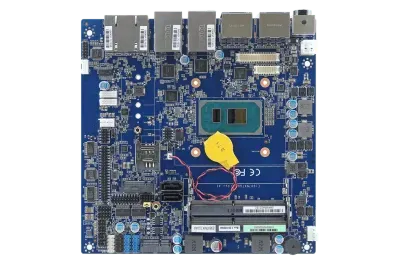

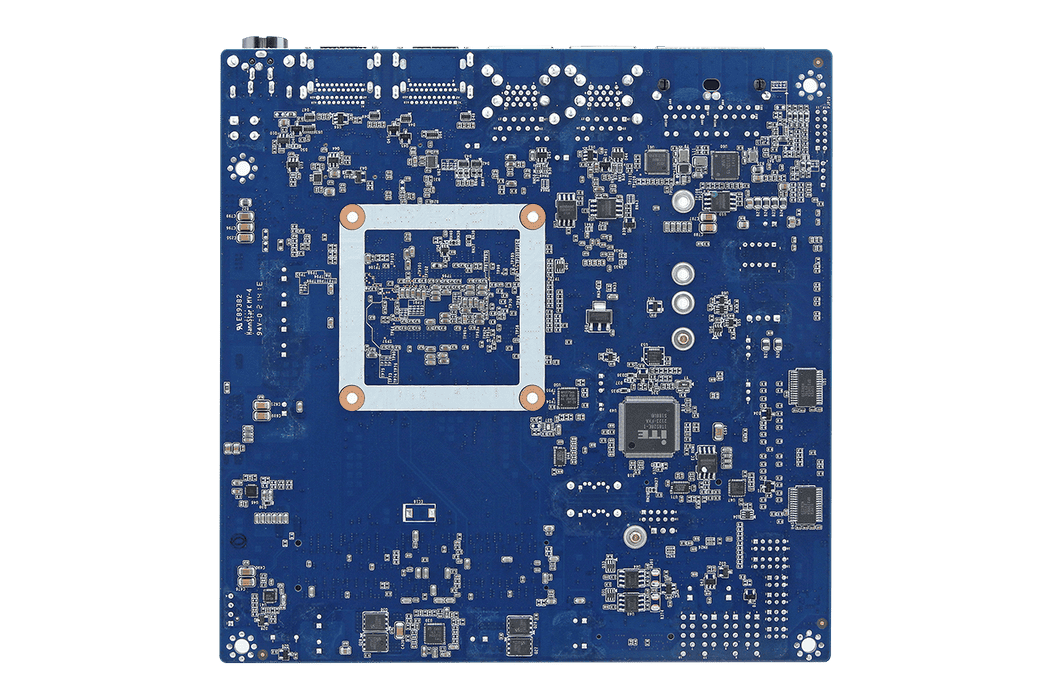

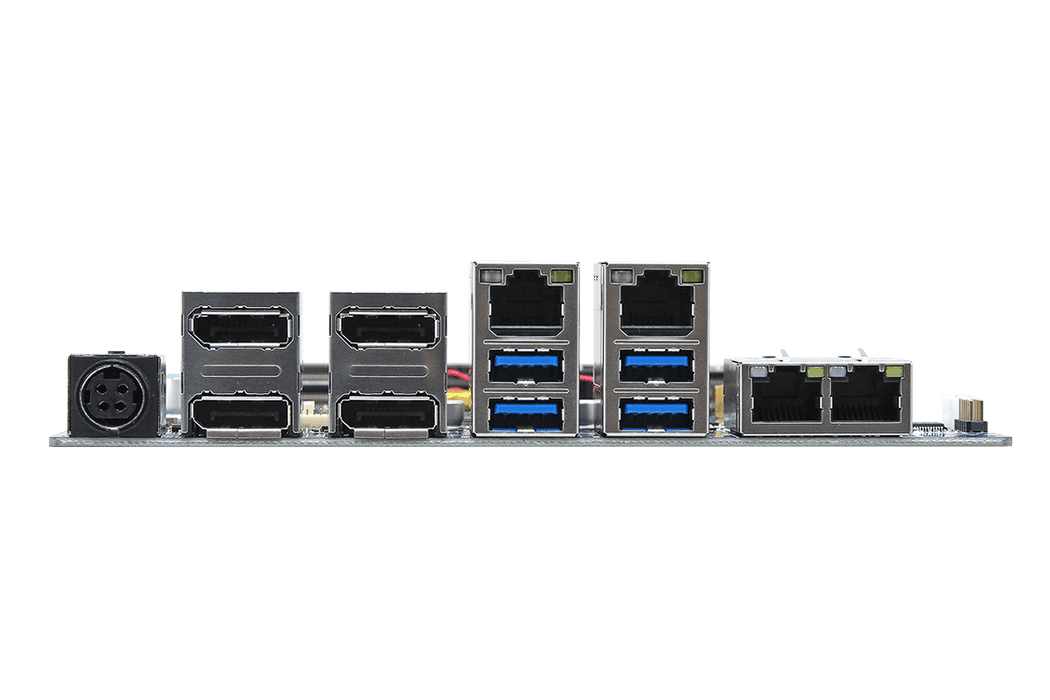

EMX-TGLP

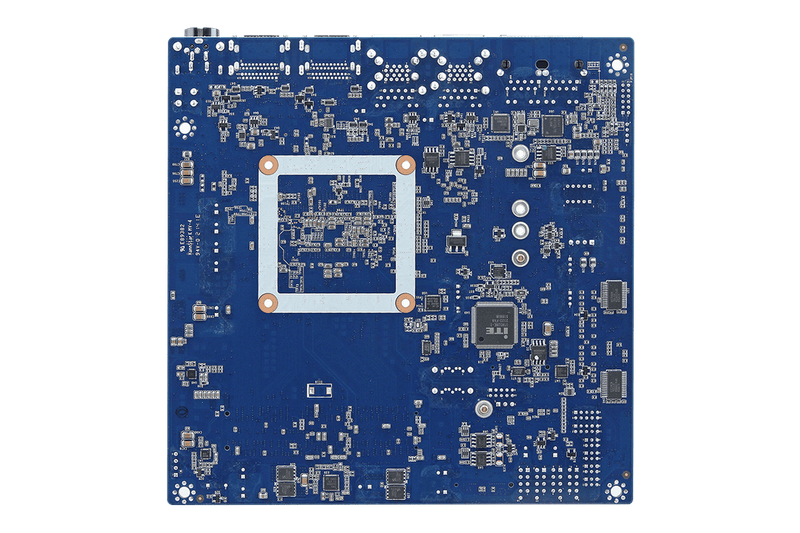

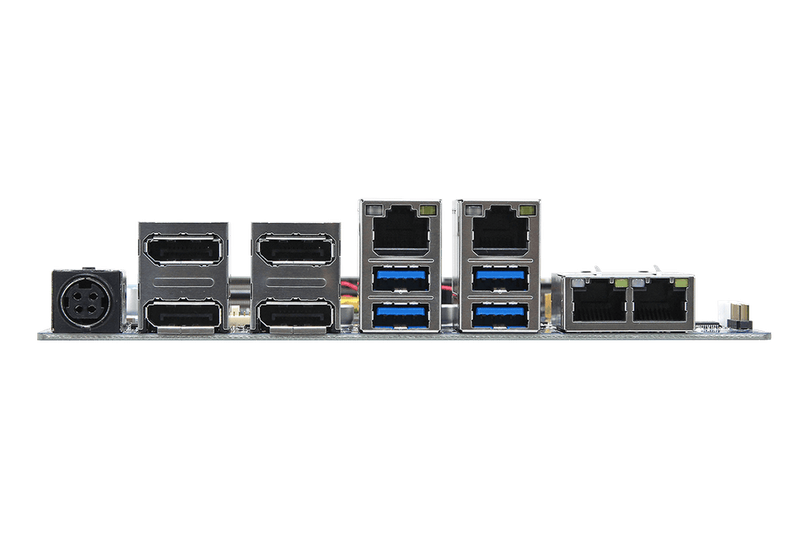

EMX-TGLP FrontEMX-TGLP FrontEMX-TGLP FrontEMX-TGLP Front
EMX-TGLP FrontEMX-TGLP FrontEMX-TGLP FrontEMX-TGLP Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • Onboard 11th Gen. Intel® Core™ SoC i7/i5/i3 & Celeron® BGA Processor
  • 2 x 260-pin DDR4 3200 MHz SO-DIMM Supports up to 64GB (non ECC only)
  • 2 x DP++, 2 x DP, 1 x LVDS, 1 x eDP (Maximum: 6 for quadruple independent displays)
  • 1 x Intel® I219LM, 1 x Intel® I226LM/IT, 2 x Intel® I210AT/IT
  • 3 x USB 3.1 Gen2, 1 x USB 3.1 Gen1, 4 x USB2.0
  • 1 x M.2 Type B 3042/3052/2242/2260/2280, 1 x M.2 Key E 2230
  • 6 x COM
  • DC in +12V~24V

Product Description

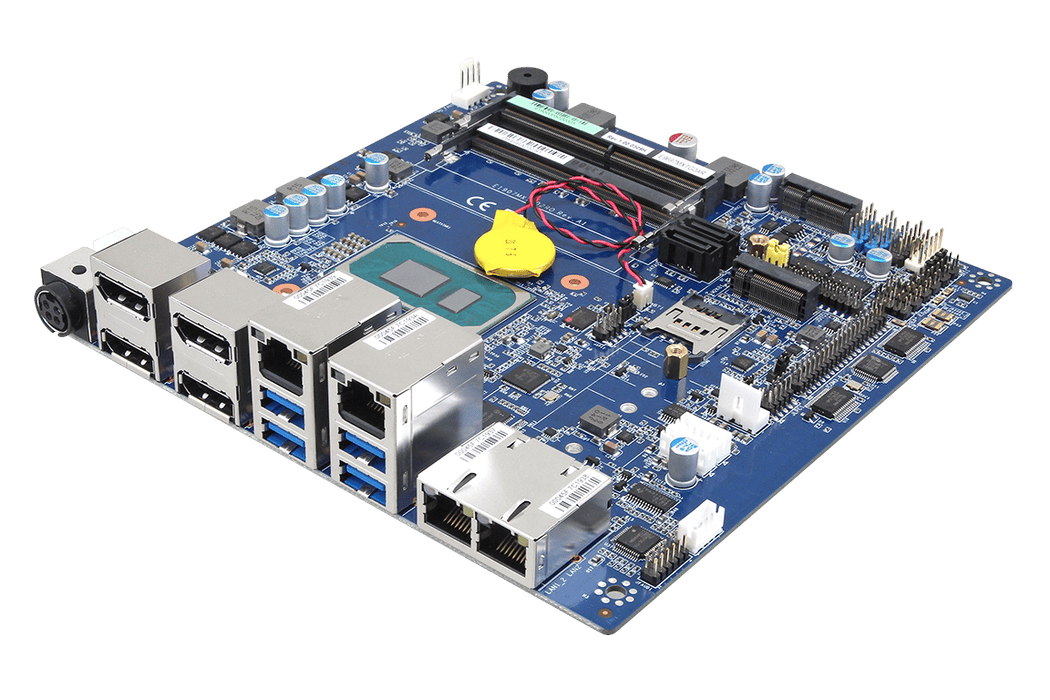

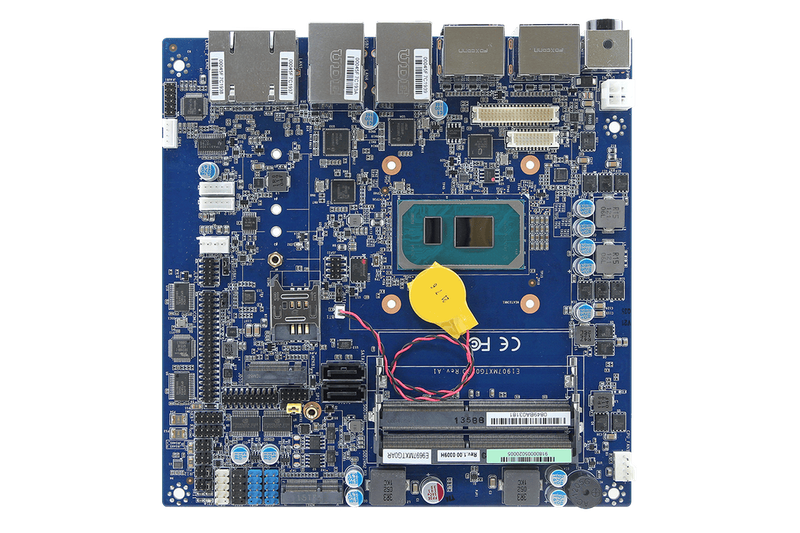

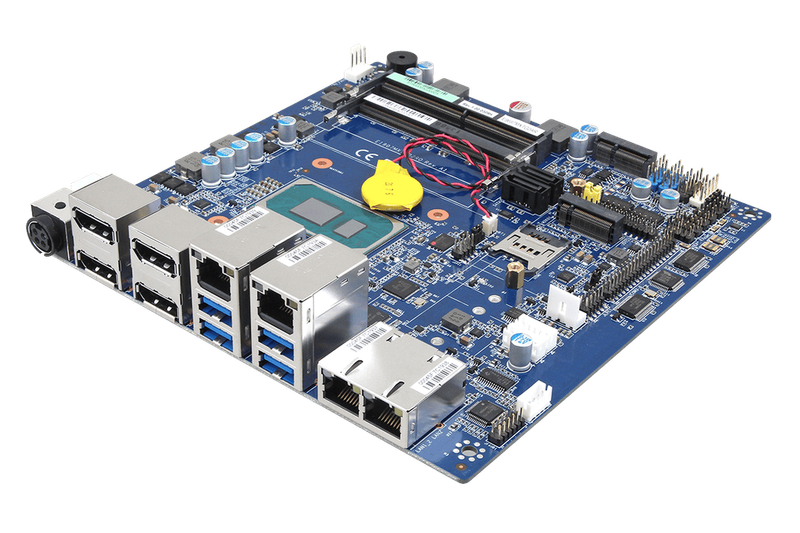

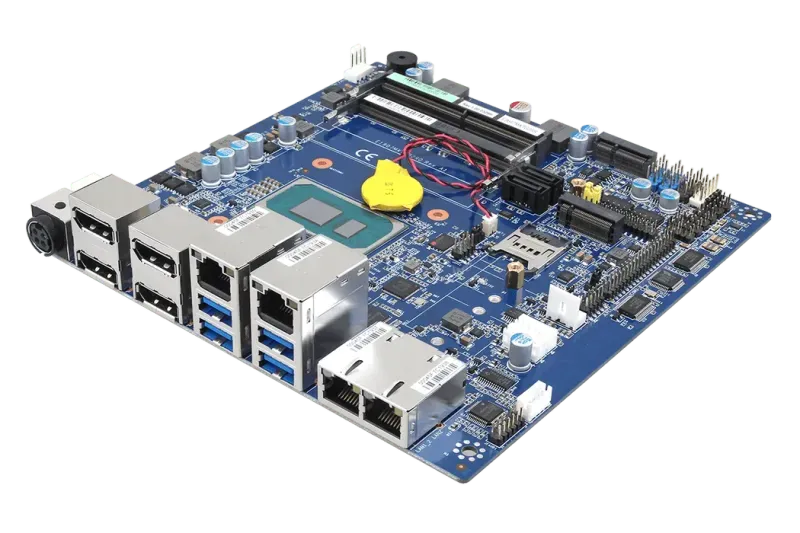

The Avalue EMX-TGLP is a Mini-ITX motherboard designed for industrial and embedded applications. It supports onboard 11th Gen Intel® Core™ i7/i5/i3 and Celeron® SoC processors, accommodating up to 64GB DDR4 3200MHz SO-DIMM memory.

Key features include multiple display outputs (2 x DP++, 2 x DP, 1 x LVDS, 1 x eDP), quad Intel® Ethernet ports (1 x I225IT 2.5GbE, 1 x I219LM GbE, 2 x I210IT GbE), multiple USB ports (3 x USB 3.1 Gen2, 1 x USB 3.1 Gen1, 4 x USB 2.0), serial interfaces (4 x RS-232, 2 x RS-232/422/485), GPIOs, and expansion options through M.2 Type B and M.2 Key E slots.

With a compact form factor of 170mm x 170mm, wide voltage input range of 12V to 24V DC, and support for Windows and Linux operating systems, the EMX-TGLP offers a robust solution for space-constrained environments.

Technical Specifications

System Information

Processor

Intel® Core™ i7-1185G7E, i7-1185GRE (up to 4.4GHz, quad-core, 12M Cache, TDP: 28/15/12W)*

Intel® Core™ i5-1145G7E, i5-1145GRE (up to 4.1GHz, quad-core, 8M Cache, TDP: 28/15/12W)*

Intel® Core™ i3-1115G4E, i3-1115GRE (up to 3.9GHz, dual-core, 6M Cache, TDP: 28/15/12W)*

Intel® Celeron® 6305E (up to 1.8GHz, dual-core, 4M Cache, TDP: 15W)

System Memory

2 x 260-Pin DDR4 3200MHz SO-DIMM Socket Supports Up to 64GB (non ECC only)

I/O Chipset

EC iTE IT8528E

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

Onboard nuvoTon NPCT754AADYX support TPM 2.0

Board

Mini ITX

Display

Multiple Display

2 x DP++/2 x DP++/1 x LVDS/1 x eDP

(Maximum: 6 for Quadruple Independent Displays)

Graphic Chipset

Intel® 12th Generation CPU Integrated

Spec. & Resolution

DP1+DP2 (DP1.4): Max: 7680 x 4329@60Hz

DP3+DP4 (DP1.4): Max: 7680 x 4329@60Hz

Single DP port (2021/2 Lab test): 5120 x 2160@60Hz, Check Max: 7680 x 4329@60Hz

Intel resolution as below:

2 x DP++ : 1920 x 1080@60Hz

2 x DP: 4096 x 2304@60Hz

LVDS: 1920 x 1080 Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)

eDP 4096 x 2304@60Hz

*2 x DP++, LVDS, eDP Default (Thin Mini ITX), Optional: DP3 and DP4 for Full Height

(Maximum: 6 for Quadruple Independent Displays)

LVDS

Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)

1 x eDP

Expansion

Expansion

1 x M.2 Type B 3042/3052/2242/2260/2280 (with 1 x PCIe x1 (Default) or SATA, USB 3.0 with 1 x SIM Card Slot, Support WWAN+GNSS or NVMe SSD

*SATA 2 Share with M.2 key B SATA

1 x M.2 Key E 2230 Support WiFi Module and CNVi (1 x PCIe x1 & USB 2.0 Signal)

Audio

Audio Codec

Realtek ALC888S co-lay ALC897 & Tempo 92HD73 HD Audio Decoding Controller (Default ALC897)

Audio Interface

Support Line-out & Mic-in & Front Audio Pin-header

Audio Amplifier

2 x 6W 8Ω Amplifier

Ethernet

LAN Chipset

1 x Intel® I225IT 2.5 Gigabit Ethernet

1 x Intel® I219LM Gigabit Ethernet PHY

2 x Intel® I210IT Gigabit Ethernet (BOM optional)

Ethernet Interface

10/100/1000 Base-Tx GbE compatible & 2.5 Gigabit Ethernet

LAN Port

4 x RJ-45

Software Support

OS

Windows 10, Linux

Certification

Certification Information

CE, FCC, RoHS Compliant

I/O

USB

3 x USB 3.1 Gen2

1 x USB 3.1 Gen1

4 x USB2.0

COM Port

4 x RS232

2 x RS-232/422/485

SATA

2 x SATA III

1 x SATA Power

DIO

1 x 16-bit GPIO

Mechanical & Environmental

Operating Temp.

Intel@ wide temperature CPU SKU Support: -20~60°C

Intel@ standard CPU SKU support: 0~60°C

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Weight

0.88lbs (0.4Kgs)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Power Mode

AT/ATX (Default Setting: ATX)

Power Requirement

DC in +12V~24V

Ordering Information

Ordering Information

EMX-TGLP-S05-A2R (6305E, 15W, Thin, 2DP/2LAN, Standard Temp.)

EMX-TGLP-S15-A2R (i3-1115G4E, 15W, Thin, 2DP/2LAN, Standard Temp.)

EMX-TGLP-S45-A2R (i5-1145G7E, 15W, Thin, 2DP/2LAN, Standard Temp.)

EMX-TGLP-S85-A2R (i7-1185G7E, 15W, Thin, 2DP/2LAN, Standard Temp.)

EMX-TGLP-W15-A2-1R (i3-1115GRE, 15W, Thin, 2DP/2LAN, Wide Temp.)

EMX-TGLP-W45-A2-1R (i5-1145GRE, 15W, Thin, 2DP/2LAN, Wide Temp.)

EMX-TGLP-W85-A2-1R (I7-1185GRE, 15W, Thin, 2DP/2LAN, Wide Temp.)

EMX-TGLP-W15-A2R (i3-1115GRE, 28W, Full, 4DP/4LAN, Wide Temp.)

EMX-TGLP-W45-A2R (i5-1145GRE, 28W, Full, 4DP/4LAN, Wide Temp.)

EMX-TGLP-W85-A2R (i7-1185GRE, 28W, Full, 4DP/4LAN, Wide Temp.)

Intel® 11th Gen. Core™ SoC i7/i5/i3 & Celeron®BGA Processor Mini ITX Motherboard

What is EMX-TGLP?

The EMX-TGLP is a industrial & embedded motherboard manufactured by Avalue, designed specifically for mini-itx applications. The Avalue EMX-TGLP is a Mini-ITX motherboard designed for industrial and embedded applications. It supports onboard 11th Gen Intel® Core™ i7/i5/i3 and Celeron® SoC processors, accommodating up to 64GB DDR4 3200MHz SO-DIMM memory. Key features include multiple display outputs (2 x DP++, 2 x DP, 1 x LVDS, 1 x eDP), quad Intel® Ethernet ports (1 x I225IT 2.5GbE, 1 x I219LM GbE, 2 x I210IT GbE), multiple USB ports (3 x USB 3.1 Gen2, 1 x USB 3.1 Gen1, 4 x USB 2.0), serial interfaces (4 x RS-232, 2 x RS-232/422/485), GPIOs, and expansion options through M.2 Type B and M.2 Key E slots. With a compact form factor of 170mm x 170mm, wide voltage input range of 12V to 24V DC, and support for Windows and Linux operating systems, the EMX-TGLP offers a robust solution for space-constrained environments.

Key Features & Benefits

  • Onboard 11th Gen. Intel® Core™ SoC i7/i5/i3 & Celeron® BGA Processor
  • 2 x 260-pin DDR4 3200 MHz SO-DIMM Supports up to 64GB (non ECC only)
  • 2 x DP++, 2 x DP, 1 x LVDS, 1 x eDP (Maximum: 6 for quadruple independent displays)
  • 1 x Intel® I219LM, 1 x Intel® I226LM/IT, 2 x Intel® I210AT/IT
  • 3 x USB 3.1 Gen2, 1 x USB 3.1 Gen1, 4 x USB2.0
  • 1 x M.2 Type B 3042/3052/2242/2260/2280, 1 x M.2 Key E 2230
  • 6 x COM
  • DC in +12V~24V

Applications & Use Cases

The EMX-TGLP is ideal for various industrial automation applications:

  • DC-powered industrial installations and mobile applications
  • High-performance computing and data processing tasks
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Visual monitoring and data display systems
  • Custom industrial computing solutions
  • Industrial and embedded applications
  • Industrial automation platforms
