Avalue · Industrial & Embedded Motherboard

EMD8216LE

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

Over-voltage and over-current protection on digital I/O
Various IO combinations : 16-bit configurable input or output
Input counter function
High drive capacity on digital output
IP Re-Assignment
UDP and MODBUS TCP protocol
Peer to peer response time < 1ms
Standalone control function : step sequence control instruction, device to device
communication
Software key function

Product Description

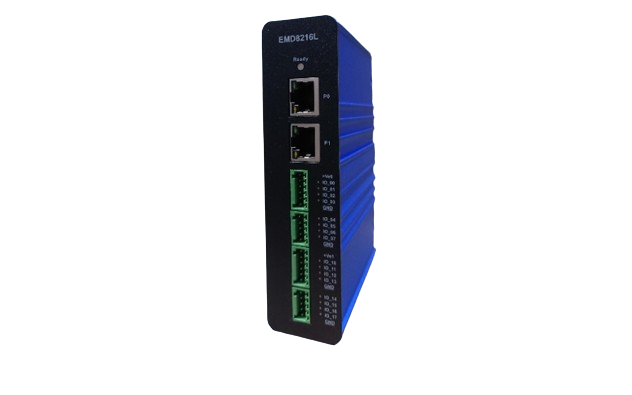

The Avalue EMD8216LE is a robust Ethernet Digital Input/Output (DIO) module equipped with 16 configurable channels, each featuring LED indicators for real-time status monitoring.

Designed for industrial automation applications, this module provides over-voltage and over-current protection, ensuring reliable operation in demanding environments. Its high drive capacity on digital outputs makes it suitable for various industrial control systems.

Technical Specifications

Input points

max 16 with LED (Configurable)

Logic high level

3.15V(min)

Logic low level

1.35V(max)

Over-voltage protection

60Vdc(max)

Over-current protection

50mA(max)

Transistor output

max 16 with LED (Configurable)

Transistor capacity

50mA, 45Vdc(max)

Specification

10/100M auto switch x 2 port

Power requirement

12Vdc ~ 48Vdc

Operation Temperature

0°C ~ 70°C (32°F ~ 158°F)

Dimension

170mmx125mmx36mm

Ordering Information

ACC-DIO-ETH-01Rl

What is EMD8216LE?

The EMD8216LE is a industrial & embedded motherboard manufactured by Avalue, designed specifically for motherboard-embedded-peripheral applications. The Avalue EMD8216LE is a robust Ethernet Digital Input/Output (DIO) module equipped with 16 configurable channels, each featuring LED indicators for real-time status monitoring. Designed for industrial automation applications, this module provides over-voltage and over-current protection, ensuring reliable operation in demanding environments. Its high drive capacity on digital outputs makes it suitable for various industrial control systems.

Key Features & Benefits

Over-voltage and over-current protection on digital I/O
Various IO combinations : 16-bit configurable input or output
Input counter function
High drive capacity on digital output
IP Re-Assignment
UDP and MODBUS TCP protocol
Peer to peer response time < 1ms
Standalone control function : step sequence control instruction, device to device
communication
Software key function

Applications & Use Cases

The EMD8216LE is ideal for various industrial automation applications:

Custom industrial computing solutions
Industrial automation applications
Industrial automation platforms
Embedded system development
Control system integration
