What are the key features of the EPM-1603 embedded peripheral?

The EPM-1603 features multiple analog inputs, high accuracy, and robust industrial design.

What applications is the EPM-1603 suitable for?

It is ideal for data acquisition, process monitoring, and embedded measurement systems.

What are embedded peripherals and what are their typical applications?

Embedded peripherals are modular I/O and interface boards designed to expand the capabilities of embedded and industrial systems. They are used in automation, data acquisition, process control, and machine monitoring.

What are the advantages of using embedded peripherals?

They provide flexible I/O expansion, industrial-grade reliability, and easy integration with a wide range of embedded platforms.

What is the typical power input for embedded peripherals?

Most embedded peripherals support wide voltage input ranges (e.g., 9-36V DC) and are designed for low power consumption.

What communication interfaces are supported by embedded peripherals?

Common interfaces include RS-232/422/485, USB, Ethernet, CAN, and GPIO, depending on the model.

Are embedded peripherals compatible with standard industrial protocols?

Many models support protocols such as Modbus, CANopen, and EtherCAT for seamless integration.

What is the operating temperature range for embedded peripherals?

Most models support industrial temperature ranges, typically -40°C to +85°C.

How do I install an embedded peripheral in my system?

Most peripherals support DIN-rail, panel, or board-level mounting. Refer to the product manual for detailed installation steps.

What drivers or software are required for embedded peripherals?

Drivers and SDKs are usually provided for Windows and Linux platforms. Check the product page for downloads and documentation.

How do I connect embedded peripherals to my host system?

Use the appropriate interface cable (USB, serial, Ethernet, etc.) and ensure correct configuration in your system BIOS or OS.

What should I do if my embedded peripheral is not detected?

Check power supply, cable connections, and ensure drivers are properly installed. Try connecting to a different port or system if possible.

How can I update the firmware on my embedded peripheral?

Refer to the product manual for firmware update instructions. Updates are typically performed via USB or serial interface using vendor tools.

What steps should I take if I experience communication errors?

Verify interface settings (baud rate, parity, etc.), check for cable or connector damage, and ensure proper grounding and EMC protection.

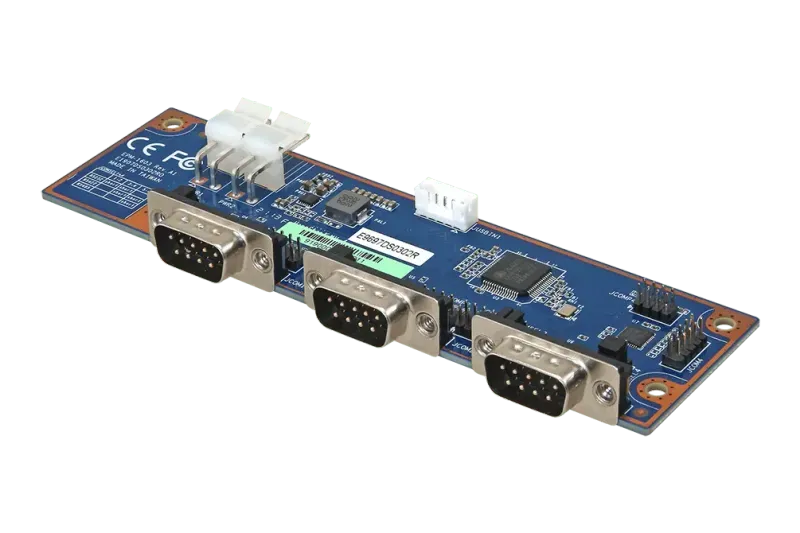

Avalue EPM-1603 USB to 4-Port RS-232/422/485 Module |...

Product Description

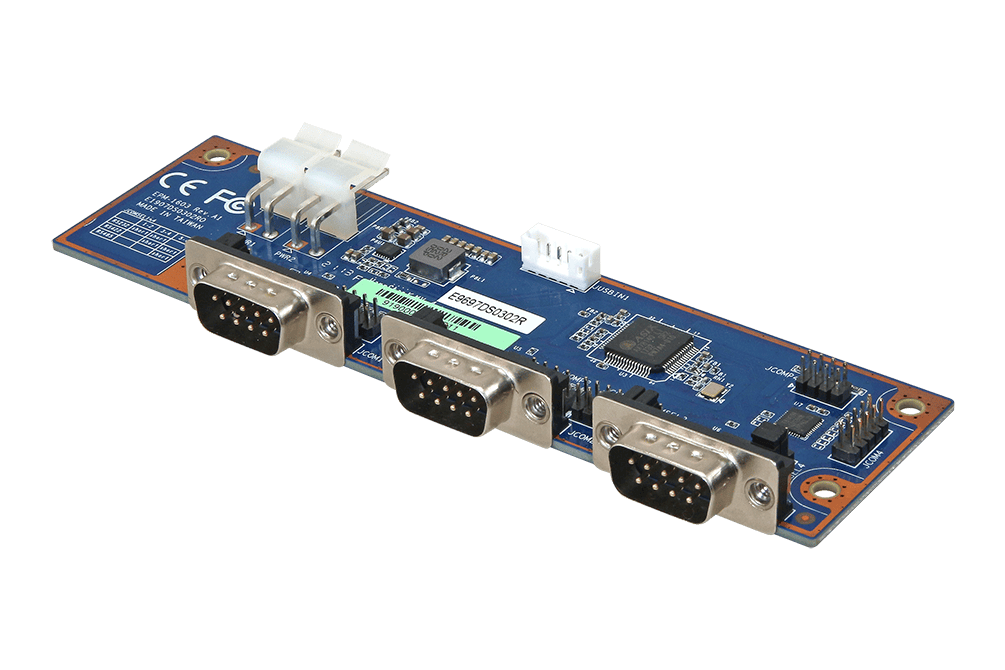

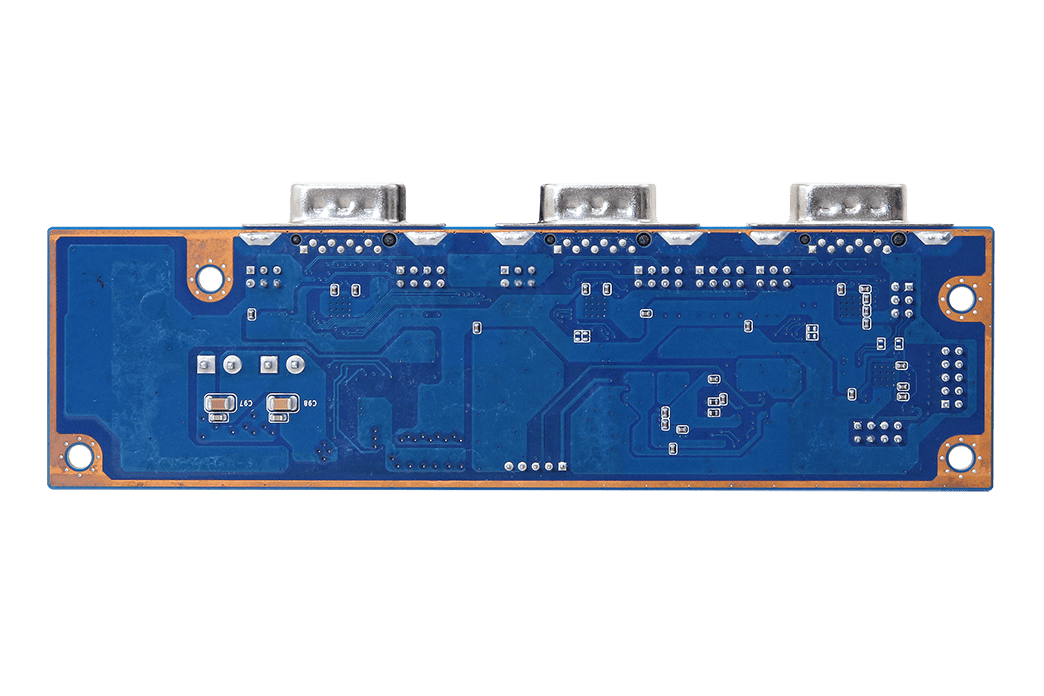

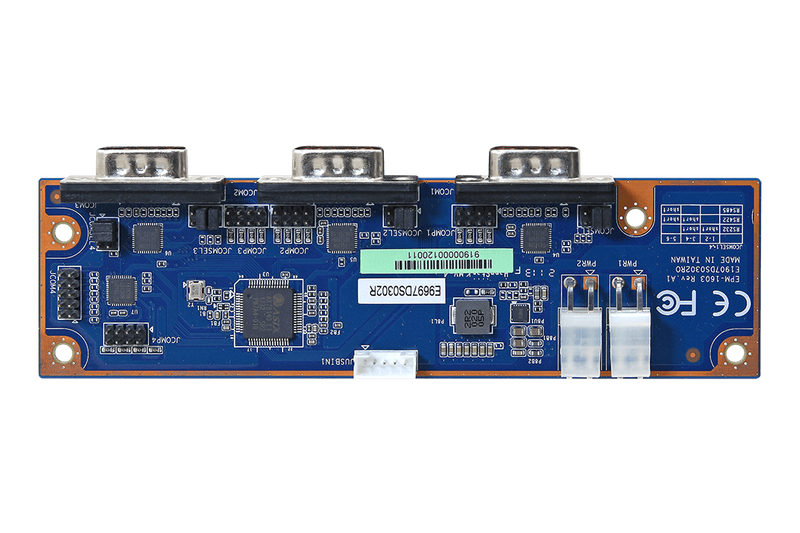

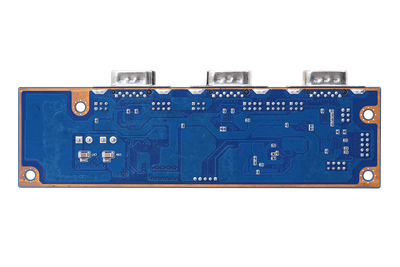

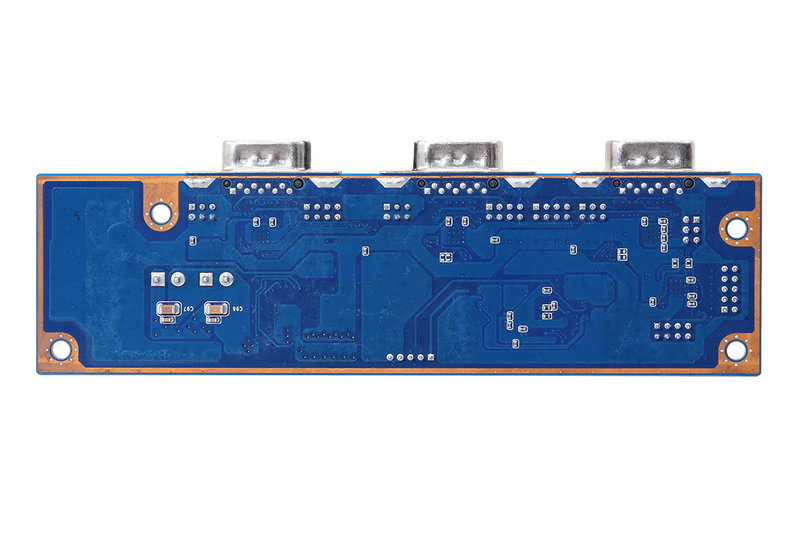

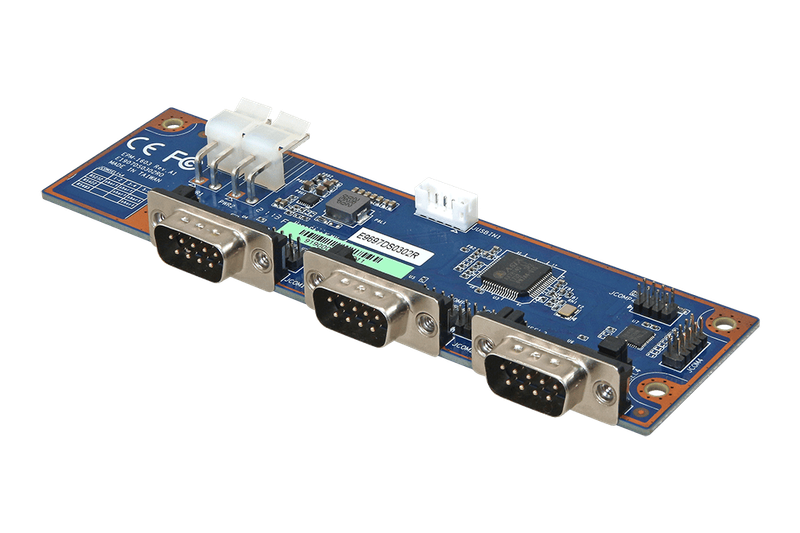

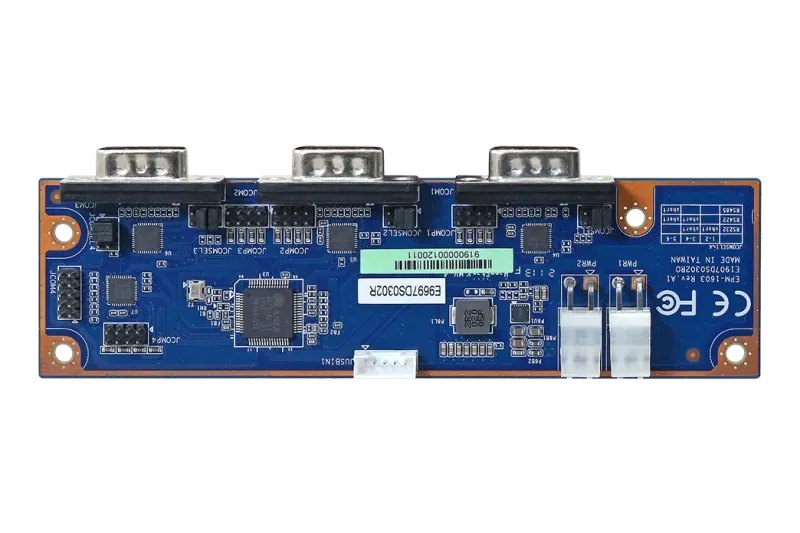

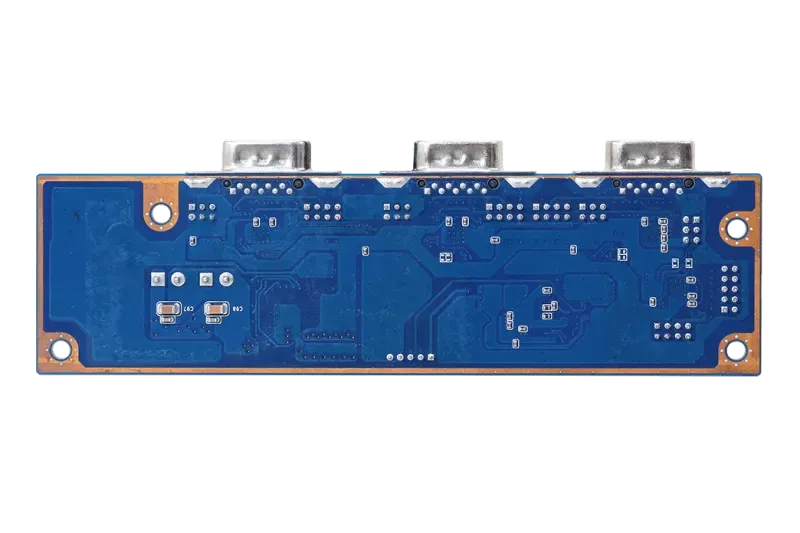

The Avalue EPM-1603 is a USB to 4-port RS-232/422/485 module designed for industrial and embedded applications. It provides four serial ports via a single USB 2.0 interface, facilitating seamless connectivity for multiple serial devices.

The module operates within a wide temperature range of -40°C to +85°C and features a compact design measuring 142mm x 40mm. With vibration resistance of 5G @ 5~500Hz and shock resistance of 10G @ 11ms, the EPM-1603 ensures reliable performance in harsh environments.

Compatible with Windows 7/10 and Linux, it's an excellent choice for industrial automation, transportation, and manufacturing systems.

Technical Specifications

Power Requirement

Power Consumption

1.69W (26Vx65mA)

I/O

Output Interface

4x RS-232/422/485

Input Interface

1x USB2.0

Mechanical & Environmental

Dimension

142 mm x 40 mm

Operating Temp.

-40°C ~ +85°C

Storage Temp.

-55~+95°C

Vibration Test

5G @5~500Hz

Shock Test.

10G @ 11ms

Software Support

OS

Windows 7/10 and Linux

What is EPM-1603?

The EPM-1603 is a industrial & embedded motherboard manufactured by Avalue, designed specifically for motherboard-embedded-peripheral applications. The Avalue EPM-1603 is a USB to 4-port RS-232/422/485 module designed for industrial and embedded applications. It provides four serial ports via a single USB 2.0 interface, facilitating seamless connectivity for multiple serial devices. The module operates within a wide temperature range of -40°C to +85°C and features a compact design measuring 142mm x 40mm. With vibration resistance of 5G @ 5~500Hz and shock resistance of 10G @ 11ms, the EPM-1603 ensures reliable performance in harsh environments. Compatible with Windows 7/10 and Linux, it's an excellent choice for industrial automation, transportation, and manufacturing systems.

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The EPM-1603 is ideal for various industrial automation applications:

Manufacturing and production line applications
Custom industrial computing solutions
Industrial and embedded applications
Transportation and logistics systems
Industrial automation platforms
Embedded system development
Control system integration
