What are the key features of the EPM-1605 embedded peripheral?

The EPM-1605 offers digital and analog I/O, flexible configuration, and robust EMC protection.

What applications is the EPM-1605 suitable for?

It is used in industrial automation, test systems, and embedded control.

What are embedded peripherals and what are their typical applications?

Embedded peripherals are modular I/O and interface boards designed to expand the capabilities of embedded and industrial systems. They are used in automation, data acquisition, process control, and machine monitoring.

What are the advantages of using embedded peripherals?

They provide flexible I/O expansion, industrial-grade reliability, and easy integration with a wide range of embedded platforms.

What is the typical power input for embedded peripherals?

Most embedded peripherals support wide voltage input ranges (e.g., 9-36V DC) and are designed for low power consumption.

What communication interfaces are supported by embedded peripherals?

Common interfaces include RS-232/422/485, USB, Ethernet, CAN, and GPIO, depending on the model.

Are embedded peripherals compatible with standard industrial protocols?

Many models support protocols such as Modbus, CANopen, and EtherCAT for seamless integration.

What is the operating temperature range for embedded peripherals?

Most models support industrial temperature ranges, typically -40°C to +85°C.

How do I install an embedded peripheral in my system?

Most peripherals support DIN-rail, panel, or board-level mounting. Refer to the product manual for detailed installation steps.

What drivers or software are required for embedded peripherals?

Drivers and SDKs are usually provided for Windows and Linux platforms. Check the product page for downloads and documentation.

How do I connect embedded peripherals to my host system?

Use the appropriate interface cable (USB, serial, Ethernet, etc.) and ensure correct configuration in your system BIOS or OS.

What should I do if my embedded peripheral is not detected?

Check power supply, cable connections, and ensure drivers are properly installed. Try connecting to a different port or system if possible.

How can I update the firmware on my embedded peripheral?

Refer to the product manual for firmware update instructions. Updates are typically performed via USB or serial interface using vendor tools.

What steps should I take if I experience communication errors?

Verify interface settings (baud rate, parity, etc.), check for cable or connector damage, and ensure proper grounding and EMC protection.

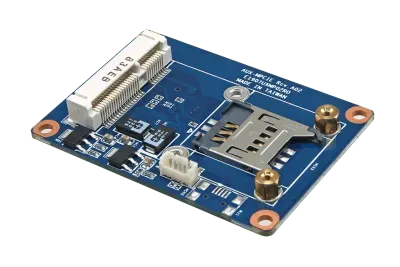

Avalue EPM-1605 USB to mPCIe Module with USIM

Product Description

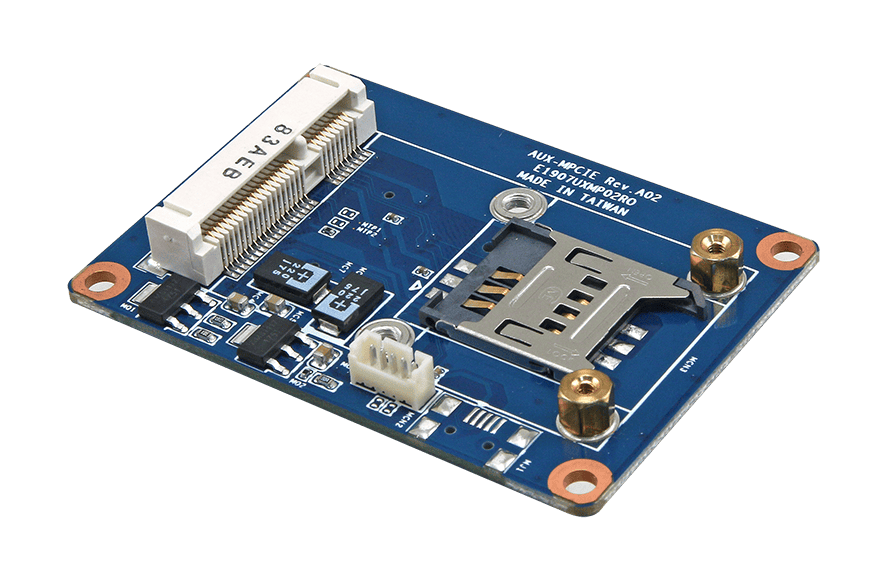

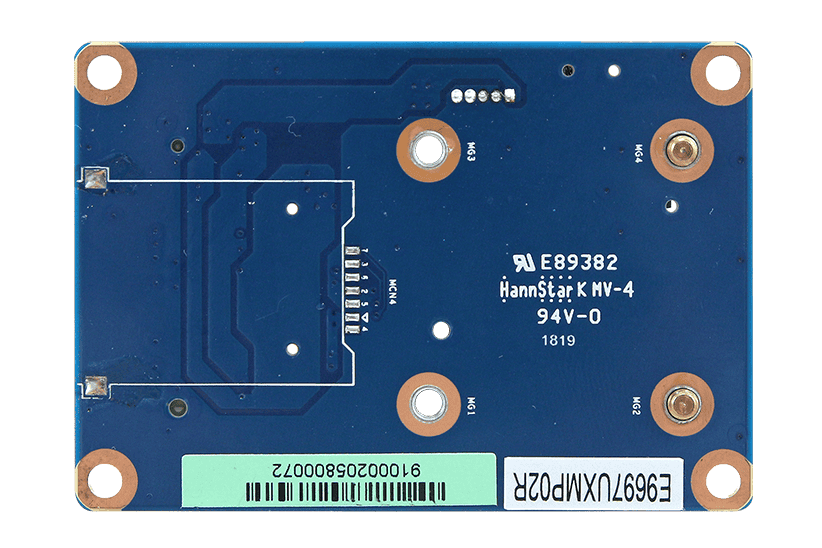

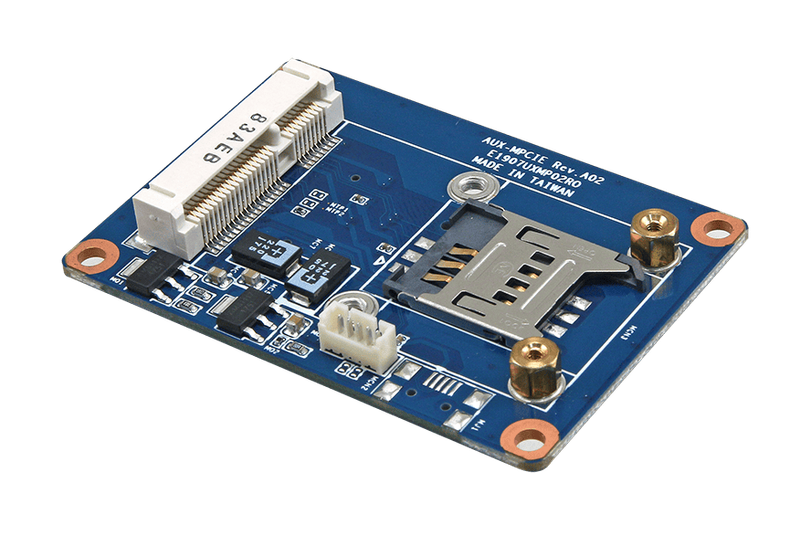

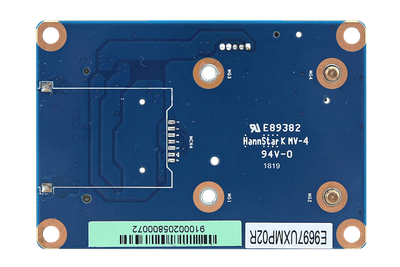

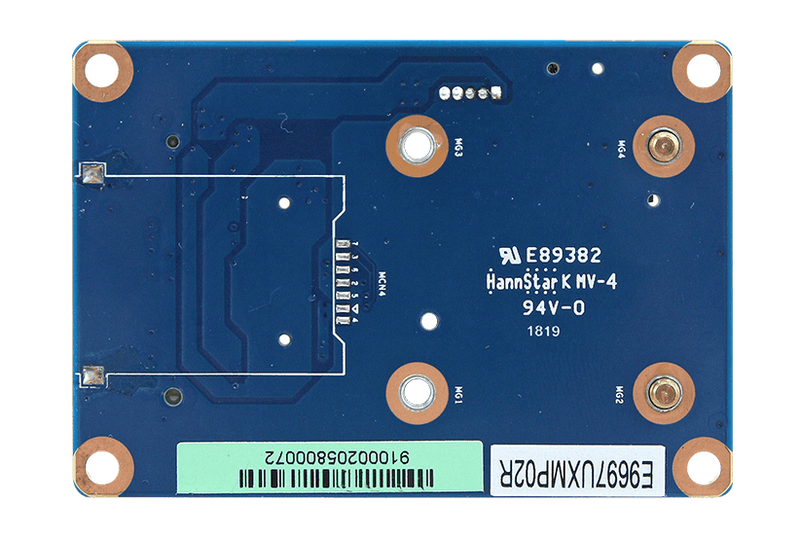

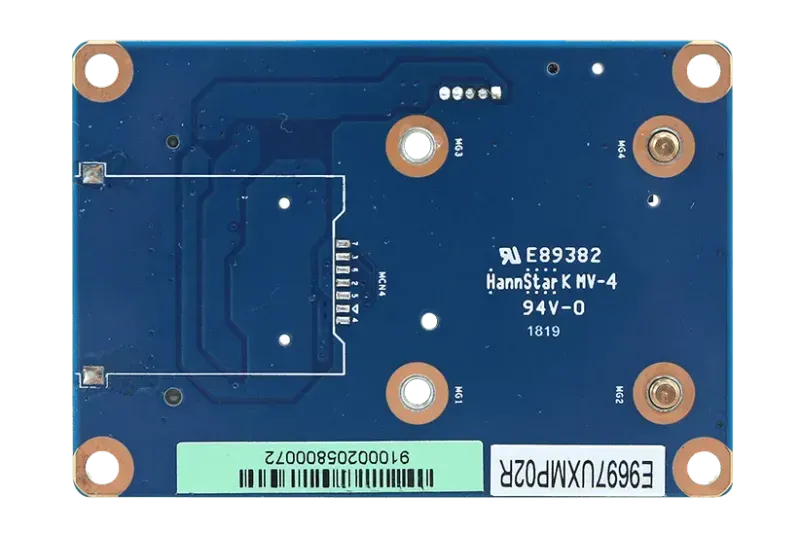

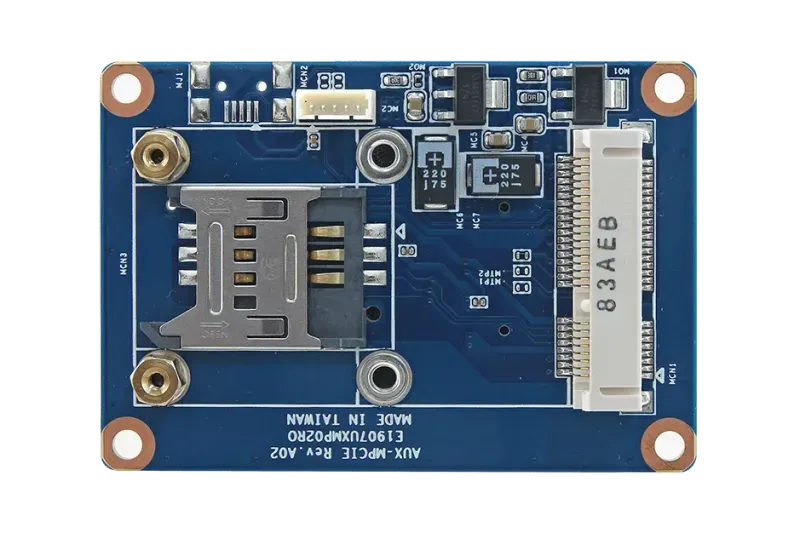

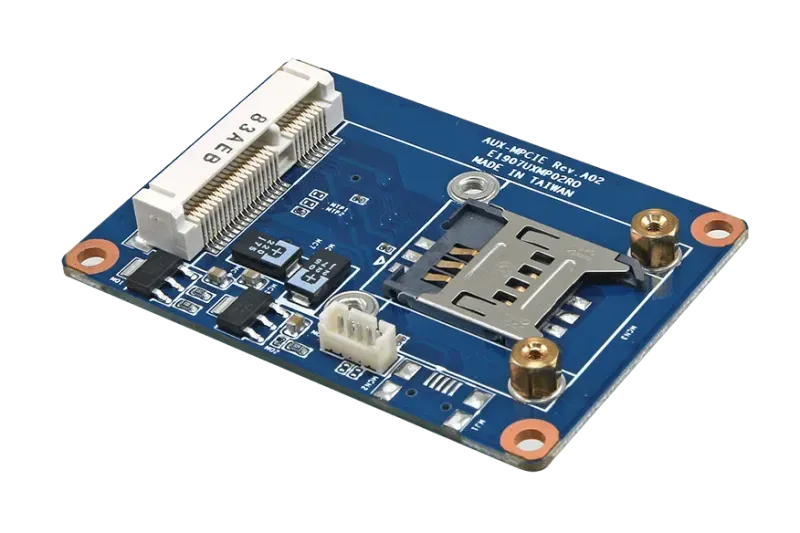

The Avalue EPM-1605 is a USB to mPCIe module designed to add cellular connectivity to embedded systems. It features a built-in USIM card slot, allowing for seamless integration of mobile network capabilities.

With a compact form factor of 65mm x 45mm and USB 2.0 interface, the EPM-1605 is suitable for space-constrained industrial environments. Operating at 3.3V±5% I/O, this module is an excellent choice for applications in transportation, remote monitoring, and industrial automation.

Technical Specifications

Power Requirement

Power Consumption

3.3V±5%

I/O

Output Interface

USB 2.0

Input Interface

USB 2.0

Mechanical & Environmental

Dimension

65mm x 45mm

Form-Factor

mPCIe

Operating Temp.

-40°C ~ +85°C

Storage Temp.

-40°C ~ +85°C

Software Support

OS

Windows 7/10 and Linux

Ordering Information

Standard Ordering PN:

-EPM-1605-A1R

What is EPM-1605?

The EPM-1605 is a industrial & embedded motherboard manufactured by Avalue, designed specifically for motherboard-embedded-peripheral applications. The Avalue EPM-1605 is a USB to mPCIe module designed to add cellular connectivity to embedded systems. It features a built-in USIM card slot, allowing for seamless integration of mobile network capabilities. With a compact form factor of 65mm x 45mm and USB 2.0 interface, the EPM-1605 is suitable for space-constrained industrial environments. Operating at 3.3V±5% I/O, this module is an excellent choice for applications in transportation, remote monitoring, and industrial automation.

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The EPM-1605 is ideal for various industrial automation applications:

Space-constrained industrial environments
Custom industrial computing solutions
Transportation and logistics systems
Industrial automation platforms
Remote monitoring and telemetry
Embedded system development
Control system integration
