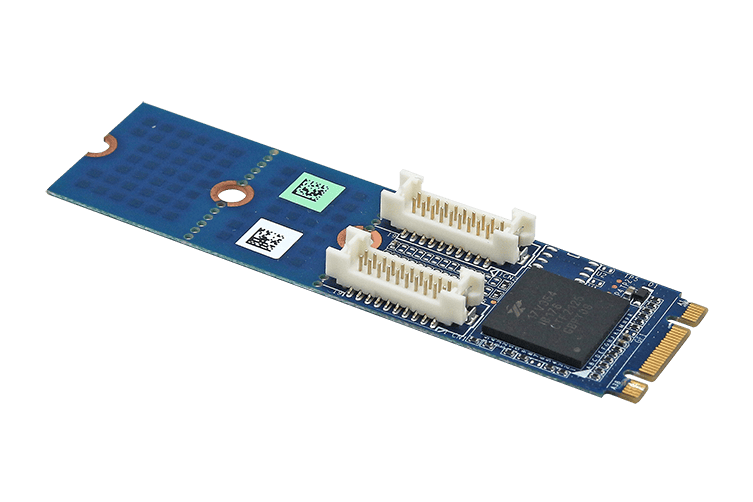

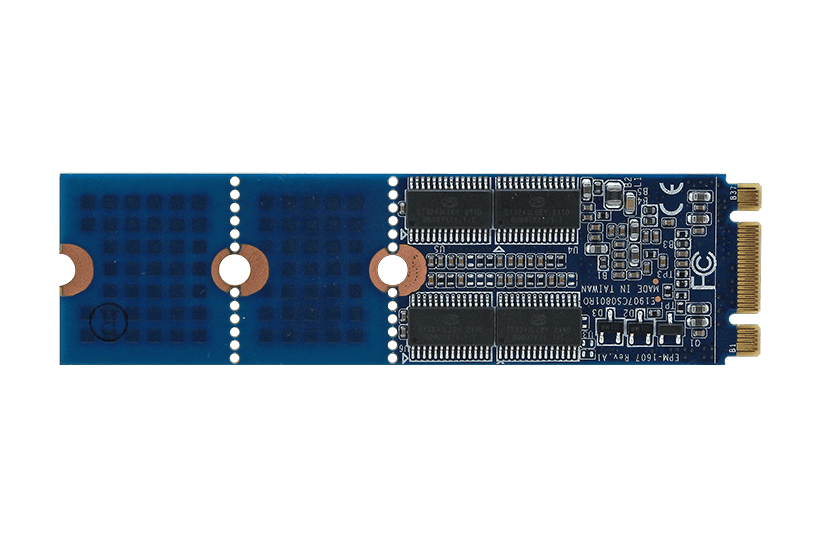

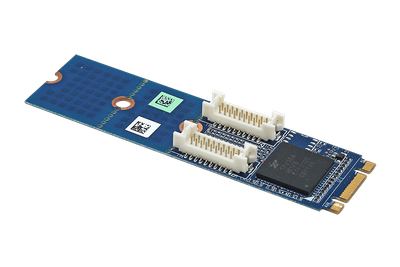

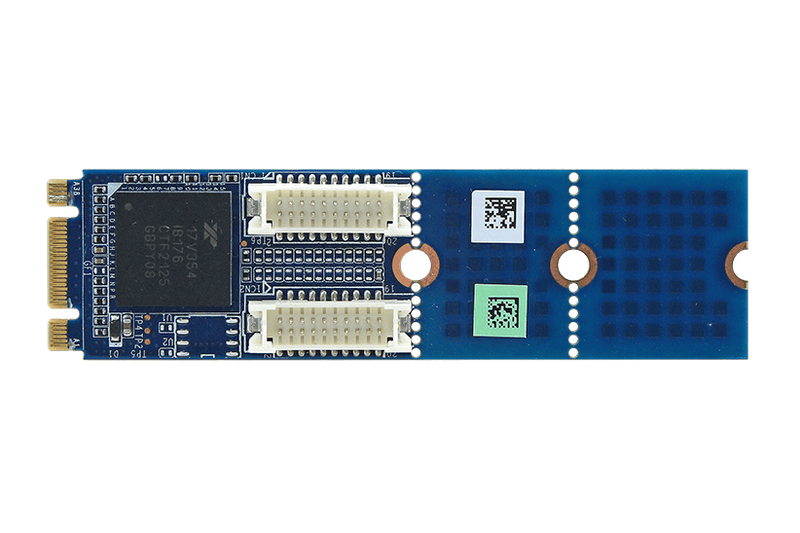

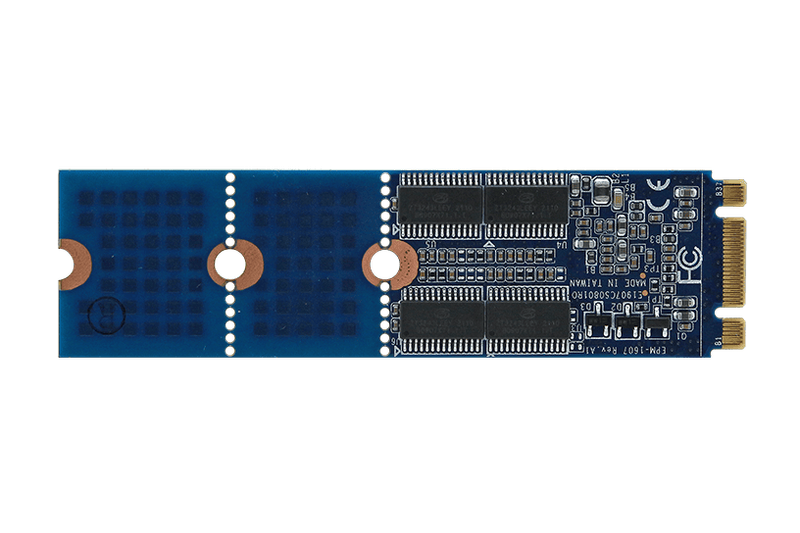

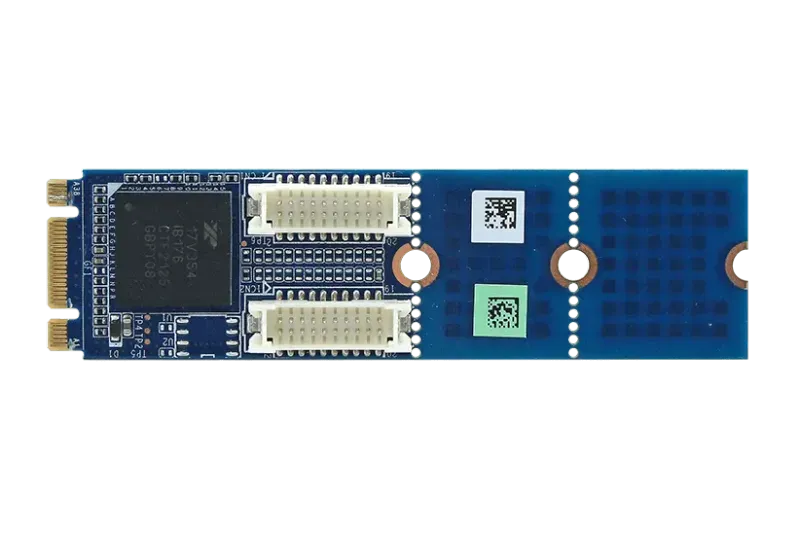

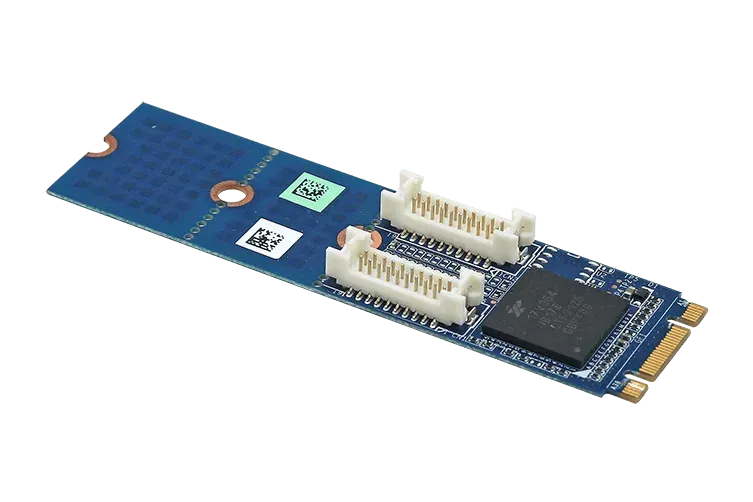

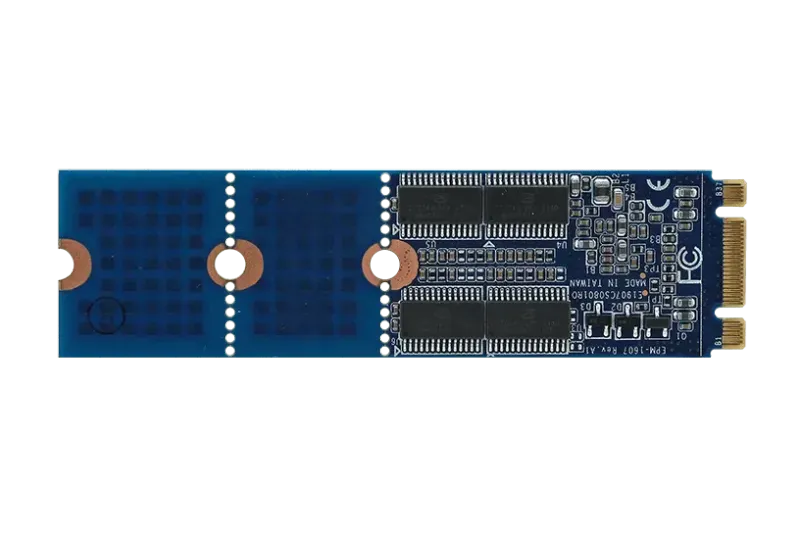

Avalue EPM-1607 M.2 to 4-Port RS-232 Module

Product Description

The Avalue EPM-1607 is a compact M.2 expansion card designed to provide four independent RS-232 serial ports via a PCIe 2.0 interface. Compatible with M.2 B-M key slots in 2242, 2260, and 2280 form factors, it offers flexibility for various embedded systems.

Each port supports baud rates up to 115200 bps and includes a 256-byte FIFO buffer to ensure efficient data transmission. Engineered for industrial environments, the module operates within a temperature range of -40°C to +85°C and withstands vibration (5G @ 5~500Hz) and shock (10G @ 11ms) tests.

With a low power consumption of 220mA at 3.3V, the EPM-1607 is an excellent choice for applications in industrial automation, transportation, and manufacturing.

Technical Specifications

Power Requirement

Power Consumption

220mA@3.3V

I/O

Output Interface

4x RS-232

Input Interface

PCI-Express. 2.0

Mechanical & Environmental

Dimension

22mm*42mm/60mm/80mm

Form-Factor

3-In-1 M.2 2280/2260/2242 B-M Key

Vibration Test

5G @5~500Hz

Operating Temp.

-40°C ~ +85°C

Storage Temp.

-40°C ~ +85°C

Shock Test

10G @ 11ms

Software Support

OS

Windows 10/8/7/XP , Linux Kernel 2.6.x and above

Ordering Information

Standard Ordering PN:

-EPM-1607-A1R

Accessories List:

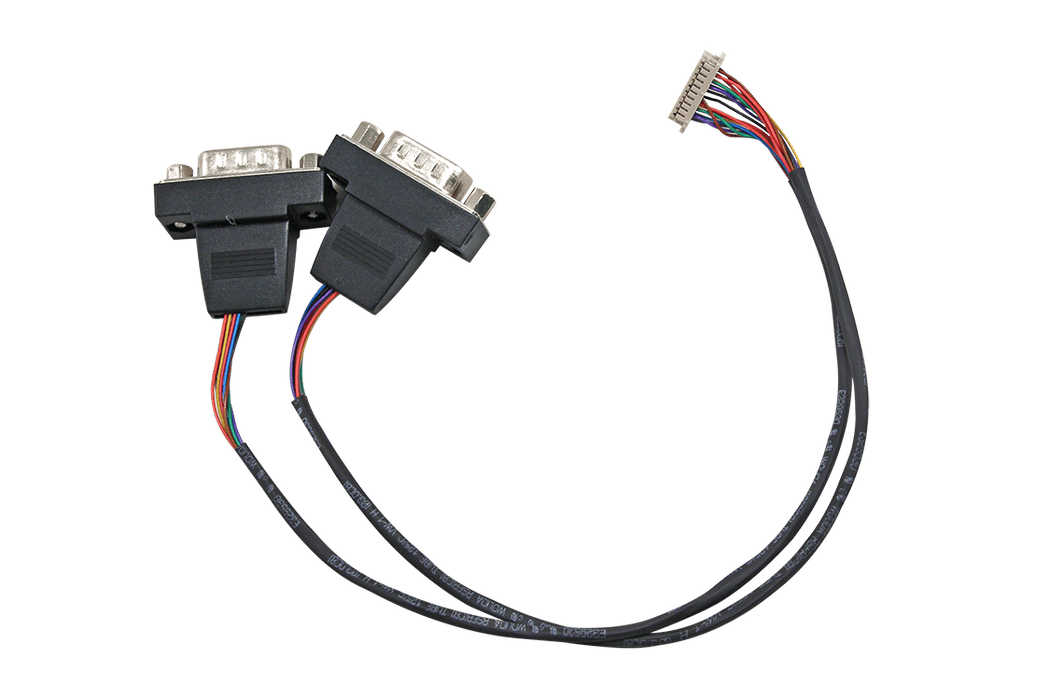

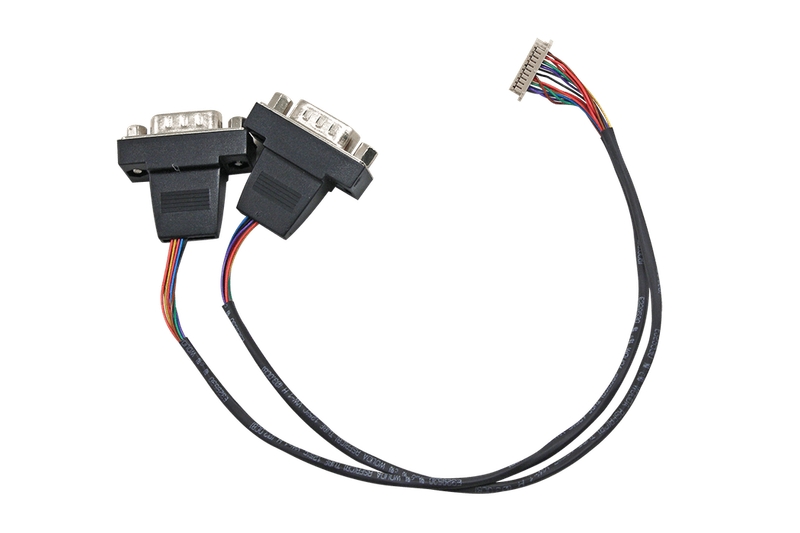

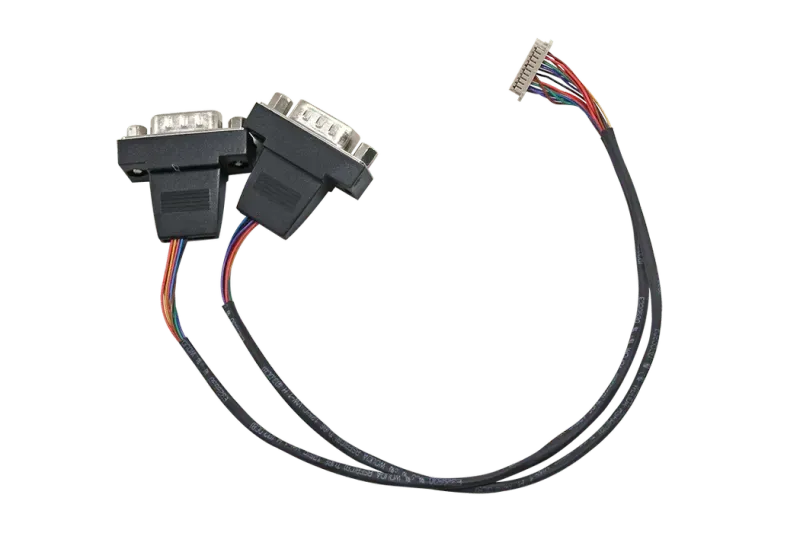

-2 x Serial RS-232 internal cable (20 pin with 2x DB9 male connectors 25cm)

What is EPM-1607?

The EPM-1607 is a industrial & embedded motherboard manufactured by Avalue, designed specifically for motherboard-embedded-peripheral applications. The Avalue EPM-1607 is a compact M.2 expansion card designed to provide four independent RS-232 serial ports via a PCIe 2.0 interface. Compatible with M.2 B-M key slots in 2242, 2260, and 2280 form factors, it offers flexibility for various embedded systems. Each port supports baud rates up to 115200 bps and includes a 256-byte FIFO buffer to ensure efficient data transmission. Engineered for industrial environments, the module operates within a temperature range of -40°C to +85°C and withstands vibration (5G @ 5~500Hz) and shock (10G @ 11ms) tests. With a low power consumption of 220mA at 3.3V, the EPM-1607 is an excellent choice for applications in industrial automation, transportation, and manufacturing.
