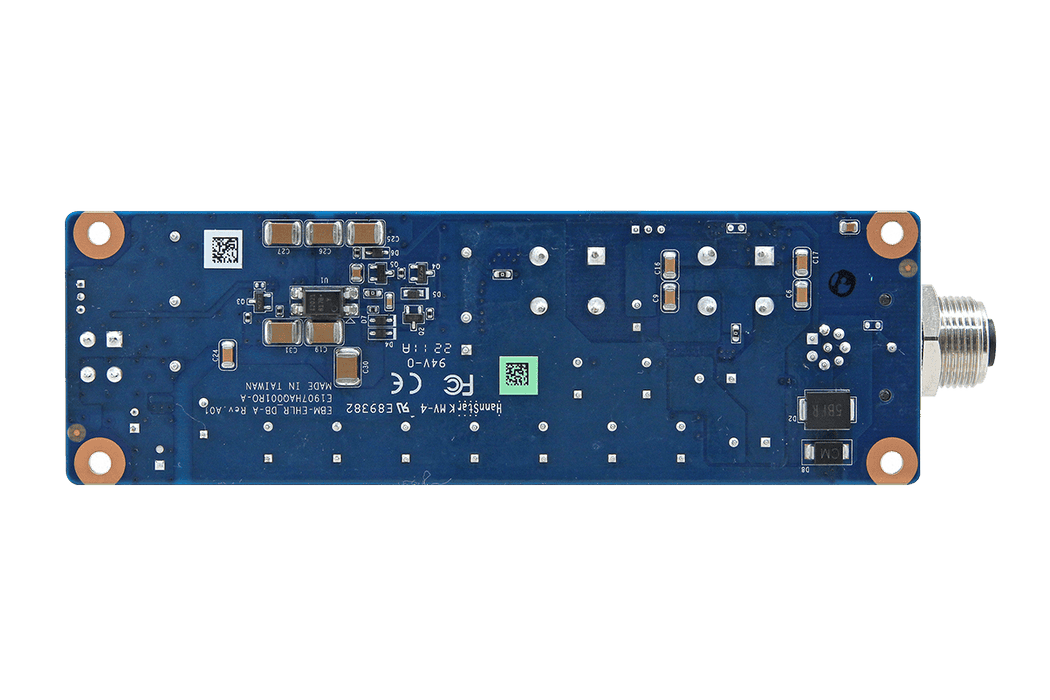

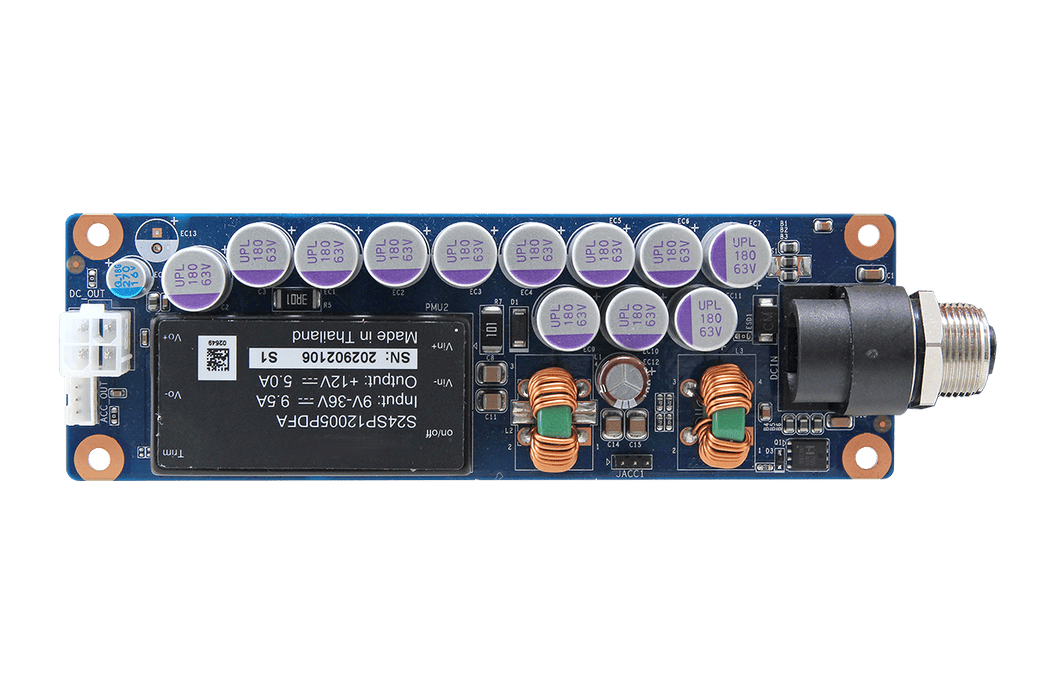

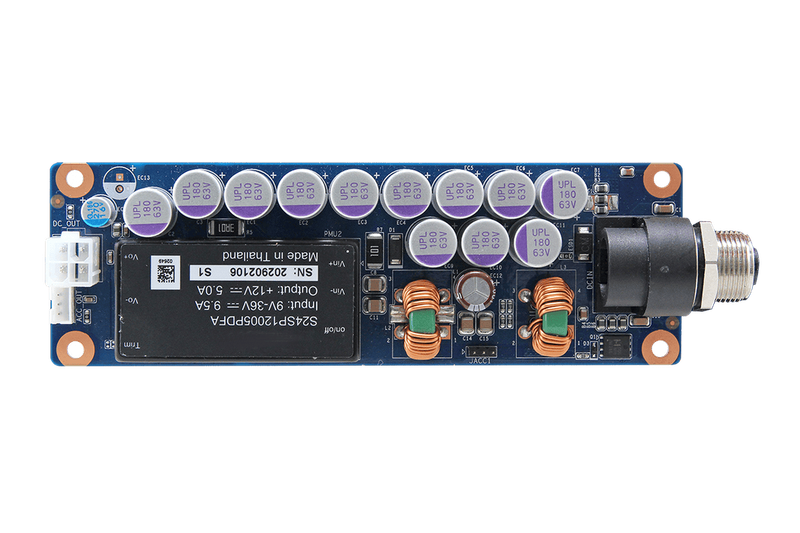

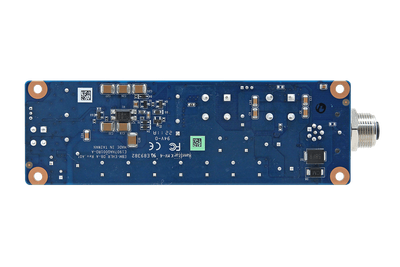

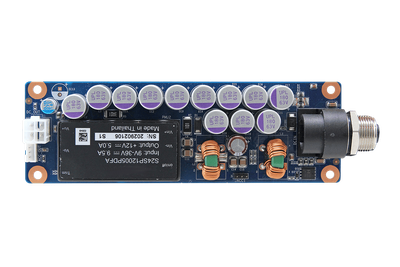

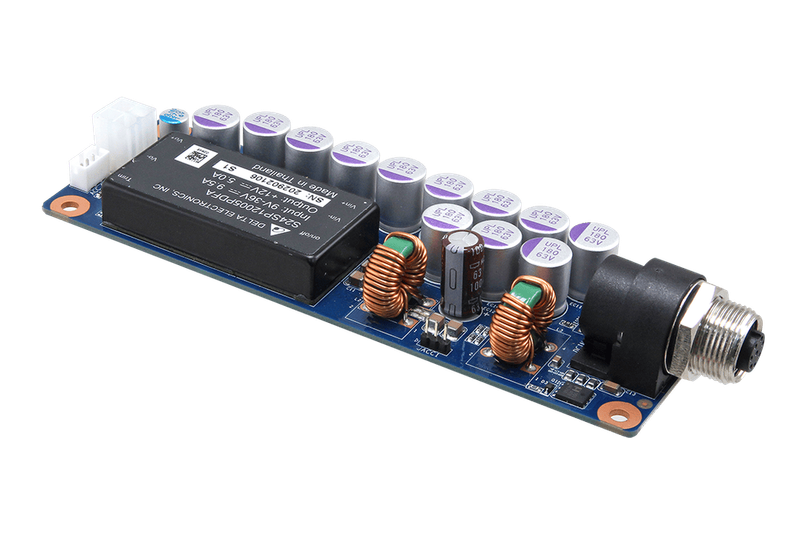

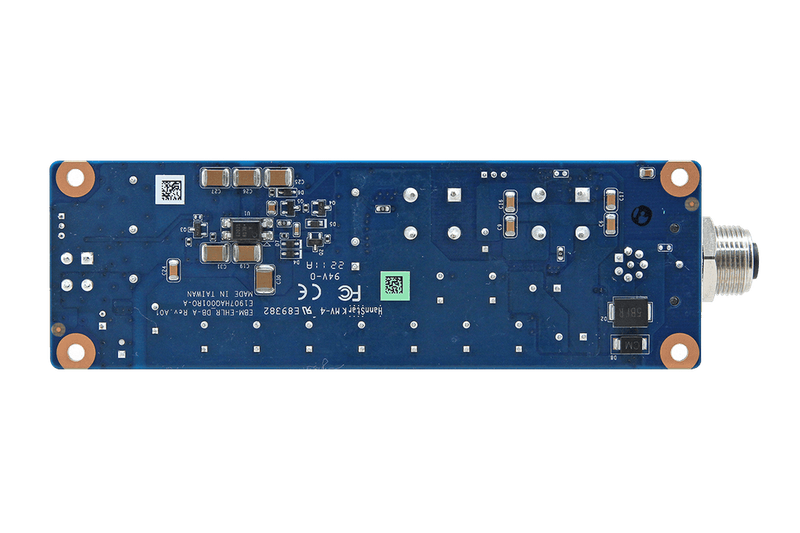

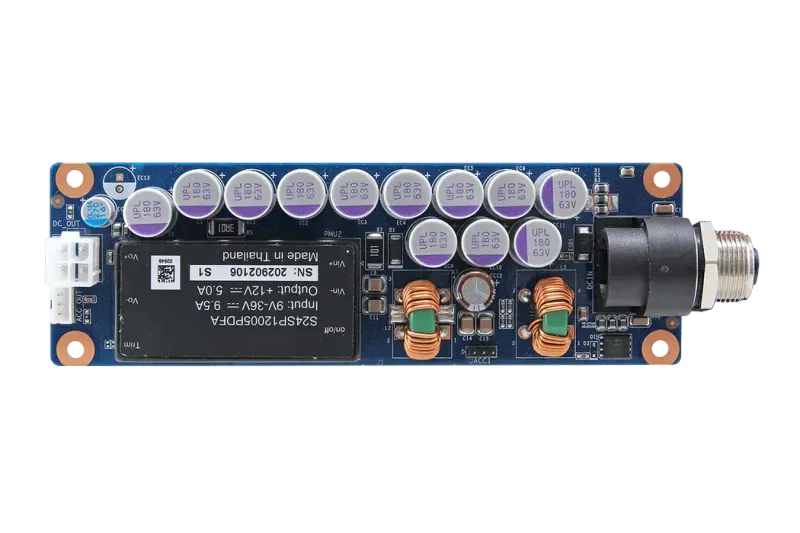

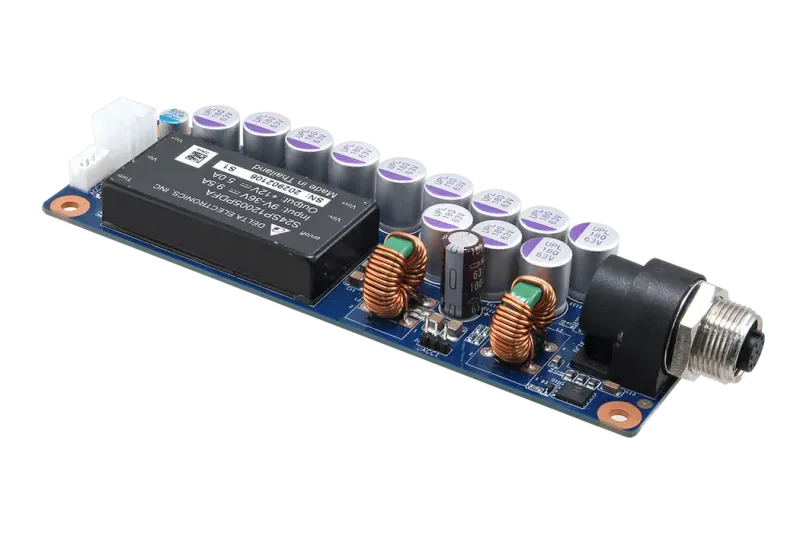

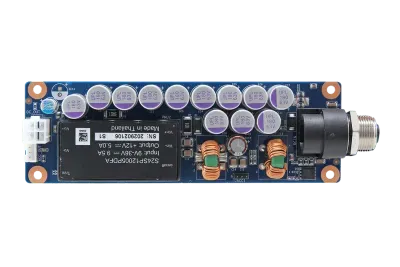

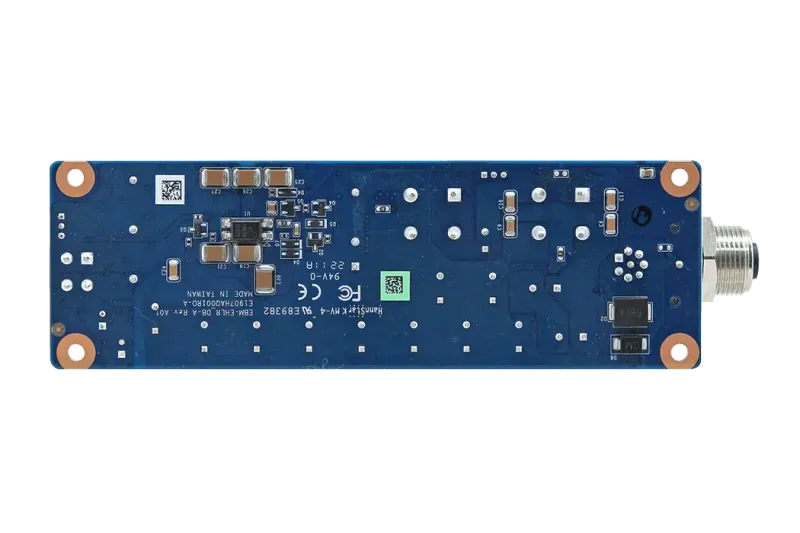

Avalue EPM-1721 DC to DC 60W Railway Power Module

Product Description

The Avalue EPM-1721 is a DC to DC 60W railway power module engineered for demanding railway environments. It offers a wide input voltage range of +9 to 36VDC and provides a stable 12VDC output with a maximum current of 5A.

Designed with 1.5kV isolation and protection features, the EPM-1721 ensures reliable power conversion, safeguarding sensitive equipment against voltage fluctuations. Certified with EN50155 and EN50121 standards, it meets stringent railway requirements for safety and performance.

This module is an excellent choice for railway embedded systems requiring dependable power solutions.

Technical Specifications

DC In/Out Connector

Input Power Connector

M12 connector

Output Power Connector (DC-12V)

AT 2Px2 connector

DC In/Out Characteristics

Maximum Output Power

60W

Input Voltage Range

+9~ 36Vdc

Output Voltage Range

12V

Maximum Output Current (DC-12V)

5000mA

Working Voltage

24Vdc w/ Isolation

Certification

Certification Information

EN 50155

EN 50121-3-2

EN 45545

IEC Protection

IEC 60068-2-64

IEC 60068-2-27

Mechanical & Environmental

Dimension

143*43*22mm

Form-Factor

Customized

Vibration Test

5G @5~500Hz

Operating Temp.

Wide temperature -40°C ~ 85°C.

Storage Temp.

-40°C ~ +85°C

Shock Test

10G @ 11ms

Ordering Information

PN:

-EPM-1721-A1R

What is EPM-1721?

The EPM-1721 is a industrial & embedded motherboard manufactured by Avalue, designed specifically for motherboard-embedded-peripheral applications. The Avalue EPM-1721 is a DC to DC 60W railway power module engineered for demanding railway environments. It offers a wide input voltage range of +9 to 36VDC and provides a stable 12VDC output with a maximum current of 5A. Designed with 1.5kV isolation and protection features, the EPM-1721 ensures reliable power conversion, safeguarding sensitive equipment against voltage fluctuations. Certified with EN50155 and EN50121 standards, it meets stringent railway requirements for safety and performance. This module is an excellent choice for railway embedded systems requiring dependable power solutions.

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The EPM-1721 is ideal for various industrial automation applications:

Custom industrial computing solutions
Industrial automation platforms
Embedded system development
Control system integration
