What are the key features of the JDAM-9024 embedded peripheral?

The JDAM-9024 provides multiple analog and digital I/O, high accuracy, and industrial-grade reliability.

What applications is the JDAM-9024 suitable for?

It is ideal for data acquisition, process monitoring, and embedded measurement systems.

What are embedded peripherals and what are their typical applications?

Embedded peripherals are modular I/O and interface boards designed to expand the capabilities of embedded and industrial systems. They are used in automation, data acquisition, process control, and machine monitoring.

What are the advantages of using embedded peripherals?

They provide flexible I/O expansion, industrial-grade reliability, and easy integration with a wide range of embedded platforms.

What is the typical power input for embedded peripherals?

Most embedded peripherals support wide voltage input ranges (e.g., 9-36V DC) and are designed for low power consumption.

What communication interfaces are supported by embedded peripherals?

Common interfaces include RS-232/422/485, USB, Ethernet, CAN, and GPIO, depending on the model.

Are embedded peripherals compatible with standard industrial protocols?

Many models support protocols such as Modbus, CANopen, and EtherCAT for seamless integration.

What is the operating temperature range for embedded peripherals?

Most models support industrial temperature ranges, typically -40°C to +85°C.

How do I install an embedded peripheral in my system?

Most peripherals support DIN-rail, panel, or board-level mounting. Refer to the product manual for detailed installation steps.

What drivers or software are required for embedded peripherals?

Drivers and SDKs are usually provided for Windows and Linux platforms. Check the product page for downloads and documentation.

How do I connect embedded peripherals to my host system?

Use the appropriate interface cable (USB, serial, Ethernet, etc.) and ensure correct configuration in your system BIOS or OS.

What should I do if my embedded peripheral is not detected?

Check power supply, cable connections, and ensure drivers are properly installed. Try connecting to a different port or system if possible.

How can I update the firmware on my embedded peripheral?

Refer to the product manual for firmware update instructions. Updates are typically performed via USB or serial interface using vendor tools.

What steps should I take if I experience communication errors?

Verify interface settings (baud rate, parity, etc.), check for cable or connector damage, and ensure proper grounding and EMC protection.

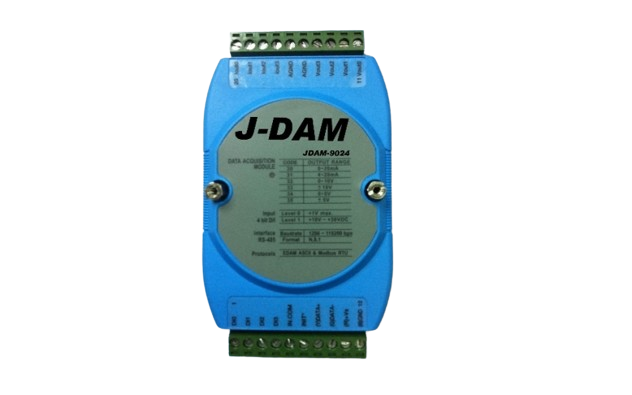

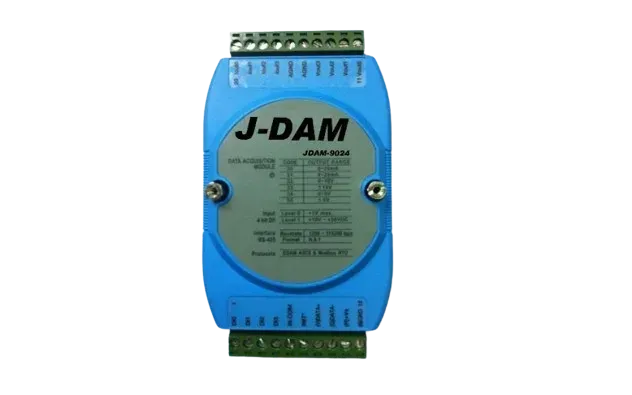

JDAM-9024

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Over-voltage protection on analog input
Over-load protection on analog output
IP Re-Assignment
Standalone control function : step sequence control instruction, device to device
communication
Software key function

Product Description

The Avalue JDAM-9024 is a compact RS-485 remote I/O module equipped with 4 digital inputs and 4 analog outputs, making it ideal for industrial automation applications.

It supports communication speeds of 1200, 2400, 4800, 9600, 19.2K, 38.4K, and 115.2K bps, ensuring compatibility with various systems. Operating with a power requirement of 10Vdc to 30Vdc and a maximum power dissipation of 1.2W, the JDAM-9024 is designed for energy-efficient performance.

Its robust design ensures reliable operation in demanding industrial environments.

Technical Specifications

I/O

Interface

RS-485, 2 wires

Speed(bps)

1200, 2400, 4800, 9600, 19.2K, 38.4K, 115.2K

Power Requirement

10Vdc ~ 30Vdc

Power Consumption

2.4W

Output

Programmable Output Slope

0.125 to 2048 mA/Second；0.0625 to 1024 V/Second

Digital Input

Input Channel

6 differential + 2 single-ended or 8 differential

Zero Drift

±30μV/°C

Span Drift

25 ppm/C

Over Voltage Protection

+/- 35Vdc

Ordering Information

ACC-AIO-RS-02R

What is JDAM-9024?

The JDAM-9024 is a industrial & embedded motherboard manufactured by Avalue, designed specifically for motherboard-embedded-peripheral applications. The Avalue JDAM-9024 is a compact RS-485 remote I/O module equipped with 4 digital inputs and 4 analog outputs, making it ideal for industrial automation applications. It supports communication speeds of 1200, 2400, 4800, 9600, 19.2K, 38.4K, and 115.2K bps, ensuring compatibility with various systems. Operating with a power requirement of 10Vdc to 30Vdc and a maximum power dissipation of 1.2W, the JDAM-9024 is designed for energy-efficient performance. Its robust design ensures reliable operation in demanding industrial environments.

Key Features & Benefits

Over-voltage protection on analog input
Over-load protection on analog output
IP Re-Assignment
Standalone control function : step sequence control instruction, device to device
communication
Software key function

Applications & Use Cases

The JDAM-9024 is ideal for various industrial automation applications:

Custom industrial computing solutions
Industrial automation applications
Industrial automation platforms
Energy-efficient performance
Embedded system development
Control system integration
