EMX-ALUC

undefinedundefinedundefinedundefined
undefinedundefinedundefinedundefined
FCCCEUKCAROHS

EMX-ALUC

*Price on request. Contact us for a quote.

Manufacturer: Avalue
  • 12th Gen Intel® Core™ SoC i5/i3 BGA Processor
  • 2 x 260-Pin DDR4 3200MHz non-ECC SO-DIMM Socket Supports Up to 2 x 32GB
  • 1 x HDMI2.0, 1 x DP++ 1.4a, 1 x LVDS, Supports up to triple independent displays
  • 1 x PCIe x4 Gen4 with PCIe x8 slot
  • 2 x Intel® Gigabit Ethernet Controllers (I210AT and I219-LM)
  • 6 x USB3.2 Gen1, 2 x USB2.0
  • 1 x M.2 Key-B 2242/3052, 1 x M.2 Key-E 2230, 1 x M.2 Key-M 2280
  • 6 x COM Ports (4 x RS232, 2 x RS232/485)

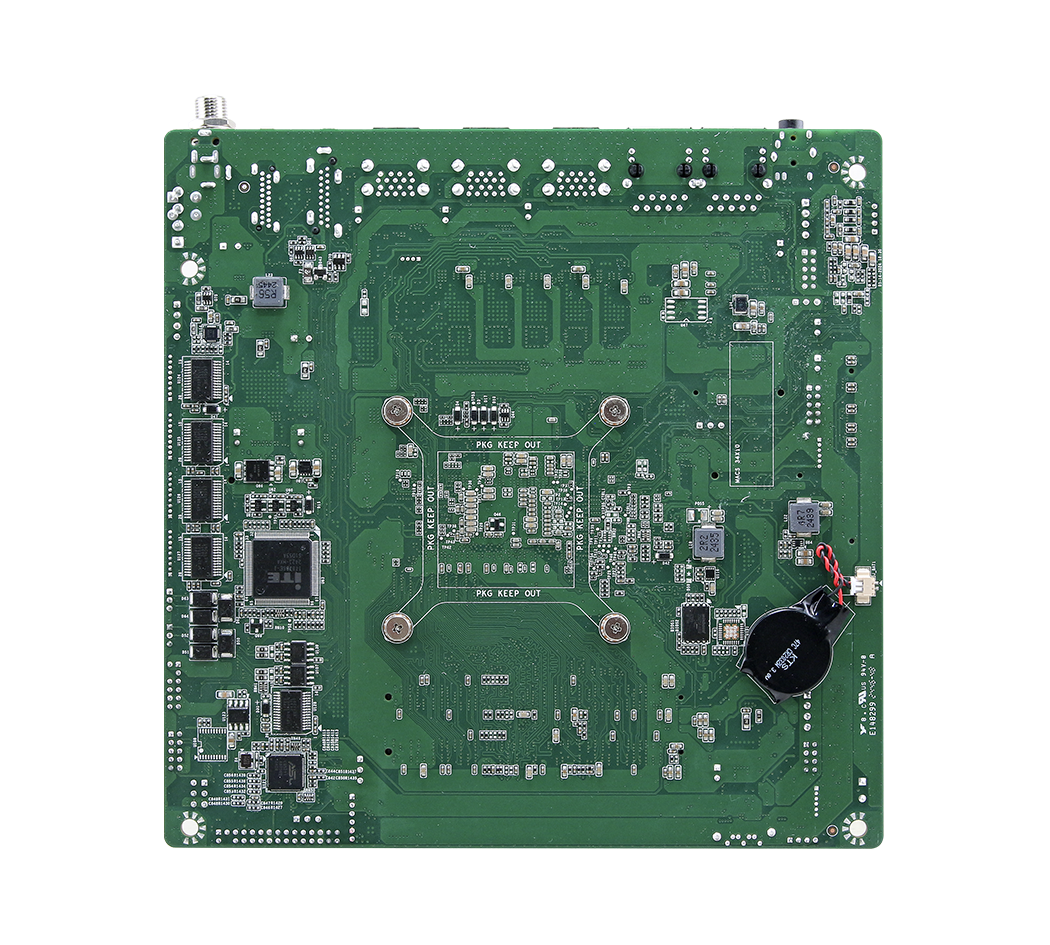

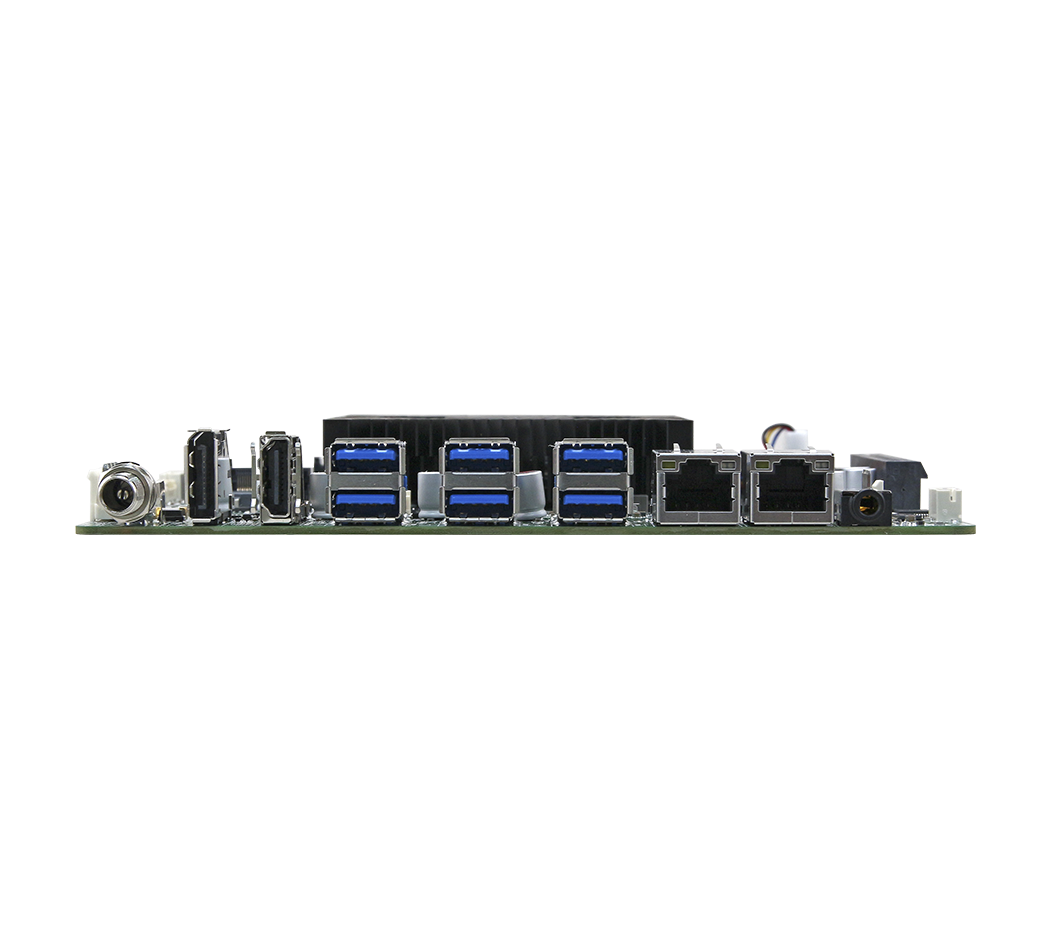

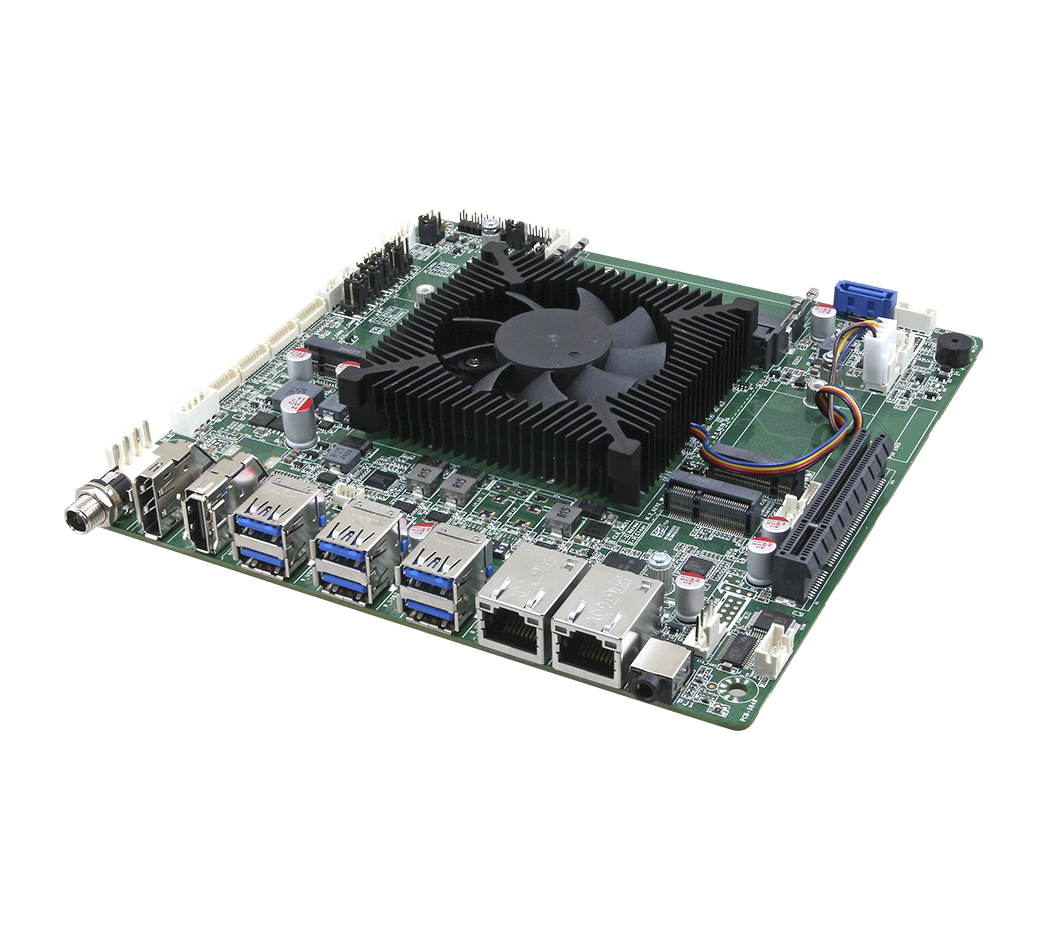

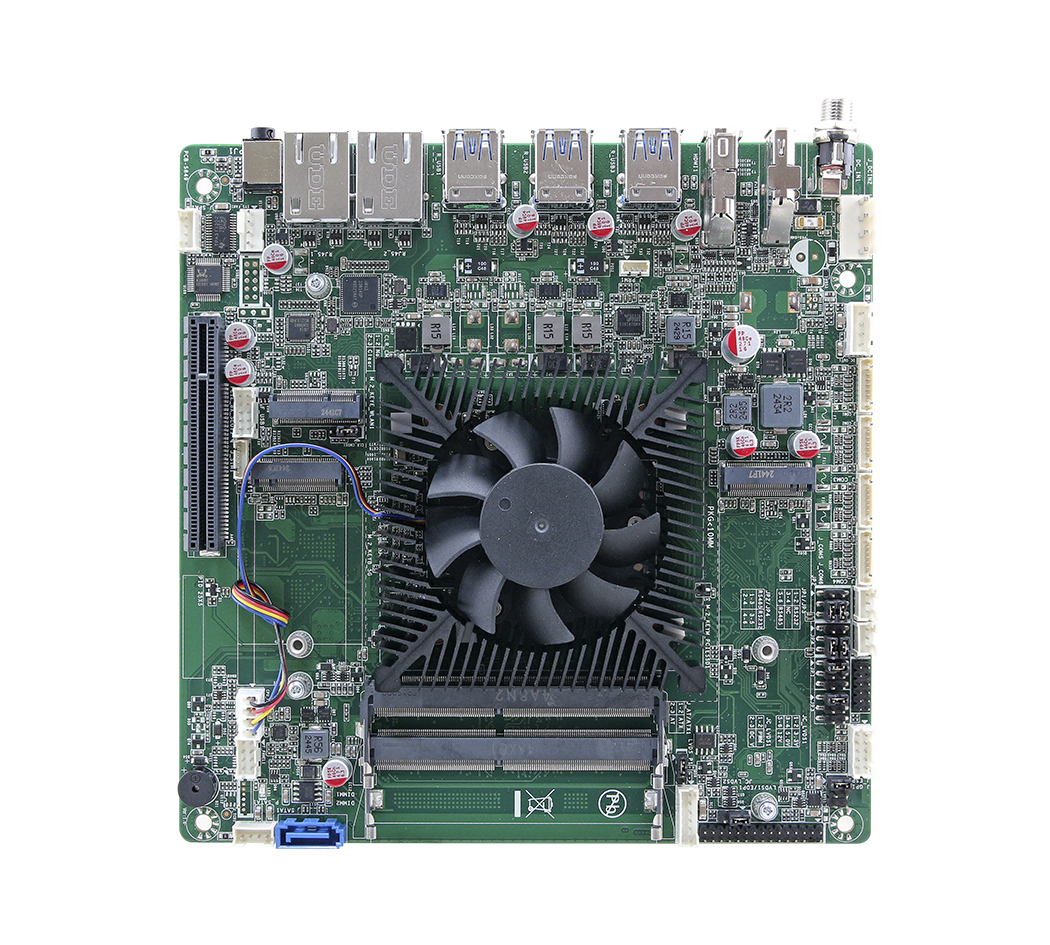

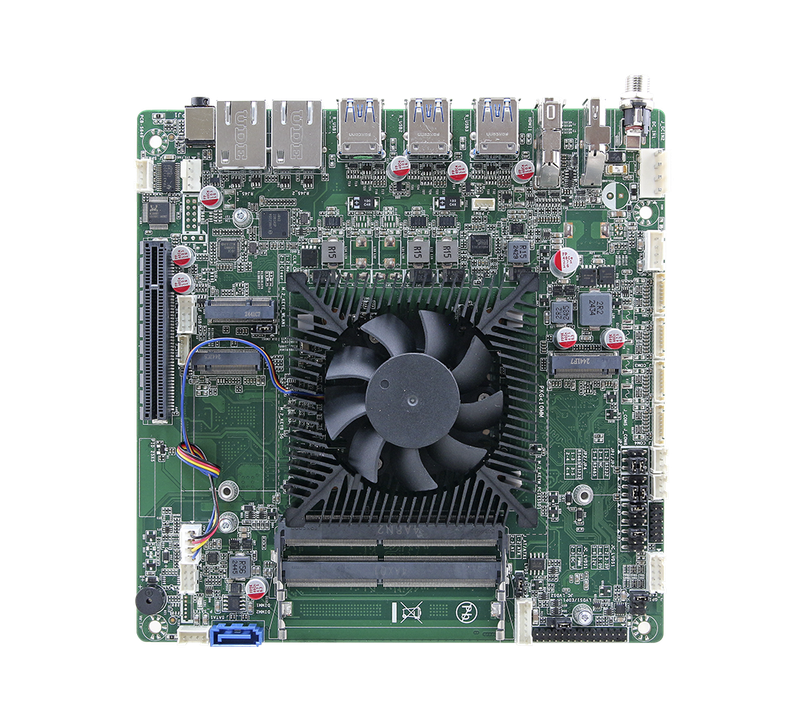

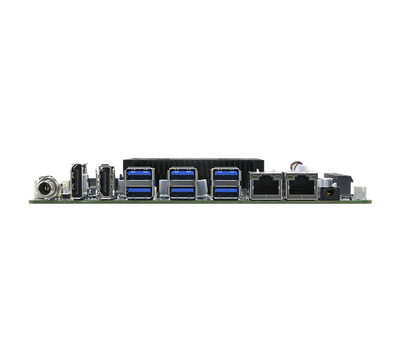

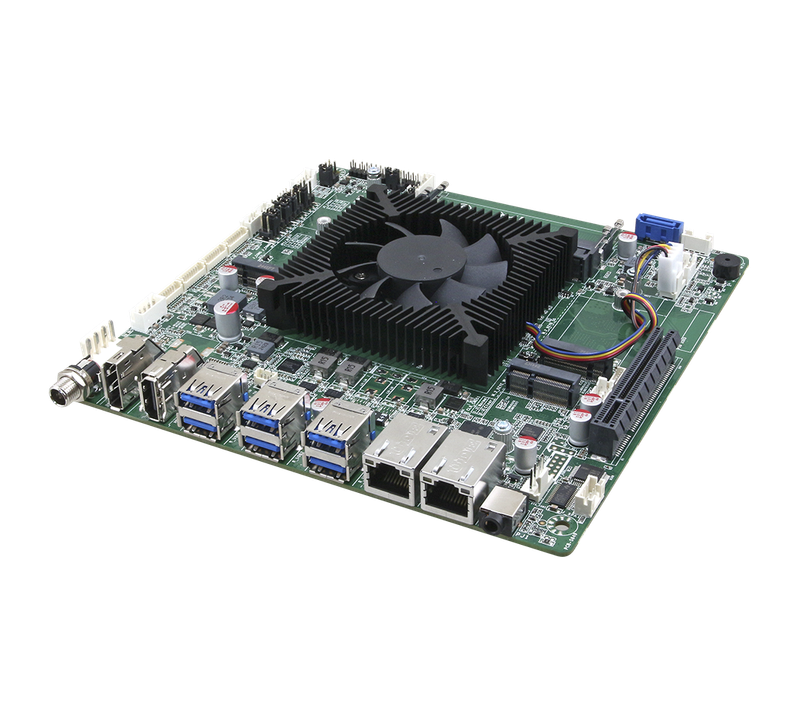

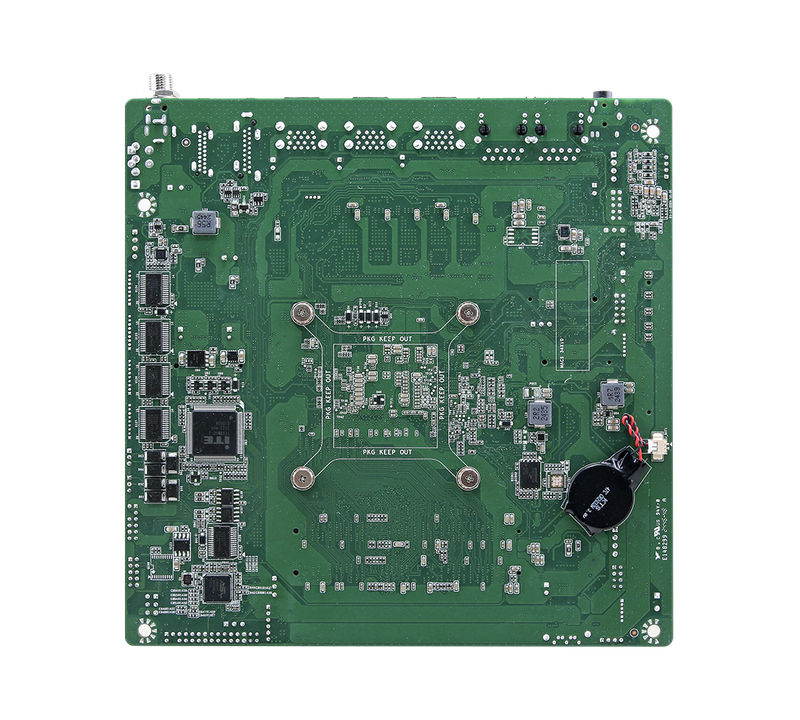

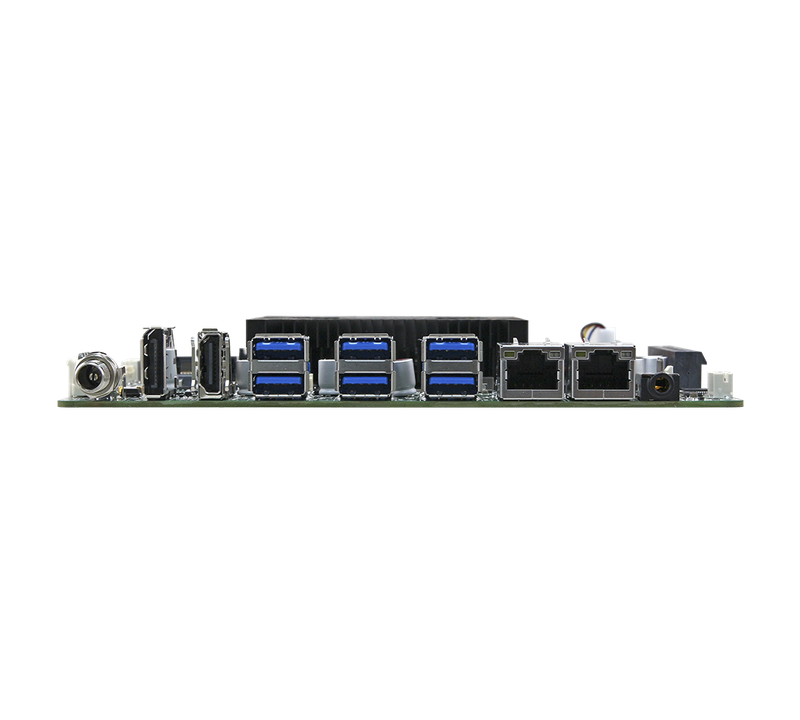

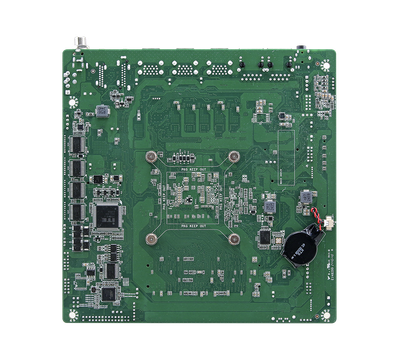

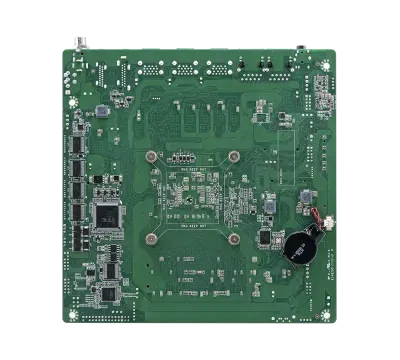

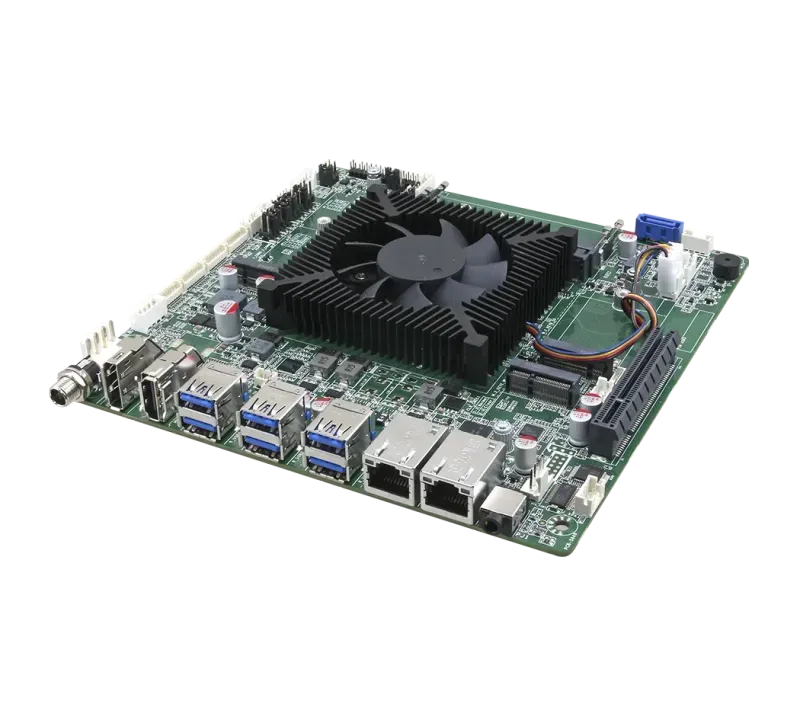

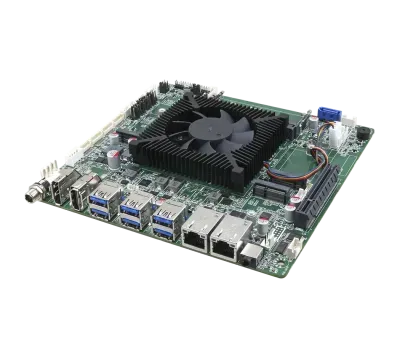

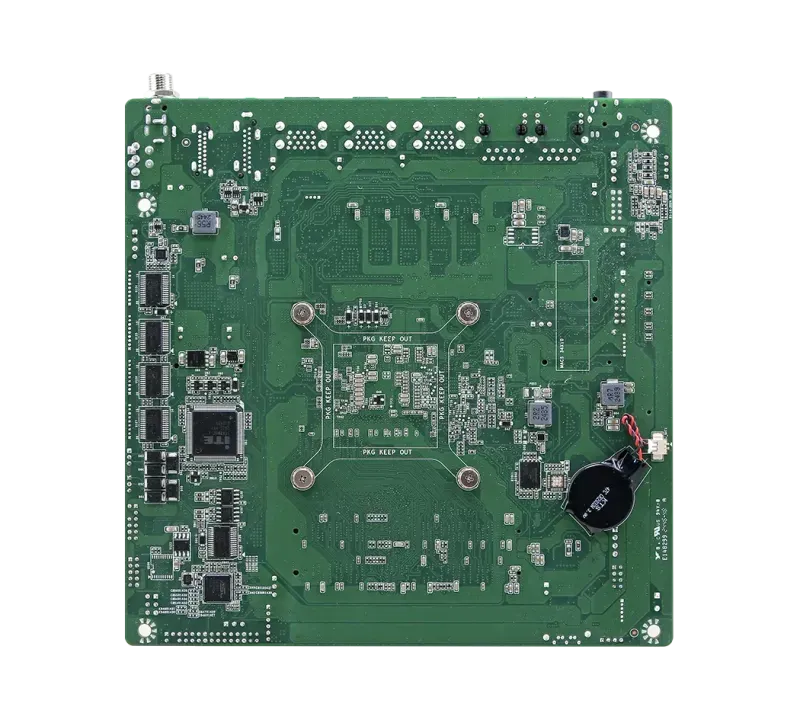

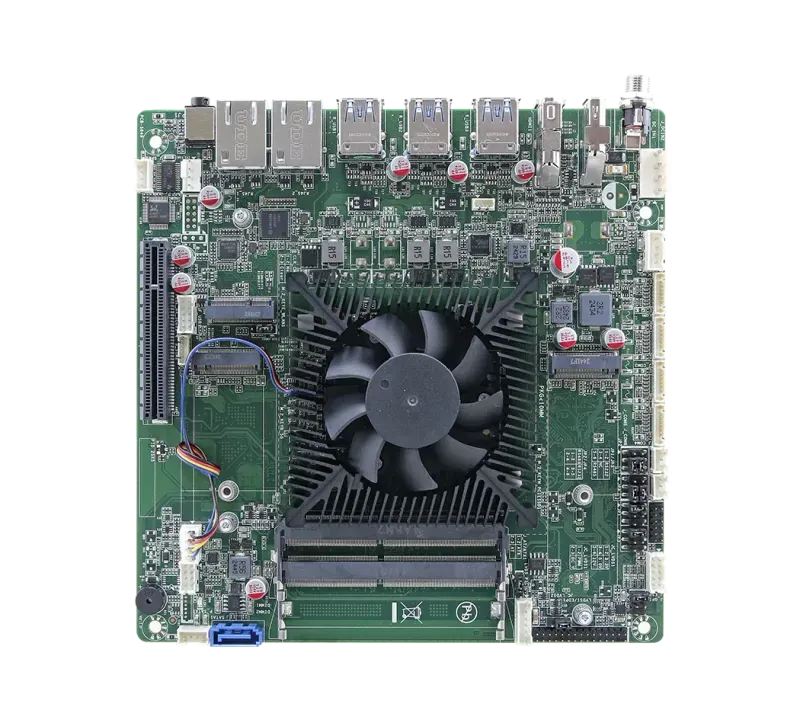

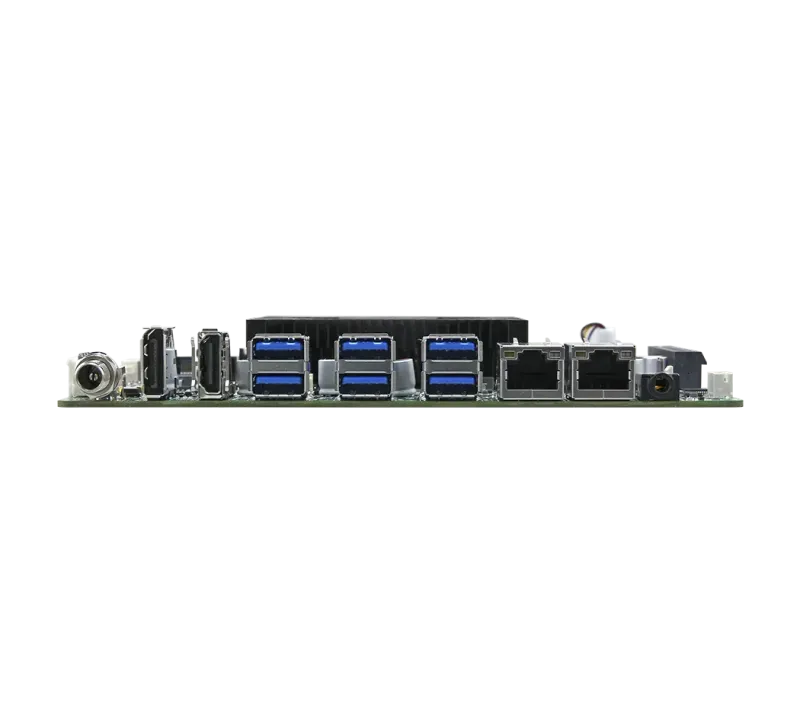

The Avalue EMX-ALUC is a Mini-ITX motherboard designed for industrial and embedded applications. It supports onboard 12th Gen Intel® Core™ i5/i3 BGA processors and accommodates DDR4 3200MHz non-ECC SO-DIMM memory. Key features include triple display outputs (1 x HDMI 2.0, 1 x DP++, 1 x LVDS), multiple USB ports, serial interfaces, and expansion options through M.2 slots. With a compact form factor of 170mm x 170mm and support for Windows and Linux operating systems, the EMX-ALUC offers a robust solution for space-constrained environments.

System Information
Processor

Onboard 13th Gen Intel® Core™ SoC i5/i3 BGA Processor

System Memory

2 x 260-Pin DDR4 3200MHz non-ECC SO-DIMM Socket Supports Up to 2 x 32GB

I/O Chipset

Super I/O, ITE IT8786E-I

Watchdog Timer

H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM for i5 CPU / 128Mbit SPI Flash ROM for i3 CPU

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

Onboard infineon SLB 9670VQ2.0 support TPM2.0

Board

Thin Mini ITX

Display
Multiple Display

Triple Display

Graphic Chipset

Intel® Iris® Xe Graphics eligible

Spec. & Resolution

1 x HDMI 2.0: 4096 x 2340@60 Hz

1 x DP++ 1.4a: Max 4096 x 2340@60 Hz

1 x LVDS: 1920 x 1200 Dual channel 18/24-bits LVDS

LVDS

Dual channel 18/24-bits (LVDS CapStone CS5211) 1920 x 1200@60Hz

Expansion
Expansion

1 x PCIe x4 Gen4 with PCIe x8 slot

1 x M.2 Key-B 2242/3052

1 x M.2 Key-E 2230

1 x M.2 Key-M 2280

1 x Wafer connector for SIM Card Cable (Option)

Audio
Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-out + Mic-in 2in1 3.5mm Jack on rear I/O

Audio Amplifier

2 x 3W 8Ω Amplifier (TI TPA3113D2PWP)

Ethernet
LAN Chipset

1 x Intel® I210AT Gigabit Ethernet Controller

1 x Intel® I219-LM for core i5 CPU or 1 x Intel® I219V for i3 CPU Gigabit Ethernet Controller

Ethernet Interface

LAN1: Intel® I210AT 10/100/1000 Base-Tx GbE compatible

LAN2: Intel® I219-LM/I219V 10/100/1000 Base-Tx GbE compatible

LAN Port

2 x RJ-45

Power Requirement
DC Input

DC in +12V

Software Support
OS

Windows 10, Windows 11, Linux

Certification
Certification Information

CE, FCC, RoHS Compliant

I/O
USB

6 x USB3.2 Gen1x1

2 x USB2.0

COM Port

4 x RS-232

2 x RS-232/485

SIM Slot

1 x 6 pin, pitch 1.25mm wafer connector for SIM Card (J_SIM1)

SATA

1 x SATA III

DIO

8-bit GPIO (4 x GPI, 4 x GPO)

Mechanical & Environmental
Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Weight

0.88lbs (0.4Kgs)

Operating Humidity

40°C at 95% relative humidity, non-condensing

Power Mode

AT/ATX mode Switchable Through Jumper

Power Requirement

DC in +12V

Ordering Information
Ordering Information

EMX-ALUC-1235-A1R

Thin MINI-ITX w/i5-1235U/6COM/8USB/I219-LM/15W/A1
