How much memory can the EMX-APLP accommodate?

It supports up to 16GB DDR3L 1600/1333MHz SO-DIMM memory.

What are the display options for the EMX-APLP?

It supports triple display outputs via DP++, HDMI/DP, and LVDS/eDP.

What expansion options are available on the EMX-APLP?

The board offers a full-size Mini PCIe slot with mSATA support, M.2 (2230) A-Key for Wi-Fi, and SIM card slot.

What is the power input range for the EMX-APLP?

It supports DC input from +12V to +24V.

What are Mini-ITX motherboards and what are their typical applications?

Mini-ITX motherboards are compact embedded boards measuring 170mm x 170mm. They are widely used in industrial automation, digital signage, kiosks, medical devices, edge computing, and embedded control systems due to their small size, rich I/O, and industrial-grade reliability.

What are the advantages of using Mini-ITX over other form factors?

Mini-ITX offers a balance of compact size and expandability, with support for full-size memory, multiple display outputs, and rich I/O. Compared to smaller boards, they provide better thermal management and more expansion options, while being smaller than ATX or microATX boards.

How do processor generations affect Mini-ITX board capabilities?

Newer processor generations bring improved performance, power efficiency, and support for advanced features like DDR5 memory, PCIe Gen4, and AI acceleration. The choice of processor impacts computing power, graphics, and connectivity options for Mini-ITX boards.

What factors should be considered when selecting a Mini-ITX board for industrial use?

Consider CPU performance, memory and storage support, I/O requirements (USB, COM, LAN, display), expansion slots (M.2, PCIe), power input range, operating temperature, certifications, and long-term availability for your application.

How can I effectively cool a Mini-ITX motherboard in an enclosed system?

Ensure adequate airflow (at least 0.5 m/s), use heatsinks or thermal pads, and consider fanless enclosures with external fins. Arrange components for natural convection and monitor system temperatures using onboard sensors.

What are the power considerations for Mini-ITX boards?

Provide stable DC input within the specified range (often +12V~24V), use quality power supplies, and understand AT/ATX power modes. Implement surge protection and proper power sequencing for industrial reliability.

How can I expand the functionality of a Mini-ITX board?

Use M.2 slots for Wi-Fi, LTE, or SSDs; PCIe slots for add-on cards; and USB or GPIO for peripherals. Many boards support multiple displays, additional storage, and network expansion through these interfaces.

What are common performance bottlenecks in Mini-ITX systems?

Thermal limits, memory bandwidth, storage I/O, and network congestion are typical bottlenecks. Use fast memory, NVMe SSDs, and ensure proper cooling and network design to maximize performance.

What is the recommended mounting procedure for Mini-ITX boards?

Use all four mounting holes with standoffs, maintain clearance above heat-generating components, and ensure proper thermal contact if using conduction cooling. Secure cables and avoid sources of EMI.

How should I handle and install Mini-ITX boards to prevent damage?

Use ESD protection, handle by the edges, avoid flexing the PCB, and ensure power is off when connecting components. Use correct torque for screws and avoid moisture or contaminants.

What are best practices for connecting peripherals to Mini-ITX boards?

Use shielded cables, implement strain relief, connect power before signal cables, and avoid exceeding cable length limits. Configure serial ports and test peripherals individually before full deployment.

How can I set up operating systems on Mini-ITX boards?

Use manufacturer-recommended OS images, configure BIOS/UEFI settings, install all drivers, and optimize system services for your application. Document the setup for future maintenance.

What should I do if a Mini-ITX board fails to power on?

Check power supply voltage and polarity, inspect cables and connectors, verify power mode (AT/ATX), and look for physical damage. Test with a known-good supply and check for status LEDs or error codes.

How can I resolve display output problems on Mini-ITX boards?

Check cable connections, monitor input selection, and supported resolutions. Try different display interfaces, update drivers, reset BIOS display settings, and test with another monitor.

What are common causes of network issues and how can they be resolved?

Check physical connections, update network drivers, verify IP configuration, and check for firewall or switch issues. Test with alternate cables and equipment if needed.

How can I troubleshoot M.2 or storage device issues?

Ensure the device is properly inserted, matches the slot type, and is recognized in BIOS. Update BIOS and drivers, check for thermal issues, and test the device in another system if possible.

EMX-APLP

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Intel® Celeron® J3455 Processor
2 x 204-pin DDR3L 1600 MHz SO-DIMM Socket, Supports Up to 16GB Max
DP++, HDMI/DP, LVDS/Co-lay eDP
1 x Full Size Mini PCIe Support mSATA(SATAIII and mSATA by Auto Switch IC) with 1 x SIM Card Slot
2 x Intel® i226LM
5 x USB 2.0 by Pin Header, 4 x USB 3.0 at I/O
6 x COM
DC in +12V~24V

Product Description

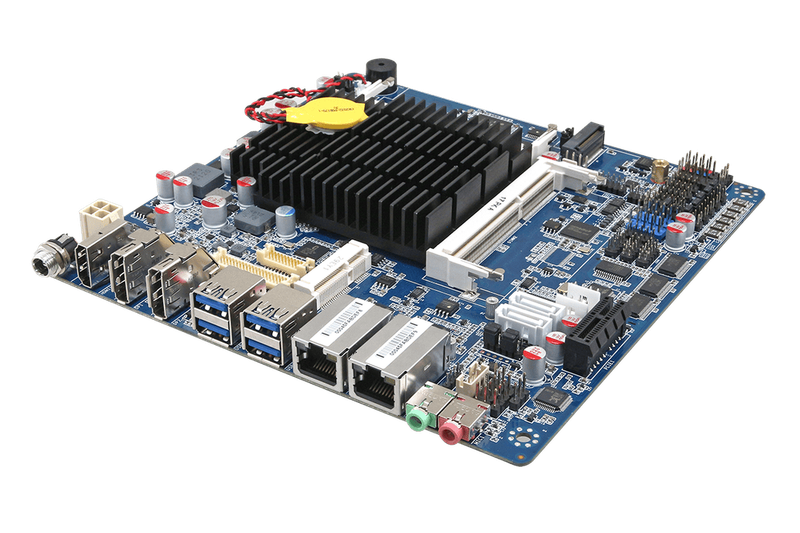

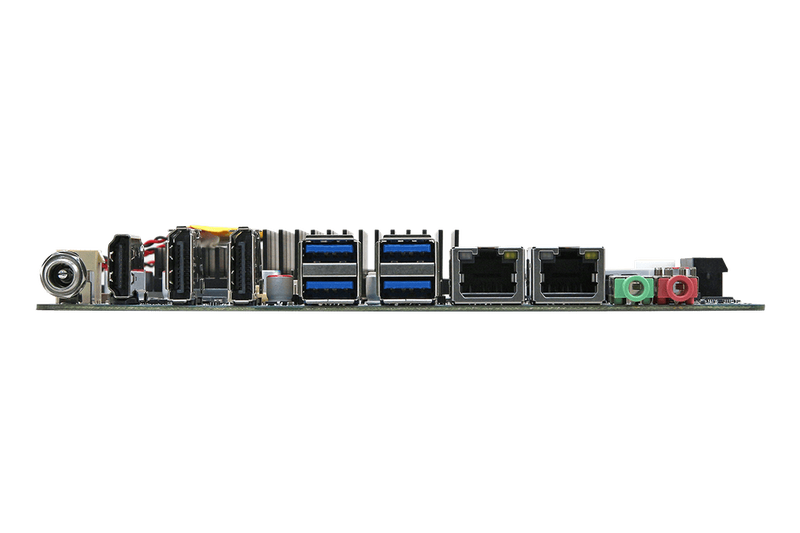

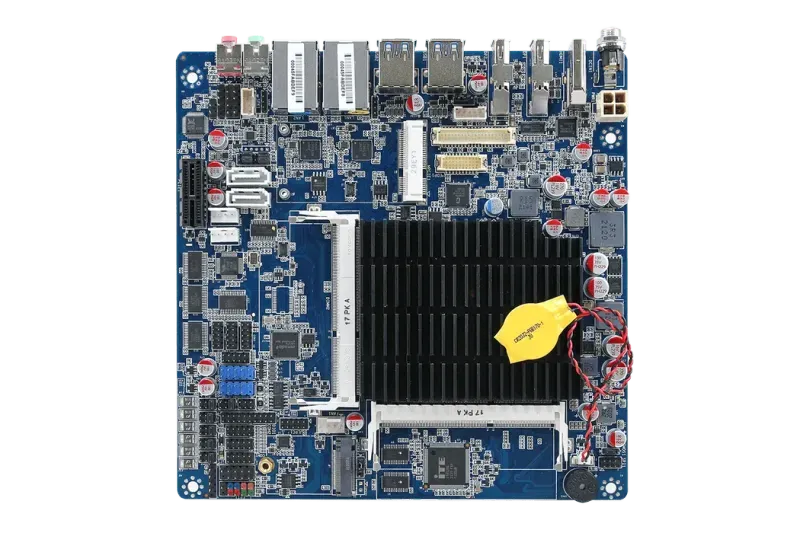

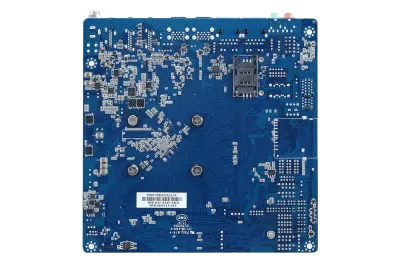

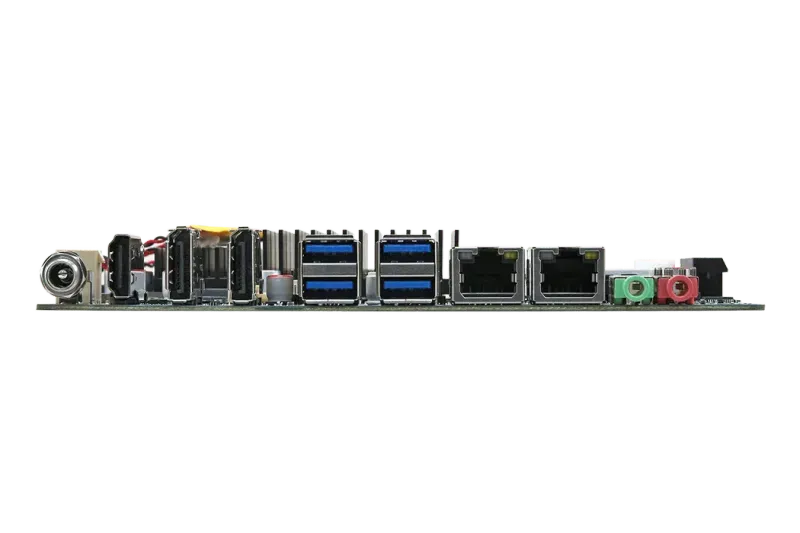

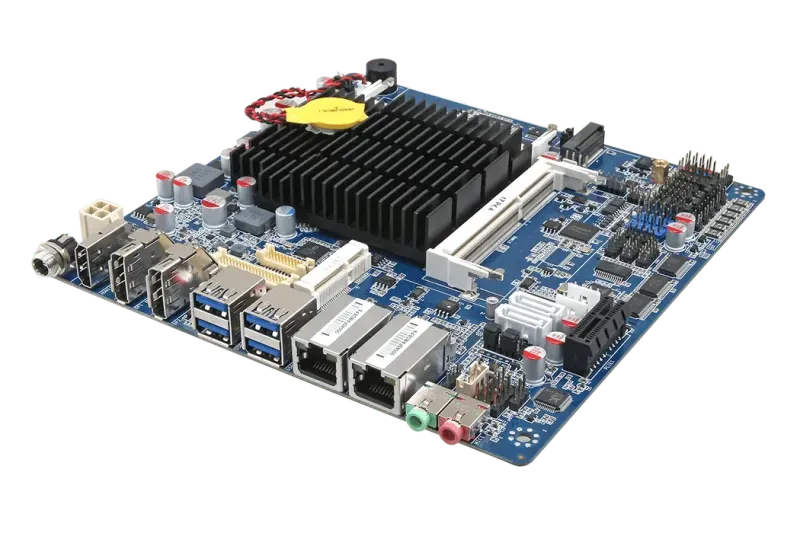

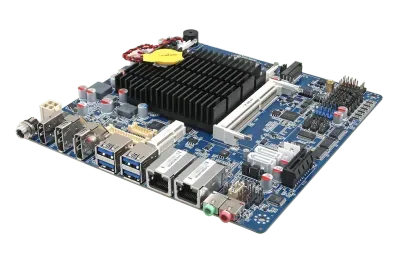

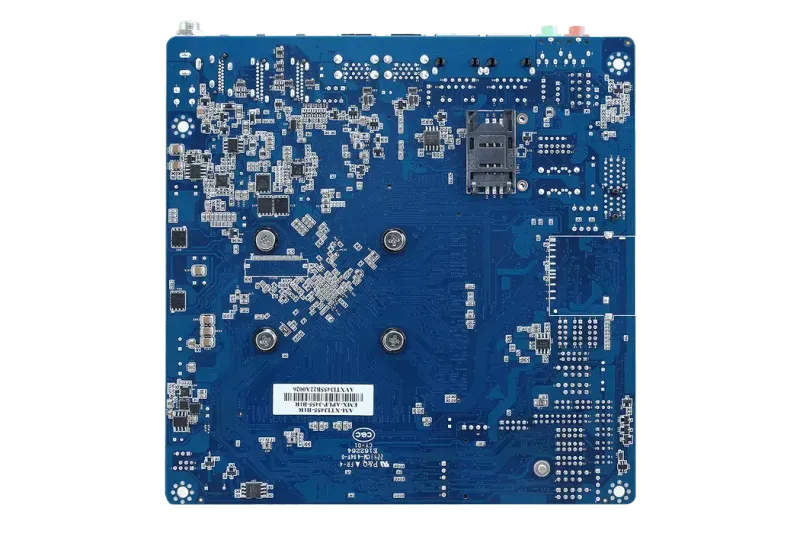

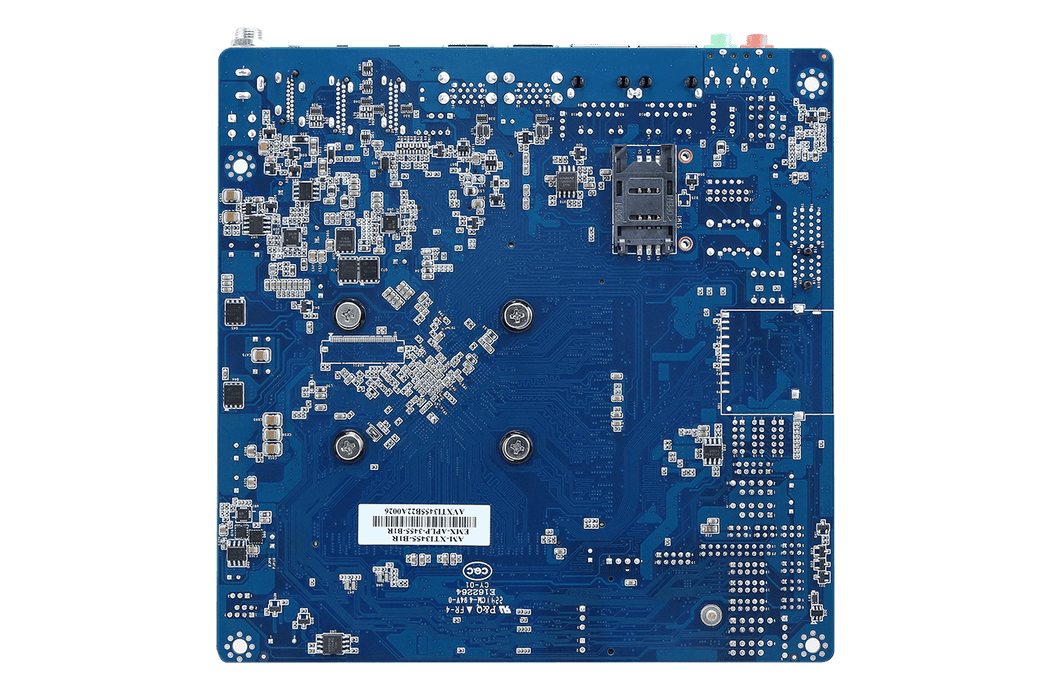

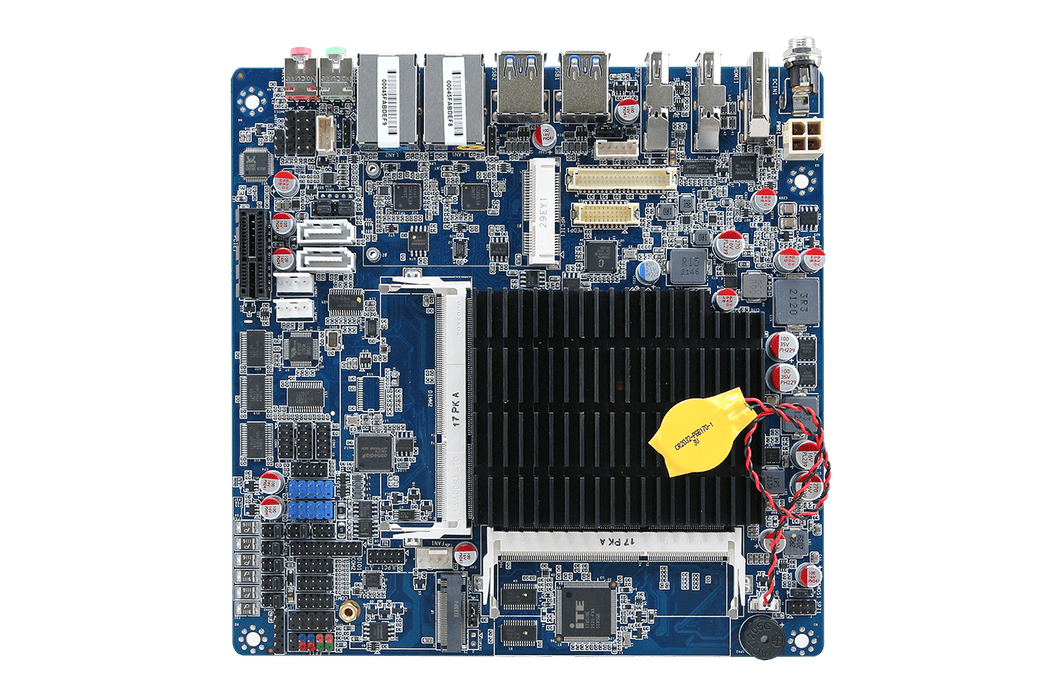

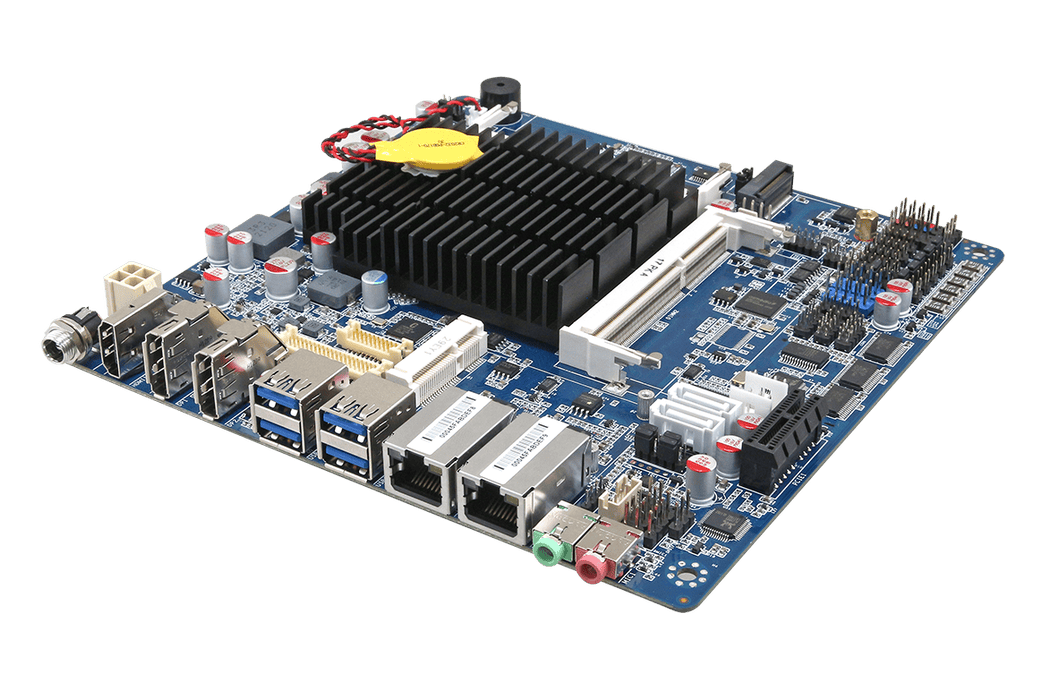

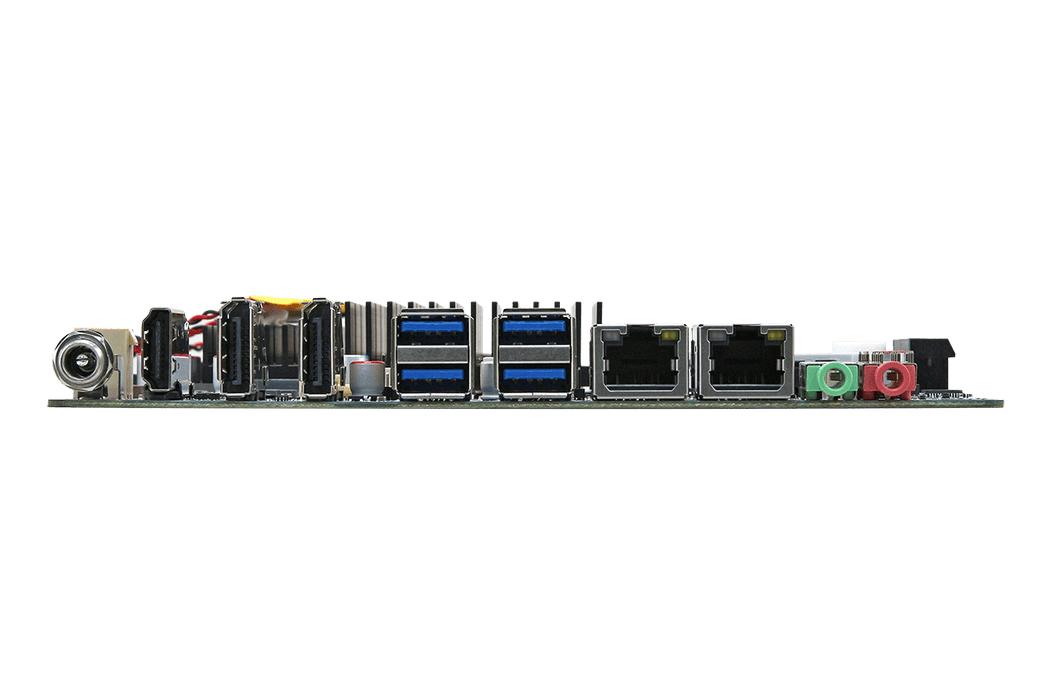

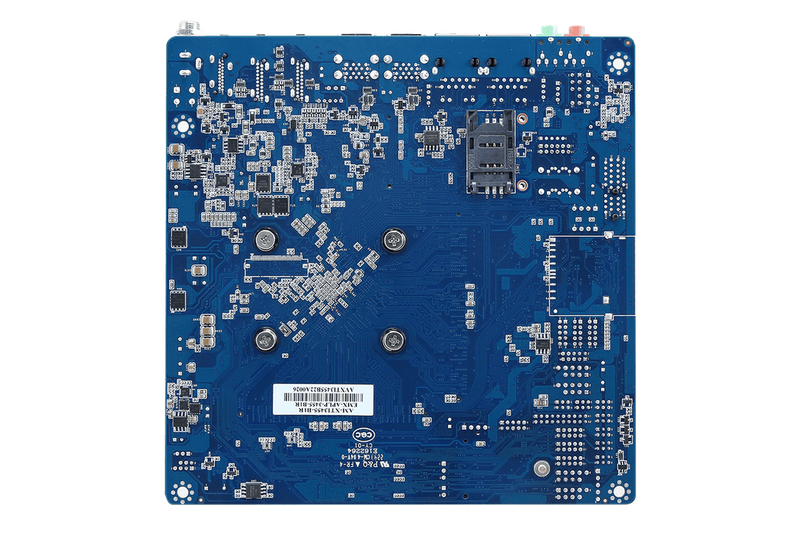

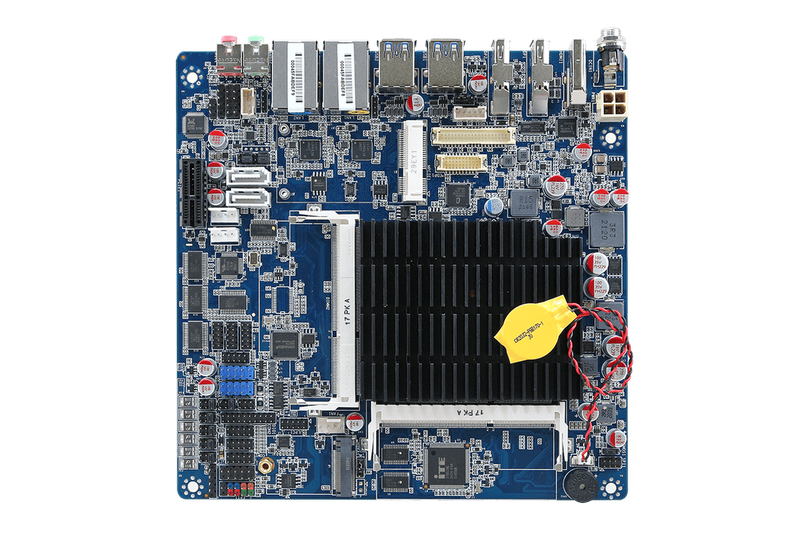

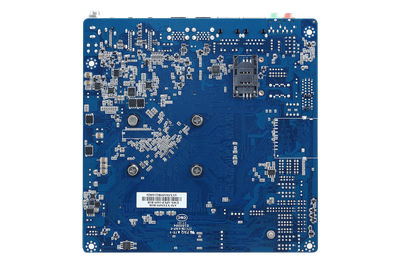

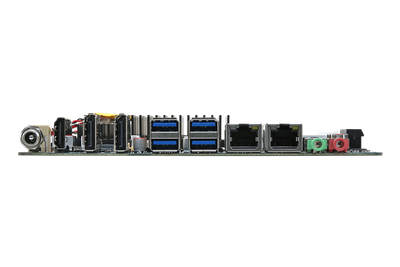

The Avalue EMX-APLP is a Thin Mini-ITX motherboard designed for industrial and embedded applications. It supports Intel® Celeron® J3455 and Pentium® N4200 processors, accommodating up to 16GB DDR3L 1600/1333MHz SO-DIMM memory.

Key features include triple display outputs (DP++, HDMI/DP, LVDS/eDP), dual Intel® i211AT Gigabit Ethernet ports, multiple USB ports (4 x USB 3.0, 6 x USB 2.0), serial interfaces (5 x RS-232, 1 x RS-232/422/485), GPIOs, and expansion options through a full-size Mini PCIe slot with mSATA support and an M.2 (2230) A-Key slot for Wi-Fi modules.

With a compact form factor of 170mm x 170mm, wide voltage input range of 12V to 24V DC, and support for Windows and Linux operating systems, the EMX-APLP offers a robust solution for space-constrained environments.

Technical Specifications

System Information

Processor

Intel® Celeron®J3455 Processor

System Memory

2 x 204-Pin DDR3L 1600MHz SO-DIMM Socket Supports Up to 16GB

I/O Chipset

EC iTE IT8528

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

BIOS

AMI uEFI BIOS, 128Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

Board

Thin Mini ITX

Display

Multiple Display

Triple Display

Graphic Chipset

Intel® SoC Integrated Graphics

Spec. & Resolution

HDMI/DP: 3840 x 2160@30Hz, 4096x2160@60Hz

LVDS/eDP(Co-lay): 1920 x 1080@60Hz, 3840 x2160@60Hz

LVDS

Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS) eDP By BOM Option

Expansion

1 x Full size Mini PCIe Support mSATA (SATA III and mSATA by Auto Switch IC) with 1 x SIM Card Slot

1 x M.2 (2230) A-Key, Support WiFi Module (Default) or 1 x PCIe x1 By Control EC

Audio

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Mic-in, Line-out

Audio Amplifier

2 x 2W 4Ω Amplifier

Ethernet

LAN Chipset

2 x Intel I226LM 2.5 Gigabit Ethernet

Ethernet Interface

10/100/1000/2.5G Base-T compatible

LAN Port

2 x RJ-45

Software Support

OS

Windows 10, Linux

Certification

Certification Information

CE, FCC, RoHS Compliant

I/O

USB

4 x USB 3.0

5 x USB 2.0

COM Port

5 x RS232(pin9 without power)

x RS232/RS422/485

SATA

2 x SATA III

2 x SATA Power

DIO

1 x 16-bit GPIO

Mechanical & Environmental

Operating Temp.

0 ~ 60°C (32 ~ 140°F)with 0.5m/s air flow

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Weight

0.88lbs (0.4Kgs)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Power Mode

AT/ATX (Default Setting: ATX)

Power Requirement

DC in +12V~24V

Ordering Information

EMX-APLP-3455-B1R Intel® Celeron® J3455 Processor Thin Mini ITX Motherboard

What is EMX-APLP?

The EMX-APLP is a industrial & embedded motherboard manufactured by Avalue, designed specifically for thin-mini-itx applications. The Avalue EMX-APLP is a Thin Mini-ITX motherboard designed for industrial and embedded applications. It supports Intel® Celeron® J3455 and Pentium® N4200 processors, accommodating up to 16GB DDR3L 1600/1333MHz SO-DIMM memory. Key features include triple display outputs (DP++, HDMI/DP, LVDS/eDP), dual Intel® i211AT Gigabit Ethernet ports, multiple USB ports (4 x USB 3.0, 6 x USB 2.0), serial interfaces (5 x RS-232, 1 x RS-232/422/485), GPIOs, and expansion options through a full-size Mini PCIe slot with mSATA support and an M.2 (2230) A-Key slot for Wi-Fi modules. With a compact form factor of 170mm x 170mm, wide voltage input range of 12V to 24V DC, and support for Windows and Linux operating systems, the EMX-APLP offers a robust solution for space-constrained environments.

Key Features & Benefits

Intel® Celeron® J3455 Processor
2 x 204-pin DDR3L 1600 MHz SO-DIMM Socket, Supports Up to 16GB Max
DP++, HDMI/DP, LVDS/Co-lay eDP
1 x Full Size Mini PCIe Support mSATA(SATAIII and mSATA by Auto Switch IC) with 1 x SIM Card Slot
2 x Intel® i226LM
5 x USB 2.0 by Pin Header, 4 x USB 3.0 at I/O
6 x COM
DC in +12V~24V

Applications & Use Cases

The EMX-APLP is ideal for various industrial automation applications:

DC-powered industrial installations and mobile applications
High-performance computing and data processing tasks
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Custom industrial computing solutions
Industrial and embedded applications
Industrial automation platforms
