Which processors are compatible with the EMX-EHLP?

The EMX-EHLP supports Intel® Atom® x6000E and Celeron® processors.

What is the maximum memory supported by the EMX-EHLP?

It supports up to 32GB DDR4 3200MHz SO-DIMM memory (IBECC support on Atom® x6000E).

How many LAN ports does the EMX-EHLP have?

It features four Intel® i226LM 2.5GbE LAN ports for high-speed networking.

What are the display output options for the EMX-EHLP?

The board supports DP++, HDMI, LVDS co-lay eDP, and can drive up to three independent displays.

What is the power input range for the EMX-EHLP?

It supports DC input from +12V to +24V.

What are Mini-ITX motherboards and what are their typical applications?

Mini-ITX motherboards are compact embedded boards measuring 170mm x 170mm. They are widely used in industrial automation, digital signage, kiosks, medical devices, edge computing, and embedded control systems due to their small size, rich I/O, and industrial-grade reliability.

What are the advantages of using Mini-ITX over other form factors?

Mini-ITX offers a balance of compact size and expandability, with support for full-size memory, multiple display outputs, and rich I/O. Compared to smaller boards, they provide better thermal management and more expansion options, while being smaller than ATX or microATX boards.

How do processor generations affect Mini-ITX board capabilities?

Newer processor generations bring improved performance, power efficiency, and support for advanced features like DDR5 memory, PCIe Gen4, and AI acceleration. The choice of processor impacts computing power, graphics, and connectivity options for Mini-ITX boards.

What factors should be considered when selecting a Mini-ITX board for industrial use?

Consider CPU performance, memory and storage support, I/O requirements (USB, COM, LAN, display), expansion slots (M.2, PCIe), power input range, operating temperature, certifications, and long-term availability for your application.

How can I effectively cool a Mini-ITX motherboard in an enclosed system?

Ensure adequate airflow (at least 0.5 m/s), use heatsinks or thermal pads, and consider fanless enclosures with external fins. Arrange components for natural convection and monitor system temperatures using onboard sensors.

What are the power considerations for Mini-ITX boards?

Provide stable DC input within the specified range (often +12V~24V), use quality power supplies, and understand AT/ATX power modes. Implement surge protection and proper power sequencing for industrial reliability.

How can I expand the functionality of a Mini-ITX board?

Use M.2 slots for Wi-Fi, LTE, or SSDs; PCIe slots for add-on cards; and USB or GPIO for peripherals. Many boards support multiple displays, additional storage, and network expansion through these interfaces.

What are common performance bottlenecks in Mini-ITX systems?

Thermal limits, memory bandwidth, storage I/O, and network congestion are typical bottlenecks. Use fast memory, NVMe SSDs, and ensure proper cooling and network design to maximize performance.

What is the recommended mounting procedure for Mini-ITX boards?

Use all four mounting holes with standoffs, maintain clearance above heat-generating components, and ensure proper thermal contact if using conduction cooling. Secure cables and avoid sources of EMI.

How should I handle and install Mini-ITX boards to prevent damage?

Use ESD protection, handle by the edges, avoid flexing the PCB, and ensure power is off when connecting components. Use correct torque for screws and avoid moisture or contaminants.

What are best practices for connecting peripherals to Mini-ITX boards?

Use shielded cables, implement strain relief, connect power before signal cables, and avoid exceeding cable length limits. Configure serial ports and test peripherals individually before full deployment.

How can I set up operating systems on Mini-ITX boards?

Use manufacturer-recommended OS images, configure BIOS/UEFI settings, install all drivers, and optimize system services for your application. Document the setup for future maintenance.

What should I do if a Mini-ITX board fails to power on?

Check power supply voltage and polarity, inspect cables and connectors, verify power mode (AT/ATX), and look for physical damage. Test with a known-good supply and check for status LEDs or error codes.

How can I resolve display output problems on Mini-ITX boards?

Check cable connections, monitor input selection, and supported resolutions. Try different display interfaces, update drivers, reset BIOS display settings, and test with another monitor.

What are common causes of network issues and how can they be resolved?

Check physical connections, update network drivers, verify IP configuration, and check for firewall or switch issues. Test with alternate cables and equipment if needed.

How can I troubleshoot M.2 or storage device issues?

Ensure the device is properly inserted, matches the slot type, and is recognized in BIOS. Update BIOS and drivers, check for thermal issues, and test the device in another system if possible.

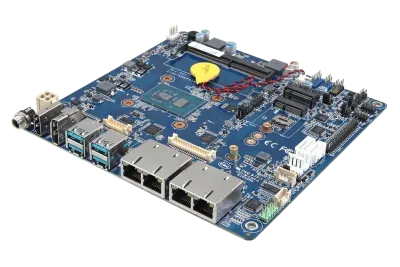

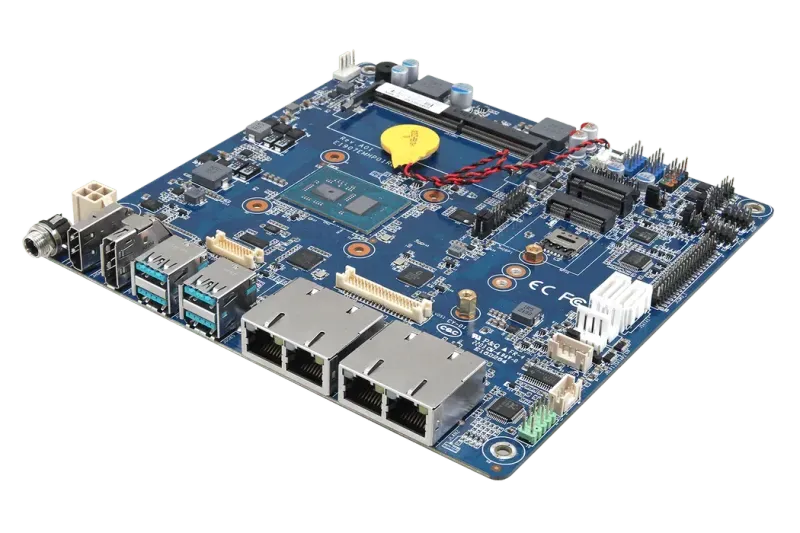

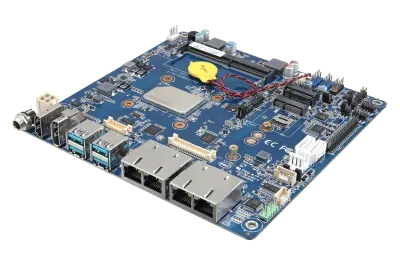

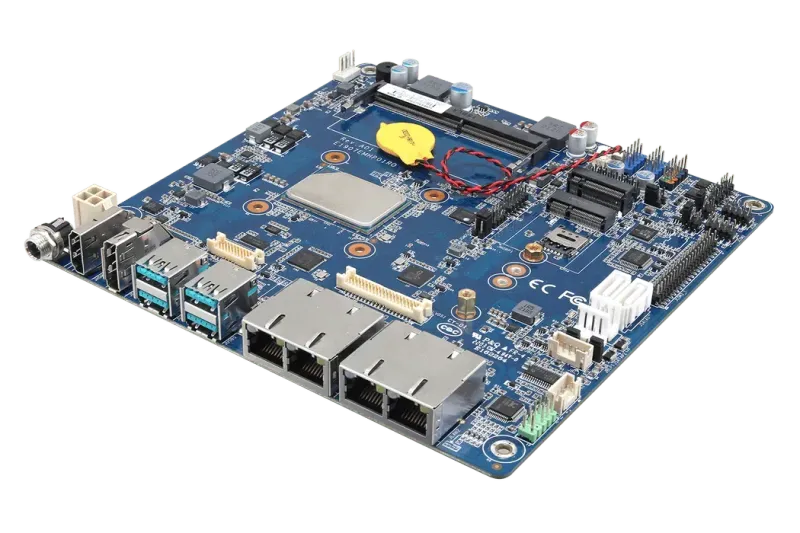

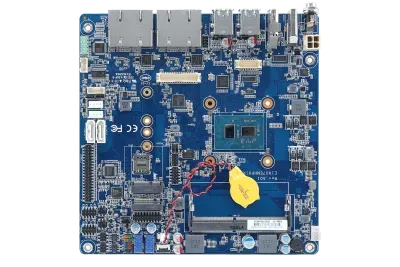

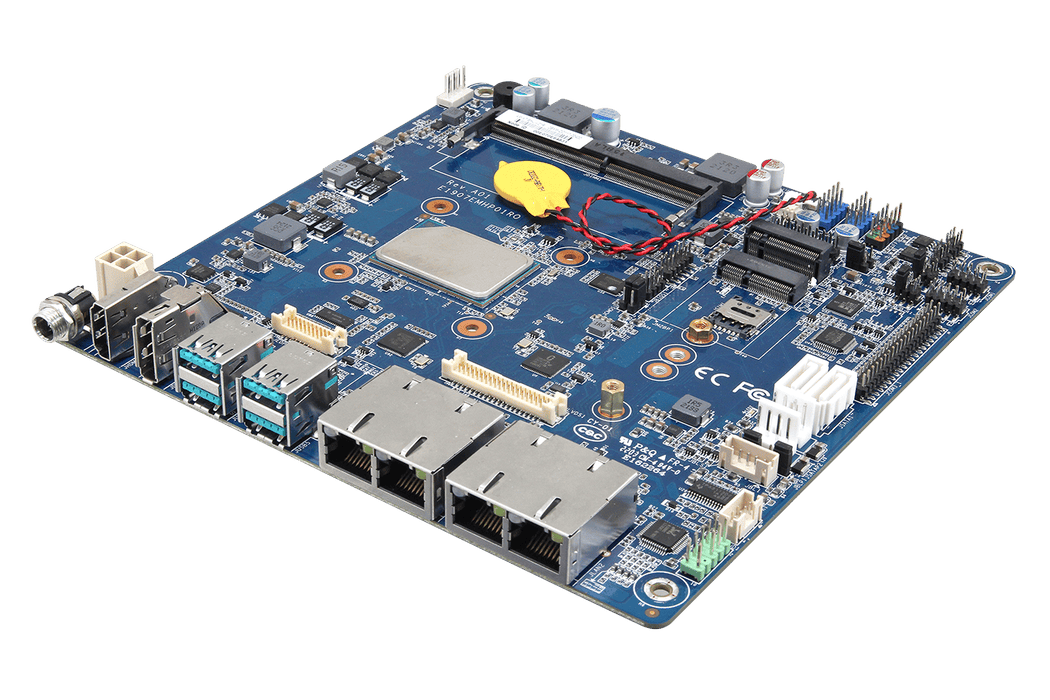

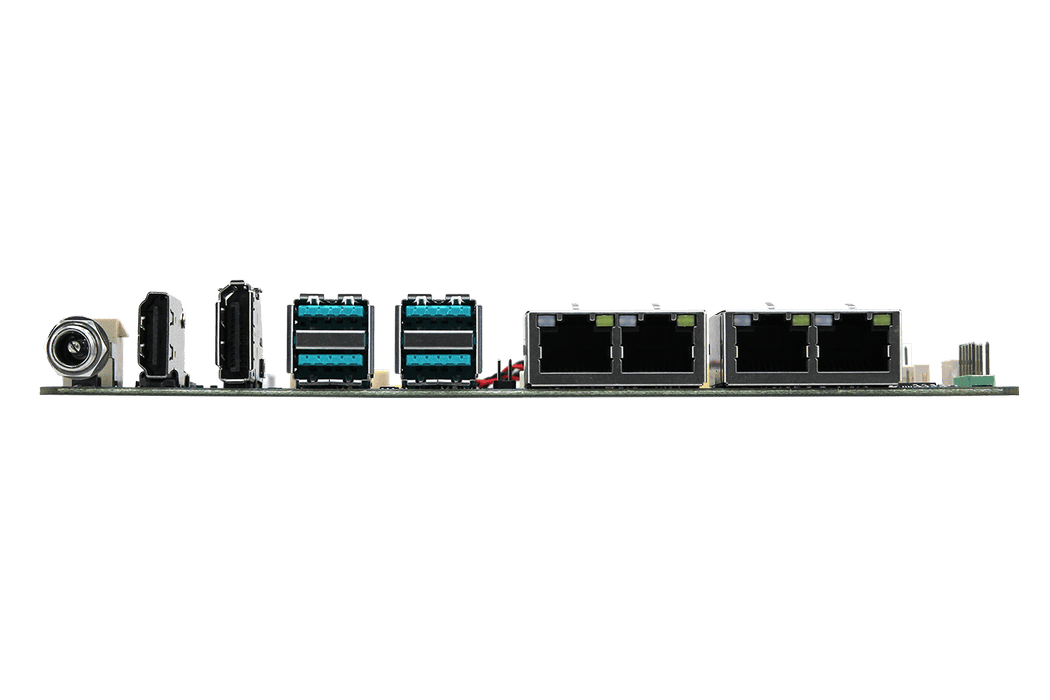

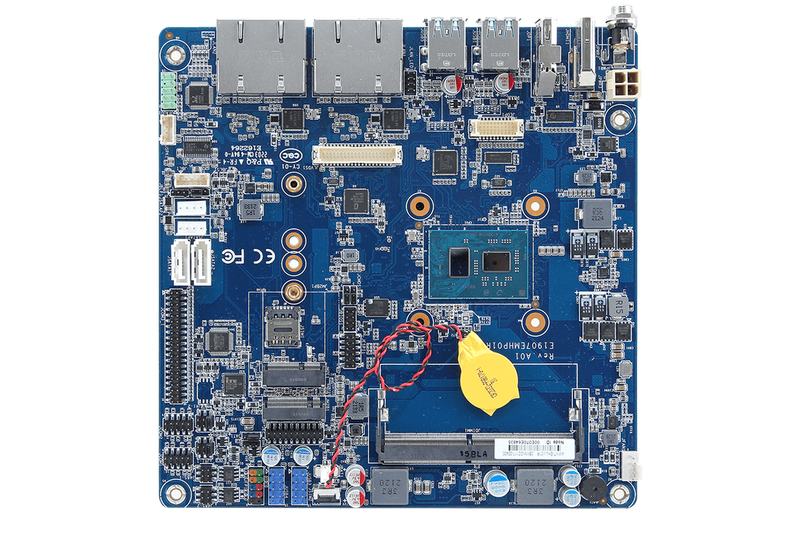

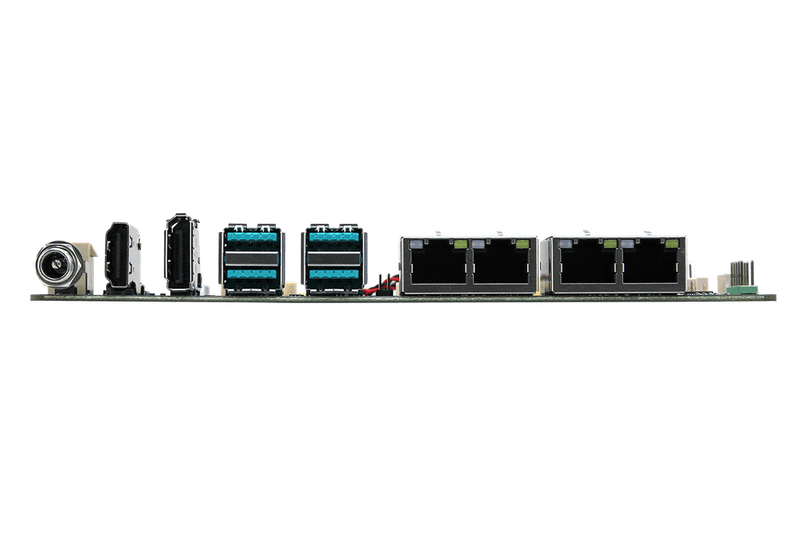

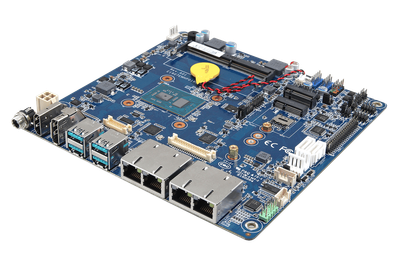

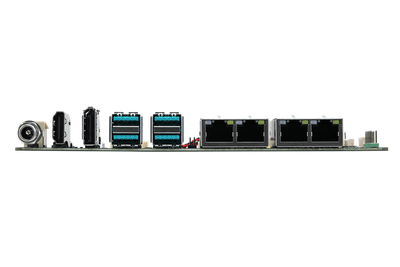

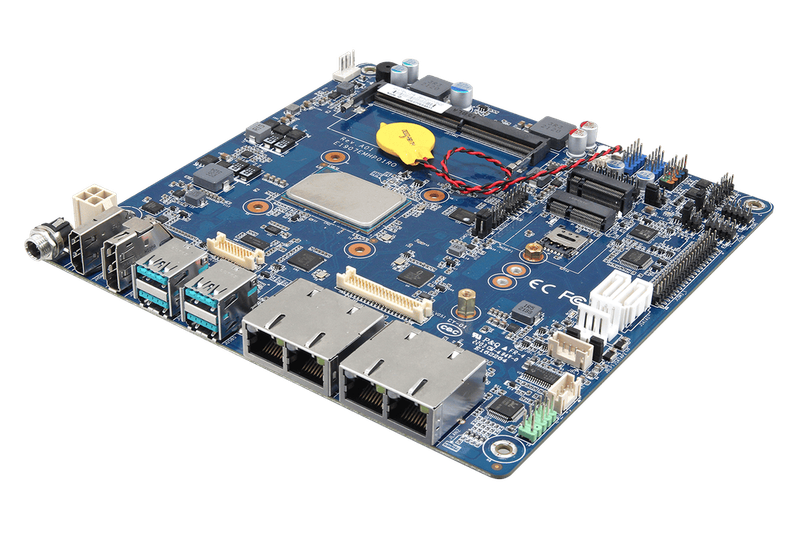

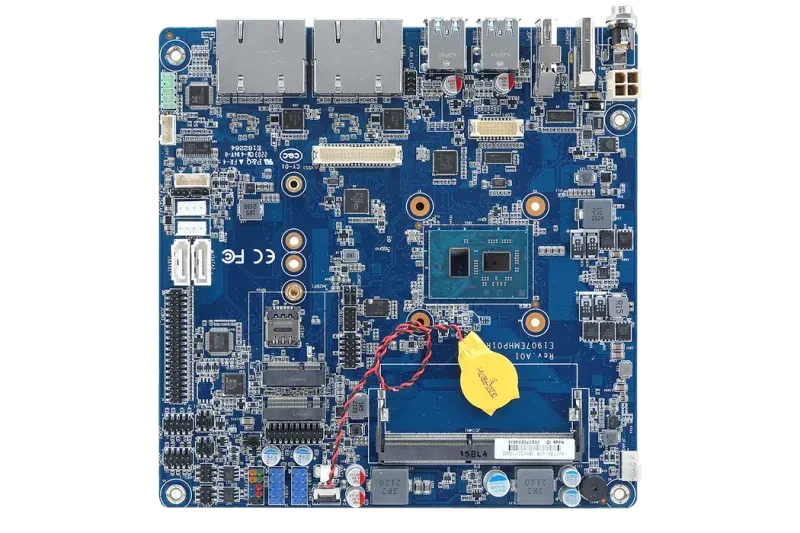

EMX-EHLP

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Intel® Atom® x6000E and Celeron® Series processors
1 x 260-pin DDR4 3200 MHz SO-DIMM Socket, Supports Up to 32GB Max (Only Atom® x6000E Series Processors Support IBECC)
1 x DP++, 1 x HDMI, 1 x LVDS co-lay eDP
4 x Intel® i226LM(IT)
4 x USB 2.0 by Pin Header, 2 x USB3.1 Gen2 and 2 x USB3.1 Gen1 at I/O
1 x M.2 Type B 3042/3052/2242/2260/2280, 1 x M.2 Key E 2230
4 x RS232, 2 x RS-232/RS422/485
DC in +12V~24V

Product Description

The Avalue EMX-EHLP is a Thin Mini-ITX motherboard designed for industrial and embedded applications. It supports Intel® Atom® x6000E and Celeron® processors, accommodating up to 32GB DDR4 3200MHz SO-DIMM memory (with IBECC support on Atom® x6000E series).

Key features include triple display outputs (1 x DP++, 1 x HDMI, 1 x LVDS co-lay eDP), four Intel® i226LM 2.5GbE LAN ports, multiple USB ports (2 x USB 3.1 Gen2, 2 x USB 3.1 Gen1, 4 x USB 2.0), serial interfaces (4 x RS-232, 2 x RS-232/422/485), and expansion options through M.2 Type B and M.2 Key E slots.

With a compact form factor of 170mm x 170mm, wide voltage input range of 12V to 24V DC, and support for Windows and Linux operating systems, the EMX-EHLP offers a robust solution for space-constrained environments.

Technical Specifications

System Information

Processor

Intel® Atom® x6000E and Celeron® Processor

System Memory

1 x 260-Pin DDR4 3200MHz SO-DIMM SSocket Supports Up to 32GB (Only Atom® x6000E Series Processors Support IBECC)

I/O Chipset

EC iTE IT5571

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

Board

Thin Mini ITX

Display

Multiple Display

Triple Display

Graphic Chipset

Intel® UHD Graphics for 10th Gen Intel® Processors

Spec. & Resolution

1 x DP++: 4096 x 2160@60 Hz (DP: 4096 x 2160@60Hz)

1 x HDMI 2.0b: 4096 x 2160@60 Hz

LVDS: 1920 x 1080 Dual Channel 18/24-bits LVDS (Chrontel CH7511B-BFI eDP to LVDS)

1 x eDP 4096 x 2160@60Hz

LVDS and eDP Via Switch IC, Either One Display is Functional.

LVDS

Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS) eDP By BOM Optionr

Expansion

1 x M.2 Type B Slot for 3042/3052/2242/2260/2280 Size with SATAIII + USB 3.1 GEN2, USB 2.0, SIM Slot for SSD/LTE/IO Cards Support WWAN+GNSS and SSD

*3042/2242 Bridge Bracket to 3052

*SATA 2 Share with M.2 key B SATA

* Only Supports One SIM Card

* Does not support I2S and PCM Functions

1 x M.2 Key E 2230 Support WiFi Module (1 x PCIe x1 & USB 2.0 Signal)

* Does not Support PCM/I2S and UART Functions

Audio

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Support Line-out & Mic-in & Front Audio Pin-header

Audio Amplifier

TI TPA3113D2 Stereo Class-D 6W

Ethernet

LAN Chipset

4 x Intel® i226LM/IT(Default: i226LM/IT);

(i226IT for Wide temp version) 2.5 Gigabit Ethernet

(BOM optional for 1 x 2 RJ45 Thin Mini ITX Cost version design SKU)

Ethernet Interface

100/1000/2500 Base-Tx GbE compatible Gigabit Ethernet

LAN Port

4 x RJ-45

Software Support

OS

Windows 10, Linux

Certification

Certification Information

CE, FCC, RoHS Compliant

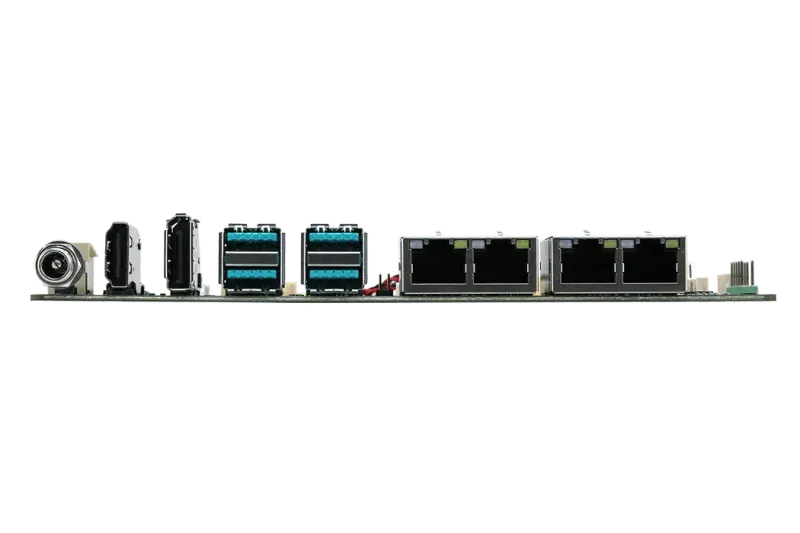

I/O

USB

2 x USB 3.1 Gen2

2 x USB 3.1 Gen1

4 x USB 2.0

COM Port

4 x RS-232

2 x RS232/422/485

SATA

2 x SATA III

2 x SATA Power

DIO

1 x 16-bit GPIO

Mechanical & Environmental

Operating Temp.

0 ~ 60°C (32 ~ 140 °F) Intel® Pentium®/Celeron®N/J Series CPU SKU

-20~60°C (-8~140°F) Intel® Atom®x6000 Series CPU SKU

w/HDD/SSD, ambient with 0.5 m/s Air flow

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Weight

0.88lbs (0.4Kgs)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Power Mode

AT/ATX (Default Setting: ATX)

Power Requirement

DC in +12V~24V

Ordering Information

EMX-EHLP-J6412-A1R (J6412, 4LAN, i226LM, Standard Temp.)

EMX-EHLP-J6413-A1R (J6413, 4LAN, i226LM, Standard Temp.)

EMX-EHLP-X13E-A1R (x6413E, 4LAN, i226IT, Wide Temp.)

EMX-EHLP-X25RE-A1R (x6425RE, 4LAN, i226IT, Wide Temp.)

EMX-EHLP-J12-A1-1R (J6412, 2LAN, i226V, Standard Temp.)

Intel® Celeron®/Atom™ SoC BGA Processor Thin Mini ITX SBC Motherboard

What is EMX-EHLP?

The EMX-EHLP is a industrial & embedded motherboard manufactured by Avalue, designed specifically for thin-mini-itx applications. The Avalue EMX-EHLP is a Thin Mini-ITX motherboard designed for industrial and embedded applications. It supports Intel® Atom® x6000E and Celeron® processors, accommodating up to 32GB DDR4 3200MHz SO-DIMM memory (with IBECC support on Atom® x6000E series). Key features include triple display outputs (1 x DP++, 1 x HDMI, 1 x LVDS co-lay eDP), four Intel® i226LM 2.5GbE LAN ports, multiple USB ports (2 x USB 3.1 Gen2, 2 x USB 3.1 Gen1, 4 x USB 2.0), serial interfaces (4 x RS-232, 2 x RS-232/422/485), and expansion options through M.2 Type B and M.2 Key E slots. With a compact form factor of 170mm x 170mm, wide voltage input range of 12V to 24V DC, and support for Windows and Linux operating systems, the EMX-EHLP offers a robust solution for space-constrained environments.

Key Features & Benefits

Intel® Atom® x6000E and Celeron® Series processors
1 x 260-pin DDR4 3200 MHz SO-DIMM Socket, Supports Up to 32GB Max (Only Atom® x6000E Series Processors Support IBECC)
1 x DP++, 1 x HDMI, 1 x LVDS co-lay eDP
4 x Intel® i226LM(IT)
4 x USB 2.0 by Pin Header, 2 x USB3.1 Gen2 and 2 x USB3.1 Gen1 at I/O
1 x M.2 Type B 3042/3052/2242/2260/2280, 1 x M.2 Key E 2230
4 x RS232, 2 x RS-232/RS422/485
DC in +12V~24V

Applications & Use Cases

The EMX-EHLP is ideal for various industrial automation applications:

DC-powered industrial installations and mobile applications
Legacy equipment integration and serial communication
High-performance computing and data processing tasks
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Custom industrial computing solutions
Industrial and embedded applications
Industrial automation platforms

Product Features

Product Description

Technical Specifications

System Information

Processor

System Memory

I/O Chipset

Watchdog Timer

BIOS

H/W Status Monitor

Board

Display

Multiple Display

Graphic Chipset

Spec. & Resolution

LVDS

Expansion

Expansion

Audio

Audio Codec

Audio Interface

Audio Amplifier

Ethernet

LAN Chipset

Ethernet Interface

LAN Port

Software Support

OS

Certification

Certification Information

I/O

USB

COM Port

SATA

DIO

Mechanical & Environmental

Operating Temp.

Storage Temp.

Dimension (L x W)

Weight

Operating Humidity

Power Mode

Power Requirement

Ordering Information

Ordering Information

What is EMX-EHLP?

Key Features & Benefits

Applications & Use Cases

Frequently Asked Questions
