What processors does the EMX-MTLP support?

The EMX-MTLP supports Intel® Core™ Ultra 5 Processor 125U (15W) & 125H (28W) BGA processors.

How much memory can the EMX-MTLP handle?

It supports up to 64GB DDR5 5600MHz SO-DIMM memory.

What are the display capabilities?

It supports up to six display outputs (2 x DP, 2 x HDMI, LVDS, eDP) for quadruple independent displays.

What expansion options are available?

The board offers PCIe x4 Gen4, 2 x M.2 Type M, 1 x M.2 Type B, and 1 x M.2 Type E slots.

What is the power input for the EMX-MTLP?

It supports DC input of +12V to +24V.

What are Mini-ITX motherboards and what are their typical applications?

Mini-ITX motherboards are compact embedded boards measuring 170mm x 170mm. They are widely used in industrial automation, digital signage, kiosks, medical devices, edge computing, and embedded control systems due to their small size, rich I/O, and industrial-grade reliability.

What are the advantages of using Mini-ITX over other form factors?

Mini-ITX offers a balance of compact size and expandability, with support for full-size memory, multiple display outputs, and rich I/O. Compared to smaller boards, they provide better thermal management and more expansion options, while being smaller than ATX or microATX boards.

How do processor generations affect Mini-ITX board capabilities?

Newer processor generations bring improved performance, power efficiency, and support for advanced features like DDR5 memory, PCIe Gen4, and AI acceleration. The choice of processor impacts computing power, graphics, and connectivity options for Mini-ITX boards.

What factors should be considered when selecting a Mini-ITX board for industrial use?

Consider CPU performance, memory and storage support, I/O requirements (USB, COM, LAN, display), expansion slots (M.2, PCIe), power input range, operating temperature, certifications, and long-term availability for your application.

How can I effectively cool a Mini-ITX motherboard in an enclosed system?

Ensure adequate airflow (at least 0.5 m/s), use heatsinks or thermal pads, and consider fanless enclosures with external fins. Arrange components for natural convection and monitor system temperatures using onboard sensors.

What are the power considerations for Mini-ITX boards?

Provide stable DC input within the specified range (often +12V~24V), use quality power supplies, and understand AT/ATX power modes. Implement surge protection and proper power sequencing for industrial reliability.

How can I expand the functionality of a Mini-ITX board?

Use M.2 slots for Wi-Fi, LTE, or SSDs; PCIe slots for add-on cards; and USB or GPIO for peripherals. Many boards support multiple displays, additional storage, and network expansion through these interfaces.

What are common performance bottlenecks in Mini-ITX systems?

Thermal limits, memory bandwidth, storage I/O, and network congestion are typical bottlenecks. Use fast memory, NVMe SSDs, and ensure proper cooling and network design to maximize performance.

What is the recommended mounting procedure for Mini-ITX boards?

Use all four mounting holes with standoffs, maintain clearance above heat-generating components, and ensure proper thermal contact if using conduction cooling. Secure cables and avoid sources of EMI.

How should I handle and install Mini-ITX boards to prevent damage?

Use ESD protection, handle by the edges, avoid flexing the PCB, and ensure power is off when connecting components. Use correct torque for screws and avoid moisture or contaminants.

What are best practices for connecting peripherals to Mini-ITX boards?

Use shielded cables, implement strain relief, connect power before signal cables, and avoid exceeding cable length limits. Configure serial ports and test peripherals individually before full deployment.

How can I set up operating systems on Mini-ITX boards?

Use manufacturer-recommended OS images, configure BIOS/UEFI settings, install all drivers, and optimize system services for your application. Document the setup for future maintenance.

What should I do if a Mini-ITX board fails to power on?

Check power supply voltage and polarity, inspect cables and connectors, verify power mode (AT/ATX), and look for physical damage. Test with a known-good supply and check for status LEDs or error codes.

How can I resolve display output problems on Mini-ITX boards?

Check cable connections, monitor input selection, and supported resolutions. Try different display interfaces, update drivers, reset BIOS display settings, and test with another monitor.

What are common causes of network issues and how can they be resolved?

Check physical connections, update network drivers, verify IP configuration, and check for firewall or switch issues. Test with alternate cables and equipment if needed.

How can I troubleshoot M.2 or storage device issues?

Ensure the device is properly inserted, matches the slot type, and is recognized in BIOS. Update BIOS and drivers, check for thermal issues, and test the device in another system if possible.

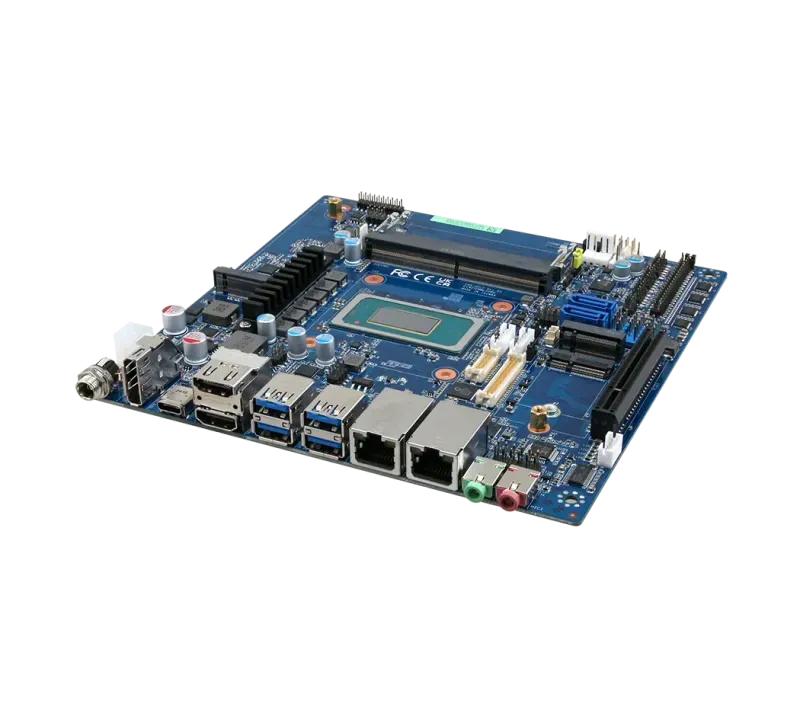

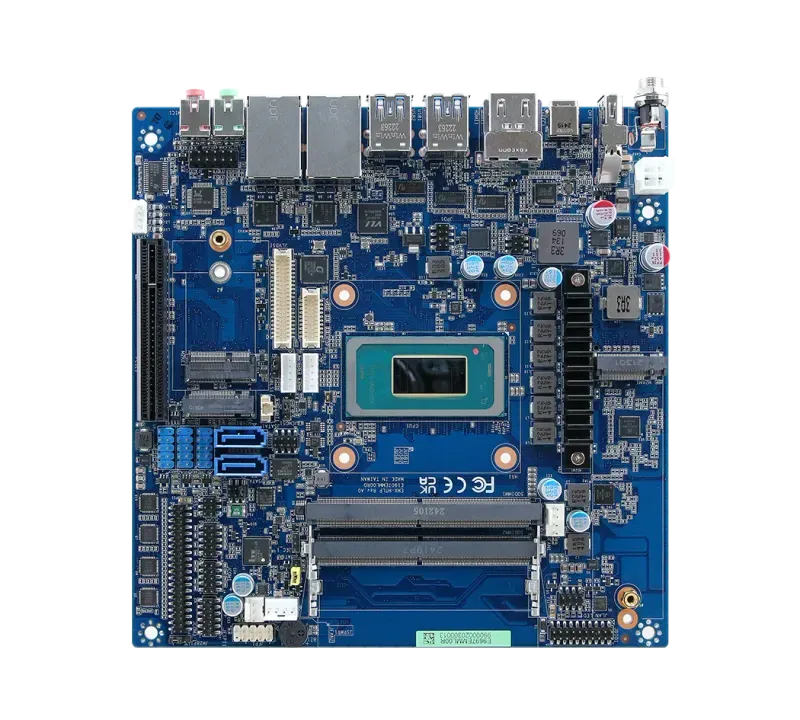

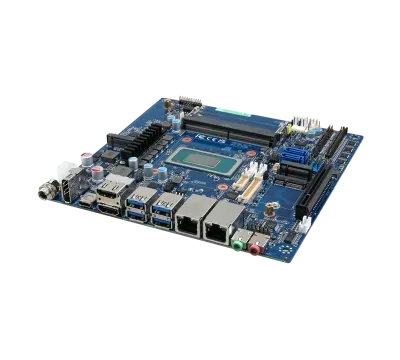

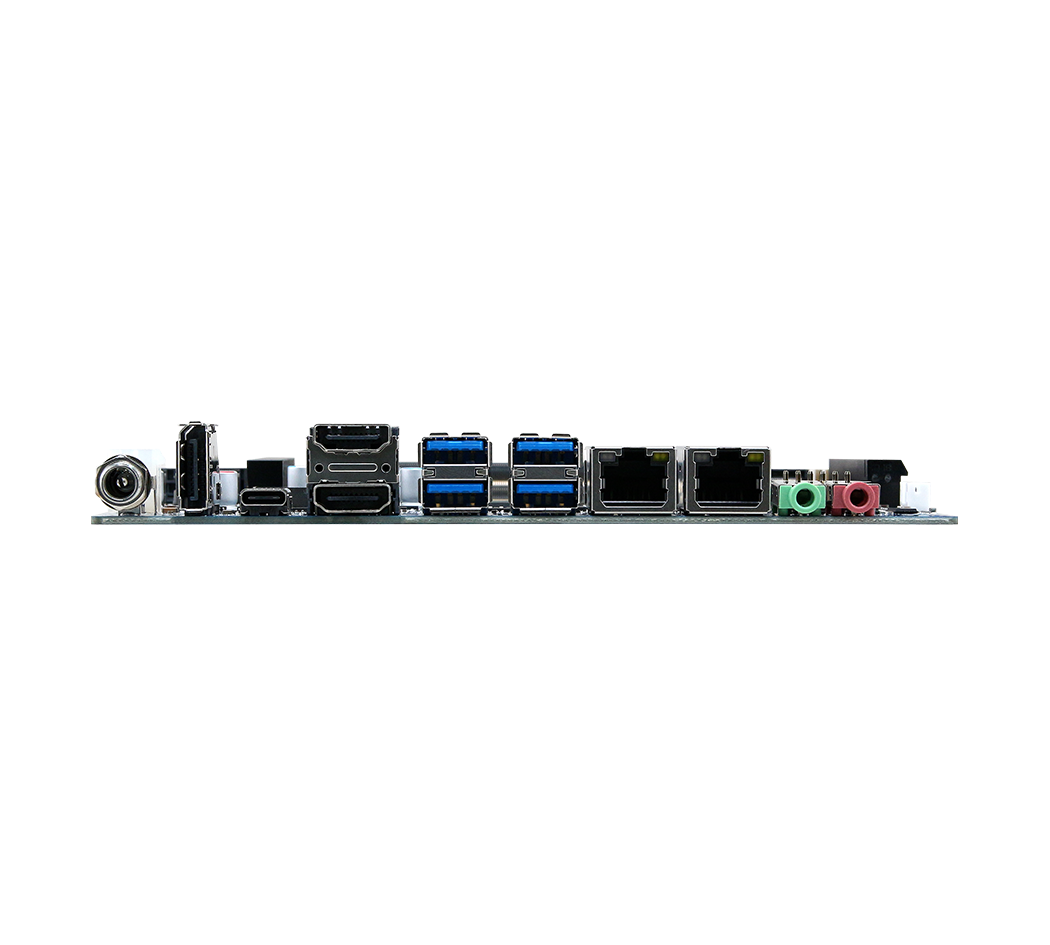

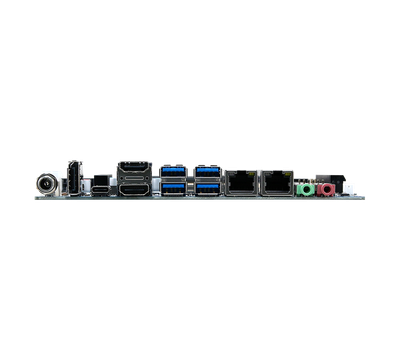

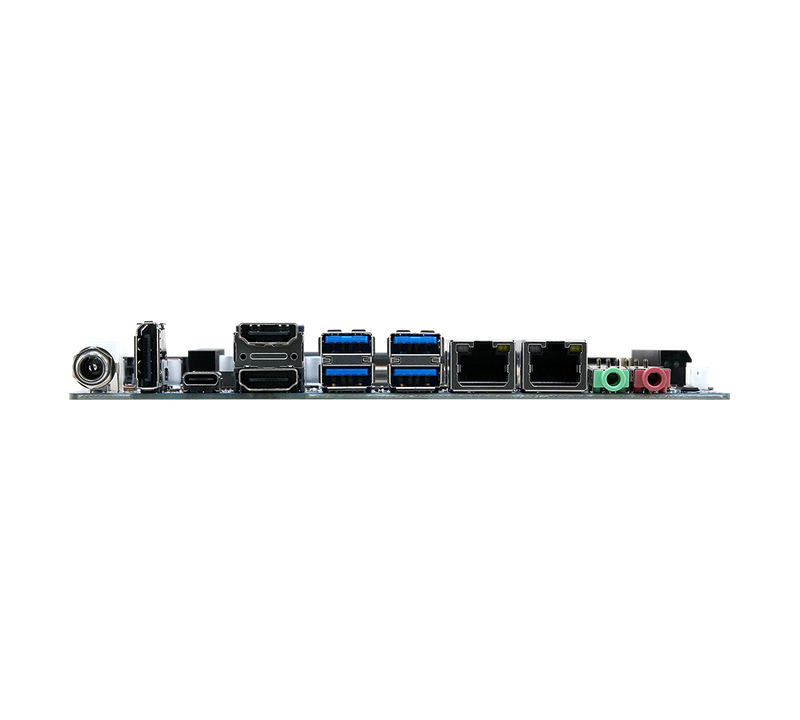

EMX-MTLP

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Intel® Core™ Ultra 5 Processor 125U (15W) & 125H (28W) BGA Processor
2 x 262-Pin DDR5 5600MHz SO-DIMM Socket Supports Up to 64GB
2 x DP (1 from Type C), 2 x HDMI, 1 x LVDS, 1 x eDP
1 x PCIe x4 Gen4
1 x Intel® I226LM, 1 x Intel® I226V
2 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 6 x USB 2.0
2 x M.2 Type M, 1 x M.2 Type B, 1 x M.2 Type E
1 x USB Type C, 5V@3A, supports USB3.2 Gen2 and DP
DC in +12V~24V
6 x COM

Product Description

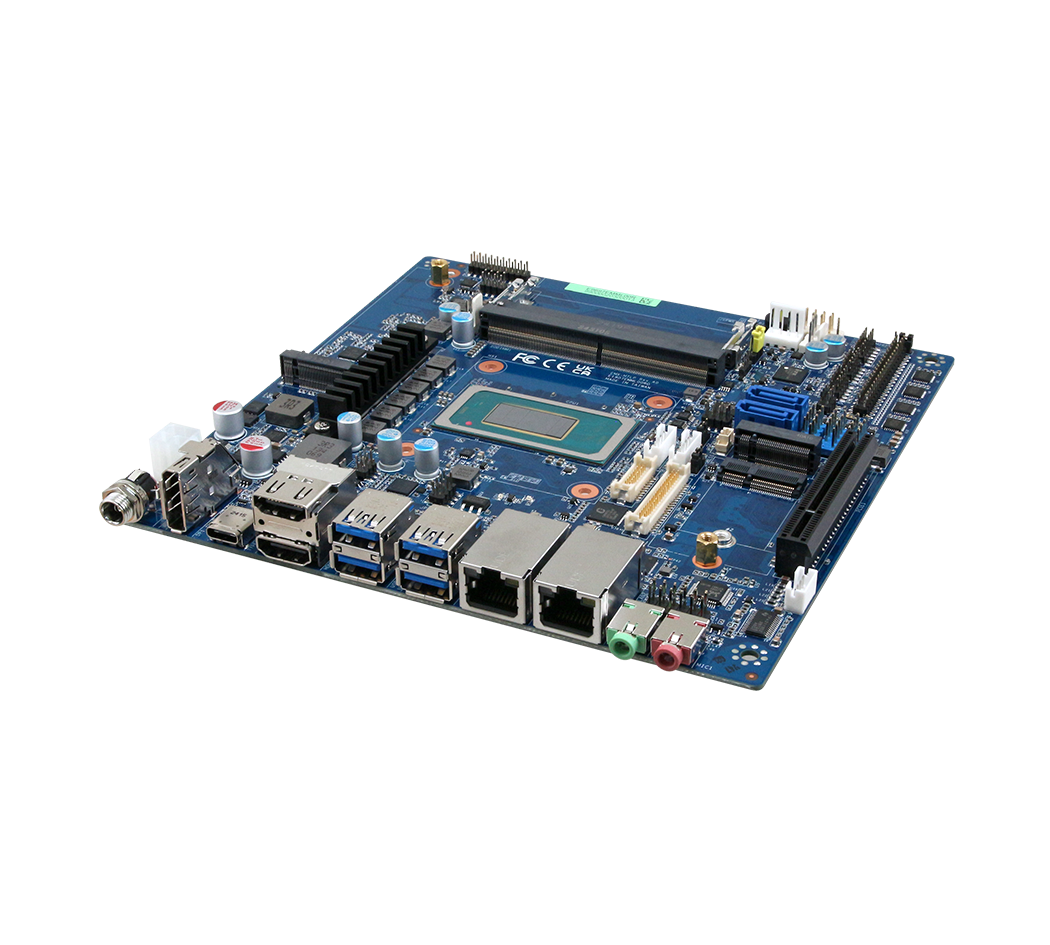

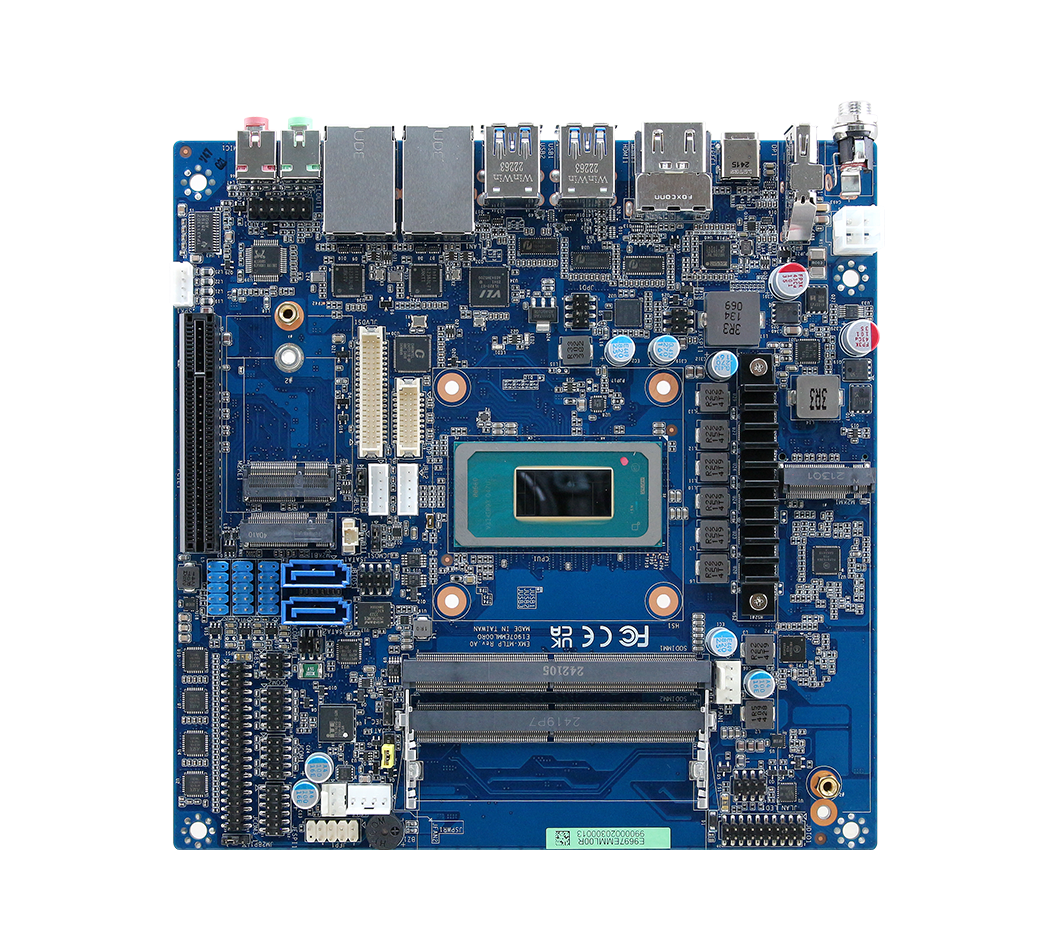

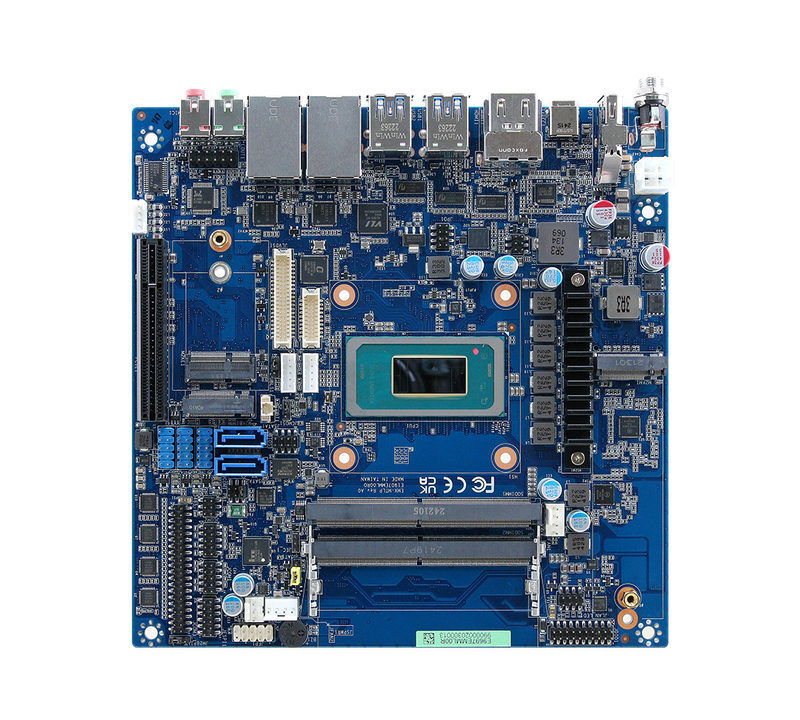

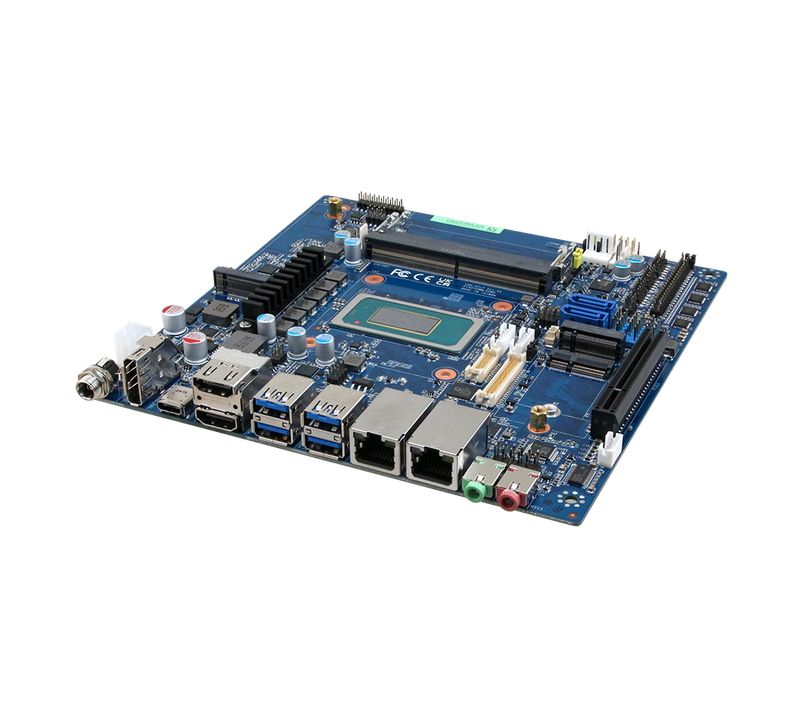

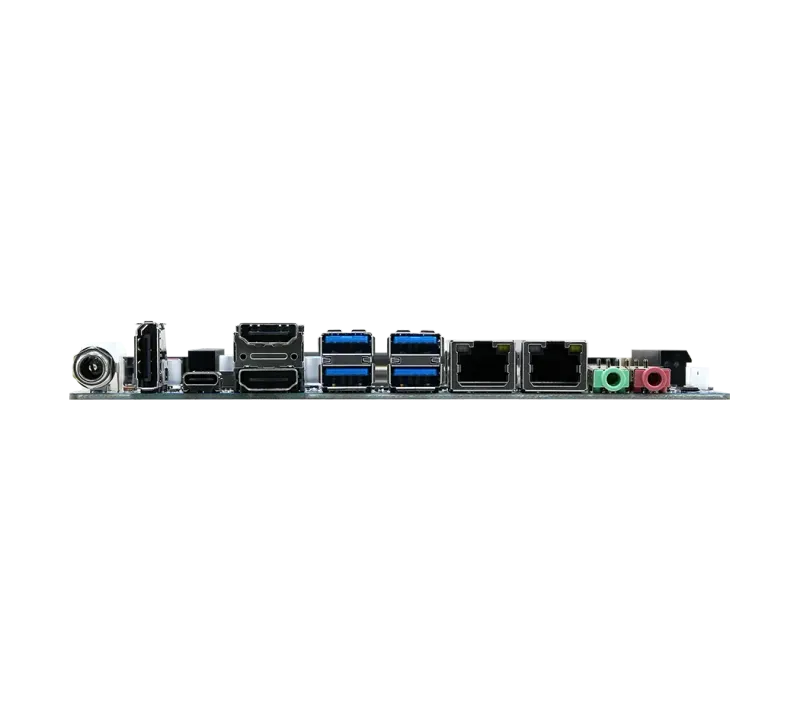

The Avalue EMX-MTLP is a Mini-ITX motherboard designed for industrial and embedded applications. It supports Intel® Core™ Ultra processors with TDP options of 15W and 28W, accommodating up to 64GB DDR5 memory.

Key features include multiple display outputs (2 x DP, 2 x HDMI, LVDS, eDP), dual Intel® I226 network controllers for reliable high-speed connectivity, and expansion options through PCIe Gen4 and various M.2 slots.

With a compact form factor and fanless design, the EMX-MTLP offers a robust solution for space-constrained environments.

Technical Specifications

System Information

Processor

Intel® Core™ Ultra 5 Processor 125U & 125H BGA Processor (TDP: 15W & 28W)

System Memory

2 x 262-Pin DDR5 5600MHz SO-DIMM Socket Supports Up to 64GB

I/O Chipset

EC iTE IT5782VG

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

Onboard nuvoTon NPCT760AABYX support TPM 2.0

Board

Thin Mini ITX

Display

Multiple Display

2 x DP, 2 x HDMI, 1 x LVDS, 1 x eDP

(Maximum: 6 for Quadruple Independent Displays)

Graphic Chipset

Intel® Xe LPG Graphics

Spec. & Resolution

2 x HDMI 2.0: 3840 X 2160 @60Hz

1 x DP1.4a: Max: 7680 x 4320@30Hz

1 x USB Type C supports 3840 x 2160@60Hz

LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)

eDP1.2: Max 4096 x 2304@60 Hz

LVDS

1 x Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)

Expansion

1 x M.2 Type B 2242/3042/3052 (with 1 x PCIe x1 (Default), USB2.0, USB 3.2 Gen2 with 1 x SIM Card Slot Support

WWAN+GNSS (Note: this Type B conn. shares SATA signal with SATA2, supports SSD storage)

1 x M.2 Key E 2230 Support Wi-Fi Module and CNVi (1 x PCIe x1 & USB 2.0 Signal)

2 x M.2 Key M 2280 (PCIe x4) Slot for Storage NVMe SSD

Audio

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Support Line-out & Mic-in on rear I/O

Audio Amplifier

2 x 6W 8Ω Amplifier

Ethernet

LAN Chipset

1 x Intel® i226LM 2.5 Gigabit Ethernet Controller

1 x Intel® i226V 2.5 Gigabit Ethernet Controller

Ethernet Interface

10/100/1000 Base-Tx GbE compatible & 2.5 Gigabit Ethernet

LAN Port

2 x RJ-45

Power Requirement

DC Input

12~24V

Software Support

OS

Windows 11 LTSC

Linux

Certification

Certification Information

CE, FCC, RoHS Compliant

I/O

USB

4 x USB 3.0

4 x USB 2.0

COM Port

4 x RS232 (JCOM1 ~ JCOM4)

2 x RS22/485 (JCOM1 and JCOM2, need to modify BIOS Setup settings and change pin header & cable)

SATA

2 x SATA III

1 x SATA Power

DIO

1 x 16-bit GPIO

Mechanical & Environmental

Operating Temp.

125U (15W) with fanless support: 0~60°C.

125H (28W) with CPU cooler support: 0~50°C.

With HDD/SSD, ambient with 0.5 m/s Air flow.

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Weight

15W (shipping with heatsink): 1.127lbs (0.51Kgs)

28W (shipping w/o cooler): 0.603lbs (0.27kgs)

Operating Humidity

40°C at 95% relative humidity, non-condensing

Power Mode

AT/ATX (Default Setting: ATX)

Power Requirement

DC in +12V~24V

Ordering Information

EMX-MTLP-125U-A1R (Intel®Core Ultra 5 125U/15W)

EMX-MTLP-125H-A1R (Intel®Core Ultra 5 125H/28W)

What is EMX-MTLP?

The EMX-MTLP is a industrial & embedded motherboard manufactured by Avalue, designed specifically for thin-mini-itx applications. The Avalue EMX-MTLP is a Mini-ITX motherboard designed for industrial and embedded applications. It supports Intel® Core™ Ultra processors with TDP options of 15W and 28W, accommodating up to 64GB DDR5 memory. Key features include multiple display outputs (2 x DP, 2 x HDMI, LVDS, eDP), dual Intel® I226 network controllers for reliable high-speed connectivity, and expansion options through PCIe Gen4 and various M.2 slots. With a compact form factor and fanless design, the EMX-MTLP offers a robust solution for space-constrained environments.

Key Features & Benefits

Intel® Core™ Ultra 5 Processor 125U (15W) & 125H (28W) BGA Processor
2 x 262-Pin DDR5 5600MHz SO-DIMM Socket Supports Up to 64GB
2 x DP (1 from Type C), 2 x HDMI, 1 x LVDS, 1 x eDP
1 x PCIe x4 Gen4
1 x Intel® I226LM, 1 x Intel® I226V
2 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 6 x USB 2.0
2 x M.2 Type M, 1 x M.2 Type B, 1 x M.2 Type E
1 x USB Type C, 5V@3A, supports USB3.2 Gen2 and DP
DC in +12V~24V
6 x COM

Applications & Use Cases

The EMX-MTLP is ideal for various industrial automation applications:

DC-powered industrial installations and mobile applications
High-performance computing and data processing tasks
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Custom industrial computing solutions
Industrial and embedded applications
Industrial automation platforms
Embedded system development
