What processors does the EMX-RLUC support?

The EMX-RLUC supports 13th Gen Intel® Core™ i5/i3 SoC processors.

How much memory can the EMX-RLUC handle?

It supports up to 64GB DDR4 3200MHz non-ECC SO-DIMM memory.

What are the display capabilities of the EMX-RLUC?

It supports HDMI 2.0b, DP++ 1.4a, and LVDS for triple independent displays.

What expansion options are available?

The board offers PCIe Gen4, M.2 Key-B, Key-E, and Key-M slots for storage and connectivity expansion.

What are Mini-ITX motherboards and what are their typical applications?

Mini-ITX motherboards are compact embedded boards measuring 170mm x 170mm. They are widely used in industrial automation, digital signage, kiosks, medical devices, edge computing, and embedded control systems due to their small size, rich I/O, and industrial-grade reliability.

What are the advantages of using Mini-ITX over other form factors?

Mini-ITX offers a balance of compact size and expandability, with support for full-size memory, multiple display outputs, and rich I/O. Compared to smaller boards, they provide better thermal management and more expansion options, while being smaller than ATX or microATX boards.

How do processor generations affect Mini-ITX board capabilities?

Newer processor generations bring improved performance, power efficiency, and support for advanced features like DDR5 memory, PCIe Gen4, and AI acceleration. The choice of processor impacts computing power, graphics, and connectivity options for Mini-ITX boards.

What factors should be considered when selecting a Mini-ITX board for industrial use?

Consider CPU performance, memory and storage support, I/O requirements (USB, COM, LAN, display), expansion slots (M.2, PCIe), power input range, operating temperature, certifications, and long-term availability for your application.

How can I effectively cool a Mini-ITX motherboard in an enclosed system?

Ensure adequate airflow (at least 0.5 m/s), use heatsinks or thermal pads, and consider fanless enclosures with external fins. Arrange components for natural convection and monitor system temperatures using onboard sensors.

What are the power considerations for Mini-ITX boards?

Provide stable DC input within the specified range (often +12V~24V), use quality power supplies, and understand AT/ATX power modes. Implement surge protection and proper power sequencing for industrial reliability.

How can I expand the functionality of a Mini-ITX board?

Use M.2 slots for Wi-Fi, LTE, or SSDs; PCIe slots for add-on cards; and USB or GPIO for peripherals. Many boards support multiple displays, additional storage, and network expansion through these interfaces.

What are common performance bottlenecks in Mini-ITX systems?

Thermal limits, memory bandwidth, storage I/O, and network congestion are typical bottlenecks. Use fast memory, NVMe SSDs, and ensure proper cooling and network design to maximize performance.

What is the recommended mounting procedure for Mini-ITX boards?

Use all four mounting holes with standoffs, maintain clearance above heat-generating components, and ensure proper thermal contact if using conduction cooling. Secure cables and avoid sources of EMI.

How should I handle and install Mini-ITX boards to prevent damage?

Use ESD protection, handle by the edges, avoid flexing the PCB, and ensure power is off when connecting components. Use correct torque for screws and avoid moisture or contaminants.

What are best practices for connecting peripherals to Mini-ITX boards?

Use shielded cables, implement strain relief, connect power before signal cables, and avoid exceeding cable length limits. Configure serial ports and test peripherals individually before full deployment.

How can I set up operating systems on Mini-ITX boards?

Use manufacturer-recommended OS images, configure BIOS/UEFI settings, install all drivers, and optimize system services for your application. Document the setup for future maintenance.

What should I do if a Mini-ITX board fails to power on?

Check power supply voltage and polarity, inspect cables and connectors, verify power mode (AT/ATX), and look for physical damage. Test with a known-good supply and check for status LEDs or error codes.

How can I resolve display output problems on Mini-ITX boards?

Check cable connections, monitor input selection, and supported resolutions. Try different display interfaces, update drivers, reset BIOS display settings, and test with another monitor.

What are common causes of network issues and how can they be resolved?

Check physical connections, update network drivers, verify IP configuration, and check for firewall or switch issues. Test with alternate cables and equipment if needed.

How can I troubleshoot M.2 or storage device issues?

Ensure the device is properly inserted, matches the slot type, and is recognized in BIOS. Update BIOS and drivers, check for thermal issues, and test the device in another system if possible.

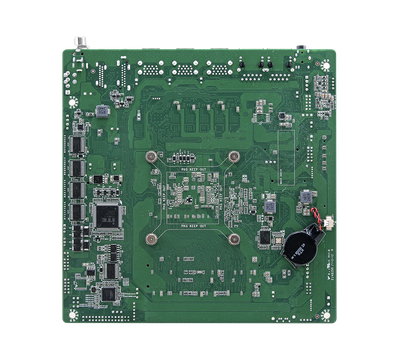

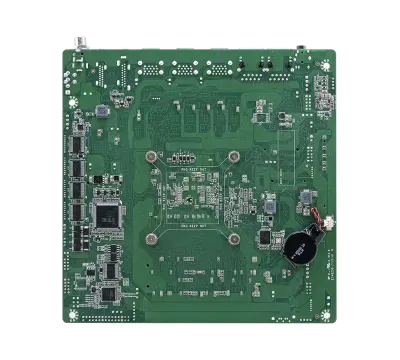

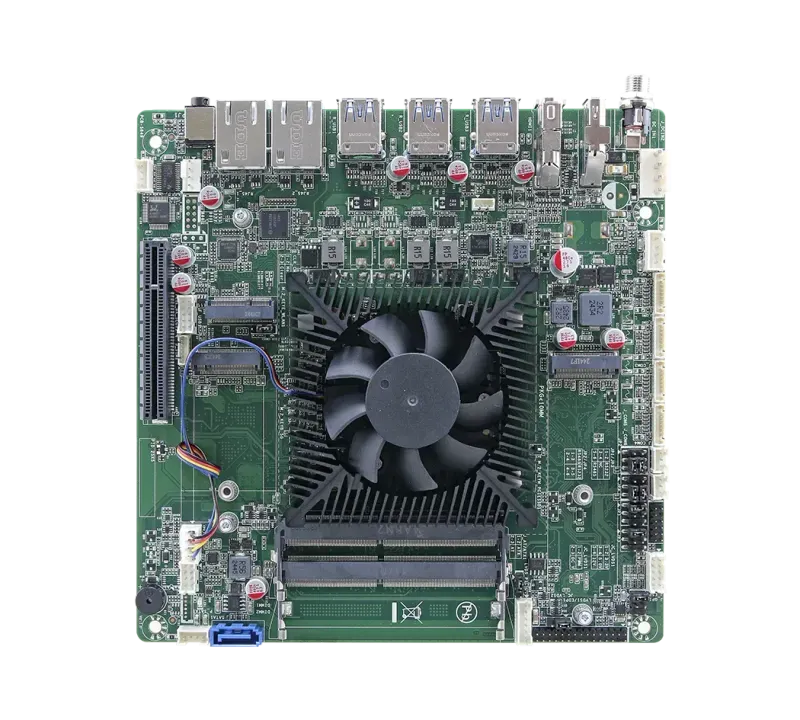

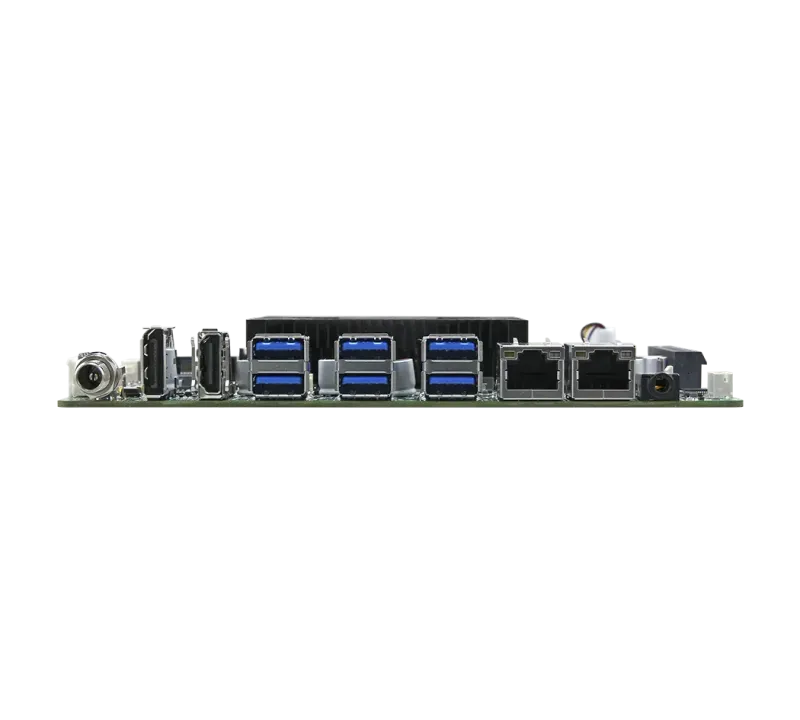

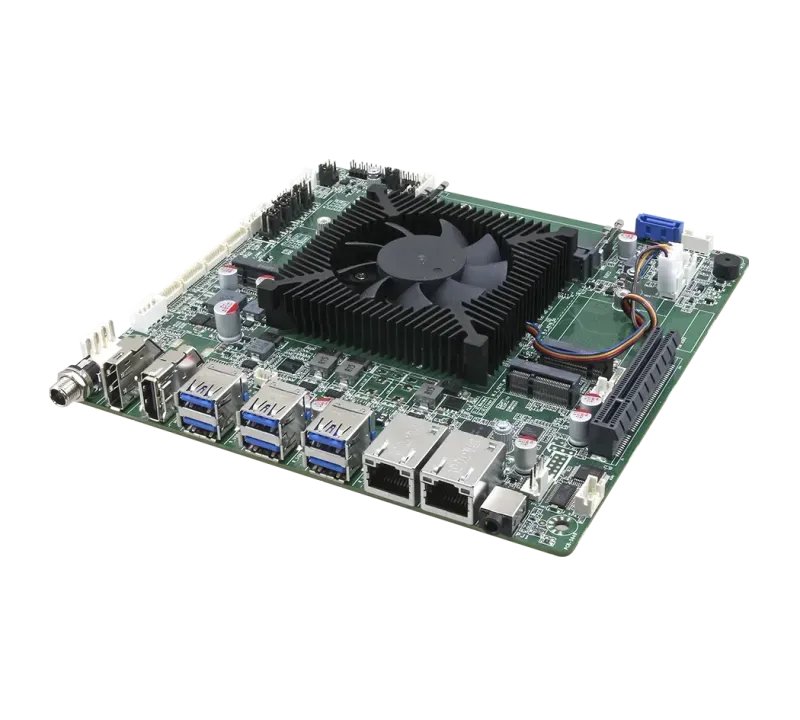

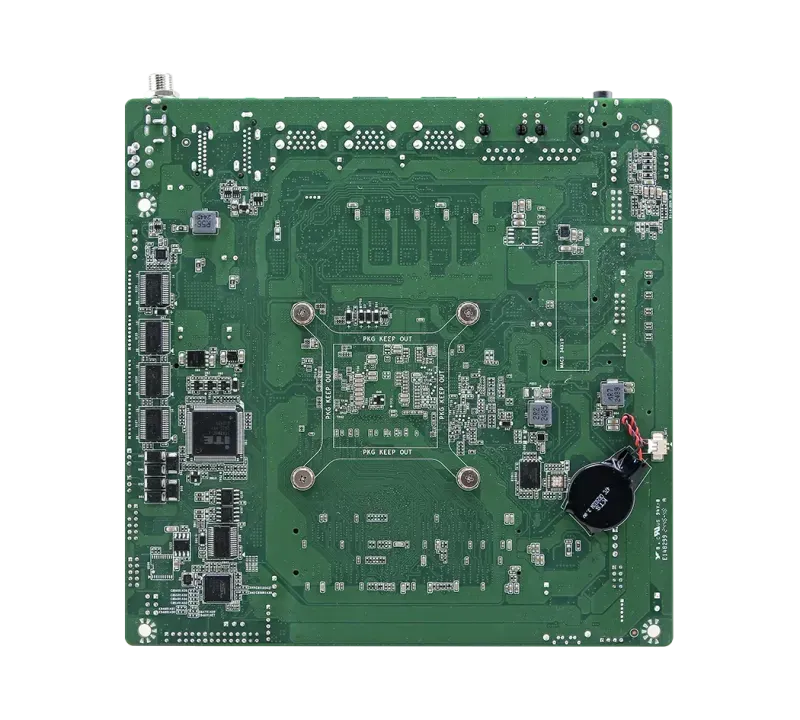

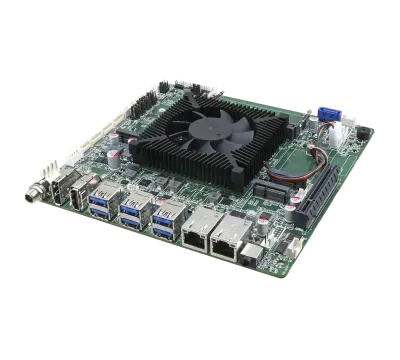

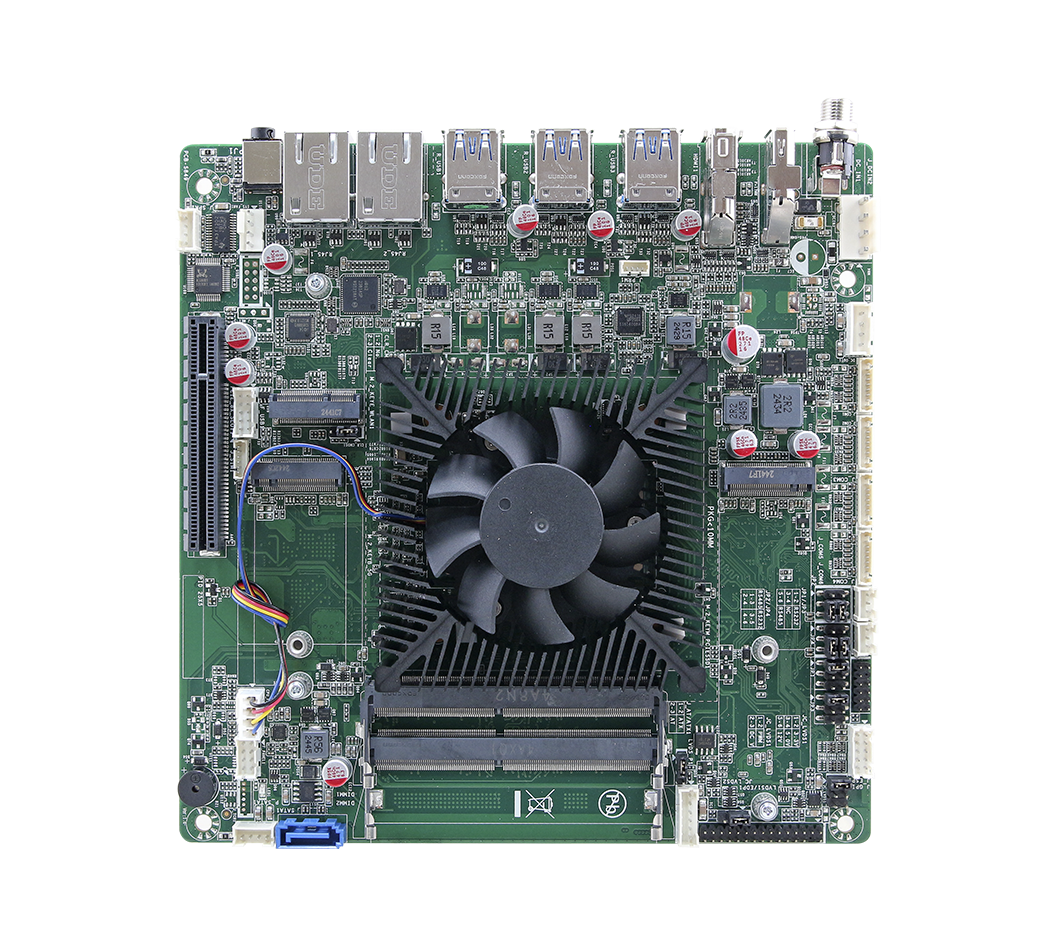

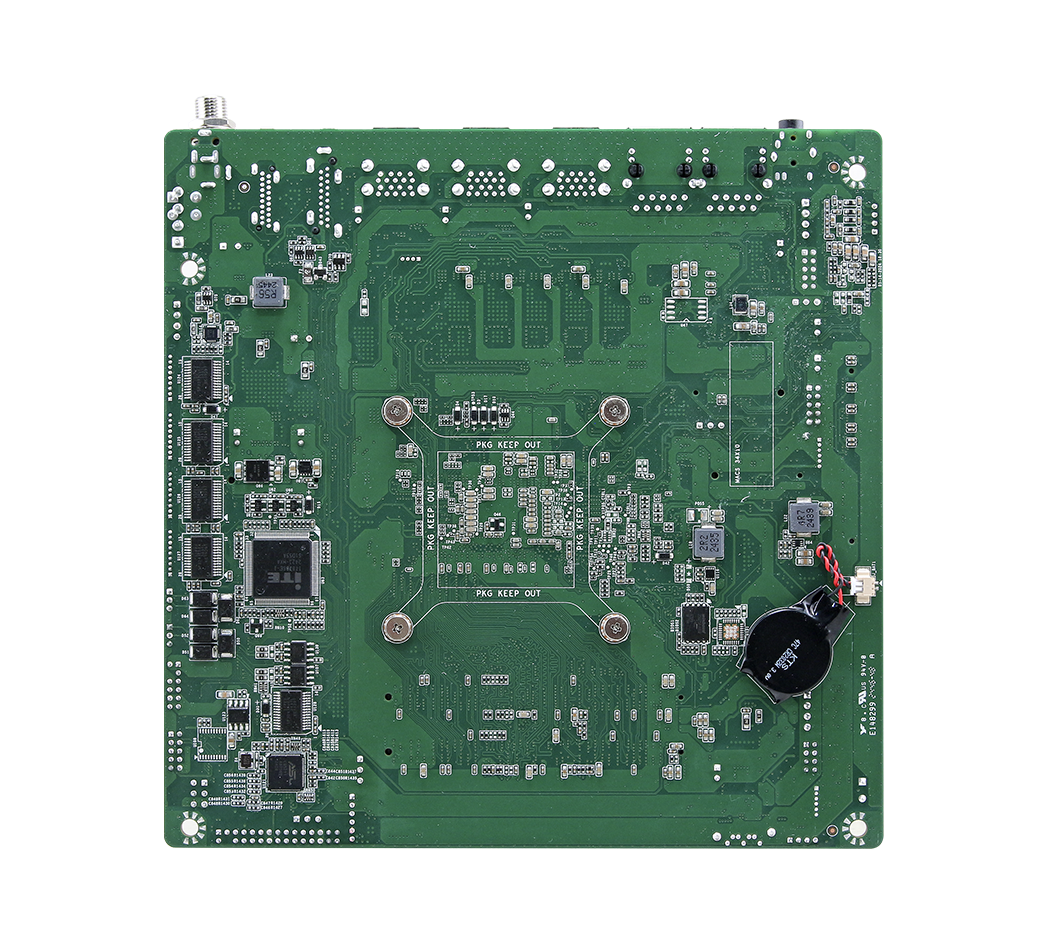

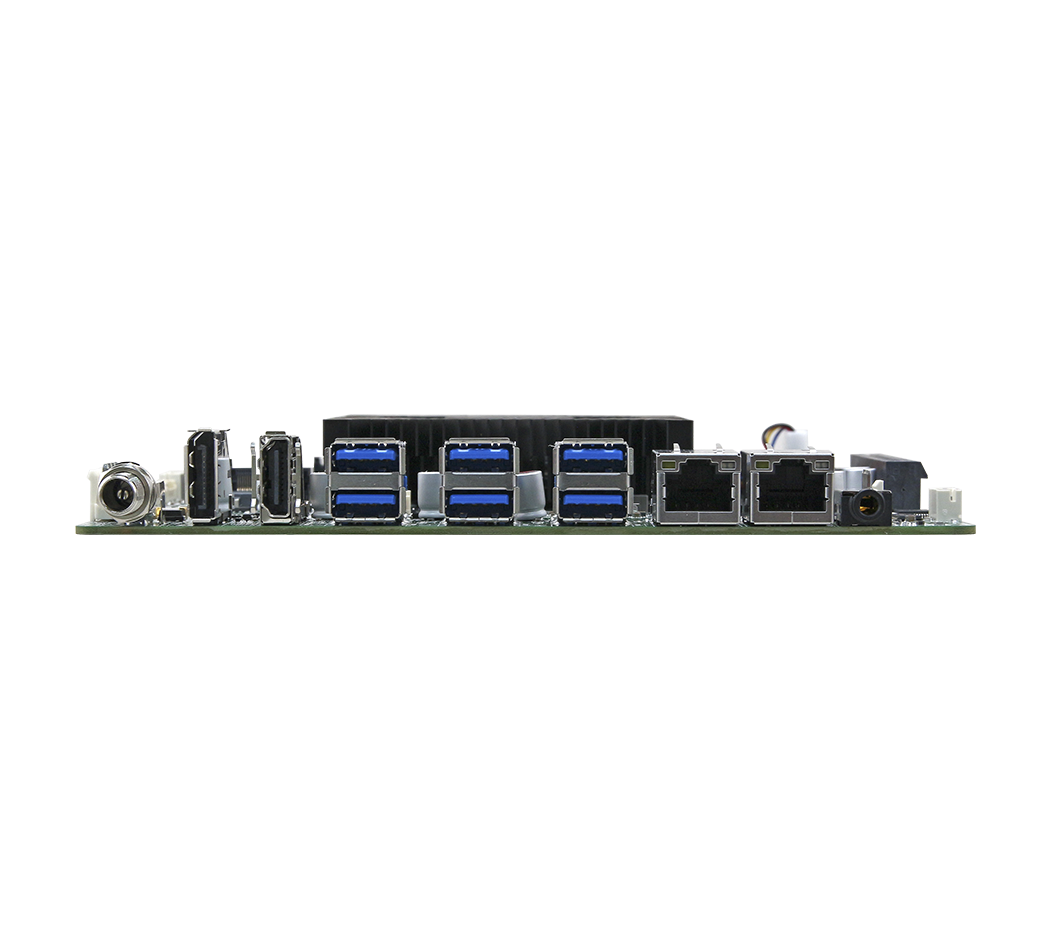

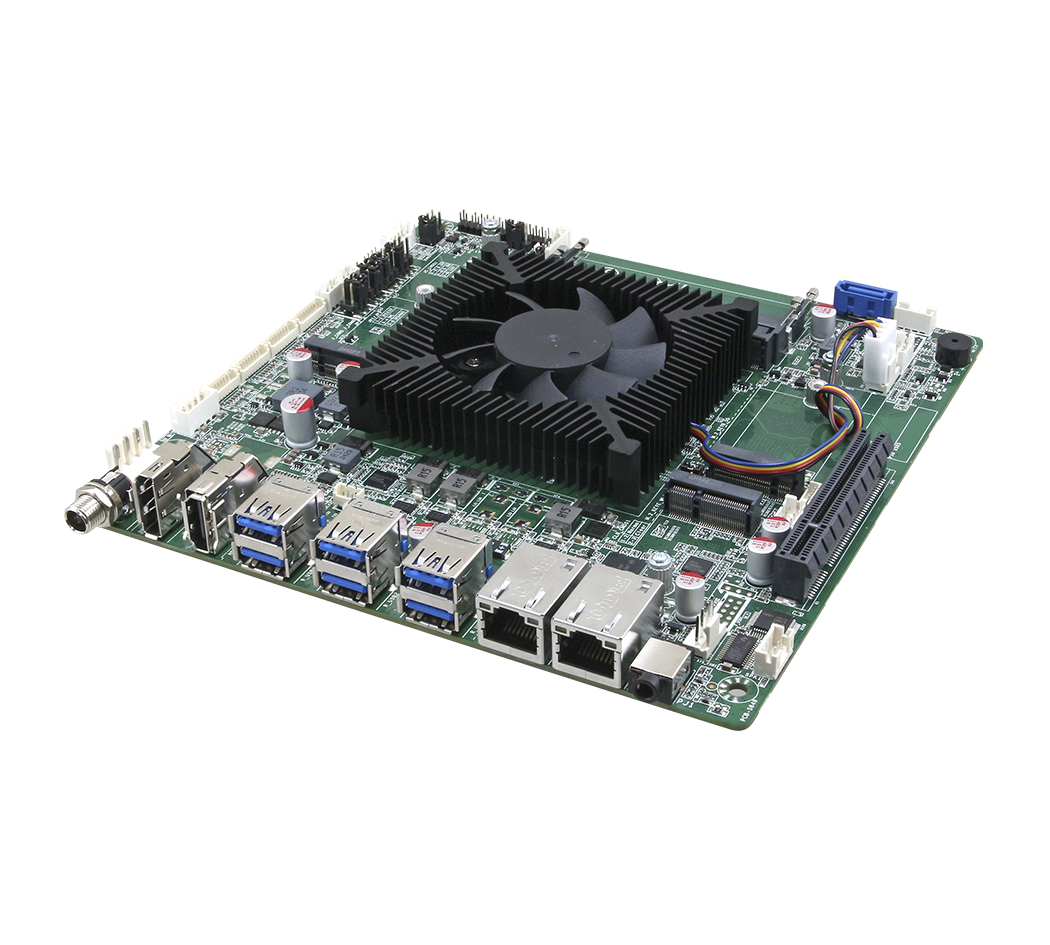

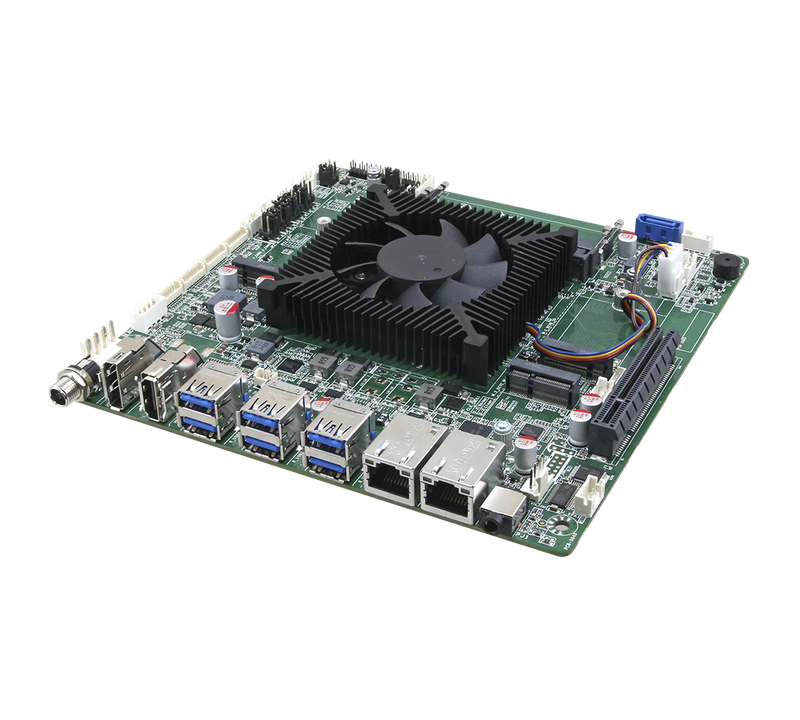

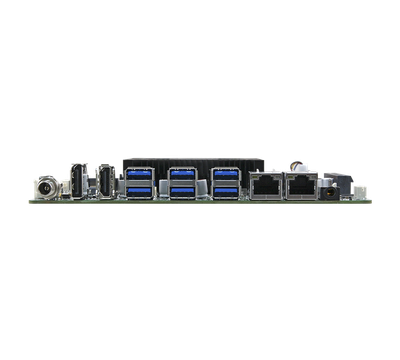

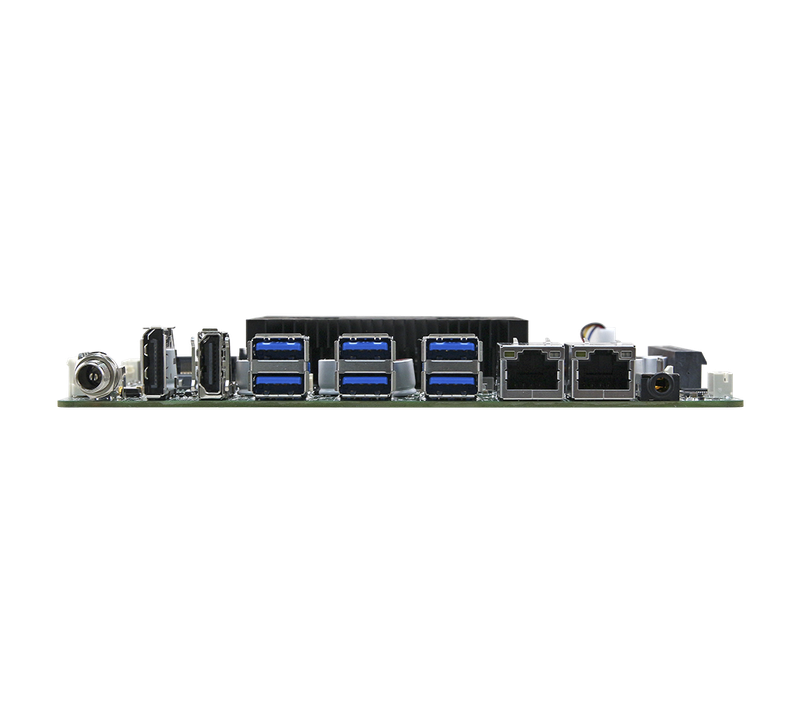

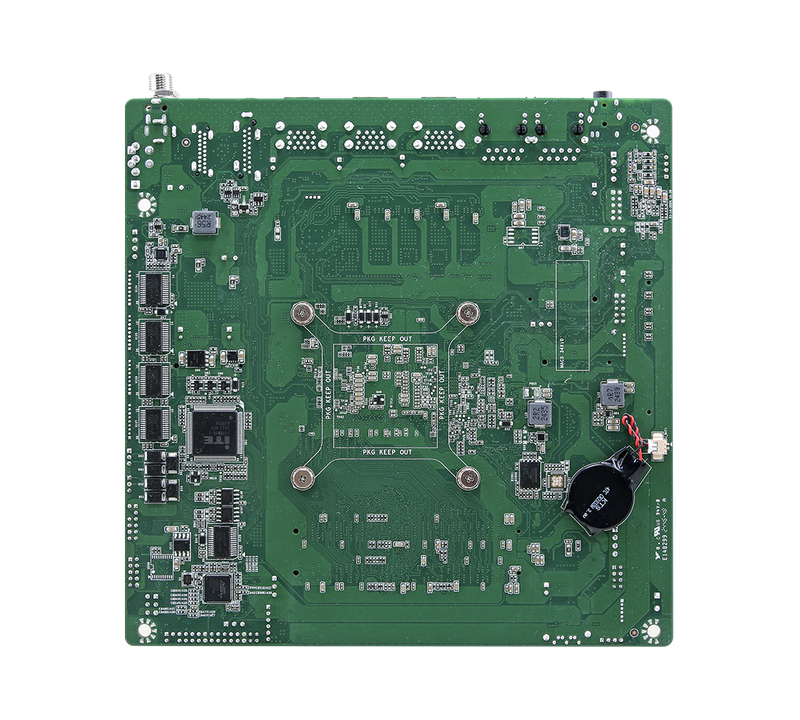

EMX-RLUC

*Price on request. Contact us for a quote.

Manufacturer: Avalue

13th Gen Intel® Core™ SoC i5/i3 BGA Processor
2 x 260-Pin DDR4 3200MHz non-ECC SO-DIMM Socket Supports Up to 2 x 32GB
1 x HDMI2.0, 1 x DP++ 1.4a, 1 x LVDS, Supports up to triple independent displays
1 x PCIe x4 Gen4 with PCIe x8 slot
2 x Intel® Gigabit Ethernet Controllers (I210AT and I219-LM)
6 x USB3.2 Gen1, 2 x USB2.0
1 x M.2 Key-B 2242/3052, 1 x M.2 Key-E 2230, 1 x M.2 Key-M 2280
6 x COM Ports (4 x RS232, 2 x RS232/485)

Product Description

The Avalue EMX-RLUC is a Mini-ITX motherboard designed for industrial and embedded applications. It supports 13th Gen Intel® Core™ i5/i3 SoC processors and accommodates up to 64GB DDR4 3200MHz non-ECC SO-DIMM memory.

Key features include HDMI 2.0b display output, PCIe Gen4 expansion slot, dual Gigabit LAN ports, multiple USB ports, serial interfaces, and expansion options through M.2 slots.

With a compact form factor of 170mm x 170mm, wide voltage input range of 12V to 24V DC, and support for Windows and Linux operating systems, the EMX-RLUC offers a robust solution for space-constrained environments.

Technical Specifications

System Information

Processor

Onboard 13th Gen Intel® Core™ SoC i5/i3 BGA Processor

System Memory

2 x 260-Pin DDR4 3200MHz non-ECC SO-DIMM Socket Supports Up to 2 x 32GB

I/O Chipset

Super I/O, ITE IT8786E-I

Watchdog Timer

H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM for i5 CPU / 128Mbit SPI Flash ROM for i3 CPU

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

Onboard infineon SLB 9670VQ2.0 support TPM2.0

Board

Thin Mini ITX

Display

Multiple Display

Triple Display

Graphic Chipset

Intel® Iris® Xe Graphics eligible

Spec. & Resolution

1 x HDMI 2.0: 4096 x 2340@60 Hz

1 x DP++ 1.4a: Max 4096 x 2340@60 Hz

1 x LVDS: 1920 x 1200 Dual channel 18/24-bits LVDS

LVDS

Dual channel 18/24-bits (LVDS CapStone CS5211) 1920 x 1200@60Hz

Expansion

1 x PCIe x4 Gen4 with PCIe x8 slot

1 x M.2 Key-B 2242/3052

1 x M.2 Key-E 2230

1 x M.2 Key-M 2280

1 x Wafer connector for SIM Card Cable (Option)

Audio

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-out + Mic-in 2in1 3.5mm Jack on rear I/O

Audio Amplifier

2 x 3W 8Ω Amplifier (TI TPA3113D2PWP)

Ethernet

LAN Chipset

1 x Intel® I210AT Gigabit Ethernet Controller

1 x Intel® I219-LM for core i5 CPU or 1 x Intel® I219V for i3 CPU Gigabit Ethernet Controller

Ethernet Interface

LAN1: Intel® I210AT 10/100/1000 Base-Tx GbE compatible

LAN2: Intel® I219-LM/I219V 10/100/1000 Base-Tx GbE compatible

LAN Port

2 x RJ-45

Power Requirement

DC Input

DC in +12V

Software Support

OS

Windows 10, Windows 11, Linux

Certification

Certification Information

CE, FCC, RoHS Compliant

I/O

USB

6 x USB3.2 Gen1x1

2 x USB2.0

COM Port

4 x RS-232

2 x RS-232/485

SIM Slot

1 x 6 pin, pitch 1.25mm wafer connector for SIM Card (J_SIM1)

SATA

1 x SATA III

DIO

8-bit GPIO (4 x GPI, 4 x GPO)

Mechanical & Environmental

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Weight

0.88lbs (0.4Kgs)

Operating Humidity

40°C at 95% relative humidity, non-condensing

Power Mode

AT/ATX mode Switchable Through Jumper

Power Requirement

DC in +12V

Ordering Information

EMX-RLUC-1335-A1R

Thin MINI-ITX w/i5-1335U/6COM/8USB/I219-LM/15W/A1

What is EMX-RLUC?

The EMX-RLUC is a industrial & embedded motherboard manufactured by Avalue, designed specifically for thin-mini-itx applications. The Avalue EMX-RLUC is a Mini-ITX motherboard designed for industrial and embedded applications. It supports 13th Gen Intel® Core™ i5/i3 SoC processors and accommodates up to 64GB DDR4 3200MHz non-ECC SO-DIMM memory. Key features include HDMI 2.0b display output, PCIe Gen4 expansion slot, dual Gigabit LAN ports, multiple USB ports, serial interfaces, and expansion options through M.2 slots. With a compact form factor of 170mm x 170mm, wide voltage input range of 12V to 24V DC, and support for Windows and Linux operating systems, the EMX-RLUC offers a robust solution for space-constrained environments.

Key Features & Benefits

13th Gen Intel® Core™ SoC i5/i3 BGA Processor
2 x 260-Pin DDR4 3200MHz non-ECC SO-DIMM Socket Supports Up to 2 x 32GB
1 x HDMI2.0, 1 x DP++ 1.4a, 1 x LVDS, Supports up to triple independent displays
1 x PCIe x4 Gen4 with PCIe x8 slot
2 x Intel® Gigabit Ethernet Controllers (I210AT and I219-LM)
6 x USB3.2 Gen1, 2 x USB2.0
1 x M.2 Key-B 2242/3052, 1 x M.2 Key-E 2230, 1 x M.2 Key-M 2280
6 x COM Ports (4 x RS232, 2 x RS232/485)

Applications & Use Cases

The EMX-RLUC is ideal for various industrial automation applications:

Legacy equipment integration and serial communication
High-performance computing and data processing tasks
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Visual monitoring and data display systems
Custom industrial computing solutions
Industrial and embedded applications
