Panel PC / Monitor / Mobile · ARM-based-Panel-PC

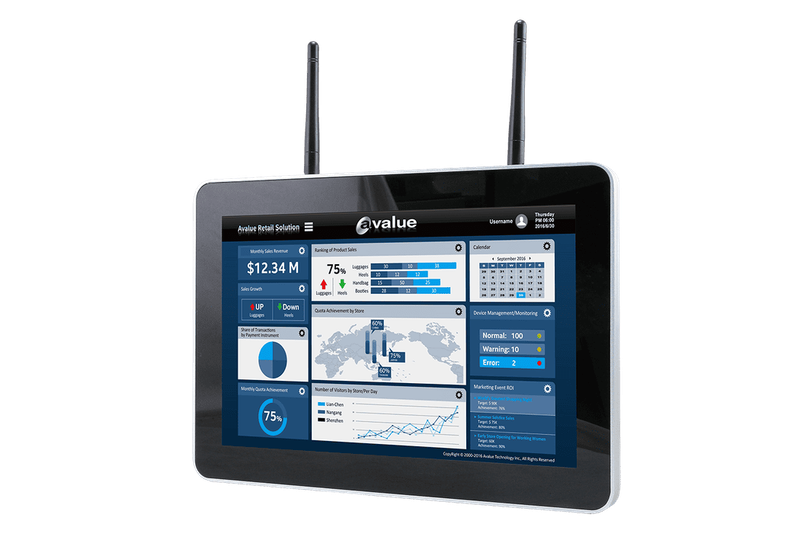

SID‑10WR2
Series: SID
The Avalue SID‑10WR2 is a compact 10.1\" semi‑industrial panel PC designed for embedded, HMI and industrial automation applications. It features a 1280×800 TFT LCD with LED backlight and PCAP capacitive multi‑touch support. Under the hood, it runs on a Rockchip RK3568 Quad‑Core Cortex‑A55 (up to 2.0 GHz) with 2 GB DDR4 RAM and 32 GB eMMC storage. The unit operates fanlessly over a wide temperature range (–20 °C to 60 °C) and draws power from a 12–24 V DC input, making it ideal for use in control cabinets, machines, kiosks or mobile workstations. Connectivity includes Gigabit Ethernet, 2× USB 3.0, RS‑232, HDMI out, and optional Wi‑Fi/Bluetooth. The front‑panel is rugged and suitable for industrial environments.
Key Features
- 10.1\" 1280 x 800 Semi-Industrial Panel PC with PCAP touch
- Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz
- 2GB DDR4 / 32GB eMMC
- Fanless operation from -20°C ~ 60°C (-4°F ~ 140°F)
- Support Android 11, Debian 11
Technical Specifications
System Information
| Processor | Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz |
|---|---|
| System Memory | 2GB DDR4 |
Storage
| Storage | 32GB eMMC |
|---|
Display
| Graphic Chipset | Mali-G52 support OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 |
|---|
Audio
| Speaker Output | Optional 2 x 4Ω 2W |
|---|
Ethernet
| LAN Chipset | Realtek RTL8211F-CG |
|---|---|
| Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
Power Requirement
| DC Input | +12V ~ +24V |
|---|---|
| DC Input Connector | Lockable DC Jack |
| Adapter | Input: 100~240 Vac/50~60 Hz Output: 60W Adapter (12V @ 5A Adapter) |
Software Support
| OS | Android 11 / Debian 11 |
|---|
Certification
| Certification Information | CE, FCC Class B |
|---|
Panel
| LCD Size | 10.1\" |
|---|---|
| LCD Panel | TFT |
| Resolution | 1280 x 800 |
| Pixel pitch | 0.1695 (H) x 0.1695 (V) mm |
| Luminance | 350 cd/m2 |
| Contrast ratio | 800 |
| Viewing angle | 85 (U), 85 (D), 85 (L), 85 (R) |
| Response time | 30ms |
| Backlight | LED |
| Touch Type | Projective capacitive multi-touch up to 10 points |
| Touch Light Transmission | 85% |
External I/O
| USB Port | 2 x USB 3.0 |
|---|---|
| Audio Port | 1 x Headphone Jack |
| LAN Port | 1 x RJ45 |
| COM Port | 1 x RS-232 (DB9) |
| HDMI | 1 x HDMI 2.0 |
| Antenna | 2 x Wi-Fi/BT Antenna |
| DC input | 1 x DC Jack |
| Other | 1 x Power button with LED, 1 x Reset button |
Wireless Communication
| WLAN | Optional Wi-Fi 802.11ac/a/b/g/n |
|---|---|
| Bluetooth | Optional BT 5.0 |
Mechanical & Environmental
| Operating Temp. | 0°C ~ 40°C (32°F ~ 104°F) |
|---|---|
| Storage Temp. | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity. | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 258.8 x 182.8 x 41.1 mm |
| Weight | 1.36 kg |
| IP Rating | Front panel IP65 |
| VESA | 75 x 75 |
| Power Requirement | DC +12 ~ +24V |
| Power Mode | AT/ATX (ATX is default) |
| System Fan | Fanless |
| Color | Black |
| Construction | Metal |
Packing List
| Packing List | 1 x AC/DC 60W Adapter 12V/5A, 1 x Power Cord |
|---|
Ordering Information
| Ordering Information | SID-10WR2-6803-A1R : SID-10WR2 DC In, Android 11 |
|---|
