ARC-1533

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Intel Atom® x7-E3950 Processor
One 204-pin DDR3L SODIMM socket, support up to 8GB DDR3L 1600MTs SDRAM
Dual Intel Gigabit LAN
Wide voltage +9V ~ +36V input, ErP power
4 USB3.0, 2 COM, 2LAN
Available expansion for audio, USB, COM, HDMI, MPCIe, GPIO, CAN bus

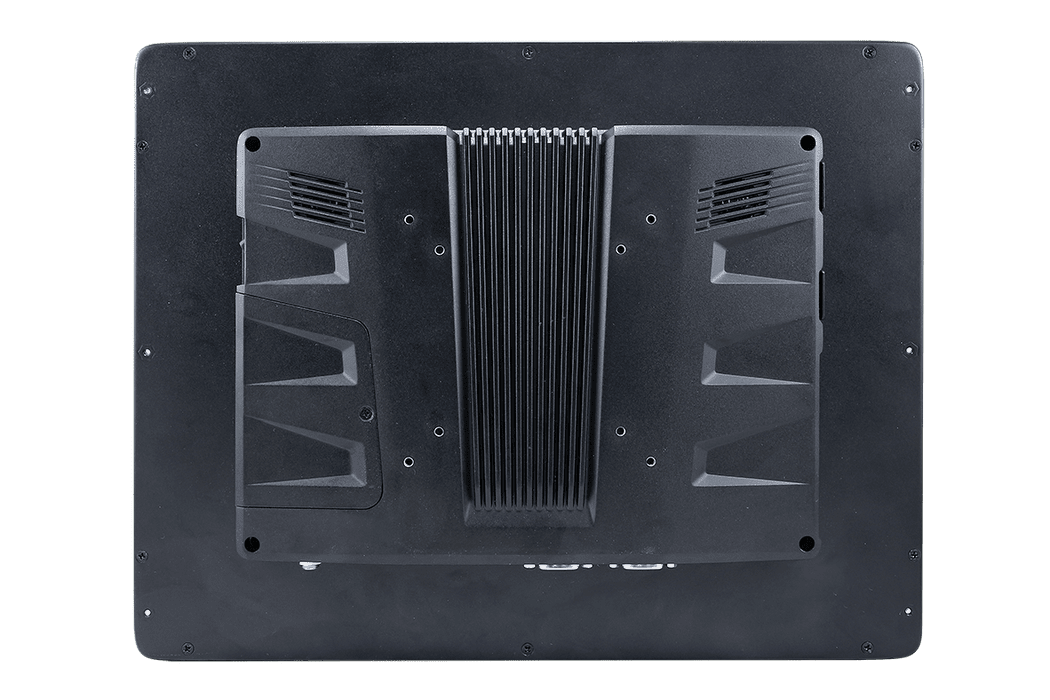

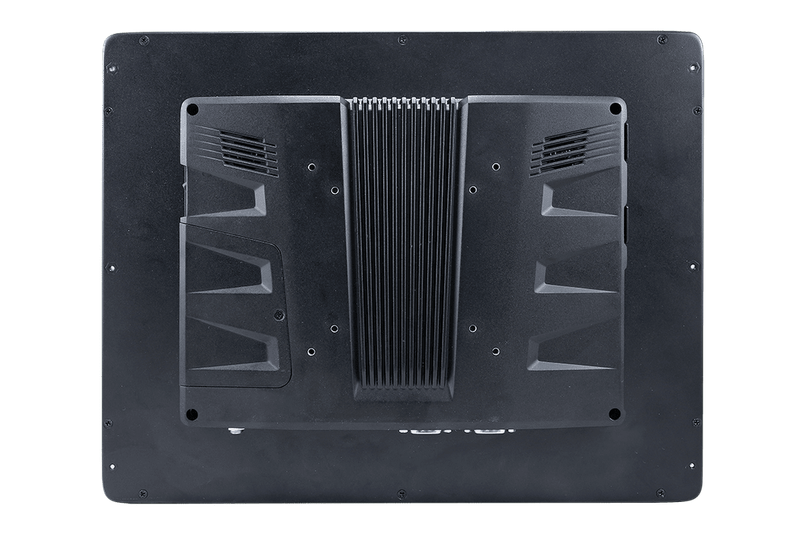

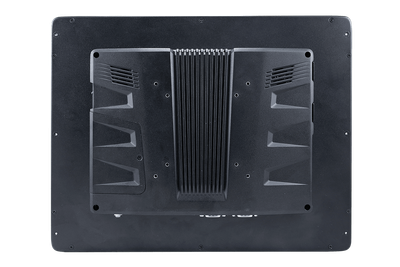

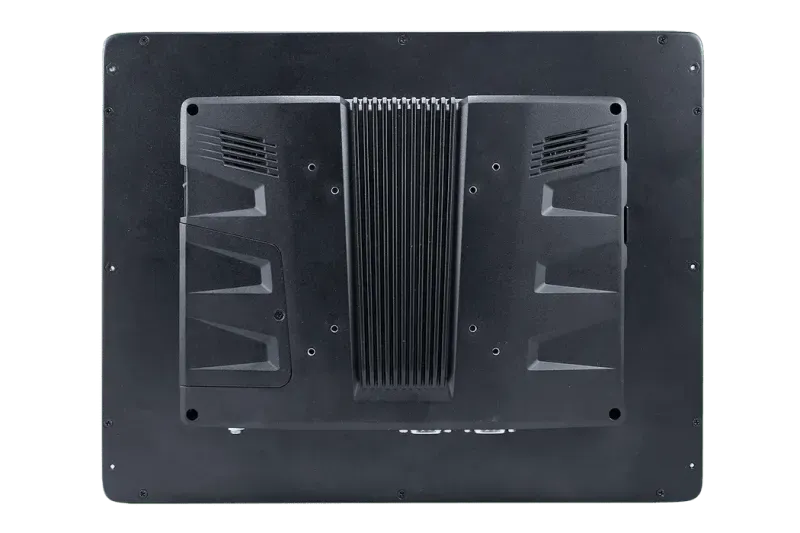

IP65 compliant front panel, IP41 rear box
5-wire resistive touch

Product Description

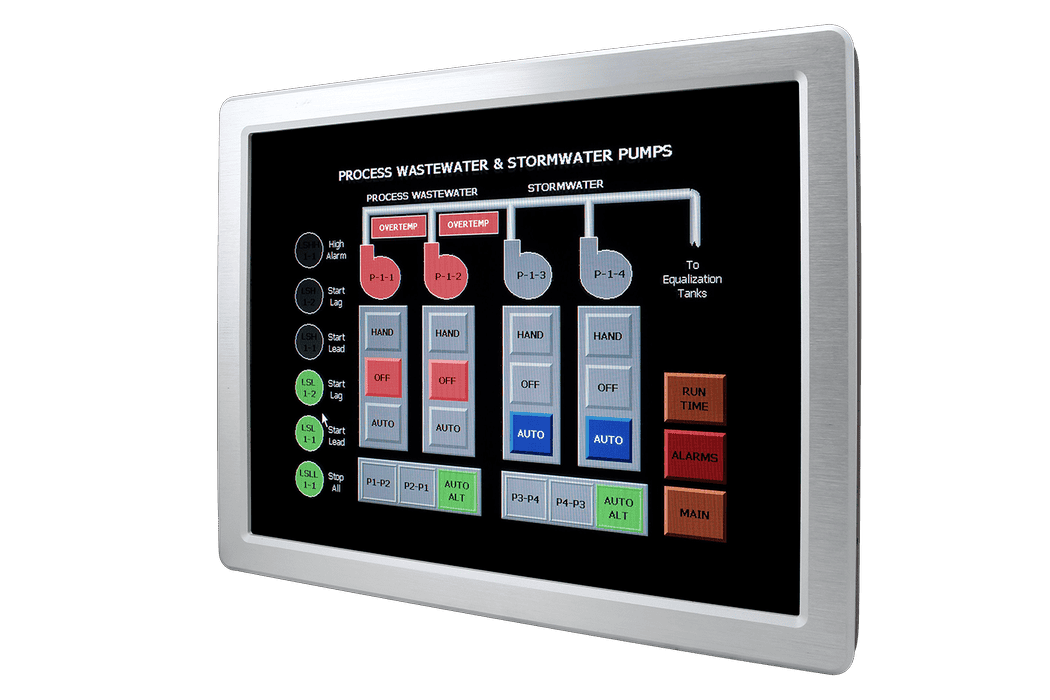

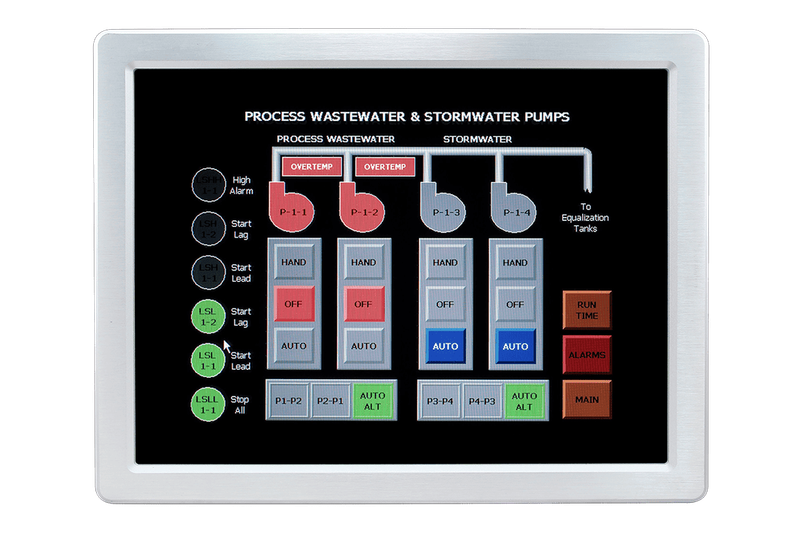

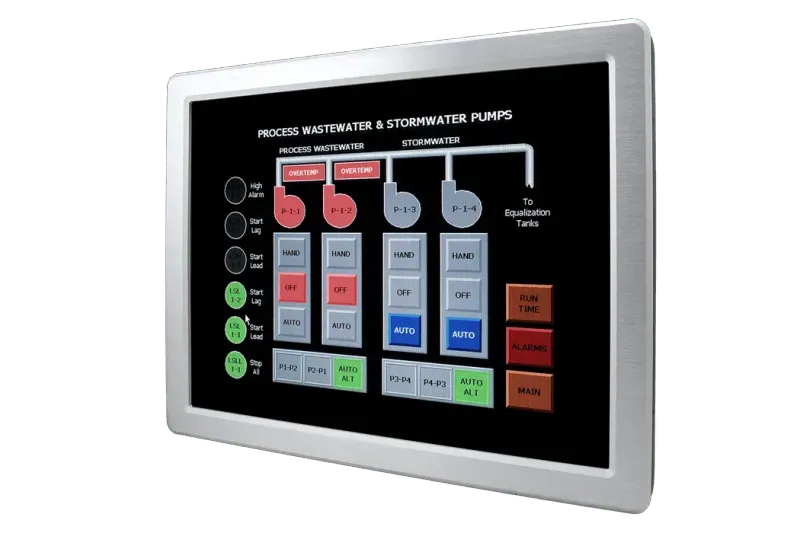

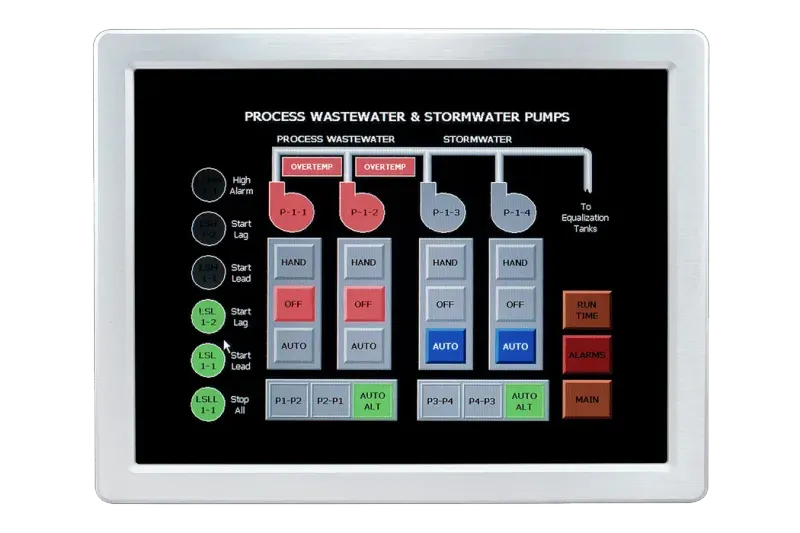

The Avalue ARC-1533 is a 15" industrial touch panel PC featuring an Intel Atom® x7-E3950 processor. It has a fanless design, resistive touch screen, dual Gigabit LAN, multiple USB and COM ports, and HDMI support. The panel is IP65 front and IP41 rear rated, suitable for rugged environments.

It supports wide voltage input and operates in temperatures from -20°C to 50°C.

Technical Specifications

System Information

Processor

Intel Atom® x7-E3950 Processor, 2M Cache, up to 1.6 GHz

(Option for Intel Atom® x5-E3940 Processor, 2M Cache,1.6GHz)

System Memory

1 x 204-pin DDR3L SODIMM Socket, Supports Up to 8GB DDR3L 1600Mhz SDRAM (Non-ECC)

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec./1sec.step

H/W Status Monitor

Monitoring CPU & System Temperature and Voltage

CPU Cooler (Type)

Fanless Heatsink

SBC

ARC-APL

Other

3 x Knockouts for antenna mounting

Panel

LCD Size

15", 4:3

Display Type

XGA

Resolution

1204 x 768

Pixel pitch

0.297mm(H) x 0.297mm(V)

Luminance

500 cd/m²

Contrast ratio

500 cd/m2

Viewing angle

88 (U), 88 (D), 88 (L), 88 (R)

Response time

16 ms

Backlight

LED

Touch Type

5 wires resistive

Touch Light Transmission

80 %

Touch Controller

Onboard USB touch (PenMount)

Expansion

1 x Mini PCIe support mSATA

1 x 80-pin IET interface

Storage

1 x 2.5” Drive Bay(7mm HDD Restricted)

External And Internal I/O

USB Port

4 x USB3.0 (2 x Double deck)

COM Port

1 x RS-232/422/485

1 x RS-232

SATA

1 x SATA III

LAN Port

2 x RJ-45

Audio

Audio Codec

Realtek ALC888S

Speaker Output

2 x 2W

Certifications

Certification Information

CE/FCC Class B

Ethernet

LAN Chipset

2 x Intel I210IT

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input

DC +9V ~ +36V, wide voltage single power input

DC Input Connector

Lockable DC Jack (Default)

Optional for phoenix connector

ACPI

Single power ATX Support S0, S3, S4, S5 and ACPI 3.0 Compliant

Power Mode

AT/ATX

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 60W Adapter (12V @ 5A Adapter) AC-DC Adapter

Software Support

OS Information

Linux, Windows 10

Mechanical & Environmental

Operating Temperature

x7-E3950: -20°C ~ 50°C

x5-E3940: -20°C ~ 60°C

Storage Temperature

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Dimension (W x L x H)

350 x 274 x 51mm

Weight

3.7Kgs

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis

Shock Test

Operating with SSD/CFast/mSATA : MIL-STD-810G, Method 516.6, Procedure I, functional shock=20G

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front IP65

Rear IP41

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Panel Mount with mounting kits

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Silver aluminum

Construction - Rear

Black die casting

Ordering Information

ARC-1533-395-A2R

15" 1024x768 Industrial Touch Panel PC, ErP Design

Intel® Atom Processor E3950 4-Core 1.6GHz CPU/4G DDR3L/2GLAN/2COM/4USB/SPK/9~36V input/12V Adapter

ARC-1533-WMB-A2R

15" 1024x768 Industrial Touch Panel PC, ErP Design/Back panel mount

Intel® Atom Processor E3950 4-Core 1.6GHz CPU/4G DDR3L/2GLAN/2COM/4USB/SPK/9~36V input/12V Adapte

ACC-ARC-USB-1R

4 x USB 3.0 Kit for ARC Series

ACC-ARC-AUDIO-1R

HDMI + 5.1 CH Audio Kit for ARC Series

ACC-ARC-MPCIE-1R

HDMI + MPCIE w/SIM Kit for ARC Series

ACC-ARC-COM-1R

2 x Isolated RS-232 Kit for ARC Series

ACC-ARC-COM-2R

3 x RS-232 Kit for ARC Series

ACC-ARC-COM-3R

2 x RS-232 + USB Kit for ARC Series

ACC-ARC-COM-4R

2 x RS-232 + LAN Kit for ARC Series

ACC-ARC-GPIO-1R

12-bit GPIO + 2-pin CAN Bus Kit for ARC Series

ACC-ARC-OBDII-1R

OBDII - CAN Bus Kit for ARC Series (OBDII/EOBD for Small Vehicle)

ACC-ARC-OBDII-2R

OBDII - CAN Bus Kit for ARC Series (J1939J1708 for Large Vehicle)

ACC-ARC-OBDII-3R

OBDII - CAN Bus Kit for ARC Series (ISO15765-4 for Special Large Vehicle)

What is ARC-1533?

The ARC-1533 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for industrial-panel-pc applications. The Avalue ARC-1533 is a 15" industrial touch panel PC featuring an Intel Atom® x7-E3950 processor. It has a fanless design, resistive touch screen, dual Gigabit LAN, multiple USB and COM ports, and HDMI support. The panel is IP65 front and IP41 rear rated, suitable for rugged environments. It supports wide voltage input and operates in temperatures from -20°C to 50°C.

Key Features & Benefits

Intel Atom® x7-E3950 Processor
One 204-pin DDR3L SODIMM socket, support up to 8GB DDR3L 1600MTs SDRAM
Dual Intel Gigabit LAN
Wide voltage +9V ~ +36V input, ErP power
4 USB3.0, 2 COM, 2LAN
Available expansion for audio, USB, COM, HDMI, MPCIe, GPIO, CAN bus
IP65 compliant front panel, IP41 rear box
5-wire resistive touch

Applications & Use Cases

The ARC-1533 is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
DC-powered industrial installations and mobile applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Interactive control interfaces and operator panels
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Industrial control and monitoring systems

Frequently Asked Questions

The wide temperature operation (typically -10°C to 50°C or wider) allows ARC Series Panel PCs to function reliably in diverse industrial environments including non-climate-controlled factories, outdoor installations, cold storage facilities, and hot manufacturing areas. This extended temperature tolerance eliminates the need for additional cooling or heating systems, simplifying installation and reducing overall system costs.

The ARC-1509/ARC-1509-B Panel PCs support industrial applications with their 15" XGA displays (1024x768), industrial-grade construction with IP65 front protection, wide temperature operation, multiple I/O interfaces including serial ports for legacy equipment connection, dual LAN for network redundancy, reliable fanless design, and flexible mounting options for control cabinets and machine integration.

The ARC-1535/ARC-1535-B models feature a 15" display with 1024x768 resolution but include different processor options and I/O configurations compared to other 15" models. They typically offer a balance of performance and connectivity suited for mid-range industrial applications. The 'B' variant may provide enhanced features, updated specifications, or alternative configuration options compared to the standard model.

Both the ARC-15W32 and ARC-15W33 feature 15.6" widescreen displays (1366x768), but they differ in their processor platforms. The ARC-15W32 typically features an Intel Atom or Celeron processor, while the ARC-15W33 offers the more recent Intel Apollo Lake or Elkhart Lake processors with enhanced performance and power efficiency. They may also differ in their maximum memory support and expansion options.
