What are the key features of the ARC-1538-B Panel PC?

The ARC-1538-B features a 15" 4:3 XGA display with PCAP multi-touch, Intel processors (with options ranging from Celeron to Core i series), up to 16GB RAM depending on model, dual Gigabit LAN, multiple USB and COM ports, rugged design with IP65 front panel protection, fanless cooling, wide operating temperature range, and flexible mounting options for industrial installations.

How does the ARC-1538-B differ from other 15-inch Panel PCs in the ARC lineup?

The ARC-1538-B features a standard 4:3 aspect ratio display with 1024x768 resolution, which distinguishes it from widescreen models like the ARC-1532-B. This traditional aspect ratio is often preferred for legacy industrial applications and control systems. The 'B' variant typically offers enhanced I/O capabilities and feature sets compared to the standard ARC-1538 model.

What makes the ARC-1538-B suitable for industrial control applications?

The ARC-1538-B is well-suited for industrial control with its combination of reliable performance, legacy-friendly 4:3 display format, comprehensive I/O options for connecting to industrial equipment (including RS-232/422/485 ports), dual LAN for network redundancy, rugged IP65-rated construction, and wide operating temperature range ensuring reliable operation in harsh industrial environments.

What software compatibility does the ARC-1538-B support?

The ARC-1538-B supports multiple operating systems including Windows 10 IoT Enterprise LTSC, Windows 11 Pro, and various Linux distributions like Ubuntu 20.04. This versatility makes it compatible with most industrial software platforms, SCADA systems, HMI applications, and custom control software, providing flexibility for diverse industrial deployments.

ARC-1538-B

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Onboard 11th Gen. Intel®Core™ i7/i5/i3 BGA Processor
Full Flat Front Panel with Projected Capacitive Touch Supports Multi Touch
One 260-pin SODIMM sockets supports up to 32GB DDR4 3200 SDRAM
4 x USB3.2, 2 x COM
Dual Intel Gigabit LAN
2 x M.2 Slots (Key-B 2242/3042/3052, Key-E 2230
Support Wi-Fi / BT / 4G / 5G (by option)
Wide Voltage +12V ~ +24V Input, ErP Power
Available Expansion for Audio, USB, COM, HDMI, MPCIe, GPIO, CAN Bus
IP65 Compliant Front Panel, IP41 Rear Box
With Panel Mount kits included
TPM 2.0 Function (Optional)
Fanless Operation from -10°C ~ 50°C (14°F ~ 122°F)

Product Description

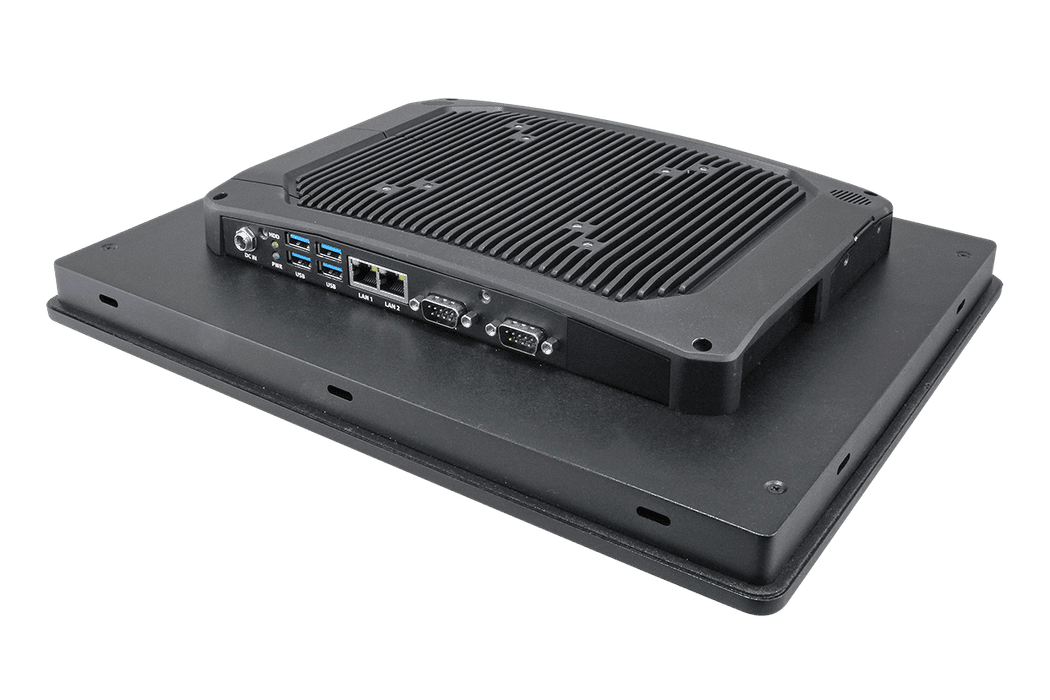

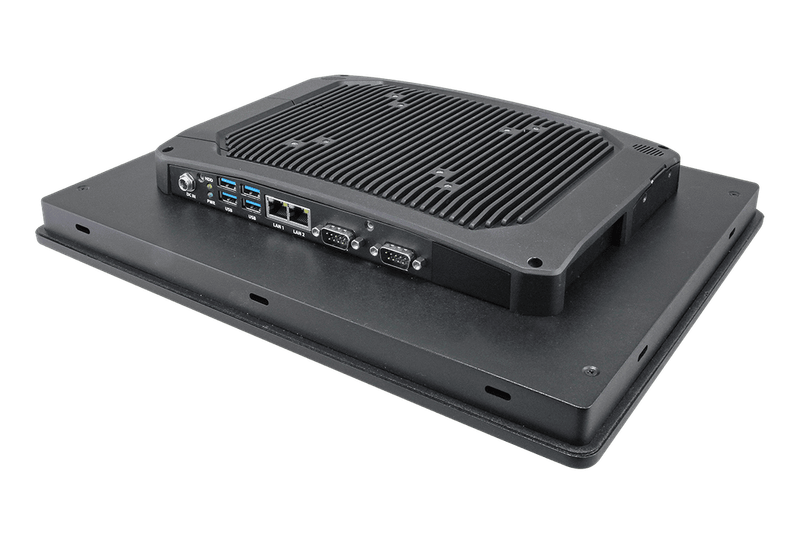

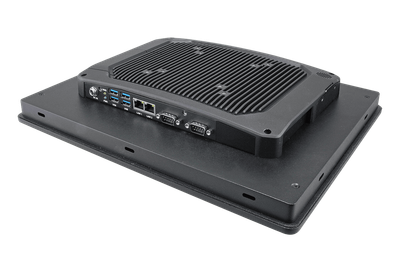

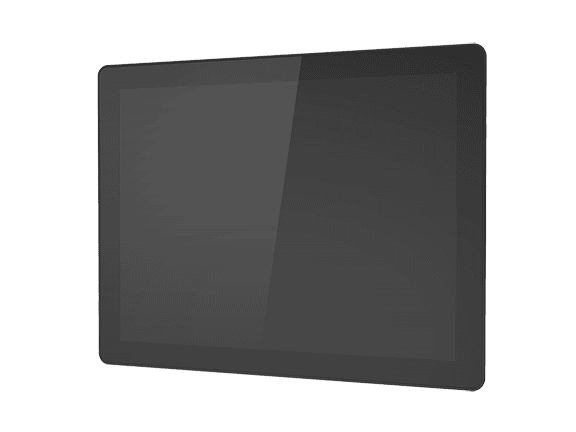

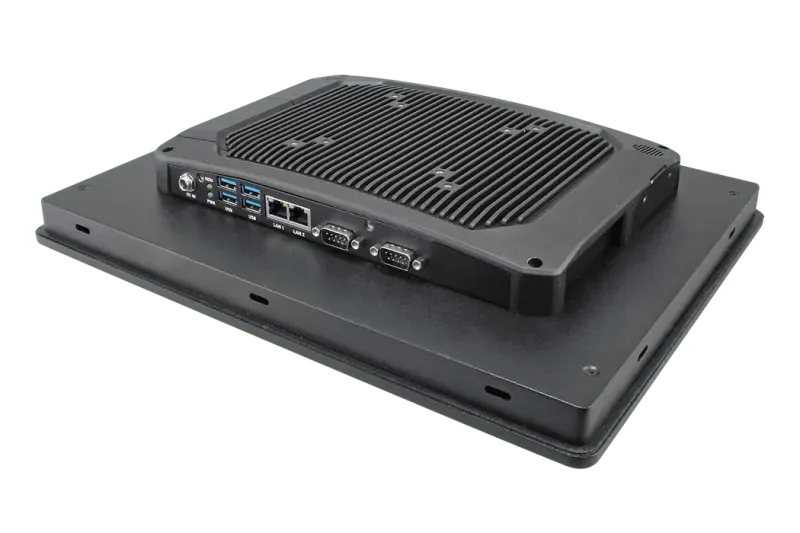

The Avalue ARC-1538-B is a 15" rugged industrial touch panel PC featuring 11th Generation Intel® Core™ i3/i5/i7 processors. It offers a fanless design, projected capacitive multi-touch screen, and dual Gigabit LAN.

The panel is IP65 front and IP41 rear rated, providing durability in harsh environments. It includes multiple USB and COM ports, HDMI support, and flexible mounting options.

Technical Specifications

System Information

Processor

11th Gen Intel® Core™ i7/i5/i3 BGA Processor

Intel® Core™ i7- 1185G7E (15W, 12M Cache, up to 2.80 GHz), ST

Intel® Core™ i5- 1145G7E (15W, 8M Cache, up to 2.60 GHz), ST

Intel® Core™ i3- 1115G4E (15W, 6M Cache, up to 3.00 GHz), ST

System Memory

1 x 260-Pin DDR4 3200MHz SO-DIMM up to 32 GB

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W Reset, 1sec. ~ 65535min. and 1sec. or 1min./step

H/W Status Monitor

Monitoring CPU & System Temperature and Voltage

TPM

Onboard NuvoTon NPCT754AABYX support TPM 2.0 (by option)

SBC

ARC-TGL

CPU Cooler (Type)

Fanless Heatsink

Other

7 x Knockouts for antenna mounting

*5 from rear cover + 2 from IET bracket

Panel

LCD Size

15.0" 4:3

Display Type

XGA

Resolution

1024x768

Pixel pitch

0.297mm(H) x 0.297mm(V)

Luminance

300 cd/m²

Contrast ratio

2000

Viewing angle

88 (U), 88 (D), 88 (L), 88 (R)

Response time

16 ms

Backlight

LED

Touch Type

Projective Capacitive Multi-Touch up to 10 points

Touch Light Transmission

89 %

Touch Controller

USB touch (ILITEK ILI2511, COF)

Expansion

1 x M.2 Key-B 2242/3042/3052 with SIM card slot

Support SATA3 / PCIe & USB for LTE(4/5G) / NVMe(BOM option for PCIex 2)

1 x M.2 Key-E 2230

Support PCIe/USB/CNVi Wi-Fi/BT module

1 x 80-pin IET interface

Storage

1 x 2.5" Drive Bay (7mm HDD Restricted)

External And Internal I/O

USB Port

4 x USB 3.0

COM Port

1 x RS-232/422/485

1 x RS-232

SATA

1 x SATA III

LAN Port

2 x RJ-45

Display

Graphic Chipset

Intel® Tiger Lake UP3 SoC integrated Graphics

Supports optional dual display

Spec. & Resolution

HDMI: Max. resolution 4096x2160 @ 24Hz (Optional by IET module)

Audio

Audio Codec

Realtek ALC888S(co-layout 897)

Speaker Output

2 x 2W

Certifications

Certification Information

CE/FCC Class B

Ethernet

LAN Chipset

1 x Intel® I225LM 2.5 Gigabit Ethernet

1 x Intel® I219LM Gigabit Ethernet PHY

Ethernet Interface

Intel® I219LM : 10/100/1000 Base-Tx GbE compatible

Intel® I225LM: 10/100/1000/2.5G Base-Tx GbE compatible

Power Requirement

DC Input

+12V ~ +24V

DC Input Connector

Lockable DC Jack

Optional for phoenix connector

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 72W Adapter (19V @ 3.78A Adapter) AC-DC Adapter

Software Support

OS Information

Win10 / Win11 / Linux

System Control

LED Indicator

HDD LED, power LED

Mechanical & Environmental

Operating Temperature

-10°C ~ 50°C (14°F ~ 122°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

3.7Kgs

Vibration Test

With SSD/M.2 SSD : 3Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30mins/axis

Shock Test

Operating with SSD/M.2 : MIL-STD-810G, Method 516.6, Procedure I, functional shock=20G

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front IP65

Rear IP41

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Panel Mount with mounting kits

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Die Casting with Cover lens

Construction - Rear

Black Die Casting

Dimension

350.51 x 274.51 x 56.5 mm

Ordering Information

ARC-1538-57E-B1-1R

15" 1024x768 Industrial Touch Panel PC, ErP Design, PCAP Multi Touch(ALC888S)

11th Gen Intel Core i5-1145G7E 1.50 GHz CPU/2GLAN/2COM/4USB/SPK/12~24V input/19V Adapter

Optional IET Module list:

ACC-ARC-USB-01R

4 x USB 3.0 IET module for ARC-1535/38

ACC-ARC-AUDIO-01R

HDMI + 5.1 CH audio IET module for ARC-1535/38

ACC-ARC-MPCIE-02R

HDMI + MPCIE w/SIM IET module for ARC-1535/38

ACC-ARC-COM-01R

2 x Isolated RS-232 IET module for ARC-1535/38

ACC-ARC-COM-02R

3 x RS-232 IET module for ARC-1535/38

ACC-ARC-COM-03R

2 x RS-232 + USB IET module for ARC-1535/38

ACC-ARC-COM-04R

2 x RS-232 + LAN IET module for ARC-1535/38

ACC-ARC-GPIO-01R

12-bit GPIO + 2-pin CAN bus IET module for ARC-1535/38

ACC-ARC-OBDII-01R

OBDII - CAN bus IET module for ARC-1535/38 (OBDII/EOBD for small vehicle)

ACC-ARC-OBDII-02R

OBDII - CAN bus IET module for ARC-1535/38 (J1939J1708 for large vehicle)

ACC-ARC-OBDII-03R

OBDII - CAN bus IET module for ARC-1535/38 (ISO15765-4 for special large vehicle)
