SPC-1209

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Intel Atom® E3845/Celeron® J1900 Processors
One 204-pin DDR3L SODIMM socket supports up to 8GB DDR3L 1333 SDRAM
1 LAN, 1 COM, 3 USB
Wide voltage +12V ~ +26V input, ErP power
Full system IP65

Product Description

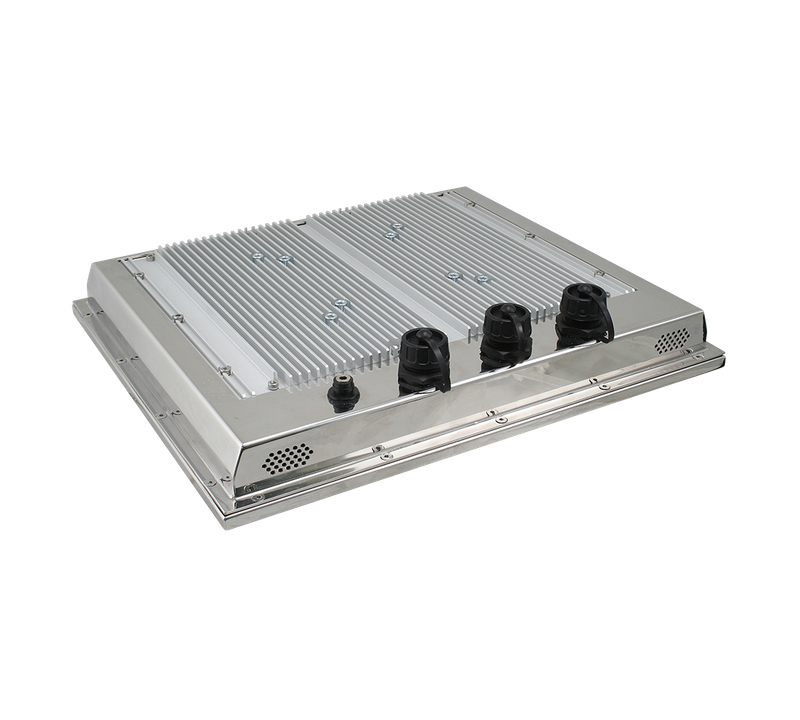

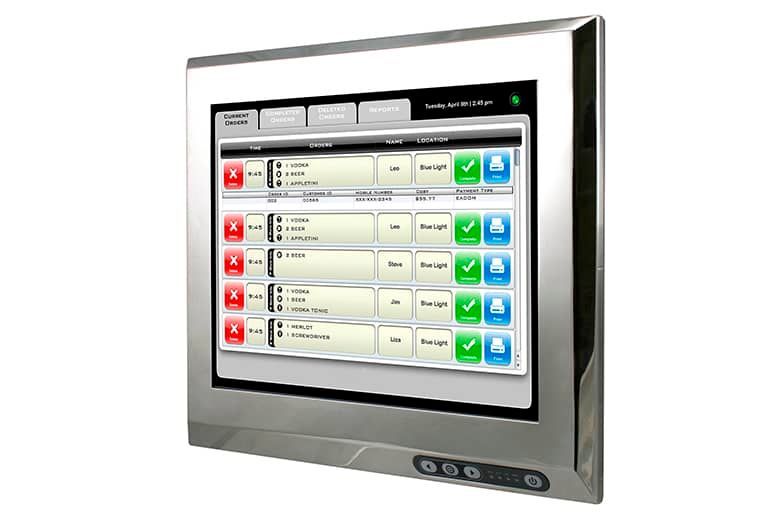

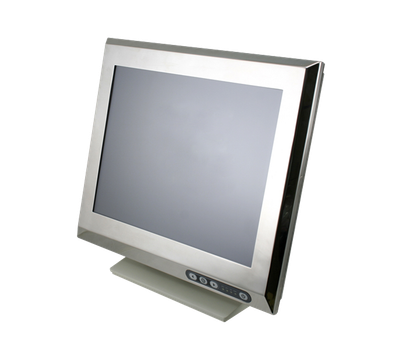

The Avalue SPC-1209 is a 12.1" industrial touch panel PC featuring Intel® Atom™ E3845 or Celeron® J1900 processors. It offers a fanless design, 5-wire resistive touch screen, dual Gigabit LAN, multiple USB and COM ports, and HDMI support.

The panel is IP65 rated for the entire system, suitable for rugged environments, and supports wide voltage input. It operates within a temperature range from 0°C to 40°C.

Technical Specifications

System Information

Processor

Intel Atom® E3845/Celeron® J1900 Processors

Intel Atom® Processor E3845, 2M Cache, 1.91 GHz

Intel® Celeron® Processor J1900, 2M Cache, up to 2.0 GHz

System Memory

1 x 204-pin DDR3L 1333MHz SO-DIMM up to 8 GB

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset, 1sec. ~ 65535sec./1sec.step

H/W Status Monitor

Monitoring CPU & system temperature and voltage

SBC

EBM-BYT

CPU Cooler (Type)

Fanless Heatsink

Panel

LCD Size

12.1", 4:3

Display Type

XGA

Resolution

1024 x 768

Pixel pitch

0.240mm(H) x 0.240mm(V)

Luminance

600 cd/m²

Contrast ratio

700

Viewing angle

70 (U), 70 (D), 80 (L), 80 (R)

Response time

16 ms

Backlight

LED

Touch Type

5 wires resistive

Touch Light Transmission

80%

Touch Controller

Onboard USB touch (EETI)

Expansion

1 x Mini PCIe support mSATA

1 x Mini PCIe supports SIM card

Storage

1 x CompactFlash type I/II socket

1 x 2.5 drive bay

External And Internal I/O

USB Port

3 x USB 2.0 (2 from rear I/O, 1 through 3-in-1 waterproof external cable)

COM Port

1 x DB9 (Through 3-in-1 waterproof external cable)

LAN Port

1 x RJ-45

SATA

1 x SATA II

WLAN

Optional WIFI module 802.11 ac/a/b/g/n/

Audio

Audio Codec

Realtek ALC888S

Audio Interface

Line-out

Speaker Output

2 x 5W

Display

Graphic Chipset

Intel® Valleyview SoC integrated graphicssupports dual display

Spec. & Resolution

HDMI:Max. Resolution 1920x1200@ 60Hz

Certifications

Certification Information

CE / FCC Class A

Ethernet

LAN Chipset

2 x Intel® I211AT Gigabit Ethernet controller

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input

+12V ~ +26V

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 60W adapter (24V @ 2.5A adapter)

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Software Support

OS Information

Win 7 / Win 8 / Win 10 / Linux

System Control

LED Indicator

HDD LED, power LED

Mechanical & Environmental

Operating Temperature

0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

20% ~ 80% Relative humidity, non-condensing

Weight

4.23 Kg

Dimension (W x L x H)

311 x 272 x 58mm

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Whole system IP65

Mounting Kit

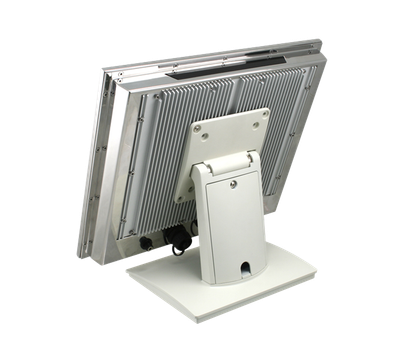

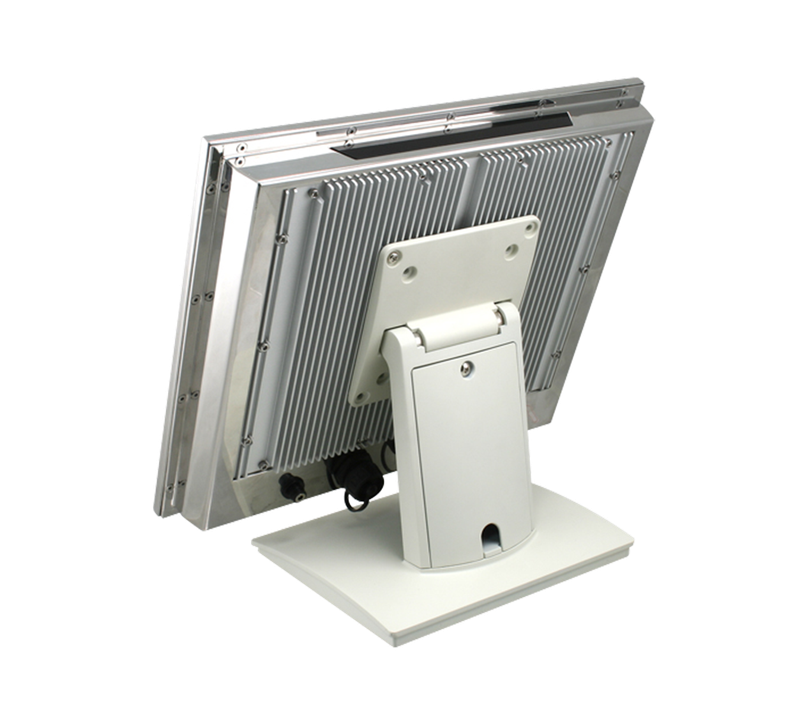

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Stainless steel

Construction - Rear

Stainless steel

Ordering Information

SPC-1209-190-A4R

Intel Celeron SoC J1900 2.0GHz D1-CPU/4G DDR3L/32G SSD/1GLAN/2USB/12~26V input/24V Adapter

SPC-1209-384-A4R

Intel E3845 CPU/4G DDR3L/32G SSD/1GLAN/1COM/3USB/12~26V input/24V Adapter

ACC-ARM-D1R

VESA STAND, 75mm & 100 mm

ACC-ARM-D23R

VESA STAND, 75mm & 100 mm

ACC-SPC-WIFI-1R

Wifi Kits for SPC-15/17/22 802.11b/g/n MPCIe/2Antenna/Cable

E1702031833R

USA Power Cord

E1702031000R

EU Power Cord

E1702031834R

Japan Power Cord

E1702031830R

UK Power Cord

E1702031831R

Australia Power Cord
