IPPC 2170P

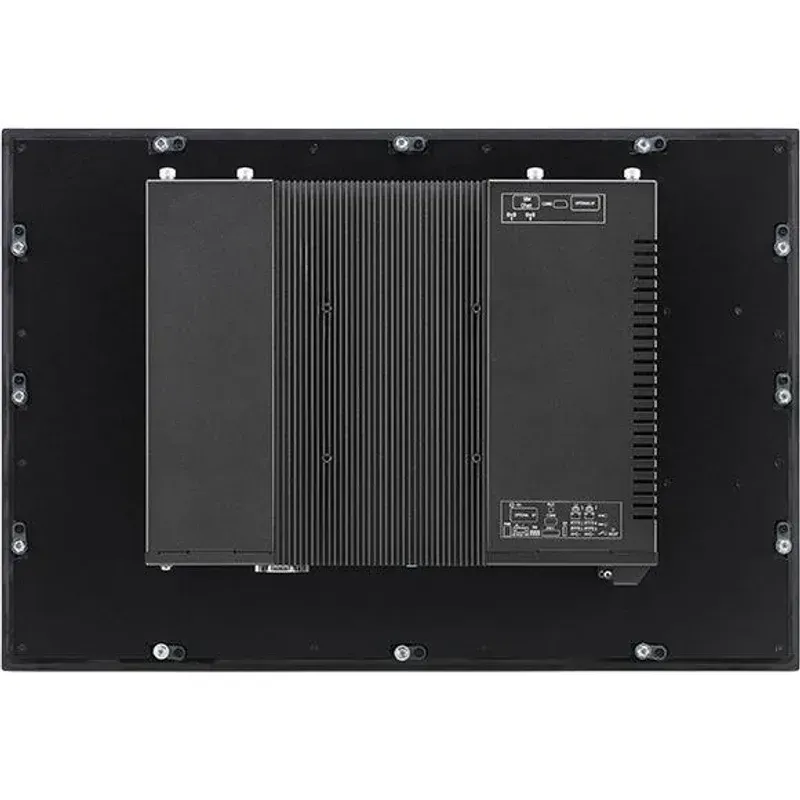

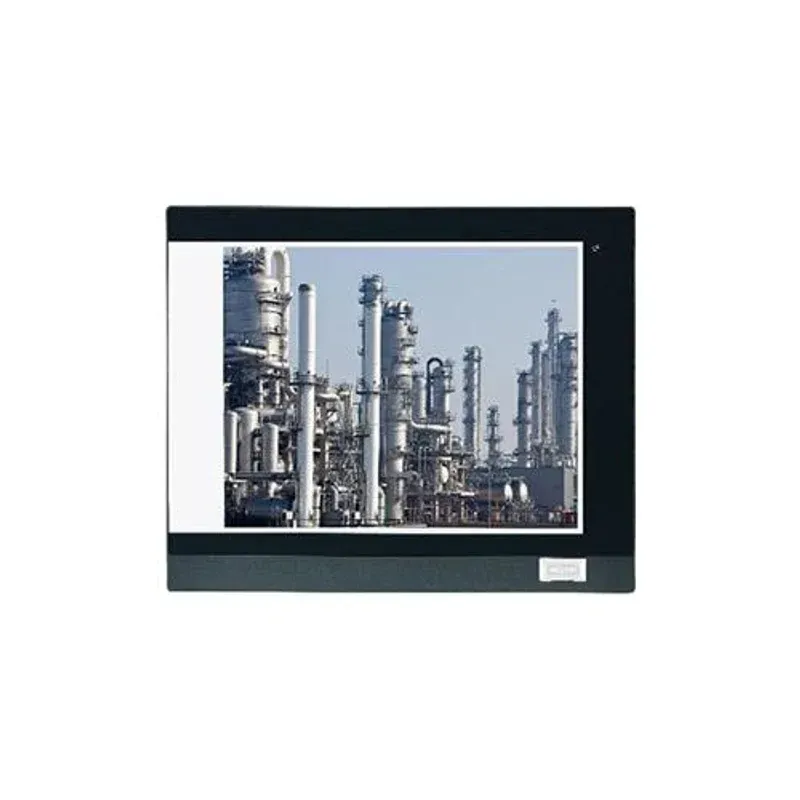

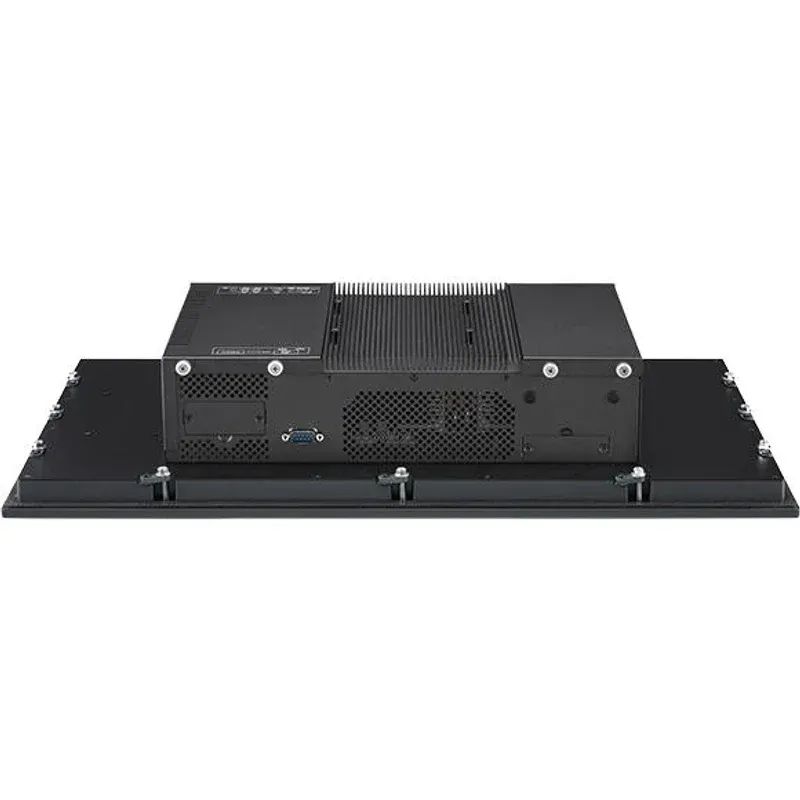

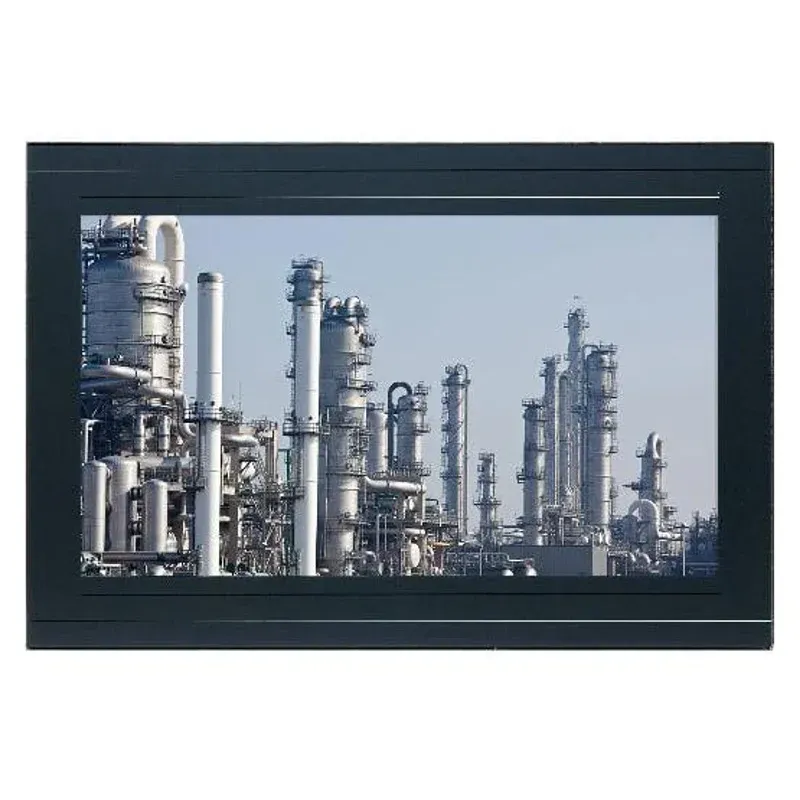

Nexcom IPPC 2170P 21.5" Full HD Heavy Industrial Panel PC — Front ViewNexcom IPPC 2170P 21.5" Full HD Heavy Industrial Panel PC — Front ViewNexcom IPPC 2170P 21.5" Full HD Heavy Industrial Panel PC — Front ViewNexcom IPPC 2170P 21.5" Full HD Heavy Industrial Panel PC — Front ViewNexcom IPPC 2170P 21.5" Full HD Heavy Industrial Panel PC — Front View
IPPC 2170P, Image 1IPPC 2170P, Image 2IPPC 2170P, Image 3IPPC 2170P, Image 4IPPC 2170P, Image 5
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Nexcom

Highlights

  • 21.5" 16:9 Full HD (1920 x 1080) fanless panel PC, 300 cd/m², 5000:1 contrast, 89° viewing on all axes
  • 10-point P-Cap multi-touch with 87% light transmission and >= 6H anti-scratch surface, USB touch interface
  • Metal chassis with robust aluminium IP66 zero-bezel flush front for oil & gas, refinery, wind-farm, chemical and pharma use
  • 4th Generation Intel Core i7 / i5 / i3 (LGA1150) on Intel Q87 PCH (Core i5-4590T / i5-4570TE / i3-4350T / i3-4340TE / Pentium G3320TE / Celeron G1820TE)
  • 2 x 204-pin DDR3/DDR3L SO-DIMM, up to 16 GB DDR3/DDR3L 1333/1600 (non-ECC, unbuffered)
  • Storage: 1 x external locked CFast + 1 x mini-PCIe (mSATA) + optional 2.5" SATA HDD/SSD bay (DC model)
  • Two expansion slots: 1 x PCI + 1 x PCIe x4, 2 x PCIe x4 default, 2 x PCI, or 1 x PCIe x16 — supports add-on PCI / PCIe cards
  • Two FBI fieldbus ports — PROFINET / PROFIBUS / DeviceNet / EtherNet/IP / EtherCAT / SERCOS III master modules (optional)
  • Optional JMobile HMI and CODESYS SoftLogic runtimes
  • Dual Intel I210IT Gigabit Ethernet, 4 x USB 3.0, additional independent display (1 x DVI-I + 1 x DisplayPort)
  • 2 x RS-232/422/485 with 5 V or 12 V selection (T/P-DC), PS/2 keyboard/mouse, audio (Line-out/Line-in/Mic-in, Realtek ALC886-GR)
  • Wide 12–30 V DC input through 3-pin Phoenix connector; optional 24 V / 120 W AC-DC adapter
  • Operating temp -10°C to 50°C, storage -20°C to 75°C, 10–90% RH non-condensing (90% RH at max 50°C)
  • Dimensions 562.4 x 382.4 x 105.05 mm; weight 11.7 kg; cutout 544 x 364 mm (T = 2–12 mm)
  • CE (EN 61000-6-2 / -6-4) + FCC Class A; OS: Windows 7 / 8.1 / 10 (32-bit + 64-bit)

Product Description

The Nexcom IPPC 2170P is a 21.5" 16:9 Full HD (1920 x 1080) heavy-industrial fanless panel PC sized for oil and gas rigs, wind farms, chemical plants, pharmaceutical plants and hazardous working areas.

It runs the 4th Generation Intel Core i processor family (LGA1150) on the Intel Q87 PCH chipset and accepts up to 16 GB DDR3 / DDR3L 1333/1600 (non-ECC, unbuffered) across two 204-pin SO-DIMM sockets.

CPU choices include the Core i5-4590T, Core i5-4570TE, Core i3-4350T, Core i3-4340TE, Pentium G3320TE and Celeron G1820TE. Storage is an external locked CFast socket, one mini-PCIe slot configurable as mSATA, and an optional internal 2.5" SATA HDD/SSD bay (DC model only).

The 300 cd/m² TFT panel sits behind a 10-point P-Cap multi-touch glass with 87% light transmission and >= 6H anti-scratch hardness, integrated into a metal chassis with a robust aluminium IP66 zero-bezel front for use in outdoor and harsh industrial environments.

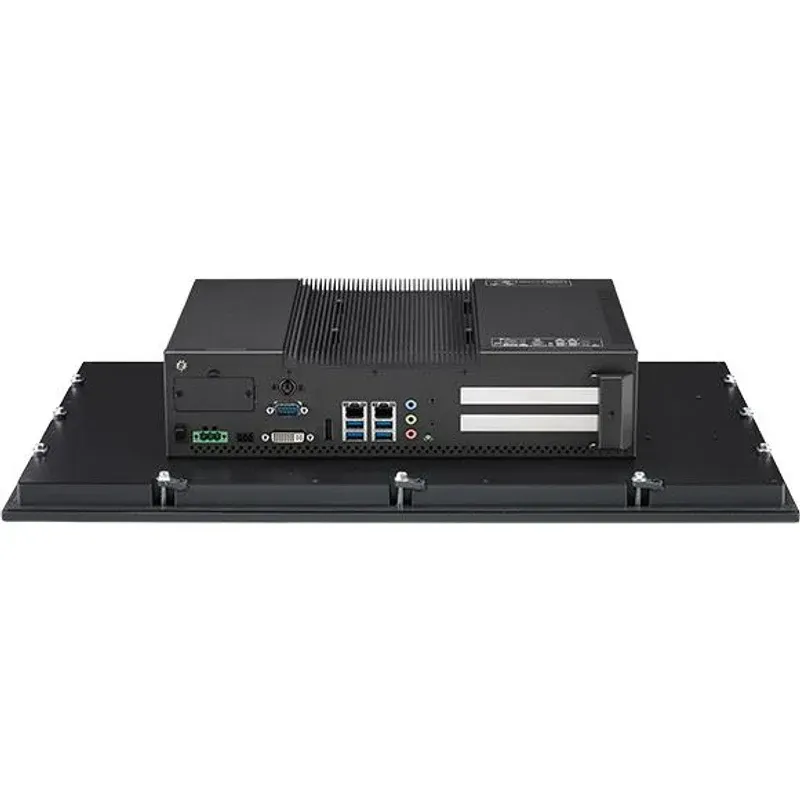

Rear I/O carries 2 x Intel I210IT Gigabit Ethernet, 4 x USB 3.0, additional independent display via 1 x DVI-I (DVI-D + DVI-A) plus 1 x DisplayPort, audio (Line-out / Line-in / Mic-in with Realtek ALC886-GR), PS/2 keyboard/mouse, a 3-pin remote power on/off, a reset button and two configurable RS-232/422/485 ports (T/P-DC) selectable between 5 V and 12 V.

Expansion is two add-on PCI or PCIe x4 slots (configurable: 1 x PCI + 1 x PCIe x4, 2 x PCIe x4 default, 2 x PCI, or 1 x PCIe x16).

Two FBI fieldbus ports accept PROFINET, PROFIBUS, DeviceNet, EtherNet/IP, EtherCAT or SERCOS III master modules and the system optionally supports JMobile HMI and CODESYS SoftLogic.

Power is wide-range 12–30 V DC through a 3-pin Phoenix connector with an optional 24 V / 120 W AC-DC adapter (P/N 7400120023X00).

The chassis is rated -10°C to 50°C operating, 10–90% RH non-condensing, IP66 front, mounts panel / wall / stand / VESA 100 x 100 mm, weighs 11.7 kg (barebone) and measures 562.4 x 382.4 x 105.05 mm with a 544 x 364 mm panel cutout. CE-marked (EN 61000-6-2 / -6-4) and FCC Class A.

OS support: Windows 7 / 8.1 / 10 (32-bit + 64-bit). TSL Automation supplies the Nexcom IPPC 2170P worldwide.

Technical Specifications

CPU Support (LGA1150)

Core i5-4590T, Quad Core, 2.0 GHz, 6 MB Cache (3.0 GHz turbo)

Core i5-4570TE, Dual Core, 2.7 GHz, 4 MB Cache (3.3 GHz turbo)

Core i3-4350T, Dual Core, 3.1 GHz, 4 MB Cache (no turbo)

Core i3-4340TE, Dual Core, 2.6 GHz, 4 MB Cache (no turbo)

Pentium G3320TE, Dual Core, 2.3 GHz, 3 MB Cache (no turbo)

Celeron G1820TE, Dual Core, 2.2 GHz, 2 MB Cache (no turbo)

Chipset

Intel Q87 PCH

BIOS

AMI BIOS

System Memory

2 x 204-pin DDR3/DDR3L SO-DIMM, up to 16 GB DDR3/DDR3L 1333/1600 (non-ECC unbuffered)

Watchdog Timer

Software-programmable 1–255 s and 1–255 min (±15% tolerance at 25°C)

H/W Status Monitor

System temperature and voltage

CPU Cooler

Passive (Fanless)

CFast

1 x external locked CFast socket

mSATA

1 x mini-PCIe w/o SIM card holder slot (supports mSATA storage)

HDD Bay

1 x 2.5" SATA HDD/SSD (optional, DC model only)

LCD Size

21.5"

Aspect Ratio

16:9

Resolution

Full HD 1920 x 1080

Luminance

300 cd/m²

Contrast Ratio

5000:1

LCD Colour

16.7M

Viewing Angle

89 (U), 89 (D), 89 (L), 89 (R)

Backlight

LED

Touch Type

10-point projected-capacitive (P-Cap) multi-touch

Touch Light Transmission

87%

Anti-Scratch Surface

>= 6H hardness

Touch Interface

USB

PCI/PCIe Slots

2 x add-on slots: 1 x PCI + 1 x PCIex4

2 x PCIex4 (default)

2 x PCI

1 x PCIex16

Fieldbus

2 x FBI fieldbus ports — supports up to 2 modules (PROFINET / PROFIBUS / DeviceNet / EtherNet/IP / EtherCAT / SERCOS III master)

PS/2

1 x PS/2 for keyboard / mouse

Ethernet

2 x RJ45 (dual Intel I210IT Gigabit)

2nd/3rd Display

1 x DVI-I (DVI-D + DVI-A)

1 x DisplayPort

Audio

1 x Line-out

1 x Line-in

1 x Mic-in (Realtek ALC886-GR HD codec)

USB

4 x USB 3.0

Remote Power

3-pin remote power on/off switch connector

Reset

Reset button

Serial (T/P-DC only)

COM #1: RS-232/422/485 with 5 V or 12 V selection

ATX power switch

Serial (T/P-DC only)

COM #2: RS-232/422/485 with 5 V or 12 V selection

DC Input

12–30 V DC

Power Connector

3-pin Phoenix connector

Power Adapter (Optional)

24 V / 120 W AC-DC adapter w/o power cord (P/N 7400120023X00)

OS

Windows 10 32-bit and 64-bit

Windows 8.1 32-bit and 64-bit

Windows 7 32-bit and 64-bit

Optional Runtimes

JMobile HMI runtime

CODESYS SoftLogic runtime

Certification Information

CE — EN 61000-6-2

CE — EN 61000-6-4

FCC Class A

Colour

Pantone 432C / RAL 70 24 front bezel

Construction

Aluminium front bezel with SPPC nickel-plated housing

IP Rating

IP66 (front)

Mounting

Panel / Wall / Stand / VESA 100 x 100 mm

Outline (W x H x D)

562.4 x 382.4 x 105.05 mm

Panel Cutout

544 ± 1 x 364 ± 1 mm (T = 2 ~ 12 mm)

Weight (Barebone)

11.7 kg

Operating Temp.

-10°C to 50°C (Resistive)

-10°C to 50°C (P-Cap)

Storage Temp.

-20°C to 75°C

Operating Humidity

10–90% RH, non-condensing (limited to 90% RH at max 50°C)

Vibration

IEC 68 2-64 (with HDD)

1 Grms sine, 5–500 Hz, 1 hr/axis (HDD operating)

2 Grms sine, 5–500 Hz, 1 hr/axis (CFast operating)

2.2 Grms random, 5–500 Hz, 0.5 hr/axis (non-operating)

Shock

IEC 68 2-27

HDD: 20 G wall mount, half sine, 11 ms

Barebone

IPPC 2170PE2-DC (P/N: 10II2170P00X0) — 21.5" Full HD WXGA LED-backlight fanless P-CAP touch panel PC, 2 x COM, DC power input, and optional fieldbus module

Options

24 V / 120 W AC-DC power adapter w/o power cord (P/N 7400120023X00)

PROFINET / EtherNet/IP / EtherCAT / SERCOS III master FBI90E-REM (P/N 10J50090E08X0)

PROFINET master FBI90E-PNM (P/N 10J50090E21X0)

PROFIBUS master FBI90E-PBM (P/N 10J50090E09X0)

DeviceNet master FBI90E-DNM (P/N 10J50090E10X0)

EtherCAT master FBI90E-ECM (P/N 10J50090E19X0)

EtherNet/IP master FBI90E-EPM (P/N 10J50090E20X0)

What is IPPC 2170P?

The IPPC 2170P is a panel pc / monitor / mobile manufactured by Nexcom, designed specifically for industrial-panel-pc applications. It features processor of Core i5-4590T, Quad Core, 2.0 GHz, 6 MB Cache (3.0 GHz turbo), Core i5-4570TE, Dual Core, 2.7 GHz, 4 MB Cac…, display of 21.5" and touch of 10-point projected-capacitive (P-Cap) multi-touch. The Nexcom IPPC 2170P is a 21.5" 16:9 Full HD (1920 x 1080) heavy-industrial fanless panel PC sized for oil and gas rigs, wind farms, chemical plants, pharmaceutical plants and hazardous working areas. It runs the 4th Generation Intel Core i processor family (LGA1150) on the Intel Q87 PCH chipset and accepts up to 16 GB DDR3 / DDR3L 1333/1600 (non-ECC, unbuffered) across two 204-pin SO-DIMM sockets. CPU choices include the Core i5-4590T, Core i5-4570TE, Core i3-4350T, Core i3-4340TE, Pentium G3320TE and Celeron G1820TE. Storage is an external locked CFast socket, one mini-PCIe slot configurable as mSATA, and an optional internal 2.5" SATA HDD/SSD bay (DC model only). The 300 cd/m² TFT panel sits behind a 10-point P-Cap multi-touch glass with 87% light transmission and >= 6H anti-scratch hardness, integrated into a metal chassis with a robust aluminium IP66 zero-bezel front for use in outdoor and harsh industrial environments. Rear I/O carries 2 x Intel I210IT Gigabit Ethernet, 4 x USB 3.0, additional independent display via 1 x DVI-I (DVI-D + DVI-A) plus 1 x DisplayPort, audio (Line-out / Line-in / Mic-in with Realtek ALC886-GR), PS/2 keyboard/mouse, a 3-pin remote power on/off, a reset button and two configurable RS-232/422/485 ports (T/P-DC) selectable between 5 V and 12 V. Expansion is two add-on PCI or PCIe x4 slots (configurable: 1 x PCI + 1 x PCIe x4, 2 x PCIe x4 default, 2 x PCI, or 1 x PCIe x16). Two FBI fieldbus ports accept PROFINET, PROFIBUS, DeviceNet, EtherNet/IP, EtherCAT or SERCOS III master modules and the system optionally supports JMobile HMI and CODESYS SoftLogic. Power is wide-range 12–30 V DC through a 3-pin Phoenix connector with an optional 24 V / 120 W AC-DC adapter (P/N 7400120023X00). The chassis is rated -10°C to 50°C operating, 10–90% RH non-condensing, IP66 front, mounts panel / wall / stand / VESA 100 x 100 mm, weighs 11.7 kg (barebone) and measures 562.4 x 382.4 x 105.05 mm with a 544 x 364 mm panel cutout. CE-marked (EN 61000-6-2 / -6-4) and FCC Class A. OS support: Windows 7 / 8.1 / 10 (32-bit + 64-bit). TSL Automation supplies the Nexcom IPPC 2170P worldwide.

Key Features & Benefits

  • 21.5" 16:9 Full HD (1920 x 1080) fanless panel PC, 300 cd/m², 5000:1 contrast, 89° viewing on all axes
  • 10-point P-Cap multi-touch with 87% light transmission and >= 6H anti-scratch surface, USB touch interface
  • Metal chassis with robust aluminium IP66 zero-bezel flush front for oil & gas, refinery, wind-farm, chemical and pharma use
  • 4th Generation Intel Core i7 / i5 / i3 (LGA1150) on Intel Q87 PCH (Core i5-4590T / i5-4570TE / i3-4350T / i3-4340TE / Pentium G3320TE / Celeron G1820TE)
  • 2 x 204-pin DDR3/DDR3L SO-DIMM, up to 16 GB DDR3/DDR3L 1333/1600 (non-ECC, unbuffered)
  • Storage: 1 x external locked CFast + 1 x mini-PCIe (mSATA) + optional 2.5" SATA HDD/SSD bay (DC model)
  • Two expansion slots: 1 x PCI + 1 x PCIe x4, 2 x PCIe x4 default, 2 x PCI, or 1 x PCIe x16 — supports add-on PCI / PCIe cards
  • Two FBI fieldbus ports — PROFINET / PROFIBUS / DeviceNet / EtherNet/IP / EtherCAT / SERCOS III master modules (optional)
  • Optional JMobile HMI and CODESYS SoftLogic runtimes
  • Dual Intel I210IT Gigabit Ethernet, 4 x USB 3.0, additional independent display (1 x DVI-I + 1 x DisplayPort)
  • 2 x RS-232/422/485 with 5 V or 12 V selection (T/P-DC), PS/2 keyboard/mouse, audio (Line-out/Line-in/Mic-in, Realtek ALC886-GR)
  • Wide 12–30 V DC input through 3-pin Phoenix connector; optional 24 V / 120 W AC-DC adapter
  • Operating temp -10°C to 50°C, storage -20°C to 75°C, 10–90% RH non-condensing (90% RH at max 50°C)
  • Dimensions 562.4 x 382.4 x 105.05 mm; weight 11.7 kg; cutout 544 x 364 mm (T = 2–12 mm)
  • CE (EN 61000-6-2 / -6-4) + FCC Class A; OS: Windows 7 / 8.1 / 10 (32-bit + 64-bit)

Applications & Use Cases

The IPPC 2170P is ideal for various industrial automation applications:

  • Dust-sensitive environments and silent operation requirements
  • DC-powered industrial installations and mobile applications
  • Extreme temperature environments and outdoor installations
  • Legacy equipment integration and serial communication
  • High-performance computing and data processing tasks
  • Networked industrial systems and data communication
  • Interactive control interfaces and operator panels
  • Chemical processing and petrochemical industries
