Avalue · Computer-on-Module

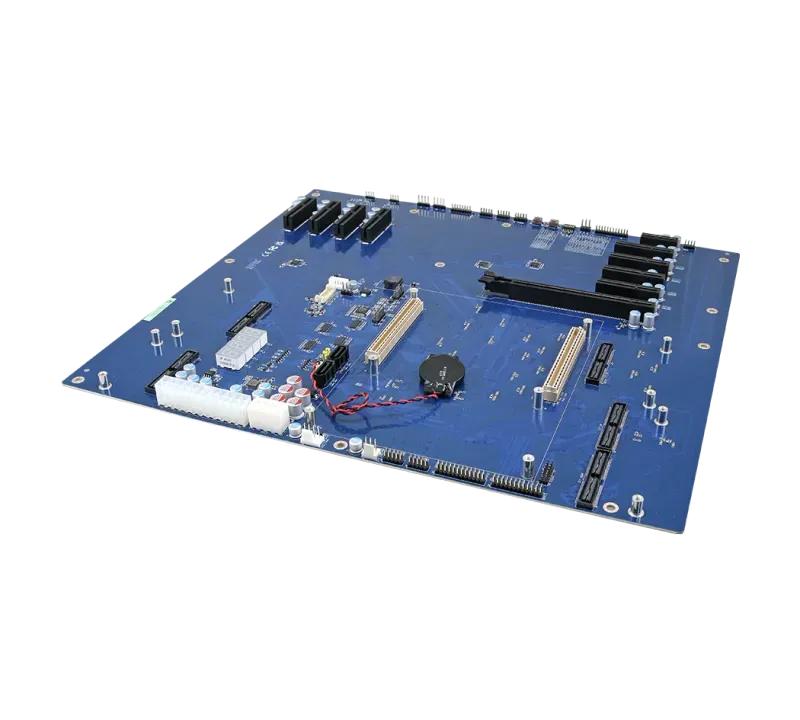

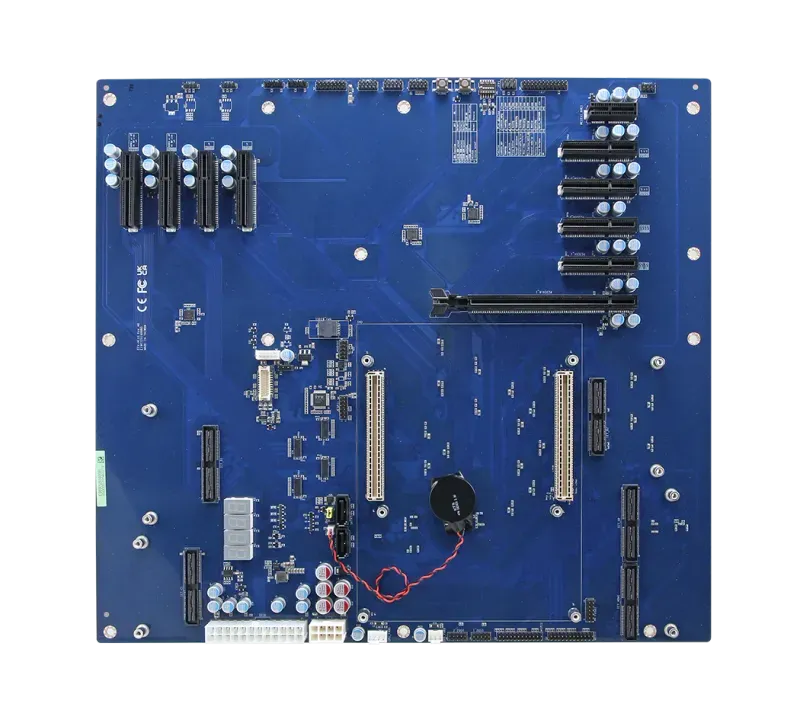

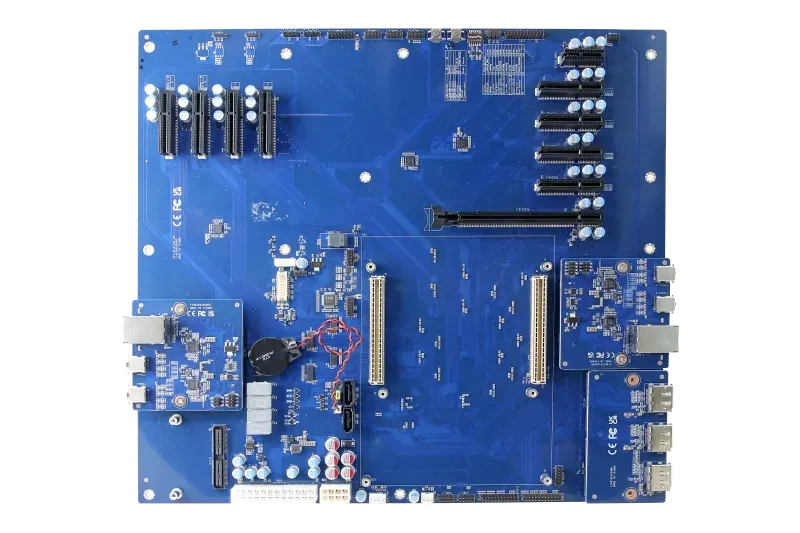

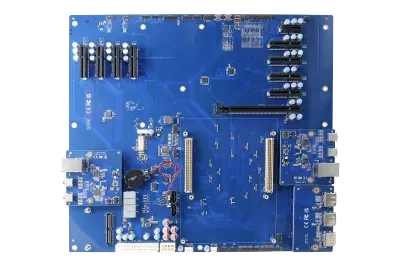

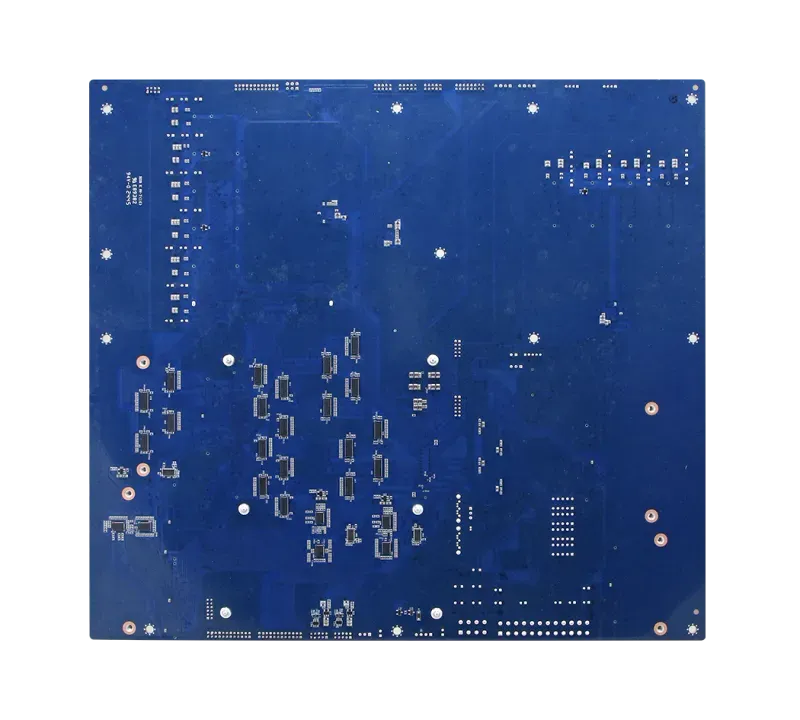

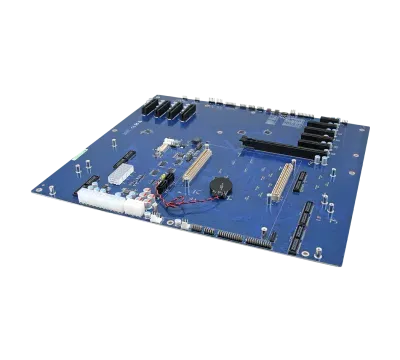

EEV-HC10

EEV-HC10 FrontEEV-HC10 FrontEEV-HC10 FrontEEV-HC10 Front
EEV-HC10, Image 1EEV-HC10, Image 2EEV-HC10, Image 3EEV-HC10, Image 4
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • COM-HPC carrier board, EATX form factor (12" x 13", 305 x 330 mm)
  • PICMG COM-HPC Revision 1.2, Client pin-out
  • Compatible with COM-HPC Client size A / B / C modules
  • Unmanaged COM-HPC Carrier (C.U.)
  • 1 x PCIe x16 Gen5 + 8 x PCIe x4 + 1 x PCIe x1 (BMC)
  • 3 x DDI (DP1.4a/HDMI2.1b via IET) + 1 x eDP
  • Dual 2.5GbE (or 2x 10/25GbE via IET module)
  • 4 x USB3.2 Gen2x2 Type-C, 4 x USB2.0, 2 x SATA III
  • 12-bit GPIO; CE, FCC, RoHS

Product Description

The Avalue EEV-HC10 is a COM-HPC carrier board in EATX form factor (12" x 13", 305 x 330 mm), built to PICMG COM-HPC Revision 1.2 and compatible with COM-HPC Client size A, B and C modules.

It is an unmanaged carrier (C.U.) for evaluating and deploying high-performance COM-HPC compute.

It provides a PCIe x16 Gen5 slot, eight PCIe x4 slots and a PCIe x1 BMC slot, configurable DDI (DP1.4a/HDMI2.1b) plus eDP, dual 2.5GbE (or 10/25GbE via IET modules), USB 3.2 Gen2x2 Type-C, USB 2.0, SATA III, audio and 12-bit GPIO — a flexible development and integration platform for COM-HPC Client modules.

Technical Specifications

Processor

EATX form factor (12" x 13", 305 x 330mm), PICMG COM-HPC Revision 1.2, COM-HPC client pin-out, size A (95x120mm), B (120x120mm), C (160x120mm) compatible

Expansion

1 x PCIe x16 Gen5 slot

8 x PCIe x4 slot

1 x PCIe x1 slot for BMC

Multiple Display

Depends on the COM-HPC module

DDI

3 x DDI configurable to DP2.1 or HDMI 2.1b by 2x IET module

1 x eDP

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-out, Mic-in

Ethernet Interface

2 x 10 or 25 Gigabit Ethernet connector by 1x IET module

2 x 2.5 Gigabit Ethernet connector by 2x IET module

OS

According to COM-HPC Module Solution

Certification Information

CE, FCC, RoHS Compliant

USB

4 x USB3.2 Gen2x2 (Type C) by 2x IET module

4 x USB2.0 by pin header

GPIO

12-bit GPIO

UART

2 x Serial Port

Operating Temp.

0°C ~ 60°C (32°F ~ 140°F) with 0.5m/s air flow

Storage Temp.

-20°C ~ 75°C (-4°F ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Power Mode

AT/ATX mode switchable through SW1

Dimension (L x W)

13" x 12" (330 x 305mm)

Ordering Information

EEV-HC10-A1R

What is EEV-HC10?

The EEV-HC10 is a computer-on-module manufactured by Avalue, designed specifically for com-hpc applications. The Avalue EEV-HC10 is a COM-HPC carrier board in EATX form factor (12" x 13", 305 x 330 mm), built to PICMG COM-HPC Revision 1.2 and compatible with COM-HPC Client size A, B and C modules. It is an unmanaged carrier (C.U.) for evaluating and deploying high-performance COM-HPC compute. It provides a PCIe x16 Gen5 slot, eight PCIe x4 slots and a PCIe x1 BMC slot, configurable DDI (DP1.4a/HDMI2.1b) plus eDP, dual 2.5GbE (or 10/25GbE via IET modules), USB 3.2 Gen2x2 Type-C, USB 2.0, SATA III, audio and 12-bit GPIO — a flexible development and integration platform for COM-HPC Client modules.

Key Features & Benefits

  • COM-HPC carrier board, EATX form factor (12" x 13", 305 x 330 mm)
  • PICMG COM-HPC Revision 1.2, Client pin-out
  • Compatible with COM-HPC Client size A / B / C modules
  • Unmanaged COM-HPC Carrier (C.U.)
  • 1 x PCIe x16 Gen5 + 8 x PCIe x4 + 1 x PCIe x1 (BMC)
  • 3 x DDI (DP1.4a/HDMI2.1b via IET) + 1 x eDP
  • Dual 2.5GbE (or 2x 10/25GbE via IET module)
  • 4 x USB3.2 Gen2x2 Type-C, 4 x USB2.0, 2 x SATA III
  • 12-bit GPIO; CE, FCC, RoHS

Applications & Use Cases

The EEV-HC10 is ideal for various industrial automation applications:

  • Peripheral device connectivity and data transfer
  • Industrial automation and control
  • Manufacturing process monitoring
  • Quality assurance and inspection
  • Production line automation
