BMX-T528

Series: BMX

Manufactured byAvalue

The Avalue BMX-T528 is a compact barebone system based on the EMX-TGLC-B1 board for 15W 11th Generation Intel Core i7-1165G7 / i5-1135G7 (Tiger Lake) processors. Dual DDR4 3200MHz SO-DIMM sockets support up to 64GB (non-ECC), with discrete TPM 2.0, RAID 0/1 (Core i SKUs), and a flexible M.2 expansion set including a Nano-SIM slot for WWAN+GNSS. The BMX-T528 is built for rugged, connected edge use: M.2 Type-B (PCIe/SATA/USB, NVMe-capable) and M.2 Key-E (Wi-Fi/CNVi), dual 2.5" drive bays, four antenna mounts, multiple RS-232/422/485 and RS-232 COM ports, USB 3.1 Gen2, dual LAN, LVDS plus 2–4 DisplayPort output, and dual power inputs (4-pin Mini-DIN and 2-pin terminal block) — suited to transportation, machine control, and field gateway roles on Windows or Linux.

Key Features

11th Gen Intel Core i7-1165G7 / i5-1135G7 (15W, Tiger Lake)
EMX-TGLC-B1 board; dual DDR4 3200MHz SO-DIMM up to 64GB
Discrete TPM 2.0; RAID 0/1 (Core i SKUs)
M.2 Type-B (PCIe/SATA/USB, NVMe) w/ Nano-SIM (WWAN+GNSS)
M.2 Key-E 2230 (Wi-Fi / CNVi)
2 x 2.5" drive bays, 4 x antenna mounts
USB 3.1 Gen2 + USB 2.0; multi RS-232/422/485
Dual LAN; LVDS + 2–4 DisplayPort output
Dual power input (4-pin Mini-DIN + 2-pin terminal block)

Technical Specifications

System Information

Processor	Intel® Core™ i7-1165G7 Processor (15W), Intel® Core™ i5-1135G7 Processor (15W), *According to the EMX-TGLC-B1 standard BOM
Platform Controller Hub	Soc
System Memory	Two 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB Max (non ECC only)
SBC	EMX-TGLC-B1
H/W Status Monitor	CPU temperature monitoring, Voltage monitoring, CPU fan speed control
Watchdog Timer	H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step
TPM	dTPM 2.0
I/O Chipset	NuvoTon_NCT6126D
BIOS Information	AMI uEFI BIOS, 256Mbit SPI Flash ROM
RAID	RAID0/1 (only Core i)

Expansion

M.2

1-M.2 Type B 3042/3052/2242/2260/2280, Support PCI-e x1/ 1x SATA/1xUSB3.0/1xUSB2.0 with 1 x Nano SIM card slot with co-lay FPC connector, support WWAN+GNSS or NVMe (SATA) SSD, *SATA 2 share with M.2 key B SATA, *Only supports one SIM card, *Does not support I2S and PCM functions, *Only Support PCI-e x1 signal module, 1-M.2 Key E 2230 support WiFi module and CNVi (1 x PCI-e x1 & USB 2.0 Signal), *Does not support PCM/I2S and UART/SDIO functions, *Due to support Intel CNVI function, please do not use support UART or SDIO module to avoid misfunction.

Storage

M.2	1-M.2 Type B 3042/3052/2242/2260/2280 NVMe SSD, SATA 2 share with M.2 key B SATA, Only Support PCI-e x1 signal module
Drive Bay	2-2.5” Drive Bay (9.5mm)

Front I/O

SIM Slot	1 x Internal SIM slot
COM Port	4 x COM optional
Antenna	4 x Antenna with dust cover
USB	4 x USB2.0 optional

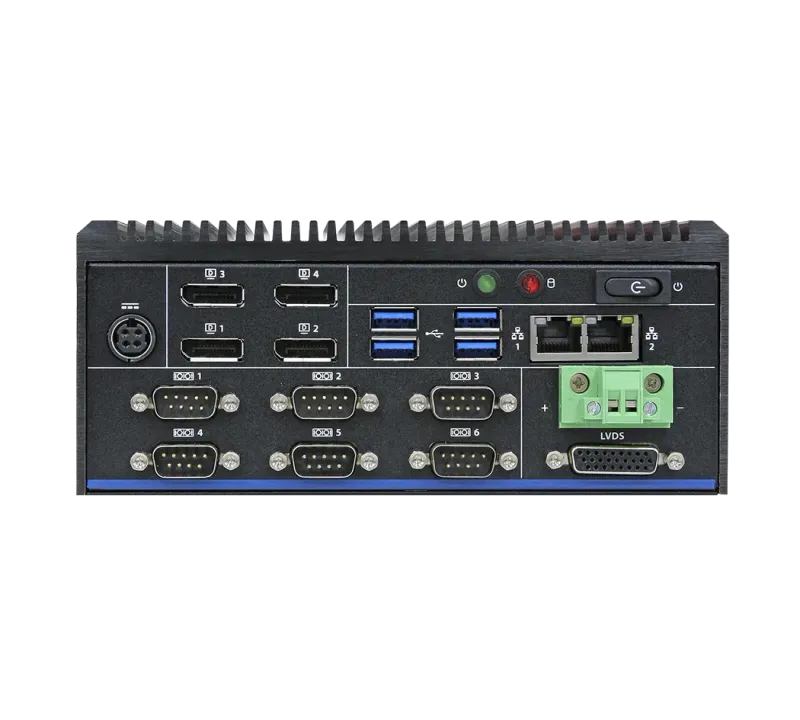

Rear I/O

LVDS	1 x LVDS for DB26 Optional
AC/DC Input	1-4P Mini Din Jack (Edge), 1-2P Terminal Black (cable)
USB	4-USB 3.1 Gen2
Power Button	1 x Push Button for Power on/off
HDMI	2 x DP or 4 x DP
LED Indicator	1 x Power LED (Green), 1 x Storage LED (Red)
LAN Port	2 x RJ45
COM Port	2 x RS/232/RS422/485, 4 x RS-232

Right I/O

Antenna	2 x Antenna with dust cover

Left I/O

Antenna	2 x Antenna with dust cover

Onboard I/O

EC Debug	1 x 3 pin, pitch 2.00mm connector for EC SPI debug (JEC1)
Front Panel	1 x 2 x 5 pin, pitch 2.54mm connector for front panel_1 (JFP1)
DC-Input	1 x 4P Mini Din Jack, 1 x 2 x 2 pin, pitch 4.20mm connector for power input connector (PWR1)
BIOS EC	1 x 2 x 4 pin, pitch 2.00mm connector for BIOS SPI (JBIOS1)
SATA Signal	2 x 7 pin SATAIII Interface connector
eSPI	1 x 2 x 6 pin, pitch 2.00mm connector for eSPI debug (JESPI1)
Clear CMOS Button	1 x 3 pin, pitch 2.00mm connector for CMOS clear (JRTC1)
RTC Battery	1 x 2 Pin Pitch 1.25mm SMT type battery connector (CR2032 Battery) JBAT1
AT/ATX Selector	1 x 1 x 3 pin pitch 2.54mm connector for AT/ATX jumper (JAT1)
SATA PWR	2 x 4-Pin Wafer (2.0mm) for 5V/12V Power SATA Power,1A

Display

Graphic Chipset	Intel® Iris® Xe Graphics (i7-1165G7/ i5-1135G7), Intel® UHD Graphics for 11th Gen Intel® Processors (i3-1115G4)
Resolution	˙DP (DP1.4): Max: 7680 x 4320@60 Hz, Note: This resolution is actual test result. Intel resolution as below:, ˙2 x DP++: 1920 x 1080@60 Hz (with passive Displayport(DP) to HDMI Dongle/Adapter), ˙LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7513 eDP to LVDS), ˙eDP 4096 x 2304@60 Hz, *2 x DP++, LVDS
Multiple Display	Triple Display, Multiple Display: DP+DP+eDP or DP+DP+LVDS

Audio

Audio Codec	Realtek ALC897 co-lay ALC888S

Ethernet

LAN Chipset	1 x Intel® I226LM 2.5 Gigabit Ethernet (LAN2), 1 x Intel® I219LM Gigabit Ethernet PHY (LAN1), *according to the EMX-TGLC-B1 standard BOM
Data Rate Per Port	10/100/1000 Base-Tx GbE compatible & 2.5 Gigabit Ethernet

Power Requirement

ACPI	Single power ATX Support S0,S3, S4, S5, ACPI 5.0 Compliant
Power Mode	AT/ATX (ATX is default setting)
Voltage Input Spec.	+24Vdc
Voltage Input Connector	1-4P Mini Din Jack (Edge), 1-2P Terminal Black (cable)

Software Support

OS	Win10, Win11, Linux

Mechanical & Environmental

Operating Temp.	0°C ~ 50°C (w/SSD) ambient w/ 0.5 air flow
Storage Temp.	-30~70C° (-22°F ~ 158°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)	180mm x 182mm x 82.2 mm (Standard)
Weight	Net weight:2.2KG, Gross weight: 3.4KG
Vibration Test	With SSD:5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test	With SSD:50Grms, IEC 60068-2-27, Half Sine, 11ms
Drop Test	ISTA 2A, IEC-60068-2-32 Test : Ed
Mounting Kit	Wall mount kit (optional), DIN RAIL (optional)

Packing List

Items	4 x 角垫Rubber foot E199RF00010R, 2 x L型固定支架（E195BMBMT52100R for Optional）, 1 x 120W adapter optional, 1 x Power cord (optional)

Ordering Information

Ordering Information	BMX-T528-3G4-B2C, BMX-T528-5G7-B2C, BMX-T528-7G7-B2C, C971XBMT528001R, C971XBMT528002R, C971XBMT528003R
