Avalue · Computing System

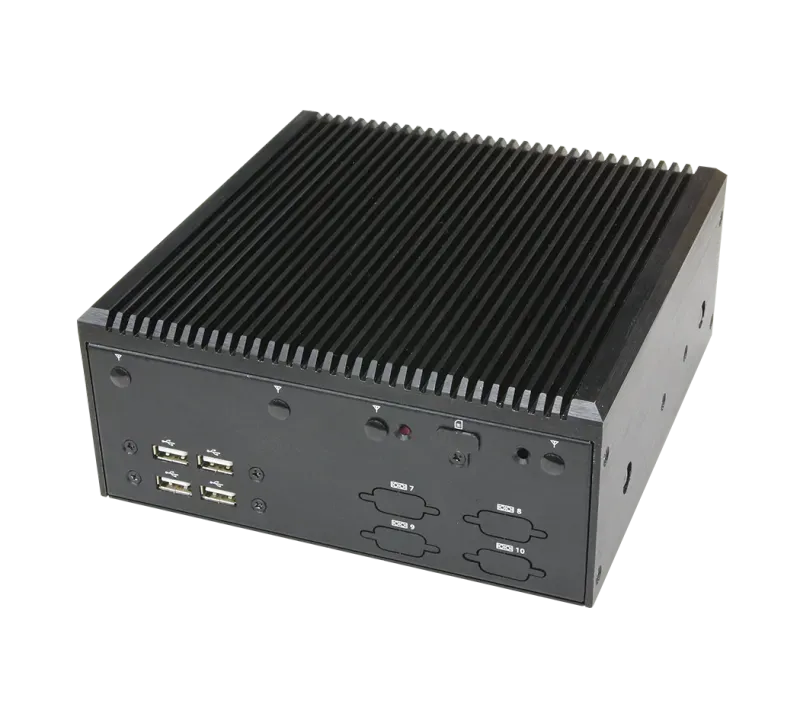

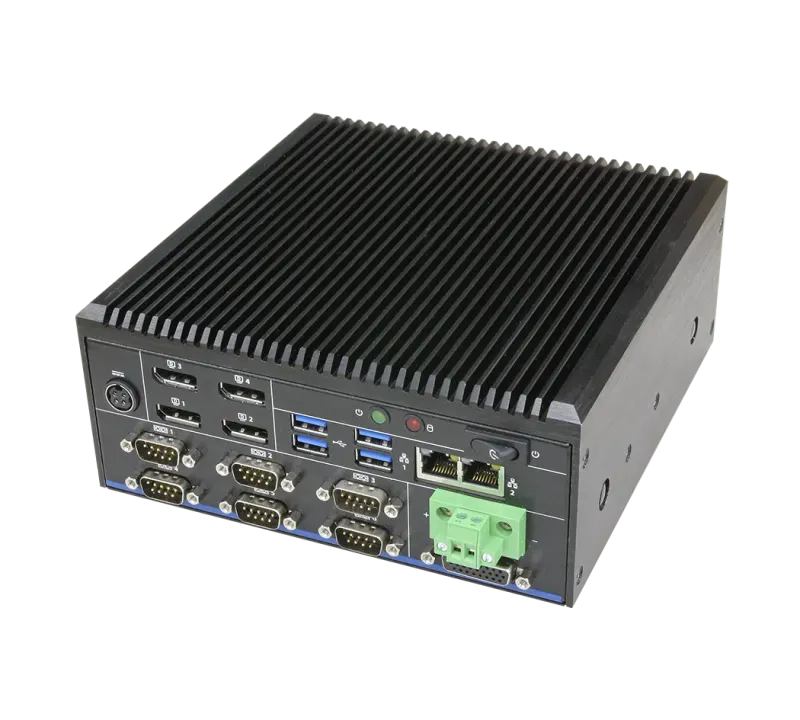

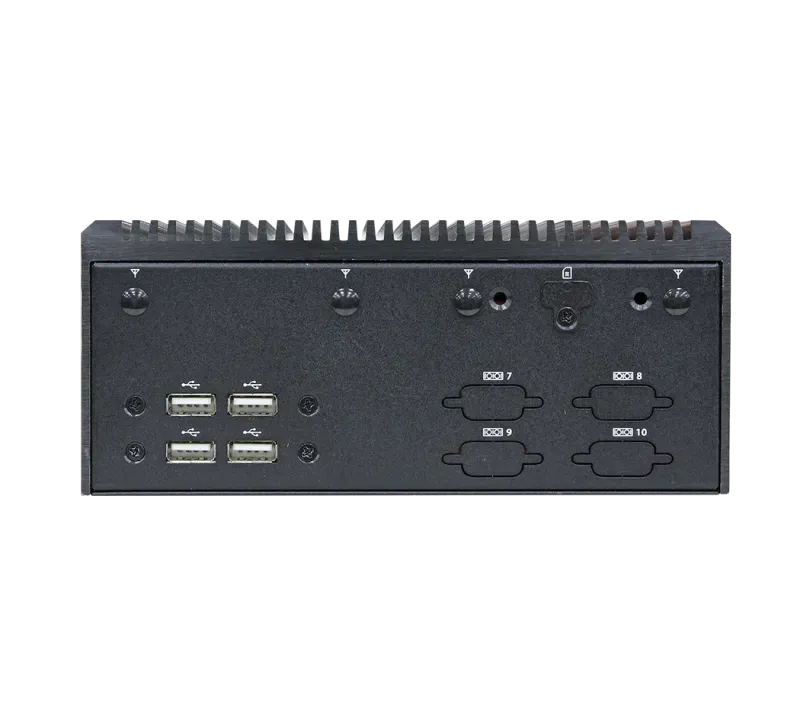

BMX-T528

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

11th Gen Intel Core i7-1165G7 / i5-1135G7 (15W, Tiger Lake)
EMX-TGLC-B1 board; dual DDR4 3200MHz SO-DIMM up to 64GB
Discrete TPM 2.0; RAID 0/1 (Core i SKUs)
M.2 Type-B (PCIe/SATA/USB, NVMe) w/ Nano-SIM (WWAN+GNSS)
M.2 Key-E 2230 (Wi-Fi / CNVi)
2 x 2.5" drive bays, 4 x antenna mounts
USB 3.1 Gen2 + USB 2.0; multi RS-232/422/485
Dual LAN; LVDS + 2–4 DisplayPort output
Dual power input (4-pin Mini-DIN + 2-pin terminal block)

Product Description

The Avalue BMX-T528 is a compact barebone system based on the EMX-TGLC-B1 board for 15W 11th Generation Intel Core i7-1165G7 / i5-1135G7 (Tiger Lake) processors.

Dual DDR4 3200MHz SO-DIMM sockets support up to 64GB (non-ECC), with discrete TPM 2.0, RAID 0/1 (Core i SKUs), and a flexible M.2 expansion set including a Nano-SIM slot for WWAN+GNSS.

The BMX-T528 is built for rugged, connected edge use: M.2 Type-B (PCIe/SATA/USB, NVMe-capable) and M.2 Key-E (Wi-Fi/CNVi), dual 2.5" drive bays, four antenna mounts, multiple RS-232/422/485 and RS-232 COM ports, USB 3.1 Gen2, dual LAN, LVDS plus 2–4 DisplayPort output, and dual power inputs (4-pin Mini-DIN and 2-pin terminal block) — suited to transportation, machine control, and field gateway roles on Windows or Linux.

Technical Specifications

Processor

Intel® Core™ i7-1165G7 Processor (15W)

Intel® Core™ i5-1135G7 Processor (15W)

*According to the EMX-TGLC-B1 standard BOM

Platform Controller Hub

Soc

System Memory

Two 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB Max (non ECC only)

SBC

EMX-TGLC-B1

H/W Status Monitor

CPU temperature monitoring

Voltage monitoring

CPU fan speed control

Watchdog Timer

H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step

TPM

dTPM 2.0

I/O Chipset

NuvoTon_NCT6126D

BIOS Information

AMI uEFI BIOS, 256Mbit SPI Flash ROM

RAID

RAID0/1 (only Core i)

M.2

1-M.2 Type B 3042/3052/2242/2260/2280

Support PCI-e x1/ 1x SATA/1xUSB3.0/1xUSB2.0 with 1 x Nano SIM card slot with co-lay FPC connector, support WWAN+GNSS or NVMe (SATA) SSD

*SATA 2 share with M.2 key B SATA

*Only supports one SIM card

*Does not support I2S and PCM functions

*Only Support PCI-e x1 signal module

1-M.2 Key E 2230 support WiFi module and CNVi (1 x PCI-e x1 & USB 2.0 Signal)

*Does not support PCM/I2S and UART/SDIO functions

*Due to support Intel CNVI function, please do not use support UART or SDIO module to avoid misfunction.

M.2

1-M.2 Type B 3042/3052/2242/2260/2280 NVMe SSD

*SATA 2 share with M.2 key B SATA

*Only Support PCI-e x1 signal module

Drive Bay

2-2.5” Drive Bay (9.5mm)

SIM Slot

1 x Internal SIM slot

COM Port

4 x COM optional

Antenna

4 x Antenna with dust cover

USB

4 x USB2.0 optional

LVDS

1 x LVDS for DB26 Optional

AC/DC Input

1-4P Mini Din Jack (Edge)

1-2P Terminal Black (cable)

USB

4-USB 3.1 Gen2

Power Button

1 x Push Button for Power on/off

HDMI

2 x DP or 4 x DP

LED Indicator

1 x Power LED (Green)

1 x Storage LED (Red)

LAN Port

2 x RJ45

COM Port

2 x RS/232/RS422/485, 4 x RS-232

Antenna

2 x Antenna with dust cover

Antenna

2 x Antenna with dust cover

EC Debug

1 x 3 pin, pitch 2.00mm connector for EC SPI debug (JEC1)

Front Panel

1 x 2 x 5 pin, pitch 2.54mm connector for front panel_1 (JFP1)

DC-Input

1 x 4P Mini Din Jack

1 x 2 x 2 pin, pitch 4.20mm connector for power input connector (PWR1)

BIOS EC

1 x 2 x 4 pin, pitch 2.00mm connector for BIOS SPI (JBIOS1)

SATA Signal

2 x 7 pin SATAIII Interface connector

eSPI

1 x 2 x 6 pin, pitch 2.00mm connector for eSPI debug (JESPI1)

Clear CMOS Button

1 x 3 pin, pitch 2.00mm connector for CMOS clear (JRTC1)

RTC Battery

1 x 2 Pin Pitch 1.25mm SMT type battery connector (CR2032 Battery) JBAT1

AT/ATX Selector

1 x 1 x 3 pin pitch 2.54mm connector for AT/ATX jumper (JAT1)

SATA PWR

2 x 4-Pin Wafer (2.0mm) for 5V/12V Power SATA Power,1A

Graphic Chipset

Intel® Iris® Xe Graphics (i7-1165G7/ i5-1135G7)

Intel® UHD Graphics for 11th Gen Intel® Processors (i3-1115G4)

Resolution

˙DP (DP1.4): Max: 7680 x 4320@60 Hz

Note: This resolution is actual test result. Intel resolution as below:

˙2 x DP++: 1920 x 1080@60 Hz (with passive Displayport(DP) to HDMI Dongle/Adapter)

˙LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7513 eDP to LVDS)

˙eDP 4096 x 2304@60 Hz

*2 x DP++, LVDS

Multiple Display

Triple Display

Multiple Display: DP+DP+eDP or DP+DP+LVDS

Audio Codec

Realtek ALC897 co-lay ALC888S

LAN Chipset

1 x Intel® I226LM 2.5 Gigabit Ethernet (LAN2)

1 x Intel® I219LM Gigabit Ethernet PHY (LAN1)

*according to the EMX-TGLC-B1 standard BOM

Data Rate Per Port

10/100/1000 Base-Tx GbE compatible & 2.5 Gigabit Ethernet

ACPI

Single power ATX Support S0,S3, S4, S5

ACPI 5.0 Compliant

Power Mode

AT/ATX (ATX is default setting)

Voltage Input Spec.

+24Vdc

Voltage Input Connector

1-4P Mini Din Jack (Edge)

1-2P Terminal Black (cable)

OS

Win10, Win11, Linux

Operating Temp.

0°C ~ 50°C (w/SSD) ambient w/ 0.5 air flow

Storage Temp.

-30~70C° (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

180mm x 182mm x 82.2 mm (Standard)

Weight

Net weight:2.2KG

Gross weight: 3.4KG

Vibration Test

With SSD:5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis

Shock Test

With SSD:50Grms, IEC 60068-2-27, Half Sine, 11ms

Drop Test

ISTA 2A, IEC-60068-2-32 Test : Ed

Mounting Kit

Wall mount kit (optional)

DIN RAIL (optional)

Items

4 x 角垫Rubber foot E199RF00010R

2 x L型固定支架（E195BMBMT52100R for Optional）

1 x 120W adapter optional

1 x Power cord (optional)

Ordering Information

BMX-T528-3G4-B2C

BMX-T528-5G7-B2C

BMX-T528-7G7-B2C

C971XBMT528001R

C971XBMT528002R

C971XBMT528003R
