IP69K Washdown Industrial PC for Food and Pharma: What Changes vs IP65

The IP69K test is not what people think it is

IP69K isn't simply "more IP65". It's a separate test method standardised in ISO 20653, originally developed for road-vehicle cleaning. The protocol: ~14–16 L/min of water at 80°C and 80–100 bar, sprayed from a flat-fan nozzle at 100–150 mm distance, at 0°, 30°, 60° and 90° angles for 30 seconds each. Pass that, and the enclosure has demonstrated it can survive high-pressure, hot-water, close-range washdown without ingress.

IP65 — by contrast — is "protected against low-pressure water jets from any direction". Useful on a factory floor; not a substitute for IP69K when the cleaning crew turns up with a hot-water lance.

Where IP69K matters

• Food & beverage production — daily caustic + hot-water washdown of every surface in zone 1
• Meat, poultry, dairy — frequent high-pressure cleaning to meet HACCP / USDA / EU 2073/2005
• Pharmaceutical clean / wash bays — washdown SOPs that go beyond IP65/66
• Commercial kitchens — hosedown of cookware lines
• Outdoor washdown — vehicle cleaning bays, agricultural processing

What changes on the PC itself

An IP69K-rated industrial PC isn't a sealed IP65 box with a sticker. The engineering changes show up everywhere:

• Stainless-steel enclosure (typically 304 or 316L for food/pharma) — no painted steel, no plastic seams in the washdown zone
• True flush front bezel with no recessed buttons, badges or trims that trap water
• Sealed connectors — M12 connectors instead of standard USB/RJ-45 for cabled installs, or fully sealed cable glands
• Fanless cooling — fan slots are ingress points; IP69K builds are passively cooled
• Sloped or radiused top surface — no flat horizontal surface for water to pool
• Disinfection-compatible touch glass resistant to common cleaning chemicals

IP69K vs IP66 vs IP67 — quick reference

• IP66 — protected against powerful jets of water (12.5 mm nozzle, ~100 L/min, 3 m distance, room-temperature)
• IP67 — protected against temporary immersion up to 1 m for 30 minutes
• IP69K — protected against high-pressure, high-temperature close-range washdown (see test above)

A device can carry IP67 without surviving IP69K (cold immersion ≠ hot-water blast). For washdown specs, ask for IP69K specifically, not just "high IP rating".

What TSL Automation supplies

Avalue's IP69K range covers two paths into washdown:

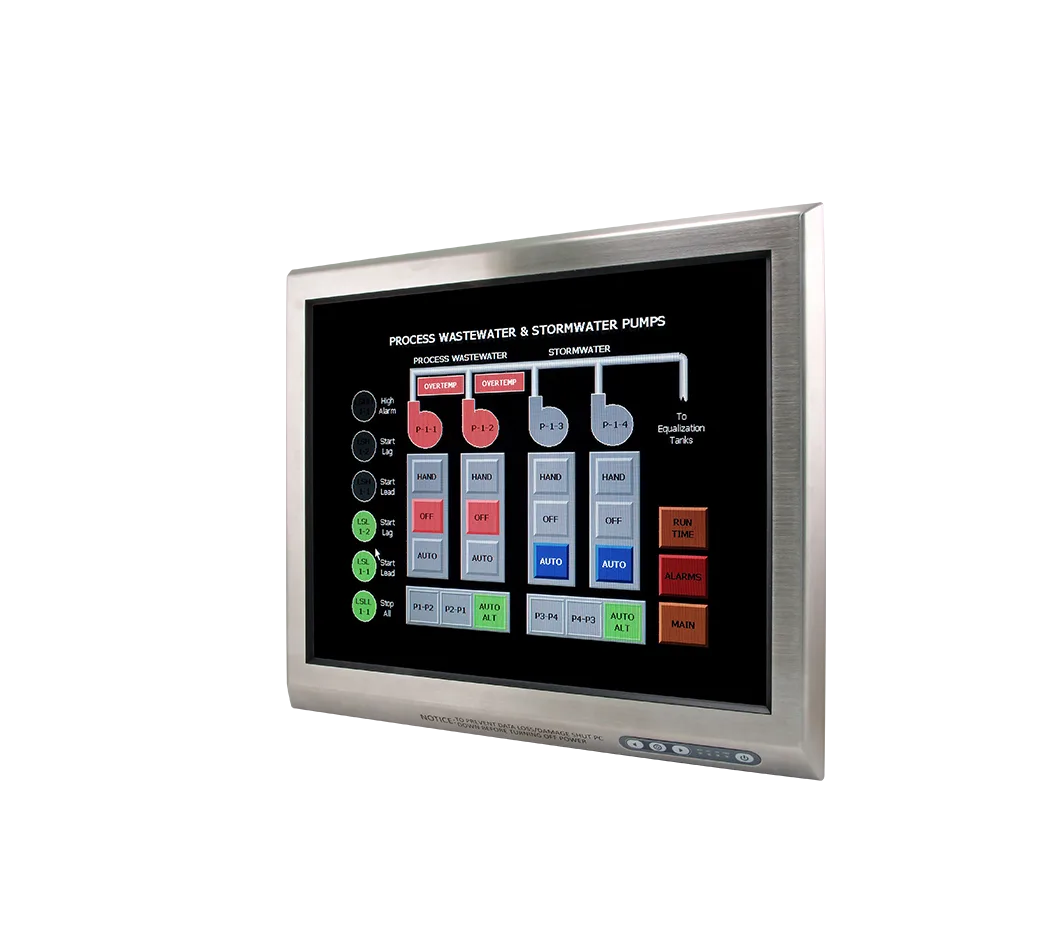

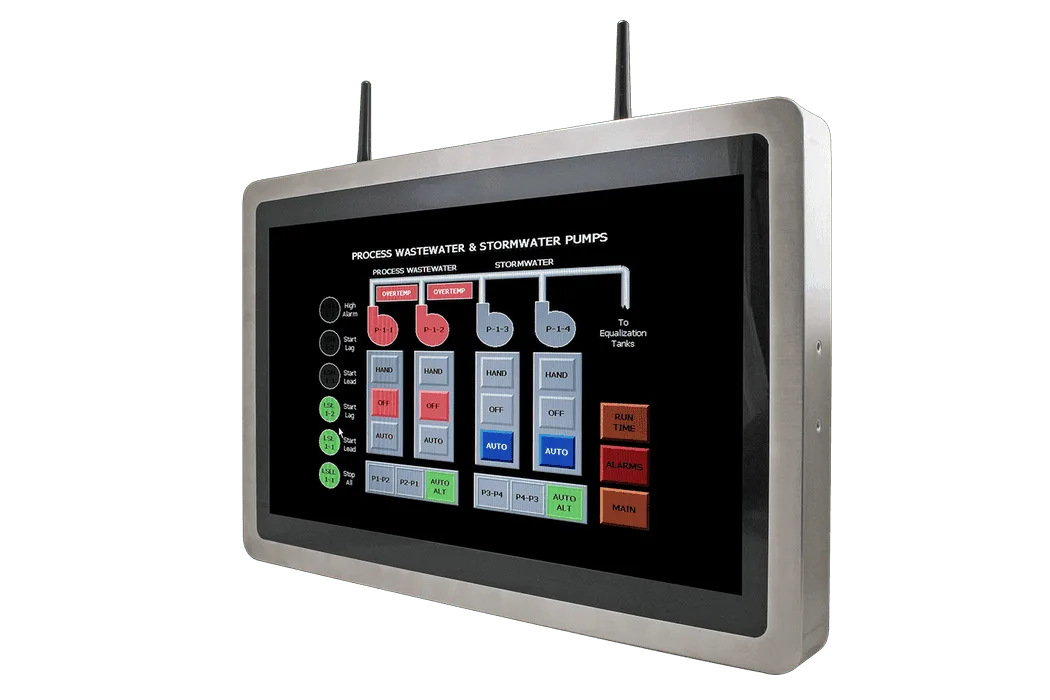

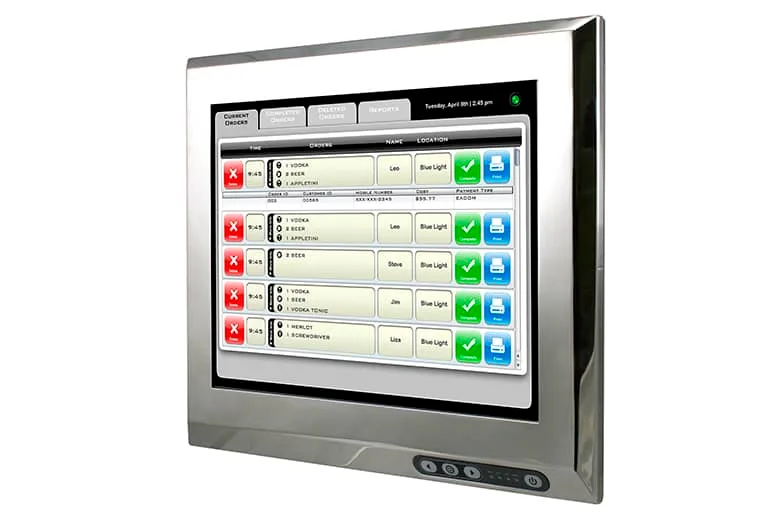

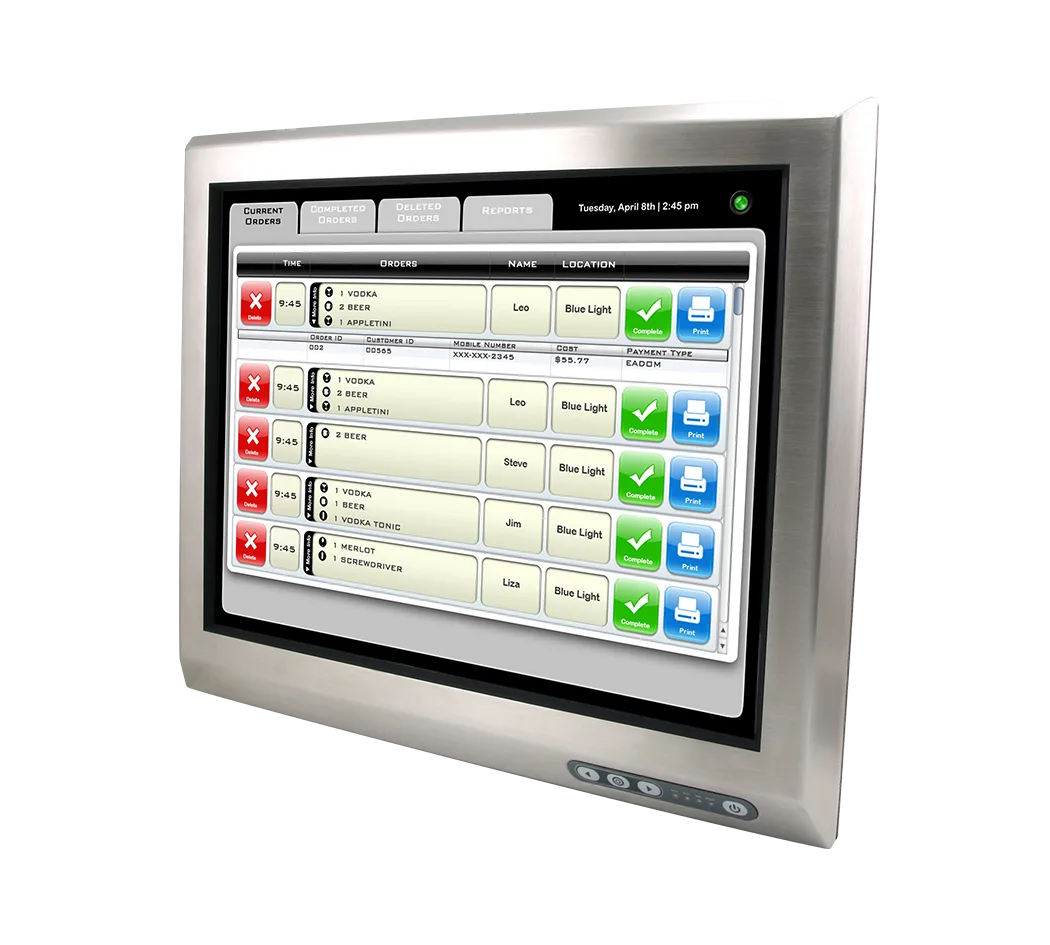

• Stainless-Steel Panel PC — including SPC-1209, SPC-1509, SPC-1709, SPC-1533-B1, SPC-2133-B1
• Industrial Panel PC with IP69K front — SPC-10WR2, SPC-21WR2, SPC-1542, SPC-2142

Contact our team with your washdown SOP, target screen size and mounting profile and we'll match the right enclosure and stainless grade.
