What advantages do stainless steel enclosures offer over standard industrial Panel PCs?

Stainless steel enclosures provide superior corrosion resistance, easy cleaning and sanitizing, compatibility with harsh cleaning agents, higher IP protection ratings (IP66/IP69K), resistance to extreme temperatures, and compliance with food and pharmaceutical industry regulations. They also offer better durability in environments with high humidity, chemicals, or frequent washdowns.

What mounting options are available for Stainless Steel Panel PCs?

Stainless Steel Panel PCs typically support multiple mounting options including panel/cutout mounting in cabinets or walls, VESA mounting (75mm x 75mm or 100mm x 100mm) for attachment to arms or stands, and wall mounting with specialized brackets. Some models also offer stand options specifically designed for clean room or food processing environments.

What are the key features of the SPC-2133-B1 Panel PC?

The SPC-2133-B1 features a 21.5" Full HD (1920x1080) display with projected capacitive multi-touch, Intel Celeron J3455 processor, fanless design, stainless steel construction, IP66/IP69K protection, waterproof M12 connectors for USB/COM/LAN ports, wide voltage input (12V-24V), and support for Windows 10, Linux, or Android operating systems.

What type of touchscreen does the SPC-2133-B1 use and why is it advantageous?

The SPC-2133-B1 uses a projected capacitive (PCAP) multi-touch screen supporting up to 10 touch points. This technology provides excellent clarity (85% light transmission), durability with scratch-resistant glass, and a smooth, full-flat design that prevents debris accumulation and enables easier cleaning—crucial for food processing and pharmaceutical applications.

What connectivity options does the SPC-2133-B1 provide?

The SPC-2133-B1 features waterproof M12 connectors for 2 USB 2.0 ports, 1 COM port (RS-232/422/485), and 1 LAN port, all with protective covers and chains. It also offers expansion via M.2 (2230) A-Key for optional WiFi/Bluetooth connectivity, and provides internal SATA III support for storage expansion.

What does 'full-flat design' mean for touchscreens on Stainless Steel Panel PCs?

A full-flat design means the touchscreen surface is completely flush with the bezel, eliminating gaps, grooves, or raised edges where dirt, moisture, or bacteria could accumulate. This seamless design is essential for hygienic environments like food processing and pharmaceuticals, as it prevents contamination and makes thorough cleaning easier and more effective.

Why are waterproof M12 connectors important for industrial applications?

M12 connectors provide industrial-grade waterproof and dustproof connections that maintain the panel's IP66/IP69K protection rating. Unlike standard connectors, these metal connectors withstand high-pressure washdowns, prevent ingress of liquids and contaminants, resist vibration and corrosion, and include protective covers with retention chains to ensure the ports remain sealed when not in use.

What is the purpose of the air pressure relief valve featured on some SPC models?

The IP66 air pressure relief valve allows for equalization of internal and external air pressure without compromising the waterproof integrity of the enclosure. This prevents pressure differentials caused by temperature changes or altitude variations that could stress the seals or components, while maintaining protection against water and dust ingress.

What types of storage options are available for SPC series Panel PCs?

SPC series Panel PCs typically support multiple storage options including 2.5" SATA drives (SSD/HDD), mSATA solid state drives via Mini PCIe slots, CompactFlash cards (type I/II) on some models, and M.2 drives on newer models. SSDs are generally preferred for industrial environments due to their resistance to vibration, shock, and extreme temperatures compared to mechanical hard drives.

What mounting options are available for SPC series Panel PCs?

SPC series Panel PCs support multiple mounting options including panel/cutout mounting in stainless steel enclosures, VESA mounting (75mm x 75mm or 100mm x 100mm) using specialized stands like the ACC-ARM-D1R or ACC-ARM-D23R, and wall mounting. These versatile options allow installation in various industrial environments while maintaining the integrity of the system's IP rating.

SPC-2133-B1

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Intel® Celeron® Processor J3455
Projective capacitive touchscreen full flat design
Waterproof power button

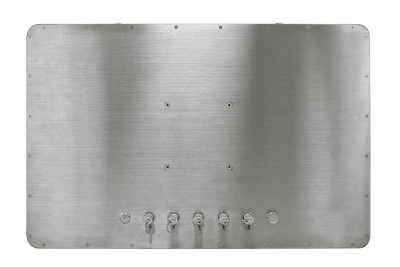

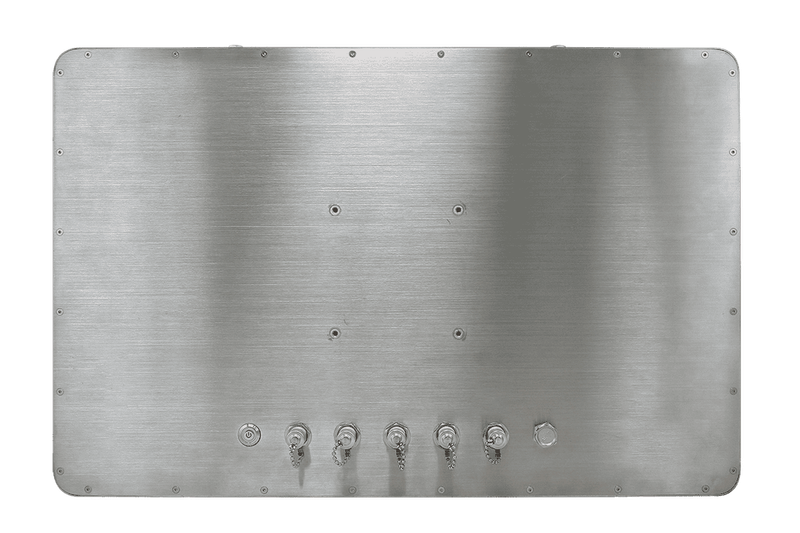

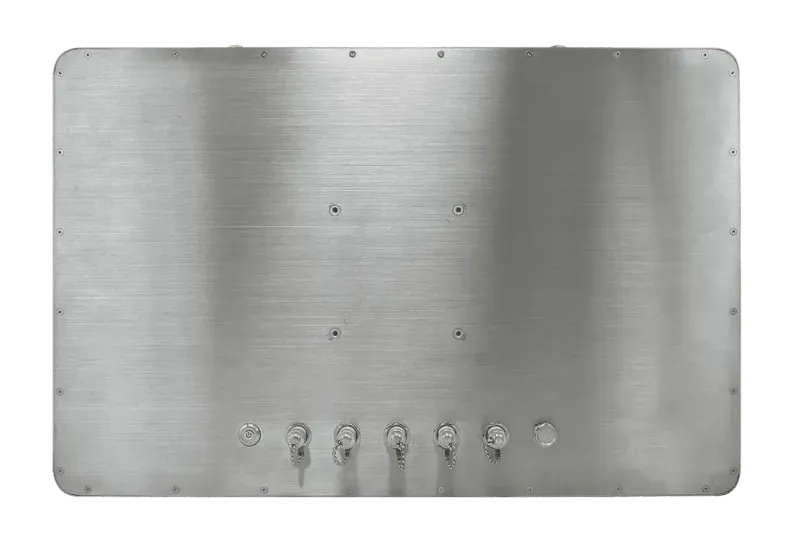

Rich and swappable I/O, 1 x LAN, 2 x USB, 1 x COM by M12 8-pin(male) with waterproof cover and chain
IP66 air pressure relief valve
Metal waterproof connectors
Wide range DC in +12V ~ +24V
Wide temperature -10°C ~ 45°C
Full system IP66, IP69K
Multiple OS support (Win10, Linux, Android)

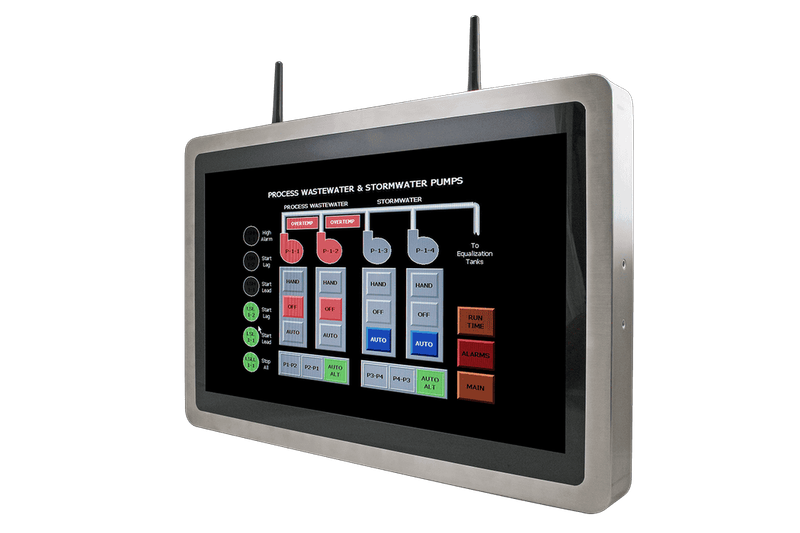

Optional WiFi/BT with waterproof antenna
Optional auto dimming / high brightness solution

Product Description

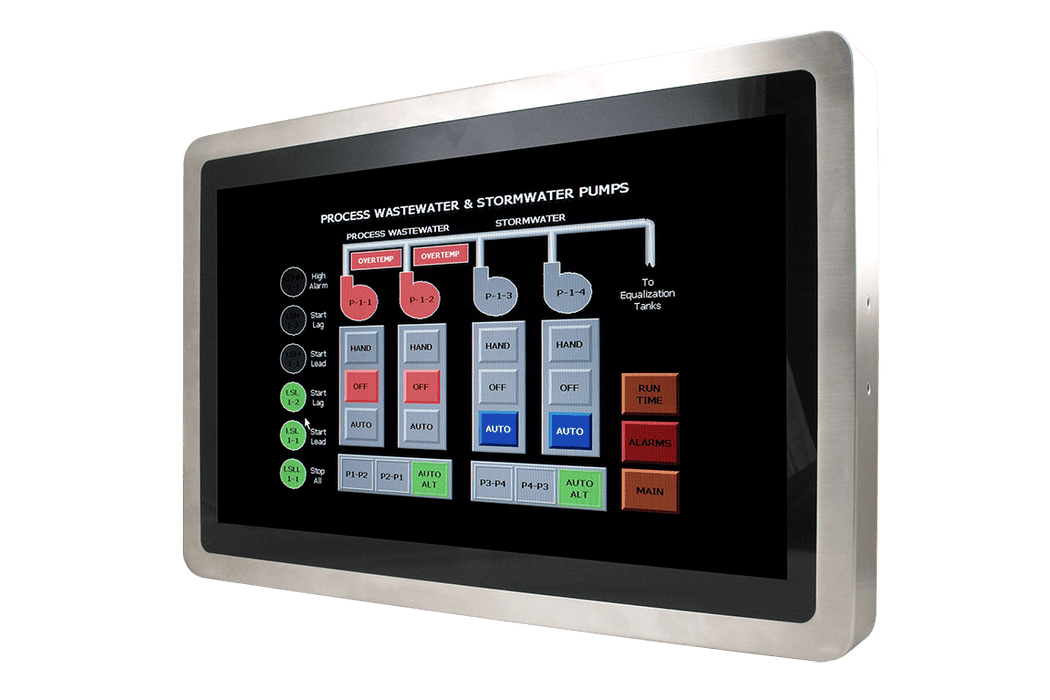

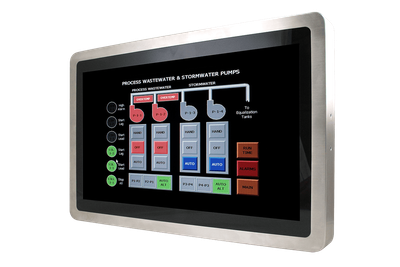

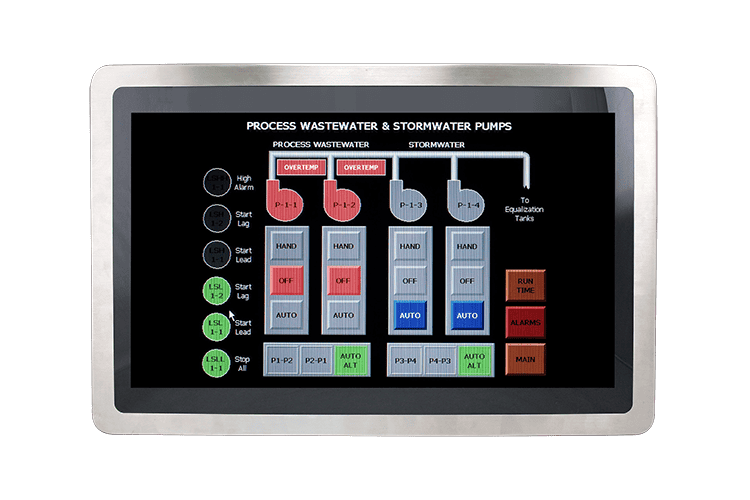

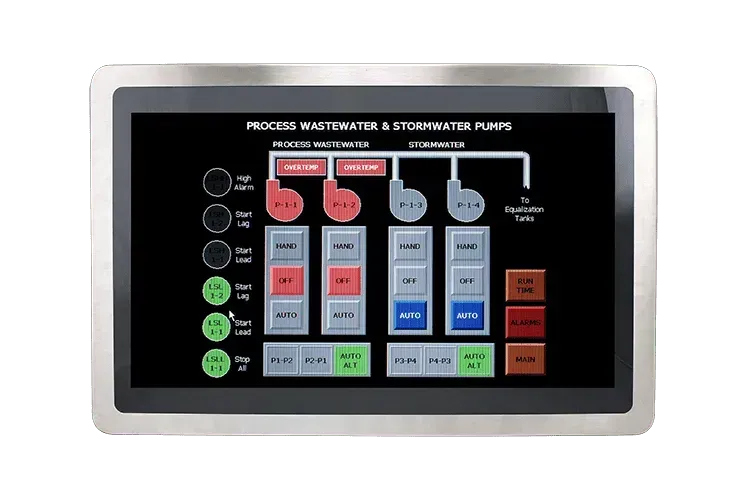

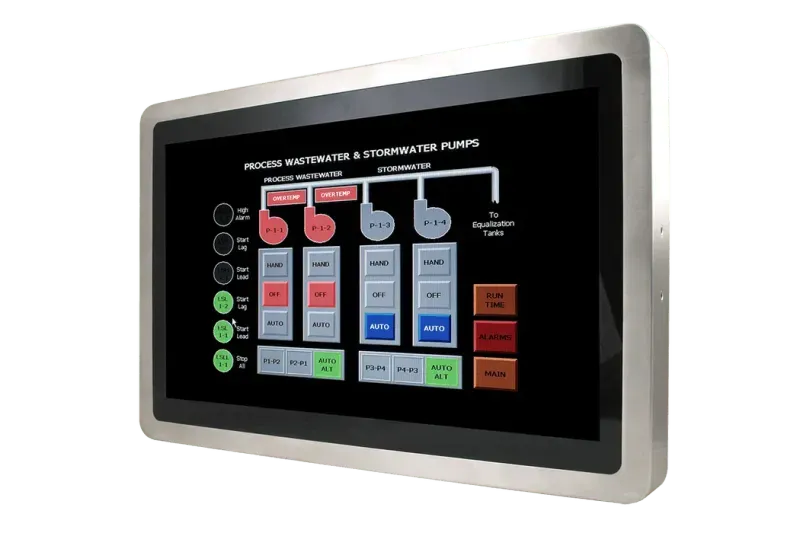

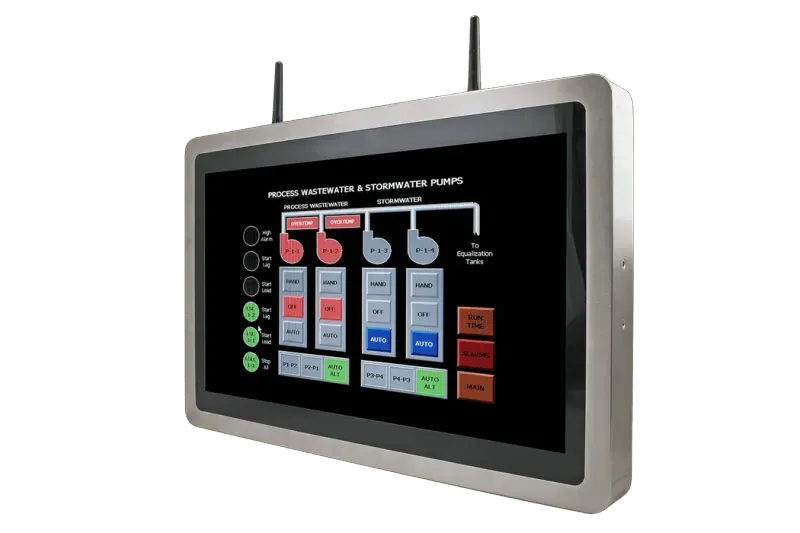

The Avalue SPC-2133-B1 is a 21.5" industrial touch panel PC featuring Intel® Celeron® Processor J3455. It includes a fanless design, projected capacitive multi-touch screen, dual Gigabit LAN, multiple USB and COM ports, and HDMI support.

The panel is IP65 front rated for rugged environments, supports wide voltage input, and operates within a temperature range from 0°C to 45°C.

Technical Specifications

System Information

Processor

Intel® Celeron® Processor J3455, 2M Cache, up to 2.30 GHz

Platform Controller Hub

Intel Apollo Lake SoC integrated

System Memory

2 x 204-pin DDR3L 1600MTs SO-DIMM up to 16 GB

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset, 1sec. ~ 65535sec./1sec.step

H/W Status Monitor

Monitoring system temperature and voltage with auto throttling control

TPM

Option for Infineon SLB9665 TPM 2.0

SBC

EMX-APLP

CPU Cooler (Type)

Fanless Heatsink

Other

1 x WiFi with waterproof antenna (optional)

Panel

LCD Size

21.5", 16:9

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

247.95um(H) x 247.95um(V)

Luminance

250 cd/m²

Contrast ratio

1000

Viewing angle

89 (U), 89 (D), 89(L), 89 (R)

Response time

22 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

85 %

Touch Controller

EETI 80H84

Expansion

1 x M.2 (2230) A-Key support WiFi module

Storage

Default with 64GB mSATA

Other Storage Device

1 x 2.5 Drive bay for SSD/HDD(by option)

External And Internal I/O

USB Port

2 x M12 8-pin (male) for 2 x USB 2.0 with waterproof cover and chain

COM Port

1 x M12 8-pin (male) for COM (RS-232/422/485) with waterproof cover and chain

LAN Port

1 x RJ-45 8-pin (male) for LAN with waterproof cover and chain

SATA

Audio

Audio Codec

Realtek ALC662

Display

Graphic Chipset

Intel® HD graphics 500

Spec. & Resolution

LVDS: Max. Resolution 1920x1080 @ 60Hz

eDP: Max. Resolution 4096x2160 @ 60Hz

Certifications

Certification Information

CE / FCC Class A

Ethernet

LAN Chipset

2 x Intel I211AT Gigabit Ethernet

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input

+12V ~ +24V

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 60W adapter (24V @ 2.5A adapter) AC-DC adapter (need waterproof M12/3pin-D2.5 DC Jack-plug 200cm cable for M12 DC in connector)

Software Support

OS Information

Win10 / Linux / Android 8.1

System Control

LED Indicator

HDD LED, power LED

Mechanical & Environmental

Operating Temperature

-10°C ~ 45°C (14°F ~ 113°F), by flow = 0.5

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Weight

9.4 Kg

Dimension (W x L x H)

562 x 365.8 x 49mm

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Whole system IP69K, IP66

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Stainless steel

Construction - Rear

Stainless steel

Ordering Information

SPC-2133-345-B1R

21.5 1920 x 1080 Full IP-66 Stainless Steel panel PC/PCap/IP-69K/ (F1 Stepping CPU) intel J3455/4GR/64GmSATA/5M12(LAN/2x2USB/COM/DCin)/VentValve/EMX-APLP/without Adapter

ACC-ARM-D1R

VESA STAND, 75mm & 100 mm

ACC-ARM-D23R

VESA STAND, 75mm & 100 mm

ACC-ADP-060N-09R

AC/DC adapter 24V/2.5A 90 Plug Type

*(Suggest DC Jack to M12 cable E170W050030R (Waterproof M12 DC Cable) when adapter needed)

ACC-SPC-WIFI-03R

Wifi Kit for SPC-xx33/38-B1/M.2 WIFI intel 9260/2 Antenna

E170W050030R

Waterproof M12 DC Cable

E170W160030R

Waterproof M12 USB Cable

E170W160040R

Waterproof M12 Lan Cable

E170W170010R

Waterproof M12 COM Cable

E1702031833R

USA Power Cord

E1702031000R

EU Power Cord

E1702031834R

Japan Power Cord

E1702031830R

UK Power Cord

E1702031831R

Australia Power Cord

What is SPC-2133-B1?

The SPC-2133-B1 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for stainless-steel-panel-pc applications. The Avalue SPC-2133-B1 is a 21.5" industrial touch panel PC featuring Intel® Celeron® Processor J3455. It includes a fanless design, projected capacitive multi-touch screen, dual Gigabit LAN, multiple USB and COM ports, and HDMI support. The panel is IP65 front rated for rugged environments, supports wide voltage input, and operates within a temperature range from 0°C to 45°C.

Key Features & Benefits

Intel® Celeron® Processor J3455
Projective capacitive touchscreen full flat design
Waterproof power button
Rich and swappable I/O, 1 x LAN, 2 x USB, 1 x COM by M12 8-pin(male) with waterproof cover and chain
IP66 air pressure relief valve
Metal waterproof connectors
Wide range DC in +12V ~ +24V
Wide temperature -10°C ~ 45°C
Full system IP66, IP69K
Multiple OS support (Win10, Linux, Android)
Optional WiFi/BT with waterproof antenna
Optional auto dimming / high brightness solution

Applications & Use Cases

The SPC-2133-B1 is ideal for various industrial automation applications:

DC-powered industrial installations and mobile applications
Extreme temperature environments and outdoor installations
Wireless connectivity and remote monitoring applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Interactive control interfaces and operator panels
Peripheral device connectivity and data transfer
Outdoor and high-ambient-light environments

Frequently Asked Questions

A Stainless Steel Panel PC is an industrial-grade computing device with a touchscreen display, housed in a stainless steel enclosure designed for harsh environments that require protection against water, dust, chemicals, and frequent cleaning. These systems are particularly suitable for food processing, pharmaceutical, medical, and other applications requiring hygienic and washdown-compatible equipment.

These Panel PCs feature hygienic stainless steel designs with minimal crevices, waterproof connectors, IP66/IP69K protection against powerful water jets and washdowns, resistance to cleaning chemicals, and full-flat touchscreens that prevent debris accumulation. They meet industry standards for food production environments and can withstand the rigorous cleaning protocols required in such facilities.

IP66 provides protection against powerful water jets from any direction, while IP69K offers the highest level of protection against close-range high-pressure, high-temperature water jets (such as steam cleaning). Panel PCs with IP69K ratings can withstand industrial washdown procedures with high-pressure water (80-100 bar) at high temperatures (up to 80°C), making them suitable for environments requiring stringent sanitation processes.

Fanless operation means the system dissipates heat through passive cooling methods (like heat sinks) without moving parts. This design is crucial for Stainless Steel Panel PCs as it eliminates ventilation openings that could compromise IP ratings, prevents dust circulation in clean environments, reduces maintenance needs, improves reliability in harsh conditions, and eliminates noise in sensitive environments.

Wide voltage input (typically 12V-24V or 12V-26V) allows Panel PCs to operate reliably with various power sources and in environments with fluctuating power conditions. This flexibility accommodates different industrial power standards, handles voltage drops in long cable runs, provides tolerance against surges or sags, and eliminates the need for additional power conditioning equipment in challenging settings.

When installing in food processing environments, consider: mounting location relative to food handling areas, accessibility for regular cleaning, proper sealing of any panel cutouts, positioning to minimize potential food or liquid splatter, using appropriate stainless steel mounting hardware, ensuring cable management maintains hygiene standards, and verifying the installation doesn't create any crevices or hard-to-clean areas.

In washdown environments, use waterproof cables with appropriate IP ratings, employ stainless steel cable glands or waterproof strain reliefs, create drip loops to prevent water tracking to connections, use cables specifically designed for the specialized M12 connectors, secure cables to prevent stress on connections, and consider protective conduits for exposed cable runs to maintain the hygiene and protection rating of the installation.

Consider the appropriate voltage within the specified range (typically 12V-24V or 12V-26V), selecting a power supply with sufficient wattage rating (usually 60W or higher), ensuring the power supply has appropriate certifications for the installation environment, using waterproof power connections or appropriate enclosures for power supplies in washdown areas, and possibly implementing an uninterruptible power supply (UPS) for critical applications.

To maintain IP66/IP69K rating: use proper mounting hardware with appropriate gaskets or seals, ensure any enclosure cutouts follow manufacturer specifications and are properly sealed, utilize the supplied waterproof cables or appropriately rated alternatives, always attach protective caps to unused ports, verify that the air pressure relief valve (if equipped) is properly installed, and regularly inspect seals and connections for wear or damage.

For touchscreen issues: ensure the screen is clean and dry, check if using appropriate touch input (finger for PCAP, stylus/finger for resistive), run the operating system's touch calibration utility, verify touch drivers are properly installed and updated, check for physical damage to the screen surface, test in a different application to isolate software-specific issues, and for persistent problems, contact technical support as the touchscreen controller may require replacement.

If experiencing overheating: verify the ambient temperature is within the specified operating range, ensure the unit has adequate clearance around it for passive cooling, check that mounting hasn't restricted heat dissipation from the rear of the unit, clean any dust or debris from cooling fins or heat sinks if accessible, check resource-intensive applications that may be causing high CPU usage, and consider adding auxiliary cooling to the enclosure while maintaining IP protection for installations in high-temperature environments.

For M12 port connectivity issues: verify proper alignment of connector pins before tightening, check for damage to pins or connector threads, ensure connectors are fully seated and properly tightened, test with alternative cables known to be working, verify device drivers are installed correctly, check BIOS/UEFI settings to confirm ports are enabled, and inspect the ports for corrosion or contamination that might affect connectivity.

If the unit won't power on: check power supply connections and verify output voltage is correct, inspect power cables for damage, verify the power button is functioning correctly, check if the power mode setting (AT/ATX) matches your configuration, disconnect all peripherals to isolate potential issues, look for LED indicators that might signal power presence, and if available, try an alternative power supply meeting the specified requirements to determine if the power supply is the issue.
