AIB-NINX-SC

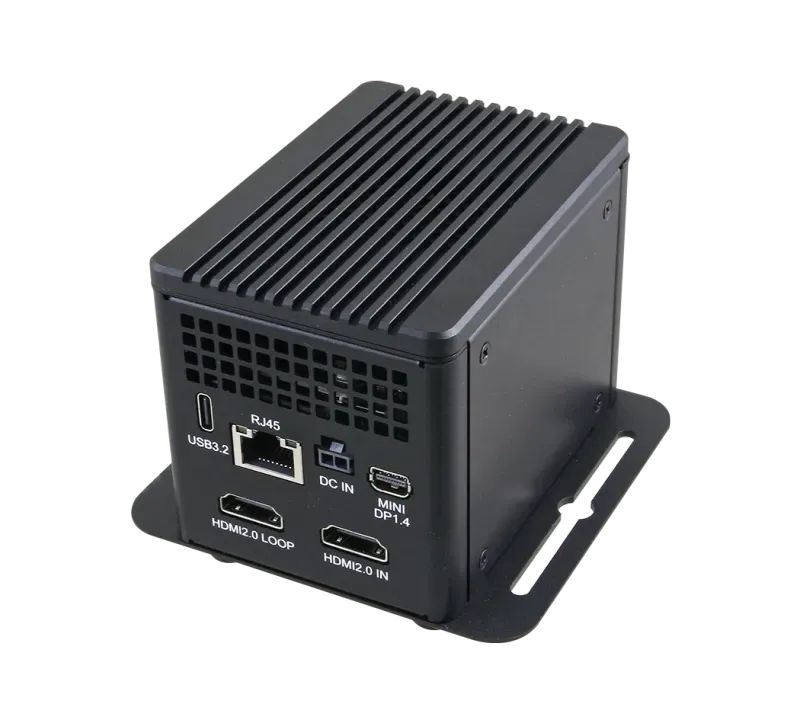

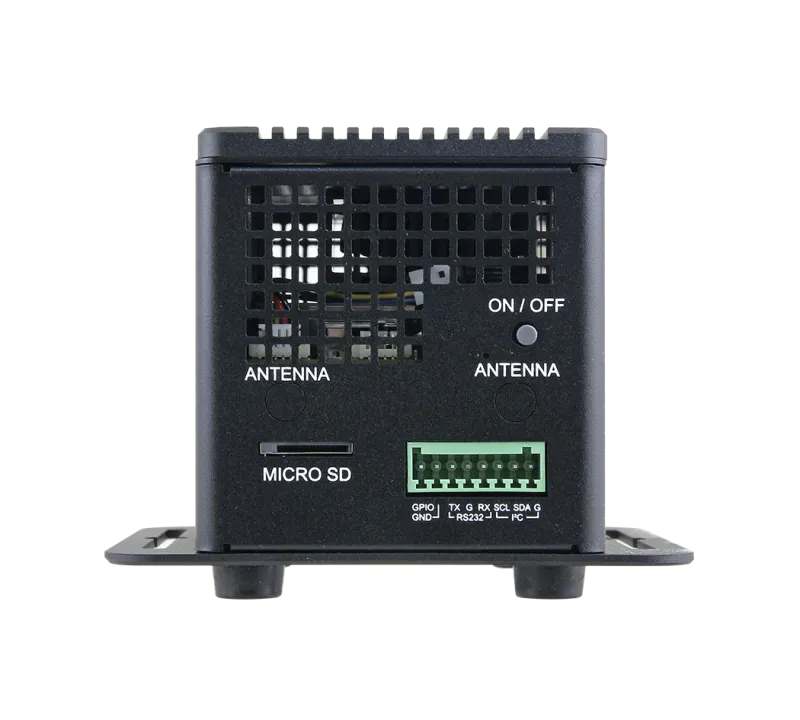

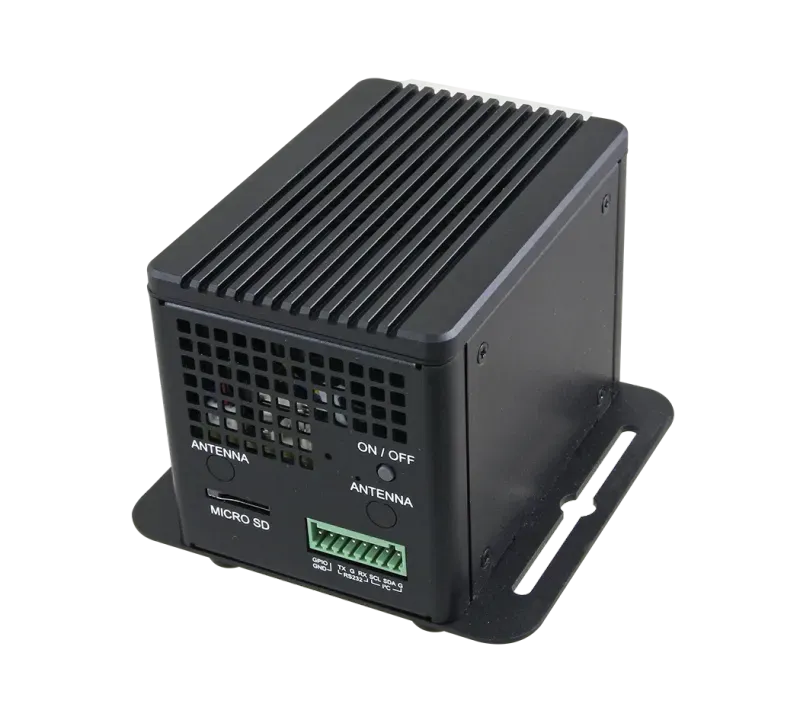

AIB-NINX-SC FrontAIB-NINX-SC FrontAIB-NINX-SC Front

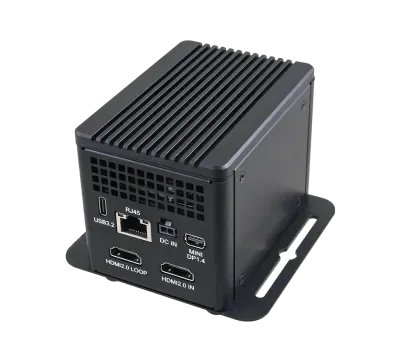

AIB-NINX-SC, Image 1AIB-NINX-SC, Image 2AIB-NINX-SC, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Ultra-compact business-card-size (90mm x 55mm class) edge AI
  • NVIDIA Jetson Orin™ NX 8GB/16GB, up to 70/100 TOPS
  • 8/16GB 128-bit LPDDR5 (102.4GB/s), 128GB storage
  • 1 x USB 3.2 Gen2 Type-C, 1 x Mini DP 1.4, 1 x GbE
  • 2x4 MIPI CSI-2 lanes, 1 x CAN bus, Micro SD slot
  • M.2 M-Key + M.2 E-Key PCIe Gen4 slots
  • DC 9~36V input, 0~60°C with airflow
  • Ubuntu 20.04/22.04, JetPack 5.1.1 / 6.2
  • Capture-card variants: HDMI / GMSL2 / 12G-SDI / TVI

Product Description

The Avalue AIB-NINX-SC is an ultra-compact, business-card-size edge AI platform built on the NVIDIA Jetson Orin™ NX (8GB/16GB) module, delivering up to 70/100 TOPS for embedded vision in space-constrained designs.

With 8/16GB 128-bit LPDDR5 (102.4GB/s), 128GB storage and a Micro SD slot, it packs Orin NX inference into a 94.4 x 66 x 69.8 mm, ~530g enclosure.

It provides 1x USB 3.2 Gen2 Type-C, 1x GbE, 1x Mini DP 1.4, 2x4 MIPI CSI-2 lanes, CAN bus, M.2 M-Key/E-Key PCIe Gen4 slots and a DC 9~36V input over a 0~60°C range, running Ubuntu 20.04/22.04 with JetPack 5.1.1 / 6.2 — with many capture-card ordering variants (HDMI, GMSL2, SDI, TVI).

Technical Specifications

NVIDIA Platform

NVIDIA Jetson Orin™ NX 8GB/16GB

AI Performance

70/100 TOPS

System Memory

8/16GB 128 bit LPDDR5 102.4GB/s

OS

Ubuntu 20.04 / Ubuntu 22.04

Kernal

5.10.104-tegra or Higher

BSP

Linux for Tegra(L4T) R35.3.1 or Higher

SDK

JetPack 5.1.1 / JetPack 6.2 or Higher

AI SDK GitHub

https://github.com/Avalue-Technology/repositories.directory

M.2

128GB

Storage

1×Micro SD Card Slot

USB Port

1×USB3.2 Gen2 ( Type-C )

LAN Port

1 x RJ45

DP

1×Mini DP1.4

MIPI (Internal)

2×4MIPI CSI-2 Lanes ( D-PHY 2.1, Support MIPI Camera, Capture Card )

AC/DC Input

1 x DC Jack

Others

1 x CAN BUS

M.2

1×M.2 2230 M Key PCIe Gen4×2 Slot ( Nano: Gen3×2 )

1×M.2 2230 E Key PCIe Gen4×1 Slot ( Nano: Gen3×1 )

Power Requirement

DC 9~36V

Operating Temperature

Standard Version: 0~60°C with Airflow

Storage Temperature

-20°C~80°C

Dimension (W x L x H)

94.4mm × 66mm × 69.8mm

Weight

530g

Ordering Information

AIB-NINX-SC08B-A1R:Orin NX 8GB/128GB SSD/HDMI2.0/Ubuntu 20.04,Jetpack 5.1.1, AIB-NINX-SC16B-A1R:Orin NX 16GB/128GB SSD/HDMI2.0/Ubuntu 20.04,Jetpack 5.1.1, AIB-NINX-SC08G-A1R:Orin NX 8GB/128GB SSD/GMSL2 x 4 /Ubuntu 20.04,Jetpack 5.1.1, AIB-NINX-SC16G-A1R:Orin NX 16GB/128GB SSD/GMSL2 x 4 /Ubuntu 20.04,Jetpack 5.1.1, AIB-NINX-SC08D-A1R:Orin NX 8GB/128GB SSD/HDMI2.1/Ubuntu 20.04,Jetpack 5.1.1, AIB-NINX-SC16D-A1R:Orin NX 16GB/128GB SSD/HDMI2.1/Ubuntu 20.04,Jetpack 5.1.1, AIB-NINX-SC08A-A1R:Orin NX 8GB/128GB SSD/HDMI x 4/Ubuntu 20.04,Jetpack 5.1.1, AIB-NINX-SC16A-A1R:Orin NX 16GB/128GB SSD/HDMI x 4/Ubuntu 20.04,Jetpack 5.1.1, AIB-NINX-SC08U-A1R:Orin NX 8GB/128GB SSD/USB3.2 x 4/Ubuntu 20.04,Jetpack 5.1.1, AIB-NINX-SC16U-A1R:Orin NX 16GB/128GB SSD/USB3.2 x 4/Ubuntu 20.04,Jetpack 5.1.1, AIB-NINX-SC08S-A1R:Orin NX 8GB/128GB SSD/12G-SDI/Ubuntu 20.04,Jetpack 5.1.1, AIB-NINX-SC16S-A1R:Orin NX 16GB/128GB SSD/12G-SDI/Ubuntu 20.04,Jetpack 5.1.1, AIB-NINX-SC08Q-A1R::Orin NX 8GB/128GB SSD/12G-SDI QL/Ubuntu 20.04,Jetpack 5.1.1, AIB-NINX-SC16Q-A1R:Orin NX 16GB/128GB SSD/12G-SDI QL/Ubuntu 20.04,Jetpack 5.1.1, AIB-NINX-SC08T-A1R:Orin NX 8GB/128GB SSD/TVI x 4/Ubuntu 20.04,Jetpack 5.1.1, AIB-NINX-SC16T-A1R:Orin NX 16GB/128GB SSD/TVI x 4/Ubuntu 20.04,Jetpack 5.1.1

SDK / Software

By request

4K60 12G-SDI

1×12G-SDI In & Loop

12G-SDI QL 1×4K60 / 2×4K30 / 4×HD60

1×12G-SDI | 2×6G-SDI | 4×3G-SDI In

Single-Link, Dual-Link, Quad-Link Support

4K60 HDMI2.1

1×HDMI2.1 In&Loop

4K60 HDMI2.0

1×HDMI2.0 In&Loop

HD60 GMSL2 and CAN Bus

4×GMSL2 In

1×CAN Bus

4×TVI

4×TVI In

HD60 4×HDMI

4×HDMI

4×USB3.2-A

1×USB3.2 Gen2, 4×USB3.2 Gen1

What is AIB-NINX-SC?

The AIB-NINX-SC is a ai computing platforms manufactured by Avalue, designed specifically for nvidia-solution applications. The Avalue AIB-NINX-SC is an ultra-compact, business-card-size edge AI platform built on the NVIDIA Jetson Orin™ NX (8GB/16GB) module, delivering up to 70/100 TOPS for embedded vision in space-constrained designs. With 8/16GB 128-bit LPDDR5 (102.4GB/s), 128GB storage and a Micro SD slot, it packs Orin NX inference into a 94.4 x 66 x 69.8 mm, ~530g enclosure. It provides 1x USB 3.2 Gen2 Type-C, 1x GbE, 1x Mini DP 1.4, 2x4 MIPI CSI-2 lanes, CAN bus, M.2 M-Key/E-Key PCIe Gen4 slots and a DC 9~36V input over a 0~60°C range, running Ubuntu 20.04/22.04 with JetPack 5.1.1 / 6.2 — with many capture-card ordering variants (HDMI, GMSL2, SDI, TVI).

Key Features & Benefits

  • Ultra-compact business-card-size (90mm x 55mm class) edge AI
  • NVIDIA Jetson Orin™ NX 8GB/16GB, up to 70/100 TOPS
  • 8/16GB 128-bit LPDDR5 (102.4GB/s), 128GB storage
  • 1 x USB 3.2 Gen2 Type-C, 1 x Mini DP 1.4, 1 x GbE
  • 2x4 MIPI CSI-2 lanes, 1 x CAN bus, Micro SD slot
  • M.2 M-Key + M.2 E-Key PCIe Gen4 slots
  • DC 9~36V input, 0~60°C with airflow
  • Ubuntu 20.04/22.04, JetPack 5.1.1 / 6.2
  • Capture-card variants: HDMI / GMSL2 / 12G-SDI / TVI

Applications & Use Cases

The AIB-NINX-SC is ideal for various industrial automation applications:

  • DC-powered industrial installations and mobile applications
  • Extreme temperature environments and outdoor installations
  • Networked industrial systems and data communication
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Data logging and storage-intensive operations
  • Industrial computing and data processing
  • Edge computing and IoT applications
