AIB-NW01

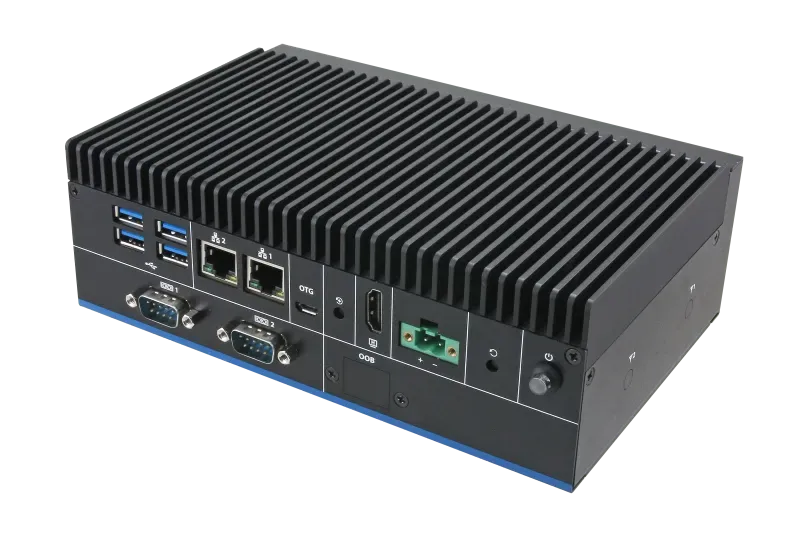

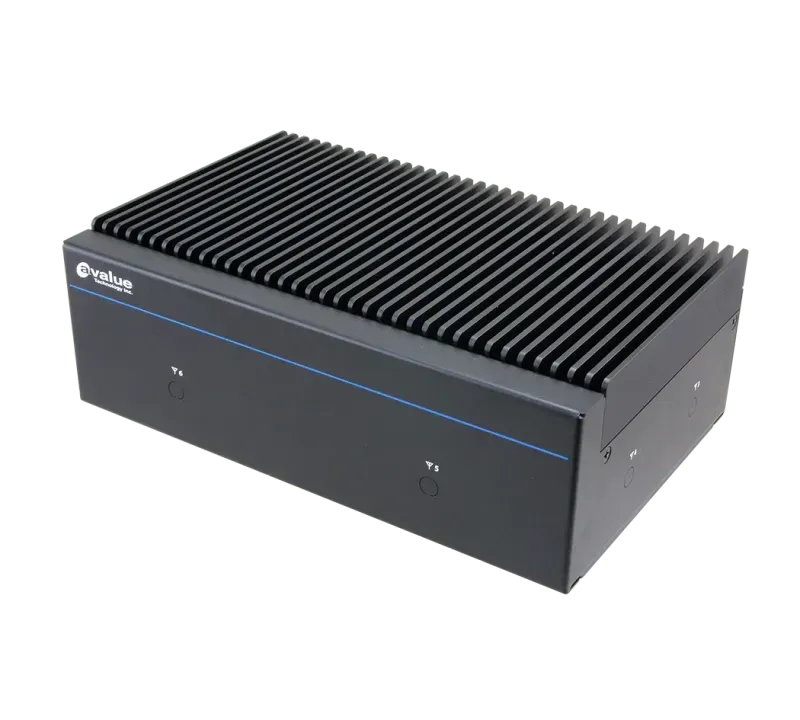

AIB-NW01 FrontAIB-NW01 Front

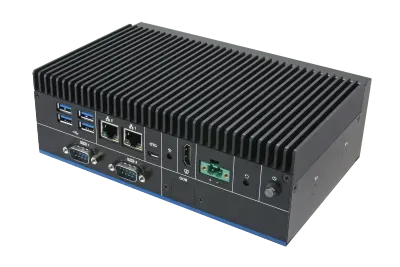

AIB-NW01, Image 1AIB-NW01, Image 2
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Edge AI system, NVIDIA Jetson Orin™ Nano / Orin™ NX
  • Up to 20/40 (Nano) or 70/100 (NX) TOPS AI performance
  • 8/16GB 128-bit LPDDR5 (102.4GB/s)
  • 128GB M.2 2280 NVMe SSD
  • 4 x USB 3.1 Type-A, 2 x GbE, 1 x HDMI
  • 2 x DB9 RS-232/RS-485 (jumper-selectable), Micro USB OTG
  • M.2 NVMe + M.2 Wi-Fi (E-Key) + M.2 5G (B-Key) + Micro SIM
  • 10~24VDC input, wide -15°C ~ 60°C operating range
  • Ubuntu 20.04 / JetPack 5.0; CE, FCC Class A

Product Description

The Avalue AIB-NW01 is an edge AI system built on the NVIDIA Jetson Orin™ Nano (4GB/8GB) or Orin™ NX (8GB/16GB) module, designed for intelligent edge applications with everyday-task to mid-tier inference performance.

With up to 20/40 (Nano) or 70/100 (NX) TOPS, 8/16GB 128-bit LPDDR5 (102.4GB/s) and a 128GB M.2 NVMe SSD, it runs Ubuntu 20.04 with JetPack 5.0 over a wide -15°C ~ 60°C range.

It provides 4x USB 3.1 Type-A, dual GbE, HDMI, dual RS-232/RS-485, M.2 slots for NVMe / Wi-Fi / 5G and a Micro-SIM, on a 10~24VDC input in a 125 x 196 x 66 mm, ~1.4kg enclosure (CE / FCC Class A).

Technical Specifications

NVIDIA Platform

NVIDIA Jetson Orin™ Nano 4GB/8GB；Orin™ NX 8GB/16GB

AI Performance

20/40 & 70/100 TOPS

System Memory

8/16GB 128 bit LPDDR5 102.4GB/s

OS

Ubuntu 20.04, Jetpack 5.0

AI SDK GitHub

https://github.com/Avalue-Technology/repositories.directory

M.2

128GB M.2 2280 NVMe SSD

USB Port

4 x USB3.1 TYPE-A

LAN Port

2 x 10/100/1000 Mbps

HDMI

1 x HDMI TYPE-A

COM Port

2 x DB9 switch by Jumper for RS-232 or RS485

Micro USB

1 x Micro USB for OTG

Others

1 x Power Button

1 x Reset Button

1 x Force Recovery Button

M.2

1 x M.2 2242/2280 (M-Key socket for NVMe SSD)

1 x M.2 2230 (E-Key socket for WIFI module)

1 x M.2 3042/3052 (B-Key socket for 5G module)(only be used in room temperature)

SIM

1 x Micro SIM Slot

Power Requirement

10~24VDC (Terminal Block 2 pin)

Operating Temperature

-15°C ~ 60°C, (-5°F ~ 140°F)

according to IEC60068-2 with 0.5 m/s AirFlow

Storage Temperature

-40°C ~ 80°C, (-40°F ~ 176°F)

Dimension (W x L x H)

125 x 196 x 66 mm (w/o wall mount bracket)

Weight

1.4 kg

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Mounting Kit

Wall Mount Bracket (Optional)

Certification Information

CE, FCC Class A

Ordering Information

AIB-NW01-NA04-A1R:Orin Nano 4GB/128GB SSD/Ubuntu 20.04,Jetpack 5.0, AIB-NW01-NA08-A1R:Orin Nano 8GB/128GB SSD/Ubuntu 20.04,Jetpack 5.0, AIB-NW01-NX08-A1R:Orin NX 8GB/128GB SSD/Ubuntu 20.04,Jetpack 5.0, AIB-NW01-NX16-A1R:Orin NX 16GB/128GB SSD/Ubuntu 20.04,Jetpack 5.0

What is AIB-NW01?

The AIB-NW01 is a ai computing platforms manufactured by Avalue, designed specifically for nvidia-solution applications. The Avalue AIB-NW01 is an edge AI system built on the NVIDIA Jetson Orin™ Nano (4GB/8GB) or Orin™ NX (8GB/16GB) module, designed for intelligent edge applications with everyday-task to mid-tier inference performance. With up to 20/40 (Nano) or 70/100 (NX) TOPS, 8/16GB 128-bit LPDDR5 (102.4GB/s) and a 128GB M.2 NVMe SSD, it runs Ubuntu 20.04 with JetPack 5.0 over a wide -15°C ~ 60°C range. It provides 4x USB 3.1 Type-A, dual GbE, HDMI, dual RS-232/RS-485, M.2 slots for NVMe / Wi-Fi / 5G and a Micro-SIM, on a 10~24VDC input in a 125 x 196 x 66 mm, ~1.4kg enclosure (CE / FCC Class A).

Key Features & Benefits

  • Edge AI system, NVIDIA Jetson Orin™ Nano / Orin™ NX
  • Up to 20/40 (Nano) or 70/100 (NX) TOPS AI performance
  • 8/16GB 128-bit LPDDR5 (102.4GB/s)
  • 128GB M.2 2280 NVMe SSD
  • 4 x USB 3.1 Type-A, 2 x GbE, 1 x HDMI
  • 2 x DB9 RS-232/RS-485 (jumper-selectable), Micro USB OTG
  • M.2 NVMe + M.2 Wi-Fi (E-Key) + M.2 5G (B-Key) + Micro SIM
  • 10~24VDC input, wide -15°C ~ 60°C operating range
  • Ubuntu 20.04 / JetPack 5.0; CE, FCC Class A

Applications & Use Cases

The AIB-NW01 is ideal for various industrial automation applications:

  • Intelligent edge applications with everyday-task to mid-tier inference performance
  • DC-powered industrial installations and mobile applications
  • Extreme temperature environments and outdoor installations
  • Wireless connectivity and remote monitoring applications
  • Legacy equipment integration and serial communication
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Data logging and storage-intensive operations
