Product Datasheet
20 May 2026
Computer-on-Module · Eval-Carrier-Board
EEV-Q702
Series: EEV
Manufactured byAvalue

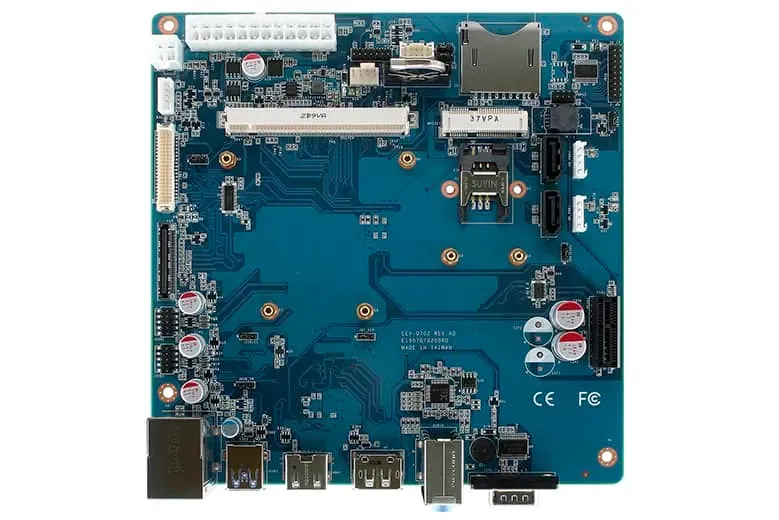

The Avalue EEV-Q702 is a Mini-ITX Qseven (Q7) module evaluation carrier board, designed for prototyping and validating Qseven compute modules such as the EQM-BYT. In a 170 x 170 mm Mini-ITX footprint it exposes the Q7 module's I/O for development. It provides a PCIe x1 slot and a Mini-PCIe with SIM socket, DP/HDMI/LVDS/eDP outputs, Gigabit Ethernet, Realtek ALC892 audio, 1x USB 3.0 + 4x USB 2.0, RS-232, 16-bit GPIO, 2x SATA II with SATA power, LPC/SPI/SD, and a wide -40~85°C operating range — a rugged Q7 development platform.
Key Features
- Mini-ITX Qseven (Q7) module evaluation carrier board
- For EQM-BYT and compatible Q7 modules
- 1 x PCIe x1 + 1 x Mini-PCIe with SIM socket
- DP / HDMI / LVDS / eDP outputs
- 1 x Gigabit Ethernet, Realtek ALC892 audio
- 1 x USB 3.0 + 4 x USB 2.0, 1 x RS-232
- 16-bit GPIO, 2 x SATA II + 2 x SATA power, LPC/SPI/SD
- Wide -40~85°C operating
- CE, FCC, RoHS
Technical Specifications
System Information
| Processor | Mini ITX Q7 Module Carrier Board for EQM-BYT Q7 Module |
|---|
Expansion
| Expansion | 1 x PCIe x1, 1 x Mini PCIe x1 with SIM Socket |
|---|
Display
| Spec. & Resolution | 1 x DP, 1 x HDMI |
|---|---|
| Multiple Display | Depends on the Q7 module |
| LVDS | 1 x LVDS, 1 x eDP |
Audio
| Audio Codec | Realtek ALC892 HD Audio Decoding Controller |
|---|---|
| Audio Interface | Line-out. Mic-in, Lin-in |
Ethernet
| Ethernet Interface | 1 x Gigabit Ethernet Connector |
|---|
Software Support
| OS | According to COMe Module Solution |
|---|
Certification
| Certification Information | CE, FCC, RoHS Compliant |
|---|
I/O
| USB | 1 x USB 3.0, 4 x USB 2.0 |
|---|---|
| COM Port | 1 x RS232 |
| GPIO | 1 x 16-bit GPIO |
| SATA | 2 x SATA II, 2 x SATA Power |
| MIO | 1 x LPC, 1 x SPI, 1 x SD socket |
Mechanical & Environmental
| Operating Temp. | -40 ~ 85°C (-40~ 185°F) |
|---|---|
| Storage Temp. | -40 ~ 75°C (-40 ~ 167°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 0.46lbs (0.21kg) |
| Power Requirement | 12V/+5V/5VSB/+3.3V/-12V |
| Dimension (L x W) | 6.7" x 6.7" (170mm x 170mm) |
Ordering Information
| Ordering Information | EEV-Q702-A1R | Mini ITX Evaluation Carrier Board for Q7 Rev 2.0, EQM-A50M | AMD G-series Processor Qseven Module with AMD G-Series A50M Chipset, EQM-BYT, Intel® Celeron®/Atom™ SoC Processors Qseven Module |
|---|
