What are the key features of the AIB-3566?

The AIB-3566 is a compact ARM media system on the Rockchip RK3566 quad-core Cortex-A55 @ 1.8GHz, with 2/4GB LPDDR4, 32/64GB eMMC, 4K HDMI output + 4K HDMI input, USB 3.0/2.0, Gigabit Ethernet, dual-band Wi-Fi, optional Mini-PCIe LTE, and Android 11, in a 106 x 100 x 25 mm chassis.

What processor does the AIB-3566 use?

It uses the Rockchip RK3566, a quad-core ARM Cortex-A55 SoC at 1.8GHz — an efficient media-class processor for signage and player workloads.

What display capabilities does the AIB-3566 have?

It supports 1 x HDMI output up to 4K@60fps and 1 x HDMI input up to 4K@30fps, with HDMI audio out — suited to signage playback and basic capture.

How much memory and storage does the AIB-3566 offer?

It is available with 2GB or 4GB LPDDR4 memory and 32GB or 64GB eMMC storage.

Does the AIB-3566 support cellular connectivity?

Yes, optionally. It has a Mini-PCIe slot for a 4G/3G LTE module plus a Micro-SIM slot, enabling connected signage and remote deployments.

What networking does the AIB-3566 include?

It provides 1 x Gigabit Ethernet (RJ45) and 2.4/5GHz dual-band Wi-Fi (802.11 a/b/g/n/ac), with optional LTE.

What I/O options does the AIB-3566 provide?

It offers USB 3.0 host, USB 2.0 OTG, and a selectable RS-232 / IR-blaster / 3.5mm jack option (default RS-232) for control integration.

Is the AIB-3566 certified?

Yes, it carries CE and FCC Class B certification and operates from -5°C to 55°C, suitable for commercial signage deployments.

Which OS does the AIB-3566 run?

It runs Android 11.0, well suited to digital signage, kiosk, and media-player applications.

What applications is the AIB-3566 best suited for?

With compact size, 4K HDMI in/out, Gigabit and Wi-Fi networking, and optional LTE, the AIB-3566 targets digital signage, media players, kiosks, and connected edge-media displays.

How small is the AIB-3566?

It measures just 106 x 100 x 25 mm and weighs 258g, making it easy to mount behind a display, inside a kiosk, or in space-constrained signage installations.

Can the AIB-3566 be used for video capture?

Yes. In addition to its 4K@60fps HDMI output it has a 4K@30fps HDMI input, allowing capture or pass-through of an external source for signage overlay or recording scenarios.

What is the RS-232 / IR blaster option on the AIB-3566?

The AIB-3566 provides a selectable port that can be configured as RS-232, an IR blaster, or a 3.5mm jack (default RS-232) — useful for controlling displays or integrating with AV equipment.

What memory and storage configurations are available for the AIB-3566?

It can be ordered with 2GB or 4GB LPDDR4 RAM and 32GB or 64GB eMMC storage, letting integrators match capacity to the signage or media workload.

What are the benefits of using an ARM-based industrial system?

ARM-based systems offer low power consumption, compact design, long lifecycle support, and stable performance for industrial applications.

Avalue · Computing System

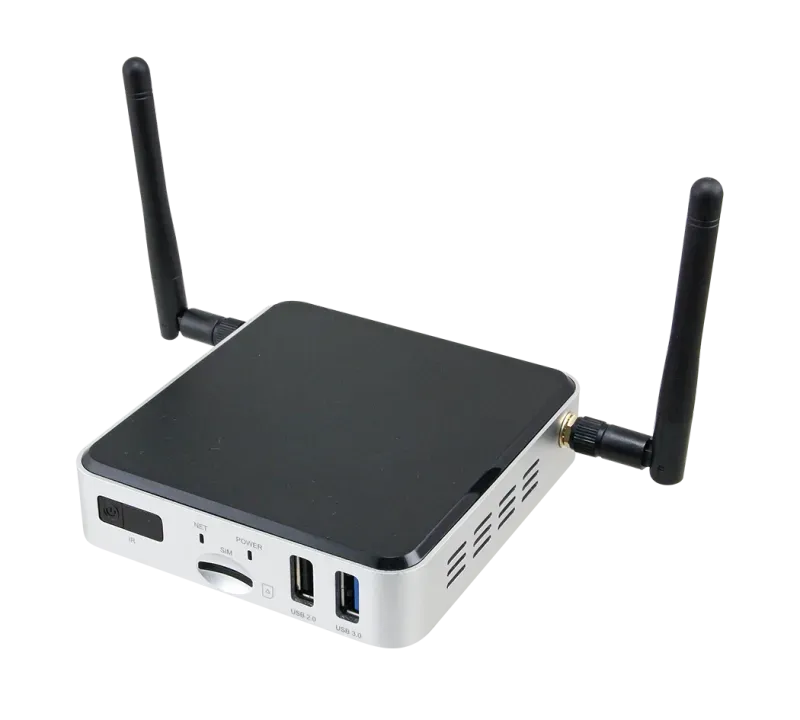

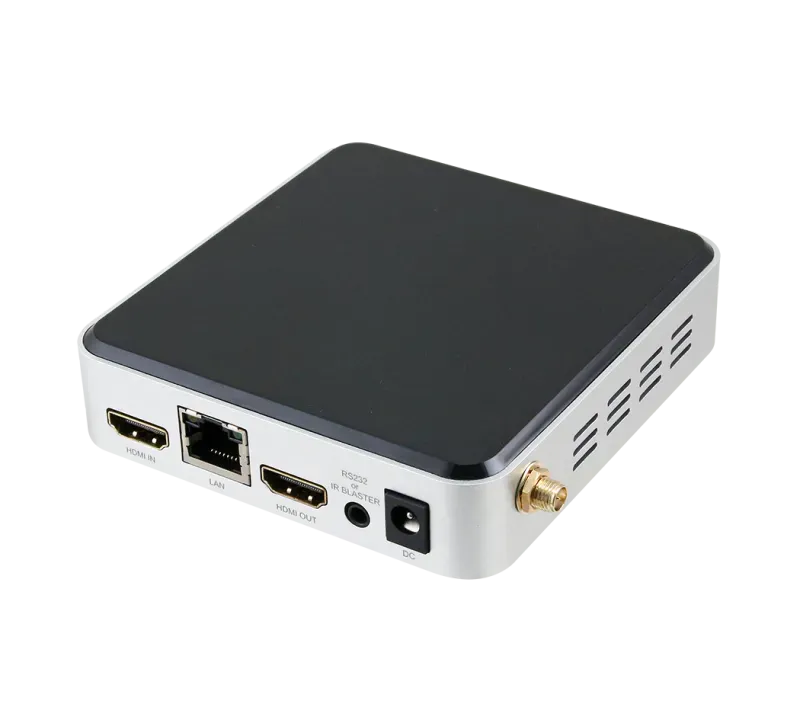

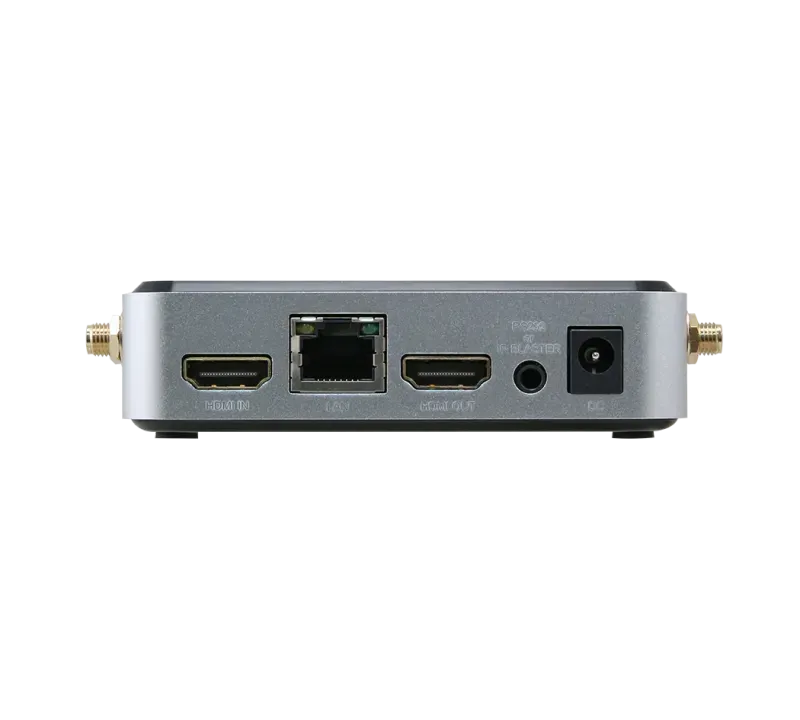

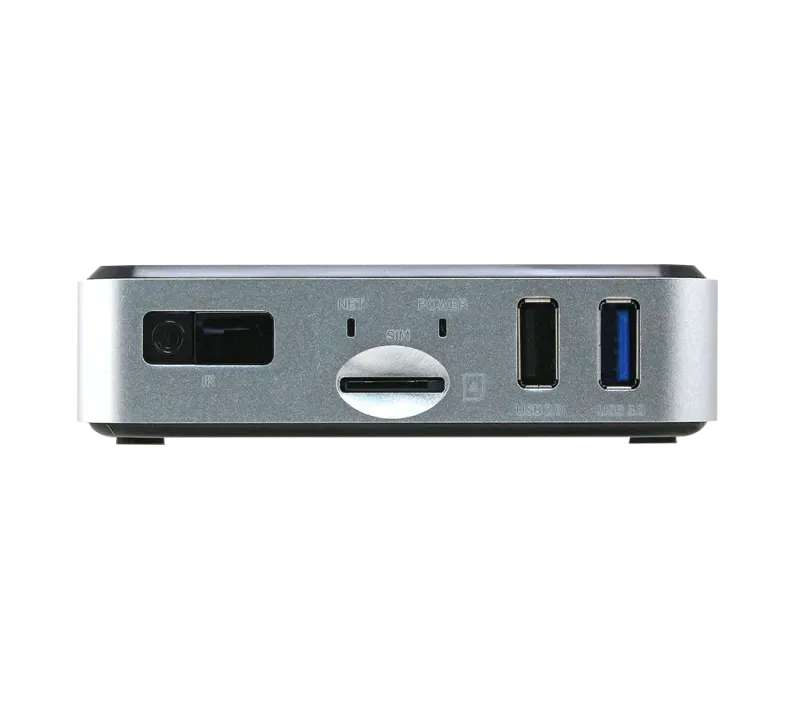

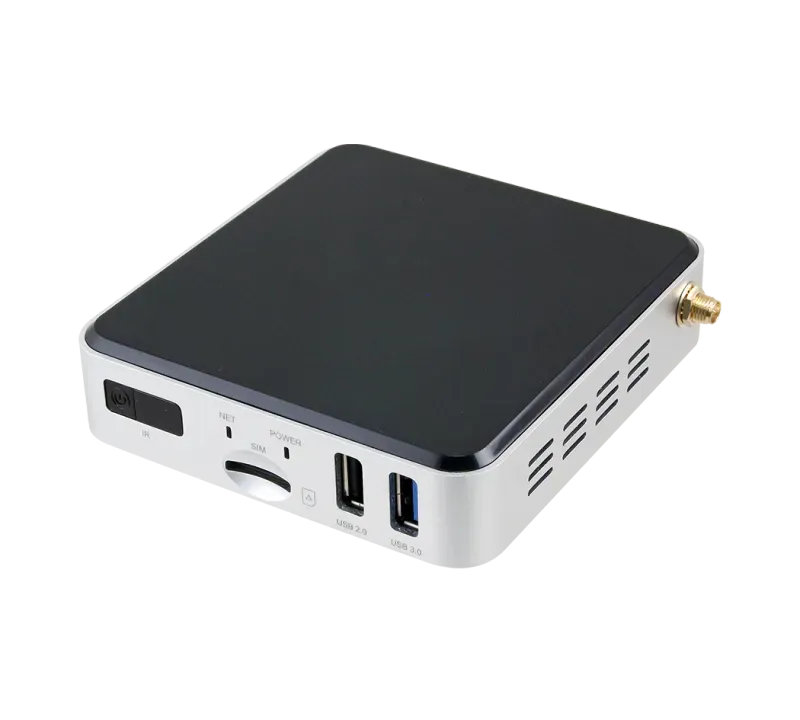

AIB-3566

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

Rockchip RK3566 Quad-core Cortex-A55 @ 1.8GHz
2GB / 4GB LPDDR4, 32GB / 64GB eMMC
4K HDMI output (60fps) + 4K HDMI input (30fps)
USB 3.0 host + USB 2.0 OTG
RS-232 or IR blaster / 3.5mm jack (selectable)
Gigabit Ethernet + dual-band Wi-Fi (2.4/5GHz)
Optional Mini-PCIe LTE (4G/3G) + Micro-SIM
CE / FCC Class B certified
Android 11, 106 x 100 x 25 mm, 258g

Product Description

The Avalue AIB-3566 is a compact ARM-based media system built on the Rockchip RK3566 quad-core Cortex-A55 SoC at 1.8GHz, with 2GB or 4GB LPDDR4 and 32GB/64GB eMMC storage.

Supporting 4K HDMI output and 4K HDMI input, it is a small, efficient platform for digital signage, media playback, and edge video applications running Android 11.

In a tidy 106 x 100 x 25 mm, 258g chassis, the AIB-3566 provides USB 3.0 host and USB 2.0 OTG, a flexible RS-232 / IR-blaster / 3.5mm option, Gigabit Ethernet, dual-band Wi-Fi, and an optional Mini-PCIe LTE slot with Micro-SIM for cellular connectivity.

CE/FCC Class B certification and a -5 to 55°C range make it a dependable, certified edge media node.

Technical Specifications

Processor

Rockchip RK3566 Quad-core ARM Cortex-A55 CPU @ 1.8GHz

System Memory

2GB/4GB LPDDR4 RAM

eMMC

32GB/64GB eMMC

USB Port

1x USB HOST 3.0

1x USB OTG 2.0

COM Port

RS232 or IR blaster 1x 3.5mm jack

(choose one of two, default RS232)

Display

1x HDMI out, resolution up to 4k 60fps

1x HDMI in, resolution up to 4k 30fps

Audio

HDMI audio out

Network

1x Ethernet RJ45,1000M

WI-FI

2.4G /5G dual-band Wifi 802.11 a/b/g/n/ac

4G/3G

1x Mini PCIE LTE (optional) +1x Micro SIM slot

DC Input Voltage

DC 12V/1.5A

OS

Android 11.0

Certification Information

CE, FCC Class B

Operating Temp.

-5~55℃

Storage Temp.

-10~60℃

Operating Humidity

0% ~ 90% Relative Humidity, Non-condensing

Dimension (W x L x H)

106 x 100 x 25 mm

Weight

258g

What is AIB-3566?

The AIB-3566 is a computing system manufactured by Avalue, designed specifically for arm-based-system applications. The Avalue AIB-3566 is a compact ARM-based media system built on the Rockchip RK3566 quad-core Cortex-A55 SoC at 1.8GHz, with 2GB or 4GB LPDDR4 and 32GB/64GB eMMC storage. Supporting 4K HDMI output and 4K HDMI input, it is a small, efficient platform for digital signage, media playback, and edge video applications running Android 11. In a tidy 106 x 100 x 25 mm, 258g chassis, the AIB-3566 provides USB 3.0 host and USB 2.0 OTG, a flexible RS-232 / IR-blaster / 3.5mm option, Gigabit Ethernet, dual-band Wi-Fi, and an optional Mini-PCIe LTE slot with Micro-SIM for cellular connectivity. CE/FCC Class B certification and a -5 to 55°C range make it a dependable, certified edge media node.

Key Features & Benefits

Rockchip RK3566 Quad-core Cortex-A55 @ 1.8GHz
2GB / 4GB LPDDR4, 32GB / 64GB eMMC
4K HDMI output (60fps) + 4K HDMI input (30fps)
USB 3.0 host + USB 2.0 OTG
RS-232 or IR blaster / 3.5mm jack (selectable)
Gigabit Ethernet + dual-band Wi-Fi (2.4/5GHz)
Optional Mini-PCIe LTE (4G/3G) + Micro-SIM
CE / FCC Class B certified
Android 11, 106 x 100 x 25 mm, 258g

Applications & Use Cases

The AIB-3566 is ideal for various industrial automation applications:

Wireless connectivity and remote monitoring applications
Legacy equipment integration and serial communication
Networked industrial systems and data communication
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Industrial computing and data processing
Digital signage and information display
Edge computing and IoT applications
